Large cracks in transmission crossmember

Discussion in '2nd Gen. Tacomas (2005-2015)' started by MonkeyProof, Dec 7, 2011.

  1. Dec 7, 2011 at 8:17 PM
    #1
    MonkeyProof

    MonkeyProof [OP] Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,559
    SoCal- SGV
    HBMurphy had mentioned his transmission crossmember being cracked so I went ahead and inspected mine.

    I found 3 large cracks and one small crack in the crossmember, I think it's time to replace before the cracks lead to a catastrophic failure.

    Driverside front of crossmember:
    [​IMG]
    Driverside back of crossmember:
    [​IMG]
    Passenger side front of crossmember:
    [​IMG]




    The bottom of my support brackets for the crossmember and the crossmember itself were pretty beat up from previous rockcrawling adventures. Looking at the condition, I felt some remorse and love all at the same time, knowing what we have been through. Poor thing lol.

    Passenger side:
    [​IMG]

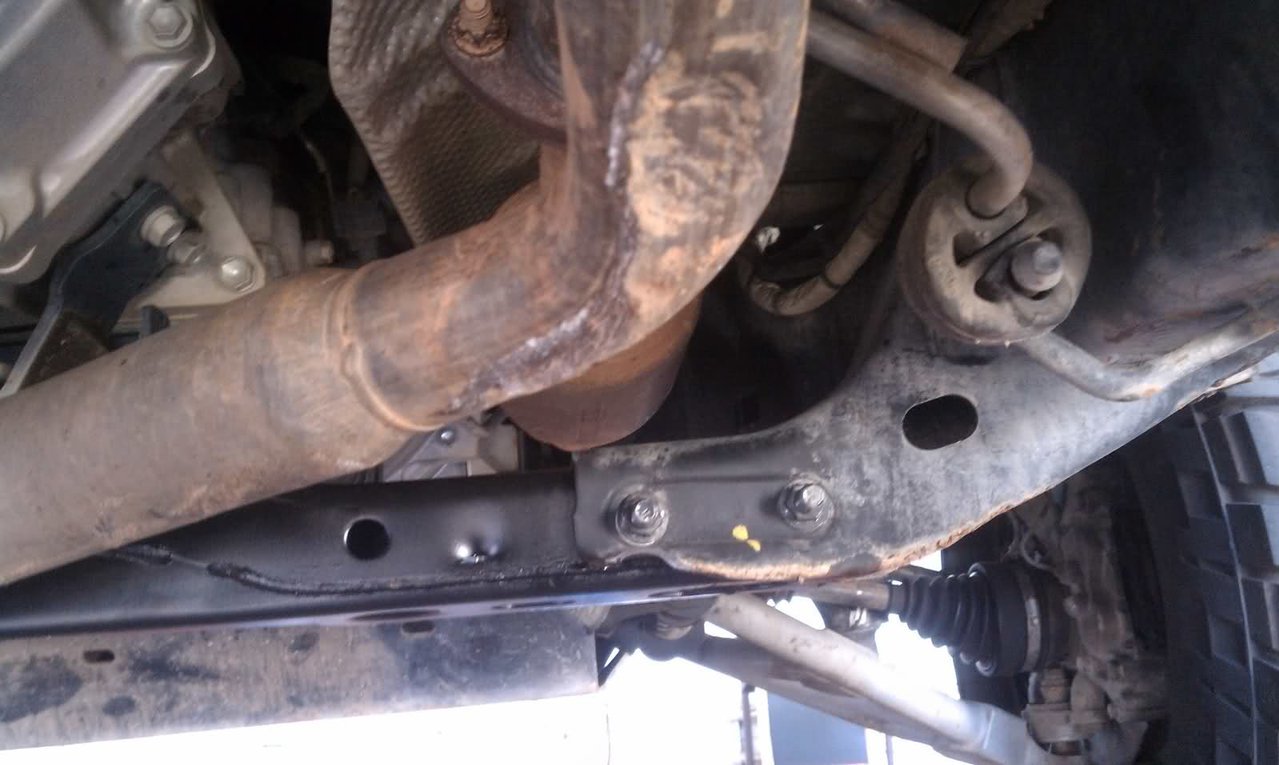

    Driverside:
    [​IMG]




    There was some excess material that had to be removed from the crossmember support bracket that was trying to wrap itself around the cross member. Without removing that excess there would have be no way to remove the crossmember. I used a mini sander and a mini cutoff wheel; air tools FTW!
    [​IMG]
    [​IMG]

    It's obvious that Toyota has changed the design a bit. Here's a comparison between the old and new crossmembers. The new version is fully boxed from end to end. Also, there is a continuous bead of weld from end to end on the front side which was not present on the old style.
    [​IMG]

    scocar and Crom like this.
  2. Dec 7, 2011 at 8:43 PM
    #2
    SiRMarlon

    SiRMarlon The Photo Ninja!

    Joined:
    Dec 26, 2008
    Member:
    #11913
    Messages:
    1,031
    Gender:
    Male
    First Name:
    Marlon
    Los Angeles
    Vehicle:
    Canon 5D MarkIII
    Damm that is crazy Tom...but when you think about it. You have beat the shit out of that truck! :D

  3. Dec 7, 2011 at 8:44 PM
    #3
    Yoytoda

    Yoytoda The Little Truck That Could

    Joined:
    Oct 2, 2009
    Member:
    #23690
    Messages:
    4,949
    Gender:
    Male
    First Name:
    Roland
    Big Bear,CA / Upstate NY(Saratoga)
    Vehicle:
    2010 Tacoma Regular Cab 4x4
    completely stock
    damn! By the looks of it, toyota realized theres a flaw in the original desing. im curious to soo what my 2010's looks like

    :popcorn:

  4. Dec 7, 2011 at 8:45 PM
    #4
    ETaco23

    ETaco23 Marshall offroad Fabrication

    Joined:
    Feb 2, 2008
    Member:
    #4544
    Messages:
    5,331
    Gender:
    Male
    First Name:
    Evan
    PNW
    Vehicle:
    13' Pyrite Mica TRD Offroad DCSB 4x4
    Color Match Grille, Bed mat, Icon's with JBA UCA's, Dakars and 295 BFG KO2, Bora 1" spacers, Snugtop Canopy, and my "Marshall Fabrication" Rock Sliders.
    Thats Crazy! what causes this to happen? Hard wheeling?
    Or is it just a defective part?

    Pics with it installed? :)

  5. Dec 7, 2011 at 8:47 PM
    #5
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    FWIW, the crossmember design changed in 2009. It caused a little hell and we had to do a little crossmember modifying with a plasma cutter to get my skid plates to install.

    On the plus side, it looks like I've dodged the crack bullet.

    Continued shitty Dana frame designs, followed by revisions after durability QA.

  6. Dec 7, 2011 at 8:47 PM
    #6
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    18,604
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    ugh, now i have to go check mine tomorrow. and it's coverd by a skid plate which is gonna be a pita.

    do you have any idea what year they changed the crossmember design? i know mine's the old style, jsut curious what year truck to look for to yank one off of.

    Edit: question answered before it was asked. appreciate sir andrews.

  7. Dec 7, 2011 at 8:57 PM
    #7
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,090
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    Nice Job Tom!!! I still need to do something about mine. :)

  8. Dec 7, 2011 at 9:01 PM
    #8
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,880
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    80 series LC
    Too many
    drill weld plate ?

  9. Dec 7, 2011 at 9:02 PM
    #9
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,090
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    I think the new cross member looks better! :) lol :D

  10. Dec 7, 2011 at 9:04 PM
    #10
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    25,178
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Bumper, CBI Sliders, Icon Coilovers, BudBuilt Skids, aFe Intake, Icon VS Rear Shocks, Timbren Bumpstops, All-Pro UCAs, JDM Steering Wheel, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps
    All current Toyota ladder frames (2nd Gen. Taco, 4Runner, Tundra...) are designed by Hino, which makes commercial trucks but has little off-road experience.

    At least Toyota is making the revisions. Other companies (except for maybe Jeep) would probably relegate this to "off-pavement abuse" and never bother with it.

  11. Dec 7, 2011 at 9:04 PM
    #11
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,090
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    I've felt that!!! :)

  12. Dec 7, 2011 at 9:06 PM
    #12
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,090
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    Too bad the bottoms of our trucks don't look like the 2012 baja race truck...

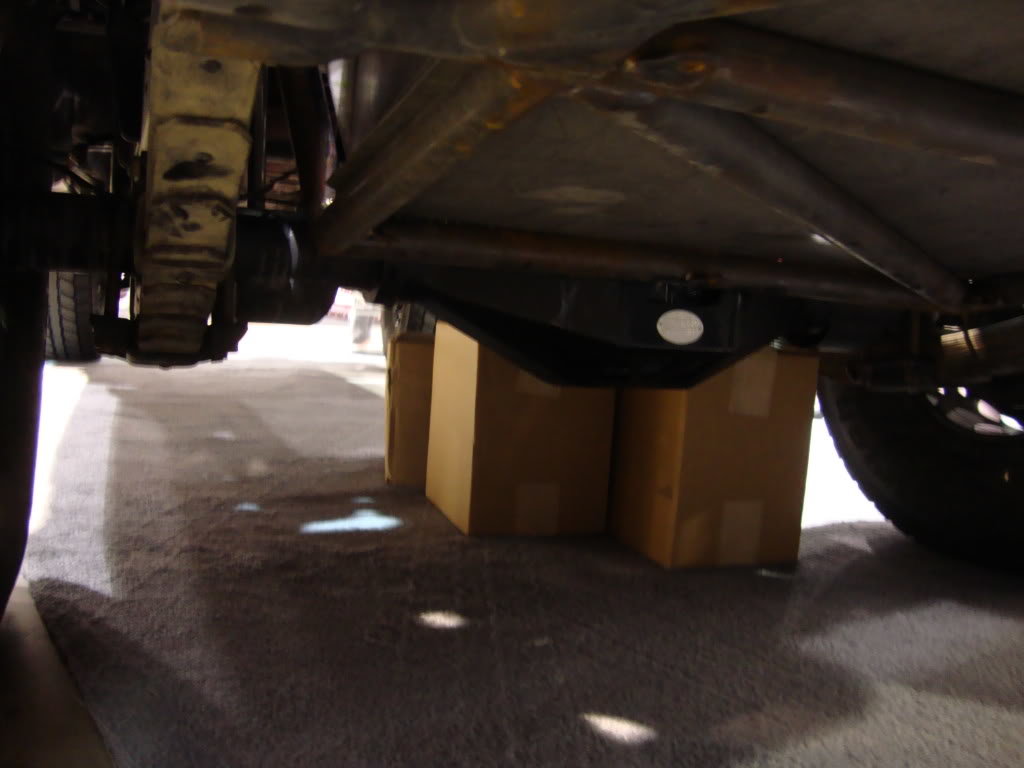

    [​IMG]

  13. Dec 7, 2011 at 9:33 PM
    #13
    MonkeyProof

    MonkeyProof [OP] Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,559
    SoCal- SGV
    i think the main reason is a poor design. but my wheeling habits played a role into the cracks as well.

    on the old cross member you can see the cracks started at the beginning of each weld bead. i think that created a stress riser. plus, the cross member was not fully boxed from end to end.




    [​IMG]

  14. Dec 7, 2011 at 9:37 PM
    #14
    MonkeyProof

    MonkeyProof [OP] Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,559
    SoCal- SGV
    after seeing it i didn't even bother to think about adding gussets like i had planned

  15. Dec 8, 2011 at 3:33 AM
    #15
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    So how much does a new crossmember cost?

  16. Dec 8, 2011 at 3:55 AM
    #16
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    11,945
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I'd have to go 50/50 on this one. Looks like underengineered part failure due to a bit too much fun. How many of these are failing without aggressive offroading, rock crawling and sky king air sessions? Betting it's more of a 6cyl thing vs 4 cyl thing too like the engine mount brackets caving in on the frames when actually doing things like on the commercials they use to sell the things to begin with. Still, depending on price I might be interested in one anyway, even though my 4 cyl isn't doing much if any stuff to have problem.

  17. Dec 8, 2011 at 4:15 AM
    #17
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    543
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Nice job! I will check my truck tomorrow. It looks like you use your truck for more than getting groceries!

  18. Dec 8, 2011 at 4:28 AM
    #18
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat

    From what I understand, they're Dana built. Toyota design and Dana built? In that case, shitty Toyota designs followed by revisions after...etc. etc.

  19. Dec 8, 2011 at 7:20 AM
    #19
    Wildhorse1966

    Wildhorse1966 Active Member

    Joined:
    Sep 27, 2010
    Member:
    #43920
    Messages:
    29
    Gender:
    Male
    this woudnt have happened if you had ATRAC

  20. Dec 8, 2011 at 7:53 AM
    #20
    Brandon H

    Brandon H Well-Known Member

    Joined:
    Jan 5, 2009
    Member:
    #12273
    Messages:
    1,435
    Gender:
    Male
    Newhall, CA
    Vehicle:
    07 DC Offroad
    FUlly Locked, Icon Extended Travel CO's w/ remote resis., Alcan AAL's,Icon Remote Resi Rear Shocks, All Pro Front bumper w/ warn 9.5xp,winchline synthetic winch cable,All Pro IFS Skid plate, OME Shims, OME Carrier Bearing drop, Trail Gear Sliders, Yakima Load Warrior Basket, OEM Roof Rack, Hi Lift Extreme, Cobra model 19, Wilson Lil Wil Antenna, Yaesu ft-7800
    I agree. A-Trac would have kept your old crossmember looking like brand new!!
