Lazy mans, Fog Light On Anytime Mod

Discussion in 'Lighting' started by armyofsquirrels, Feb 21, 2013.

  1. Feb 21, 2013 at 1:01 PM
    #1
    armyofsquirrels

    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    1,807
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2012 Tacoma SR5, 5Spd
    B.A.M.F. Sliders.
    Not sure if anyone else has taken this approach to the fog light mod. Basically I tied them into the parking lights. No need for drill/installing a switch or running wires through the fire wall or any of that "effort".

    I have just standard bulbs NOT HIDS. I have the 4cly SR5 and didn't have the relay/wiring pre installed like the V6 seems to.

    They stay on through all the light cycles, and turn off when you turn out your lights.

    [​IMG]

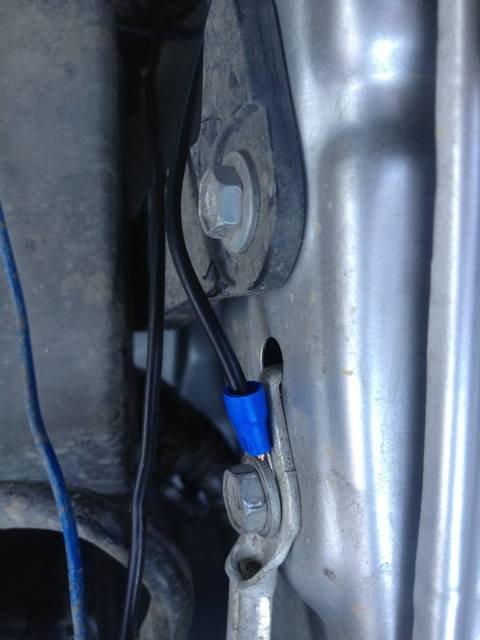

    Tapped the ground next to the battery

    [​IMG]

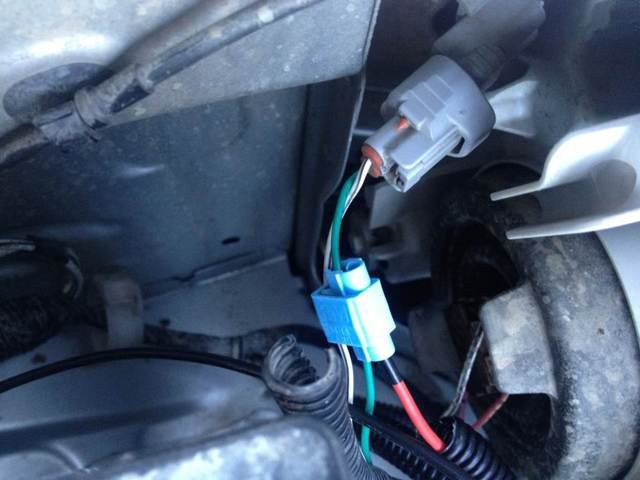

    I'm sure this isn't the best way but it works.

    [​IMG]

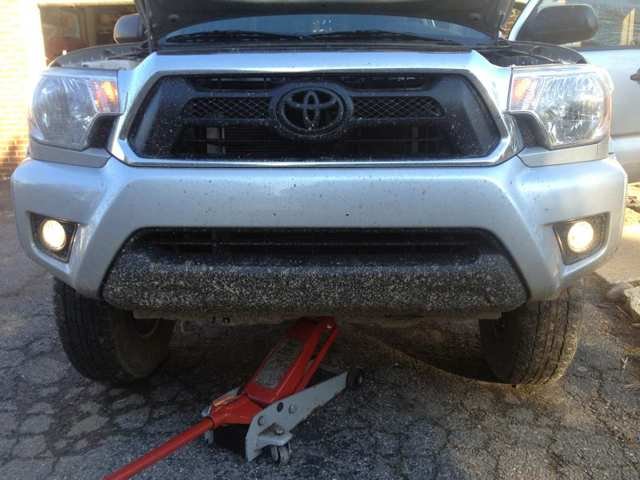

    Fogs with parking lights

    [​IMG]

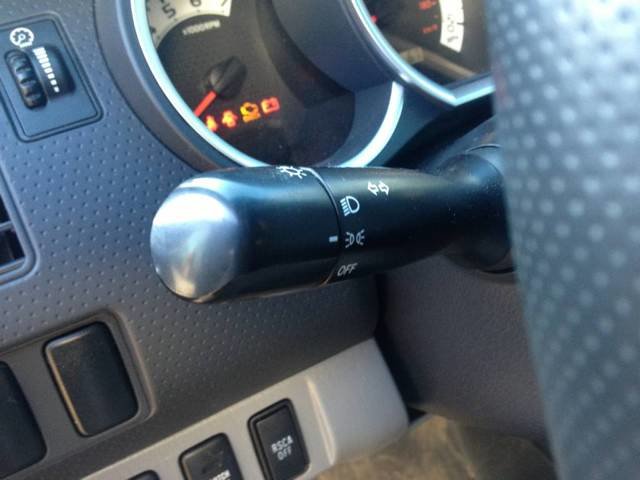

    Light switch

    [​IMG]

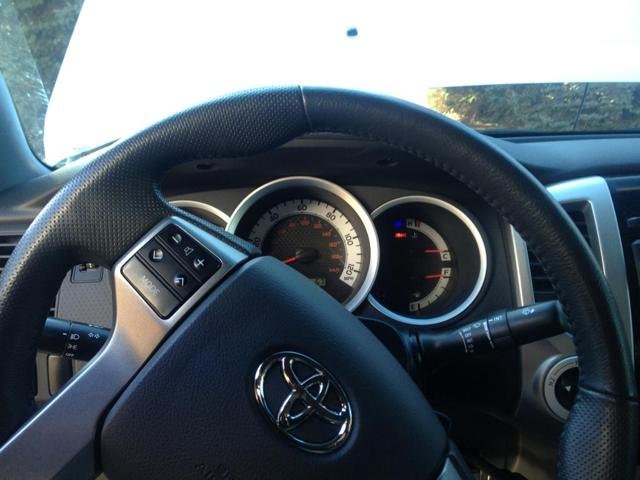

    Showing that the Highbeams are on

    [​IMG]

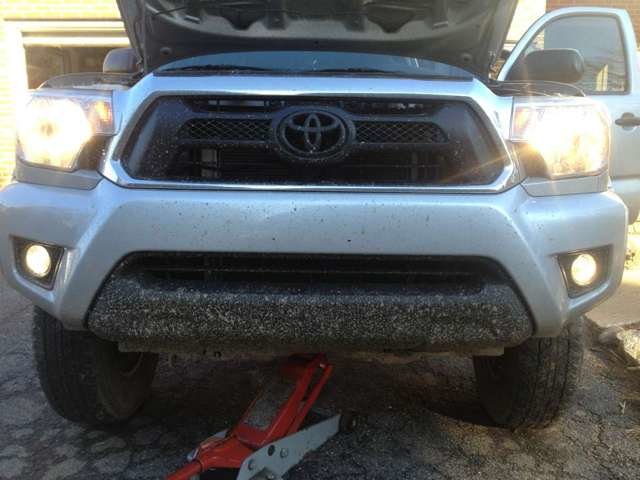

    Highbeams and fogs

    Thanks leave your interesting or creative comments in the comment section beeeeelllllloooowwww. Haha

    Last edited: Feb 21, 2013
  2. Mar 18, 2013 at 6:46 PM
    #2
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
    Looks like a good idea. I personally try to never use those crimp connectors unless its just temporary until I solder up the connection.

  3. Mar 19, 2013 at 8:43 AM
    #3
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    485
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    So you've added a 15A fog circuit to the 10A Tail circuit?

    Folks don't replicate....

    Do add a fused relay circuit to your fogs and use the tail tap as activation of fog relay coil and your good to go.
    Battery-fuse-Relay pin 30 (+)
    pin 87 to fog lights (+)
    pin 85 to chassis ground (-)
    pin 86 from Tail Light circuit tap (+)

  4. Mar 19, 2013 at 9:13 AM
    #4
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,792
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    x2! Your approach is all sorts of messed up. If you have existing fogs, all you had to do was tap the green wire (marker light power wire) and run that to the fog light relay (bend the tab out on the relay, connect the wire, reinstall relay and done). That way the fog light are still being powered off their own fuse, not jumping off the marker light fuse. It's your truck, but what you've done is generally bad practice.

    Also, I second not using those vampire clips. Solder and heat shrink FTW :cool:

  5. Mar 19, 2013 at 8:16 PM
    #5
    Ronn

    Ronn Well-Known Member

    Joined:
    Oct 5, 2010
    Member:
    #44253
    Messages:
    201
    Gender:
    Male
    First Name:
    Ron
    Northern Ontario
    Vehicle:
    2007 DCLB 4x4 SR5
    Westin bullbar, KC slimlites, Mini D2S headlight retrofit, 5100 front @ 1.75 and 5100 rear, Wheelers HD leaf pack
    OP you're overloading the circuit to the marker lights, which is asking for trouble. You can fix this in about 5 minutes by adding in a relay as mentioned above.

  6. Mar 20, 2013 at 5:15 AM
    #6
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,792
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    If you have factory fogs, you don't even need to add a relay. Just run the marker light wire to the existing fog light relay.

  7. Mar 20, 2013 at 12:25 PM
    #7
    Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    11,633
    Gender:
    Male
    x3

  8. Mar 20, 2013 at 4:24 PM
    #8
    Justus

    Justus resident Apple Pie Monster

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,734
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    Another vote for relay.....its just safer

  9. Mar 20, 2013 at 8:28 PM
    #9
    armyofsquirrels

    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    1,807
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2012 Tacoma SR5, 5Spd
    B.A.M.F. Sliders.
    Nope didn't have factory fogs, so no luck with the relay. Wouldn't it just trip the fuse if something goes wrong?

  10. Mar 23, 2013 at 10:33 AM
    #10
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,066
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    I'm kind of surprised you haven't blown a fuse. With the small gauge wire feeding the parking lights, that actually scares me quite a bit.

    Yes, in theory you should blow a fuse before melting any wiring, but you are WAY over the amount of power that should be drawn through the tail/parking circuit.

    Go get a relay kit from NAPA or Kragen or any decent auto parts store. It's going to come with a relay, switch, and wiring. Most are for a pair of 55W lights. You just don't use the switch. Instead, tap that wire into the parking circuit. That way you have the same function you have right now with your method AND you won't burn down your new truck.

  11. Mar 23, 2013 at 10:45 AM
    #11
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    580
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    As everyone has stated... The relay+fuse is the way to go! If you dont do it, with the time it will cause you a problem that will take more than 5 minutes... That circuit is overloaded!
