Leaking upper injector o-ring - right bank Cyl #3.

Discussion in '1st Gen. Tacomas (1995-2004)' started by CS_AR, Oct 26, 2019.

  1. Oct 26, 2019 at 8:02 AM
    #1
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    Roughly one week after changing the fuel pump, I developed an upper o-ring leak on the #3 injector.

    It must have been weak when increased pressure from the new pump pushed it over the edge.

    Its not a huge leak. But I'm going stop driving it until I can take care of it. I just installed new injectors last summer. I mounted the rail to the lower intake manifold (LIM) and pressure tested injectors for leaks before installation. This leak appeared in the past week.

    My question is, has anyone removed only the right side rail (e.g. the one that that is not completely under the upper intake manifold) to gain access to right bank injectors?

    New crush washers have been ordered for the rail. I'm looking around for o-ring replacements.

    I know that I will need a torque adapter like one of the ones in this link to work on the rail while the LIM is still on the engine.

    https://www.mactools.com/en-us/Wren...9c05/3-8-Drive-Metric-Box-End-Torque-Adapters

    Other than me noticing the o-ring leak, it runs great.

    Last edited: Nov 5, 2019
    cruiserguy likes this.
  2. Oct 27, 2019 at 1:56 PM
    #2
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,069
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Not sure on the answer for your question about being able to remove just that rail but just wanted to keep the thread up top until one of our 5VZ studs can see it and respond

    CS_AR [OP] likes this.
  3. Oct 27, 2019 at 2:30 PM
    #3
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    Thanks Bud.

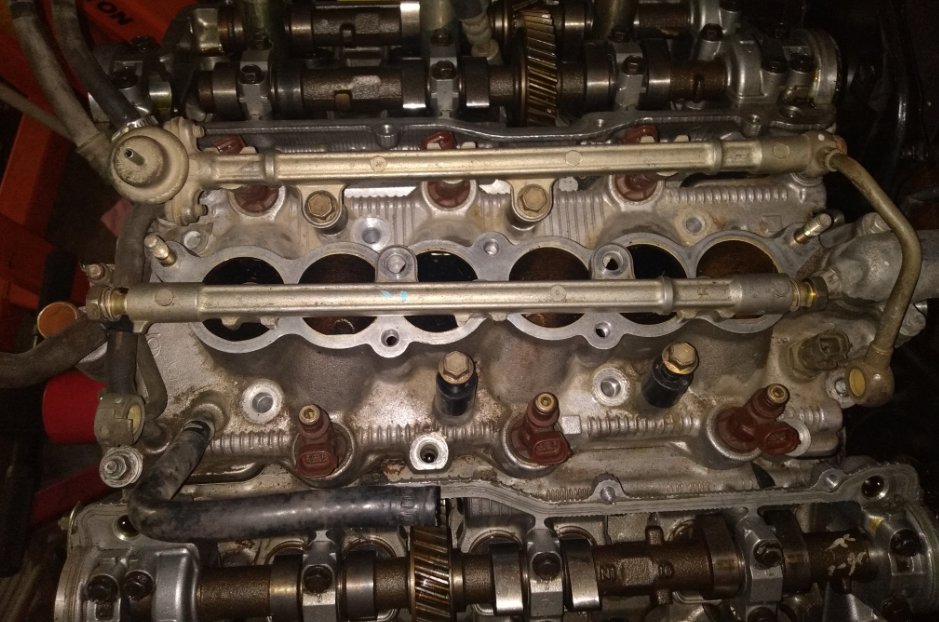

    I pulled the right rail off the old engine that I have in the garage without disturbing the left side. It looks doable. The banjo bolt crush washers on order so it will be a few days before I have parts and time to get into it.

    If get into and see that it will not work, I can always pull the UIM and both rails at the same time.


    Last edited: Oct 27, 2019
    jammer and cruiserguy like this.
  4. Nov 1, 2019 at 1:51 PM
    #4
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410

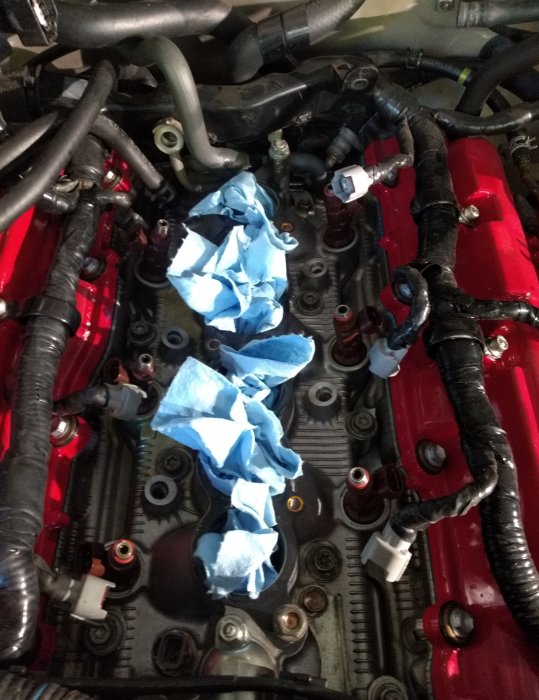

    Found pulled the intake and the injector rail. Yep, the #3 injector o-ring had an issue. When I pulled the rail, it stayed in the rail and separated from the injector.

    Due to problems with MAC tools order fulfillment, I will not be able to receive the 3/8 drive 17mm offset torque box end.

    I need to find a way to torque the 17mm banjo bolts without an offset box end for torque.

    If I can't find a way, then I guess I'll just be winging it with a crow's foot.


    Last edited: Nov 5, 2019
  5. Nov 3, 2019 at 5:16 AM
    #5
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410

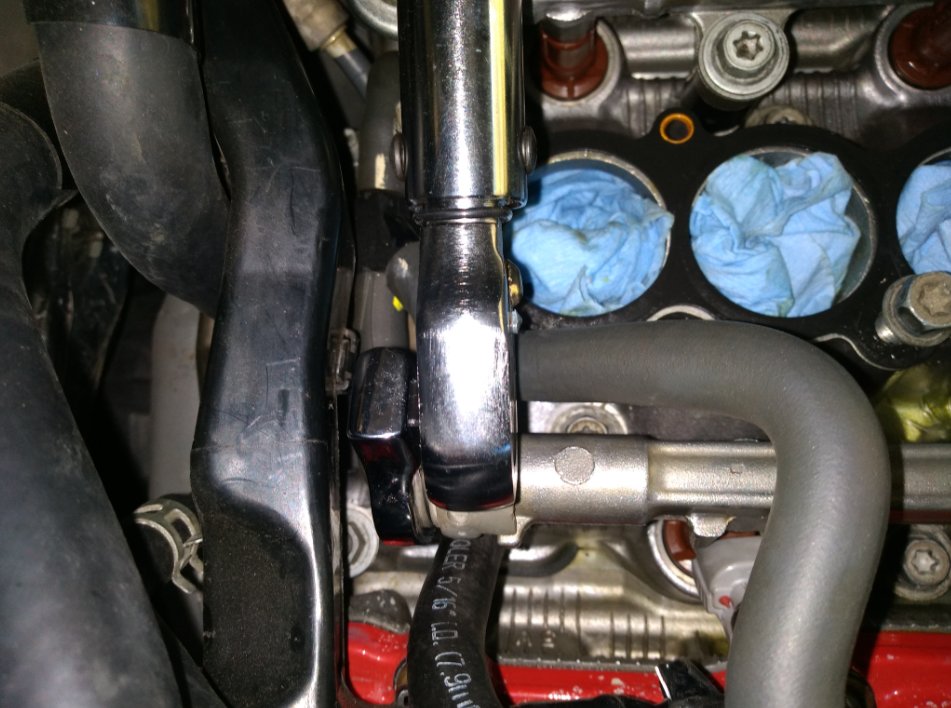

    For torquing the banjo bolts, I used a Harbor Freight 3/8 drive 17mm crows foot with a 3/8 drive torque wrench.

    It takes six crush washers P/N 90430-12026 for reinstalling the fuel rail. Put the torque wrench in reverse for torquing the rear banjo bolt.

    Be sure to have the rails properly mounted and secured before torquing up the banjo bolts. I should have moved the hoses out of the way for the picture.

    I wanted to buy a high quality 17mm box end torque offset wrench. It was just not going to happen in any reasonable amount of time.

    Overall, I think the HF crows foot open end may have been easier to use. As you can see in the picture, it slides into the tight space for the rear banjo bolt.

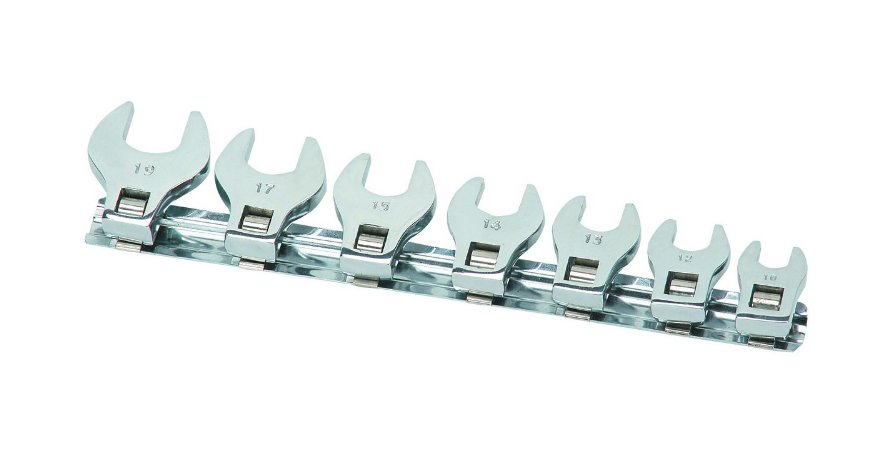

    https://www.harborfreight.com/7-piece-3-8-eighth-inch-crowfoot-metric-wrench-set-94427.html



    Last edited: Nov 5, 2019
    underaroof and BassAckwards like this.
  6. Nov 3, 2019 at 5:53 AM
    #6
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 670k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,802
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 670,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Did you put in new o rings gaskets when you sent out the injectors to be cleaned? Originally

    Or was that o ring possibly defective or old?

    CS_AR [OP] likes this.
  7. Nov 3, 2019 at 6:41 AM
    #7
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410

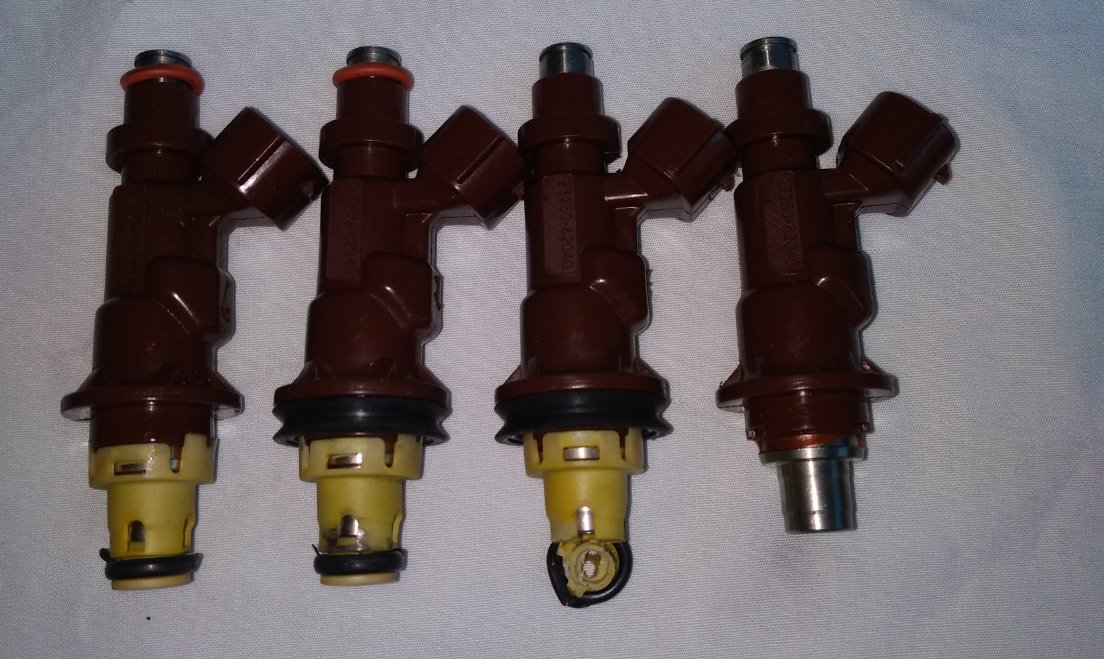

    This started out with all new injectors. Four were purchased from Amazon and found to be counterfeit. I suspected problems from the (set of six) injectors before I the initial installation. So sent them out for testing. Two of the counterfeits came back as under-performers. At that point, I should have pitched the entire set of counterfeit injectors.

    So I didn't use the two under-performers and bought two new Intermotor FJ585s (the usual reboxed OEM) that performed without issue. After 1,500 miles you can see the pintle caps are deformed on the counterfeits. One cap that melted was stuck in the intake manifold. I had to pick it out using suction from a shop vac. As you can see from the close up picture, it looks like the pintle caps started melting. With part of the injector changing shape, the o-rings started failing. It was just a mess.

    I plan to write a story on how to identify counterfeits, the problems that come with them, and known sources for new replacements. I need install some software to clear up the pictures and time to write about it.


    After all said and done, it runs better than it ever did with a complete set of new FJ585s.

    https://youtu.be/MtFbMO6CoZs

    Last edited: Nov 5, 2019
  8. Nov 3, 2019 at 6:46 AM
    #8
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 670k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,802
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 670,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Was there a particular reason to NOT have the OEM original set just sent out to be serviced?

    Next time I rebuild my supercharger I probably will take my injectors out to be serviced.
    So looking ahead for me as what to do and not to do.

    CS_AR [OP] likes this.
  9. Nov 3, 2019 at 7:00 AM
    #9
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    The originals in the truck were over 20 years old and had over 225,000 miles. Injector servicing is ok, though it does not replace old the old coils. You get clean injectors with new screens, o-rings, and pintle caps.

    Having lived through and seen coil failures on old injectors with high mileage, I just wanted to just start with some new coils. Nothing more, nothing less.

    1997tacomav6 likes this.
  10. Nov 3, 2019 at 7:07 AM
    #10
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 670k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,802
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 670,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Ok great, I’ve never had an injection issue before with my Tacoma with all my miles, but will definitely get them serviced anyways next go around or bit the bullet and get OEM ones

    Last edited: Nov 3, 2019
  11. Nov 3, 2019 at 7:18 AM
    #11
    Catcrazed

    Catcrazed Love is Dogs and Toyotas

    Joined:
    May 12, 2011
    Member:
    #56529
    Messages:
    1,783
    Gender:
    Male
    First Name:
    Bryan
    Central Oregon
    Vehicle:
    3rd Gen Flatbed 3.4
    91 Flatbed, 4.88's, ARBs, SAS, 3.4 Swap, 35s, M8000, lots lights, Aux tank, Protech
    Where is a reputable source for the FJ585s?

    CS_AR [OP] likes this.
  12. Nov 3, 2019 at 8:16 AM
    #12
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    RockAuto - because I've bought so much from them over the years and the price is decent. There are other places that will sell them cheaper. Then you get into older "sub prime" inventory that has been depreciated and sold off for cheap. Sometimes the plastic bags are yellowed for older inventory.

    Pricing varies greatly for FJ585s depending on the store. For example, Advance and O"Reilly sells them for roughly $139 each.

    RockAuto for roughly $80. Others have them in the $55 range -- but you need to be careful on the source.

    O'Reilly

    https://www.oreillyauto.com/detail/...fuel-injector-new/fj585/6010828?q=FJ585&pos=0

    Advance Auto

    https://shop.advanceautoparts.com/p/intermotor-fuel-injector-mfi-new-67248/20960207-P

    Rock Auto

    https://www.rockauto.com/en/moreinfo.php?pk=881747&jsn=1666&jsn=1666

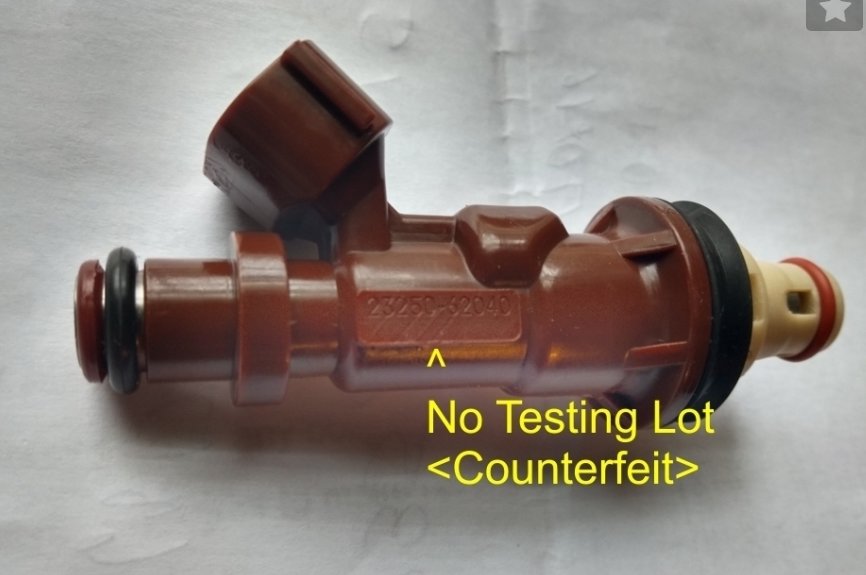

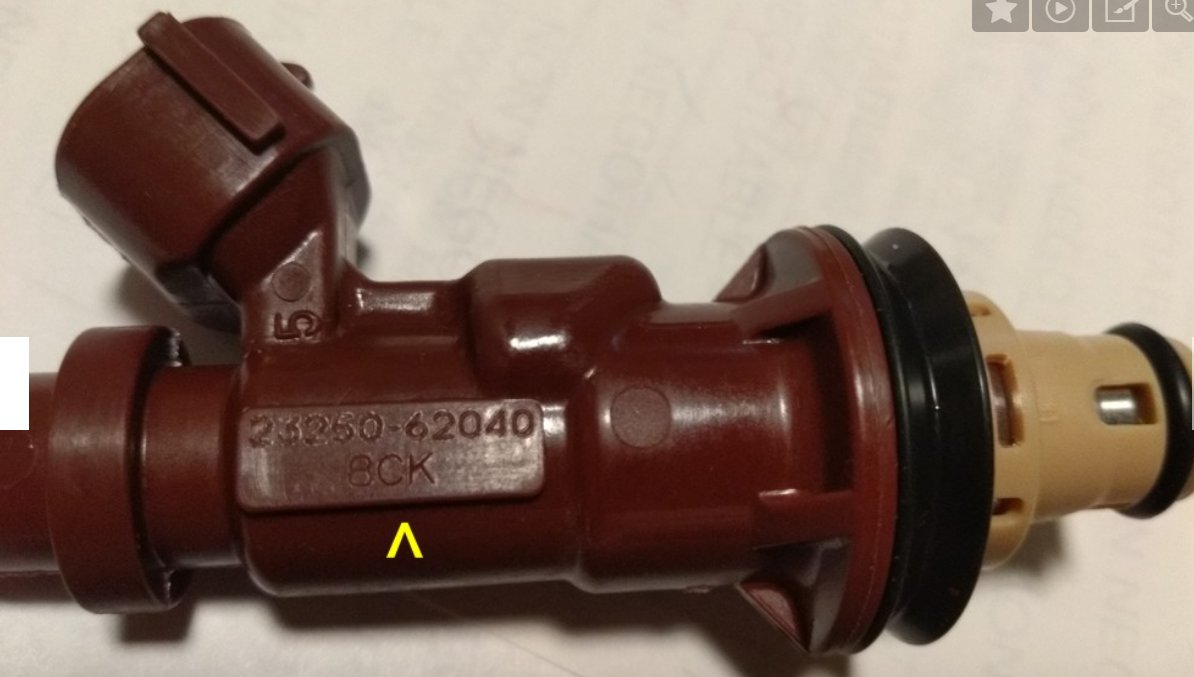

    Like OEM injectors there is a testing lot number etched into the side under the part number like the picture below. I found counterfeits without that number.


    Here's a counterfeit example.


    underaroof likes this.
  13. Nov 3, 2019 at 8:42 AM
    #13
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,765
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    When I torqued the rear banjo bolt on the passenger side I had to separate the plastic wiring harness from the engine to allow room for the torque wrench. Even then it was a tricky proposition. Don't recall why, but I had to position the wrench almost straight up and then I only had a small torquing arc.

    I bought a torque wrench from O'Reilly. Bad idea! It was good enough for two torque instances but after that it would over-torque bolts. (I returned the wrench and got my $$ back.)

    Good work! Nice photos!

    CS_AR [OP] likes this.
  14. Nov 3, 2019 at 8:49 AM
    #14
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    Yes indeed. Thank you. Yep, I had to loosen the plastic harness to make room. I had the rear fuel line loose from its swing mount to give a little more working room also. I've had that same thing happen with HF torque wrenches.

  15. Nov 3, 2019 at 8:54 AM
    #15
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,765
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
  16. Nov 3, 2019 at 9:20 AM
    #16
    CS_AR

    CS_AR [OP] Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,707
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    One final note about injector coils: A reputable injector service company like Witchhunter and MrInjector will let people know about coils and problems that come with some of the older injectors before they perform a service. I can tell you these articles are good info.

    https://www.witchhunter.com/probleminj1.php

    http://www.mrinjector.us/problem-injectors.html

    This company will give it to you straight about the remanufactured injector myth.

    Can a Fuel Injector be Rebuilt, Reconditioned or Refurbished?

    Almost all gasoline based fuel injectors are sealed units. The term: remanufactured, rebuilt, reconditioned and or refurbished fuel injectors are misleading and a myth when it comes to fuel injector service.

    Read more at the following link.

    https://www.injectorrx.com/faq-items/can-a-fuel-injector-be-rebuild-reconditioned-or-refurbished/

    Last edited: Nov 5, 2019
    jammer and cruiserguy like this.
  17. Nov 3, 2019 at 9:35 AM
    #17
    Timmah!

    Timmah! Well-Known Member

    Joined:
    Feb 25, 2016
    Member:
    #179385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    TIM
    Try Motorwest Performance:https://motorwestperformance.com Martin Diaz is the owner. I visited this shop when I was in Los Angeles visiting a friend. Martin is a good dude and his prices are fair. Tell him Timmy the Toolman sent you.

    For those that find this thread and are looking for help swapping out injectors on their 3.4 liter engine, here's a video you can use to help you with the job.

    https://www.youtube.com/embed/N-lhZIWOkyU

    04Pre_Runner likes this.
  18. Nov 4, 2019 at 7:18 AM
    #18
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,765
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    That's where I bought my rebuilt injectors for my 1998... Good price, no problems with the injectors, knowledgeable personnel. And fast delivery! However, it will be awhile before I can say that rebuilts last. I only have 100k miles on the truck, and I replaced them about 1000 miles ago.
