Led bar wiring

Discussion in '2nd Gen. Tacomas' started by Buffalo Taco, Apr 17, 2013.

  1. Buffalo Taco

    Buffalo Taco [OP] New Member

    Joined:
    Jan 10, 2012
    Member:
    #70359
    Messages:
    4
    Gender:
    Male
    First Name:
    Evan
    Columbia SC
    Vehicle:
    2008 4 Door trd rwd
    Hello,

    I have a 2008 crew cab tacoma. I bought a 14 inch led bar that i would like to put on the outside of the grille. What wiring should I buy? i would also like to put and On/Off switch where the 4x4 switch is (mine is only 2wd). Suggestions?

    Evan

  2. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,668
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Go buy some wire, 14 gauge would be plenty think enough, I'd look at OTRATTW.com for an on/off/on switch, automotive relay from any autoparts store, an in-line fuse and possibly an add-a-circuit depending on how you want it to function. What are your plans with the on/off/on switch? They are a little more involved to wire up but not terrible.

    Last edited: Apr 17, 2013
  3. Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    11,387
    Gender:
    Male

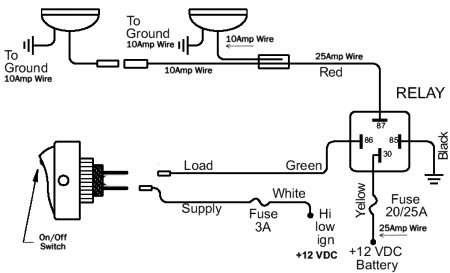

    Here is how to wire them up. You'll only have the one light, not the two but same concept.

    [​IMG]

  4. DR007

    DR007 Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #90963
    Messages:
    637
    Gender:
    Male
    First Name:
    Dylan
    Port Barre, LA
    Vehicle:
    '06 DCSB PreRunner
    MagnaFlow exhaust, K&N cold air intake, MB TKO wheels with 265/75/r16 Hankook Dynapro ATM, Blue Center shift LED color change, Map Lights with Dome, LED Map and Dome lights, Cluster Light Change, DTRL, Parking Light as Blinker, Blue A/C Control lights, Blue Clock, Bed Lights, Debadged tailgate, painted all exterior plastic trim, 6LZ Lightbars in grille, OTRATTW switches, Fog Light in Reverse light Mod, LED Blinkers all around, Projector Fog Lights, 15" blitzpro light bar, added hidden cig lighter port, custom plate front bumper, OME complete lift with 885 front coils, Ultraguage, CB radio 3' whips, 12v bed lighter port, Center Console Lights, AllProOffroad Sliders, 50" roof led light bar, 2 BlitzPro 6LZ Reverse Lights
    Good info Pugga and thanks for the pic to put it in perspective Aw9d. I'm fixing to do the same setup and this just told me I had the right idea.

  5. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,668
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Get a 4x4 and you won't have to worry about what to put in that space :boink:

  6. Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    11,387
    Gender:
    Male
    That's what she said.

  7. cooktaco

    cooktaco Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60131
    Messages:
    167
    Gender:
    Male
    Northern California
    Vehicle:
    11 Dbl. cab TRD 4x4
    Weahertecs, Bed met, Snugtop, Avid sliders, TSB Springs, Bilstein 5100's @1.75,

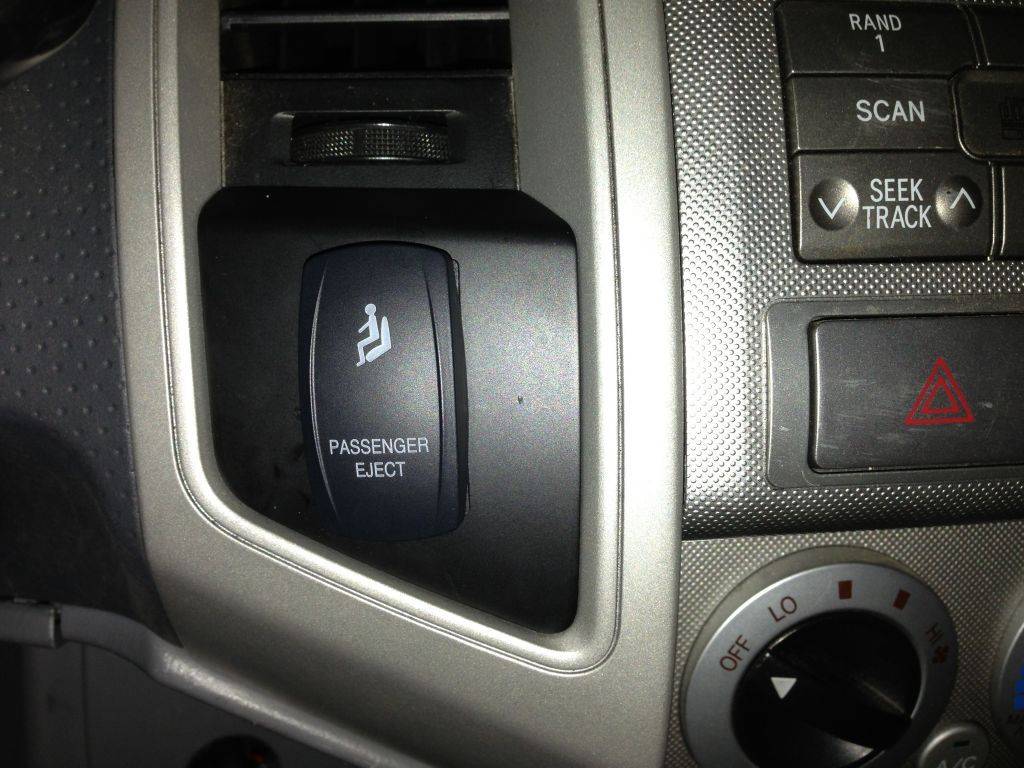

    I'll see your passenger ejection switch and raise you a sasquatch:)

    [​IMG]

  8. dragonle87

    dragonle87 Active Member

    Joined:
    Nov 21, 2011
    Member:
    #67492
    Messages:
    34
    Gender:
    Male
    Atlanta, GA
    Vehicle:
    '13 DCLB TRD Sport

    where do you get your switches from?

  9. DR007

    DR007 Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #90963
    Messages:
    637
    Gender:
    Male
    First Name:
    Dylan
    Port Barre, LA
    Vehicle:
    '06 DCSB PreRunner
    MagnaFlow exhaust, K&N cold air intake, MB TKO wheels with 265/75/r16 Hankook Dynapro ATM, Blue Center shift LED color change, Map Lights with Dome, LED Map and Dome lights, Cluster Light Change, DTRL, Parking Light as Blinker, Blue A/C Control lights, Blue Clock, Bed Lights, Debadged tailgate, painted all exterior plastic trim, 6LZ Lightbars in grille, OTRATTW switches, Fog Light in Reverse light Mod, LED Blinkers all around, Projector Fog Lights, 15" blitzpro light bar, added hidden cig lighter port, custom plate front bumper, OME complete lift with 885 front coils, Ultraguage, CB radio 3' whips, 12v bed lighter port, Center Console Lights, AllProOffroad Sliders, 50" roof led light bar, 2 BlitzPro 6LZ Reverse Lights
    It's from http://www.otrattw.com/index.php

    I wired up and installed my lights using the diagrams..
    [​IMG]
    [​IMG] The Top picture is just the light bars on and the bottom is all my front lights
