    Quick Links: Transfer case fluid option? Black Tow Hitch Pin/Lock Dash Illimunation Dimming Harness - Auxiliary Switches Yakima Truck Mount PTS08-34070 Do BOLT Locks For Tool Boxes Work With The Tailgate Key? Fox 2.0 Snap Ring Coil-over, setting for 2” lift

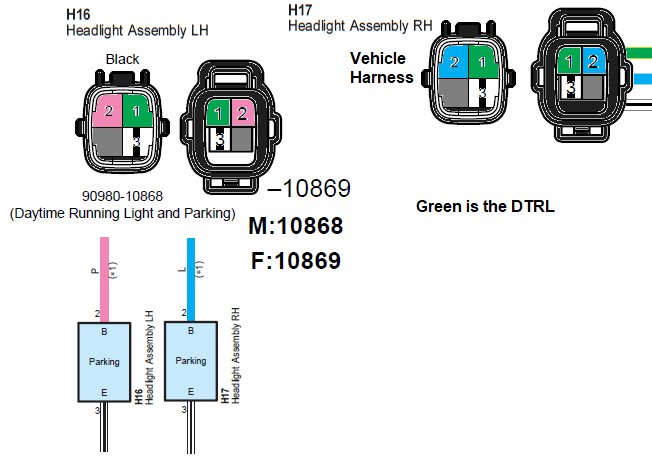

LED DRL pin-out?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Puppypunter, Sep 21, 2020.

  1. Sep 21, 2020 at 6:55 PM
    #1
    Puppypunter

    #1
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I know @caribe makaira would have this, but figured maybe someone might beat him to it? Does anyone know the pin out on the factory LED DRL (for the OR, sports, and such...) and a part number on the connector?

    Puppypunter, Sep 21, 2020
    #1
    oyemengitsamie likes this.
  2. Sep 21, 2020 at 7:02 PM
    #2
    caribe makaira

    #2
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Sep 21, 2020
    #2
  3. Sep 21, 2020 at 7:06 PM
    #3
    Puppypunter

    #3
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    @caribe makaira for the win! I was foolish for even thinking there would be a contender :thumbsup:

    Caribe, do you happen to have the pin-out and part for the turn signal on those as well?

    Puppypunter, Sep 21, 2020
    #3
  4. Sep 21, 2020 at 7:46 PM
    #4
    caribe makaira

    #4
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    "Those" do not have turn signal input...

    caribe makaira, Sep 21, 2020
    #4
  5. Sep 21, 2020 at 7:49 PM
    #5
    Puppypunter

    #5
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    The headlights, not the DRL. Don't the headlights still use an amber incandescent? I am assuming a 7440?

    Puppypunter, Sep 21, 2020
    #5
  6. Sep 21, 2020 at 7:52 PM
    #6
    Puppypunter

    #6
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Also, parking in this case is the dimmed DRL, correct?

    Puppypunter, Sep 21, 2020
    #6
  7. Sep 21, 2020 at 7:52 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

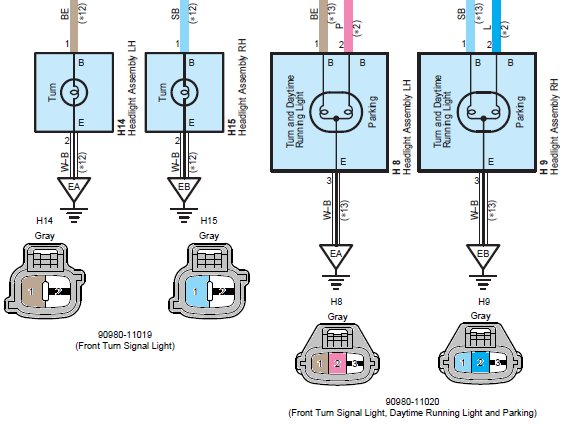

    Yes, SR/SR5 use 2 filament type the Higher end use one filament type


    caribe makaira, Sep 21, 2020
    #7
  8. Sep 21, 2020 at 7:54 PM
    #8
    caribe makaira

    #8
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Correct, do not forget the marker lamps on the ends off the headlamps also.(parking)

    caribe makaira, Sep 21, 2020
    #8
  9. Sep 21, 2020 at 7:57 PM
    #9
    Puppypunter

    #9
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    So left is higher end, and right is SR/SR5?

    Puppypunter, Sep 21, 2020
    #9
  10. Sep 21, 2020 at 8:01 PM
    #10
    caribe makaira

    #10
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes

    caribe makaira, Sep 21, 2020
    #10
  11. Sep 21, 2020 at 8:04 PM
    #11
    Puppypunter

    #11
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Puppypunter, Sep 21, 2020
    #11
  12. Sep 21, 2020 at 8:07 PM
    #12
    caribe makaira

    #12
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup::hattip:

    caribe makaira, Sep 21, 2020
    #12
