LED ground lighting

Discussion in 'Lighting' started by Opihiman10, Oct 17, 2011.

  1. Oct 17, 2011 at 3:26 AM
    #1
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    I recently bought my new Tacoma. I have a new blank canvas. I wanted to add some LED's to light the ground at night. The lights should only turn on when the door opens, so I figure I could wire to door switch but I am unsure how to proceed. Have there been any past posts similar to this? Also how hard is this to do. Any advice is helpful.

    OPI

  2. Oct 17, 2011 at 3:35 AM
    #2
    TnRedNeck721

    TnRedNeck721 GO VOLS!

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    19,068
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    welcome! and for you’r ?? i don’t what you could do. hope fully another member will come by and answer it for you.

  3. Oct 17, 2011 at 3:45 AM
    #3
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    Thx for the welcome.....

  4. Oct 17, 2011 at 4:46 AM
    #4
    Boerseun

    Boerseun Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60538
    Messages:
    2,722
    Gender:
    Male
    First Name:
    Ferdie
    Sarasota, Florida
    Vehicle:
    02 PreRunner DoubleCab TRD
    Bull bar, nerf bars, bed extender, tonneu cover, bug deflector, wish list,....
    Welcome.
    Thanks for asking the question because I want to do the same thing. I know I have to tie it in to the cab lights, but not sure how or where to intercept the wires. I would guess somewhere at the fuse box would be a good place to start to trace the wire. Let's see if someone else has any ideas.

  5. Oct 17, 2011 at 4:58 AM
    #5
    TnRedNeck721

    TnRedNeck721 GO VOLS!

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    19,068
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
  6. Oct 17, 2011 at 8:56 AM
    #6
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
  7. Oct 17, 2011 at 9:25 AM
    #7
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    Even though it's for a camry

  8. Oct 17, 2011 at 9:37 AM
    #8
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    If it's true u cud tap in at door pin switch, wat total voltage shud u stay below, and how wud u run wires from from under cab to switch? Any takers?


    OPI

  9. Oct 17, 2011 at 9:42 AM
    #9
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending

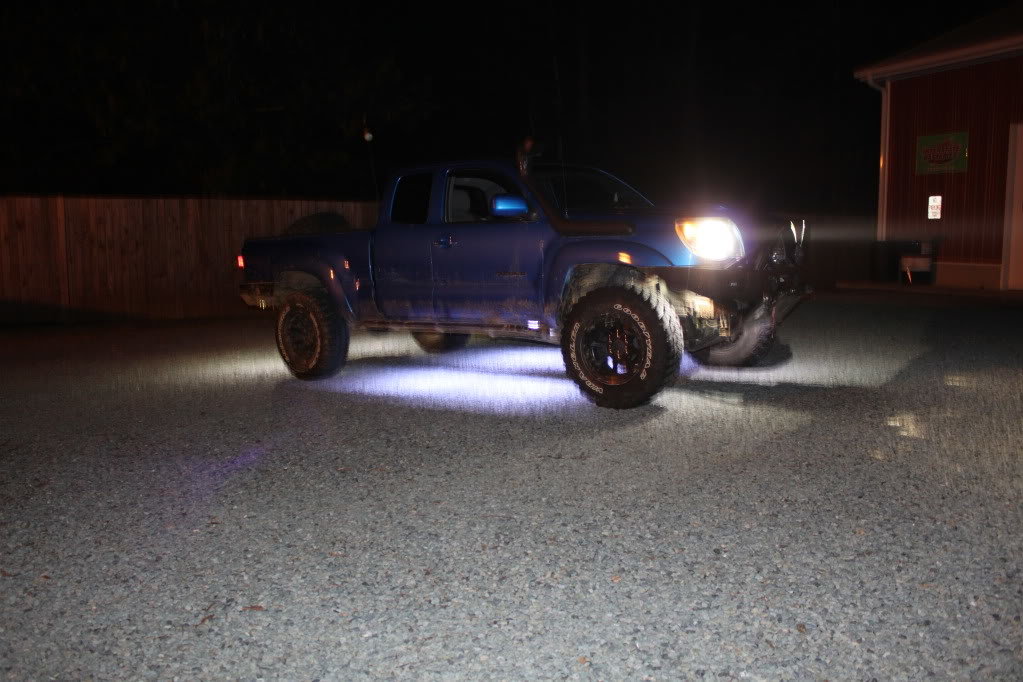

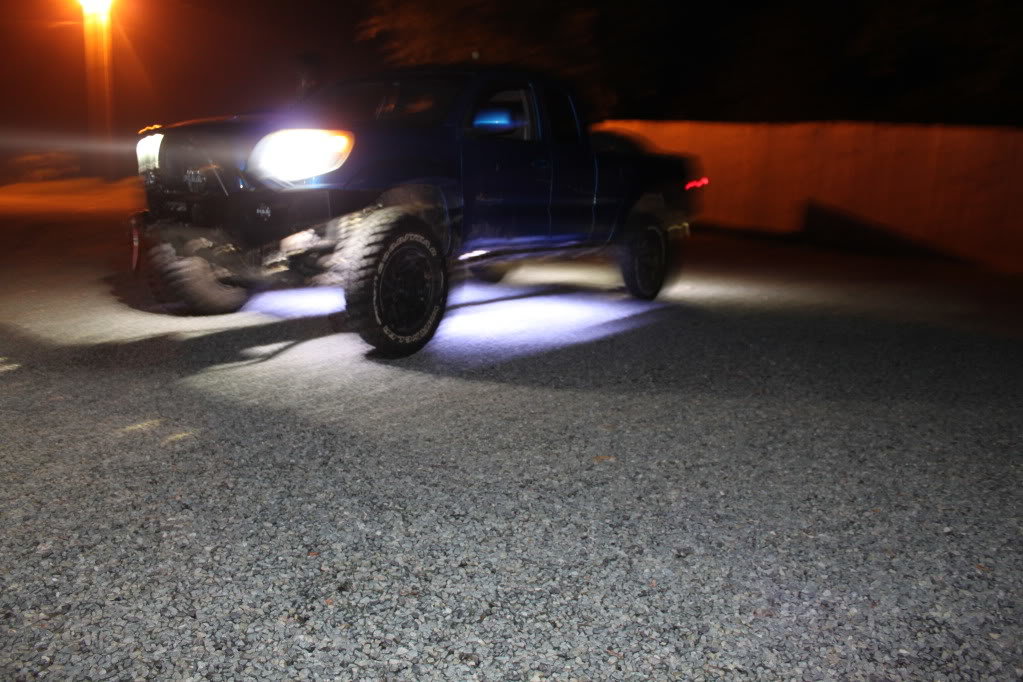

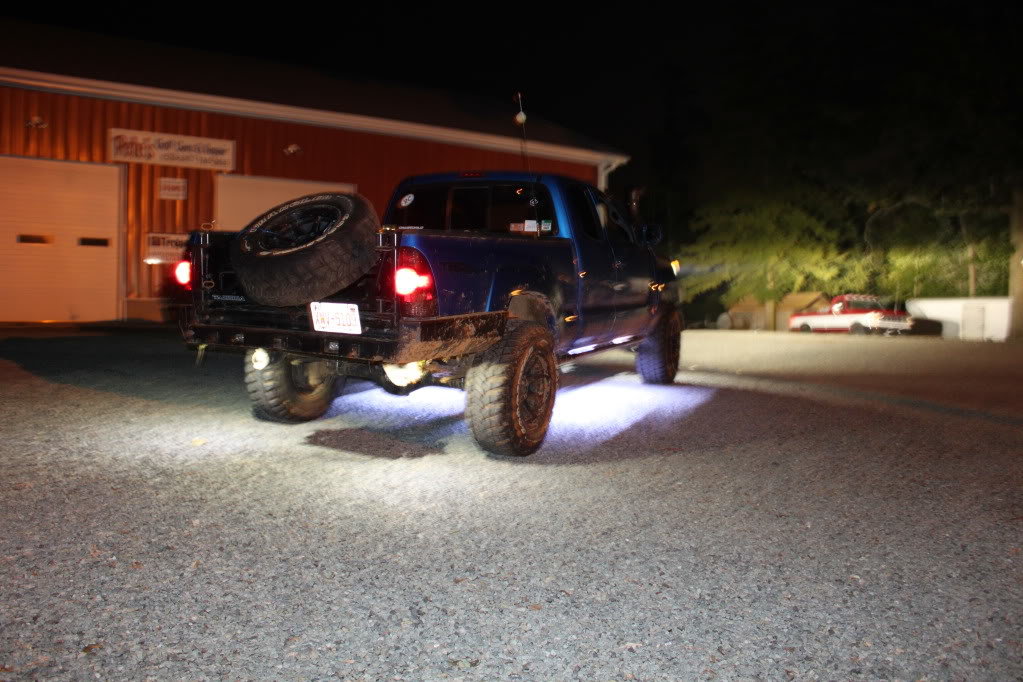

    Do you mean something like this? :D

    [​IMG]

    [​IMG]

    [​IMG]

    I supplied the lights for this

  10. Oct 17, 2011 at 9:50 AM
    #10
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    Yes it wud look sone thing like that ( btw nice truck ). However the lights wud only come on with the door being openned. And only the light under that particular door.

  11. Oct 17, 2011 at 12:31 PM
    #11
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    I could supply you with the lights and help you out with the wiring but I have no idea where to find a switch you can put in the door. The lights are 12" LED strips and are fully waterproof.

  12. Oct 17, 2011 at 1:20 PM
    #12
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    @ Drunknsloth

    LOL...Thanks...But as always I jumped the gun and started ordering parts before fully thinking about the mod first....I ussually end up with a bunch of stuff that doesnt work for the app ... I have 4 flexible self stick LED strips. on the way.

    I have a question about one step of your mod... The step listed is where you pass the wire into the cab.....


    another user suggested using the plug for a grommet....I was wondering where the plug is located....

    thanks for the HELP

    OPI

  13. Oct 17, 2011 at 1:24 PM
    #13
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    No problem, if you need any help with the wiring just send me a pm.

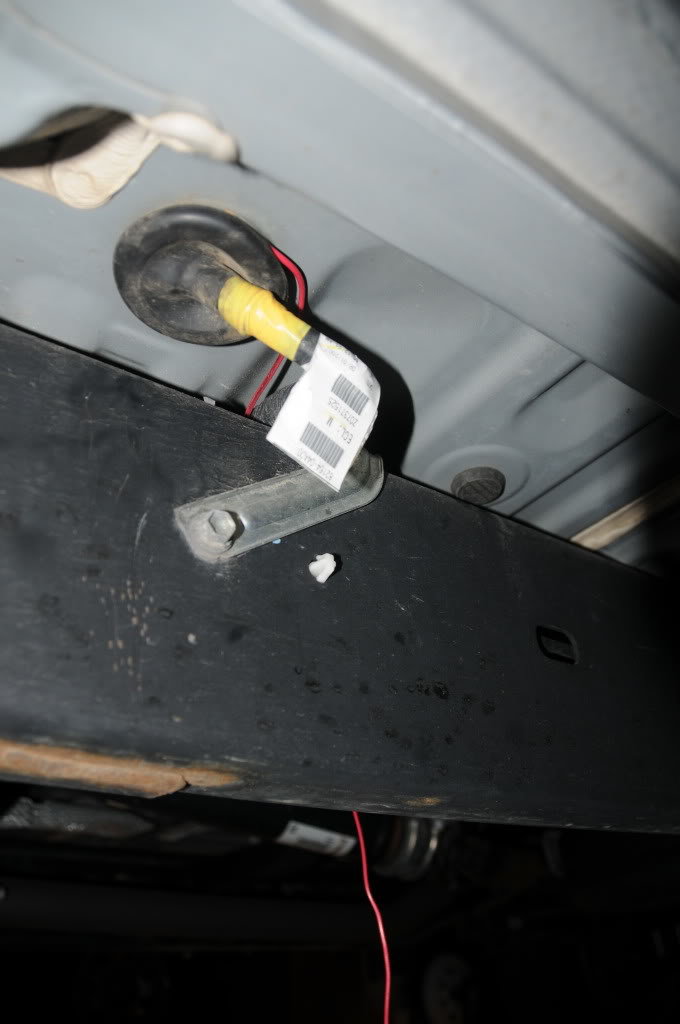

    The grommet is shown in this picture just down and to the right a little bit from where it shows that I originally passed the wire through. It is the little black circle right up against the chassis. You can pop it out easily and poke a small hole in. Then just push the wire through and seal it with silicone after you are done connecting the wires. I would recommend Solid Strand Wires for this, as it is easier to push through areas like these, as oppose to Multiple-Stranded Wires.

    [​IMG]

  14. Oct 17, 2011 at 1:37 PM
    #14
    Scummy

    Scummy SCUMBAG CUSTOMS

    Joined:
    Apr 4, 2011
    Member:
    #54334
    Messages:
    165
    Gender:
    Male
    First Name:
    Matt
    Phelan, CA
    Vehicle:
    hopped up 96 single cab 5 lug 4 banger
    Fabtech uppers and spindles, extended shackles in rear, k&n intake, flowmaster exhaust, and much more to come
    Try looking up how those drop steps work when the door is opened. if you can get ahold of the switch and relay system that allows them to work i believe to can wire up the lights with it

  15. Oct 17, 2011 at 6:53 PM
    #15
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars

    Thanks .... I never thought about that.

  16. Oct 17, 2011 at 7:39 PM
    #16
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    Thanks to Scummy I went to a "AMP Research" and looked up their "power step"
    Found installation instructions for their kit.

    http://www.electricstep.com/eshop/p...ONT-BR-AMP-Research-Power-Step-Kit-35p140.htm

    As part of their Kit there is an LED Light (Steps 28 through 31).

    Now if my assumption is right. There is already a wire harness with these wires there and I should be able to tap directly into those without problems...

    ANY OPINIONS

    OPI

  17. Oct 18, 2011 at 11:28 AM
    #17
    Scummy

    Scummy SCUMBAG CUSTOMS

    Joined:
    Apr 4, 2011
    Member:
    #54334
    Messages:
    165
    Gender:
    Male
    First Name:
    Matt
    Phelan, CA
    Vehicle:
    hopped up 96 single cab 5 lug 4 banger
    Fabtech uppers and spindles, extended shackles in rear, k&n intake, flowmaster exhaust, and much more to come
    Glad I could help you out

  18. Oct 19, 2011 at 12:53 AM
    #18
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    I was wondering if anyone had installed some of those illuminated sill guards. If so I was wondering what wires those tapped into ?

  19. Oct 19, 2011 at 2:31 AM
    #19
    Opihiman10

    Opihiman10 [OP] Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
    Found this in for a lexus...to install a illuminated sill plate

    I just installed mine yesterday... here's how I did it:

    I taped into the foot well light for the ground on both sides as I wanted the fade effect.

    Didn't use wire taps, they are subject to intermittent condition and can actually sever the wire as the wires used are very small (24 - 26 ga). I soldered directly to these wires about an inch back from the connectors:

    RED wire at the footwell light connector (both sides)
    WHITE wire at the existing connector at the harness beneath your existing sil plate.

    Used 22ga wire for the jumper, strip back about 1/4 inch of insulation with an exacto knife about an inch back from the connectors (after gaining access of course, the close out panels just pull right off, the drivers side has two screws that have to be removed, there obvious). Soldier your jumper wire to the footwell light connector RED wire first, re-insulate with tape(black electrical), use some wire loom covering(that black tubing with the slit running the length of it) and route to the door sil harness. Use same method to attach the other end of your jumper to the WHITE wire at the existing door sil connector. You do not cut any wires, just strip back enough insulation to soldier your jumper to it.

    take your time cutting the existing tape wrapping the harness and striping the wires, you should not have a problem if you are careful. After making the footwell connection take not to short the jumper when you are routing it back to the sil connector as it will now be your floating ground so will have a positive potential(voltage signal).

    Hope this helps... btw i did this on my 2006 350.

    Good luck friend.

  20. Oct 19, 2011 at 3:10 AM
    #20
    maconhurler

    maconhurler Well-Known Member

    Joined:
    Oct 23, 2009
    Member:
    #24793
    Messages:
    109
    Gender:
    Male
    Harrisonburg, VA
    Vehicle:
    04 4wd v6 sr5
    Deckplate Mod, Catz Fog lights, Roll Top Tonneau Cover, Pioneer Premier 800prs HU, 10" Kicker L7, Kicker 5 1/4 components, Polk dB 5x7s, Oznium superflux puddle lights and bed lights
    I've done this, took some work, but works well. Won't have time to take and post pics today, but I'll try to get some for tomorrow.

    Tapped into the dome light by running wires in the roof of cab--lights come on with door opened, switch on, or by pressing unlock on keyfob.

    Used http://www.tacomaworld.com/forum/lighting/51791-courtesy-entry-lights.html as my starting point.
