LED headlight sidemarkers

I just received my package but im a bit confused. What exactly do we get with our package meso?



Everything to replace the stock orange reflectors in the headlight.
It will require more wiring since you are adding another circuit though.



Dang hopefully i can do this on my own once i have the courage to do the bhlm



Very easy.

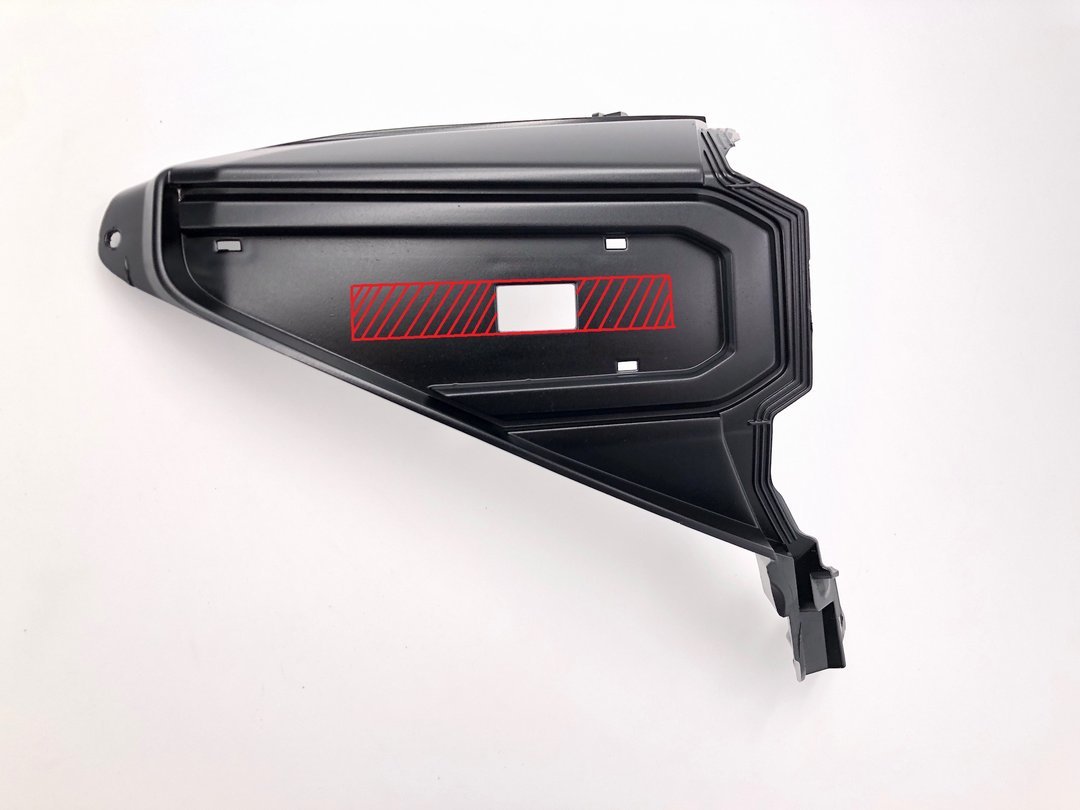

One the headlight is apart, just trim whee the red line is. Then the new panel will snap in where to original reflector went.


For wiring, the low(white) wire plugs into the stock parking light, then you will have to tap the turn signal (yellow wire)



If anyone who bought the switchback version feels like it’s overwhelming, I will take them off of your hands.



Cost on the double or triples?



These are the names I will call them. And prices
Stage 1 $120/pair
Stage 2 $170/pair
Stage 3 $230/pair



How long and wide are the strips @mesojdm i was outside staring at my headlights thinking of all I want to do and now I’m considering a double but not sure.

Probably not possible but it would look good if the top strip was slightly longer to go further into the diagonal and continued on the third
———— Or ————
——— Or ———
Or. ——

Lol that didn’t work



I’d prefer that design but unfortunately the strips only come in Premade lengths of 3”. Next length is 6”. I could stagger them but not sure how it would look. I’m open to design changes



I figured as much but the stagger would throw it off imo. It’s flat on the 1 side and diagnalled up so a stagger wouldn’t mate as well I think

I figured I’d ask. But with that said I may stick with the 1 strip



Meso is there a difference in the switchback and amber ones as far as what is including in the package?



No. The only difference is the led strip, and drivers. Housing is the same.
Were you thinking it is missing something, or not what you thought?



I dont think im missing anything. I ordered the amber ones but thought those would be more plug and play than the pther ones.



Interested in these. Link to buy says sold out.



These are gonna be sweet.

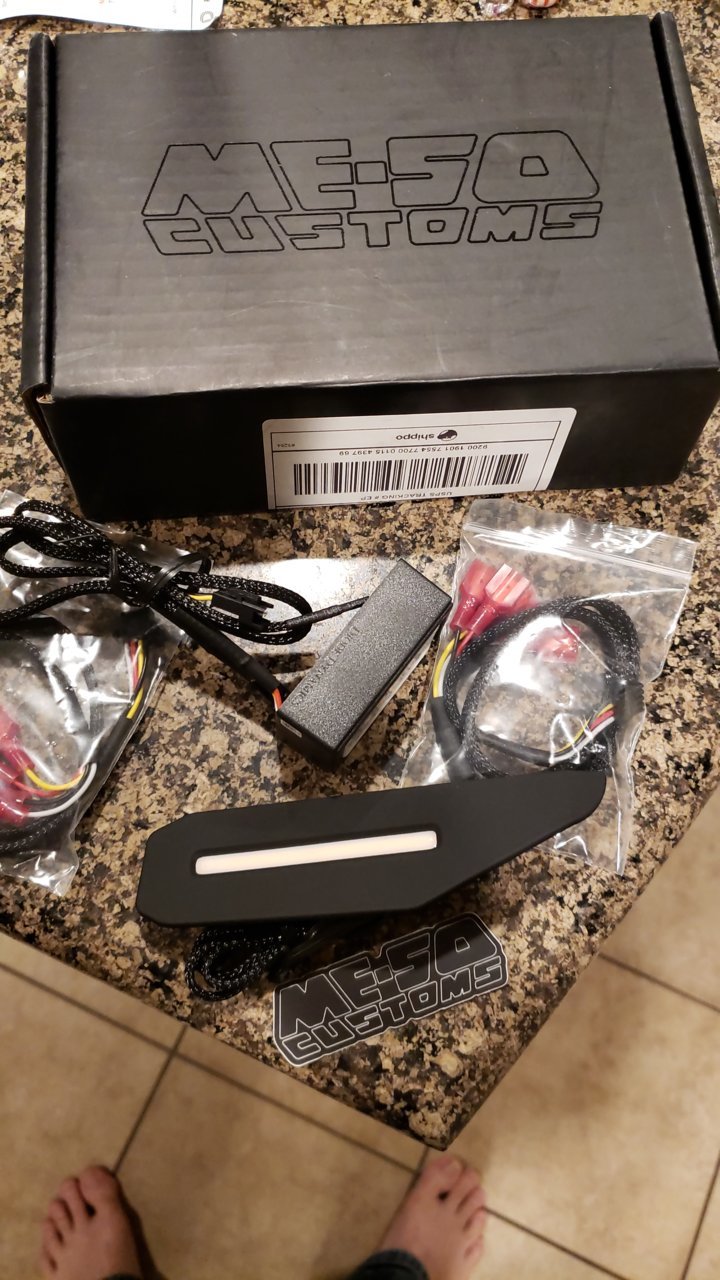

I received mine today! Stoked to get these installed

This is a good question because I thought you sent me the white/amber switchbacks by accident, then realized the switchback module was to go from amber to bright amber for the blinker.



@mesojdm jesus man your packaging is great. My sidemarkers are great it’s going to make me want to rush my build haha



I thought it the switchback was going to be a little much but after receiving the package and seeing the instructions it seems pretty straight forward. Awesome kit! Very well put together.

10/10 - would recommend.



Stage 2 and 3 coming this week

Thanks! Yes its only 3 wires...so pretty easy.



Anyone good with photoshop and can photoshop what a strip of 1, 2 and 3 look like? I am awful at visualization and really need to see what it looks like. Thanks in advance!
