Led Light Bar Push Button wiring

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SpeedwayBlue116, Sep 10, 2016.

  1. Sep 10, 2016 at 11:41 AM
    #1
    SpeedwayBlue116

    SpeedwayBlue116 [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175783
    Messages:
    107
    Gender:
    Male
    Vehicle:
    06 TRD Sport Speedway Blue
    I put this button in my truck a long time ago but never wired it to turn the backlight on when I the dash lights turn on. Does anybody know where a wire is I can wire it into to turn on?


  2. Sep 10, 2016 at 6:37 PM
    #2
    stump jumper

    stump jumper Well-Known Member

    Joined:
    Aug 23, 2010
    Member:
    #42106
    Messages:
    2,475
    Gender:
    Male
    First Name:
    Bill
    Texas
    Vehicle:
    2017 Tundra 4x4 CM TSS
    I just replaced my switches for off road lights under the the HVAC controls and used the green wire off the heated seat plug. If that clutch switch is back lit tie in the solid green wire. Green is + green/ white is -

  3. Sep 10, 2016 at 7:55 PM
    #3
    kgarrett11

    kgarrett11 Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    3,599
    First Name:
    Garrett
    CA desert
    Vehicle:
    2015 DCLB
    I pulled from a green wire as well. Under the hood from the headlights so it comes on whenever I turn them on

    Last edited: Sep 10, 2016
    SpeedwayBlue116[OP] likes this.
  4. Sep 11, 2016 at 6:19 AM
    #4
    SixtyDashOne

    SixtyDashOne Well-Known Member

    Joined:
    Oct 12, 2009
    Member:
    #24215
    Messages:
    1,509
    Gender:
    Male
    Collegeville, PA
    Vehicle:
    2021 ArmyGreen TRD Sport, 2007 Regular Cab 4x4

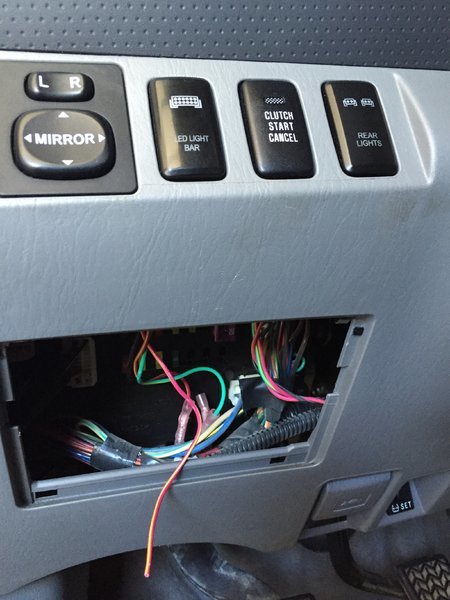

    buy an "add a fuse" from your local Autozone and jump into the IGN fuse that is directly in that switch panel you pictured. Viola, let there be light! if you need further clarification, please let me know sir

  5. Sep 11, 2016 at 7:37 AM
    #5
    Hit n Run

    Hit n Run Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170795
    Messages:
    113
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    14 Black DCLB Sport
    I used add a fuses, switch lighting from "TAIL 10A" and power from "PWR OUTLET 15A" (12V hot, no key needed for tailgate lock and bed lights).
