LED Light Strip Install 10+ Hours!!

Discussion in '2nd Gen. Tacomas' started by aubi1414, Mar 15, 2013.

  1. aubi1414

    aubi1414 [OP] War Eagle!!

    Joined:
    Nov 15, 2011
    Member:
    #67072
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Justin
    Pensacola, FL
    Vehicle:
    2014 Tacoma TRD Sport Blue Ribbon Metallic
    LED Dome, LED Map, LED License Plate Bulbs, , Konig SixShooters Matte Black, Toyo Open Country ATII's 285 70 17, Satoshi, Bilstein 5100s (set to 0), 885s, LR UCA's, Icon RR 2.0 +2, All Pro Standard 3" Leaf Pack, All Pro Flip Kit, Sway Bar Relocate, Exhaust Chop, Antenna X 14", Debadged, Tint, Matt123 Black TRD Skid, Black Weathertech Mats

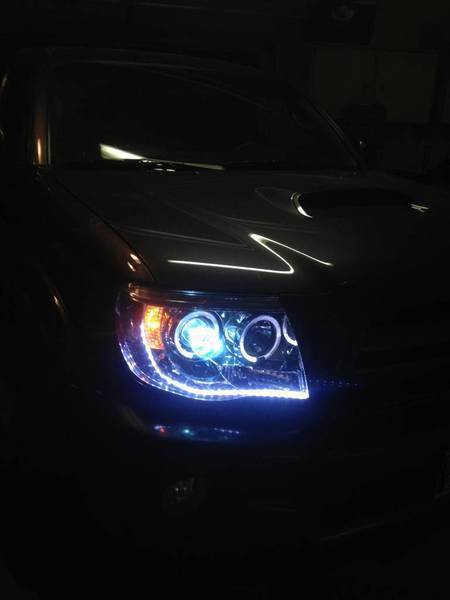

    Ok so I just wanted to do a write-up on how my install went with the LED light strip I installed a week ago. First off I would make sure you buy a strip that is flexible on a flat surface being able to twist and bend. I bought a 5m strip with LED's that are cutable after 3 LED's and waterproof. Here is the finished product along w/ instructions on the 10 hour process.
    [​IMG]
    [​IMG]

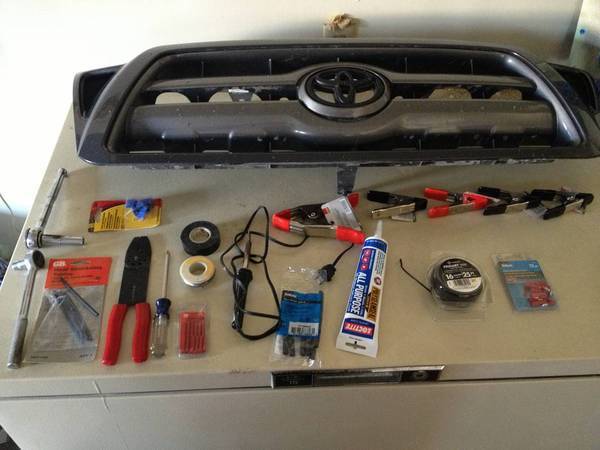

    Tools I used that I had and went to lowes and spent $20 on additional clamps, etc. I used 5 clamps, 10mm socket, phillips head screwdriver, electrical tape, all purpose silicone, 16 gauge wire to extend the LED wires and some heat shrinks.
    [​IMG]

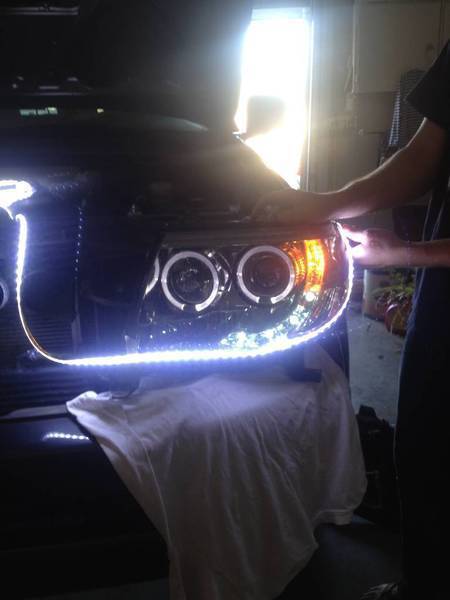

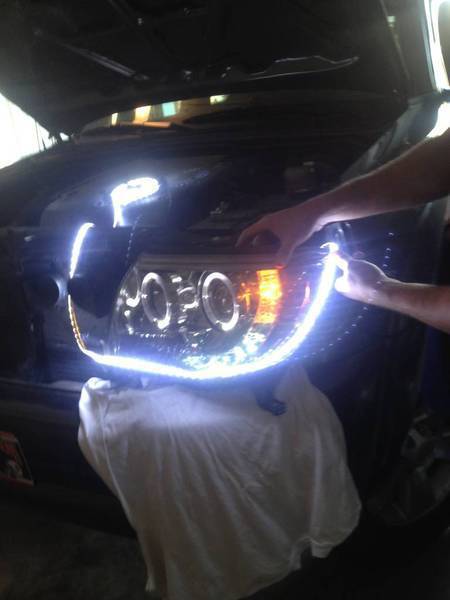

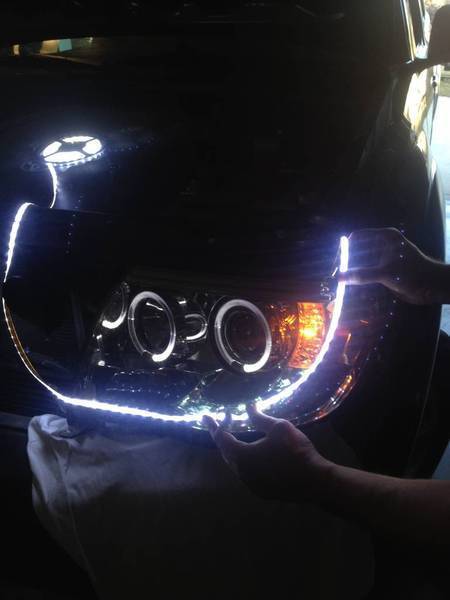

    Seeing how I wanted to run the LED's
    [​IMG]
    [​IMG]
    [​IMG]

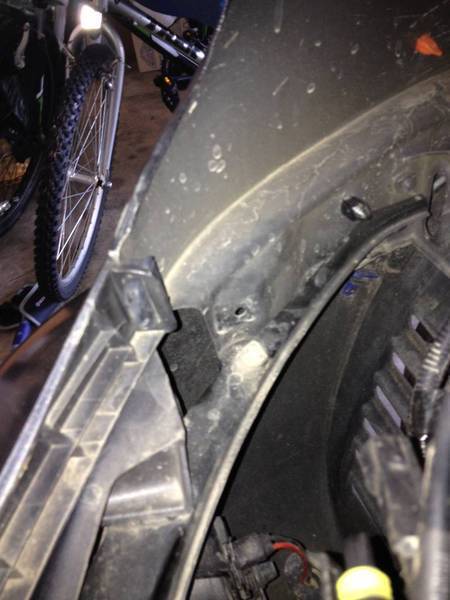

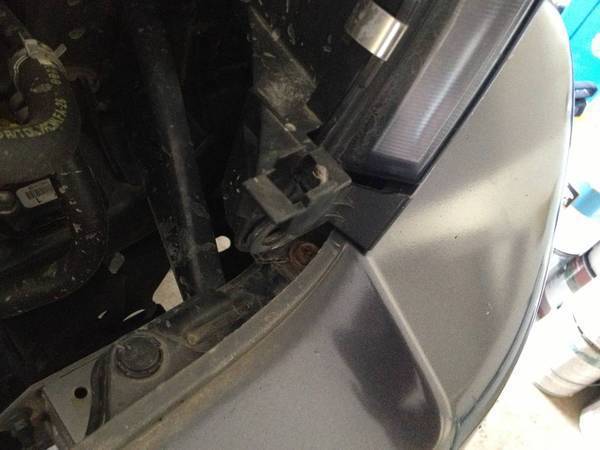

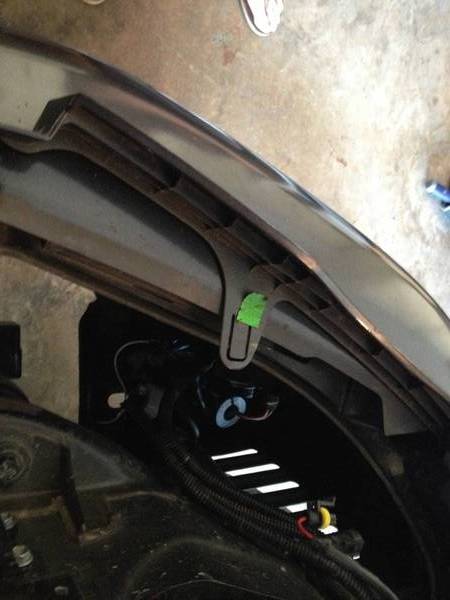

    There are 2 clips and two screws on the grille that need to be removed then take the grille out. Thats the easiest part. After this there are two screws attached to the top of your headlights. Unscrew those and also one that is hidden which once the grille is removed you might can reach it and unbolt that one or crawl underneath the truck. Here is the pic of that screw hole along with one on the bottom of the bumper. Take the bumper screw out and the black clip attached the small piece of plastic under the headlamp. This is attached to your headlight so make sure and unclip it from the backside.
    [​IMG]
    [​IMG]
    [​IMG]

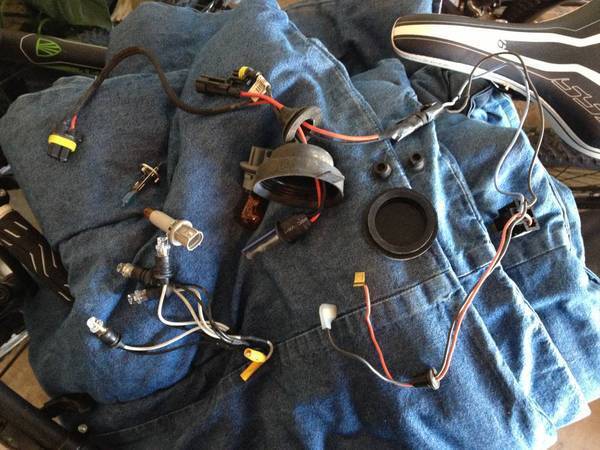

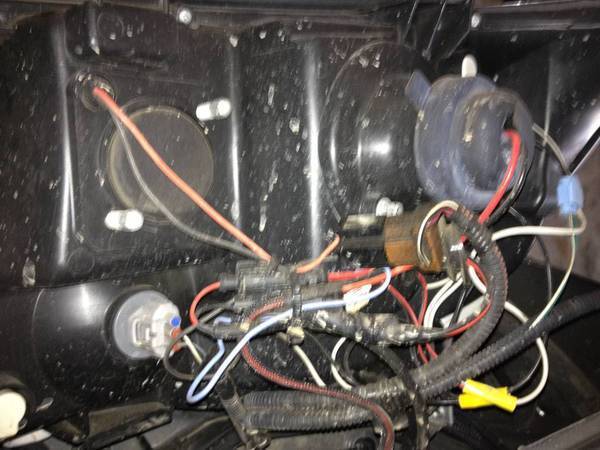

    Now I disconnected my battery completely as I didn't wanna screw anything up. Then, pull the headlights out slightly and detach all wires. Mine was a jumbled shit because the last people that put these in for me sucked!!
    [​IMG]
    Remove all rubber objects and lights from the assemply!! Also, remove any screws and clamps that might be holding the back together. Mine had 3 screws and 4 clamps.
    [​IMG]

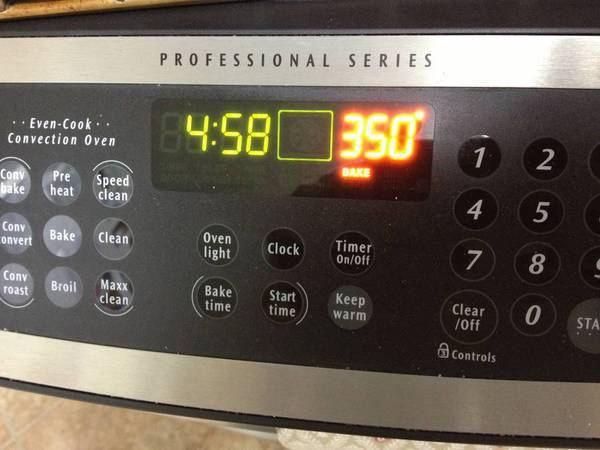

    Have your oven cooking at 350 degrees
    [​IMG]

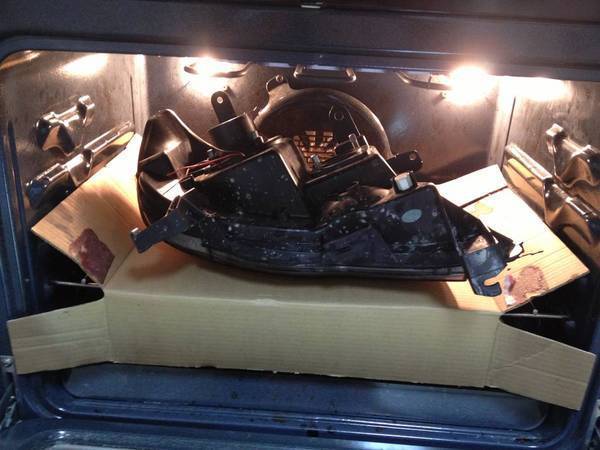

    Place the headlamp in the oven on cardboard. I left mine in for 10 minutes do NOT open and check on them, BUT dont do what I did make sure you turn the oven OFF after you put them in there. I slightly melted plastic because I forgot to turn mine off on the second light. OOOOpppps!!!
    [​IMG]

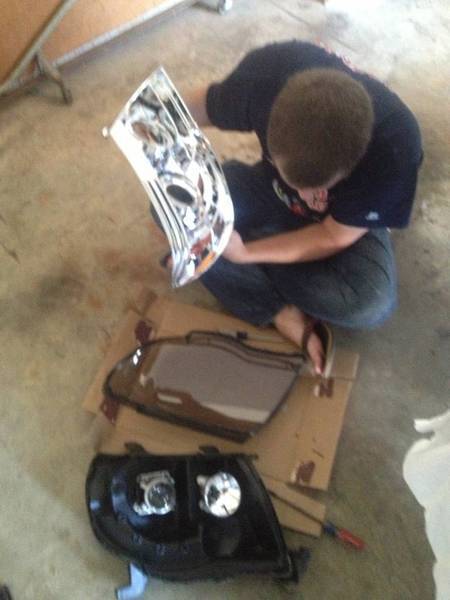

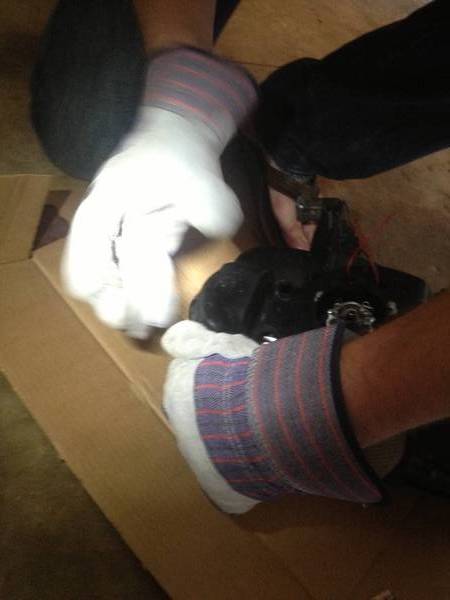

    The fun parts comes to removing these hot bastards and disassembling them from the glue. Wowwwww I was getting ill because the plastic was bending and its hard to find a way to grab them. Don't give up and keep at it till you get them apart.
    [​IMG]

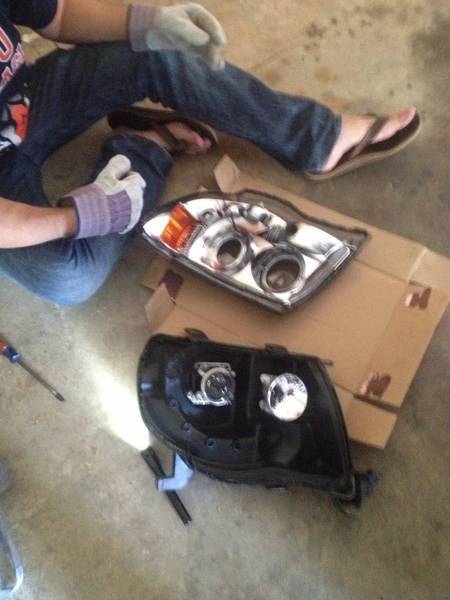

    Resting LOL
    [​IMG]

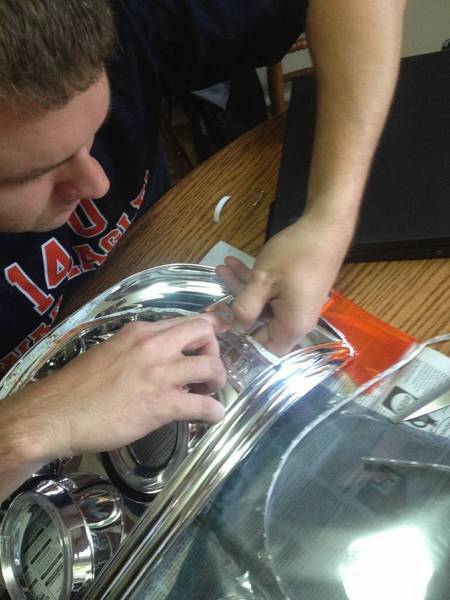

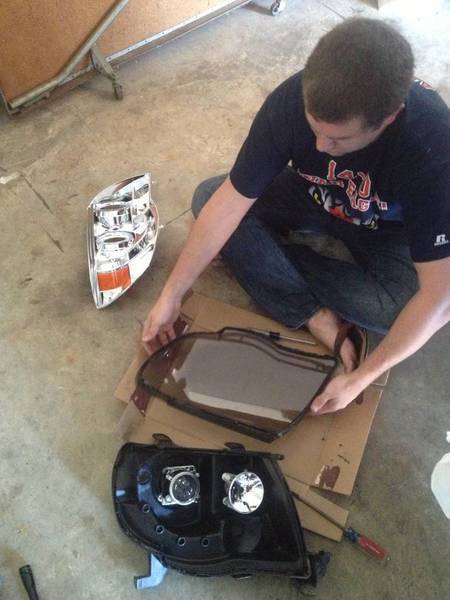

    Checking things out.....
    [​IMG]
    [​IMG]

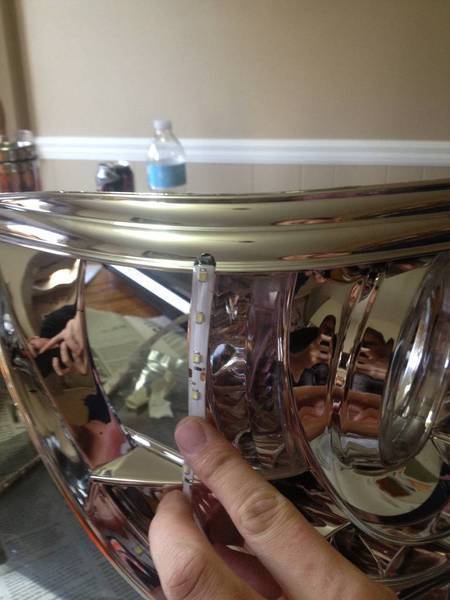

    Now figure out how you want to adhere the LED's to the ballast!! I drilled a hole in the top section of mine to feed my wire through to splice into my driving lights.
    [​IMG]
    [​IMG]
    Once you have got through that wipe it down really good!!! I didn't and can see some finger prints but oh well it still looks damn good!!

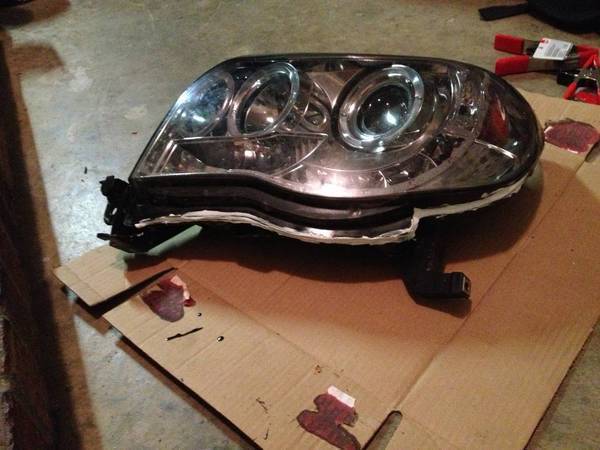

    You will have to put the black section of the headlight back in the oven to soften the glue up again at 350 for 10 min and then run back out and feed any wires through while trying to line up everything and clamp it together, plus put any clips and screws back in it to hold it as well. I waited a few hours and sealed it some more w/ allpurpose clear sealant. Yes its white and dries clear after a day or two.
    [​IMG]

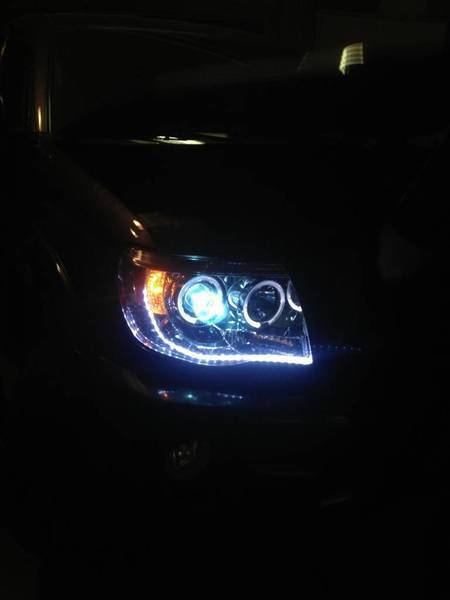

    Reinstall everything and admire your beautiful work!!!
    [​IMG]
    [​IMG]
    FYI the second headlight goes much faster I think I spent 6 hours alone on the first trying to figure out how to do everything. Hope you enjoy the write-up and ask any questions you may have. :D

    Last edited: Mar 15, 2013
  2. Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,109
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
  3. PCHearn

    PCHearn Well-Known Member

    Joined:
    Jan 6, 2011
    Member:
    #48807
    Messages:
    146
    Gender:
    Male
    First Name:
    Patrick
    Moore, OK
    Vehicle:
    11 PreRunner SR5
    Which wires did you connect the LED wires to?

  4. aubi1414

    aubi1414 [OP] War Eagle!!

    Joined:
    Nov 15, 2011
    Member:
    #67072
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Justin
    Pensacola, FL
    Vehicle:
    2014 Tacoma TRD Sport Blue Ribbon Metallic
    LED Dome, LED Map, LED License Plate Bulbs, , Konig SixShooters Matte Black, Toyo Open Country ATII's 285 70 17, Satoshi, Bilstein 5100s (set to 0), 885s, LR UCA's, Icon RR 2.0 +2, All Pro Standard 3" Leaf Pack, All Pro Flip Kit, Sway Bar Relocate, Exhaust Chop, Antenna X 14", Debadged, Tint, Matt123 Black TRD Skid, Black Weathertech Mats
    I spliced into my HID driving lights.

  5. heavtritefoot

    heavtritefoot Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74492
    Messages:
    74
    Gender:
    Male
    First Name:
    ken
    Courtice,Ontario
    Looks good I like just how the original lights are. Halos are for BMWs and leds are for the Audis but it is your truck and you can do what ever you want to do with it.

  6. aubi1414

    aubi1414 [OP] War Eagle!!

    Joined:
    Nov 15, 2011
    Member:
    #67072
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Justin
    Pensacola, FL
    Vehicle:
    2014 Tacoma TRD Sport Blue Ribbon Metallic
    LED Dome, LED Map, LED License Plate Bulbs, , Konig SixShooters Matte Black, Toyo Open Country ATII's 285 70 17, Satoshi, Bilstein 5100s (set to 0), 885s, LR UCA's, Icon RR 2.0 +2, All Pro Standard 3" Leaf Pack, All Pro Flip Kit, Sway Bar Relocate, Exhaust Chop, Antenna X 14", Debadged, Tint, Matt123 Black TRD Skid, Black Weathertech Mats
    Mines a mix breed and thank you :D

  7. aubi1414

    aubi1414 [OP] War Eagle!!

    Joined:
    Nov 15, 2011
    Member:
    #67072
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Justin
    Pensacola, FL
    Vehicle:
    2014 Tacoma TRD Sport Blue Ribbon Metallic
    LED Dome, LED Map, LED License Plate Bulbs, , Konig SixShooters Matte Black, Toyo Open Country ATII's 285 70 17, Satoshi, Bilstein 5100s (set to 0), 885s, LR UCA's, Icon RR 2.0 +2, All Pro Standard 3" Leaf Pack, All Pro Flip Kit, Sway Bar Relocate, Exhaust Chop, Antenna X 14", Debadged, Tint, Matt123 Black TRD Skid, Black Weathertech Mats
    Hopefully this thread will help if you are attempting to do the BHLM as well.

  8. taylorsTaco

    taylorsTaco Well-Known Member

    Joined:
    Jun 14, 2013
    Member:
    #106262
    Messages:
    47
    Gender:
    Male
    First Name:
    Rob
    Cary, NC
    Vehicle:
    2013 4x4 DCSB - Silver
    westin bull bar/nerf bar (black), Ultra Maverick 17x8 10mm offset, Goodyear Wrangler Duratracs 265/70/17
    so for the wiring newbs out there ... how exactly did you splice them into the driving lights?
