Leer 100xr inside window frame measurements

Discussion in 'Tonneau Covers, Caps and Shells' started by smt72, May 30, 2021.

Post Reply

May 30, 2021 at 3:07 PM

#1

#1
smt72 [OP] Member

Joined:

Apr 4, 2021

Member:

#361659

Messages:

5

Hello all!

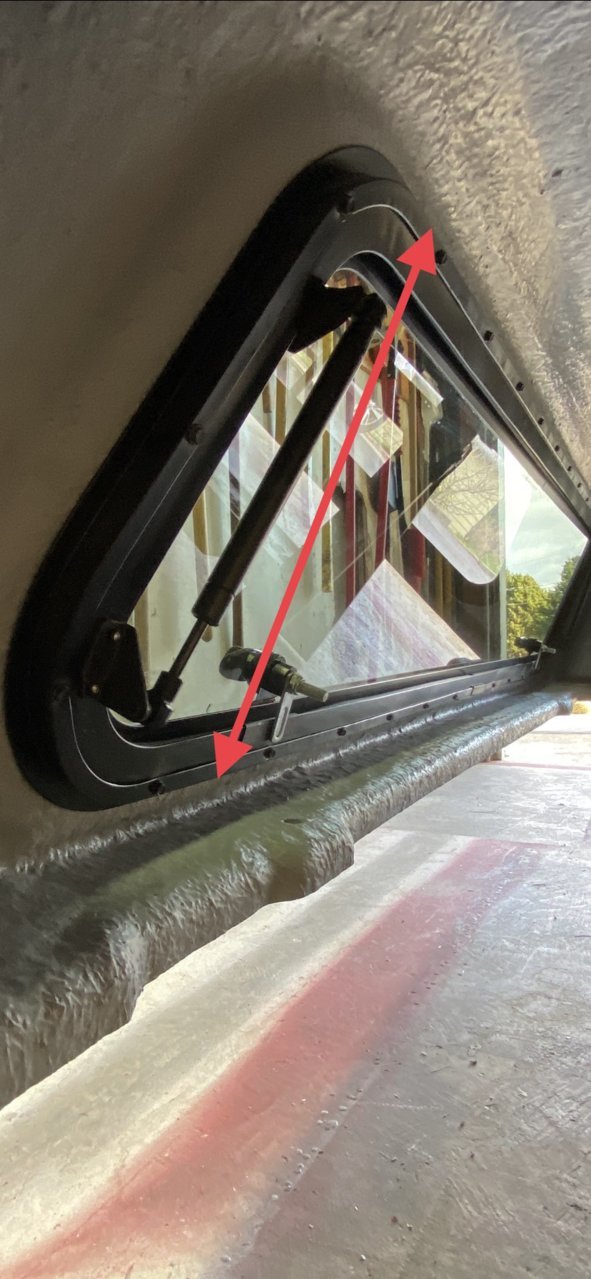

Making screens for a friends Leer 100xr canopy with Windoors. (Toyota Tacoma quad cab 6ft bed) I need the measurements from the outer rim of the inside of the windoor frame top to bottom. Huge bonus would be a straight on photo (Open and closed windoor) and measurement of where the hinge is.

Thank you to anyone able to help!

smt72, May 30, 2021

#1
