Leer camper shell wiring help

Discussion in 'Tonneau Covers, Caps and Shells' started by euroshowoff, Dec 23, 2019.

  1. Dec 23, 2019 at 9:52 AM
    #1
    euroshowoff

    #1
    euroshowoff [OP] Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    523
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

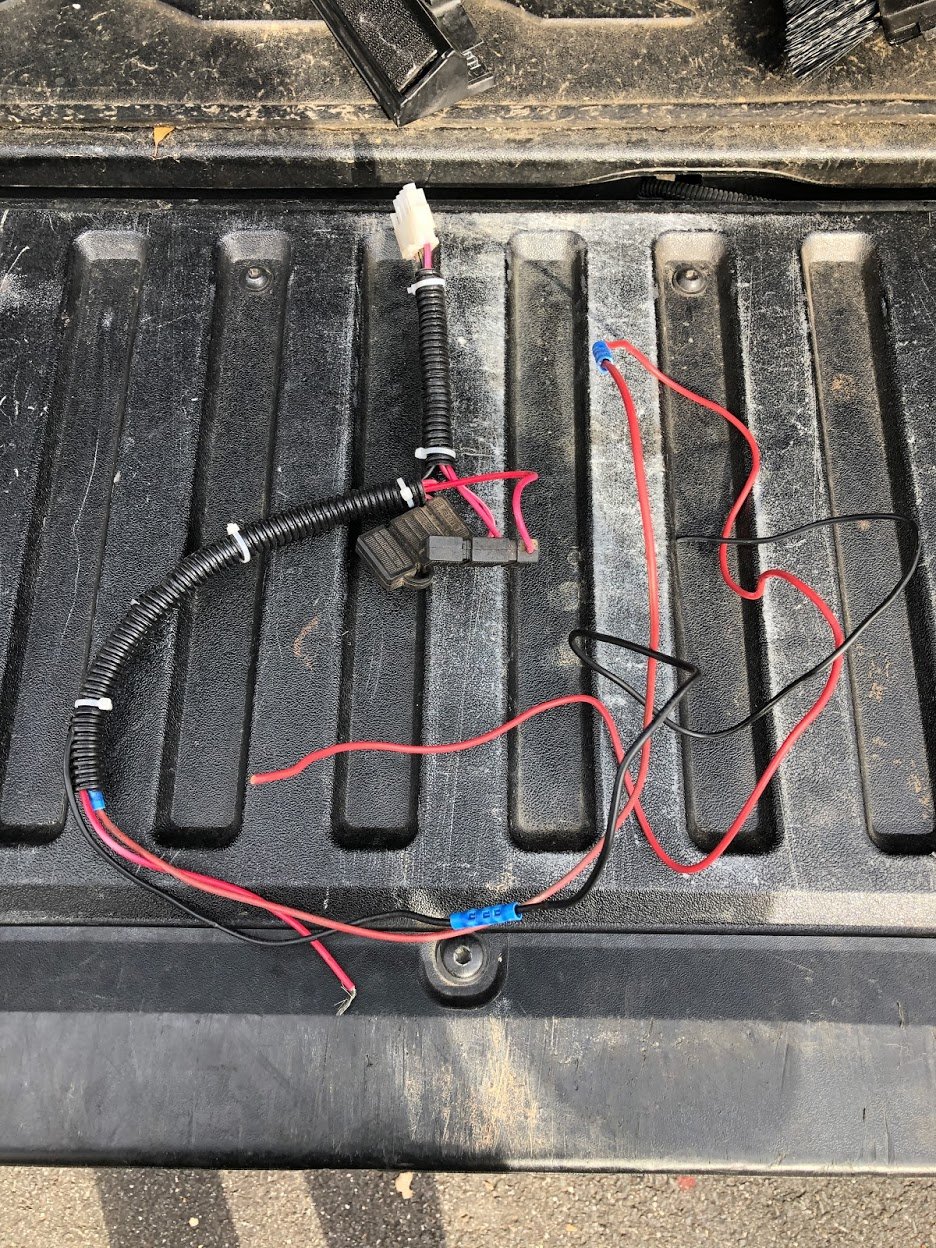

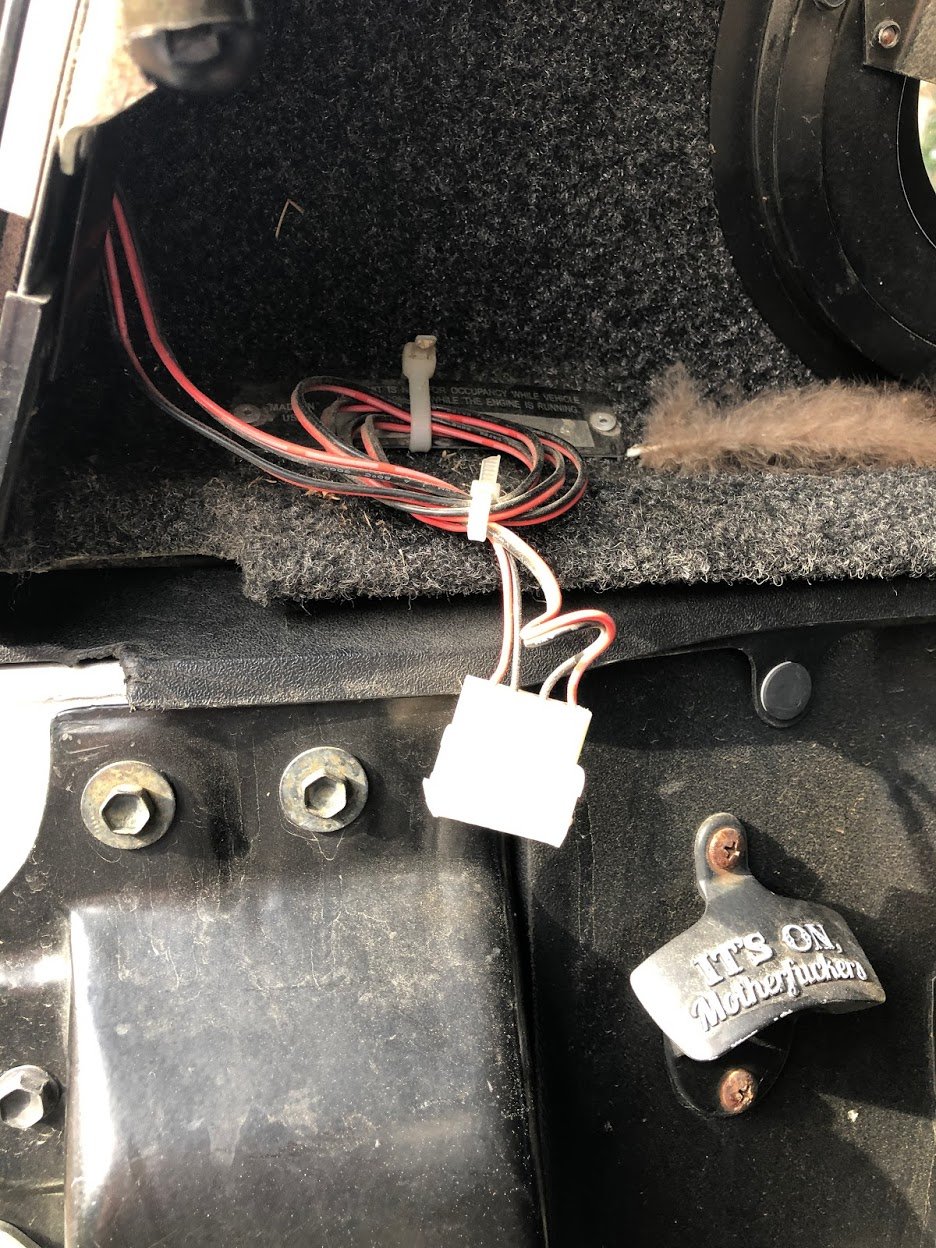

    Just got a used cap, and it came with the harness below. Anyone have a quick explanation on how to wire up the third brake light?

    LF2xvPHz5a5YTuzTrE1HdJVWFchJNlDugnXhjfrO_2b3cc985adaba2e21c200d56f2c24c357347df12.jpg

    LIYVO6DSyQR-UvkRQDcjxeQfO7O1p-o4Rc4dKUrJ_64d9a30cd9efaff0b64d14f20abeb7f09070de65.jpg

    euroshowoff, Dec 23, 2019
    #1
    Andrew2ndGenTaco likes this.
  2. Dec 23, 2019 at 1:17 PM
    #2
    Tnc

    #2
    Tnc Well-Known Member

    Joined:
    Nov 6, 2019
    Member:
    #309983
    Messages:
    480
    Gender:
    Male
    First Name:
    Tim
    NE Oklahoma
    Vehicle:
    2017 DCLB TRD OR
    YouTube Tacoma camper shell brake light. I just did the same thing this weekend. Several pop up. Looks pretty dang easy

    Tnc, Dec 23, 2019
    #2
    levie125 likes this.
  3. Jan 8, 2020 at 8:54 PM
    #3
    tacopearl

    #3
    tacopearl Well-Known Member

    Joined:
    Apr 1, 2019
    Member:
    #288723
    Messages:
    179
    Gender:
    Male
    WA
    Vehicle:
    2012 TRD-OR 6-Spd
    it’s real easy, i just spliced the power wires to the driver rear brake light. done in 5 mins.

    tacopearl, Jan 8, 2020
    #3
  4. May 12, 2020 at 9:27 PM
    #4
    Andrew2ndGenTaco

    #4
    Andrew2ndGenTaco New Member

    Joined:
    May 12, 2020
    Member:
    #327869
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2014 Tacoma TrD Sport 4x4
    I have the exact same harness on the used leer shell I just bought and haven’t been able to find any way to wire it up. Any suggestions?!!

    Andrew2ndGenTaco, May 12, 2020
    #4
  5. May 12, 2020 at 9:29 PM
    #5
    Andrew2ndGenTaco

    #5
    Andrew2ndGenTaco New Member

    Joined:
    May 12, 2020
    Member:
    #327869
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2014 Tacoma TrD Sport 4x4
    It has 4 wires what do I do with them ? I know that I need to take off the light and splice.

    Andrew2ndGenTaco, May 12, 2020
    #5
  6. May 12, 2020 at 9:48 PM
    #6
    TwistedTLM4

    #6
    TwistedTLM4 Unknown Member

    Joined:
    Jul 6, 2011
    Member:
    #59396
    Messages:
    3,130
    Gender:
    Male
    Philadelphia, PA
    Vehicle:
    '05 DCSB TRD Sport
    WeatherTech Floor Mats, WeatherTech Bug Shield and Vent Visors, Audio Upgrade, RaamAudio RaamMat & Ensolite, Mr. Marv's Custom 10" Sub Enclosure, Pop N Lock Electronic Tailgate Lock, mattgecko's Bedlights, Demello Offroad Single Hoop Bumper, Marathon Seat Covers, Leer Topper, OME885s on 5100s, @Blackout14 HD Leaf Pack
    My cap was wired similarly - black was ground that had to be grounded to frame, one red was for the interior light in camper shell that was to be tied to a constant power source(battery) and the other was for the 3rd brake light which I ran down and tied into the driver's side brake light harness.

    TwistedTLM4, May 12, 2020
    #6
  7. May 14, 2020 at 8:55 PM
    #7
    Andrew2ndGenTaco

    #7
    Andrew2ndGenTaco New Member

    Joined:
    May 12, 2020
    Member:
    #327869
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2014 Tacoma TrD Sport 4x4
    Thank you

    Andrew2ndGenTaco, May 14, 2020
    #7
