Leer Cap Owners please help me with my custom toolbox

You mentioned that the cap overhangs the truck bed rails , I'm wondering what the distance is from the overhanging cap "foot" to the same on the other side .

This will tell me what my maximum width of box could be .



Ok gotcha. Will do



Thanks again Mac



100LX - Only inside photo I have uploaded. The cab back window and cap front window line up pretty well.


The following pics show that the cap contours the cab closely
Though I was told that the cap roof is insulated and thicker for strength








Think these are the most relevant Pics I have in my Gallery, but others could help ya
Won't have time 'til this weekend to take any measurements for ya, if ya still need 'em.
Now GET BACK TO WORK !!!

CC



Thanks CC !



54" for the distance lip to lip from the topper.

48ish " for the narrowest point at the top.

37 1/4" from floor to ceiling.



You're the man Mac !

The mock up box in the pics is 18" deep x 18" tall x 52 1/2" wide .

Back to the drawing board for the lid and I am good to go .

Thanks for your help .



No problem dude.



Looking at CC's interior pic above , it looks like the cap " foot " extend over the front of the box as well , and looks to be flush to the edge of the front bed rail .

Anyone confirm this ?

Thanks



I have the technology to confirm that one, but not tonight
I'da thought you'd have that box complete by now
I'll get some close up pics in the morning
Not sure what you mean by foot
The front of the cap sits on the front of the bed.
The installer put a weather strip that hangs over the outside front of the bed
The cap (front wall) protrudes rearward about a 1/8" beyond the bed rail opening, causing a struggle to get the cleats locked in.
What I did notice is, my cap front window is removable and protrudes about 1" beyond the opening of the bed rail (toward back of truck)
Don't know about the non-removable window, but imagine it would be less
I'll get pics to illustrate tomorrow AM
Did confirm the 54" width (above) between the "bulges" where the bolts secure the cap to the bed rail
I have 36" between the bed floor and the forward ceiling light
be back tomorrow

CC



OZ, I'll run out and take measurements off my Leer Legend. By the looks of your mock up, it would fit in my truck with the Legend.

BEE ARE BEE


EDIT:
I got the same numbers as mac. The cap's mounting "bracket" that gets bolted to our tie down runners, sticks out 7/8" from the rail, and is 4-1/2" long. There's no overhang on the front of the box.



Here ya go
I dumped about 15 of these in my gallery for ya
May delete them sometime in the future, after you're done with 'em
I think the Carpet is what protrudes beyond the Rail Opening, Not the Fiberglass.
The Carpet was an option included in the "Adventure Package" from LEER

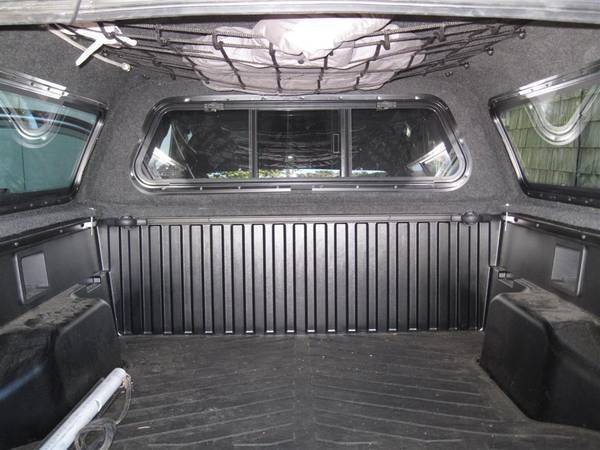

LEER Cap interior

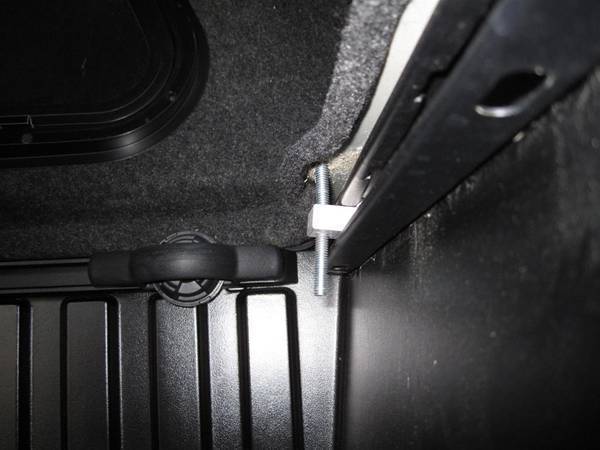

Side Rail Fastening

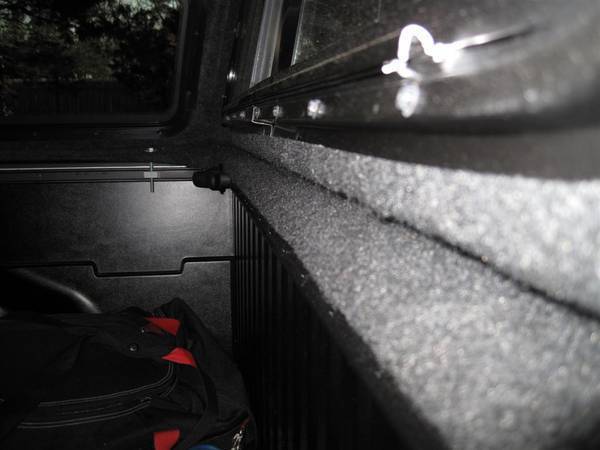

Front Right to Left

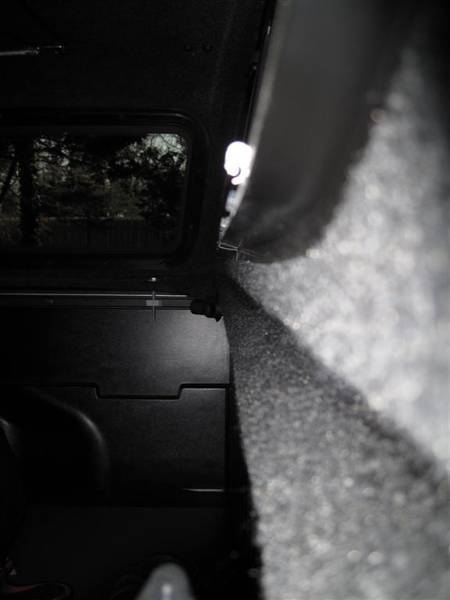

Front Right to Left - Bottom Right Corner of Front Window at top

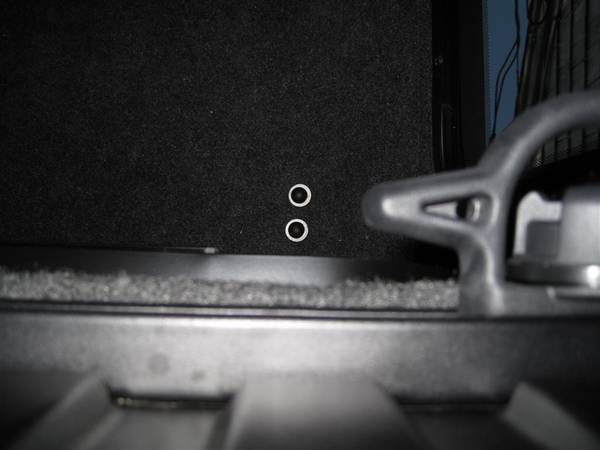

Rail from below, Carpet, Window, Screws in Roof - Note the window protrudes beyond the rail, but it is removable not fixed

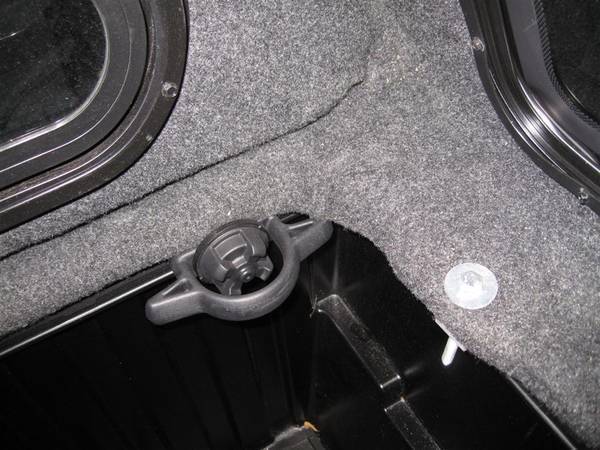

Corner from Above


Most Relevant, More in Gallery
Let me know if you need something else specific
Now let's get that box done

CC



Thanks everyone that helped me out , I thought about it awhile and decided the best route was to get the cap first as was the obvious choice and pointed out by a few of you guys .

Ordered a Leer RCC cap today , should be here in 3-4 weeks , then I will commence project box build .

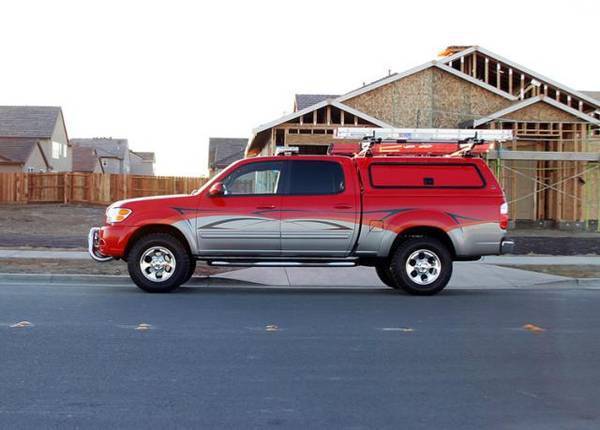

The Leer RCC , is a commercial reinforced cap with a roof loading rating of 400 lbs , comes with the Thule / DeWalt Pro Rack system mounted at the factory . It will look like this , but I am getting sliding windows rather than the solid doors on the sides .
