Let's help diagnose my electric issues

Discussion in '1st Gen. Tacomas (1995-2004)' started by sk8rjess, Jul 6, 2017.

  1. Oct 17, 2017 at 12:14 PM
    #21
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Let research a few things

  2. Oct 17, 2017 at 12:22 PM
    #22
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    page BE-45 of that file shows how to check the Rheostat/dimmer. Lets make sure that's good first.


    Attached Files:

  3. Oct 17, 2017 at 12:26 PM
    #23
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  4. Oct 17, 2017 at 12:31 PM
    #24
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Yes because the diff lock switch is lighted also.

  5. Oct 17, 2017 at 1:25 PM
    #25
    sk8rjess

    sk8rjess [OP] IG: @whoishack

    Joined:
    Jul 5, 2009
    Member:
    #19286
    Messages:
    2,303
    Gender:
    Male
    First Name:
    Cody
    Nashville, TN
    Vehicle:
    02 4x4 sr5
    some duct tape and zip ties
    Hmm I'll have to find a tester light. My diff was an add-in and I'm starting to question if i wired that right. I only had it illuminate while it was locked.
    I've ripped out almost anything that wasn't stock and labeled everything else. I'm almost back to normal I think.
    I did find this and I'm not entirely sure why. If i'm reading the FSM right its a TVIP ECU? Not even sure what that is. Notice the black and white cut.

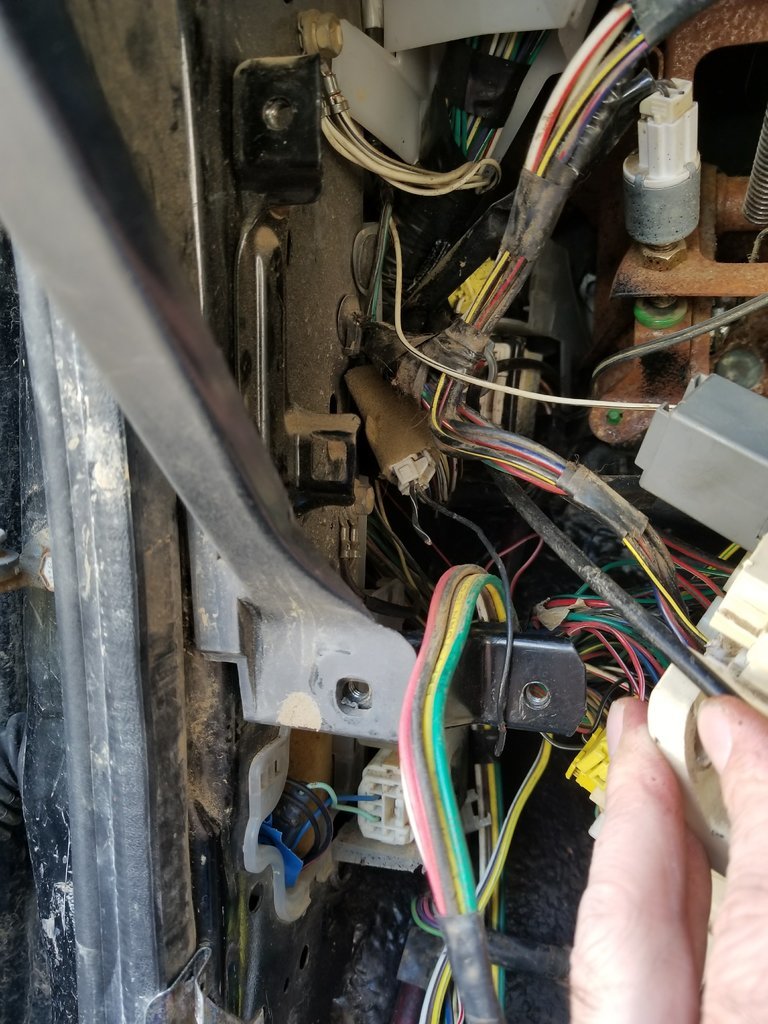

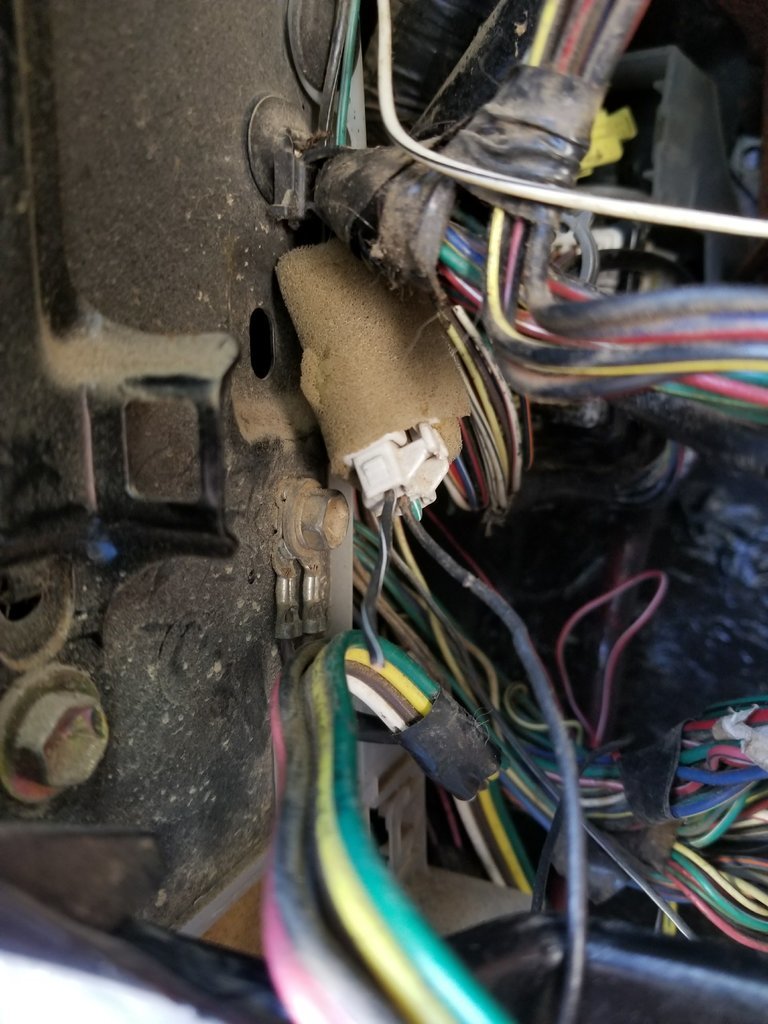

    20171017_151714.jpg 20171017_151727.jpg

  6. Oct 17, 2017 at 3:15 PM
    #26
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I think thats Toyotas alarm system option.

  7. Oct 17, 2017 at 4:16 PM
    #27
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    4,992
    Gender:
    Male
    If it was me I would disconect or cut the White/Black wire from the rheostat(s) attach a test wire and ground that and see if the rheostat functions normally. If it does you know then the issue is on the ground side of the harness.

  8. Oct 17, 2017 at 6:28 PM
    #28
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    This is a 3 wire electronic rheostat. It has to have a ground to function.

  9. Oct 17, 2017 at 10:42 PM
    #29
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,044
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    The TVIP is a big black box behind the driver side foot panel. About the size of a VHS tape, maybe a tad smaller. Usually wrapped in brown foam.

  10. Oct 18, 2017 at 10:08 AM
    #30
    sk8rjess

    sk8rjess [OP] IG: @whoishack

    Joined:
    Jul 5, 2009
    Member:
    #19286
    Messages:
    2,303
    Gender:
    Male
    First Name:
    Cody
    Nashville, TN
    Vehicle:
    02 4x4 sr5
    some duct tape and zip ties
    Good news, I think it is the rheostat. Didn't have a tester light so i grabbed one of the bulbs out of the corner lights and wired that up according to the diagram @mechanicjon provided. It didn't dim at all.
    @ThunderOne may be able to let me test his and vice versa since he's local.. wink wink hint hint :D

  11. Oct 18, 2017 at 10:16 AM
    #31
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Is that with the burnt trace repaired?

  12. Oct 18, 2017 at 10:18 AM
    #32
    sk8rjess

    sk8rjess [OP] IG: @whoishack

    Joined:
    Jul 5, 2009
    Member:
    #19286
    Messages:
    2,303
    Gender:
    Male
    First Name:
    Cody
    Nashville, TN
    Vehicle:
    02 4x4 sr5
    some duct tape and zip ties
    Yessur. I don't see any burnt components though, which is why i never really suspected it

  13. Oct 18, 2017 at 10:36 AM
    #33
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
