Let's See Some Softoppers

Discussion in 'Tonneau Covers, Caps and Shells' started by tcBob, May 13, 2013.

  1. Jul 10, 2019 at 6:04 AM
    #4541
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,109
    Gender:
    Male
    First Name:
    Mark
    Eureka, Calif
    Vehicle:
    8x8: 17 4R & 06 Taco
    Assholes call travel "overlanding"
    Yeah I don't fuck around, go big or go home

    mcharfauros likes this.
  2. Jul 10, 2019 at 4:12 PM
    #4542
    EatSleepTacos

    EatSleepTacos MOBTOWN OFFROAD AMBASSADOR

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    41,955
    Gender:
    Male
    First Name:
    Randy
    Chesapeake, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT POOP Edition
    All you’ll be making is two tiny holes. IMO the amount of water that will possibly enter will be negligible and not a big deal. The topper will leak more in other places.

    But if you really wanna seal it, just put a dab of silicone on the back.

    Cardsallday13 and mcharfauros like this.
  3. Jul 10, 2019 at 4:33 PM
    #4543
    Cardsallday13

    Cardsallday13 Well-Known Member

    Joined:
    Sep 19, 2017
    Member:
    #230481
    Messages:
    539
    Gender:
    Male
    Vehicle:
    2017 DCSB TRD Sport 4x4
    What he said

    EatSleepTacos likes this.
  4. Jul 10, 2019 at 4:40 PM
    #4544
    Cardsallday13

    Cardsallday13 Well-Known Member

    Joined:
    Sep 19, 2017
    Member:
    #230481
    Messages:
    539
    Gender:
    Male
    Vehicle:
    2017 DCSB TRD Sport 4x4
    They have a sale on tula 762 for $25/100rnds

  5. Jul 10, 2019 at 4:48 PM
    #4545
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    13,035
    Gender:
    Male
    First Name:
    GHOST
    At Softopper? Sign me up!


    :gossip: Pretty sure you meant to post that somewhere else.

    Last edited: Jul 10, 2019
    mcharfauros and Cardsallday13 like this.
  6. Jul 10, 2019 at 4:51 PM
    #4546
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    This is true. I have a tendency to overdo and overthink things.

  7. Jul 10, 2019 at 4:58 PM
    #4547
    Cardsallday13

    Cardsallday13 Well-Known Member

    Joined:
    Sep 19, 2017
    Member:
    #230481
    Messages:
    539
    Gender:
    Male
    Vehicle:
    2017 DCSB TRD Sport 4x4
    Lol. That was supposed to be a text to my buddy. My bad

    Spare Parts and GHOST SHIP like this.
  8. Jul 10, 2019 at 5:11 PM
    #4548
    Spare Parts

    Spare Parts Changed

    Joined:
    Sep 9, 2016
    Member:
    #196811
    Messages:
    9,153
    Southern Maine
    Vehicle:
    2017 MGM Sport DCSB V6 Manual
    Oops

  9. Jul 10, 2019 at 7:22 PM
    #4549
    MeefZah

    MeefZah Curmudgeonly

    Joined:
    Jul 11, 2014
    Member:
    #133704
    Messages:
    3,109
    Gender:
    Male
    First Name:
    Mark
    Eureka, Calif
    Vehicle:
    8x8: 17 4R & 06 Taco
    Assholes call travel "overlanding"
    Glad you didn't post the dick pic

    EatSleepTacos and Spare Parts like this.
  10. Jul 10, 2019 at 7:32 PM
    #4550
    Cardsallday13

    Cardsallday13 Well-Known Member

    Joined:
    Sep 19, 2017
    Member:
    #230481
    Messages:
    539
    Gender:
    Male
    Vehicle:
    2017 DCSB TRD Sport 4x4
  11. Jul 10, 2019 at 9:12 PM
    #4551
    Jeffvt0508

    Jeffvt0508 Well-Known Member

    Joined:
    Sep 5, 2011
    Member:
    #62959
    Messages:
    12,196
    Gender:
    Male
    First Name:
    Jeff
    Anderson, SC
    Vehicle:
    2015 DCSB 4x4 trd offroad
    Ome 887s, dakars, lr uca,sliders, konig countersteer,
    How is everyone wiring the 3rd break light?

  12. Jul 10, 2019 at 9:12 PM
    #4552
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Softopper or bestop?

  13. Jul 10, 2019 at 9:23 PM
    #4553
    Jeffvt0508

    Jeffvt0508 Well-Known Member

    Joined:
    Sep 5, 2011
    Member:
    #62959
    Messages:
    12,196
    Gender:
    Male
    First Name:
    Jeff
    Anderson, SC
    Vehicle:
    2015 DCSB 4x4 trd offroad
    Ome 887s, dakars, lr uca,sliders, konig countersteer,
    Softopper

  14. Jul 10, 2019 at 9:26 PM
    #4554
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Its pretty much diy on a softopper. I'm using

    Partsam 15" Smoke/Red 11 LED Waterproof Car Trailer Truck Stop Turn Tail Brake Light Bar Identification Light, Thin Line Smoked Red led strip light ID Bar

    Went back and forth on this one or a red one. I went with the smoke version.

    I'll tap into the driver's side tail but I'll be using a quick disconnect if I want to fold or remove the topper

    mcharfauros and Jeffvt0508 like this.
  15. Jul 10, 2019 at 9:30 PM
    #4555
    Jeffvt0508

    Jeffvt0508 Well-Known Member

    Joined:
    Sep 5, 2011
    Member:
    #62959
    Messages:
    12,196
    Gender:
    Male
    First Name:
    Jeff
    Anderson, SC
    Vehicle:
    2015 DCSB 4x4 trd offroad
    Ome 887s, dakars, lr uca,sliders, konig countersteer,
    Please post your diy in here I suck at wiring and I like the idea of quick disconnect

    mcharfauros likes this.
  16. Jul 10, 2019 at 9:32 PM
    #4556
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Good chance I'm even worse at electrical/wiring than you are. Haha.

    I'll try to remember to post some pics this weekend

    mcharfauros and Jeffvt0508 like this.
  17. Jul 11, 2019 at 2:23 PM
    #4557
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Not much of a diy, but here ya go. Found some time today, so chanced it in the 100° degree weather in az.

    Route the wire to the tailight. There's a hole underneath the bed cap. Fish it through. No pics, but there's a blue and white wire in the middle plug, tap these wires. Blue wire is power. White wire is ground....if I remember right.

    I used a waterproof quick disconnect. This way I can still easily fold the topper or remove the topper.

    And if I did want to remove or fold the topper I didn't want the plugs to be exposed. So i cut up another connector and used the Male and female connectors as dummy plugs. Filled the holes with epoxy.
    20190711_140410.jpg 20190711_140424.jpg

    Route wires to the brake light. I followed the strap, to the frame, and to the light. You can see in the first pic.

    20190711_140610.jpg 20190711_140633.jpg

    Hope this helps.

  18. Jul 11, 2019 at 2:40 PM
    #4558
    Jeffvt0508

    Jeffvt0508 Well-Known Member

    Joined:
    Sep 5, 2011
    Member:
    #62959
    Messages:
    12,196
    Gender:
    Male
    First Name:
    Jeff
    Anderson, SC
    Vehicle:
    2015 DCSB 4x4 trd offroad
    Ome 887s, dakars, lr uca,sliders, konig countersteer,
    That really does! Do you happen to have a pic or how you spliced into taillight?

  19. Jul 11, 2019 at 2:54 PM
    #4559
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,129
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM

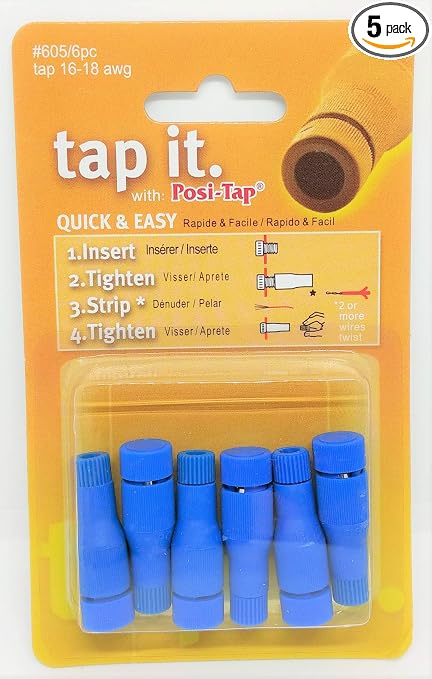

    No pic unfortunately. But I used positaps. [​IMG]

    I've read good reviews on these wire taps. I also have the meso stage 1 tails. So my wiring harness will prob look a little different than yours. Let me know if you have any questions.

  20. Jul 11, 2019 at 3:33 PM
    #4560
    RangerComa

    RangerComa High Speed Dirt Limo Adventure Rig

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    1,664
    Gender:
    Male
    First Name:
    Adam
    Bay Area, CA
    Vehicle:
    17 DCLB Sport
    list is growing fast
    Fricking awesome. :thumbsup: Thanks for doing that write with pics slowlane!

    mcharfauros and Jeffvt0508 like this.
