Let's see your FJ case swap

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TACO828, Oct 11, 2016.

  1. Jan 24, 2024 at 5:10 PM
    #2861
    AlHago

    AlHago Well-Known Member

    Joined:
    Jan 30, 2019
    Member:
    #281295
    Messages:
    287
    Gender:
    Male
    First Name:
    Alan
    Huntsville, AL
    Vehicle:
    12 DCLB MGM
    Stock as all get out.

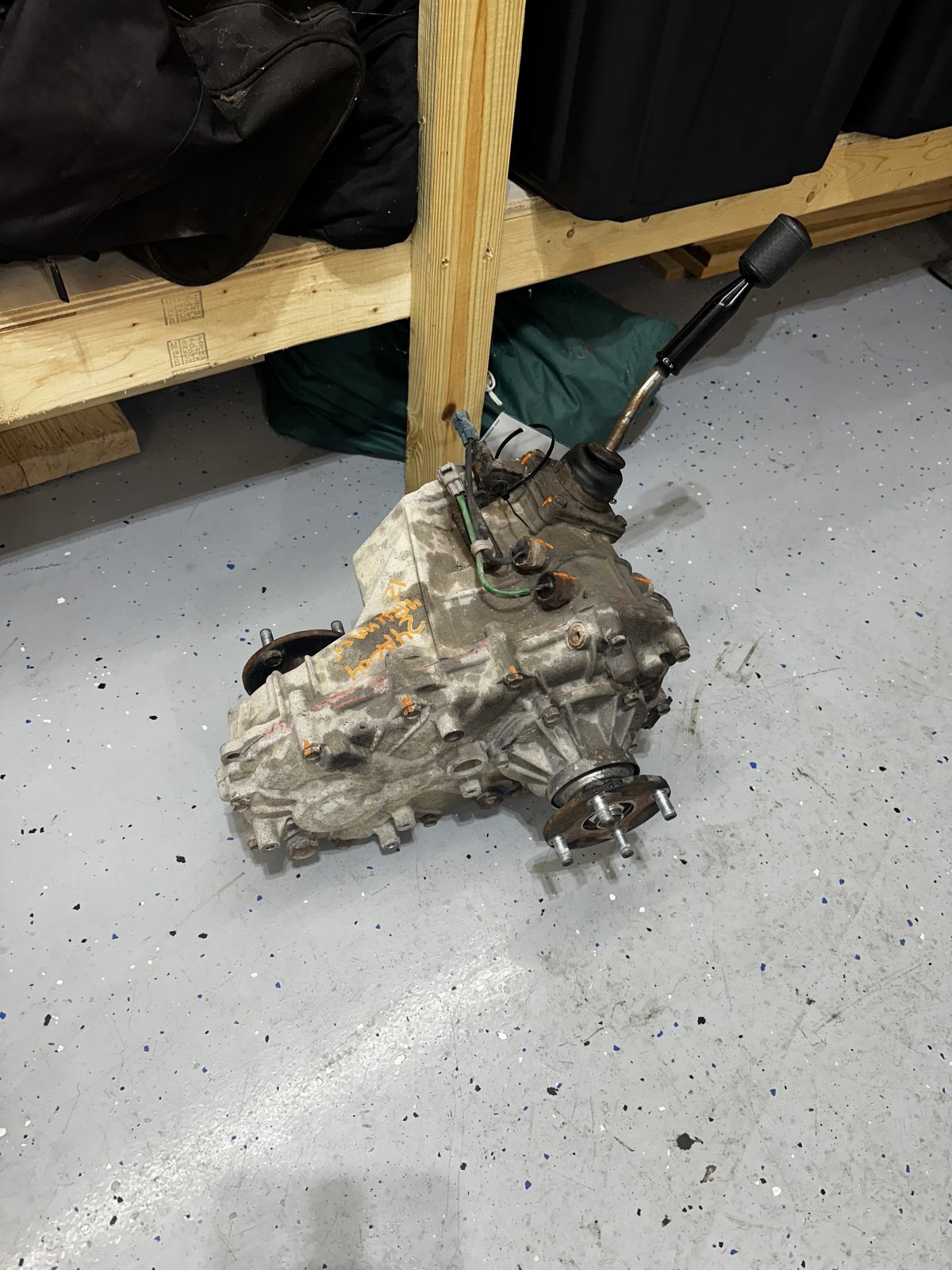

    (137k miles) $250 score with the knob and all! Feels like a lucky score with Joe flation now a days.


    whatstcp, Ricardo13x, brwntms and 7 others like this.
  2. Jan 25, 2024 at 6:18 PM
    #2862
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there
    Hmm I must have done something wrong, my add light was working then it stopped illuminating, checked fuses that I added all good as before.

    Any ideas ?

  3. Jan 25, 2024 at 6:40 PM
    #2863
    AlHago

    AlHago Well-Known Member

    Joined:
    Jan 30, 2019
    Member:
    #281295
    Messages:
    287
    Gender:
    Male
    First Name:
    Alan
    Huntsville, AL
    Vehicle:
    12 DCLB MGM
    Stock as all get out.
    What are you Auto trans guys running for both shift boots? (One that seals the floor and other for the pen holder location)

  4. Jan 25, 2024 at 10:31 PM
    #2864
    Strictlytoyz

    Strictlytoyz Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160147
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Charles
    HA\/\/AII
    Vehicle:
    07 Double Cab
    ADD light?

    FishingInSand[QUOTED] likes this.
  5. Jan 26, 2024 at 5:34 AM
    #2865
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there
    Sorry, the 12 state add switch "power" light that shows it's activated.

  6. Jan 26, 2024 at 8:13 AM
    #2866
    Strictlytoyz

    Strictlytoyz Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160147
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Charles
    HA\/\/AII
    Vehicle:
    07 Double Cab
    Did any of the wires come loose on the terminals on the back of the switch?

    FishingInSand[QUOTED] likes this.
  7. Jan 26, 2024 at 8:40 AM
    #2867
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there
    Plug and play kit, the 12 state off-road double rocker style

  8. Feb 8, 2024 at 1:04 PM
    #2868
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there
    Update: got everything to work fine, except it looks like my gamble with an ebay case proved a failure lol. Case is leaking pretty bad not sure where its coming from. But at least it works I suppose hah

    This site contains affiliate links for which the site may be compensated.
    Ricardo13x likes this.
  9. Feb 8, 2024 at 1:47 PM
    #2869
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,341
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    if the case is leaking, its probably the seals for the input/output shafts or out of the shifter

    This site contains affiliate links for which the site may be compensated.
    FishingInSand[QUOTED] likes this.
  10. Feb 8, 2024 at 1:58 PM
    #2870
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there

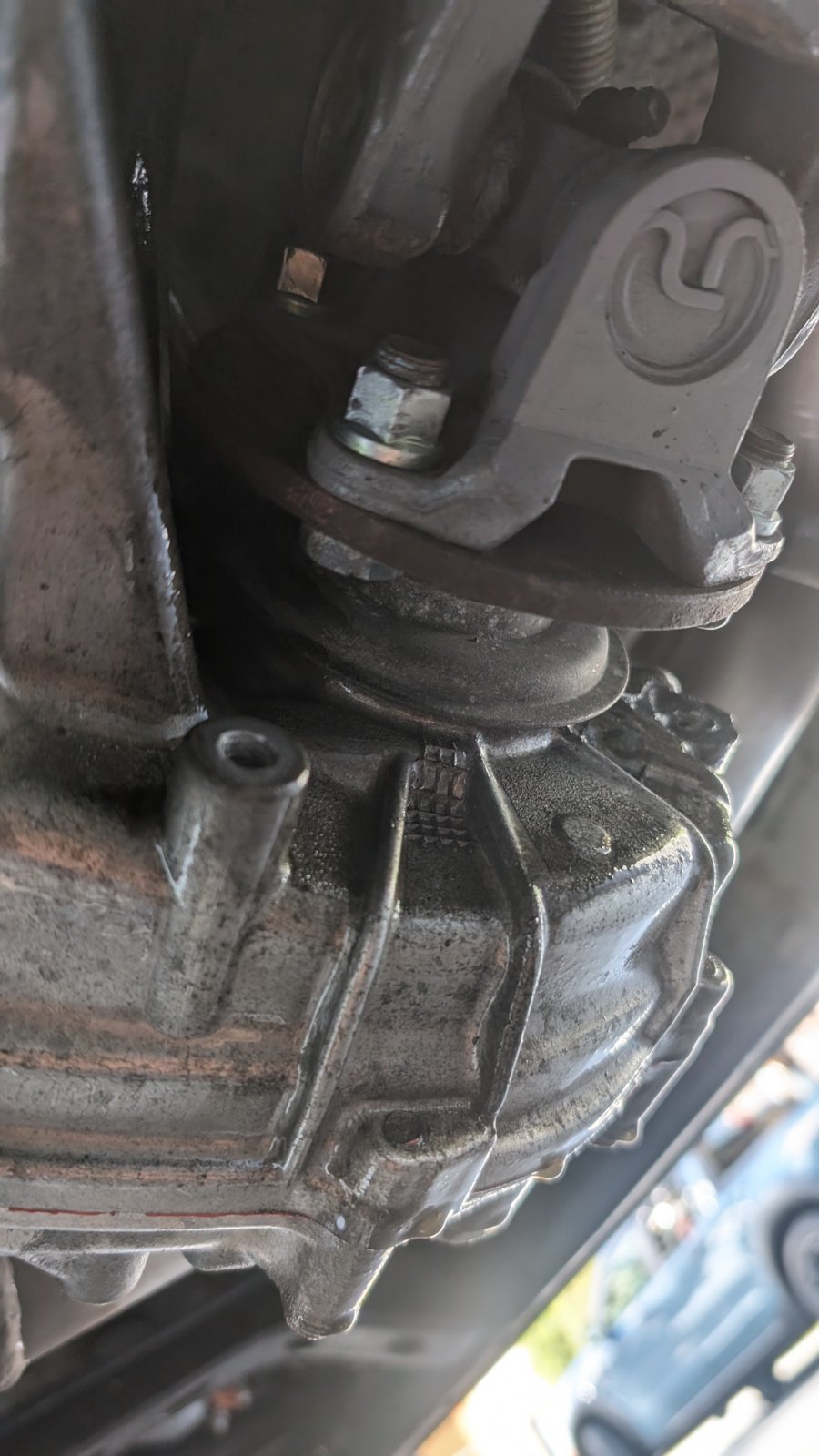

    The rear one Is bone dry but the front one might be the culprit. Is that something that can be done in place or am I cutting out my shifter again? Haha

    Good looking man thanks it's the last gremlin I have to workout

    Ricardo13x likes this.
  11. Feb 8, 2024 at 2:05 PM
    #2871
    Ricardo13x

    Ricardo13x YT: @UrbanOpsOffRoad IG: @urban.ops.offroad

    Joined:
    Feb 9, 2020
    Member:
    #318785
    Messages:
    2,451
    Gender:
    Male
    Upland, CA.
    Vehicle:
    05 OR DCSB ProRunner(4x4 conv.), Chevy 63”s
    random stuff. Oh! and converted to non ADD 4x4.
    Bro, you can remove the lever from the case and then drop the Transfer case. You might have damaged the seal upon installation, images of the leaking?

    FishingInSand[QUOTED] likes this.
  12. Feb 8, 2024 at 2:54 PM
    #2872
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there

    Edit: it's hard to pinpoint it because I check after I'm done driving and it gets blown everywhere but it right behind the front output seal

    Last edited: Feb 8, 2024
    Ricardo13x[QUOTED] likes this.
  13. Feb 8, 2024 at 3:02 PM
    #2873
    Strictlytoyz

    Strictlytoyz Well-Known Member

    Joined:
    Jul 23, 2015
    Member:
    #160147
    Messages:
    1,920
    Gender:
    Male
    First Name:
    Charles
    HA\/\/AII
    Vehicle:
    07 Double Cab
    You'll get good at dropping the case. Ended up going up and down with mine about 4 times before everything was good to go lol

  14. Feb 8, 2024 at 7:42 PM
    #2874
    bhigbee

    bhigbee Well-Known Member

    Joined:
    Jan 20, 2020
    Member:
    #316760
    Messages:
    541
    Gender:
    Male
    First Name:
    Barney
    Hayden Id
    Vehicle:
    Wrecked 07 DCSB
    35s, flatbed, rhino liner paint, SOS front bumper, JD Fab lca pivot, JD Fab inner fenders and some other stuff.
    This is the truth, I think I had to drop mine 3 times now, just to work out the bugs. Having a crawl box makes it even more fun. I'm thankful for picking up a Harbor Freight transmission jack, its been a life saver.

  15. Feb 11, 2024 at 12:29 PM
    #2875
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    1,045
    Gender:
    Male
    First Name:
    Corey
    Temecula
    Vehicle:
    06 now with 4x4
    Some stuff here and there
    I found it, 2 of the shifter plate bolts worked it's way out. Some blue locktight and cinched it back down. RTV must have felt like it was torqued down enough but was just compressing

    timbobzimbob likes this.
  16. Feb 26, 2024 at 6:11 PM
    #2876
    gtrotter07

    gtrotter07 Well-Known Member

    Joined:
    Jul 19, 2019
    Member:
    #299768
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2007 Tacoma reg cab 4x4 on 37's; 2021 TRD Offroad, 6 speed
    37's,lockers, bumpers, bobbed etc.

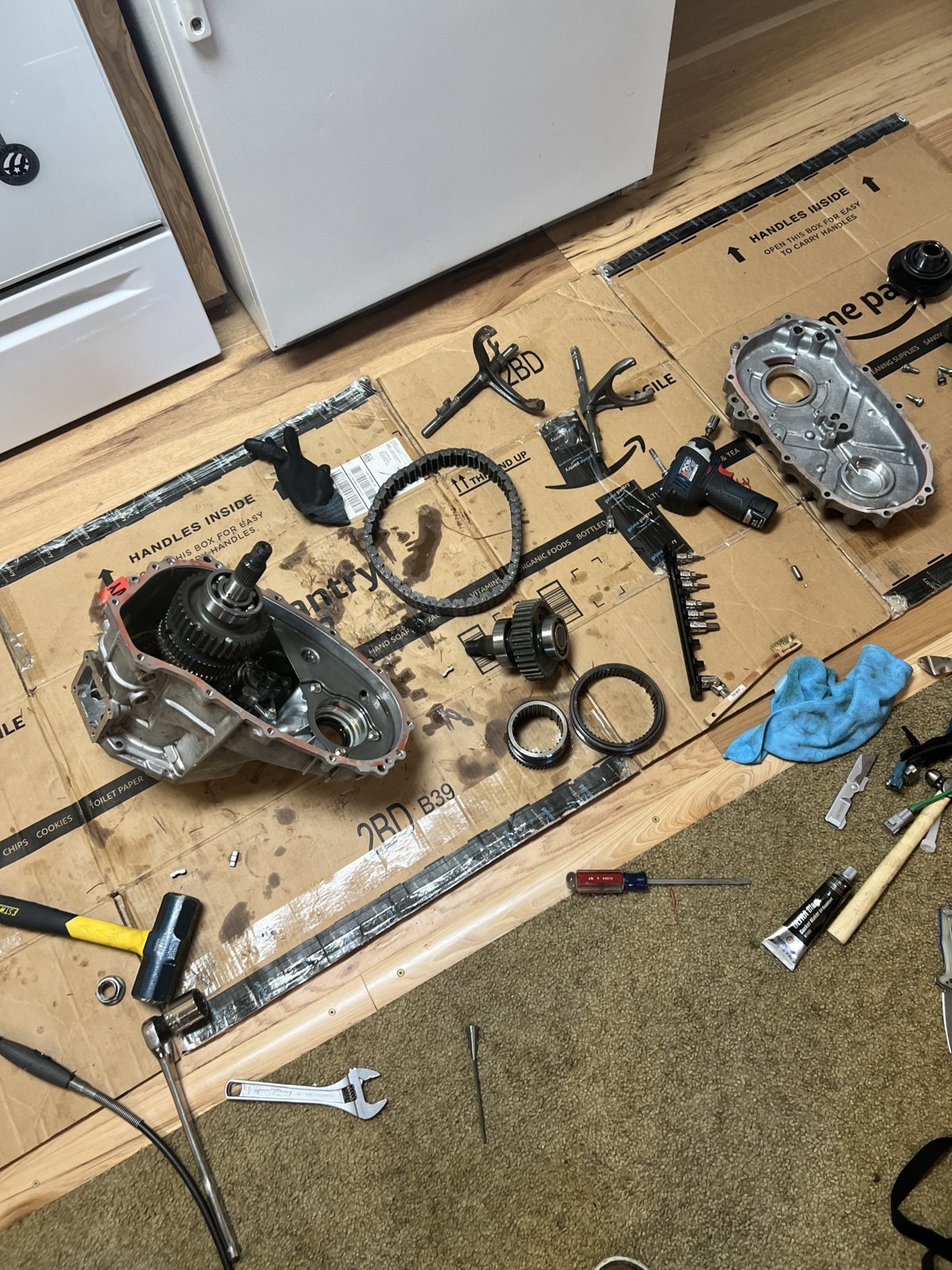

    Well I found out how bad they suck to get in lol

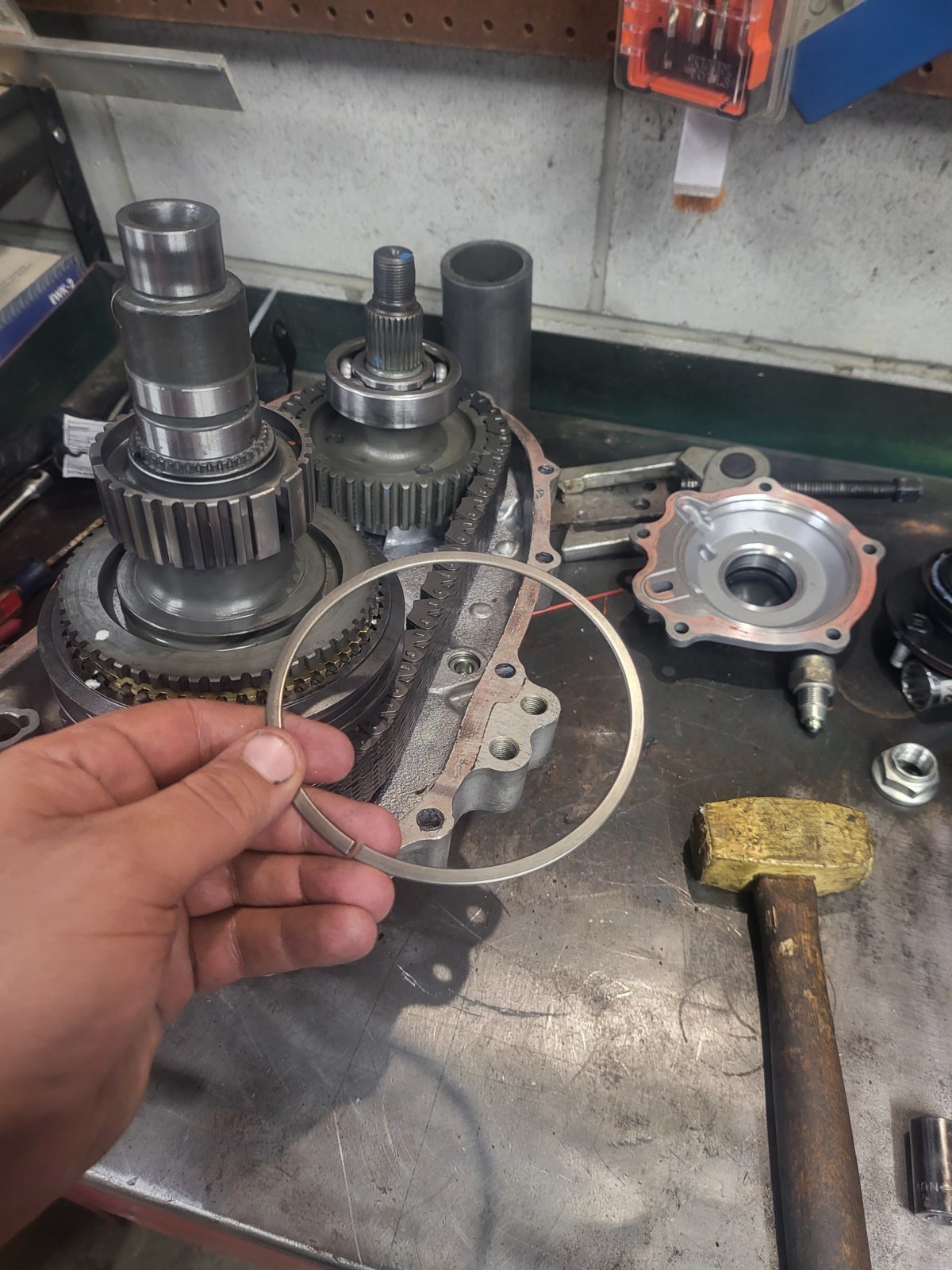

    Also, on a side note. Anyone know where this snap ring goes? I'm thi king either above or below the brass synchro? I only abandoned this project for 6+ months.


  17. Feb 27, 2024 at 6:03 AM
    #2877
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    3,153
    Gender:
    Male
    First Name:
    Bryan
    Elizabeth, CO
    Vehicle:
    3 tons of fun
    I forget the details of your swap, but if you removed the tcase input / planetary gearset to swap them for a manual input, then most likely that's the snap ring that holds the planetaries into the front cover of the tcase. So you'd insert the planetaries into the cover, then the snap ring goes on before the flange I see sitting on your workbench.

    dborrer, Windigo and DesertRatliff like this.
  18. Mar 3, 2024 at 4:54 PM
    #2878
    DiseasedAliens

    DiseasedAliens Member

    Joined:
    Jan 7, 2024
    Member:
    #441151
    Messages:
    8
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2014 Tacoma TRD Sport Blue
    Hey guys, i did this swap recently and think it was successful but am having a couple possible issues i was hoping some people could weigh in on.

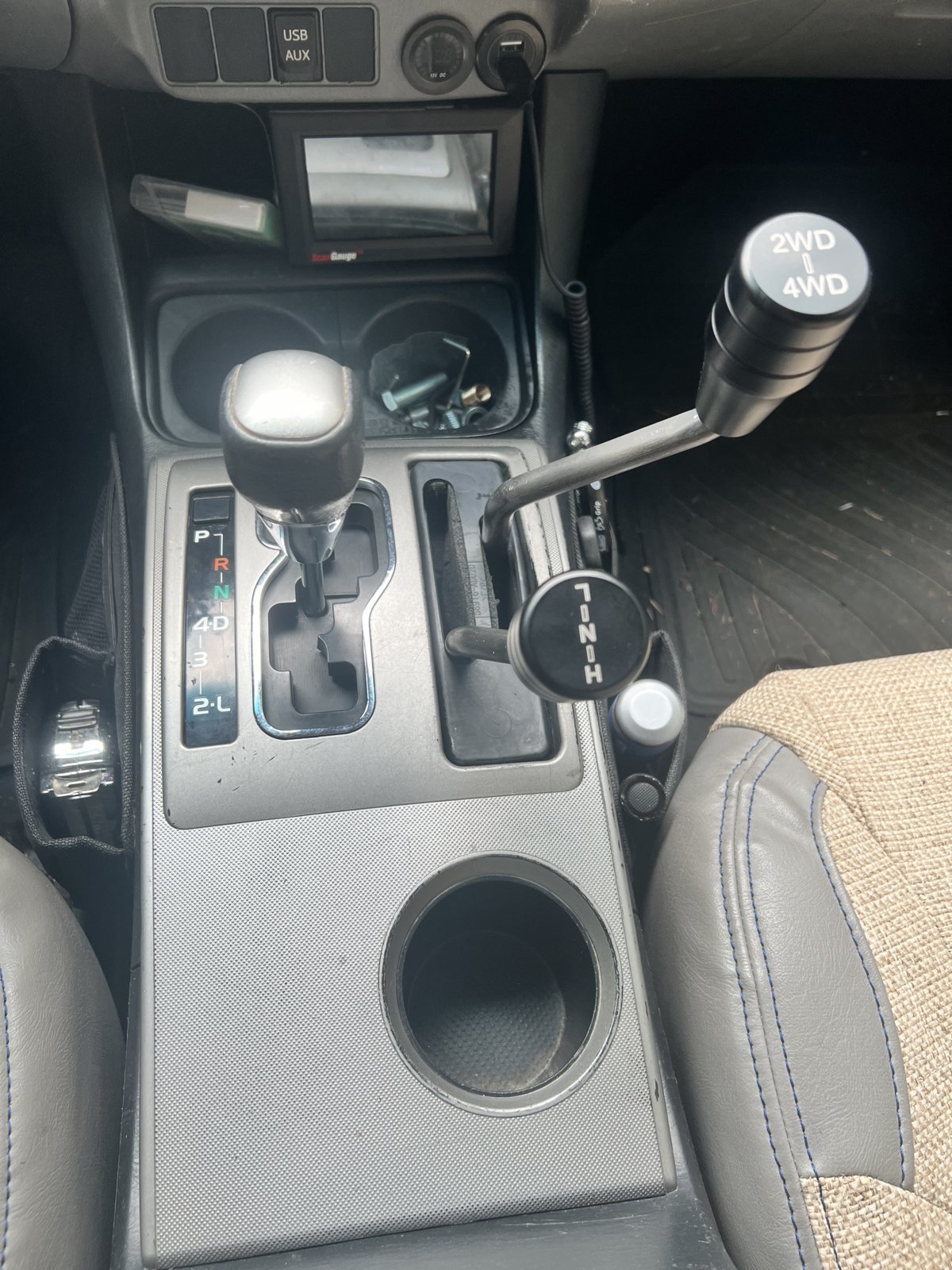

    Here are some images of the center console. Had a local welder bend some 1/2" round stock based on some measurements i took and used open cell pick-apart foam (like the stuff for tool boxes) to fill the void. Have an acrylic plate with slots currently being laser cut to cover the foam.


    I traded some mountain climbing gear for a Tcase from a guy who LS swapped his FJ at 36k miles so it was super clean. I did the Twin stick conversion in my college apartment (sorry downstairs neighbors and don't tell my landlord) with the Front Range Offroad kit. I fucked up the teardown and dropped the synchro keys, however i am 99% certain i reinstalled them correctly as i quadruple checked everything before putting it under my truck in the alleyway behind my apartment.


    Things seemed fine, but after some time i felt like the 4WD shift lever felt "crunchy" when shifting into 4. And SOMETIMES upon shifting back into 2, the lever would move which was then followed by a delayed 'click' of the shift rail actually moving. I assume the spring on the rail allows it to expand and then move once it can. My first step was to drain and refill the oil. The oil was super black despite being fresh but i didn't notice any glitter. This seemed to make things smoother, and after driving it around some, i decided to do another drain and fill to clean it out some more. The oil this time was black again after maybe 25 miles, but definitely cleaner and transparent. I did ANOTHER drain and fill and have not checked that oil yet. Sometimes i get the standard grinding noise transmitted through the shift levers, and sometimes i don't. I also notice that it doesn't want to shift into 4 while the drive train is loaded and i have to let off the gas and then it'll go. If i am in 4wd, stop the truck, and shift into 2, the synchro stays aligned and it shifts back and forth nice and smooth but otherwise it feels harsh and crunchy and will sometimes stick in 4 temporarily before clicking into 2 even with the lever in 2.

    with that background, my main question is did i do something wrong? is something wrong with it's operation? is all this normal and I'm freaking out over nothing? I dont want to have to drop the case and pull it apart but right now it feels like that's the only thing that will ease my stress on this.

    I have a borescope and was able to take off the shifter housing and let the truck roll while literally watching the synchro ring and sleeve and when using a screwdriver to pry on the shift rail it looked like everything was normal but i also felt like the synchro ring (the gold one) was moving around too much and maybe wasn't engaged with the synchro keys correctly or something, causing the crunchiness when trying to shift.

    any thoughts? is a little bit of roughness when shifting normal? everything else works fine and 4wd works. But i just want to make sure there inst a time bomb under my truck and i don't need to worry about anything.

    cheers.

    drewnali likes this.
  19. Mar 4, 2024 at 3:59 PM
    #2879
    gtrotter07

    gtrotter07 Well-Known Member

    Joined:
    Jul 19, 2019
    Member:
    #299768
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2007 Tacoma reg cab 4x4 on 37's; 2021 TRD Offroad, 6 speed
    37's,lockers, bumpers, bobbed etc.
    Found it. Snap ring does go on outside of case on planetary(front).

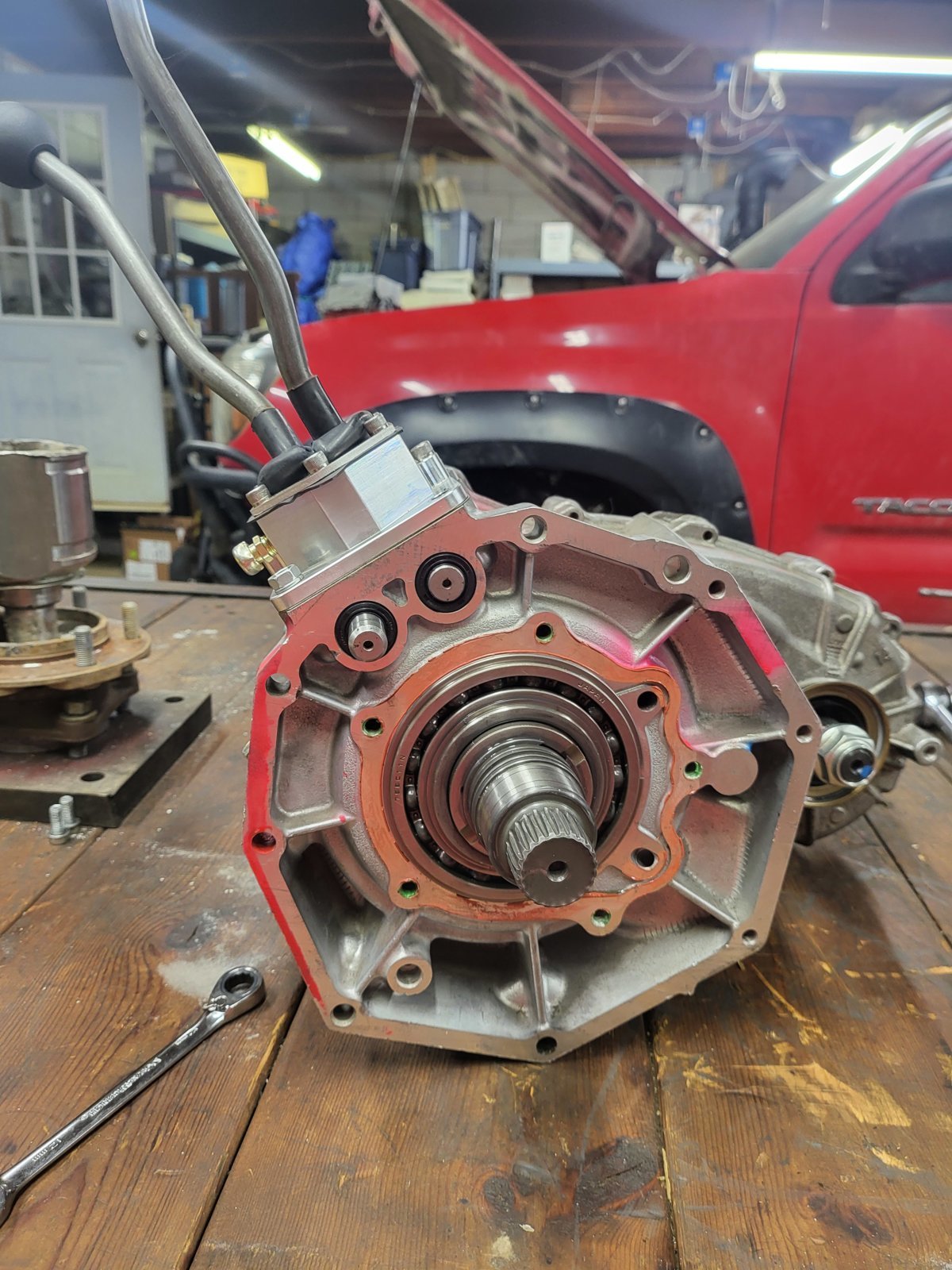

    Next question...I'm doing a dry run on bench to confirm function. Levers seem to work, albeit with very mild force which is probably appropriate.

    I can't for the life of me get "4wd" to engage. Did I miss something, or is this a case of getting everything lined up/meshed? Hi/lo works perfect and I don't notice anything unusual on shifting 2wd/4wd.


    drewnali and Littles[QUOTED] like this.
  20. Mar 4, 2024 at 10:52 PM
    #2880
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    3,153
    Gender:
    Male
    First Name:
    Bryan
    Elizabeth, CO
    Vehicle:
    3 tons of fun
    First thing id check before opening the case back up is pull off the shifters and see if you can get the 4wd rail to move and fully engage manually. If you can get it to work that way, then its likely an issue with the shifter assembly not contacting or fully seating the rail to engage 4wd. I know there is a nub on the H/L rail that some people :anonymous: forget to grind off and will cause the H/L rail to not seat correctly. I also recall that certain shifters have required grinding on the tab that seats into the shift rail in order to allow it to fully seat.
