Let's see your FJ case swap

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TACO828, Oct 11, 2016.

  1. Oct 5, 2020 at 4:21 PM
    #1181
    HomerTaco

    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,761
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    The auto trans guys gotta get real creative... Nice job!

  2. Oct 5, 2020 at 4:23 PM
    #1182
    ToyoRideBFG23

    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    159
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    Thanks! I got good advice to use popsicles stick to Mach it up. And it worked well.

    HomerTaco[QUOTED] likes this.
  3. Oct 5, 2020 at 4:29 PM
    #1183
    HomerTaco

    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,761
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    In hindsight that looks WAY more complicated than my triple stick setup on mine. We just had to adjust for stick height and side to side clearance. You've got like 3 different 90* angles there...

  4. Oct 5, 2020 at 4:37 PM
    #1184
    dborrer

    dborrer Well-Known Member

    Joined:
    Apr 28, 2018
    Member:
    #251944
    Messages:
    518
    Gender:
    Male
    First Name:
    Mr. Dan
    St. Augustine, FL
    Vehicle:
    2006 Tacoma TRD Sport 4x MT
    2018 new Frame (thank you Rust!), FJ T-case swap. SPC(LR) UCAs, Bilstein 5100s front - rear, OME 883 at 0, HeadStrongOffRoad 3 leaf progressive AAL, MESO custom 2nd gen (Red/White) LED dome & Ultimate Maps, Spyder Halo Projector w LEDs (which SUCK), Spyder LED tails
    Anyone out there have a good set of measurements to get a single stick up next to the manual shifter level? I wish I knew how to weld, but I don't.... i'll have to find help to accomplish that part.

  5. Oct 5, 2020 at 4:40 PM
    #1185
    ToyoRideBFG23

    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    159
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    Takes some time to think about. I bought some metal rods that a 90* bend in it already so that helped make it easier.

    HomerTaco[QUOTED] likes this.
  6. Oct 6, 2020 at 7:36 AM
    #1186
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    10,413
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    Best bet would be to get some bailing wire (or thicker) to make the template for someone else to weld up. It would be difficult to give exact measurements as there is so many variables.

    Could also do a bolt on variable to with set screws.
    This got changed to set screws, since there wasn't enough room to use the bolts

    dborrer[QUOTED] and Jojee117 like this.
  7. Oct 6, 2020 at 2:09 PM
    #1187
    Sae68

    Sae68 Well-Known Member

    Joined:
    Jun 27, 2016
    Member:
    #190661
    Messages:
    288
    Gender:
    Male
    First Name:
    JimS
    Stockton, CA
    Vehicle:
    05 FJ 4x4 PreRunner
    Think you might need more gap between fj shifter and auto shifter assembly.
    Have issues with my FJ shifter bouncing sideways on rough dirt road.

  8. Oct 6, 2020 at 3:05 PM
    #1188
    ToyoRideBFG23

    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    159
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    Same here I’ve noticed that recently. Soon I’m going to take it off and make bend away from the shifter and see if that helps. I’ll post results on here.

    Sae68[QUOTED] likes this.
  9. Oct 6, 2020 at 9:26 PM
    #1189
    billygoat

    billygoat Well-Known Member

    Joined:
    Mar 25, 2012
    Member:
    #75588
    Messages:
    320
    Gender:
    Male
    American Southwest
    Vehicle:
    08 TRD Offroad 4x4
    6” Fabtech Lift, 35’s, lots o’ goodies
    Does it matter what order you activate the ADD and shift the transfer case in? ie do you need to always do one before the other?

  10. Oct 6, 2020 at 10:36 PM
    #1190
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,564
    Deep South
    Herculiner Hootus
    the transfer case should be engaged first if you want to mimic the oem operation to engage at speed. What I had always done though was treat the ADD like a locking hub and lock before I need 4wd, you can then shift in and out of 4x4 on the fly. Don’t try to engage the ADD at speed without the transfer case in 4wd or you’ll hear a lot of funny and expensive noises.

    HomerTaco, tacoma16, Sae68 and 3 others like this.
  11. Oct 8, 2020 at 6:43 PM
    #1191
    MC1983

    MC1983 Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16728
    Messages:
    308
    Gender:
    Male
    First Name:
    Mark
    Indianapolis, IN
    Vehicle:
    2005 DCLB
    Where did you get the rubber boot to seal the floor? Can you take some measurements of the shifter mods?

    Has anybody made a fixture for the TCase shifter mods needed to come up through the coin slot?

  12. Oct 8, 2020 at 8:07 PM
    #1192
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,686
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    the rear driveshaft will need to be custom. the carrier bearing location between the pre-runner and the 4x4 are in different locations.

    Y2kbaja likes this.
  13. Oct 8, 2020 at 8:08 PM
    #1193
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,686
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    i didnt have to adjust anything on mine. just have the urd shot throw shift kit.

    BassAckwards likes this.
  14. Oct 8, 2020 at 9:37 PM
    #1194
    ToyoRideBFG23

    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    159
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    The boot is from Amazon Mr. Gasket Small Round Shifter Boot https://www.amazon.com/dp/B000CMGZSW/ref=cm_sw_r_cp_apip_kfqDS15tsNlKq

    and I can take some measurements next time I adjust it. But most likely your going to have to make adjustments as you go. Also you need to cut the corner of transmission shifter box so that way you have clearance when shifting the t case.

  15. Oct 8, 2020 at 11:10 PM
    #1195
    t.hornstra

    t.hornstra Well-Known Member

    Joined:
    Oct 14, 2008
    Member:
    #9957
    Messages:
    5,264
    Gender:
    Male
    First Name:
    Ted
    NorCal
    Vehicle:
    White with 4 wheels
    Little this. Little that 4x4 Swap’d PreRunner
    AFAIK, you can grind out the cross brace and move it back on the frame to match the 4x4. The holes are there. There’s 6 in the frame, the prerunner uses the front 4, 4x4 uses the rear 4. @foxrcing07 told me about the trick. Cheaper than a custom driveshaft.

  16. Oct 9, 2020 at 4:40 AM
    #1196
    dborrer

    dborrer Well-Known Member

    Joined:
    Apr 28, 2018
    Member:
    #251944
    Messages:
    518
    Gender:
    Male
    First Name:
    Mr. Dan
    St. Augustine, FL
    Vehicle:
    2006 Tacoma TRD Sport 4x MT
    2018 new Frame (thank you Rust!), FJ T-case swap. SPC(LR) UCAs, Bilstein 5100s front - rear, OME 883 at 0, HeadStrongOffRoad 3 leaf progressive AAL, MESO custom 2nd gen (Red/White) LED dome & Ultimate Maps, Spyder Halo Projector w LEDs (which SUCK), Spyder LED tails
    picture?

  17. Oct 9, 2020 at 7:10 AM
    #1197
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,686
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    I'll try and get one today.

  18. Oct 9, 2020 at 7:13 AM
    #1198
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,686
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    Also, the FJ-cruiser shifter for the 6mt is a good option and has a dog leg bend off to the driver's side.


  19. Oct 9, 2020 at 7:19 AM
    #1199
    rheath08

    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,686
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged

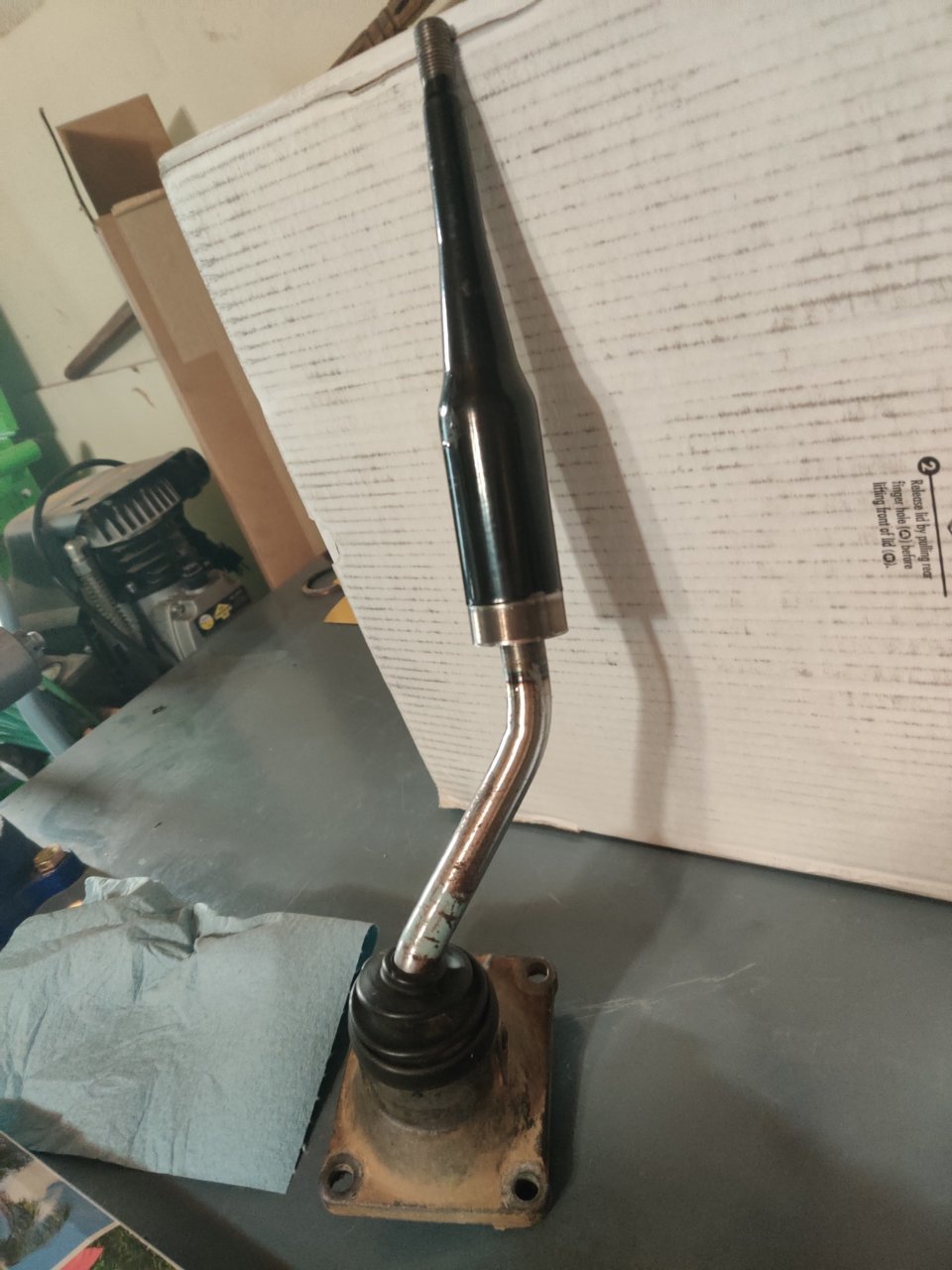

    Here you gents go.
    It would not let me up load a video.


  20. Oct 9, 2020 at 8:21 AM
    #1200
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,095
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    I couldn't get it work like this on my 5 speed 4 banger. It hit the right side of the console and hit the main shifter in 5th and Reverse. I ended up modifying the FJ stick to be to the left of the main shifter. Though in your picture, your main shifter appears to be more to the left than in my 5speed. In 1st gear my shifter is much closer to center and in 5th is pretty far to the right.
