Let's talk lighting

Discussion in '2nd Gen. Tacomas (2005-2015)' started by UserUnspecified, Jul 5, 2022.

  1. Jul 5, 2022 at 9:00 AM
    #1
    UserUnspecified

    UserUnspecified [OP] Active Member

    Joined:
    Jun 6, 2022
    Member:
    #398860
    Messages:
    27
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    05 Prerunner - TRD OR
    Having recently purchased my 05 Taco, I've discovered it's a very very dark place to spend time. Maybe I'm spoiled by my German cars, but I'd appreciated a bit more lighting in the cab.

    I did do some searching which netted me these great threads for:
    Footwell lighting- Footwell Lights That Don't Suck (2nd Gen Edition!) - In Stock! | Tacoma World
    And bed lighting- FS: Waterproof Under Bed Rail LED lights | Tacoma World

    But what have folks done for illuminating the dashboard and other controls? For example, the switches (locker and AC, if equipped) to the left of the steering wheel are completely dark. I would expect them to be backlit, but it's a blackhole over there.

    I'd really love something that added a bit of soft overhead lighting. Suggestions, thoughts, insults welcome

  2. Jul 5, 2022 at 9:20 AM
    #2
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    9,226
    Gender:
    Male
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
  3. Jul 5, 2022 at 10:25 AM
    #3
    UserUnspecified

    UserUnspecified [OP] Active Member

    Joined:
    Jun 6, 2022
    Member:
    #398860
    Messages:
    27
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    05 Prerunner - TRD OR
  4. Jul 7, 2022 at 12:15 PM
    #4
    BlkDakDave

    BlkDakDave Well-Known Member

    Joined:
    Oct 20, 2012
    Member:
    #89422
    Messages:
    1,117
    Gender:
    Male
    First Name:
    David
    CC TX
    Vehicle:
    07 AC PreRunner TRD/Off Road
    @UserUnspecified , the diff lock "fog" lights switches will illuminate when the parking or driving lights are on. The mirror control switch normally doesn't, but I got tired of fumbling around trying to find it, so I installed a switch from a Prius. Found the info from this thread. https://www.tacomaworld.com/threads/mirror-control-switch-question.382370/

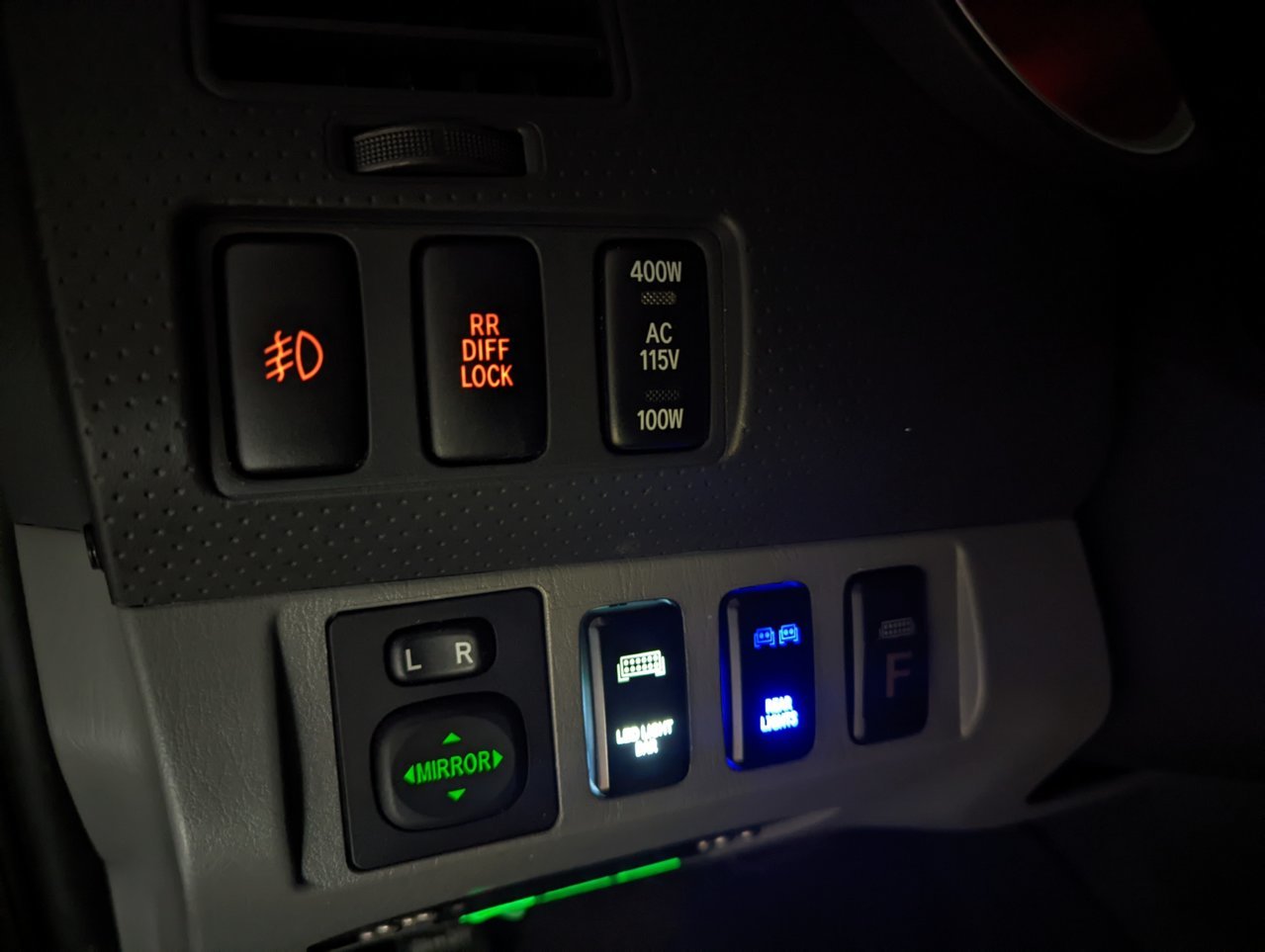

    Here is what the controls look like on the left side of my steering wheel.

    When I first bought my truck and before I retired, I was leaving my house at 4:30 every morning for work and trying to find the cup holder for my morning cup of Java wasn't fun. I didn't want a bright light so I came up with an idea to use led strip light that I trimmed and molded to fit where I wanted it. It was originally came with two led strips that were designed to be powered by a "cigrette lighter" style. Instead, I cut the wire and used a simple toggle switch that I hid in that little pocket drawer just to the left and below the steering wheel. It worked great and 12 years later it still does. I eventually added the second (full) strip on the headliner behind the driver's seat, but only use it every once in a while. Here's a few pics of the lights and one of the HVAC control switches - that add additional low key lighting.

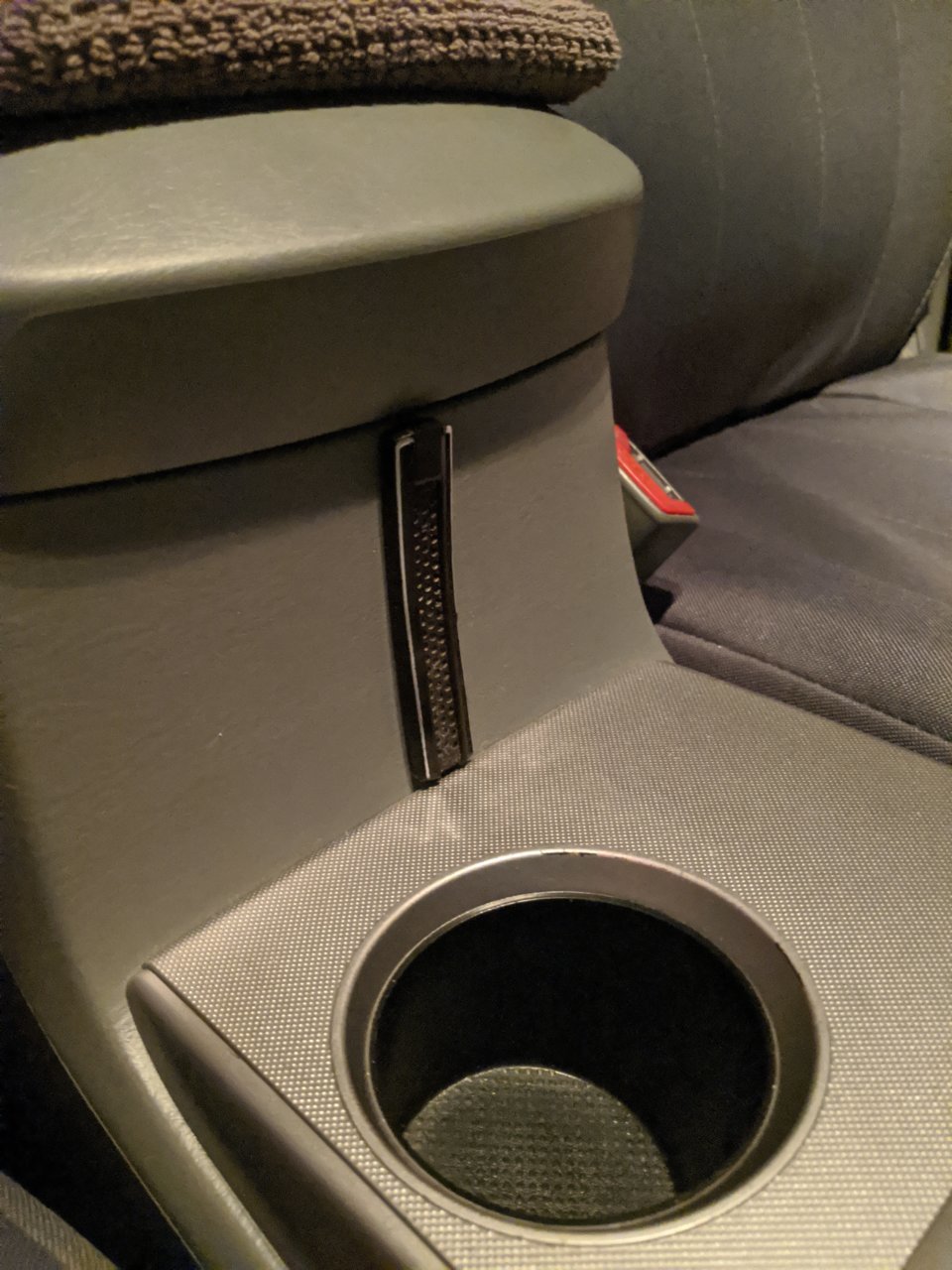

    Led strip without wire.jpg

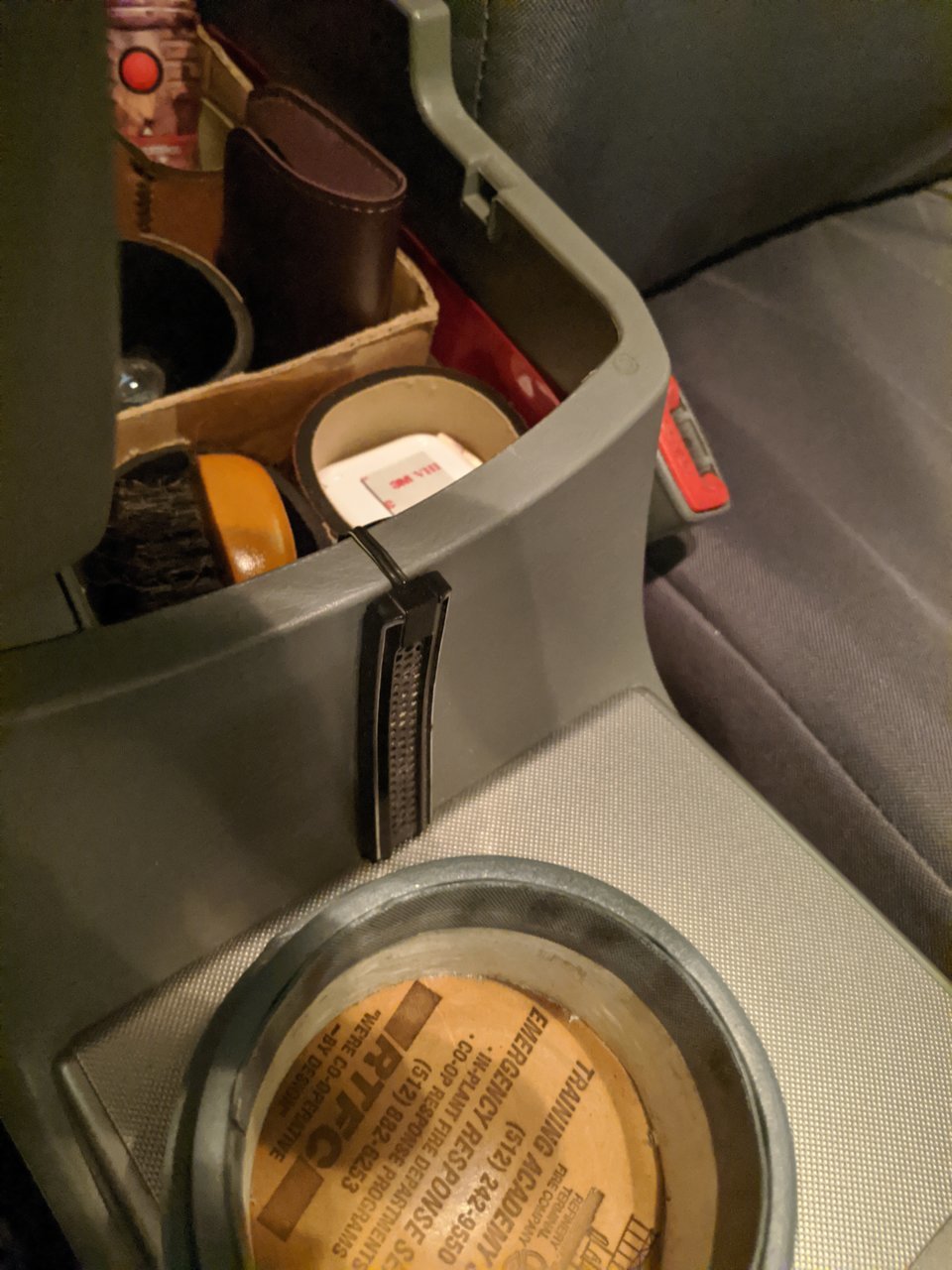

    led strip with wire.jpg

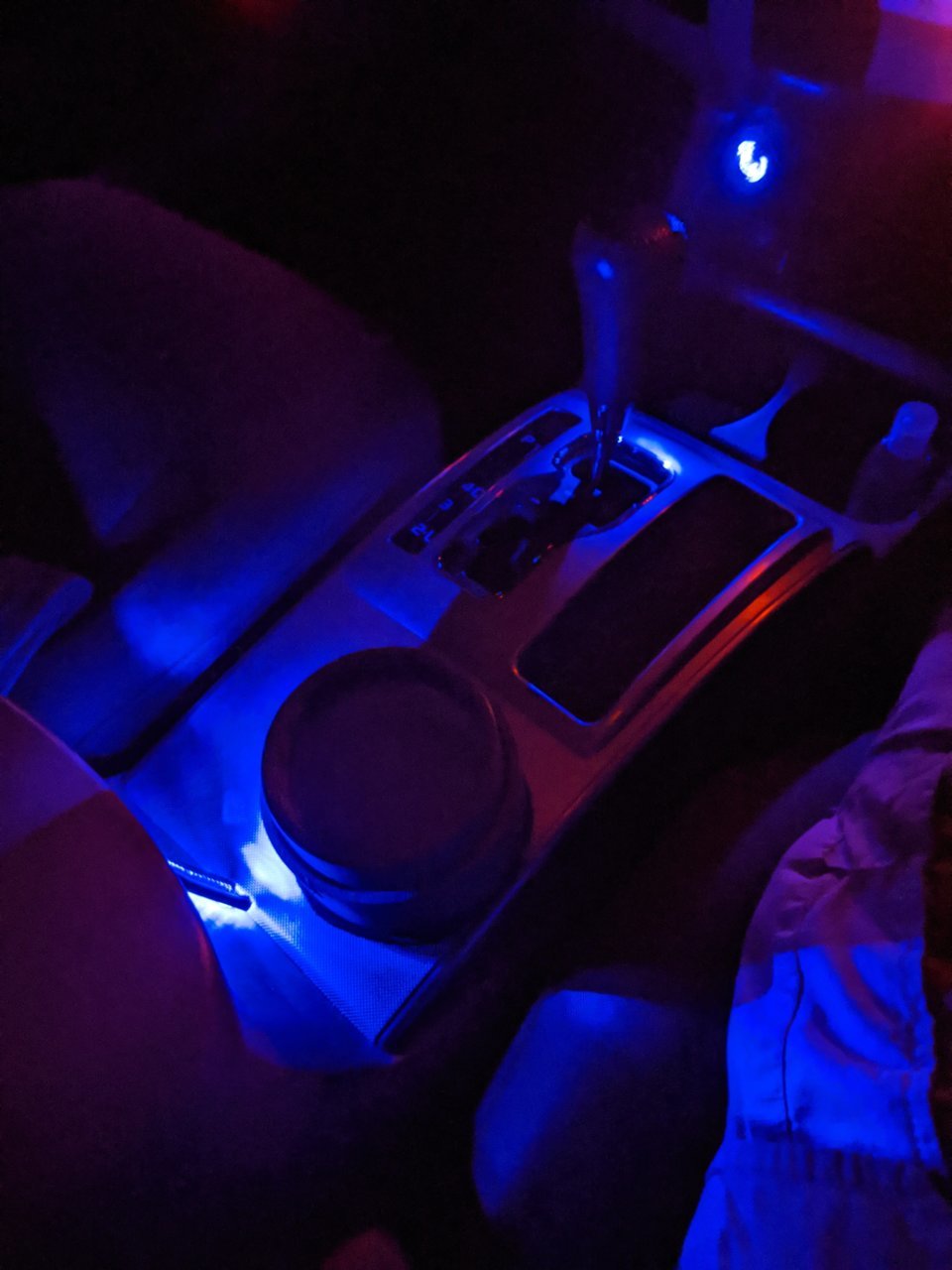

    Led strip ON.jpg

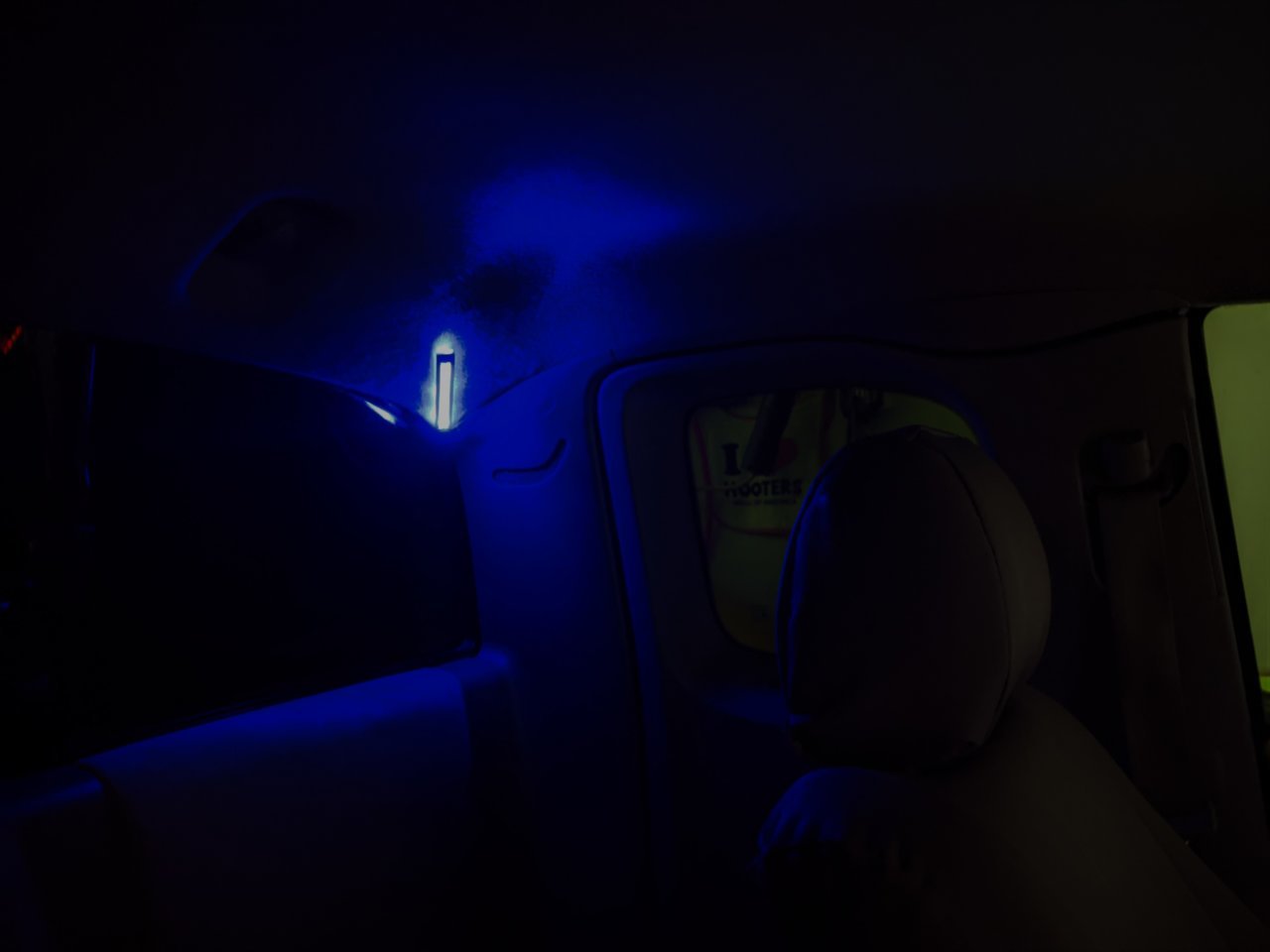

    Blue light back seat.jpg

    Last edited: Jul 9, 2022
  5. Jul 7, 2022 at 12:20 PM
    #5
    NmapFE

    NmapFE Well-Known Member

    Joined:
    Apr 1, 2022
    Member:
    #393981
    Messages:
    473
    Gender:
    Male
    Vehicle:
    2014 DCLB 4x4 Limited. 6112’s/5125, KYB Top Hats, SPC UCA’s, Icon RXT leaf pack,
    2014 DCLB 4x4 Limited. 6112’s/5125, KYB Top Hats, SPC UCA’s, Icon RXT leaf pack
    nice

    BlkDakDave[QUOTED] likes this.
  6. Jul 7, 2022 at 12:34 PM
    #6
    UserUnspecified

    UserUnspecified [OP] Active Member

    Joined:
    Jun 6, 2022
    Member:
    #398860
    Messages:
    27
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    05 Prerunner - TRD OR
    Ohhh, the Prius mirror switch would be super helpful. I'll have to search the local u-pulls.

    Re: the fog and rear diff switch. Mine definitely do NOT light up.
    Given neither illuminate, I'm guessing it's bigger problem than just a burnt out bulb in the switch itself.
    although, you have an 07. Wondering if the 05 was pre-illuminated switch.

    Two thoughts:
    1. Was looking adding 5mm LEDs at various places in the interior to add some additional indirect lighting

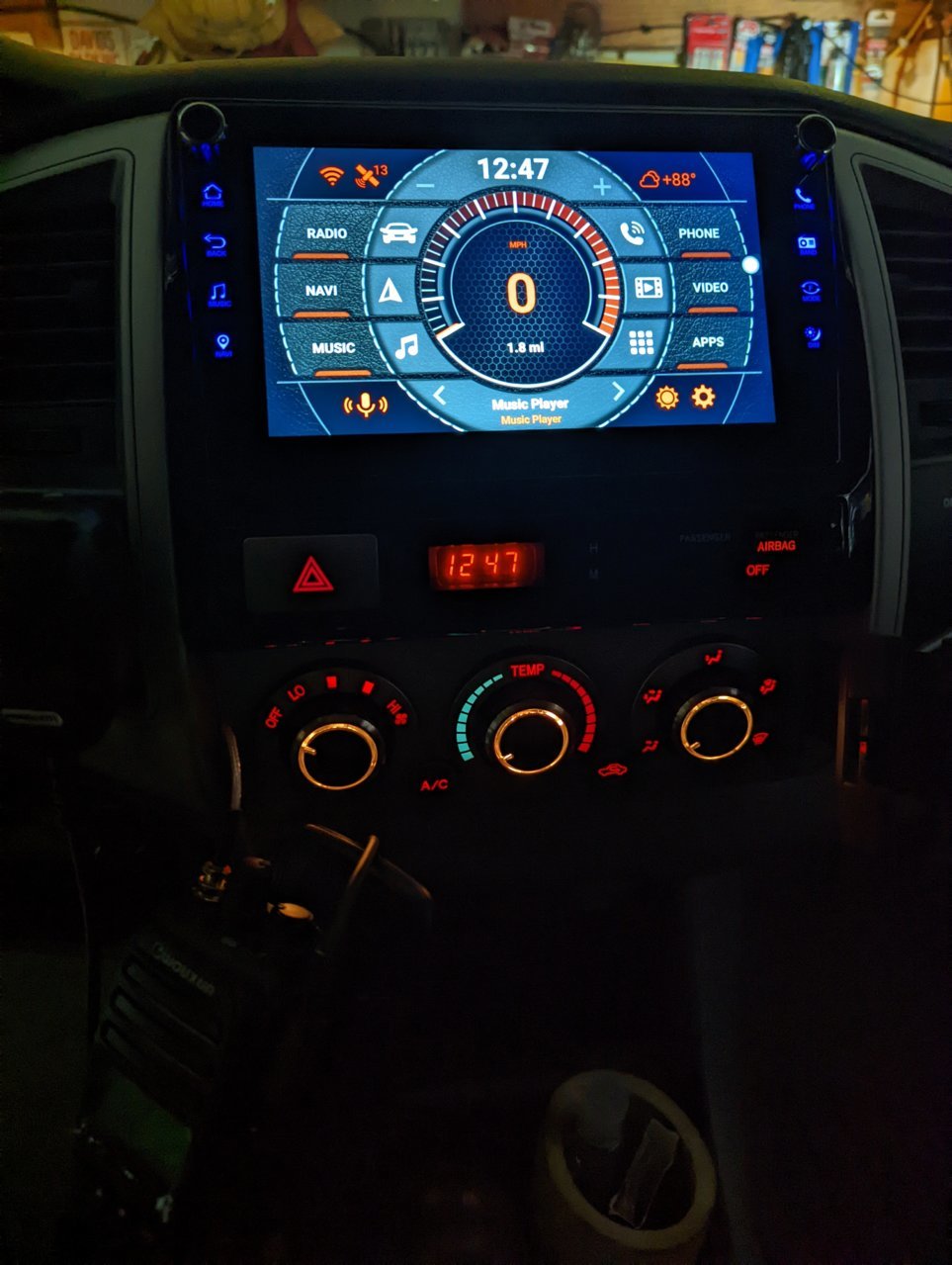

    2. Looks like you have the newer style HVAC controls. Did you go thru the whole swap where you have to desolder the rheostat from the old board to the new one?

    Thanks!

    BlkDakDave[QUOTED] likes this.
  7. Jul 7, 2022 at 12:52 PM
    #7
    BlkDakDave

    BlkDakDave Well-Known Member

    Joined:
    Oct 20, 2012
    Member:
    #89422
    Messages:
    1,117
    Gender:
    Male
    First Name:
    David
    CC TX
    Vehicle:
    07 AC PreRunner TRD/Off Road
    On the Prius mirror switch, be sure to read that thread to make sure you get the right one, not all Prius mirror control switches are illuminated. Hopefully someone with an 05 Prerunner will chime in on that one. All though, I've heard of the bulbs bruning out. The HVAC switches came from Amazon. Just pull the old ones off and replace.
    https://www.amazon.com/etopmia-Conditioning-Control-Switch-Toyota/dp/B076ZHF2HX

  8. Jul 7, 2022 at 1:51 PM
    #8
    Who_Am_I

    Who_Am_I New Member

    Joined:
    Feb 28, 2022
    Member:
    #391415
    Messages:
    3
    Gender:
    Male
    First Name:
    Billy
    Vehicle:
    2005 speedway blue TRD off road 4x4
    I also have an 05 and my fog light and rear diff switch do light up either. It was this way when I bought it just this past year. Didn’t think to ask the original owner if it ever did or not. I do have some bright white led bulbs in the map lights and it makes a huge difference for general lighting.

  9. Jul 7, 2022 at 5:36 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,352
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

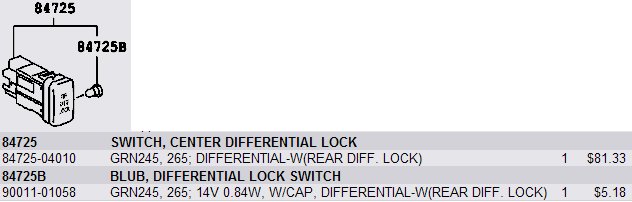

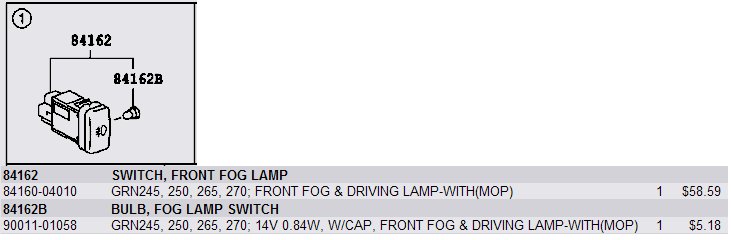

    Fog light illuminates, there's bulb for dash lighting but not to let you know it's selected. You could swap the switch for an FJ type and get both.

    Locking differential also illuminates.

    Last edited: Jul 7, 2022
    BlkDakDave likes this.
  10. Jul 8, 2022 at 1:42 PM
    #10
    UserUnspecified

    UserUnspecified [OP] Active Member

    Joined:
    Jun 6, 2022
    Member:
    #398860
    Messages:
    27
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    05 Prerunner - TRD OR
    The foglight switch you listed, is that the dual illuminating one from the FJ?

  11. Jul 8, 2022 at 4:07 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,352
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Nope, the one for the Tacoma.

  12. Jul 11, 2022 at 9:52 AM
    #12
    UserUnspecified

    UserUnspecified [OP] Active Member

    Joined:
    Jun 6, 2022
    Member:
    #398860
    Messages:
    27
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    05 Prerunner - TRD OR
  13. Oct 31, 2022 at 1:57 PM
    #13
    Bluefadedstars

    Bluefadedstars Active Member

    Joined:
    Oct 22, 2022
    Member:
    #408662
    Messages:
    29
    Gender:
    Female

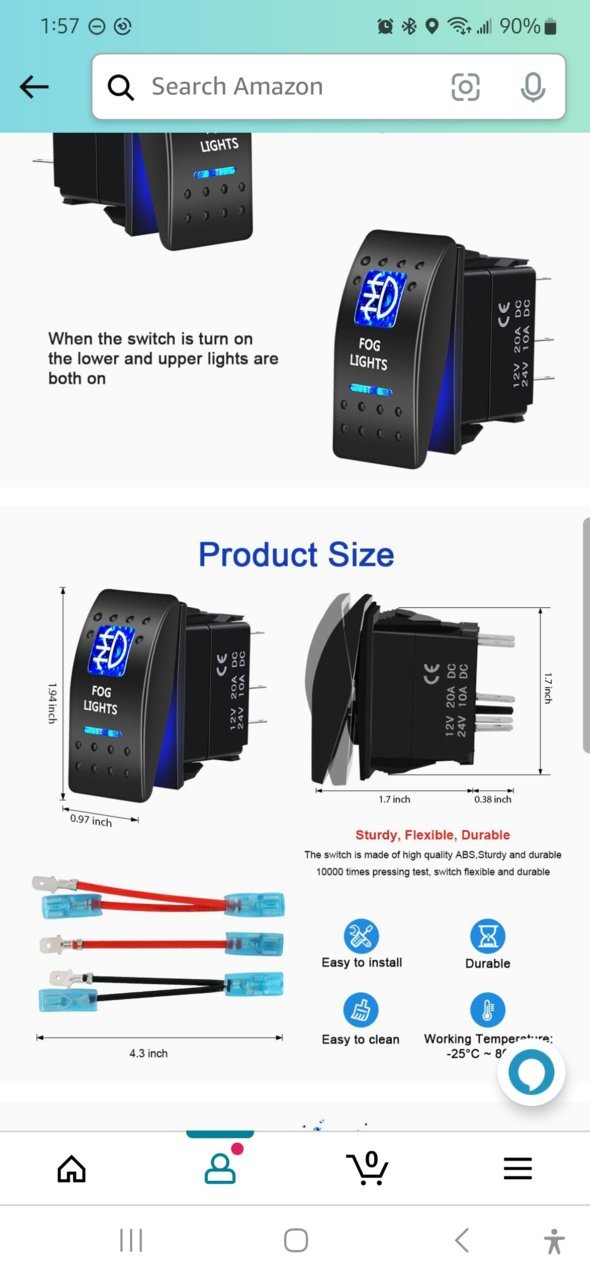

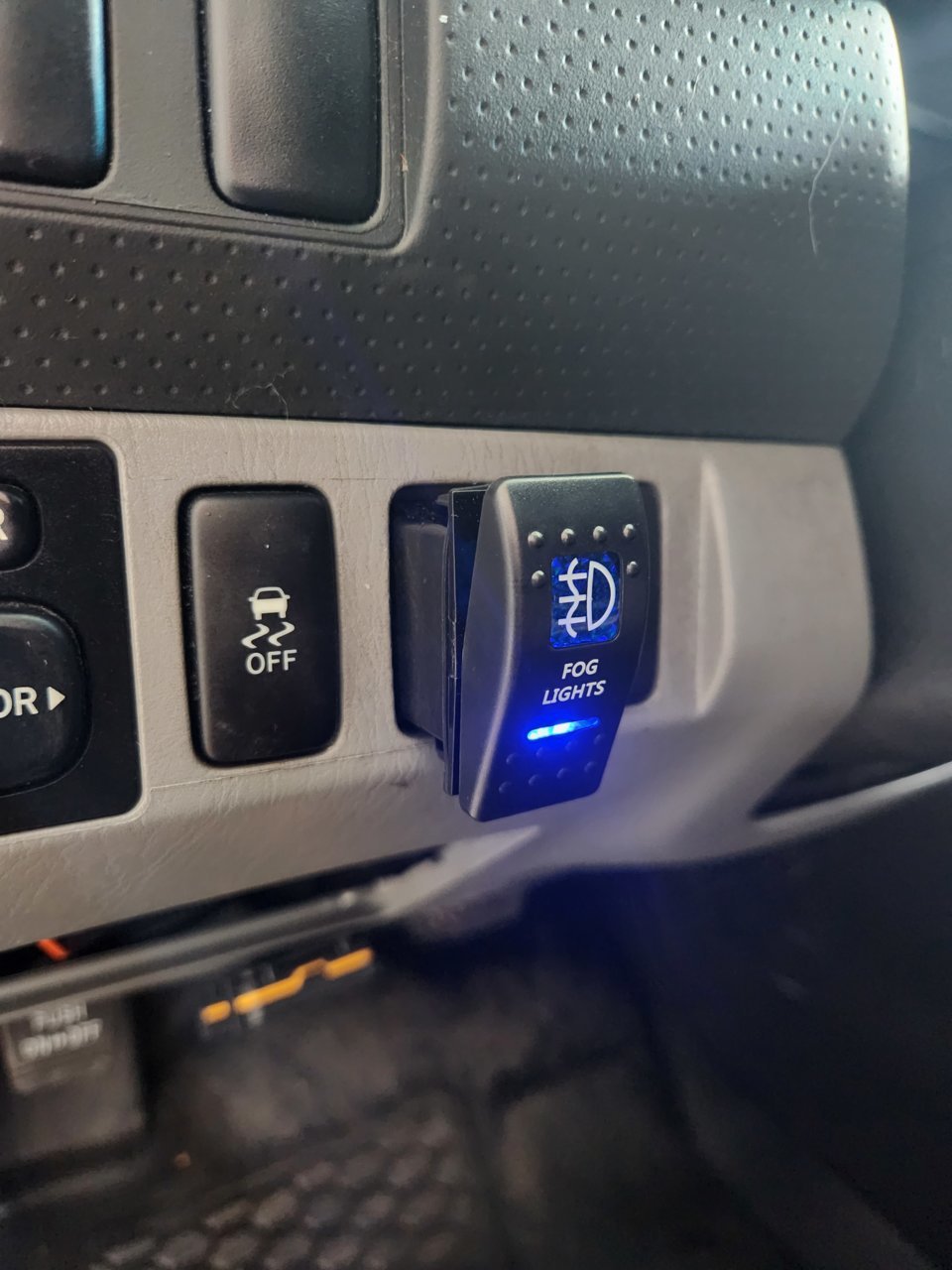

    Question for you all, do you know the actual dimensions of the toggle switch needed? The ones I bought off Amazon are too small.

    Screenshot_20221031_135724_Amazon Shopping.jpg

  14. Nov 1, 2022 at 1:01 PM
    #14
    agent4573

    agent4573 Well-Known Member

    Joined:
    May 5, 2022
    Member:
    #396561
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2015 Xtra cab, TRD O/R
    None yet
    Edit: updating post. After thinking more about it, you can make the single button switches work without modifying them, see later post. The big issue is trying to get the dual button switches to work with the fog lights.

    Last edited: Nov 1, 2022
  15. Nov 1, 2022 at 3:24 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,352
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    That is incorrect. Blue wire from fog is (+) to ground to close the circuit.

  16. Nov 1, 2022 at 3:27 PM
    #16
    agent4573

    agent4573 Well-Known Member

    Joined:
    May 5, 2022
    Member:
    #396561
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2015 Xtra cab, TRD O/R
    None yet
    Yes, you switch the 12 volts signal from the relay, and pull it to ground to complete the circuit and turn on the lights. That's switching ground.... The CH4x4 switch is designed to have 12volts on the input side, and output 12 volts to the load when you press the switch. If you have +12 on the load side with the switch off, it lights up the LED constantly. I think we're saying the same thing, but using different terminology. There are multiple reports of the LEDs being constantly on for the fog lights when using the CH4x4 switch, and I just had to modify the circuit board in one of these switches to get it to work on the fog light circuit.

    Edit: you got me thinking though, and because there is the +12 available on the blue wire, you could make the single switch work without modifying it. You wouldn't follow the recommended wiring that comes with the switch though. You'd have to connect the blue wire on the truck to the green wire on the switch and connect the red wire on the switch to ground and it should work ok. The big issue I ran into was with a dual switch, and I didn't think the wiring all the way through on how a single button switch could be made to work. I'll go back and update my original post. Thanks.

    Last edited: Nov 1, 2022
  17. Nov 1, 2022 at 3:29 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,352
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    A switch is a switch is a switch...
