lift question for my 07 prerunner

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Matta, Aug 19, 2014.

  1. Aug 19, 2014 at 1:24 PM
    #1
    Matta

    Matta [OP] Well-Known Member

    Joined:
    Mar 25, 2014
    Member:
    #126165
    Messages:
    107
    Gender:
    Male
    First Name:
    matt
    gilbert, sc
    Vehicle:
    2007 PreRunner SR5
    I just ordered these for my truck. 07 prerunner 2wd 6 lug:

    pair of bilstein 5100's for the front
    2.5" spacers for the front

    2.5" blocks and 1.5" AAL for the rear.

    wanting to go 33's on my 20" enkei wheels.

    how do you think this setup will do?

  2. Aug 19, 2014 at 2:34 PM
    #2
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,822
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    Why didn't you do spindles up front? Think they would have given 4 inch lift with a better ride than spacers.

  3. Aug 19, 2014 at 5:06 PM
    #3
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    21,647
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    Why did u get 5100 and spacers up front? Unless u didnt get the height adjustable, or if u plan on doing a horrible riding 5" lift that will quickly distroy every component on the front of ur truck?





    I see now that ur also doing a block and aal. Pretty sure ur gonna need new ucas and brake lines. I feel u would be happier with less lift. Like getting new springs up front in stead of spacers and settling for 3-3.5" with a 2.5" aal in back. I dont think ur gonna be happy getting that much lift mho.

    Last edited: Aug 19, 2014
  4. Aug 20, 2014 at 4:37 AM
    #4
    Matta

    Matta [OP] Well-Known Member

    Joined:
    Mar 25, 2014
    Member:
    #126165
    Messages:
    107
    Gender:
    Male
    First Name:
    matt
    gilbert, sc
    Vehicle:
    2007 PreRunner SR5
    I dont plan on maxing out the adjustment on the 5100s, should I just get lift springs with the 5100's? if so, what kind.

  5. Aug 20, 2014 at 4:58 AM
    #5
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,822
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    Do not use lift springs and spacers. If it were me, I would send that stuff back and get spindles since it's a prerunner. How much lift are you looking for?

  6. Aug 20, 2014 at 5:20 AM
    #6
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    21,647
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
  7. Aug 20, 2014 at 5:51 AM
    #7
    arock

    arock Well-Known Member

    Joined:
    Jun 17, 2014
    Member:
    #132138
    Messages:
    55
    Gender:
    Male
    MD
    Vehicle:
    2020 Cement TRD Off-Road
    I have an 08 PreRunner and I cant seem to make up my mind between 3 different kits, Toytec springs/billies with dakar rear leaf, full OME kit, or spindle/billies (no lift on the billies) with dakars). Any of these I'm sure everyone would recommend over spacers/blocks. First 2 options UCA's are def recommended which would be an extra cost. I'm not sure if anything else is needed or recommended to be done with the spindles and im also not sure the pros/cons of using the spindles vs a spring lift. Hopefully someone else can chime in on that.

  8. Aug 20, 2014 at 6:10 AM
    #8
    Matta

    Matta [OP] Well-Known Member

    Joined:
    Mar 25, 2014
    Member:
    #126165
    Messages:
    107
    Gender:
    Male
    First Name:
    matt
    gilbert, sc
    Vehicle:
    2007 PreRunner SR5
    Im pretty sure you would still need UCA's for the 4" maxtrac spindle lift.

    what kind of toytec springs are you talking about arock?

  9. Aug 20, 2014 at 6:14 AM
    #9
    arock

    arock Well-Known Member

    Joined:
    Jun 17, 2014
    Member:
    #132138
    Messages:
    55
    Gender:
    Male
    MD
    Vehicle:
    2020 Cement TRD Off-Road
  10. Aug 20, 2014 at 6:19 AM
    #10
    BORNWILDGUY

    BORNWILDGUY Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77942
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Rich
    Florida
    Vehicle:
    2023 TACOMA LIMITED DCLB LIFTED
    FULLY LOADED WITH THE TECH PACKAGE, LEATHER, JBL SYSTEM W UPGRADED JBL SPEAKERS IN AL DOORS AND SUB, LED HEADLIGHTS, MOONROOF, EXTANG FULL TILT COVER, NFAB SIDE STEPS, OEM ROOF RACK, TRD PRO TAILS, TRD PRO GRILL WITH WHITE RAPTOR LIGHTS, 5% TINT ALL THE WAY AROUND, TINTED WINDSHIELD 50%, BILSTEIN 6112'S W 650# SPRINGS AND 1/4 SPACER, ICON LEAF SPRINGS W 5125 REAR SHOCKS, LOCK WHEELS 17 X 9 -12 W 275/70R17 TOYO OPEN COUNTRY TIRES
    No You can use stock ucas with the lift spindles

  11. Aug 20, 2014 at 6:22 AM
    #11
    Airdog

    Airdog did your Mom

    Joined:
    Dec 26, 2012
    Member:
    #93790
    Messages:
    4,895
    Gender:
    Male
    First Name:
    Tom
    SoCal
    Vehicle:
    https://www.tacomaworld.com/threads/airdogs-2012-prerunner-access-cab-slow-build.264263/
    The maxtrac spindles do not require a new UCA. Only time a new UCA is required is when you want the extra travel it provides when using extended travel coilovers or you have so much lift (not provided by the spindle) that you can not get enough caster when getting your alignment done. New UCA's add some caster in to make alignment possible with lifts from either new lifting springs or preload on the springs to give you the lift.

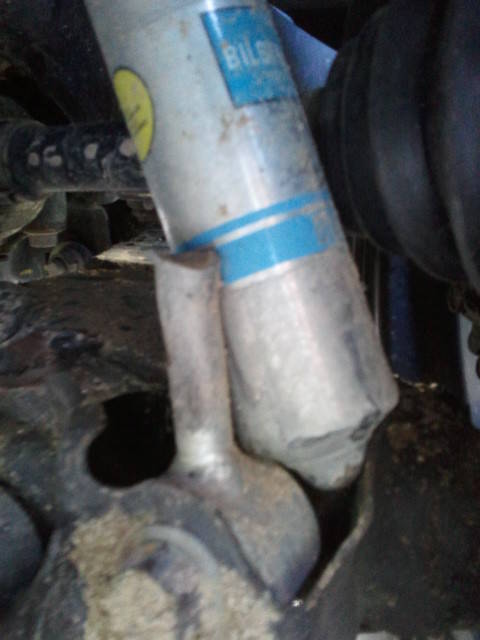

    Just a little look into your future if you offroad with the lift you are trying to do up front.

    [​IMG]

    Last edited: Aug 20, 2014
  12. Aug 20, 2014 at 9:34 AM
    #12
    evile

    evile Well-Known Member

    Joined:
    Apr 11, 2007
    Member:
    #1290
    Messages:
    581
    Gender:
    Male
    Orlando, Fl
    Vehicle:
    2006 DoubleCab TRD OffRoad PreRunner
    Bug shield vent visors Westin Chrome bull bar K&N Airfilter Pioneer CD/MP3/Ipod/DVD head unit KC Daylighters, LED map and dome lights, secondary airfilter removed. Black tube steps, 110v outlet in cab
    problem I have with the spindles is I can buy 4 5100 shocks and a aal for less than just the spindles you still have to buy a block or what ever for the rear

  13. Jan 14, 2015 at 5:26 PM
    #13
    Taco gator

    Taco gator Taco with 6.5" front 0" rear lift

    Joined:
    Jan 18, 2014
    Member:
    #120952
    Messages:
    662
    Gender:
    Male
    First Name:
    J.D.
    Lakeland, FL
    Vehicle:
    2014 2wd Taco
    6.5" Spindle/5100 lift front lift
    That's why I have decided to go with the Toytec 3 in. Lift with aal, about $200-300 less than just the spindles. Plus I don't really want the whole 4in. Of lift.
