Light bar install in Lower Grill Opening

Discussion in 'Lighting' started by GTABurnout, Dec 1, 2012.

  1. Apr 9, 2013 at 8:37 AM
    #61
    GTABurnout

    GTABurnout [OP] Well-Known Member

    Joined:
    Aug 15, 2011
    Member:
    #61724
    Messages:
    887
    Gender:
    Male
    Tucson AZ
    Vehicle:
    07 TRD Off Road 4X4
    ICON Mid travel, Method Double Standard's with MTR 285/75R16's, Dakar Rear leafs, BHLM, Locking storage,
    The 20" bar came with a wiring harness. I added a aux fuse block. And all the wiring worked well.

    Sorry, I self host and my site went down. they should all be back up now...

  2. Apr 29, 2013 at 11:15 PM
    #62
    Bfoust22

    Bfoust22 Well-Known Member

    Joined:
    Mar 6, 2013
    Member:
    #99164
    Messages:
    50
    Gender:
    Male
    First Name:
    Bryon
    Rock Hill, SC
    Bilstein 5100s all around. Front set at 0.85", BFG All Terrains, MB TKO wheels, DigiDiodes 32" light bar in lower valance, 3x2 Apex Illumination pods in fog light holes, plasti dipped emblems, grille and lower valance
    GTA have you had any problems with the 20" bar from okledlightbars? Did you buy the wiring harness from their site as well?

  3. Apr 30, 2013 at 7:27 AM
    #63
    Infra

    Infra Well-Known Member

    Joined:
    Apr 29, 2010
    Member:
    #36238
    Messages:
    2,954
    Gender:
    Male
    First Name:
    Jason
    Az
    Vehicle:
    2010 MGM DCSB 4x4 TRD OR 6spd
    CBI Bushmaster 2.0 rear bumper with swing out tire carrier & fold down camp table, CBI Moab 2.0 front bumper, Warn M8000-S, Icon 2.5 RR CDC Extended travel CO's with 700lb springs, Icon 2.5 RR CDC rear shocks, Icon hydro bumps, Total Chaos uniball UCA's, All Pro Expo leafs, U-bolt flip kit, Softopper, diff breather mod, extended rear brake lines, Grillecraft mesh grille, Elusive Elements behind grille light bar with B.A.M.F. LED light bar brackets, okLEDlightbars.com 20" double row LED light bar, Relentless Fabrication hood cb antenna mount, Wilson Silver Load CB antenna, Uniden 520 Pro XL CB radio, Wet okole seat covers, Weather tech floor liners, Weather tech in channel window deflectors, trasharoo spare tire trash bag carrier, Box Rocket 2nd gen bed rack with (2) 2 gallon gas rotopax mounted on drivers side, (2) 2 gallon water rotopax mounted on passenger side, (1) 3 gallon gas rotopax & (1) 2 gallon gas rotopax mounted on CBI swing out, Avid weld on sliders, Mattgecko LED bed light

    I have the same light and I have been very pleased with it, as well as the customer service from okledlightbars. I got it during a group buy and the wiring harness came with the light, which made it very simple to install. If I had to do it over again and purchase another light, I would definitely purchase it from okledlightbars again because of their outstanding customer service.

  4. Apr 30, 2013 at 8:20 AM
    #64
    GTABurnout

    GTABurnout [OP] Well-Known Member

    Joined:
    Aug 15, 2011
    Member:
    #61724
    Messages:
    887
    Gender:
    Male
    Tucson AZ
    Vehicle:
    07 TRD Off Road 4X4
    ICON Mid travel, Method Double Standard's with MTR 285/75R16's, Dakar Rear leafs, BHLM, Locking storage,
    Not a single problem with the light. I have submerged it in mud and bounced the crap out of it. Still works great. Wiring harness for the 20" bar came with the light. I also bought a seperate harness fro my 2 4" lights that are mounted in the grill. For $20 you wont find a better harness.

    I agree 100%. Great service. Great lights and a damn good price.

  5. May 19, 2013 at 1:49 PM
    #65
    Bfoust22

    Bfoust22 Well-Known Member

    Joined:
    Mar 6, 2013
    Member:
    #99164
    Messages:
    50
    Gender:
    Male
    First Name:
    Bryon
    Rock Hill, SC
    Bilstein 5100s all around. Front set at 0.85", BFG All Terrains, MB TKO wheels, DigiDiodes 32" light bar in lower valance, 3x2 Apex Illumination pods in fog light holes, plasti dipped emblems, grille and lower valance
    Is that the Cree led from okledlightbars or not? Do you know the difference by chance?

  6. May 23, 2013 at 10:33 PM
    #66
    GTABurnout

    GTABurnout [OP] Well-Known Member

    Joined:
    Aug 15, 2011
    Member:
    #61724
    Messages:
    887
    Gender:
    Male
    Tucson AZ
    Vehicle:
    07 TRD Off Road 4X4
    ICON Mid travel, Method Double Standard's with MTR 285/75R16's, Dakar Rear leafs, BHLM, Locking storage,
    I think this was before the Cree was offered. I have been told the Cree is much brighter. Which I can not really believe because this one is damn bright.

  7. Jun 2, 2013 at 5:48 AM
    #67
    perchie15

    perchie15 Well-Known Member

    Joined:
    Dec 26, 2011
    Member:
    #69419
    Messages:
    272
    Gender:
    Male
    First Name:
    Joey
    Alberta
    Vehicle:
    TRD
    None,
    Anyone do this and had removed the grating in the lower part for light? I in the middle of doing mine just curious of anyone has cut the lower grating apart?

  8. Jun 2, 2013 at 5:48 AM
    #68
    perchie15

    perchie15 Well-Known Member

    Joined:
    Dec 26, 2011
    Member:
    #69419
    Messages:
    272
    Gender:
    Male
    First Name:
    Joey
    Alberta
    Vehicle:
    TRD
    None,
    I just think it might look cooler without it?

  9. Jun 2, 2013 at 10:12 AM
    #69
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,021
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Yes I cut the lower stuff out to install mine

  10. Aug 6, 2013 at 5:40 AM
    #70
    00PowderSpecial

    00PowderSpecial Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79065
    Messages:
    117
    Gender:
    Male
    First Name:
    Chad
    Newfoundland, Canada
    Vehicle:
    09 TRD DC
    I'm in the process of mounting mine in the lower grill but I have the okled 30" combo light with flood pattern on the outside, so being so far in the grill didn't look too good for light output so I cut out the lower grill and fabbed up a couple small L shaped brackets to attach to the vertical bars inside the grill and brought the light out flush with the bumper. I'll take a few pictures of the brackets and the install. Also have the wiring harness from then and have to say it all seems light great quality. Excellent customer service too!

  11. Aug 6, 2013 at 3:10 PM
    #71
    00PowderSpecial

    00PowderSpecial Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79065
    Messages:
    117
    Gender:
    Male
    First Name:
    Chad
    Newfoundland, Canada
    Vehicle:
    09 TRD DC

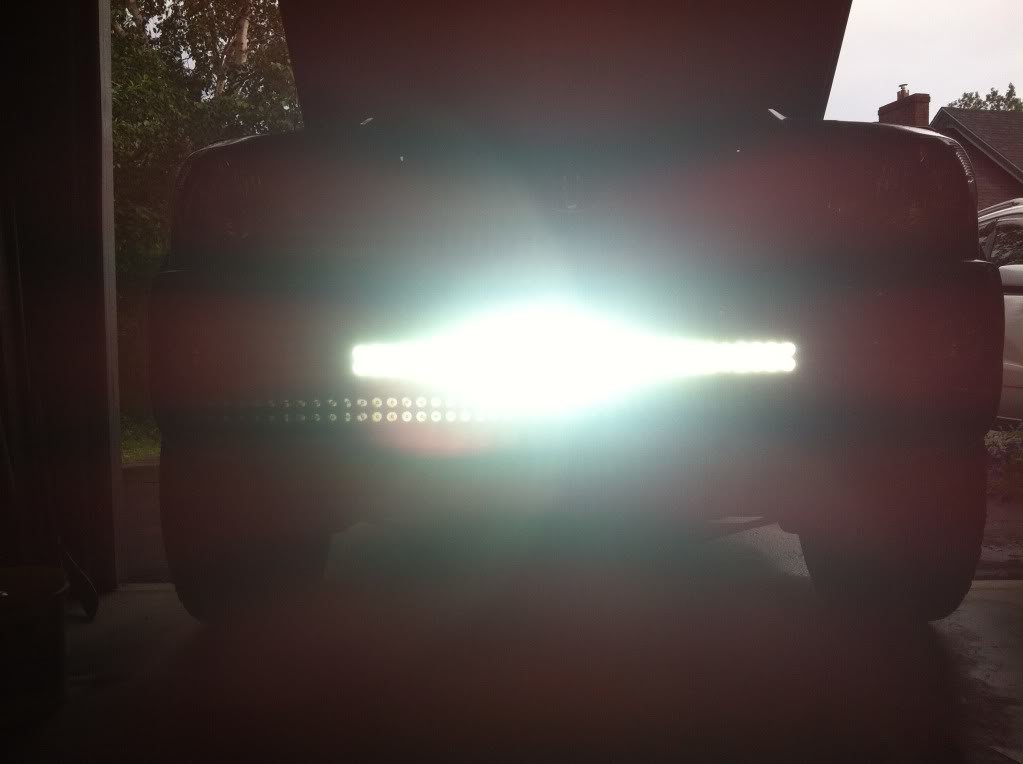

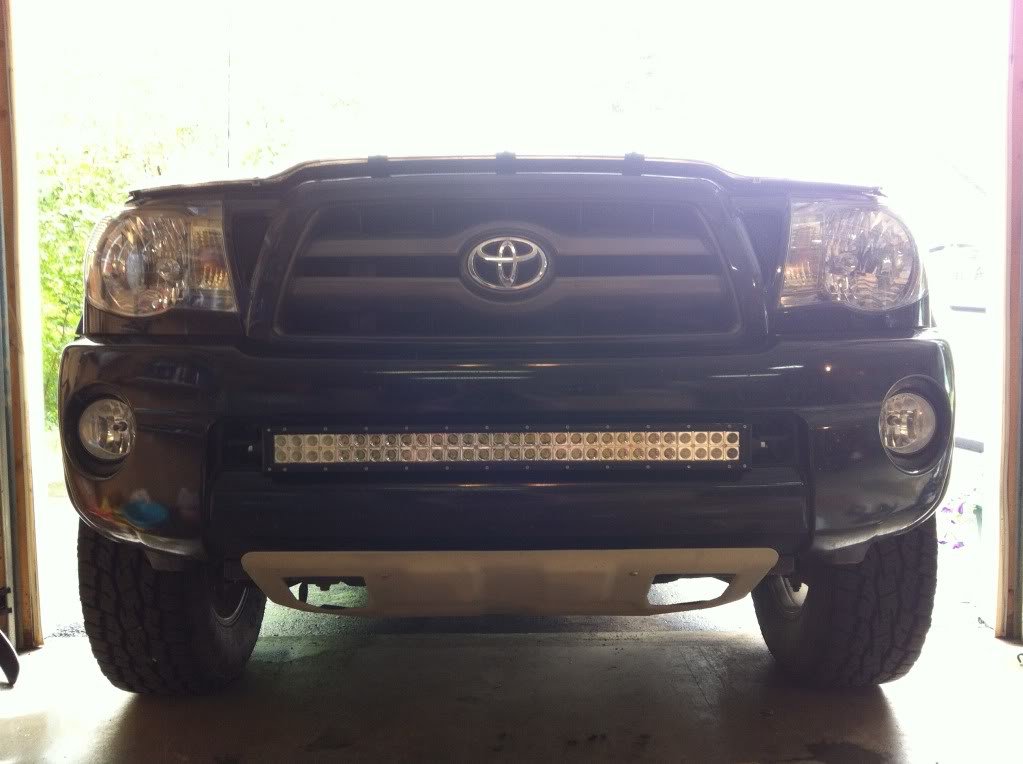

    Here's a couple pics, I used some angle bar, 1.5" x 1/8" thick, 2.5 inches long. Placed on the inner vertical rain and marked out the 2 holes as drilled them out and bolted them on then took the bar and centered it and marked it, drilled a few more holes and box liner sprayed the brackets, and reassembled. I think it turned out pretty good!

    [​IMG]

    [​IMG]

  12. Aug 6, 2013 at 3:44 PM
    #72
    1911

    1911 Well-Known Member

    Joined:
    Nov 30, 2012
    Member:
    #92179
    Messages:
    239
    Gender:
    Male
    First Name:
    Jerry
    Virginia
    Vehicle:
    2012 Silver 4x4 lifted with 32"s
    3" lift With rear leveling kit 32"s mounted on 16" F5s 20" and 30" Rigid LEDs Rigid LED backup lights Nerf bars (to be replaced with rock sliders) CB Custom grill
    Very nice install, looks great, enjoy your LEDs!

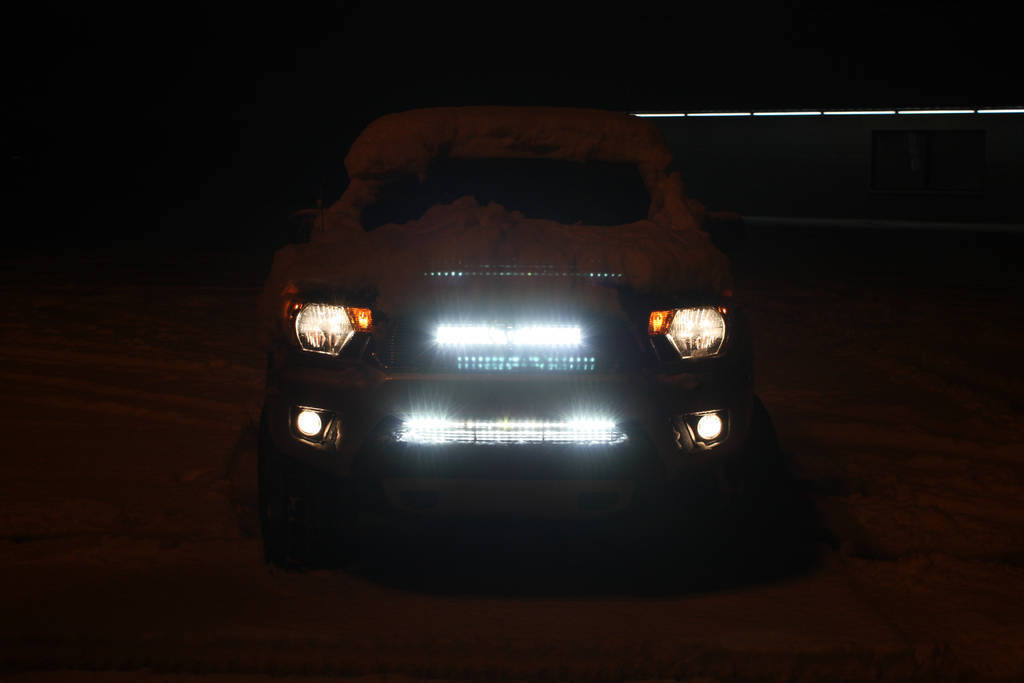

    As for cooling, should have no trouble, have a set of 20" double row Rigid lights behind my upper grill and a single 30" in my lower.

    I have had no problems even while towing a trailer this summer.
    [​IMG]

    [​IMG]

    Last edited: Aug 6, 2013
  13. Aug 6, 2013 at 3:55 PM
    #73
    TaKoToy

    TaKoToy Pretty good at drinkin beer!

    Joined:
    Jul 16, 2013
    Member:
    #108417
    Messages:
    188
    Gender:
    Male
    First Name:
    Rob
    VA
    Vehicle:
    2013 4x4 OffRoad
    Billy 5100s, Toytec Coilovers, Toytec AAL, LR UCAs

    Trust me the CREE could be much brighter. I worked in the R&D department for a few years. They have a team of mad scientist tinkering and toying with every LED imaginable. Pretty much every other LED is a reversed engineered CREE LED.

  14. Aug 6, 2013 at 4:37 PM
    #74
    GTABurnout

    GTABurnout [OP] Well-Known Member

    Joined:
    Aug 15, 2011
    Member:
    #61724
    Messages:
    887
    Gender:
    Male
    Tucson AZ
    Vehicle:
    07 TRD Off Road 4X4
    ICON Mid travel, Method Double Standard's with MTR 285/75R16's, Dakar Rear leafs, BHLM, Locking storage,
    Good to see people still using this. Mine is still going strong. I do plan to swap to a 30" bar in the future. I may do the L bracket up to push the light out like a few have done here.

  15. Apr 21, 2014 at 8:16 AM
    #75
    Natestheboss

    Natestheboss Active Member

    Joined:
    Jul 30, 2013
    Member:
    #109430
    Messages:
    26
    Gender:
    Male
    First Name:
    Nathan
    Seattle
    Vehicle:
    2010 TRD Sport
    K&N 77 Series, Access Lorado Tonneau
    I've purchased a 30" bar to do this mod in a couple weekends from now. I have a quick noobie question. Is there an install guide for the electrical component of this? Is everyone doing aftermarket switches? I've looked through quite a bit of the forum and haven't found a tutorial adequate enough for my nubile self. Any pointers?

  16. Apr 21, 2014 at 8:22 AM
    #76
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,021
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    ^^^What do you need exactly? I can walk you through everything from the light to the relay to the switch. Hit me up with what parts you've got as well as some pictures and I'll tell you right where to put everything

  17. Apr 21, 2014 at 8:22 AM
    #77
    Ariyan

    Ariyan Well-Known Member

    Joined:
    Mar 3, 2014
    Member:
    #124459
    Messages:
    133
    Gender:
    Male
    NM
    Vehicle:
    4x4 TRD Sport
    3" MT, 5% Tint, Retrofit head/tail lights, 30" LED Bar, CB, bed rack, Sliders, exhaust, 2,000w Kicker system.
    I got my switch from here http://www.otrattw.net

    This link also may help http://www.otrattw.net/wiring-diagrams.html

  18. May 21, 2014 at 7:42 PM
    #78
    ripkinc

    ripkinc Member

    Joined:
    Jun 19, 2013
    Member:
    #106584
    Messages:
    15
    Gender:
    Male
    balt
    Vehicle:
    11' DCLB SR5 Expedition in progress
    camper shell, LED enhancements, electrical mods, duel battery, rollin on general grabber at2's
    Any pictures? What bar did you use?

  19. May 27, 2014 at 5:30 PM
    #79
    Whitelighting10

    Whitelighting10 New Member

    Joined:
    Feb 21, 2014
    Member:
    #123661
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2010 tacoma
    I measured from the middle of crash can to crash can and its roughly 32 to 33 inches so in your opinion do you think it would work if I got a 32 inch light bar and bolt it right there? I'm worried about it being to tall but it should be same stance as your angle iron since its resting on the crash cans evenly

  20. May 28, 2014 at 5:36 AM
    #80
    beondwacko

    beondwacko Well-Known Member

    Joined:
    Dec 6, 2007
    Member:
    #3731
    Messages:
    191
    West Palm Beach, Florida
    Vehicle:
    08' X-Runner , Sirius radio, fog light mod. Much more to go.
    I have been looking around for a narrow spot light bar (20' or less spot) and from what I've seen, most of the 24"-30" bars are combo units. The only bars that I see that offer that tighter patterns are the single row units with a 10 watt per emitter Cree chip bars. They aren't too expensive at least compared to a Rigid bar but I'm still on the fence. I want to use the bar for occasional on road lighting but since I've been playing with some smaller no name aux lights ( an 18 watt single row rated at 30* that I use as a add on reverse light and a round 27 watt light also rated as a "spot") and from my limited experience so far, the photo metrics listed aren't all that accurate. They flood out much more than I'd use for forward additional lighting and it would piss off oncoming drivers for sure. So, I'm waiting for someone to post up results of using one of those single row spot units before I bite the bullet.

    BTW, I'm in the landscape lighting business, so I know a good amount about beam spread and light control.

    It sure would be cool though if someone who makes those combo units to make them a dual circuit fixture. Separate wiring for spot or flood operation.
