Lightforce HID Conversion (w/ Pics)

Discussion in 'Lighting' started by TuRDVan, Jun 12, 2009.

  1. Jun 12, 2009 at 7:01 PM
    #1
    TuRDVan

    TuRDVan [OP] A.K.A slosurfer

    Joined:
    May 30, 2009
    Member:
    #17813
    Messages:
    143
    Gender:
    Male
    First Name:
    Chris
    Los Osos, CA
    Vehicle:
    07 DCAB TRD OFFROAD
    Dents and my wife drives it!
    Overview:
    I really like my Lightforce 170's, they work very well as many of you know. I have been thinking of adding more lights, but I was worried about the added strain on my charging system. I started looking at HID's after seeing BruceTS's writeup on adding them to his Hella 4000's. I started researching and found that it was not going to be a "plug and play" event to add them to my 170's, but there seemed to be enough info that I was willing to take a shot at it. The idea of more light while asking less of my charging system was too much for me to pass up. This writeup will cover what is needed to retrofit the lights, not the actual installation of the rest of the HID conversion kit.
    I should also say that this writeup should also work for the 240 Blitz lights as they use the same housing.
    Required Materials:
    Parts:
    * Lightforce 170 Strikers or 240 Blitz
    * 35watt H3 HID conversion kit
    * 4 #8 screws (32 thread count) 3/8" long
    * 4 #8 lock washers
    Tools/Supplies:
    * Nitrile Gloves (or something similar)
    * Dremel and bit for removing aluminum material
    * Cordless Drill
    * 1/8" drill bit
    * #8 32NC Drill and Tap set
    * Rivet Gun and rivets
    * 3/4" grommet with membrane (or other means to seal the rear of the housings)
    * Lubricant for drill and tap and dremel bit
    * Wire cutters
    * Screwdrivers (for prying rivets and depending on what #8 screws you have)
    * Vice press (optional but very useful for holding the heatsink while you work on it)
    * 3/4" hole saw
    * Optional- some kind of sealer to seal up the rear of the housing. I used Lexel and a caulking gun
    Obligatory Disclaimer:
    I am providing this write up for illustrative purposes only. Perform at your own risk. Any mods (including this one) you perform on your lights is your responsibility. These lights are not cheap, so take that into consideration. You’ve been warned.
    Procedure: *Do not touch the HID bulb during this process!*
    Step 1. Remove filter, lense, and bulb.
    Remove filter and lense by turning the lense counterclockwise till it comes off the housing, being careful to not break the bulb when it comes off the housing.
    [​IMG]

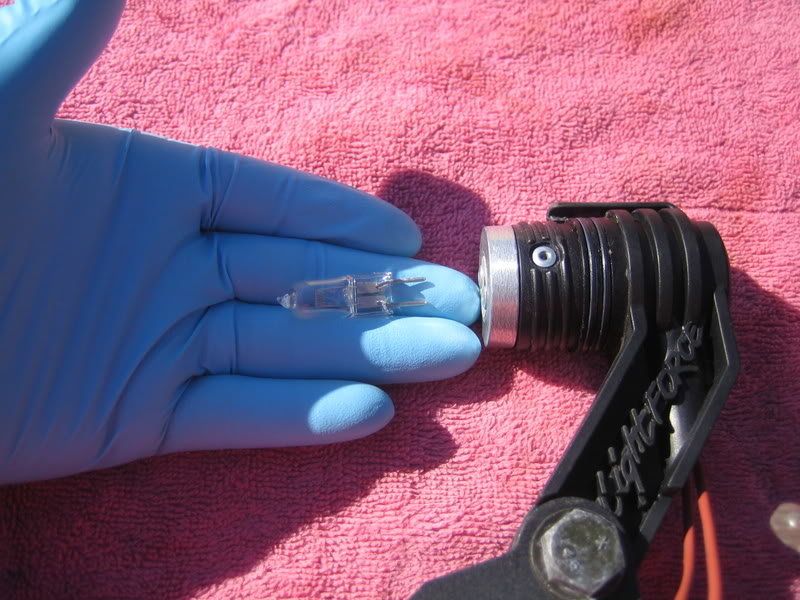

    Remove bulb by grasping the base of the bulb and pulling straight out.
    [​IMG]

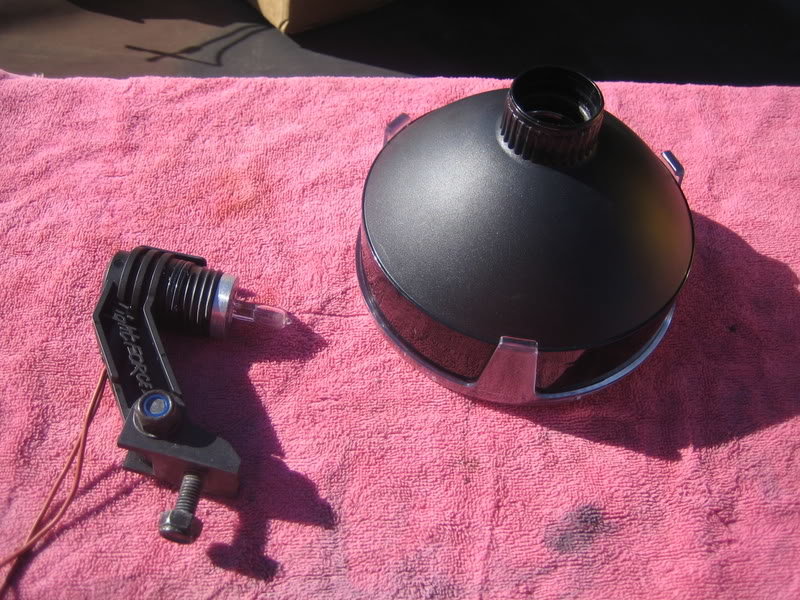

    Step 2: Remove heatsink from housing.
    Using wire cutters clip the connectors off the wires coming out the rear of the housing so that they can be pulled through when you pull the heatsink out.
    Using the 1/8" drill bit, drill out the rivet on the side of the housing that holds the aluminum heatsink. Once the rivet is out, remove the heatsink from the housing.
    [​IMG]

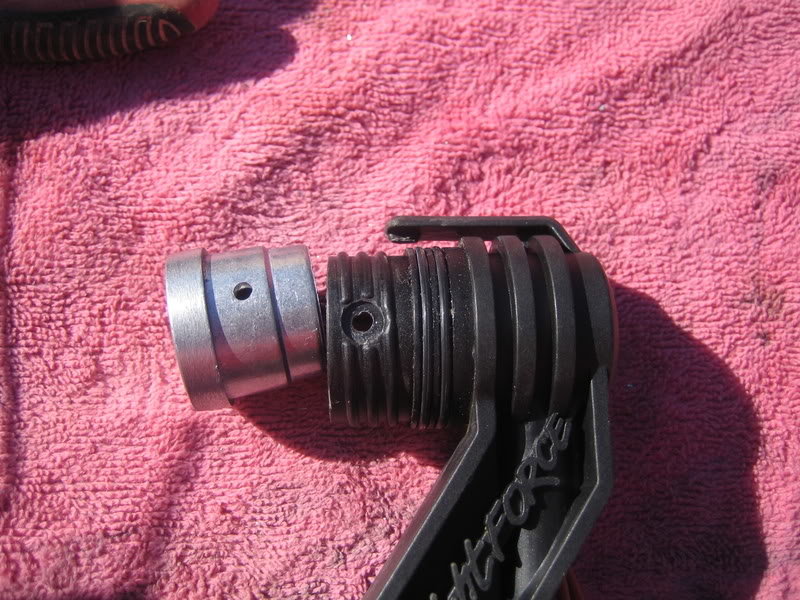

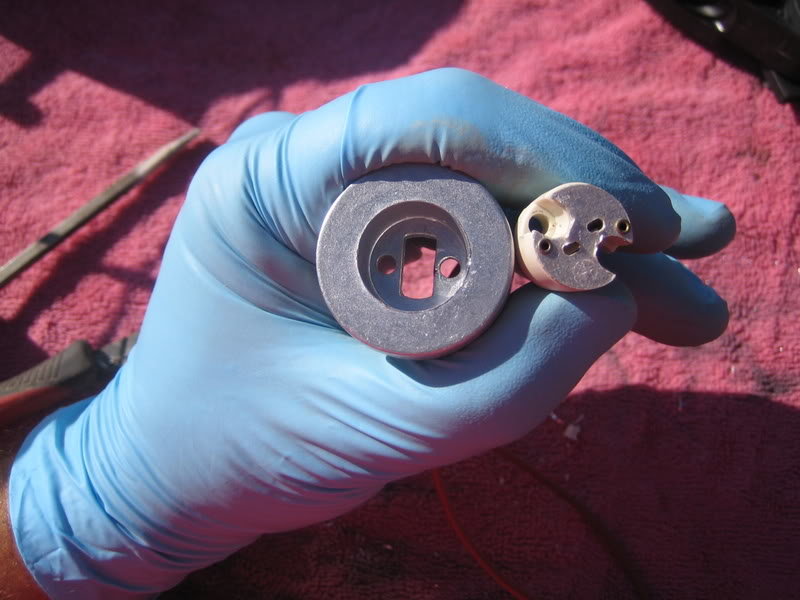

    Step 3: Remove the bulb housing from the heatsink.

    Drill out the two rivets that hold the bulb housing in the heatsink and remove the bulb housing from the heatsink.
    [​IMG]

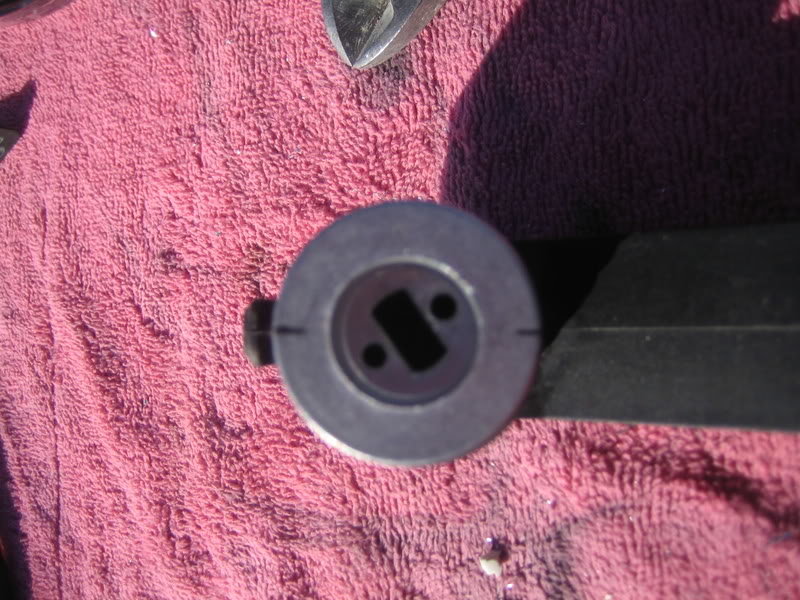

    Step 4: Mark heatsink to fit H3 bulb
    Place heatsink back into housing, making sure to line the rivet hole up with the hole in the housing. Now mark the center line top and bottom on the front of the heatsink.
    [​IMG]

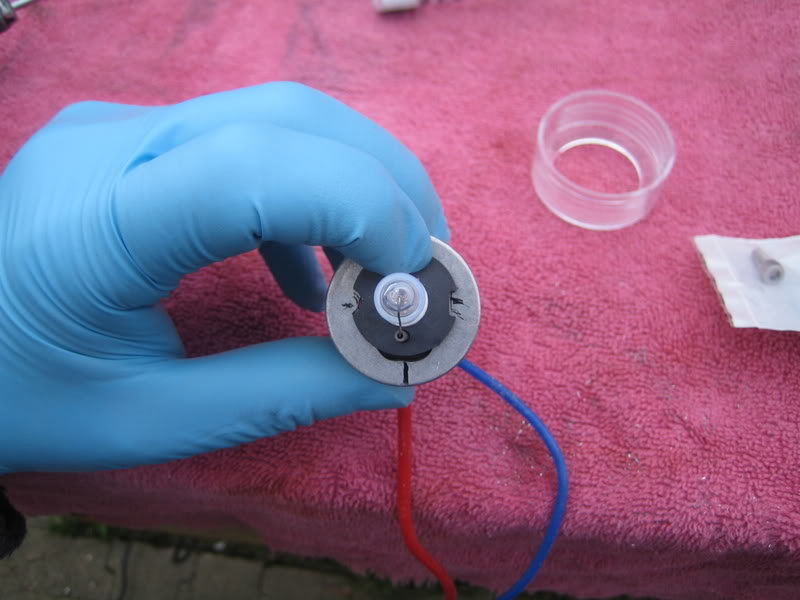

    Measure the rear of the H3 bulb assembly to see how much material you will have to remove from the heatsink for the bulb to be placed from the front of the heatsink. Now mark where you will have to remove material on the heatsink (remember, it is safer to be on the small side so that you do not remove too much material)
    See the pic below in the "drill and tap" step to see what material I removed.
    Step 5: Clearance heatsink to fit H3 bulb assembly.
    Using the dremel remove material from the heatsink, till you are able to get the bulb assembly flat against the heatsink. Mine only needed a little off the middle top and then a little more on the bottom middle.
    [​IMG]

  2. Jun 12, 2009 at 7:02 PM
    #2
    TuRDVan

    TuRDVan [OP] A.K.A slosurfer

    Joined:
    May 30, 2009
    Member:
    #17813
    Messages:
    143
    Gender:
    Male
    First Name:
    Chris
    Los Osos, CA
    Vehicle:
    07 DCAB TRD OFFROAD
    Dents and my wife drives it!

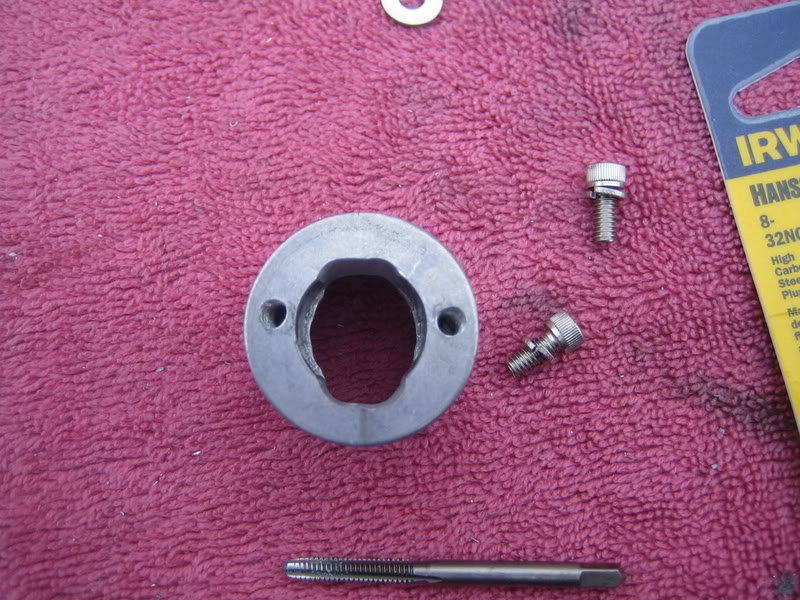

    Step 6: Drill and tap holes for the set screws.
    Once the bulb assembly is flat against the heatsink, mark where the two screws will go that will hold it to the heatsink. Make sure it is not too close to either of the edges, so you don't drill through a side.
    Drill and tap the two holes.

    [​IMG]
    Step 7: Drill hole in rear of housing.
    Use 3/4" hole saw to drill a hole in the center of the rear of the housing.
    Note: I used the 1" grommets that came with the HID kit so I drilled a 1" hole. Unfortunately, the inside of the housing is 1" in diameter so the grommet doesn't fit exactly right. This is why I suggest finding a 3/4" grommet.
    Step 8: Reinstall heatsink in housing
    Do not do this step with the bulb in the housing.
    Place heatsink back into housing and line up the rivet holes.
    Use the rivet gun to rivet the housing and heatsink together.

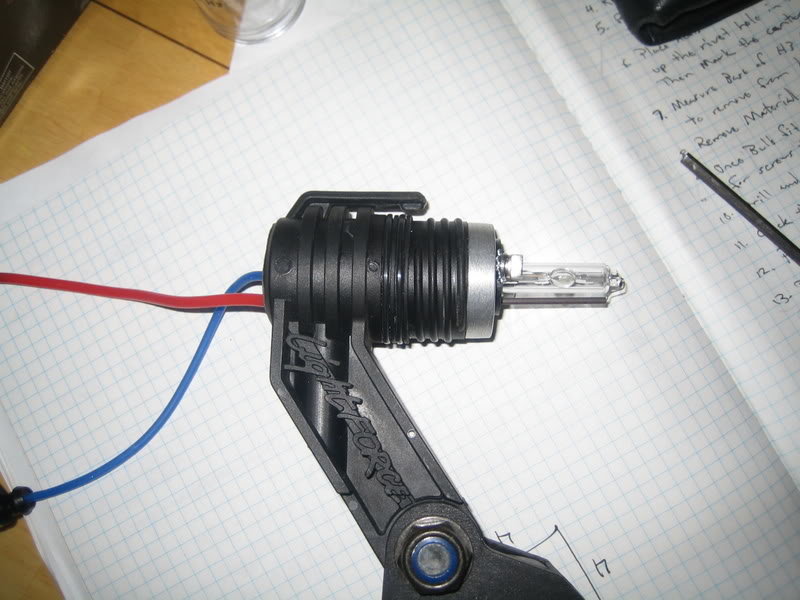

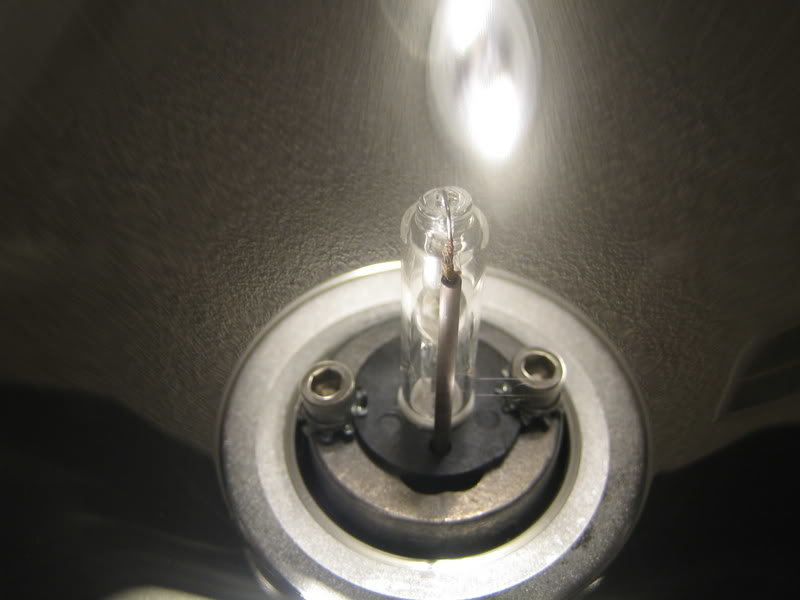

    Step 9: Install Bulb
    Feed the wires and connectors through the front of the heatsink and back out the rear of the housing.
    Fit the bulb housing flat against the housing and use the screws to hold it in place. Remember that this is aluminum, so do not overtighten.
    Make sure the grommet is in place in the rear of the housing, sealing it from water.
    [​IMG]

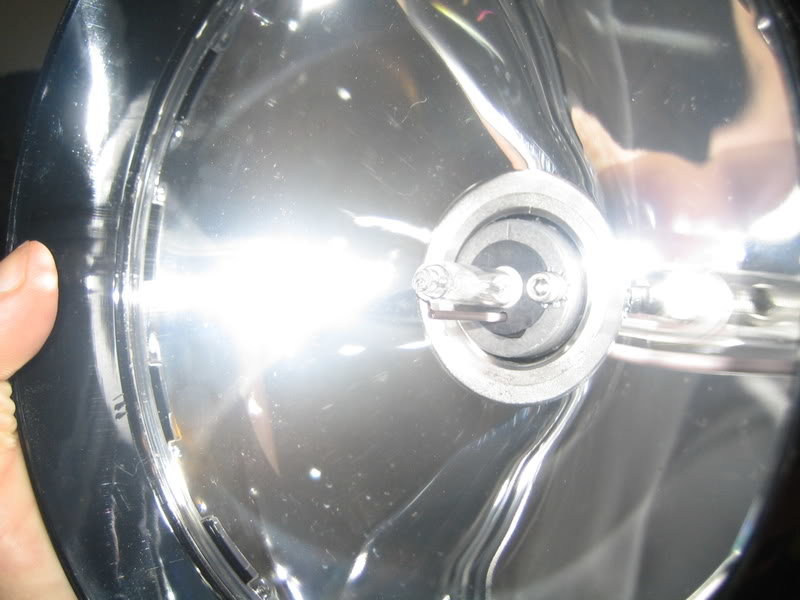

    Step 10: Install lense and filter
    Install the lense and filter by screwing it clockwise onto the housing, being careful to not damage the bulb.
    [​IMG]
    [​IMG]
    Step 11: Hook up HID conversion kit and enjoy.
    I suggest hooking everything up and testing to make sure everything works prior to actually permanently installing the ballasts, etc.... that way if something doesn't work, it is easier to figure out what is going on.
    Step 12: Optional: Use Lexel to seal up the rear of the housing.
    After making sure everything was working, I sealed up my grommets with Lexel and a caulking gun. Mainly because my grommets were not fitting correctly since the inside diameter of the housing was also 1".

    Feel free to private message or email me with any comments, questions, or concerns.

  3. Jun 12, 2009 at 7:03 PM
    #3
    TuRDVan

    TuRDVan [OP] A.K.A slosurfer

    Joined:
    May 30, 2009
    Member:
    #17813
    Messages:
    143
    Gender:
    Male
    First Name:
    Chris
    Los Osos, CA
    Vehicle:
    07 DCAB TRD OFFROAD
    Dents and my wife drives it!
    Now for some pics:
    Finally I was able to get some pics tonight. There are a bunch so that you can have some comparison with my stock lights.
    This wall was about 40 ft. away, and the camera was on the same setting and shot through the windshield. The last comparison shot was taken from outside the vehicle due to the hood being up to hook up the other 170. I have since adjusted the beams so they are farther apart.
    Low Beams:
    [​IMG]
    High Beams:
    [​IMG]
    170 HID's Spot: (I have adjusted these away from each other since I took these pics)
    [​IMG]
    High Beams and 170's:
    [​IMG]
    170's with "clear combo" filters:
    [​IMG]
    170 35watt HID on left vs. 170 100watt halogen on right:
    [​IMG]

  4. Jun 12, 2009 at 7:04 PM
    #4
    TuRDVan

    TuRDVan [OP] A.K.A slosurfer

    Joined:
    May 30, 2009
    Member:
    #17813
    Messages:
    143
    Gender:
    Male
    First Name:
    Chris
    Los Osos, CA
    Vehicle:
    07 DCAB TRD OFFROAD
    Dents and my wife drives it!
    Here are a couple more pics. I need to find a better spot to take pics where I can get them aimed better and take the pics from outside.
    50yds away
    [​IMG]
    100yds away
    [​IMG]
    I wish I had some a single 240 to do this to, so that I could run a 240 cyclops style with the 170s on the sides.
    Who wants to give up a 240? :)
    I believe you could do the same thing with the XGT's as well, I think it would entail modifying the heatsink and drilling a hole in the back.

    Edit: I do have a 240 now that I'm running cyclops style, but I haven't converted it yet. When I do, it will be getting a 50watt HID kit. ;)

  5. Jun 12, 2009 at 7:06 PM
    #5
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Staff Member

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,155
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Thats a very good write up. Very well done

  6. Jun 12, 2009 at 7:33 PM
    #6
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    sweet write up, i have the 170's and 240 blitz and love them but have been looking to convert, where did you get the hid kit. How about you send me your 170's and i will send you mine.:D

  7. Jun 12, 2009 at 7:54 PM
    #7
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Staff Member

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,155
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Your the first person i thought of steve when i saw these.

  8. Jun 12, 2009 at 7:55 PM
    #8
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    been wanting to do it but lightforce uses a weird bulb, are you going to pine valley.

  9. Jun 12, 2009 at 8:36 PM
    #9
    TuRDVan

    TuRDVan [OP] A.K.A slosurfer

    Joined:
    May 30, 2009
    Member:
    #17813
    Messages:
    143
    Gender:
    Male
    First Name:
    Chris
    Los Osos, CA
    Vehicle:
    07 DCAB TRD OFFROAD
    Dents and my wife drives it!
    How about, I send you my 170's and you send me your 240's. :cool:
    I got them from some seller on ebay. I'll probably go with something like this when I do my 240. Retro Solutions 55watt HID

    No excuse now. :D Do you have any pics of how your lights are set up?

  10. Jun 12, 2009 at 10:43 PM
    #10
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    i will check for that kit. here are mine.


  11. Jun 13, 2009 at 7:12 AM
    #11
    JDrew

    JDrew Well-Known Member

    Joined:
    May 17, 2009
    Member:
    #17344
    Messages:
    69
    Gender:
    Male
    Evansville, IN
    Vehicle:
    '08 Tacoma TRD RT
    Kenwood DNX9140, DRL Mod
    /hijack

    If anyone needs some filters for their 240's, I have several from my Hummer. 4 clear spot and 4 blue combo's in great shape. I had 4 240 HID's

    /end hijack.

  12. Jun 17, 2009 at 7:12 AM
    #12
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    After seeing you hid conversion pics I ordered the whole kit from a company in oz, bulbs, ballast and retrofit kit for the lights, the guy said it will take about 10-15 minutes to install, should be here in a couple of days. Can't wait.

  13. Aug 11, 2009 at 12:25 PM
    #13
    BSPDX

    BSPDX Well-Known Member

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,082
    Gender:
    Male
    Nice write up!!:thumbsup:

  14. Oct 13, 2013 at 10:01 PM
    #14
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    The resurrectioooooon!!

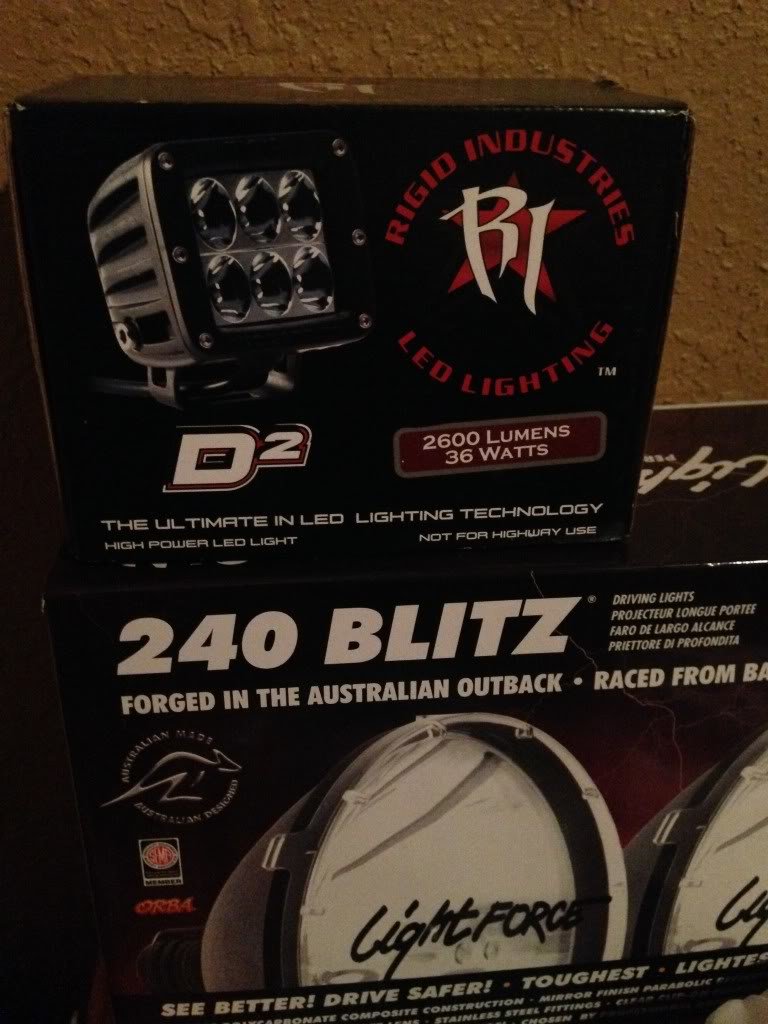

    So has anyone successfully done these to LightForce's 240 spot lights?
    I neeeeedz HID :)

    [​IMG]

  15. Oct 14, 2013 at 6:58 AM
    #15
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier

    170 and 240 are the same just the 240 has the bigger reflecter. I did the conversion to mine years ago.

  16. Oct 14, 2013 at 7:47 AM
    #16
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    Do you recall what HID bulb kit you went with? :eek:

  17. Oct 14, 2013 at 7:51 AM
    #17
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,971
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    Not a clue lol, I bought the whole conversion kit so it had everything. Some guy was selling the kits on ebay but not sure if he still does.

  18. Oct 14, 2013 at 8:06 AM
    #18
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    You use the 35 watt bulb size for your 240s as well?
    I read on another forum (Dodge I think) that the guy used 55 watt bulbs for his LF240 HID conversion.
    Not sure what the pros/cons to that would be :notsure:
