Lighting switch power wiring?

Discussion in 'Technical Chat' started by Iceberg, Oct 1, 2020.

  1. Oct 1, 2020 at 4:50 PM
    #1
    Iceberg

    Iceberg [OP] Well-Known Member

    Joined:
    May 12, 2020
    Member:
    #327773
    Messages:
    120
    First Name:
    Josh
    Alabama
    Vehicle:
    2008 DCSB TRD OR

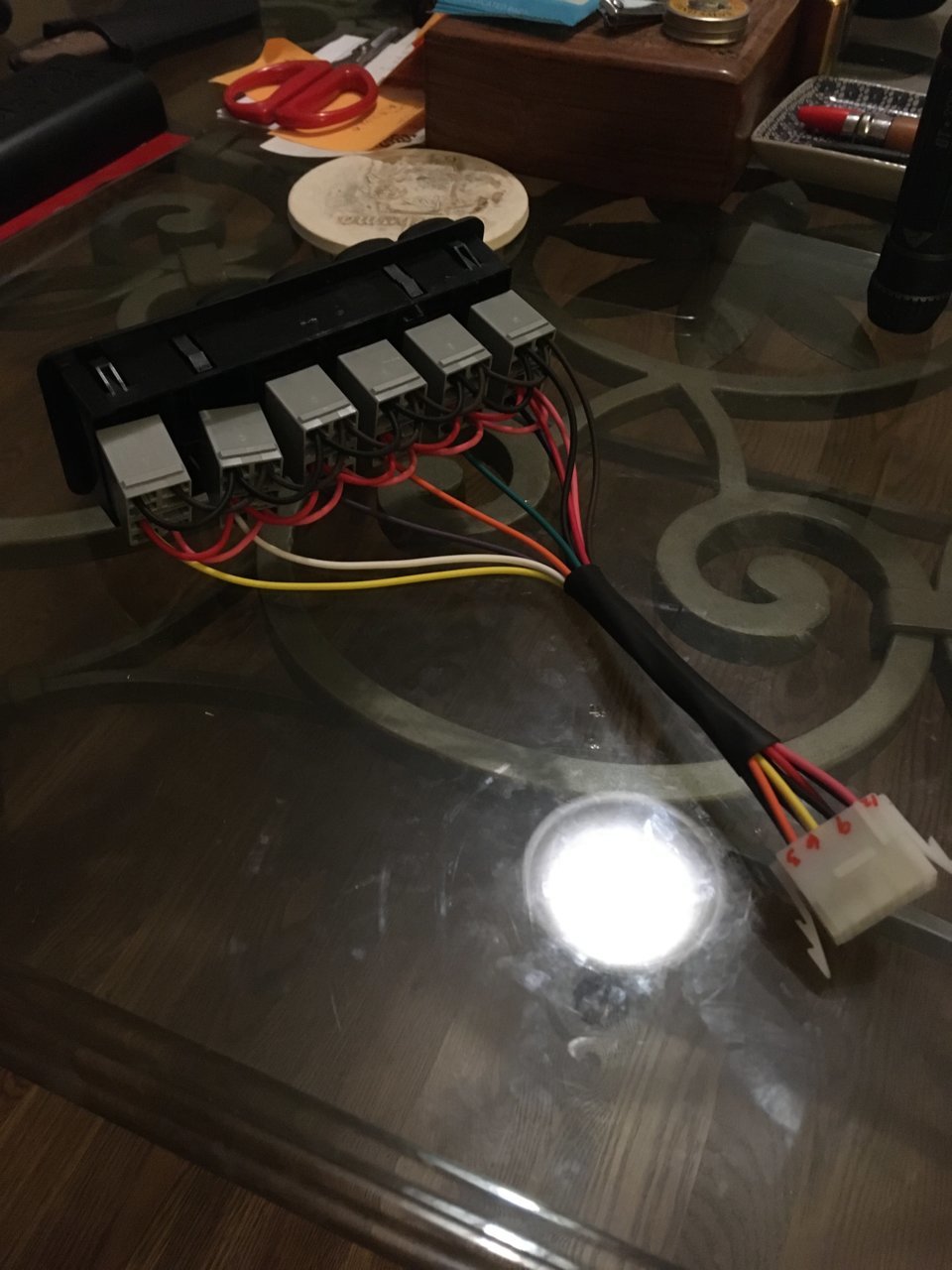

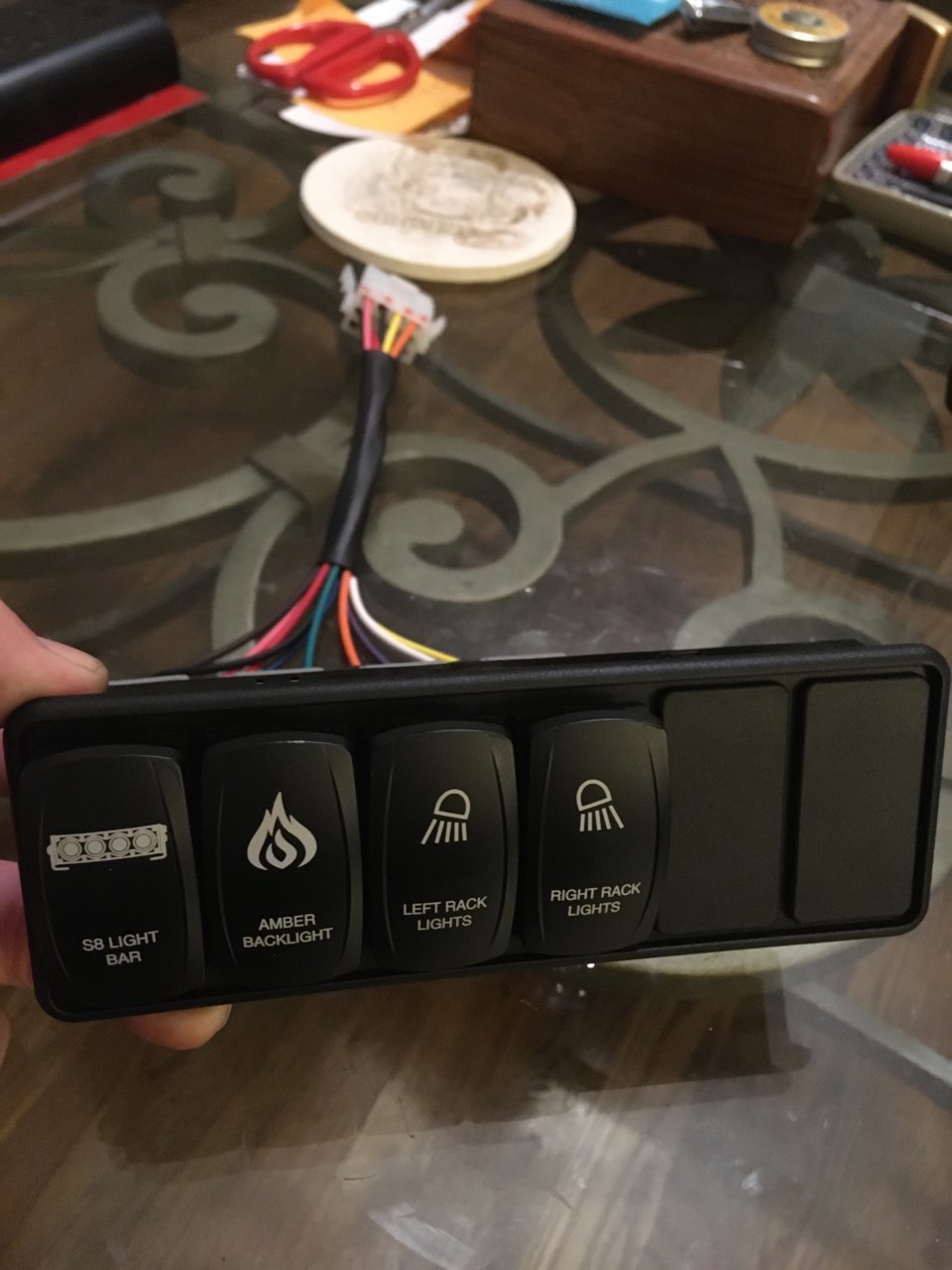

    Got an electrical question for you guys. Adding uptop roof rack with 40” bd s8 and 4 bd rock lights. S8 has amber led backlights. I think 4 small leds so not much power and the 4 rock lights draw 4 watts each. I’ve daisy chained my switches and plan to use add a fuse to power the rock lights and back light on light bar. I have relay for main light bar power to blue sea fuse panel but will add a fuse handle powering the rock lights and amber backlight on s8 without relay? I planned to use add a fuse to ignition powered fuse in dash panel. Does this plan make sense? Should I wire the switch power back to blue seas panel instead for some reason? I also prewired 2 extra switch backs for accessories down the road. Is it fine to have these empty switchbacks until I add something later. Thanks for the help as I am a noob with electrical. Pics of my switch wiring
    [​IMG]


  2. Oct 3, 2020 at 9:57 AM
    #2
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,773
    Deep South
    Herculiner Hootus
    If those are the carling switch they are rated for 20 amps I believe. Add up all your lights wattages, divide by 11 volts, and if it’s greater than the switch rating, your answer is no.

  3. Oct 3, 2020 at 9:59 AM
    #3
    Iceberg

    Iceberg [OP] Well-Known Member

    Joined:
    May 12, 2020
    Member:
    #327773
    Messages:
    120
    First Name:
    Josh
    Alabama
    Vehicle:
    2008 DCSB TRD OR
    Thanks. Asked around and think I’m in good shape. Lighting wattage is less than 20 amps
