Lil'Taco's Center Console CB Install

Discussion in 'Audio & Video' started by Lil'Taco, Sep 3, 2013.

  1. Sep 3, 2013 at 5:57 PM
    #1
    Lil'Taco

    Lil'Taco [OP] Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    905
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Debadged, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Pioneer SPH-DA100 AppRadio, Red Label Off-road tube bumper, Redline hood struts
    I Finally got my CB and with a set idea of where I wanted to put it I set out to make it happen. I ran into a couple obstacles along the way (the A/C vents and ducts). So I was unable to get the CB recessed as far as I wanted but I figured I could get a spare center console trim piece to swap out when I'm not using the CB.

    Here is what I have done so far and would like to get some of your guys advice on how to finish it off to securely mount the bracket.

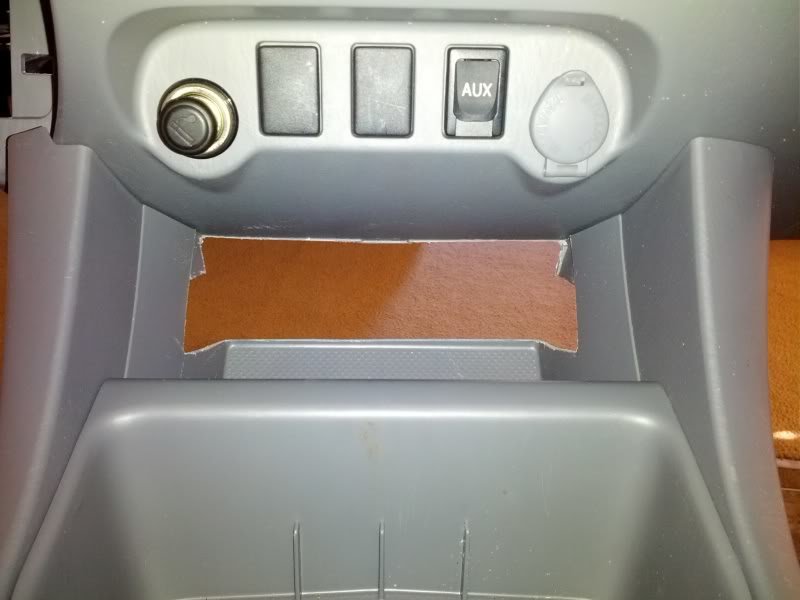

    I started by cutting out the back area to get the corners and plugs past the back of the trim.
    [​IMG]

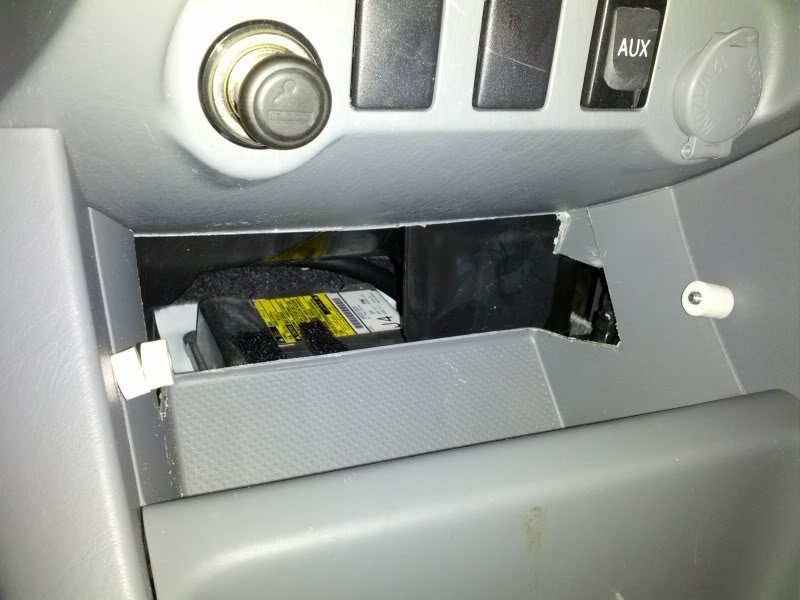

    The CB stuck out a little further then I wanted so I had to cut out the plastic on the right to allow it to sit back a little further but it would only go back until it hit an A/C duct.
    [​IMG]

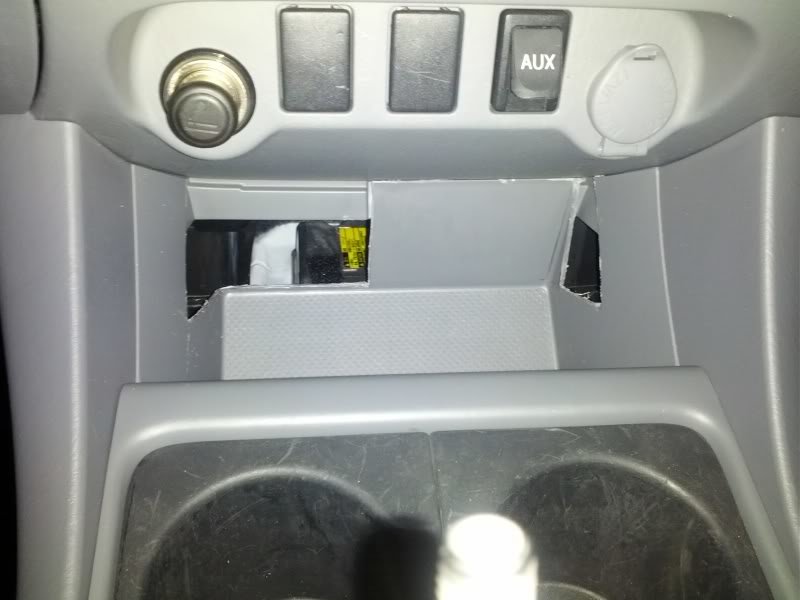

    I also had to trim the lip on the lower trim panel (the part with the cig outlets)
    [​IMG]

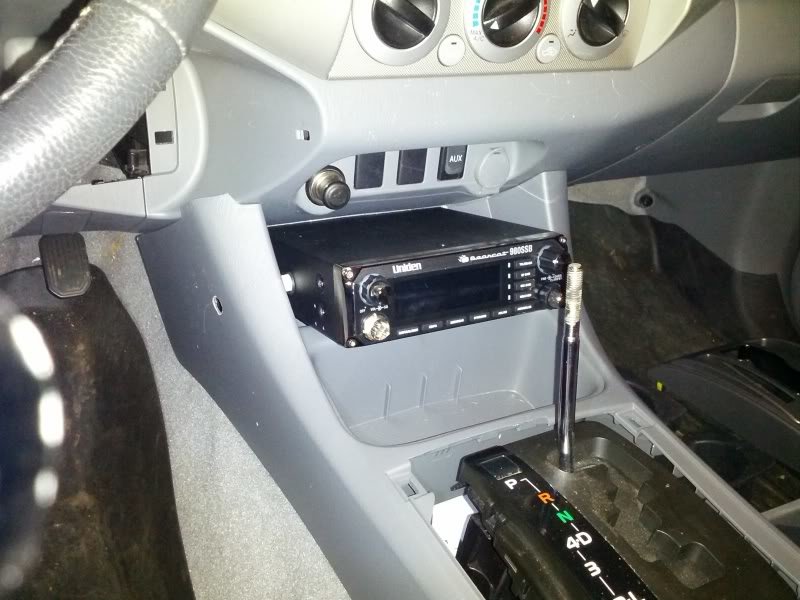

    This allowed the CB to sit back an extra inch or so. This is about as far as it will go without ripping out the A/C ducts. So I was satisfied where it sat.
    [​IMG]

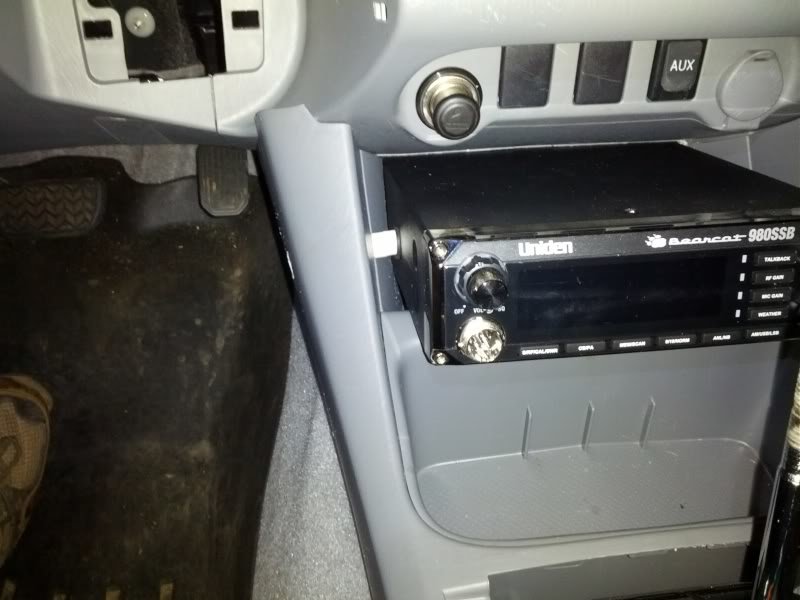

    So this is where I am, and would like some advice/ideas on how to mount it securely.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

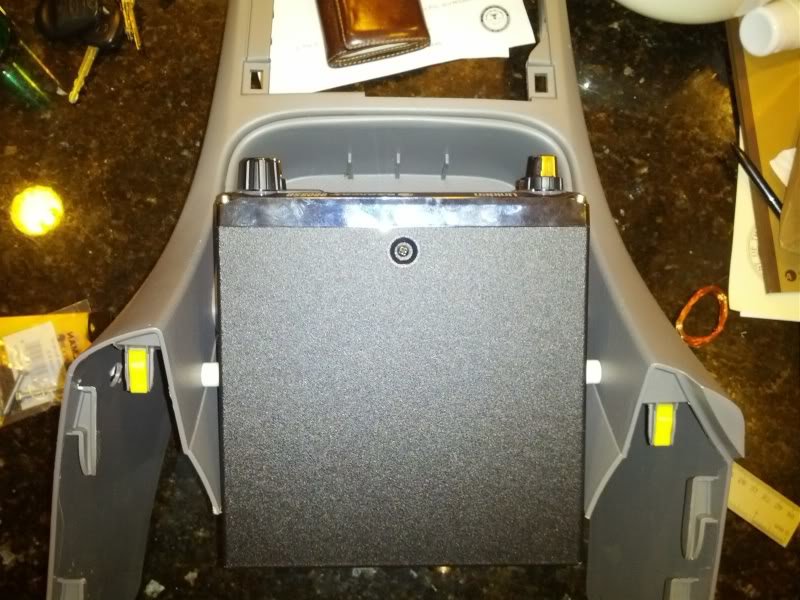

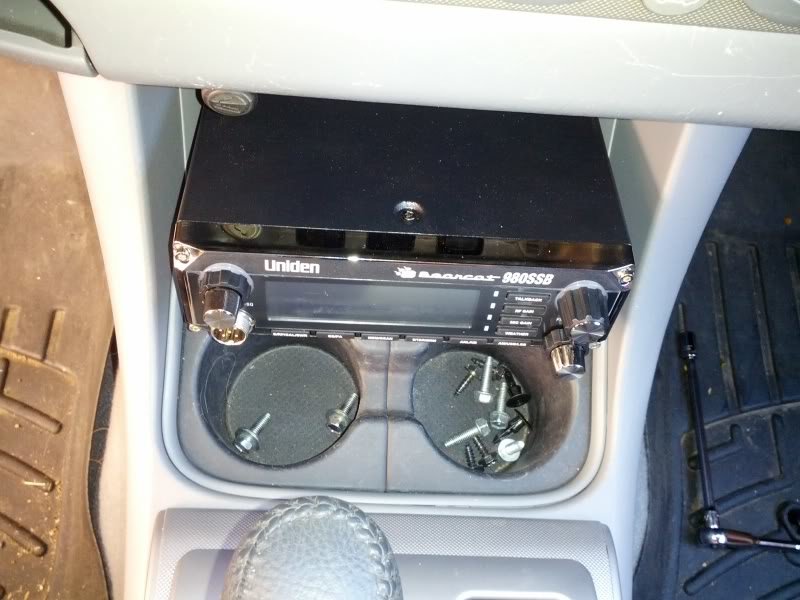

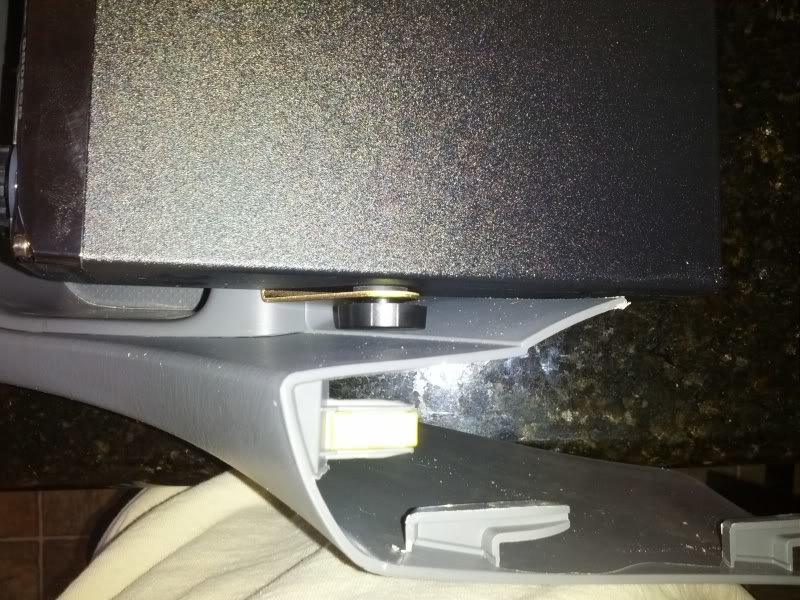

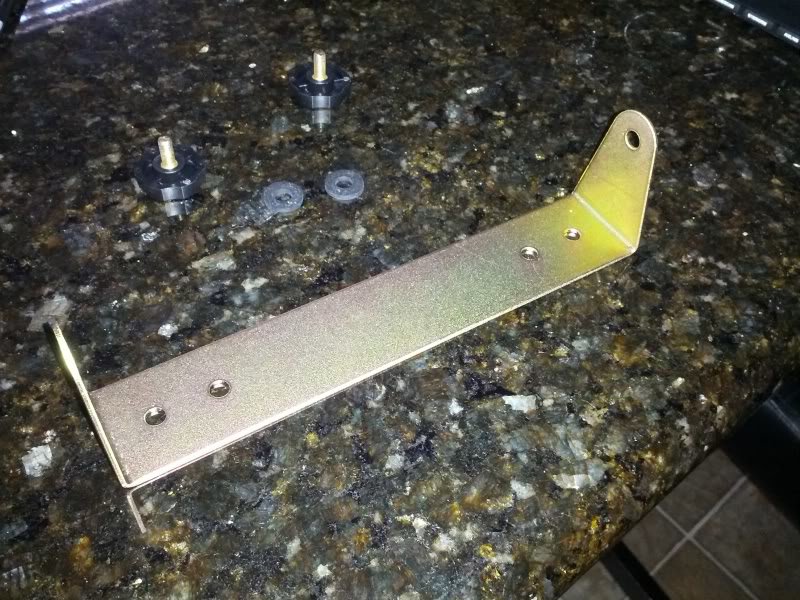

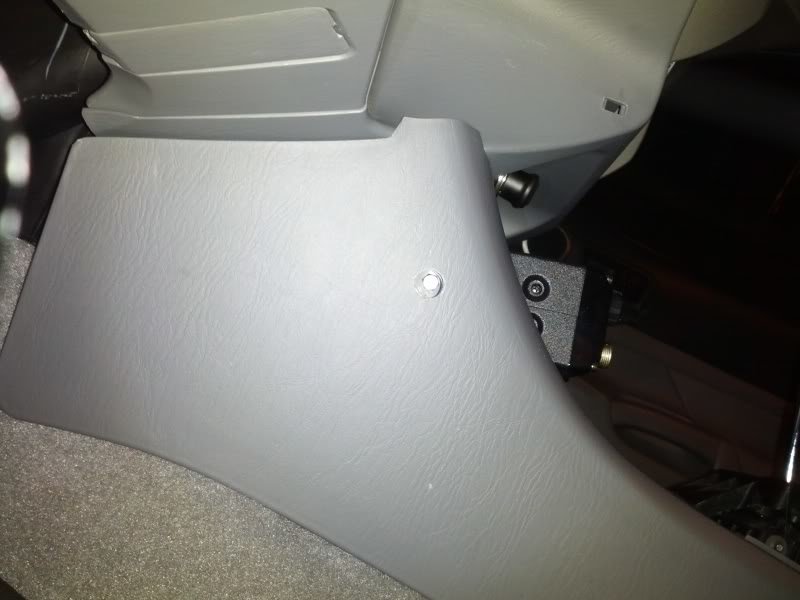

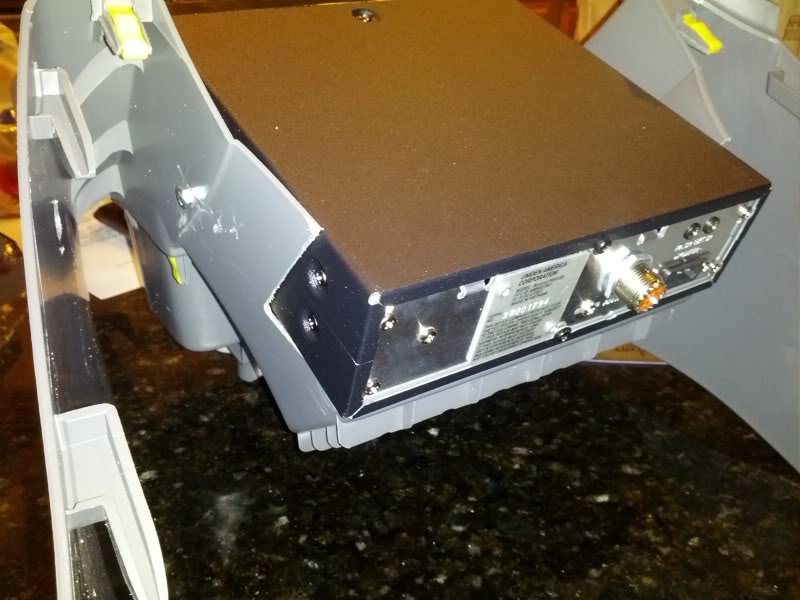

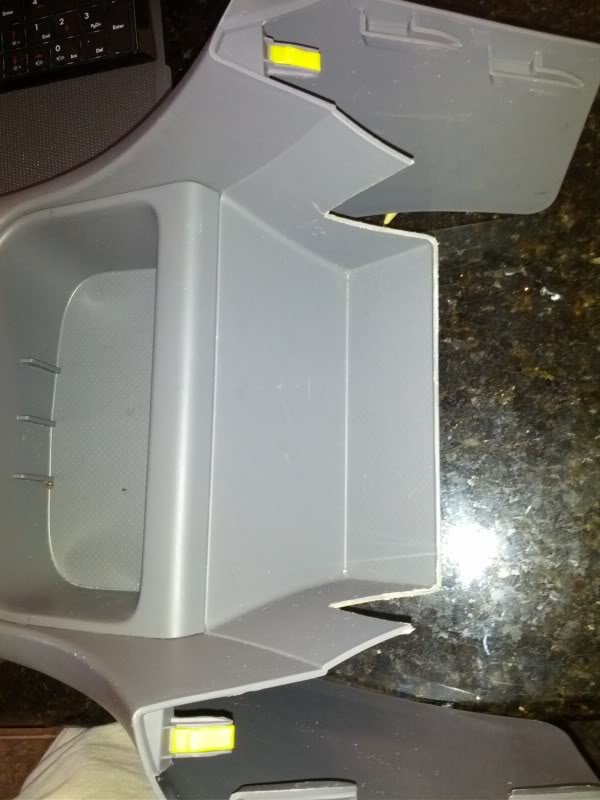

    So I decided that I wouldn't be able to use the factory mounting braket so I went to the hardware store got a 4x1/4" nylon spacers and a couple screws that where longer that fit. Drilled a couple well placed holes in the side of the console so I would have access to the screws with the console installed. It is a little tricky squeezing the CB inbetween the screws and lining the holes up but when you do it is SOLID!
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Sep 3, 2013
  2. Sep 3, 2013 at 6:21 PM
    #2
    kalieaire

    kalieaire Well-Known Member

    Joined:
    Jun 30, 2012
    Member:
    #81653
    Messages:
    930
    Gender:
    Male
    First Name:
    Stanley
    Northern California
    Vehicle:
    '12 TRD Off-Road 4x4 AC V6 6MT
    SnugTop Rabel, Demello Sliders
    Have you thought about cutting into the CB chassis itself?

    The circuit board is mounted on the top panel of the radio, the only thing that's on the back panel is the antenna out, power, and inputs for the radio which could easily be re-routed.

    Now that you have cut another inch off the center console hole at the top, you should easily be able to slip the modified chassis into position. If you're concerned regarding exposed components, you could get polycarbonate from TAP Plastics and cut it to fit.

  3. Sep 3, 2013 at 6:30 PM
    #3
    Lil'Taco

    Lil'Taco [OP] Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    905
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Debadged, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Pioneer SPH-DA100 AppRadio, Red Label Off-road tube bumper, Redline hood struts
    What do you mean by cutting into the CB chassis? The circuit board is still about the same size as the inclosure so I don't think it would give me any more space.

  4. Sep 3, 2013 at 8:26 PM
    #4
    Lil'Taco

    Lil'Taco [OP] Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    905
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Debadged, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Pioneer SPH-DA100 AppRadio, Red Label Off-road tube bumper, Redline hood struts
    I figured out the mounting situation and updated the original post. turned out pretty good if you ask me.

  5. Sep 3, 2013 at 8:29 PM
    #5
    adriancast

    adriancast Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,630
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod
    I would like to do that, but I like my cup holders. Your CB seems to be blocking them.

  6. Sep 3, 2013 at 8:32 PM
    #6
    Lil'Taco

    Lil'Taco [OP] Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    905
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Debadged, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Pioneer SPH-DA100 AppRadio, Red Label Off-road tube bumper, Redline hood struts
    They are blocked but I plan on removing the CB when I'm not using it.

  7. Sep 3, 2013 at 8:44 PM
    #7
    adriancast

    adriancast Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,630
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod

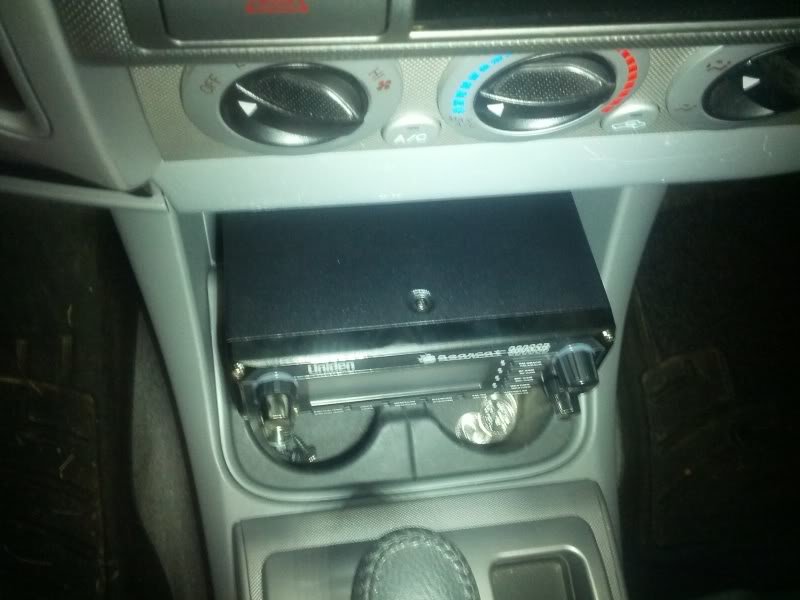

    I just did this. Can still put the seat all the way up and doesn't get in the way of the passenger.

    [​IMG]

  8. Sep 3, 2013 at 8:59 PM
    #8
    Lil'Taco

    Lil'Taco [OP] Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    905
    Gender:
    Male
    First Name:
    Scotty
    Vacaville, CA
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Debadged, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Pioneer SPH-DA100 AppRadio, Red Label Off-road tube bumper, Redline hood struts
    I was going for a more clean look instead of something bulgy hanging off the side of the console.

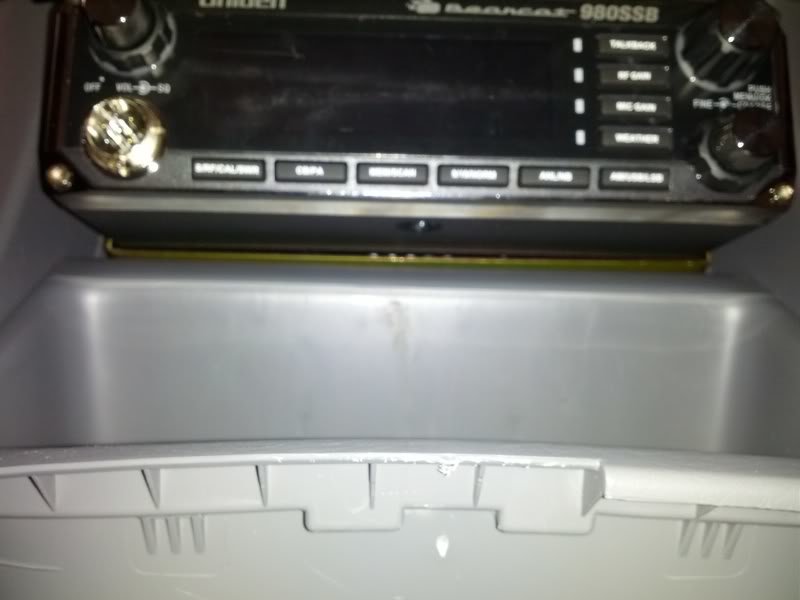

    I could put in even further if this part of the A/C duct wasn't there or could be moved.
