Limit switch for hood lights?

Discussion in 'Lighting' started by Reh5108, Feb 9, 2014.

Page 2 of 3
  1. Feb 16, 2014 at 3:23 PM
    #21
    Slider57

    #21
    Slider57 Active Member

    Joined:
    Dec 30, 2013
    Member:
    #119522
    Messages:
    41
    Gender:
    Male
    Bailey, CO
    Vehicle:
    14 ACSB 4WD SR5 V6
    So, political and safety rant BS aside, using a mercury switch underhood, what would a wiring diagram look like?

    Slider57, Feb 16, 2014
    #21
  2. Feb 16, 2014 at 3:53 PM
    #22
    Rich91710

    #22
    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,331
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    The mercury makes contact between two pins, just like a toggle or pushbutton.
    Difference is you can put the switch on either the hot or the ground side... I'd put it on the hot side, so...

    Battery - - - - Fuse - - - - Switch - - - - Light - - - - Ground

    Rich91710, Feb 16, 2014
    #22
  3. Feb 19, 2014 at 8:07 PM
    #23
    Thelgord

    #23
    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack

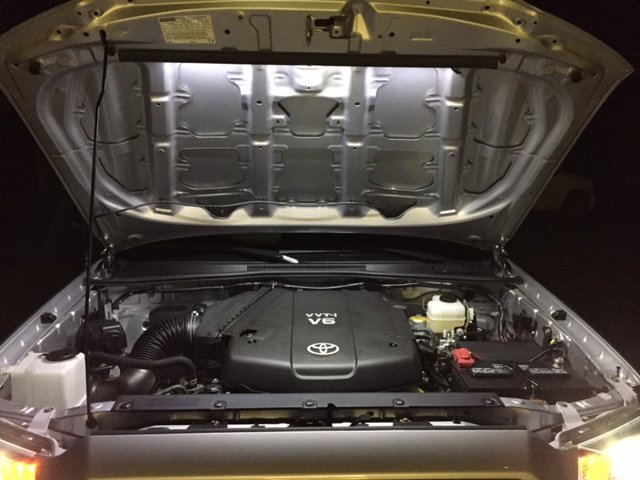

    Thelgord, Feb 19, 2014
    #23
  4. Feb 19, 2014 at 8:27 PM
    #24
    Rich91710

    #24
    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,331
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Very nice, clean install.

    Rich91710, Feb 19, 2014
    #24
  5. Feb 19, 2014 at 9:11 PM
    #25
    Reh5108

    #25
    Reh5108 [OP] Well-Known Member

    Joined:
    Feb 18, 2013
    Member:
    #97832
    Messages:
    5,767
    Gender:
    Male
    First Name:
    Ryan
    Idaho
    Vehicle:
    2004 SR5 4X4 2.7L Extra Cab
    OME lift, 4x sliders, Demello rear bumper, custom front bumper, Engo 9000lb winch

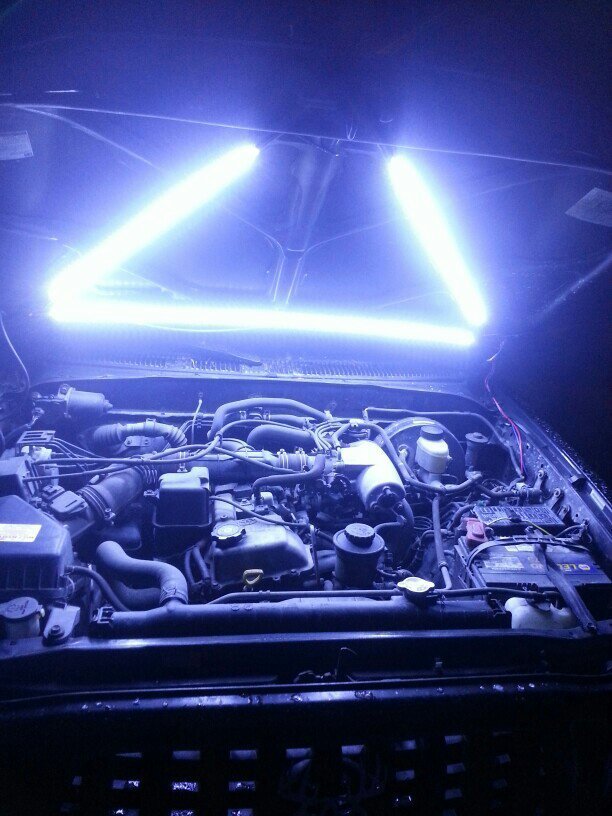

    Reh5108, Feb 19, 2014
    #25
  6. Feb 20, 2014 at 7:15 AM
    #26
    Slider57

    #26
    Slider57 Active Member

    Joined:
    Dec 30, 2013
    Member:
    #119522
    Messages:
    41
    Gender:
    Male
    Bailey, CO
    Vehicle:
    14 ACSB 4WD SR5 V6
    Ahhh. Got it, thanks Rich!

    Slider57, Feb 20, 2014
    #26
  7. Mar 12, 2014 at 2:39 PM
    #27
    Reh5108

    #27
    Reh5108 [OP] Well-Known Member

    Joined:
    Feb 18, 2013
    Member:
    #97832
    Messages:
    5,767
    Gender:
    Male
    First Name:
    Ryan
    Idaho
    Vehicle:
    2004 SR5 4X4 2.7L Extra Cab
    OME lift, 4x sliders, Demello rear bumper, custom front bumper, Engo 9000lb winch

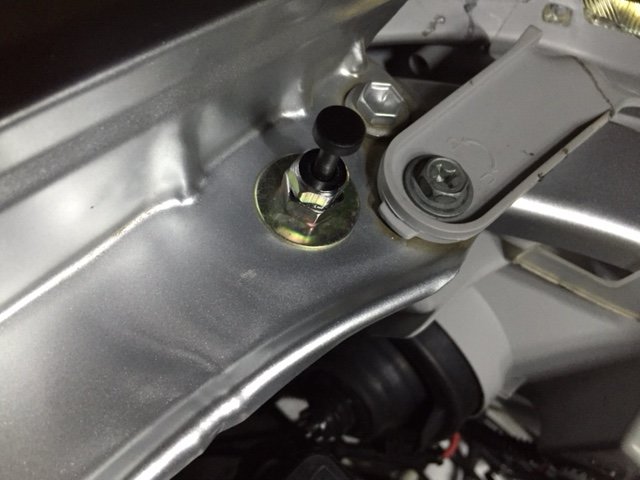

    This is what I ended up going with. Got if from the the guys selling the hood light kit on here. edepagyg_77c0047f3ace1d6996a756f8268b41513c10b3c5.jpg

    Reh5108, Mar 12, 2014
    #27
  8. Mar 31, 2014 at 1:54 AM
    #28
    cdelgado14

    #28
    cdelgado14 Well-Known Member

    Joined:
    Dec 11, 2012
    Member:
    #92905
    Messages:
    827
    Gender:
    Male
    First Name:
    Chris
    Alice,Texas
    Vehicle:
    Supercharged micro machine ;)
    Bilstein 3 inch w/ 5100's
    where did you get that light?!looks legit

    cdelgado14, Mar 31, 2014
    #28
  9. Mar 31, 2014 at 3:17 AM
    #29
    Reh5108

    #29
    Reh5108 [OP] Well-Known Member

    Joined:
    Feb 18, 2013
    Member:
    #97832
    Messages:
    5,767
    Gender:
    Male
    First Name:
    Ryan
    Idaho
    Vehicle:
    2004 SR5 4X4 2.7L Extra Cab
    OME lift, 4x sliders, Demello rear bumper, custom front bumper, Engo 9000lb winch
    This site contains affiliate links for which the site may be compensated.
    Reh5108, Mar 31, 2014
    #29
  10. Apr 21, 2014 at 3:36 PM
    #30
    skygear

    #30
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    if you people did the RedLine hood struts. Get a Gas prop Switch.

    [​IMG][​IMG]

    skygear, Apr 21, 2014
    #30
    o0oSHADOWo0o likes this.
  11. Apr 22, 2014 at 4:28 AM
    #31
    skygear

    #31
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    skygear, Apr 22, 2014
    #31
  12. Jul 8, 2016 at 7:47 AM
    #32
    justchil

    #32
    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    238
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    Has anyone else tried a gas prop switch on Redline struts other than the banned guy above?

    I contact Redline to see what they say.

    justchil, Jul 8, 2016
    #32
  13. Jul 8, 2016 at 8:07 AM
    #33
    jmaack

    #33
    jmaack Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131634
    Messages:
    4,894
    Gender:
    Male
    First Name:
    Justin
    Helena Alabama
    Vehicle:
    Skewped hood silver 4runner
    Ome, Sqeak free dakars, arms, skids, sliders.
    Some newer cars if they are lucky to even have a hood light use a switch similar to a mercury switch. But use a ball in a tube to activate. Mine does and j have never noticed it flickering while driving.

    jmaack, Jul 8, 2016
    #33
  14. Jul 8, 2016 at 4:48 PM
    #34
    Sicyota04

    #34
    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,551
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    I used a a magnetic Anzo brand switch. When the magnets are together they shut the hood lights off and when you open the hood and they come apart the lights come on. I also have an auxiliary switch to turn the lights completely off if I'm under the hood during the day. Simple and doesn't take up any room. Just two small magnets one on the top of the inside of the hood and the other on the piece of metal running across right in front of the battery

    Sicyota04, Jul 8, 2016
    #34
  15. Jul 8, 2016 at 4:54 PM
    #35
    justchil

    #35
    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    238
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    This the one? That's a good idea and pretty much foolproof.

    [​IMG]

    justchil, Jul 8, 2016
    #35
  16. Jul 8, 2016 at 4:55 PM
    #36
    Sicyota04

    #36
    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,551
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    Yes that is the one!

    Sicyota04, Jul 8, 2016
    #36
  17. Jul 8, 2016 at 5:20 PM
    #37
    justchil

    #37
    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    238
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    Thanks for the idea. I found another one I'm going to try that's a little smaller. I'm looking for a low amp micro relay to tuck away just to be safe.

    $20 Directed Electronics 8600 Micro Magnetic Switch
    https://www.amazon.com/Directed-Electronics-8600-Magnetic-Switch/dp/B0009SUEZY/

    [​IMG]

    I ordered 4 of these to try out. I'll at least use two under the hood. Maybe put a couple down in the engine bay and see how they hold up to water. I don't see an IP rating or anything but they are cheap and look to be good quality.

    http://www.vleds.com/aluminum-bar-light-striplight-3-chip-15-led.html

    [​IMG]

    justchil, Jul 8, 2016
    #37
  18. Jul 12, 2016 at 8:11 AM
    #38
    justchil

    #38
    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    238
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    My switch came in yesterday. I will post up some photos in case it may be useful to someone in the future.

    The switch is very small :D

    justchil, Jul 12, 2016
    #38
  19. Jul 13, 2016 at 7:16 PM
    #39
    justchil

    #39
    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    238
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    The magnet switch worked for a few minutes then quit working. I read in the reviews about others having the same issue.

    So back to the normal switch for me.



    justchil, Jul 13, 2016
    #39
  20. Jul 13, 2016 at 8:19 PM
    #40
    Sicyota04

    #40
    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,551
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    This one works perfect still. And has an auxiliary switch to turn off during the day when the hood is up.


    Sicyota04, Jul 13, 2016
    #40
