location of IH2 connector

Discussion in '3rd Gen. Tacomas (2016-2023)' started by David McGinnis, May 12, 2020.

  1. May 12, 2020 at 3:01 PM
    #1
    David McGinnis

    David McGinnis [OP] Well-Known Member

    Joined:
    May 12, 2020
    Member:
    #327807
    Messages:
    47
    First Name:
    David
    Sierra Vista, AZ
    2021 4X4 Sport AC 3.5L MT - OME lift with Dakar leafs. 10x33 Coopers. ARB Bumper. KDMax Tune. 2017 SE AC 2.7L 2WD AT - OME lift with Dakar leafs, BA bumper, tooter manifold spacer, header, OVTuned. LED lights. Does not run like your average 2.7; this truck pulled a broken down HMMWV out of a wash. 2008 PreRunner 4.0L - 3" spring lift with Bilstein 5100s, ARB bumper, rear sway arm. Old Reliable, been around, beat up, and still runs like a beast.
    From the wiring diagrams, I see the IH2 connector is six pins across, two rows deep.

    I see it referred to as one of the "kick panel connectors". I looked there first. I see no connectors that are three rows of pins deep.

    So I looked in the under hood fuse box where there are connectors that go to the engine wiring harness. I see one connector that matches the description of three rows of six, but the wiring color for the pin I am interested in is the wrong color. (pin 15 in my diagram is white, and is the oil level sensor. I see it as black on this connector). Additionally, the ground wires on pins 5 and 6 are not present, leading me to believe this is not IH2.

    Can anyone definitively say where connector IH2 is located, or point me to a document that locates these connectors.

  2. May 12, 2020 at 5:15 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,813
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  3. May 12, 2020 at 7:04 PM
    #3
    David McGinnis

    David McGinnis [OP] Well-Known Member

    Joined:
    May 12, 2020
    Member:
    #327807
    Messages:
    47
    First Name:
    David
    Sierra Vista, AZ
    2021 4X4 Sport AC 3.5L MT - OME lift with Dakar leafs. 10x33 Coopers. ARB Bumper. KDMax Tune. 2017 SE AC 2.7L 2WD AT - OME lift with Dakar leafs, BA bumper, tooter manifold spacer, header, OVTuned. LED lights. Does not run like your average 2.7; this truck pulled a broken down HMMWV out of a wash. 2008 PreRunner 4.0L - 3" spring lift with Bilstein 5100s, ARB bumper, rear sway arm. Old Reliable, been around, beat up, and still runs like a beast.

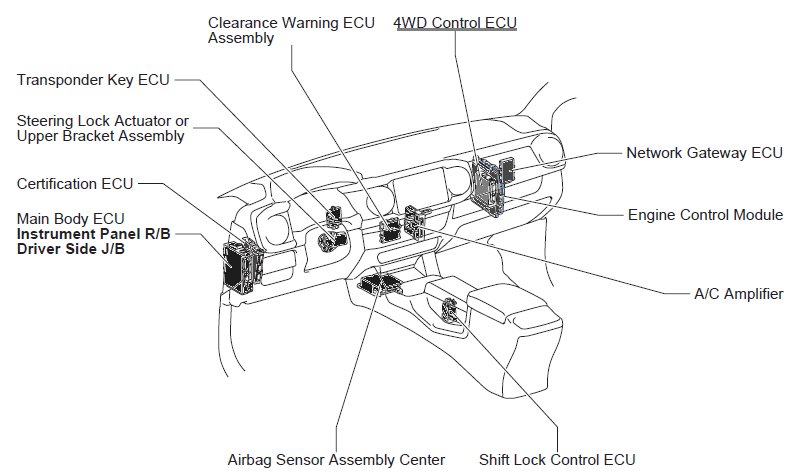

    so behind the glove box. You're awesome!

  4. May 13, 2020 at 5:24 AM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,813
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
