Discussion in '2nd Gen. Tacomas (2005-2015)' started by jsi, Nov 30, 2014.

Page 12 of 43
  1. Feb 10, 2017 at 8:49 AM
    #221
    TacoSupremeo

    #221
    TacoSupremeo Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207427
    Messages:
    274
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2005 Tacoma Double Cab 4x4

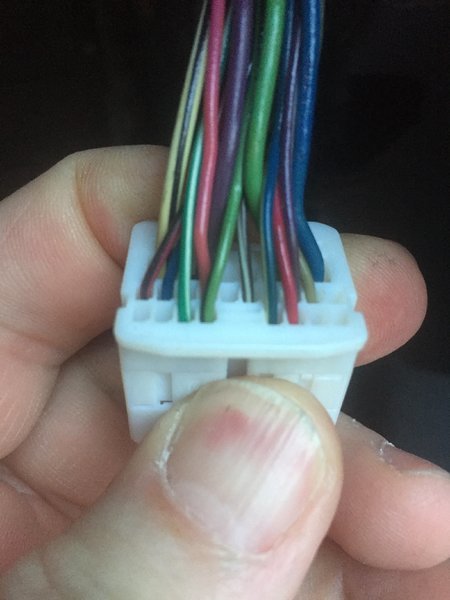

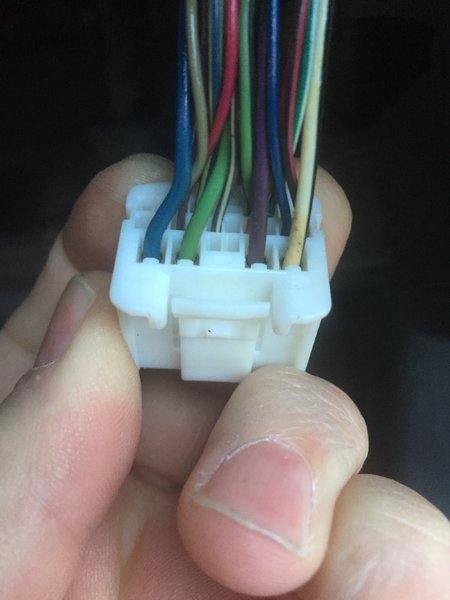

    this is the rearward plug...

    plug 1 A.jpg

    and the other side of it...

    plug 1 B.jpg

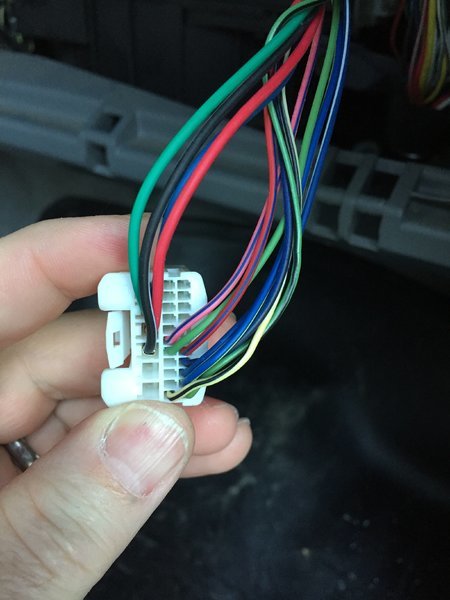

    other plug, the one toward the front of the truck...

    plug 2.jpg

    TacoSupremeo, Feb 10, 2017
    #221
  2. Feb 10, 2017 at 7:53 PM
    #222
    jsi

    #222
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,986
    Gender:
    Male
    native earthling

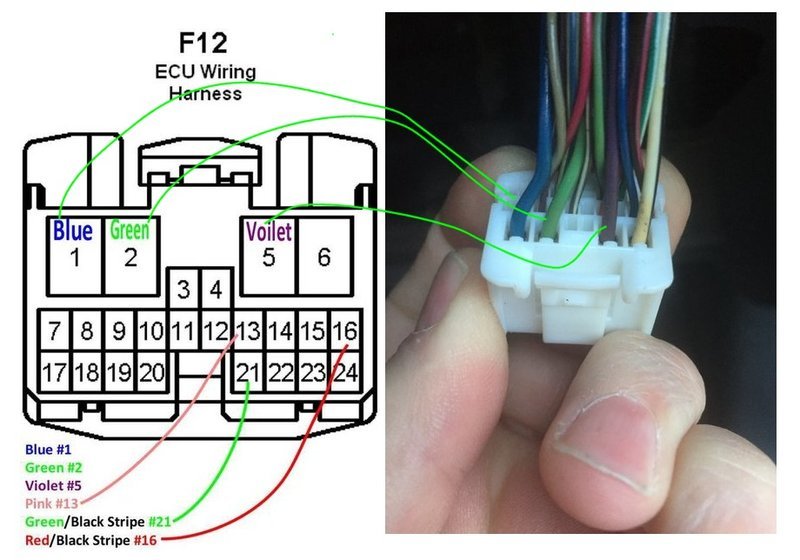

    Is this a start? It's hard for me to tell which other shots are of this plug, but this is the one you should be looking at.

    jsi, Feb 10, 2017
    #222
  3. Feb 11, 2017 at 8:03 AM
    #223
    TacoSupremeo

    #223
    TacoSupremeo Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207427
    Messages:
    274
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2005 Tacoma Double Cab 4x4
    Okay, now were getting somewhere... on my truck, this plug is in the position toward the back of the truck.... maybe my 4wd computer is installed backwards...

    TacoSupremeo, Feb 11, 2017
    #223
    TXpro4X4 likes this.
  4. Feb 11, 2017 at 12:29 PM
    #224
    TXpro4X4

    #224
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    I doubt it.
    We are just seeing things backwards.
    Mine is the same!
    Just use the colors of the wires when identifying

    TXpro4X4, Feb 11, 2017
    #224
  5. Feb 22, 2017 at 5:46 PM
    #225
    TacoSupremeo

    #225
    TacoSupremeo Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207427
    Messages:
    274
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2005 Tacoma Double Cab 4x4
    okay, i ended up coming back out to Cali for a job, so i was able to check out TXpro4x4's truck and look at his mod... we confirmed that my 4wd computer is in fact installed backwards, so the plug that you guys are tapping into from the front socket on the computer actually plugs into the rear socket on mine... no biggie, but i wanted to thank Bryan for letting me look at his truck to confirm everything, i will be doing the mod saturday when i install my lift.

    TacoSupremeo, Feb 22, 2017
    #225
    Biscuits, TXpro4X4, stbear and 1 other person like this.
  6. Feb 23, 2017 at 10:47 AM
    #226
    TXpro4X4

    #226
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    :thumbsup:
    Anytime Mike

    TXpro4X4, Feb 23, 2017
    #226
    TacoSupremeo[QUOTED] likes this.
  7. Mar 13, 2017 at 5:51 PM
    #227
    Sub-Zero

    #227
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    Hey so I just did this and now I can't get my locker to Work.... It's a stock set up except the dash light has never worked since I swapped the e locker in. (Anyone know how to get the light to work too?) I used a radio shack relay.... Does anyone know what each pin does in the relay to make sure it's the same pin location?

    Any help greatly appreciated

    Sub-Zero, Mar 13, 2017
    #227
    TXpro4X4 likes this.
  8. Mar 13, 2017 at 7:05 PM
    #228
    TXpro4X4

    #228
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Did you do it?

    TXpro4X4, Mar 13, 2017
    #228
  9. Mar 13, 2017 at 7:08 PM
    #229
    TXpro4X4

    #229
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    I lack info
    Is it 4x4? and you installed the e-locker on a sport?
    Or do you have the off road package?

    TXpro4X4, Mar 13, 2017
    #229
  10. Mar 13, 2017 at 7:37 PM
    #230
    Sub-Zero

    #230
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    Yes 4x4 . I installed e locker axle on an sr5. I have factory button and 4wd ecu but for some reason the dash light never worked

    Sub-Zero, Mar 13, 2017
    #230
    TXpro4X4[QUOTED] likes this.
  11. Mar 13, 2017 at 7:39 PM
    #231
    Sub-Zero

    #231
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    Two things I can think of.... Either my relay is faulty or an incorrect model....or whatever is keeping my dash light from working is keeping this mod from working too

    Sub-Zero, Mar 13, 2017
    #231
    TXpro4X4 likes this.
  12. Mar 13, 2017 at 8:22 PM
    #232
    TXpro4X4

    #232
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    You can hear the relay operating?
    Also when you turn the key to the on position
    Does the locker light come in then go off?

    TXpro4X4, Mar 13, 2017
    #232
  13. Mar 13, 2017 at 8:26 PM
    #233
    KRAMERICA

    #233
    KRAMERICA Old Man Mike

    Joined:
    Mar 22, 2015
    Member:
    #151504
    Messages:
    3,882
    Gender:
    Male
    First Name:
    Mike
    Middle Tenn
    Vehicle:
    '18 F250 Super Duty
    A couple of rear window decals...
    Buddy and I did this mod a couple weeks ago, my 2012 was just like the OP describes. Buddies 2008 plugs were ass backwards, but all else worked as described.

    KRAMERICA, Mar 13, 2017
    #233
  14. Mar 14, 2017 at 7:10 AM
    #234
    Sub-Zero

    #234
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    No don't hear relay, dash light has never come on ever for the locker

    Sub-Zero, Mar 14, 2017
    #234
    TXpro4X4[QUOTED] likes this.
  15. Mar 14, 2017 at 10:10 AM
    #235
    TXpro4X4

    #235
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    And before the mod it worked fine?

    TXpro4X4, Mar 14, 2017
    #235
  16. Mar 14, 2017 at 10:22 AM
    #236
    Sub-Zero

    #236
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    Yea locker would come on when I pushed the button, only in 4lo obviously

    Sub-Zero, Mar 14, 2017
    #236
    TXpro4X4[QUOTED] likes this.
  17. Mar 14, 2017 at 10:24 AM
    #237
    TXpro4X4

    #237
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    When you have time can you take some pics of the relay, the harness and your wiring.
    And where thr harness is when its pluged in.
    Thx
    Bryan
    I dont think your dash has a bulb installed behind the indicator

    TXpro4X4, Mar 14, 2017
    #237
  18. Mar 14, 2017 at 10:27 AM
    #238
    Sub-Zero

    #238
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    I'm gonna take the dash apart to check on that next and trace the wire. I'll let you know when that happens

    Sub-Zero, Mar 14, 2017
    #238
    TXpro4X4[QUOTED] likes this.
  19. Mar 14, 2017 at 10:29 AM
    #239
    TXpro4X4

    #239
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,961
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    :thumbsup:

    TXpro4X4, Mar 14, 2017
    #239
  20. Mar 14, 2017 at 10:31 AM
    #240
    Sub-Zero

    #240
    Sub-Zero NOOB

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    4,528
    Gender:
    Male
    First Name:
    Ryan
    Frederick, CO
    Vehicle:
    '06 DCSB
    None
    You know what, I also have the wrong relay I think

    Sub-Zero, Mar 14, 2017
    #240
    TXpro4X4[QUOTED] likes this.
