Discussion in '2nd Gen. Tacomas (2005-2015)' started by jsi, Nov 30, 2014.

Page 31 of 44
  1. Feb 19, 2020 at 12:11 PM
    #601
    jsi

    #601
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,996
    Gender:
    Male
    native earthling
    That looks OK to me. The actuator coil is 12 volts DC (vdc) The 10 amps 110 volts AC on the case is referring to the maximum load the relay contacts can handle. I just measured the load put on the contacts in my truck at .0012 amps. That's nothing compared to the rating of the relay.


    (warning! Nerd moment read at your own risk. :D )
    Because AC goes from + voltage, through 0 voltage, to - voltage it is easier to switch than DC which is constant voltage. DC will sometimes arc across the contact so manufacturers lower the rating for DC applications. Typically the DC rating is around 10 times lower than AC.

    So, what does that mean in our case? Comparing 110 VAC with 12 VDC is sort of an apples and oranges thing. However if we convert the measurement to watts we can look at them on a level playing field. The relay is rated for 1100 watts AC (10A * 110 V= 1100 watts) That would derate to 110 watts DC. In our trucks we need a relay that can switch .0144 watts DC (.0012 A * 12 V). In other words it's like we have $110 in our pocket and we're spending a penny.
    (/nerd)

    jsi, Feb 19, 2020
    #601
    TXpro4X4[QUOTED] likes this.
  2. Feb 19, 2020 at 1:19 PM
    #602
    t2ch

    #602
    t2ch Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303533
    Messages:
    130
    Gender:
    Male
    First Name:
    Travis
    Va.
    Vehicle:
    2015 TRD OR
    My original relay was an AC coil so that would blow the 10 amp fuse regardless of how I configured the red/black and the ground.
    I should have the new one in a couple days and we can compare what is going on.
    I would like to know what you find though.

    Should be here Friday so the USPS tracker says...

    t2ch, Feb 19, 2020
    #602
    TXpro4X4 likes this.
  3. Feb 19, 2020 at 3:00 PM
    #603
    TXpro4X4

    #603
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    I dont get it then. It's not like its complicated to read the directions, no matter what I do with 7 & 8 the fuse blows.
    Maybe something was making contact.
    I will try again when I have some time and fuses.

    TXpro4X4, Feb 19, 2020
    #603
  4. Feb 19, 2020 at 9:19 PM
    #604
    jsi

    #604
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,996
    Gender:
    Male
    native earthling
    I sent you that relay with the diode some time ago, right? Shoot me a note over on etsy.com and I'll send you a new relay. It is possible that the diode is defective.

    jsi, Feb 19, 2020
    #604
    jungleman and TXpro4X4[QUOTED] like this.
  5. Feb 20, 2020 at 8:12 AM
    #605
    TXpro4X4

    #605
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Perhaps
    Thank you!

    TXpro4X4, Feb 20, 2020
    #605
  6. Feb 24, 2020 at 6:14 PM
    #606
    jungleman

    #606
    jungleman There can be only one

    Joined:
    Feb 27, 2008
    Member:
    #4988
    Messages:
    2,304
    Gender:
    Male
    North California
    Vehicle:
    2005 Access Cab Indigo Blue
    Illuminated my 4wd switch that way.
    Everything is there just like that switch, it just needed a bulb and power&ground.

    And thats why I wired my stealth lights and fogs thru the auto off function,,,,the day after coming back to the truck noticing a dull yellow glow on the fence in front of my truck.
    My brother says from his truck...hey bro ur gonna have to jump me my truck is dead
    ...last two trucks in the parking lot again as usual...

    We may be screwed man, toss birds and dekes in the back reach in annnnnd my truck barely started.
    Tacoma to the rescue!
    Yeah, like 12 degrees totally dark and snowing and completely deserted.

    Changed that wiring the next day.
    Auto off can be my friend sometimes.

    jungleman, Feb 24, 2020
    #606
    TXpro4X4[QUOTED] likes this.
  7. Feb 24, 2020 at 6:20 PM
    #607
    TXpro4X4

    #607
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Got the goods. I will try again in the near future! Thanks again!

    TXpro4X4, Feb 24, 2020
    #607
    jsi[QUOTED][OP] likes this.
  8. Feb 25, 2020 at 6:08 PM
    #608
    TXpro4X4

    #608
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander

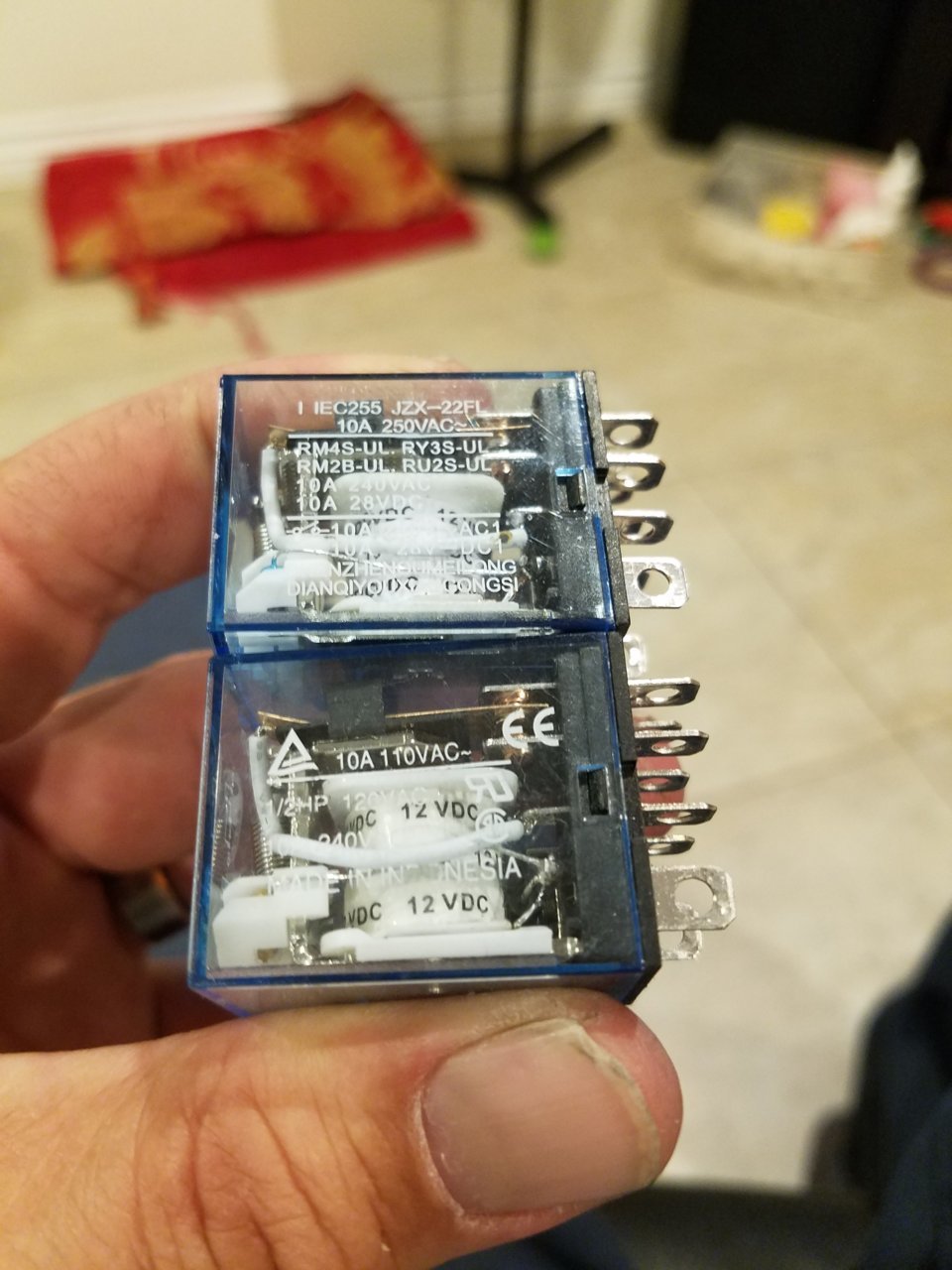

    New one on the right
    1582682868229655082515316405564.jpg new one on top
    :fingerscrossed:
    Thank you again! @jsi

    TXpro4X4, Feb 25, 2020
    #608
    jsi[OP] likes this.
  9. Mar 1, 2020 at 12:56 PM
    #609
    t2ch

    #609
    t2ch Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303533
    Messages:
    130
    Gender:
    Male
    First Name:
    Travis
    Va.
    Vehicle:
    2015 TRD OR
    Reporting back. All works as advertised with the new relay!
    Thanks @jsi

    t2ch, Mar 1, 2020
    #609
    jsi[OP] likes this.
  10. Mar 1, 2020 at 4:38 PM
    #610
    oni06

    #610
    oni06 Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191029
    Messages:
    3,261
    Gender:
    Male
    @jsi

    I think I might have the wrong relay as well.

    Ordered on 12-JAN-2020
    Transaction ID: 1784046191

    I haven't had the time to install and try it out and have also been watching the thread to see if I do indeed have the wrong relay.


    oni06, Mar 1, 2020
    #610
  11. Mar 1, 2020 at 5:34 PM
    #611
    jsi

    #611
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,996
    Gender:
    Male
    native earthling
    From what I can see you should be good to go. The bad relays had a red LED.

    jsi, Mar 1, 2020
    #611
    jungleman and TXpro4X4 like this.
  12. Mar 1, 2020 at 7:51 PM
    #612
    TXpro4X4

    #612
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Both of mine are green but look at my last post wit the pics.
    The relay printing is different
    And the new one on the right has more Id numbers on the top and side.
    Have not had a chance to install yet and try.

    TXpro4X4, Mar 1, 2020
    #612
  13. Mar 20, 2020 at 12:45 PM
    #613
    jsi

    #613
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,996
    Gender:
    Male
    native earthling
    Sorry guys, with all this COVID-19 going on I'm in the extreme social isolation mode for now and the foreseeable future. Myself and many friends and family are in the group of people dying from this thing. So, for now I've shut down the etsy shop. I made the last shipment today, so if you're waiting, the relay is on its way.

    Be safe, be healthy, and for the love of whatever god you believe in socially isolate yourself.

    jsi, Mar 20, 2020
    #613
    TXpro4X4 likes this.
  14. Mar 24, 2020 at 6:56 PM
    #614
    TXpro4X4

    #614
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    I just seen the post.
    I've not been doing much myself.
    I hope to God this will not be true!
    I hope to see you post!
    And let us know when this crap is over your shop is up and going again!. You stay healthy and positive as well!

    TXpro4X4, Mar 24, 2020
    #614
  15. May 2, 2020 at 12:45 PM
    #615
    ToyoRideBFG23

    #615
    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    160
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    did you end up cutting the purple power wire from the 4wd ecu harness and splice another wire to it so It can connect to the relay?
    Only reason I ask is because I’m doing the fj t case swap also and need this done but if we don’t plug in the harness to the ecu anyways then we should be able to cut the power wire and splice another wire to it so it can connect directly to the relay instead adding a Y cable and vampire tap.

    ToyoRideBFG23, May 2, 2020
    #615
  16. May 2, 2020 at 3:06 PM
    #616
    TXpro4X4

    #616
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    :wave:
    How goes it?

    TXpro4X4, May 2, 2020
    #616
  17. May 2, 2020 at 4:33 PM
    #617
    ToyoRideBFG23

    #617
    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    160
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    good lol sorry I’ve been lurking around this thread for awhile and notice someone who’s doing the same project as i am. Got a little excited

    ToyoRideBFG23, May 2, 2020
    #617
    TXpro4X4 likes this.
  18. May 2, 2020 at 4:41 PM
    #618
    TXpro4X4

    #618
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,202
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Nice
    Hopefully @jsi is doing ok and can respond
    :cheers:

    TXpro4X4, May 2, 2020
    #618
  19. May 2, 2020 at 5:06 PM
    #619
    jsi

    #619
    jsi [OP] Well-Known Member

    Joined:
    Apr 25, 2013
    Member:
    #102881
    Messages:
    1,996
    Gender:
    Male
    native earthling
    I'm around. I thought ToyoRide was asking clupi what he did. I'm not sure what the FJ T case swap entails? Does it use the purple wire for power too?

    jsi, May 2, 2020
    #619
  20. May 2, 2020 at 7:35 PM
    #620
    ToyoRideBFG23

    #620
    ToyoRideBFG23 Clifford, the big red Yota Beast

    Joined:
    Oct 5, 2018
    Member:
    #268409
    Messages:
    160
    Gender:
    Male
    So-Cal
    Vehicle:
    2011 Toyota Tacoma OR Edition 4WD
    Front: 2.5 Icons extended travel remote reservoir CDCV, JBA Offroad High caster Arms, Wheelers super bumps Rear: Bilstien 5125, 1.5” AAL, Other: Front tube bumper, FJ T-Case, 285/75/16 BFG KO2s, Black Rhino Chamber wheels -10 offset with 1.25”wheel spacers, Nilight Ditch lights and LED Fogs. Upcoming Mods: Hammer Hangers, Icon RXT leaf pack, Icon 2.0 VS Series Remote Reservoirs.
    Hi I was actually asking clupi haha but I started reading more on the wiring and yes I do need to use the ign + purple wire so I think I will still have to use a vampire tap or t tap to still get the power from the wire.. but still would like to know how @clupi set his up. And also very interested to see how he did his secondary switch. From what @jsi said I believe I can just use one end of a wire to connect to pin 7 and the other end to connect to pole 1 of the switch and then pole 2 of the switch connect a wire that will lead to a ground bolt. And that should complete the circuit? Sorry if I’m far off. Comprehending Electrical wiring and etc takes me longer than actual wrenching. :boom:

    ToyoRideBFG23, May 2, 2020
    #620
