Locker Anytime Mod for Dummies 2005+

QUESTION:
"I've made a video on my Youtube channel showing the problem in detail and how to make your own relay w/ diode combination. If you don't want to make it yourself I've included links above where it can be purchased."

WHATS THE LINK FOR THE RELAY W/ DIODE INCLUDED TO BE PURCHASED SO I DONT HAVE TO DO THAT CUSTOM STEP. OR I WOULD LIKE TO SUPPORT A LOCAL AND BUY ONE THAT HAS THE DIODE ALREADY INSTALLED



Here's the link from the first post
https://www.mouser.com/ProductDetai...GAEpiMZZMsKEdP9slC0YVzLoqlJlno%2B28rChTsbwK0=

I was the closest thing there was to buying local, USA, but there wasn't enough demand to make it worth doing.



I have 19 spare diodes. I can solder them into a relay if you pay me for the relay and work. But i have no way to test it like @jsi , so its a risk to take. I will do my best if you choose me



dont know how this tread works but find me via insta @tacticaldetails if you have ocd with your work i trust it and will gladly pay the fee to support a fello



I tried, but there were a few. Not sure which one to choose. My IG is @great_white_taco

How does $30 sound? including the relay, diode, solder, and shipping to you

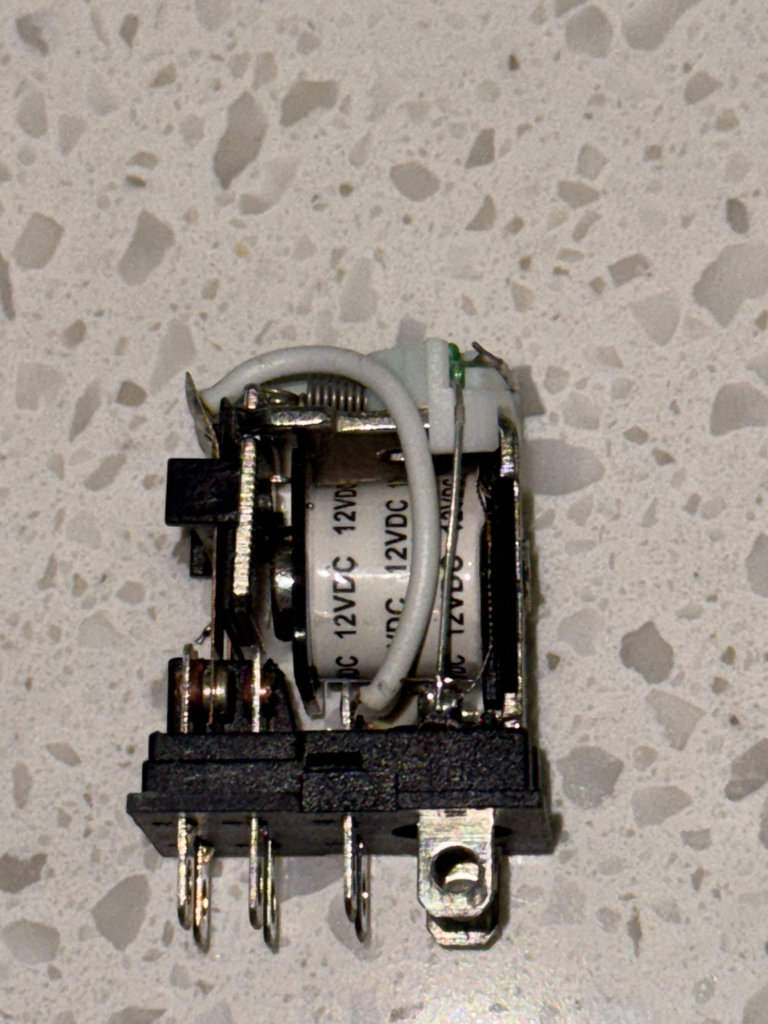

Going to see if my soldering works today



@jsi so im getting ready to cut some wires.
Have a question:

i guess i dont have a correct vampire tap, but can I use a male/female spade on the violet wire (high up like your original post) and then add the Y cable to #2 and #3 (mine will be different because of my relay)?

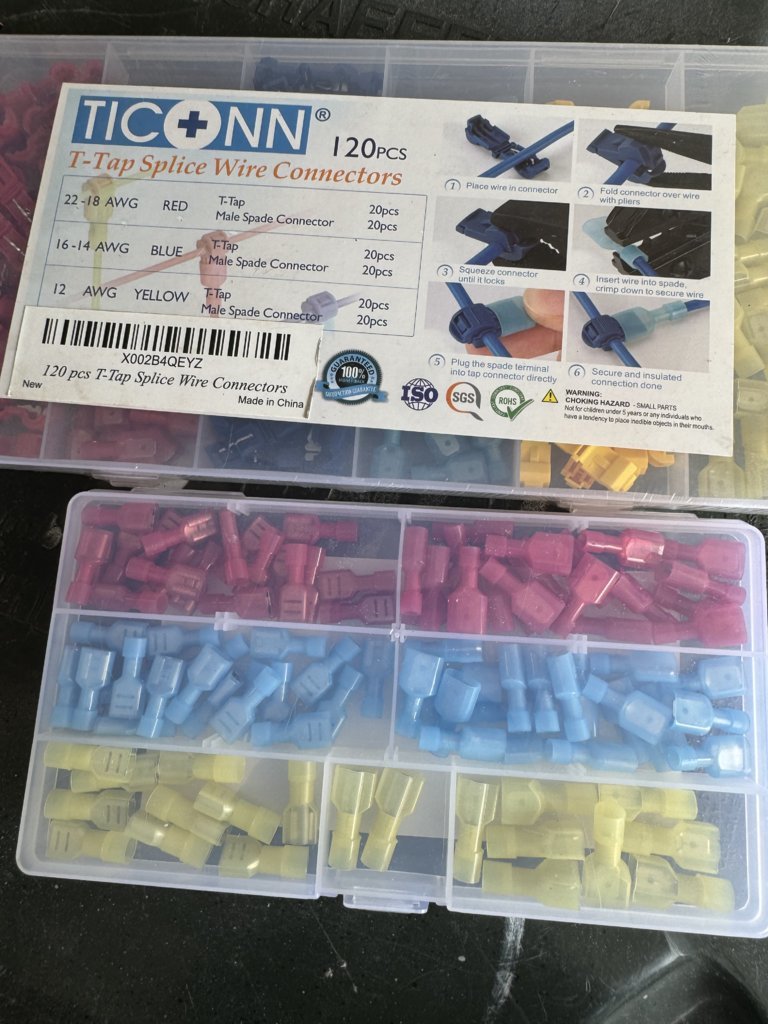

Or would it be possible to do with my T-tap that I also have pictured? Am I leaving the violet wire uncut ?



Wait, so violet is not cut at all? Correct?



I think Ive figured it out. Can use the t-tap splice. And put the spade on the Y that i created. Getting power from the violet, without cutting it.

Im overly cautious, and asked my neighbor who is the same.


3rd question, do i plug the factory plug back into the 4x4 ecu?

EDIT: i just needed to keep reading. Its literally step 1 on the testing steps



I also used a T-Tap on the purple wire and put the spade on the Y. Initially when I plugged the spade into the t-tap, the spade got pinned under the connector somehow and I wasn’t getting power to the locker. Had to pull it apart, realign it, then plug it back in. Worked then!
Let us know if you get it working!



Glad to have someone watching my progress. Had to take a gulp of confidence for those first few cuts!

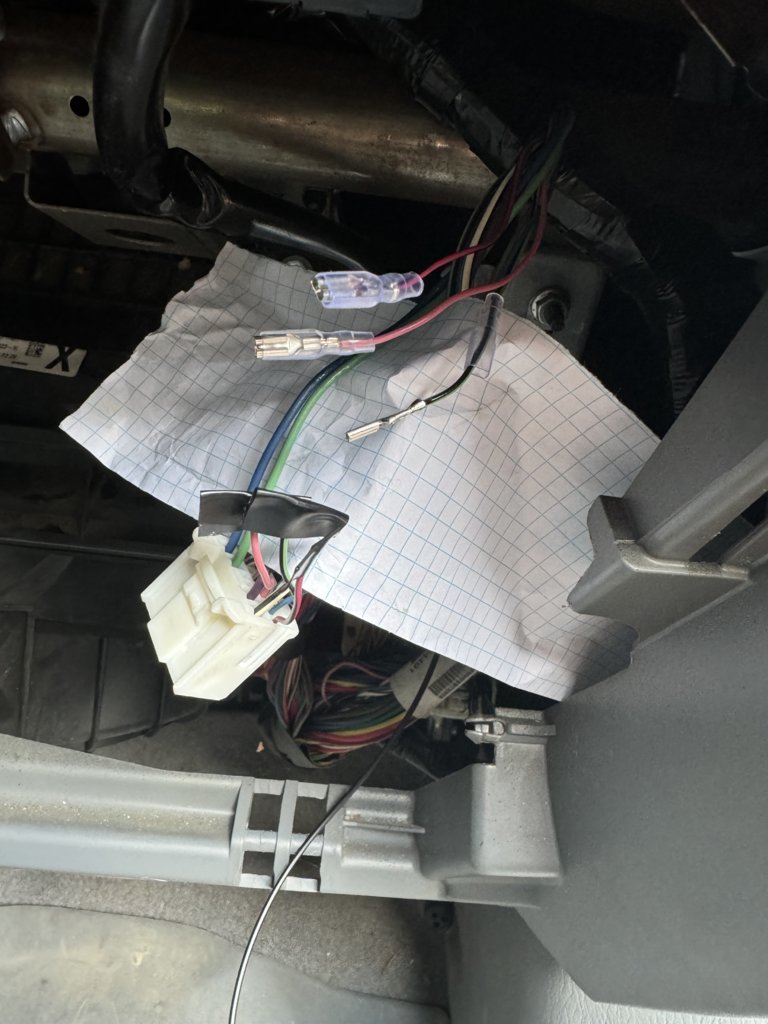

Current progress

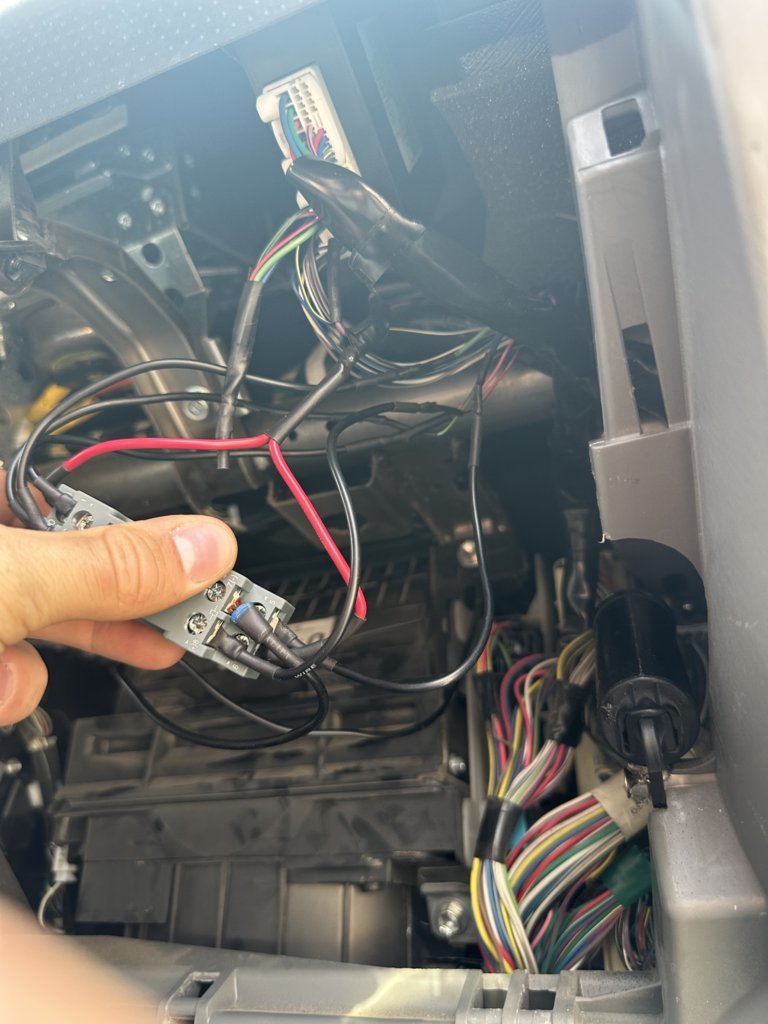

my relay has 2.6mm spades, so i had to get extra small connectors. We will know shortly if they work!



I can hear the locker motor move and see the relay light up and make a small click!

now for a short test drive!



@daddy_julz got your relay in. Ill solder it after work today, and get it shipped tomorrow for you.

If anyone else is interested I have one more relay, and plenty of diodes.



@jsi just to clarify the link below is for a relay with diode included. No need to solder a diode for the one in the link below. Correct?

https://www.mouser.com/ProductDetai...GAEpiMZZMsKEdP9slC0YVzLoqlJlno%2B28rChTsbwK0=



You are correct the diode has been installed at the factory.



Awesome post! Doing this after a FJ t case swap. I will no longer have the 4x4 computer. Will this still work? Thanks in advance!



absolutely
