Loco's Mid Travel Badassery Build-Totalled

Discussion in '2nd Gen. Builds (2005-2015)' started by loco, Feb 9, 2013.

  1. Feb 9, 2013 at 7:02 PM
    #1
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Here's my build... Specs below pictures

    Recent:

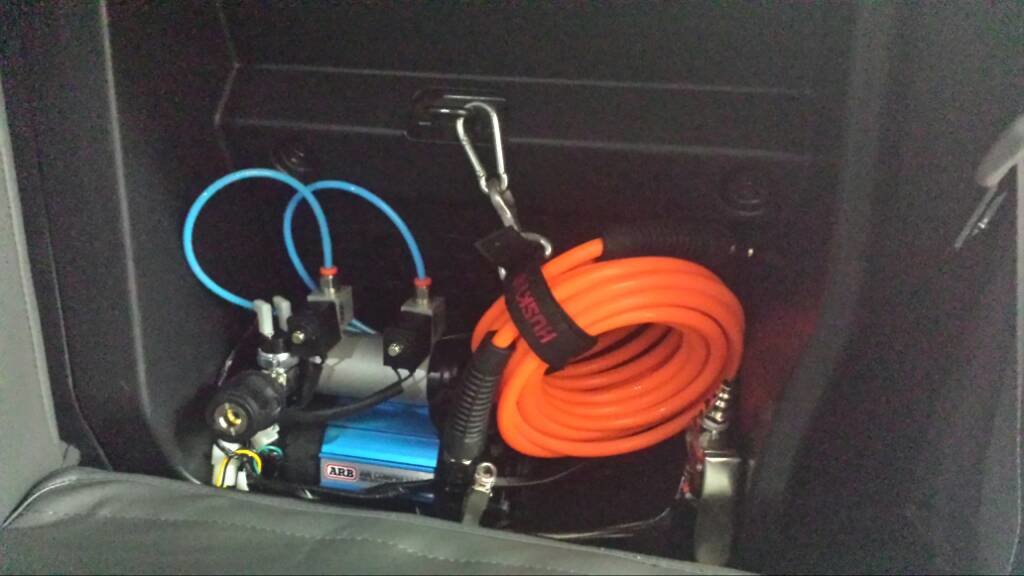

    Swapped out the CO2 for the ARB large Compressor and removed the mini compressor I was using for just the lockers.

    [​IMG]

    Installed the black Tepui Cover...much better looking now.

    [​IMG]

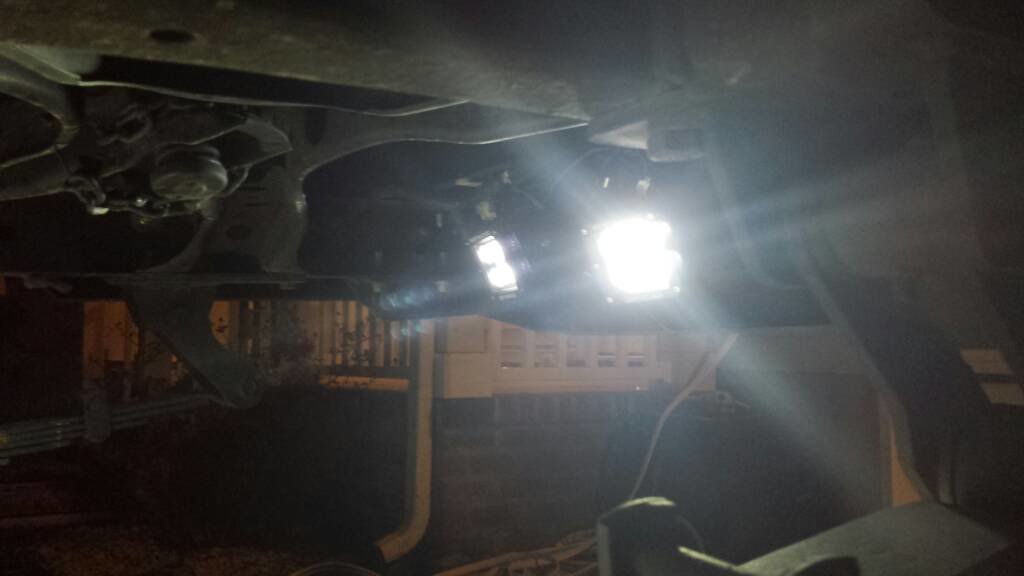

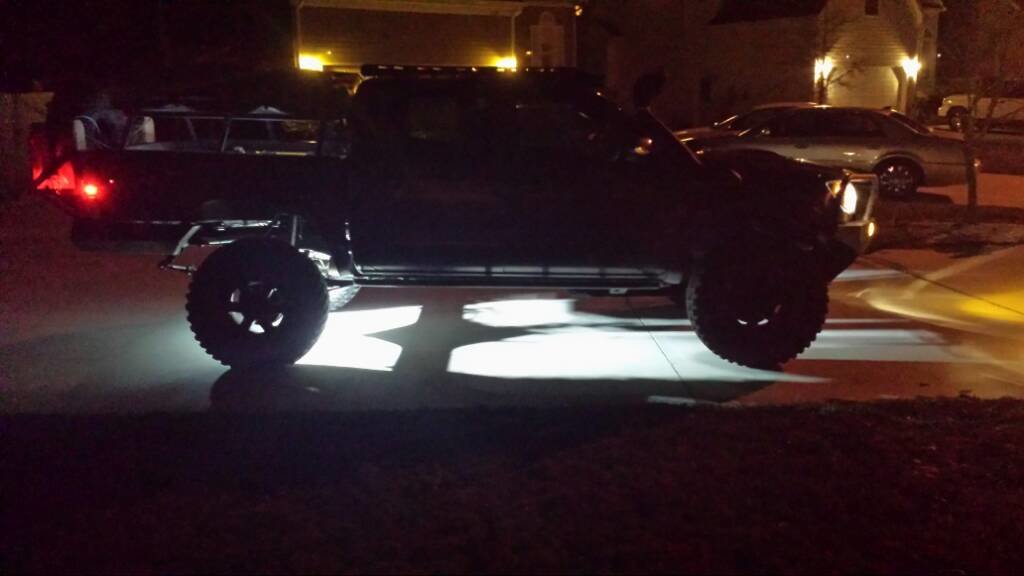

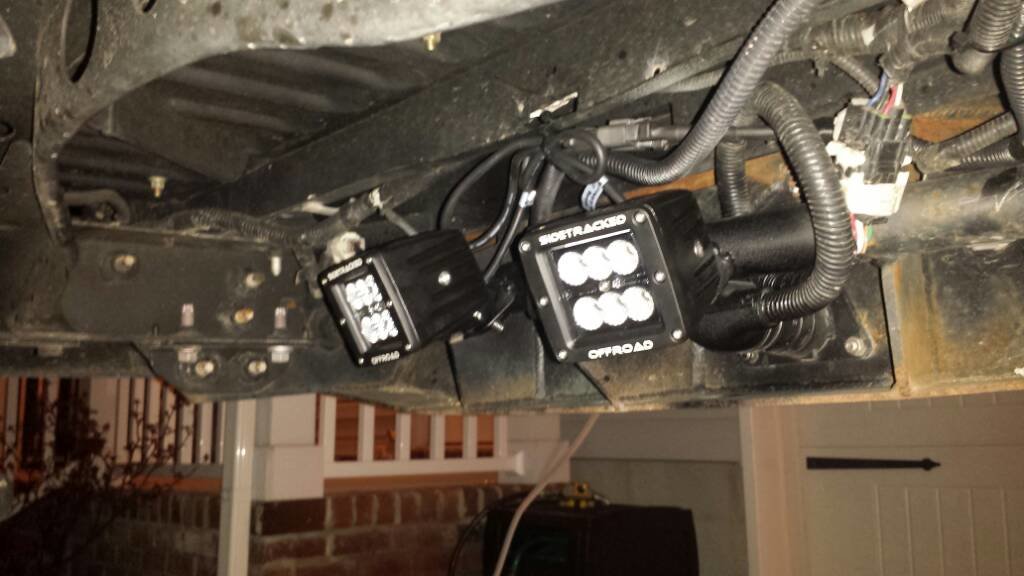

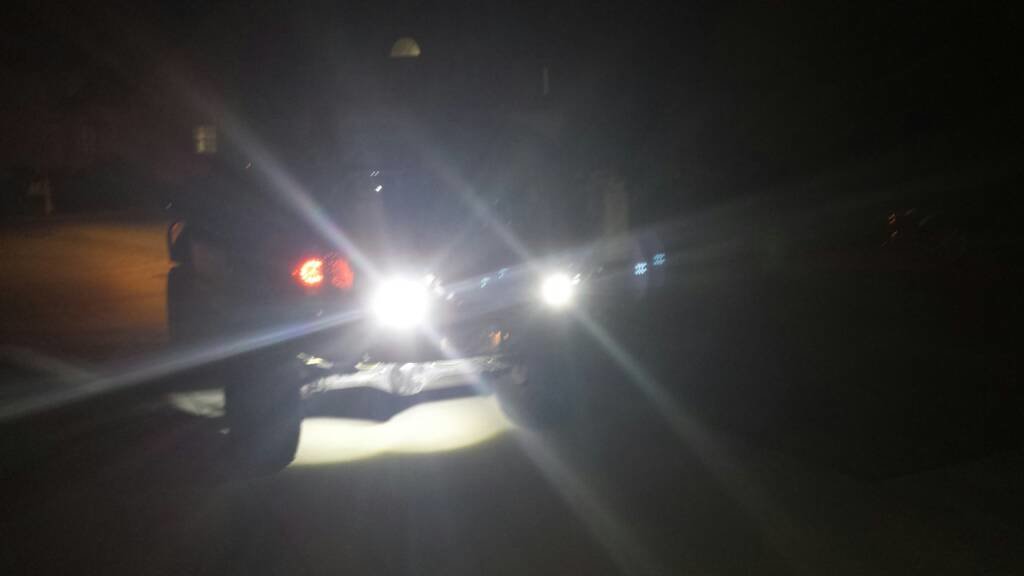

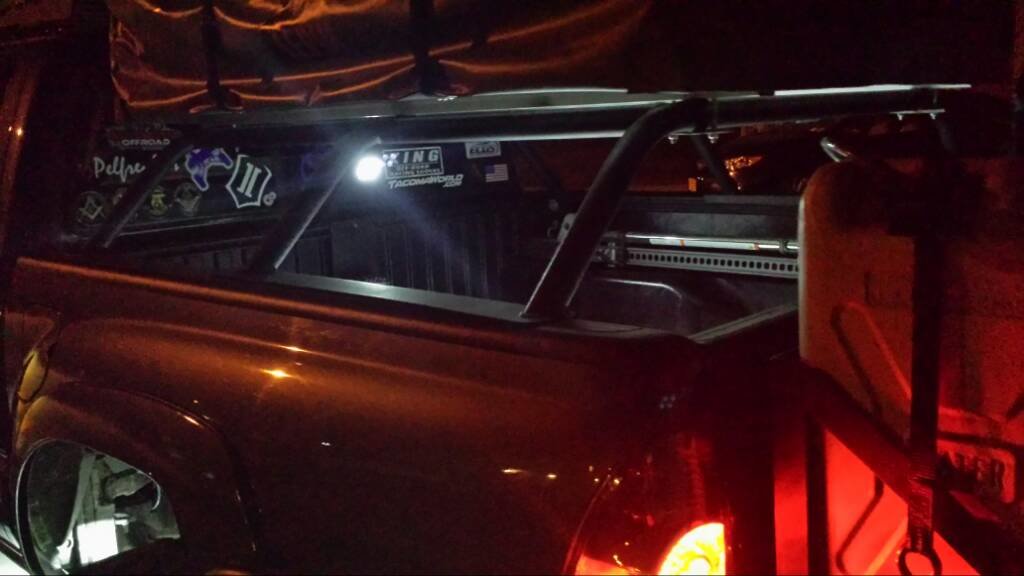

    Finally got around to installing all the party lights... rocks, bed and backup/dust.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

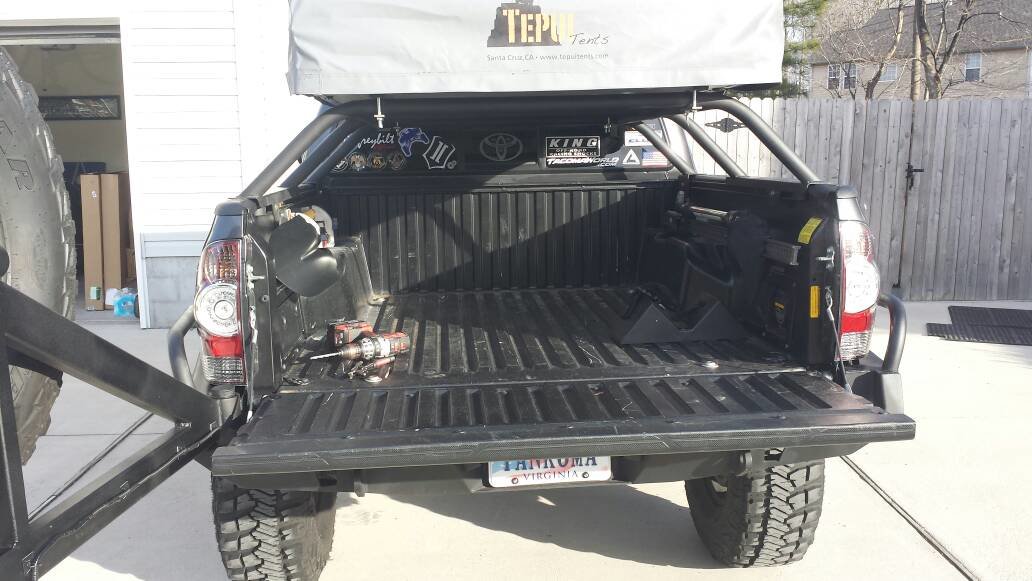

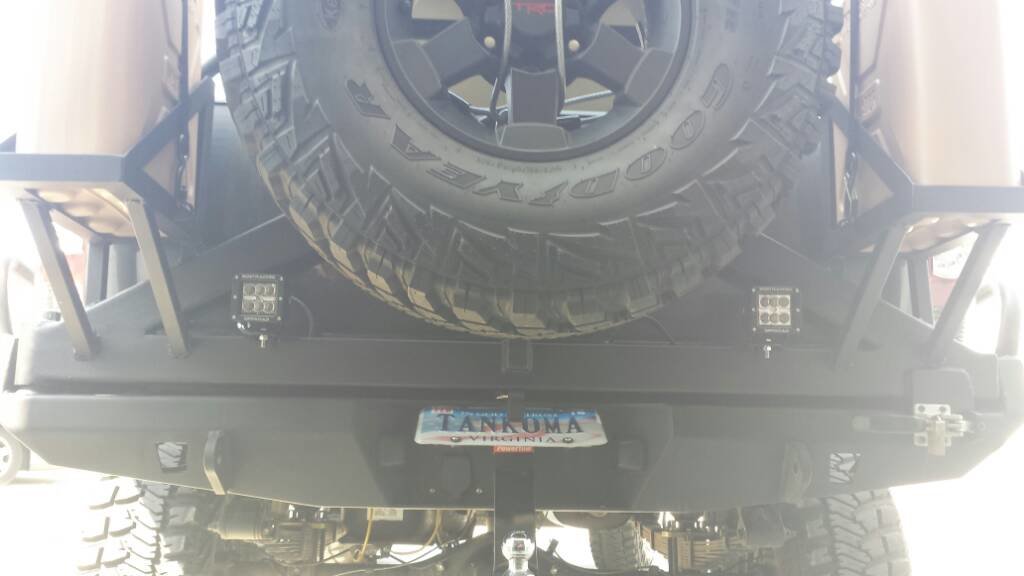

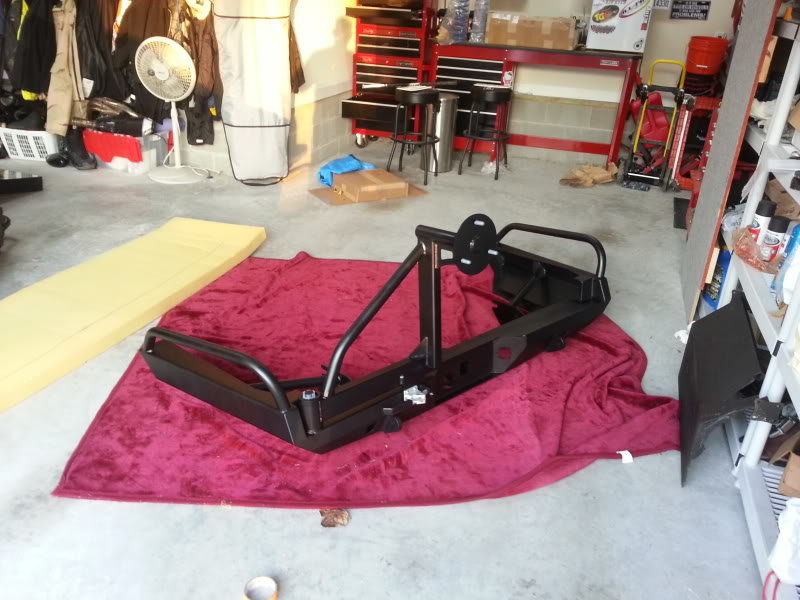

    Swingout done and back on the truck. Just a little more wiring for the pod lights.

    [​IMG]
    [​IMG]
    [​IMG]

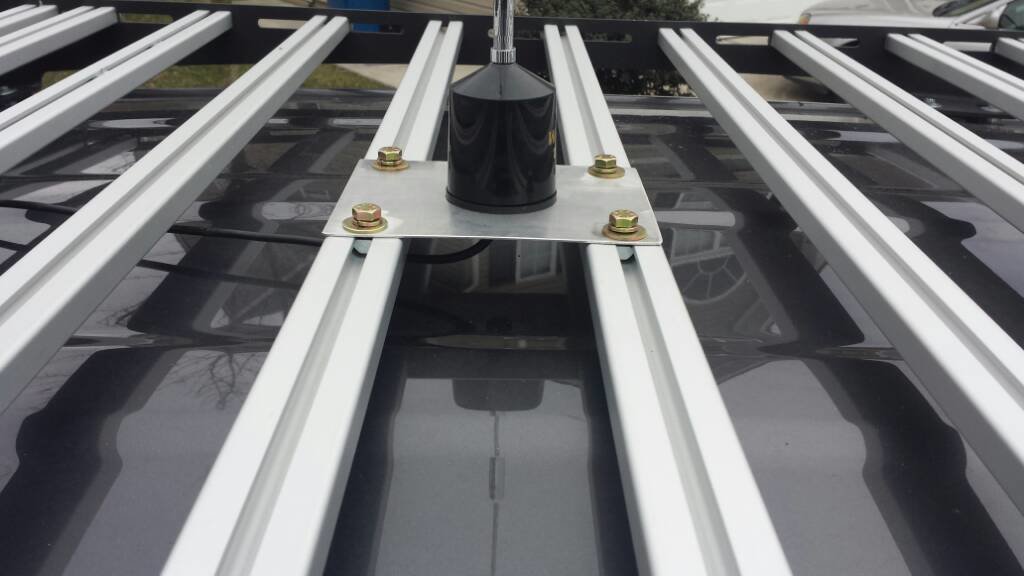

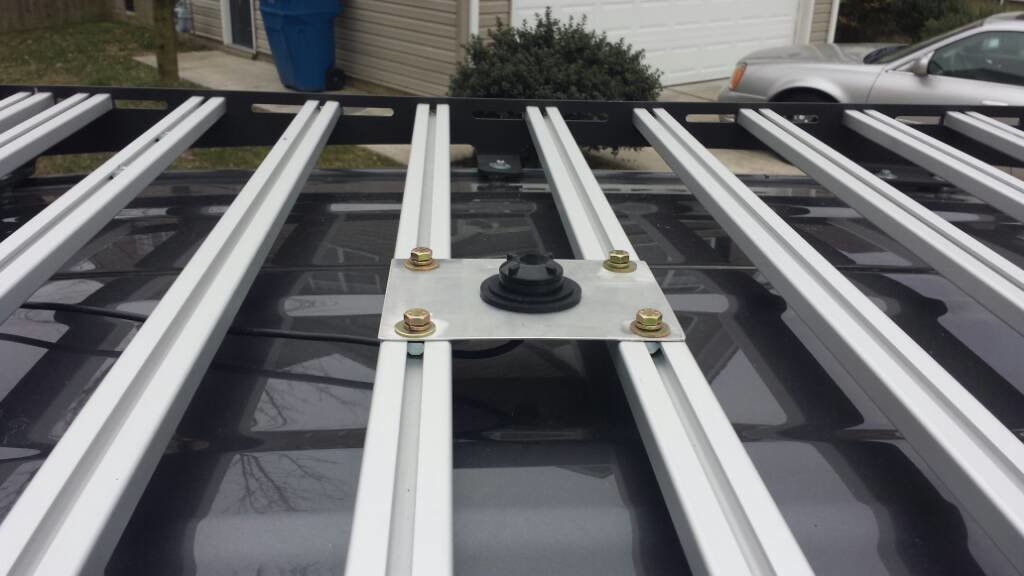

    Wilson 1000 installed on Prinsu rack and SWR is dead on 1.0 on all channels! Plus there is no hole in my roof....came out pretty good!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

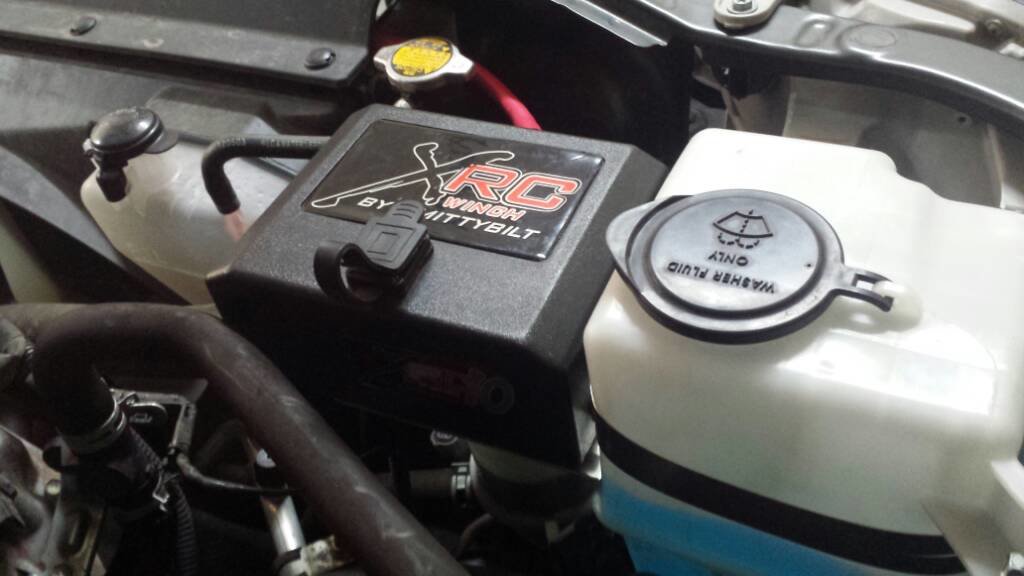

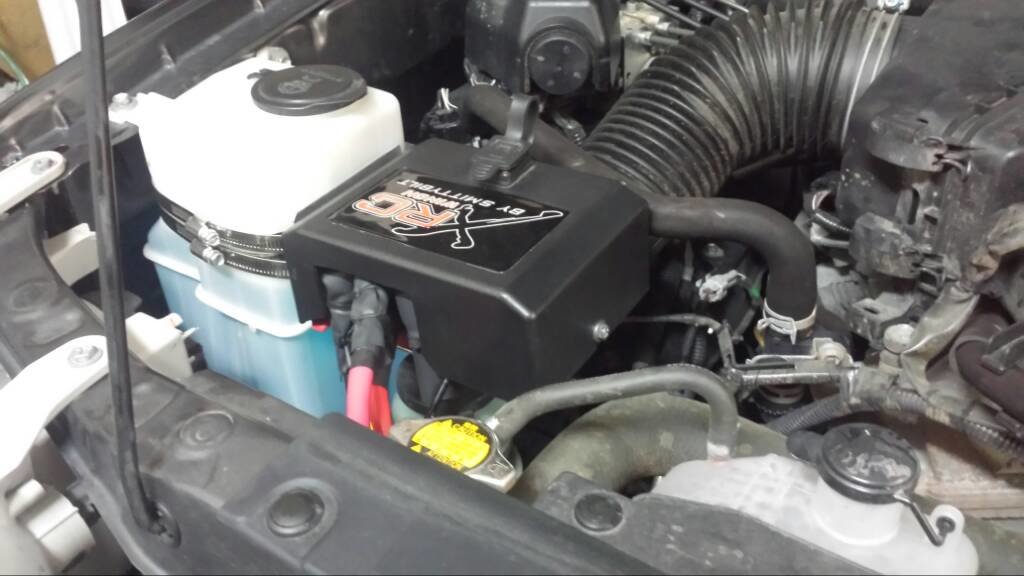

    XRC10 installed and winch solenoid relocated under the hood. Pretty slick setup with it strapped to the washer fluid reservoir.

    [​IMG]
    [​IMG]

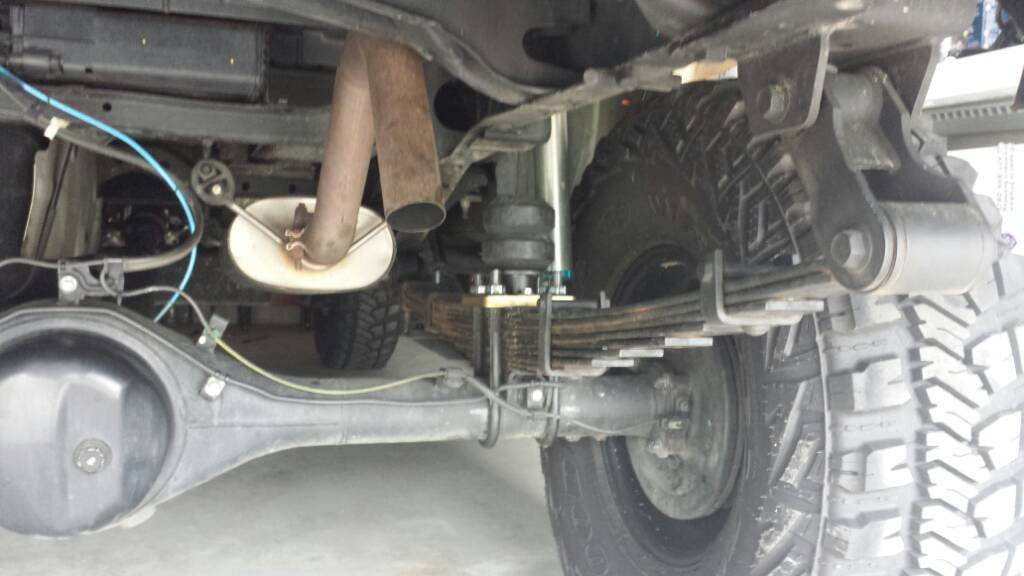

    Timbrens in...needs the 1" spacer...also cost me a very nice ratcheting breaker bar that also sets torque swapping out the plates!
    [​IMG]

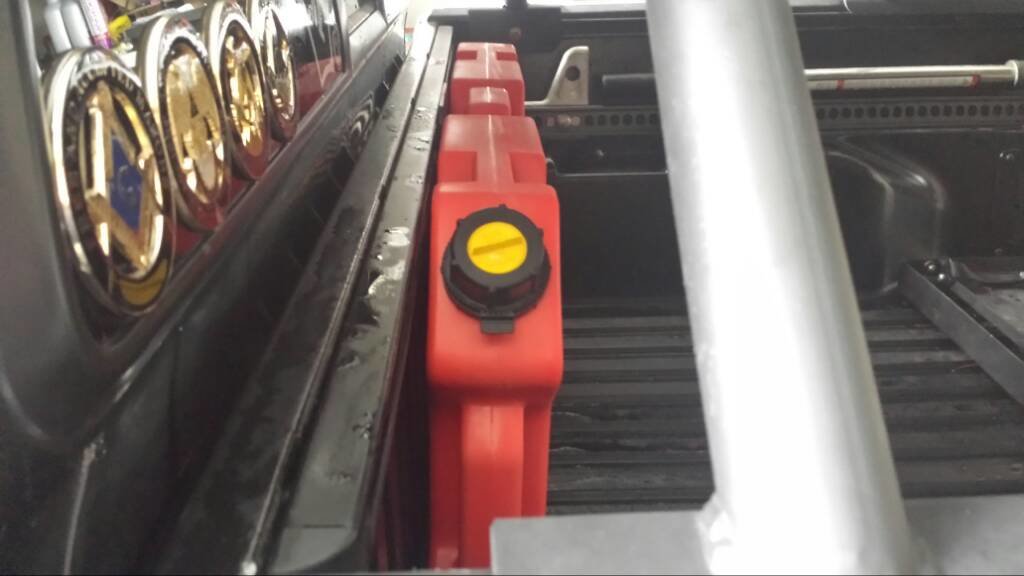

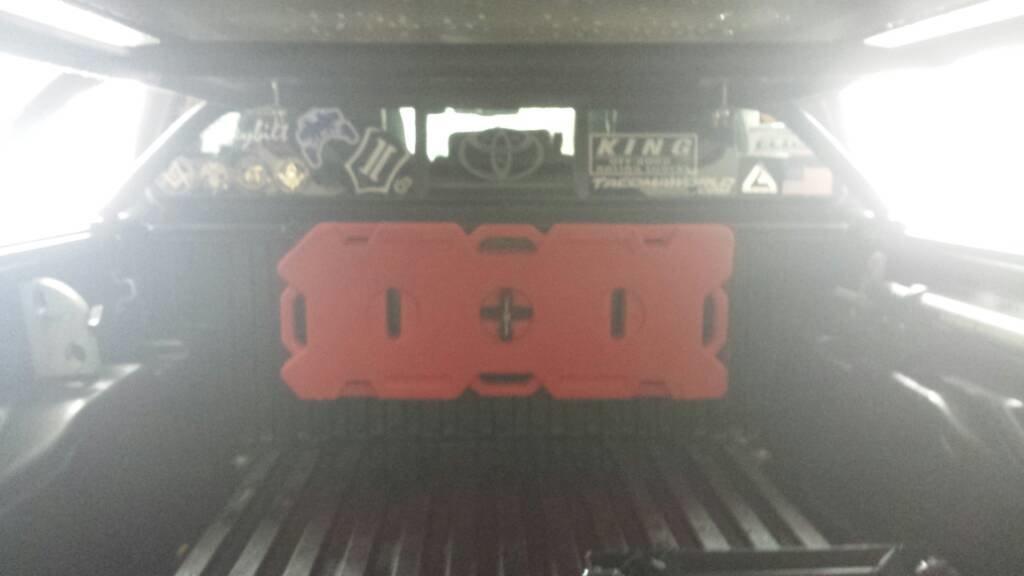

    Rotopax 4 gallon on the forward bed rail.
    [​IMG]
    [​IMG]

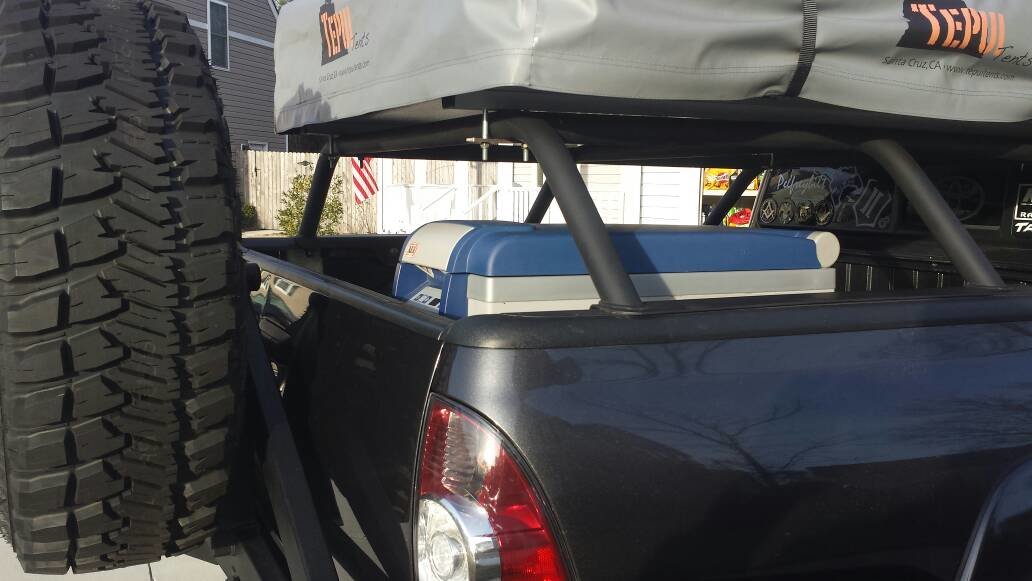

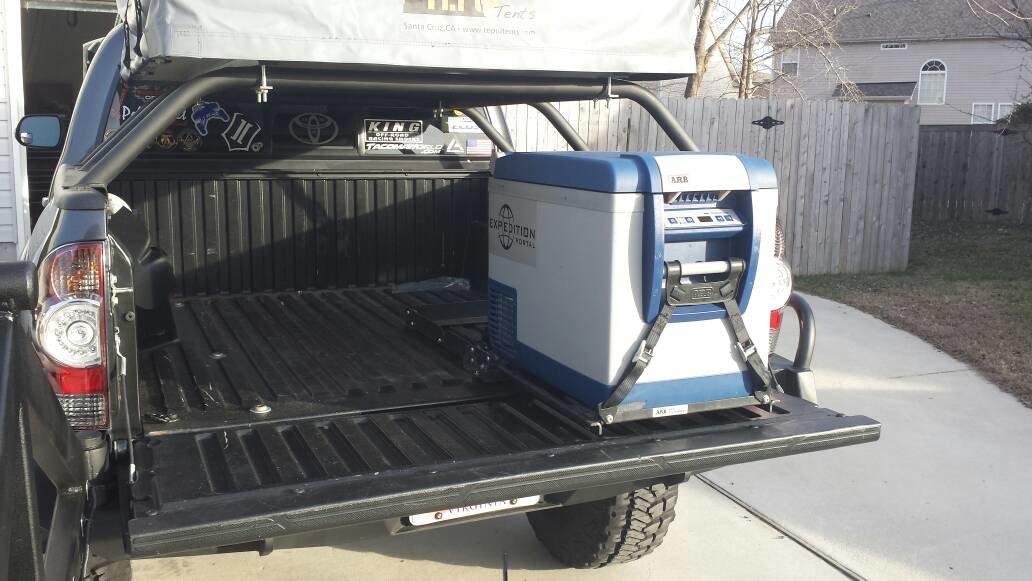

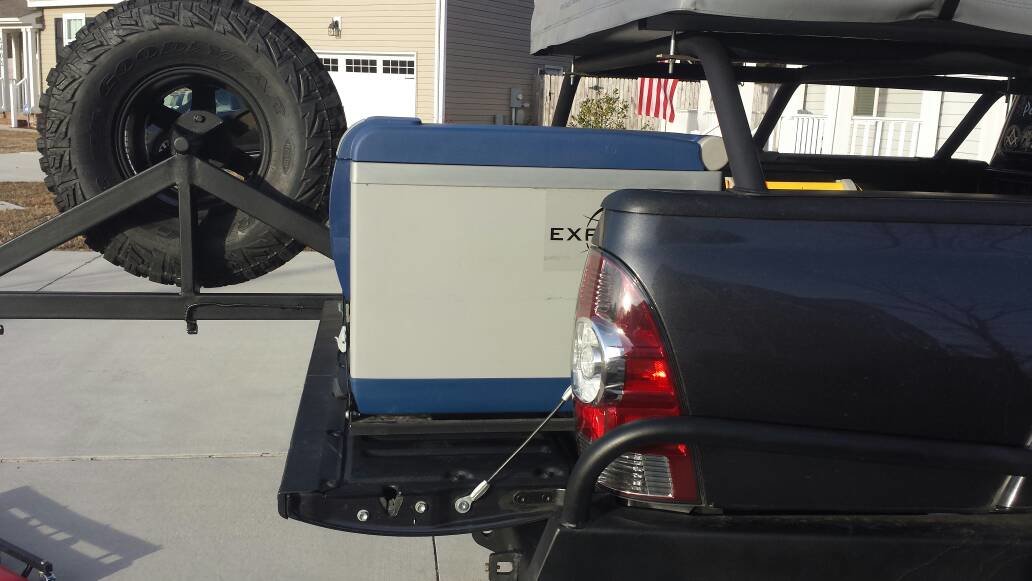

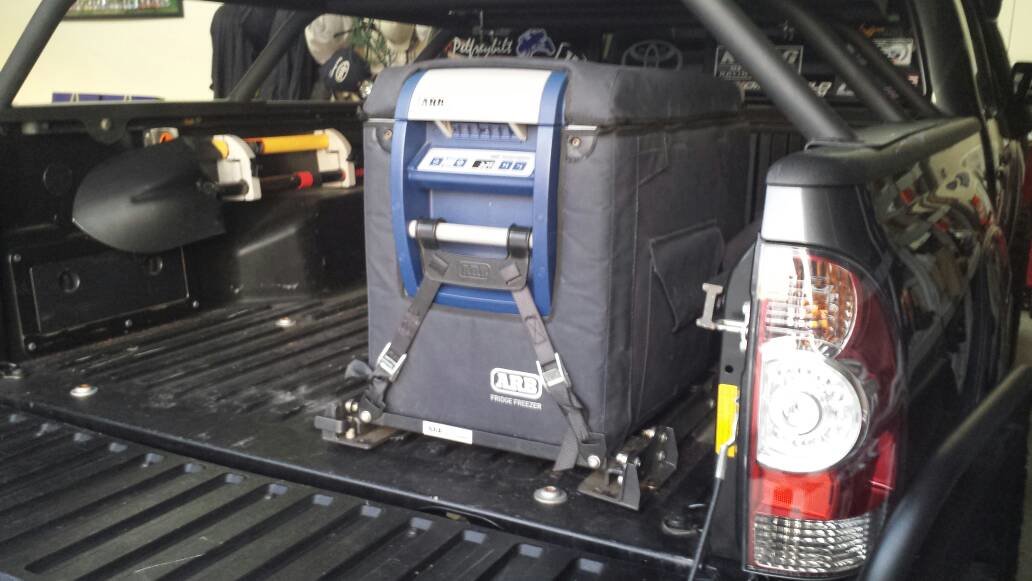

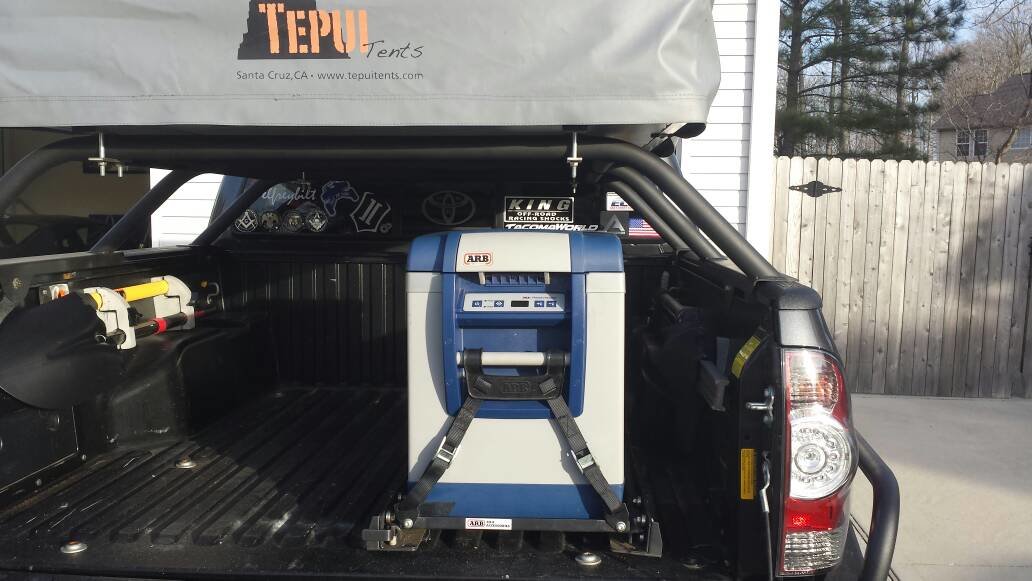

    Cold beer whenever I want. I hardwired it to run off one of the SPOD switches not being used. Very stoked.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

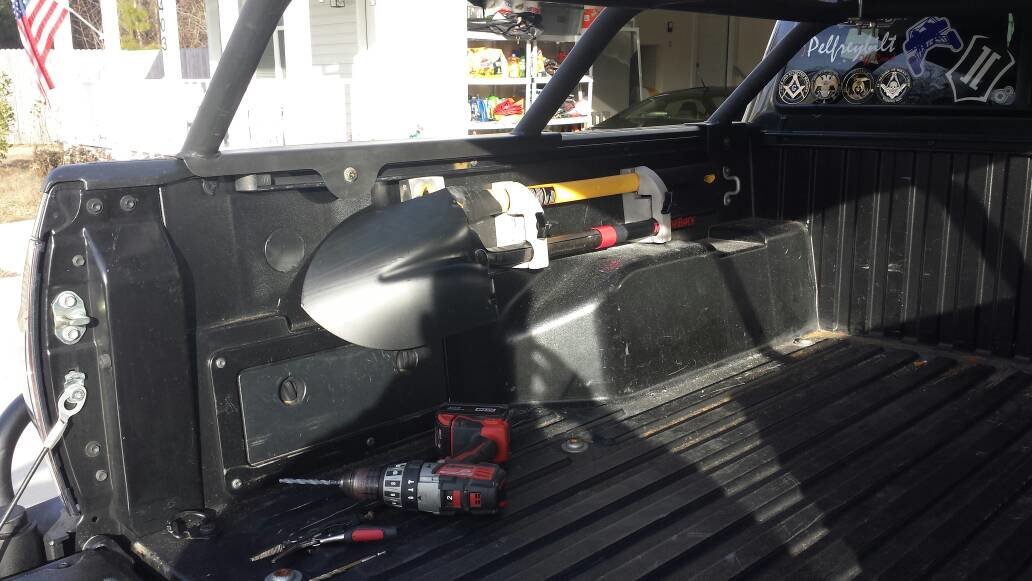

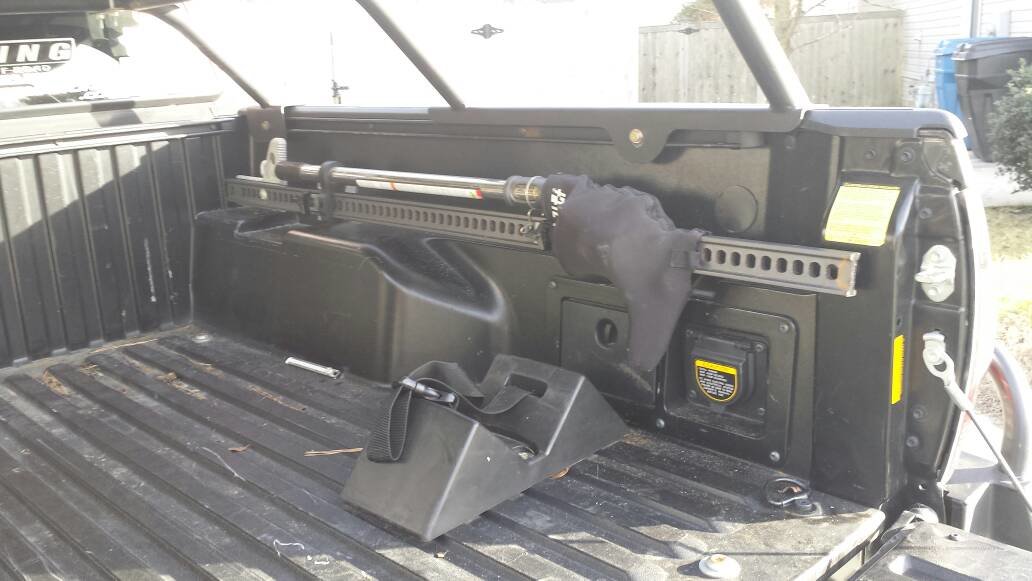

    Pelfreybilt HiLift and Shovel/Axe mounts installed. Worked out great and all the cubbies open and the power outlet are accessible with the 60" jack.

    [​IMG]
    [​IMG]
    [​IMG]

    Installed the 2 Plano Cases on the Prinsu.

    [​IMG]
    [​IMG]
    [​IMG]

    Finally got a chance to flex her out...Need to work on the bumpstops...FML Timbrens are expensive!

    [​IMG]
    [​IMG]

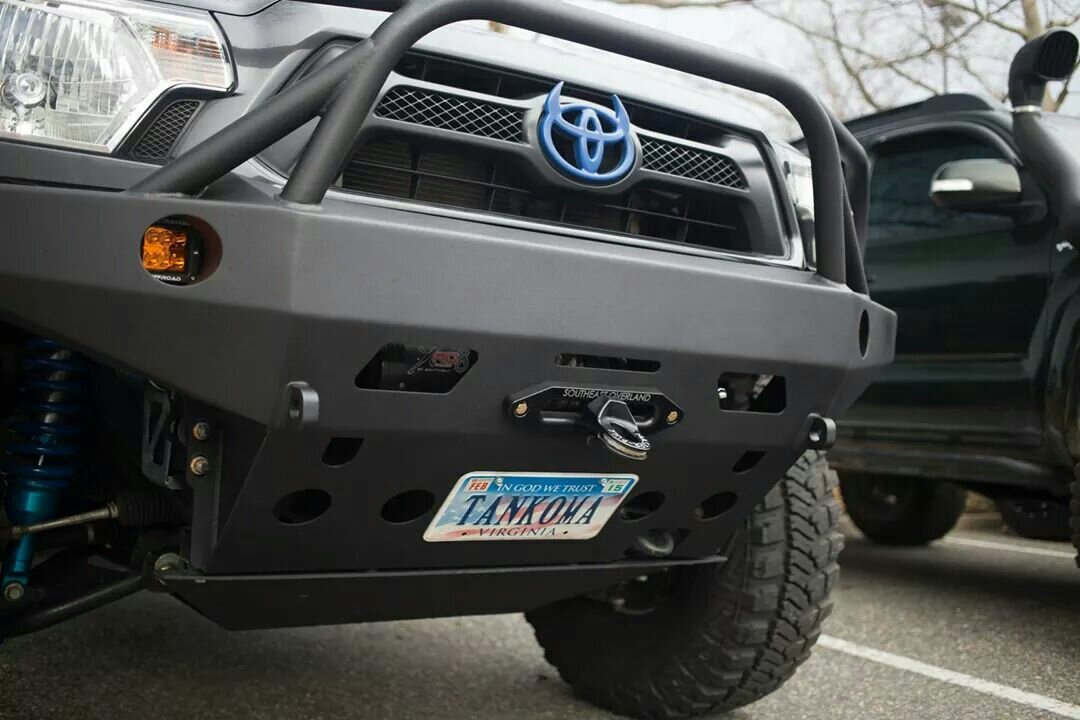

    Got the winch all back together and spooled up. Loving my new black fairlead thanks to Steve down at Southeast Overland for that and the new chaffing guard.
    [​IMG]
    [​IMG]

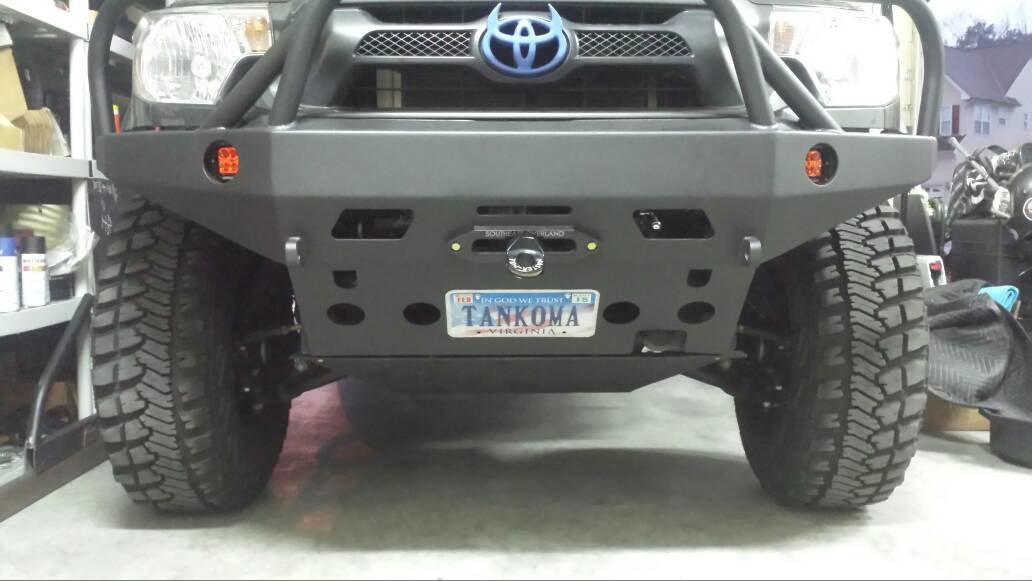

    Added the side hoops to my Pelfreybilt bumper. I love how it looks now. The center only had been bothering me for a long while. Also added a set of 3x3 18w Pods. Fuckers are brighter than my headlights...good thing I did them in amber instead of white.
    [​IMG]
    [​IMG]
    [​IMG]

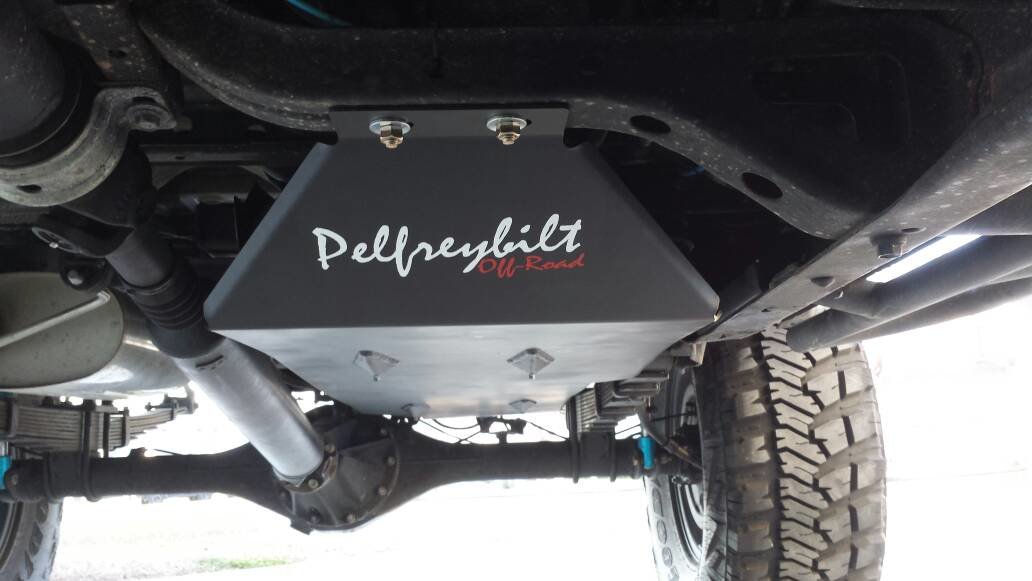

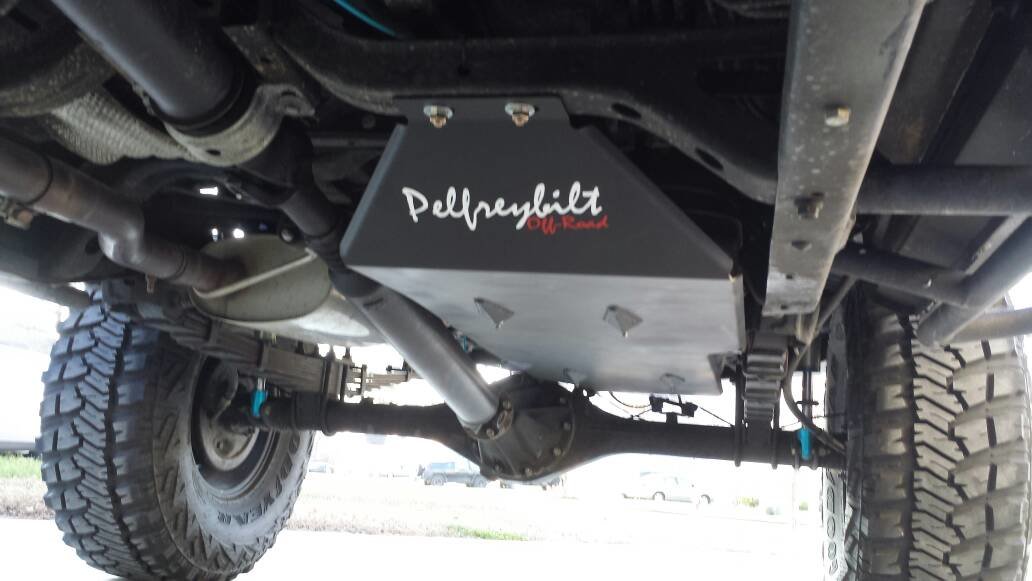

    Installed the Pelfreybilt Gas Tank Skid after welding in some bolts for it. Looked so nice I thought I should put an extra sticker on it.
    [​IMG]
    [​IMG]
    [​IMG]

    Backup Cam relocated...works great.
    [​IMG]
    [​IMG]

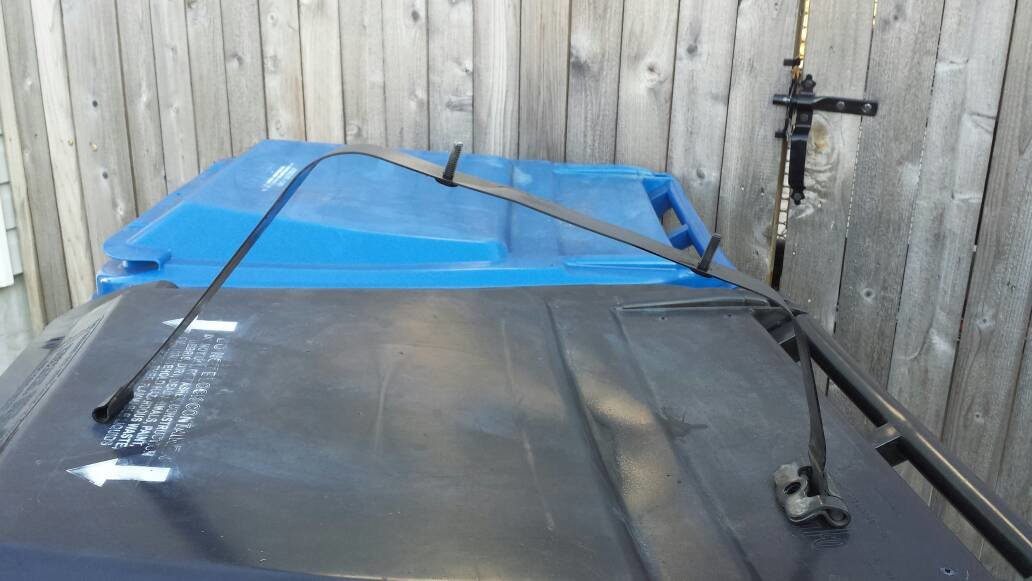

    Finally installed the flyzeye...I'm lazy.
    [​IMG]

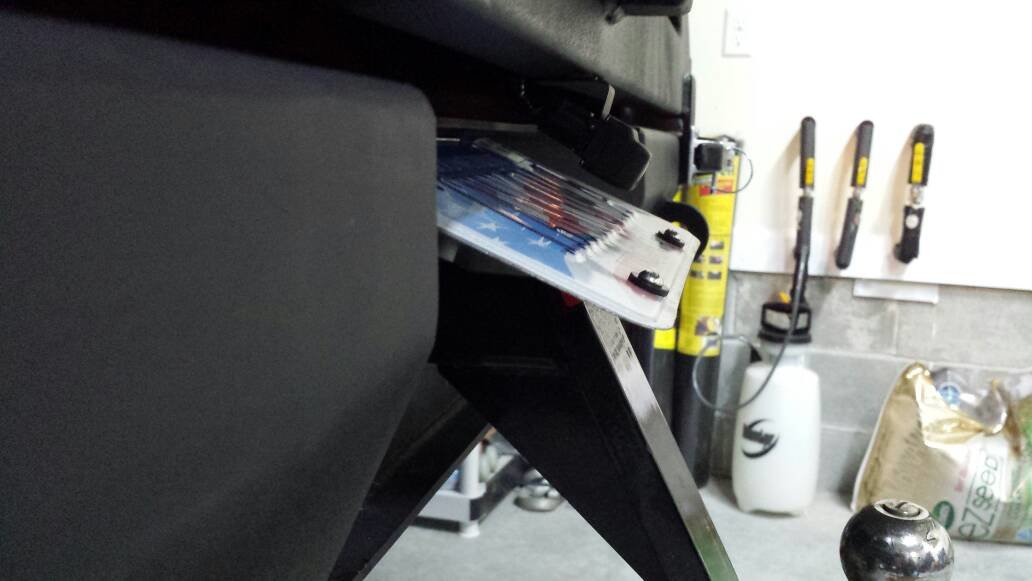

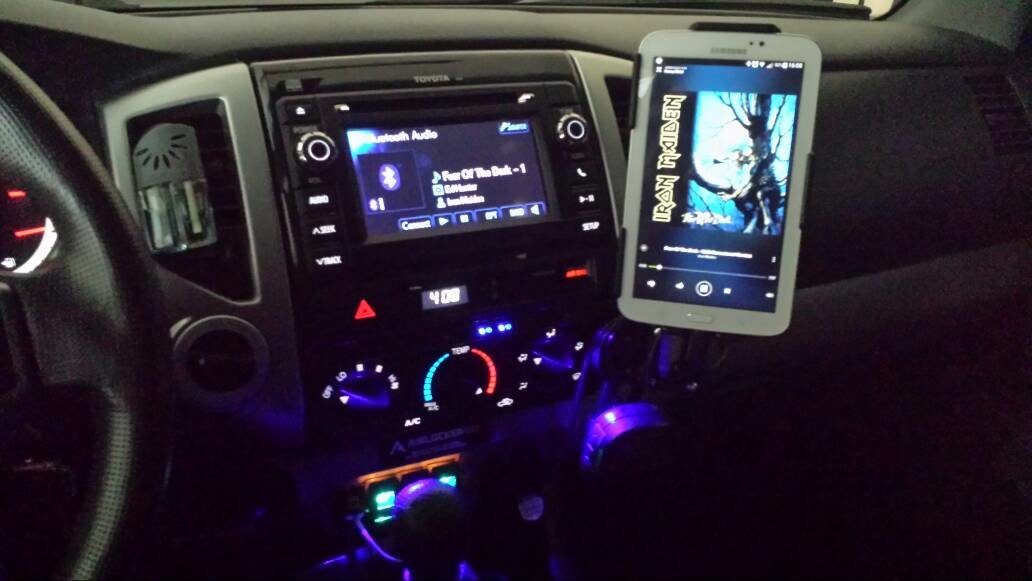

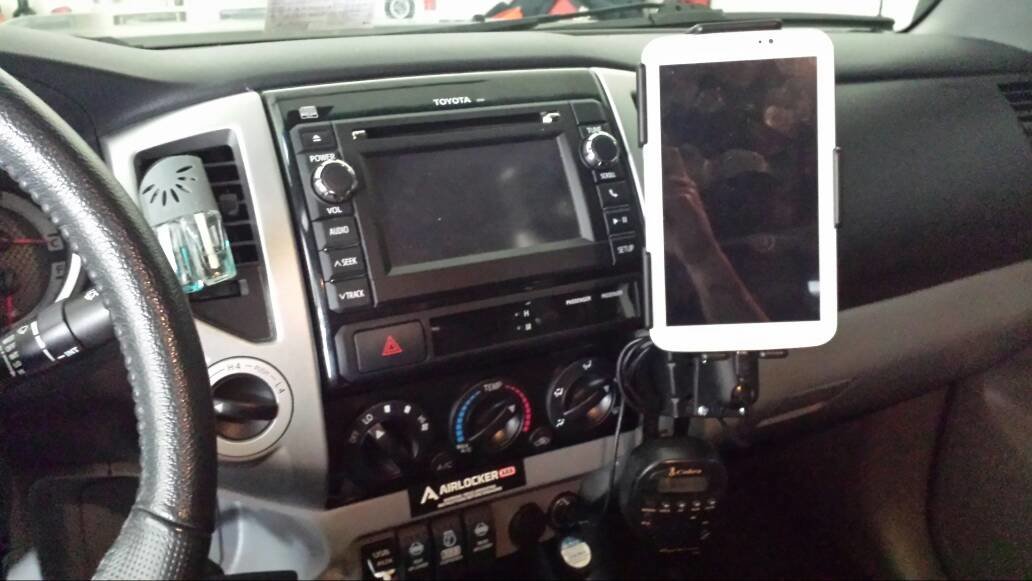

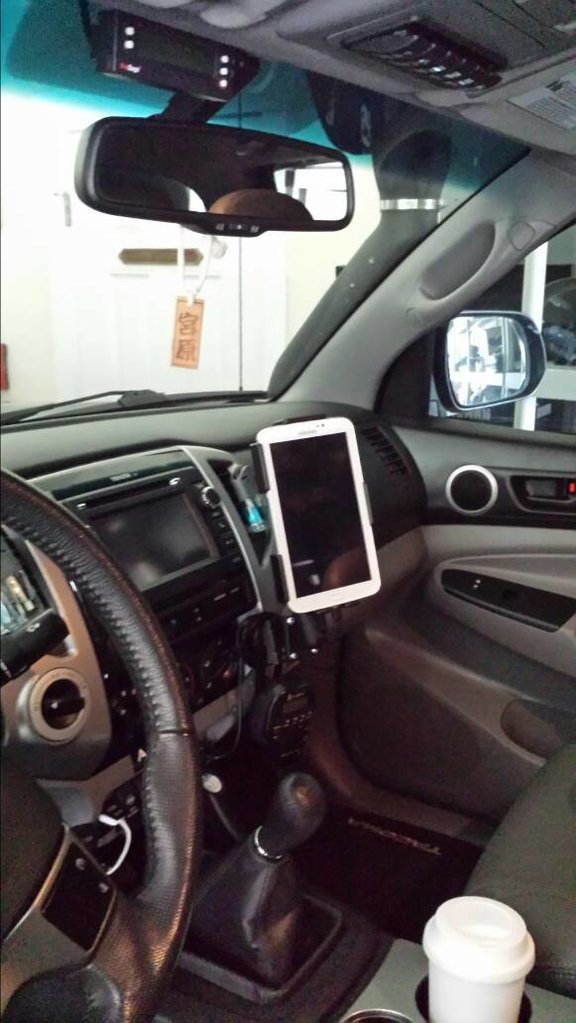

    Tablet all mounted up and I dig this setup a lot.
    [​IMG]
    [​IMG]

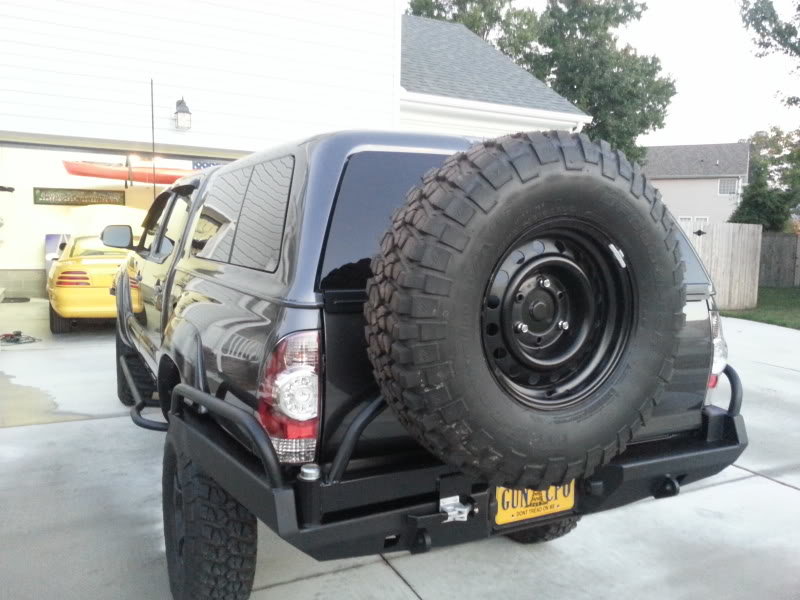

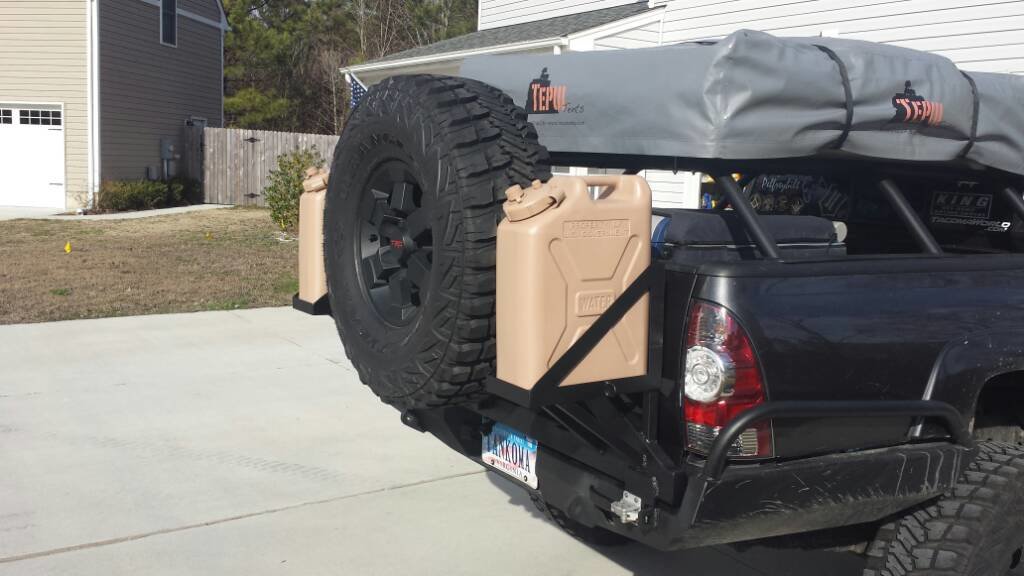

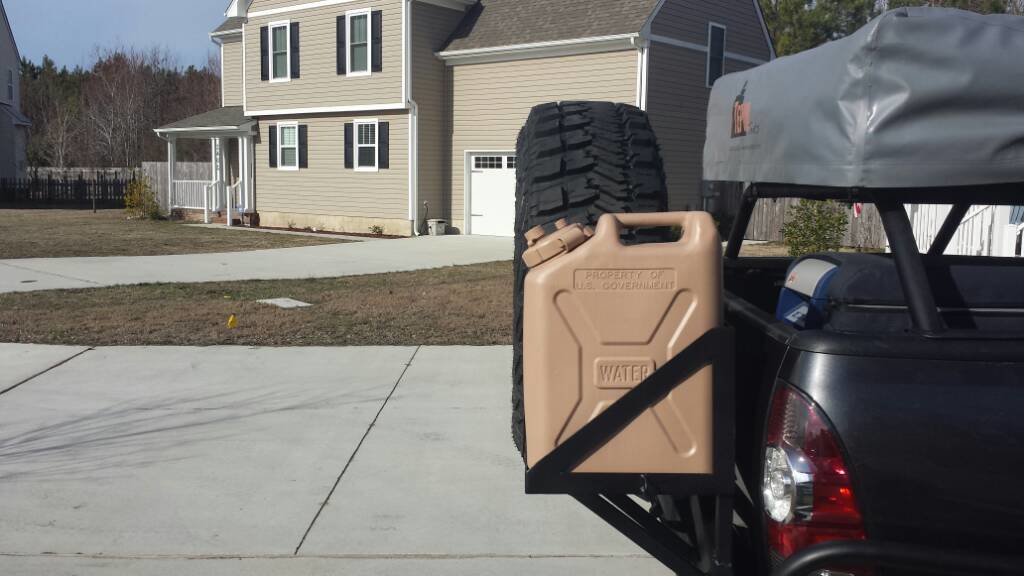

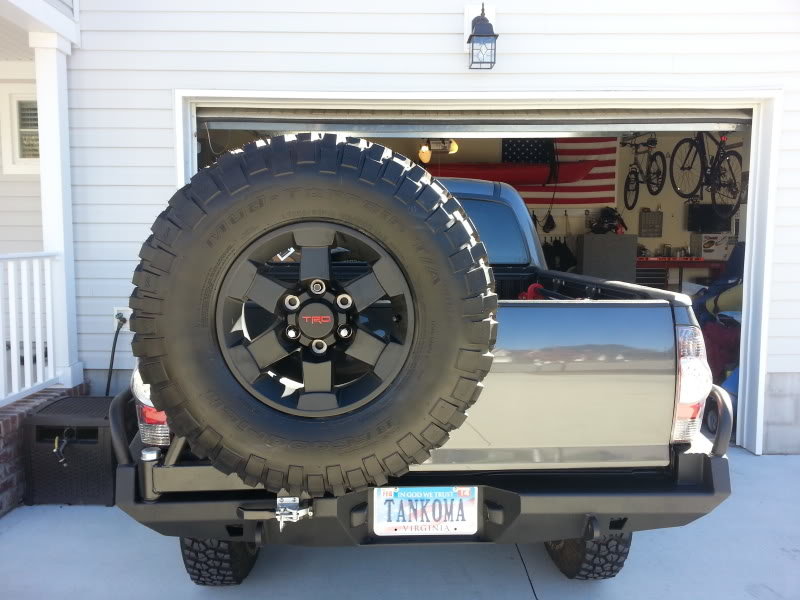

    Swingout is painted and installed ...jerry cans to come soon
    [​IMG]

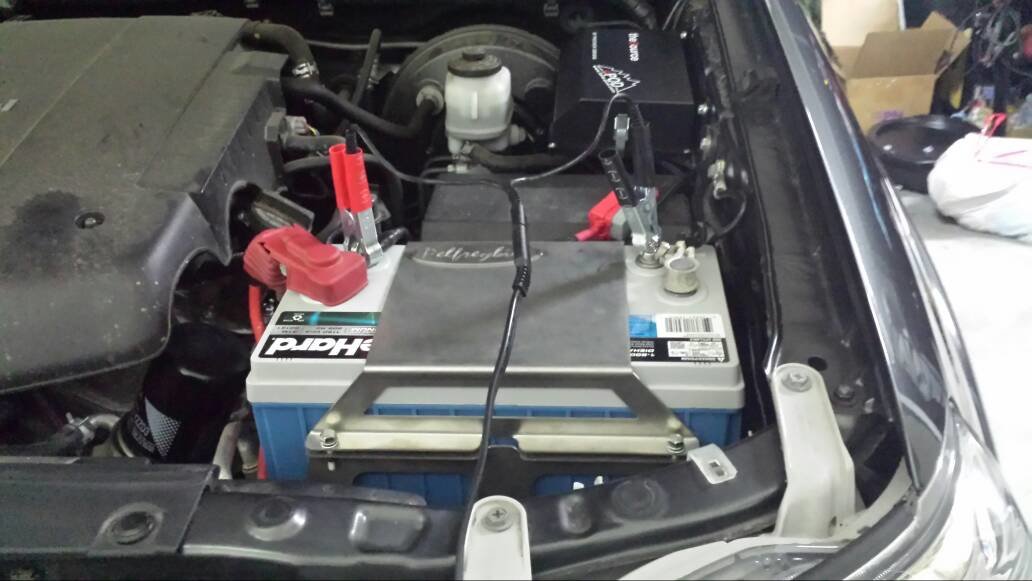

    Pelfreybilt Battery Tray and Group 31 Battery in.
    [​IMG]

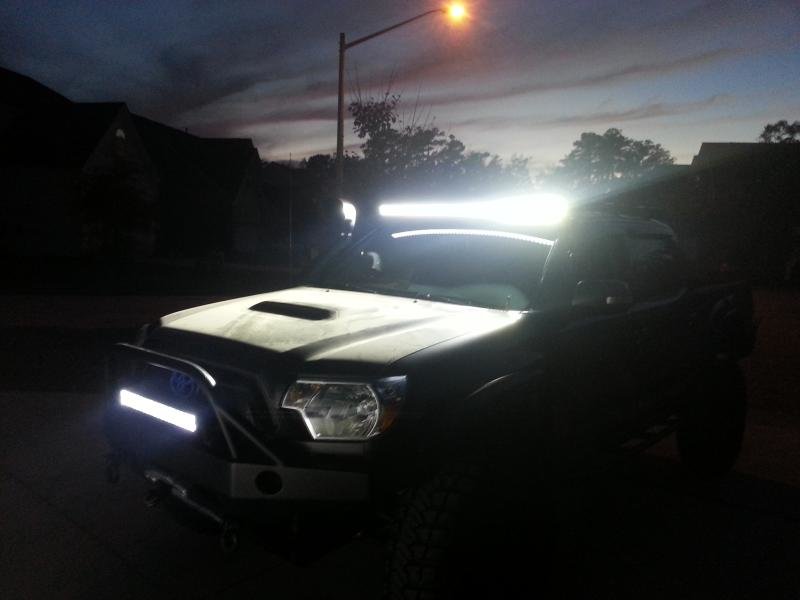

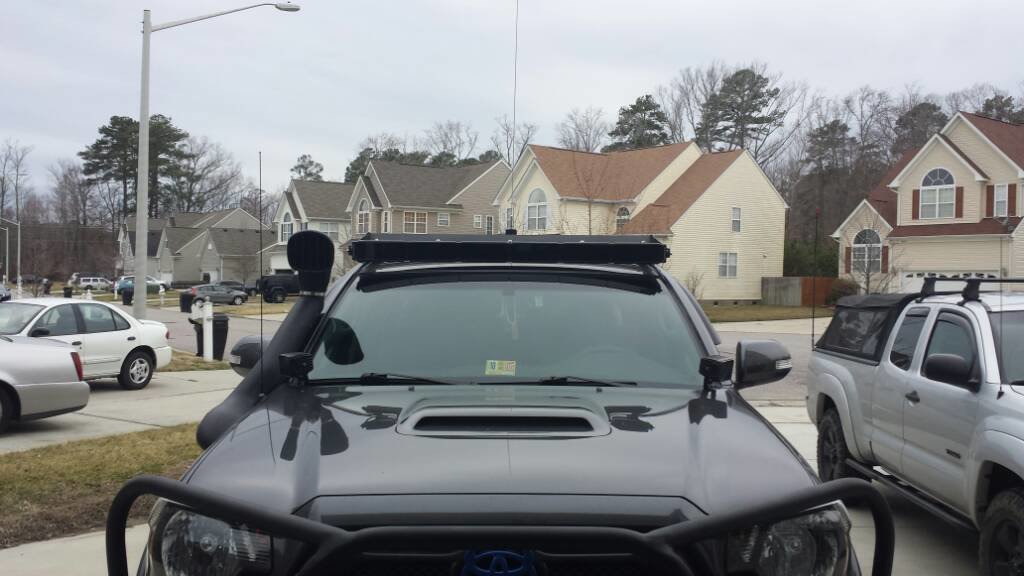

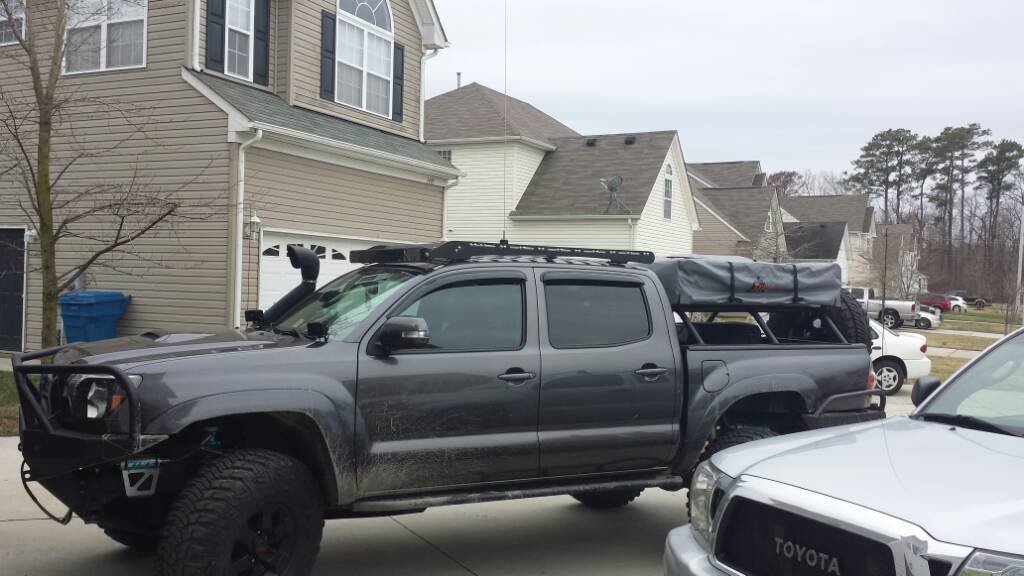

    Prinsu on with the 50" getting some buffeting so I'm working on what angle is best. The light bars should be illegal...ohh wait they are.
    [​IMG]
    [​IMG]
    [​IMG]

    Driverside all done...
    [​IMG]

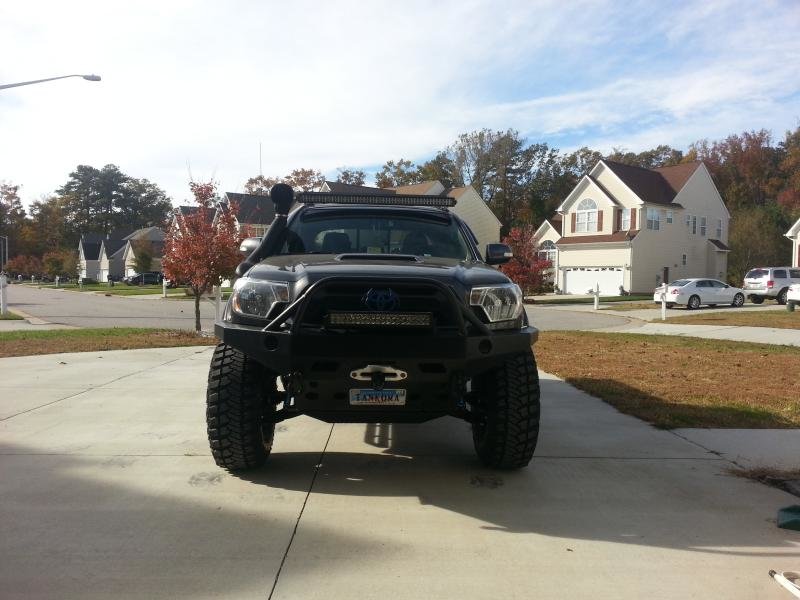

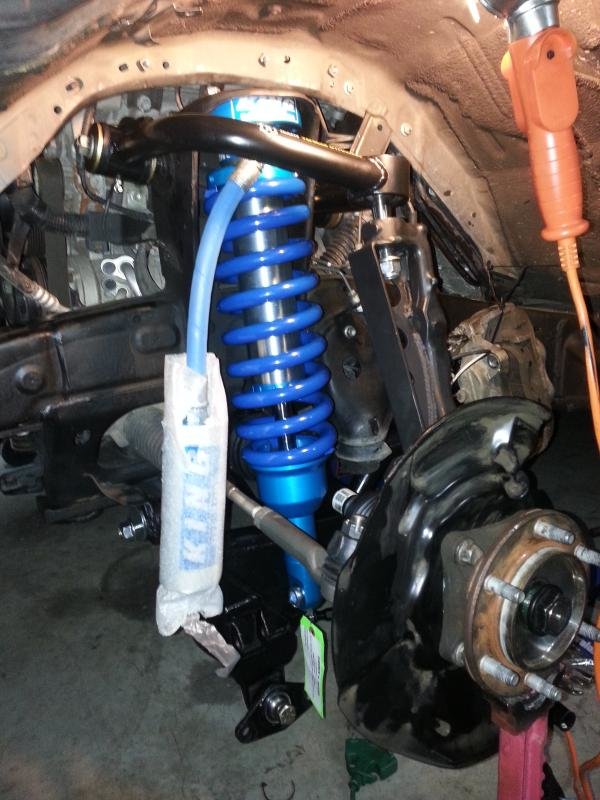

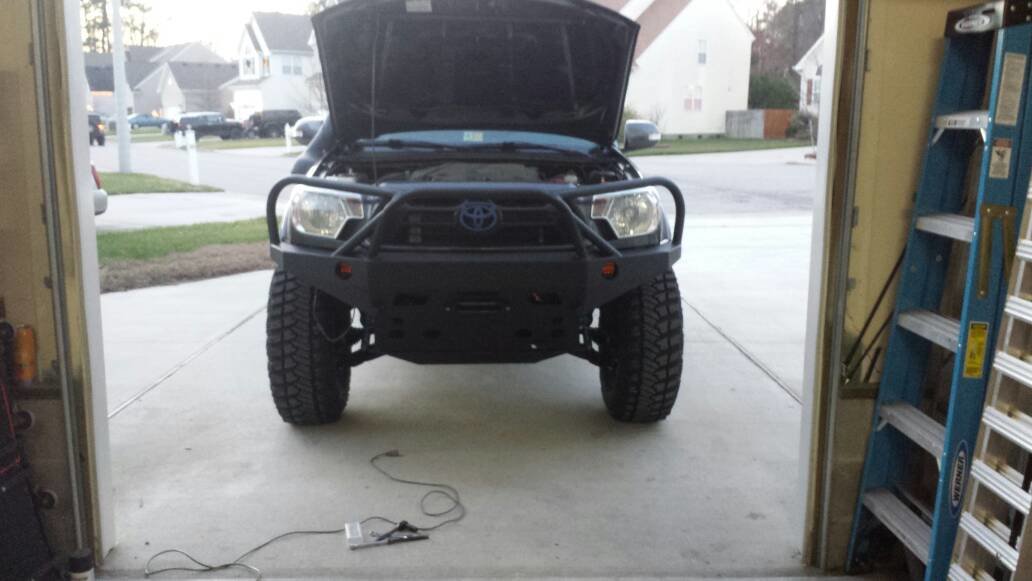

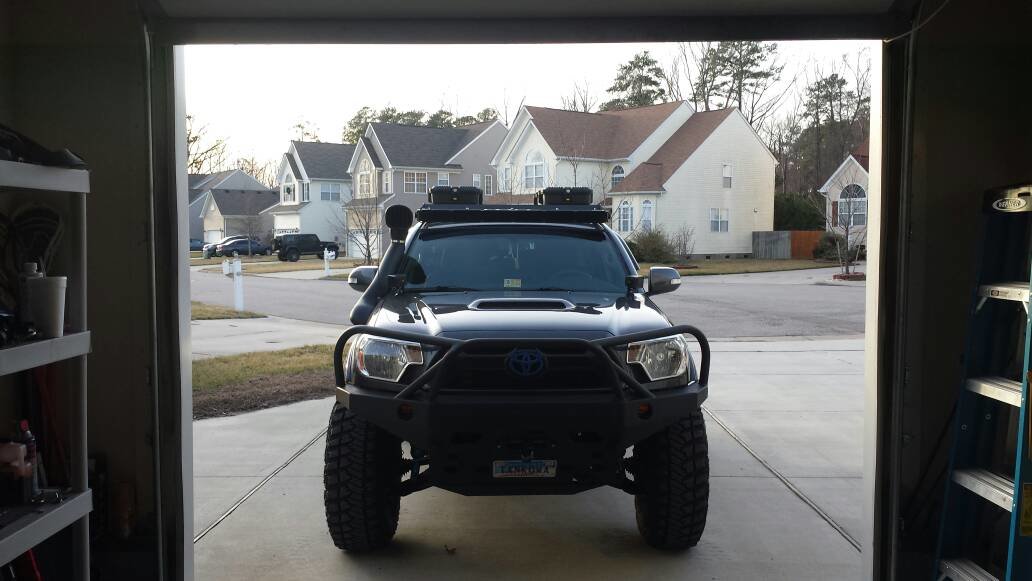

    Front end mocked up...gonna be awesome!
    [​IMG]

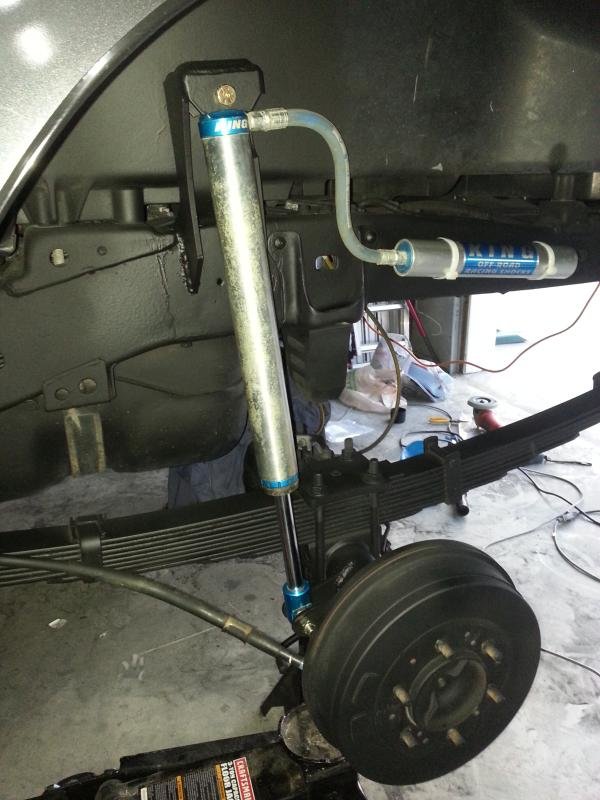

    12" King Smoothies on BAMF mounts are in...painted everything up nice and black too while I had it apart.
    [​IMG]

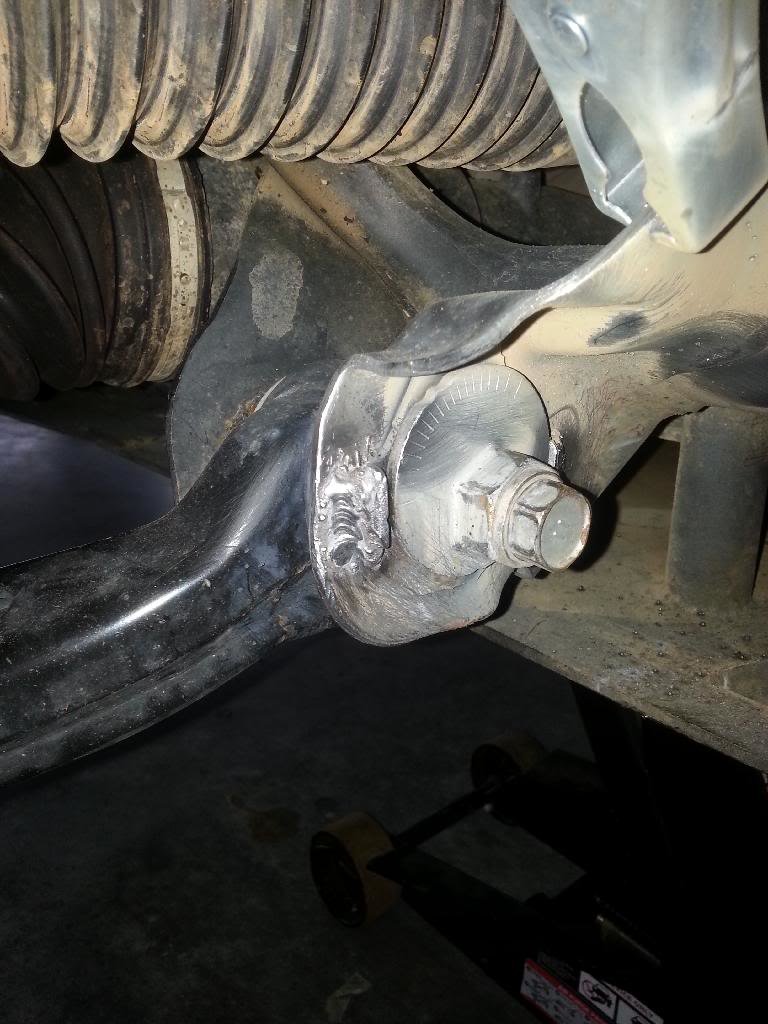

    Shoulda done this before they bent! Ohhh well.
    [​IMG]

    Nice shot...
    [​IMG]

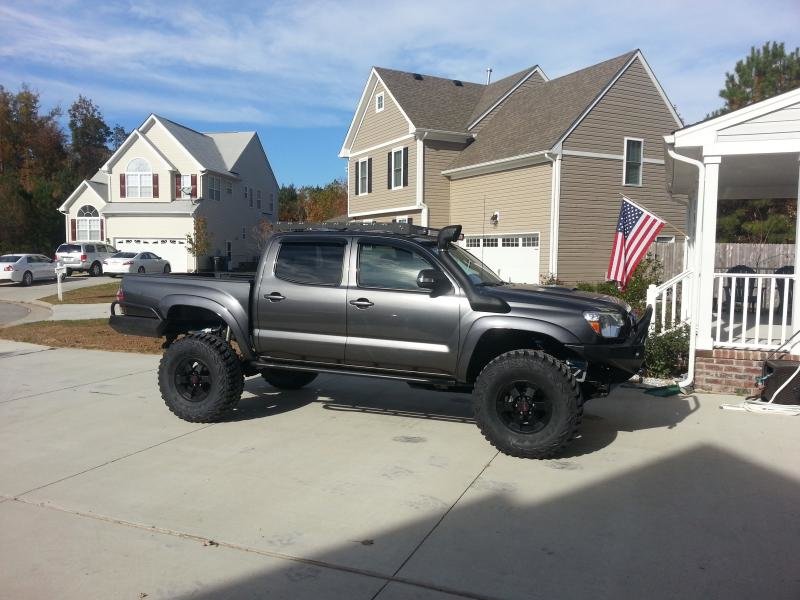

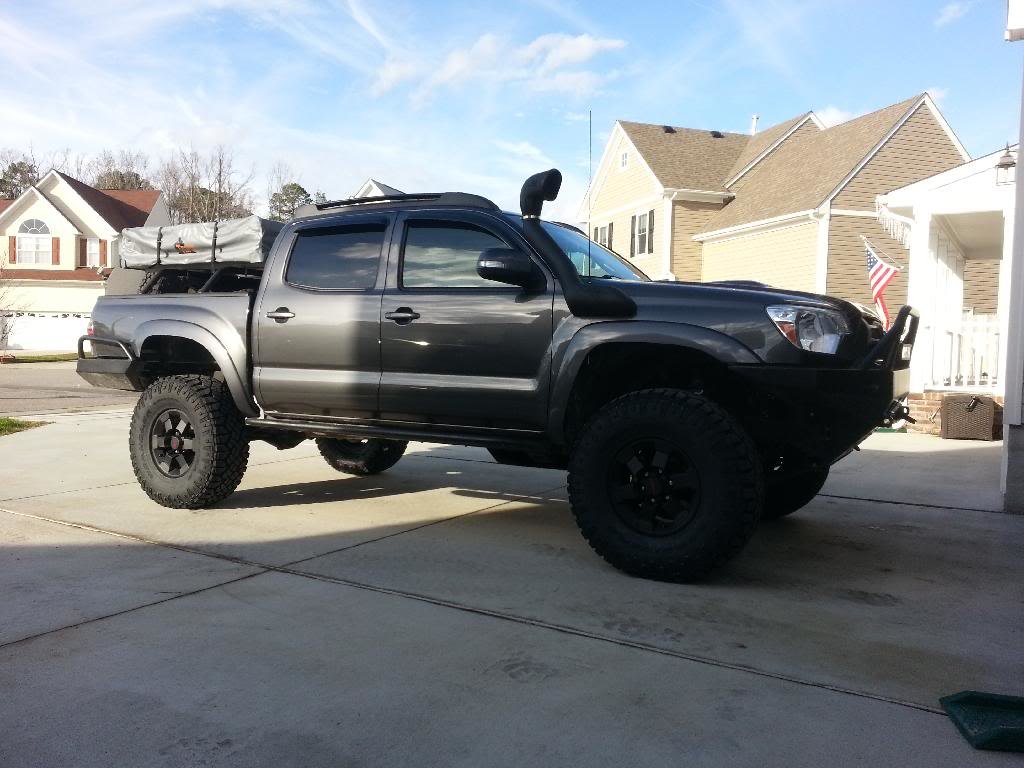

    35s are on!!!
    [​IMG]
    [​IMG]

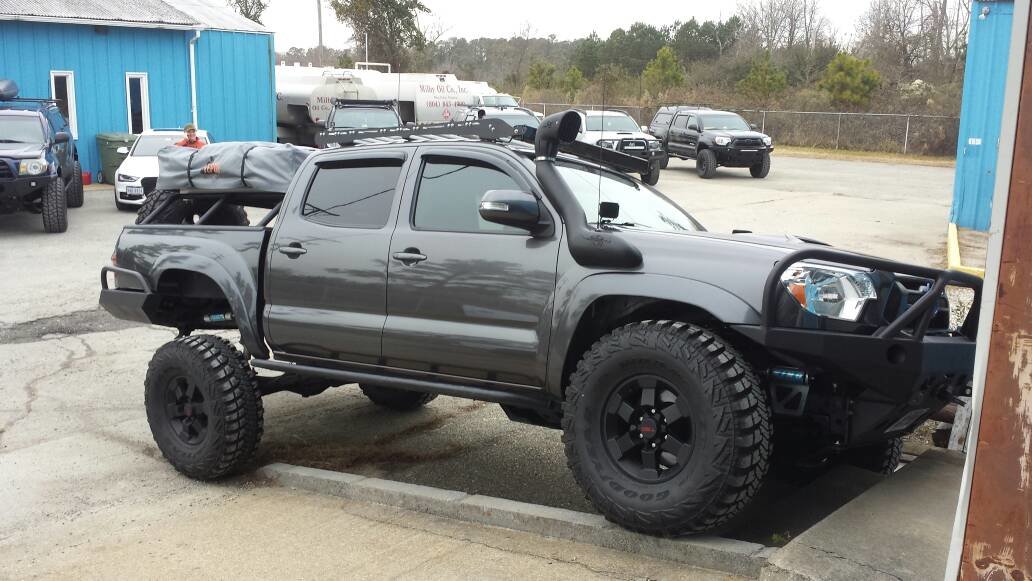

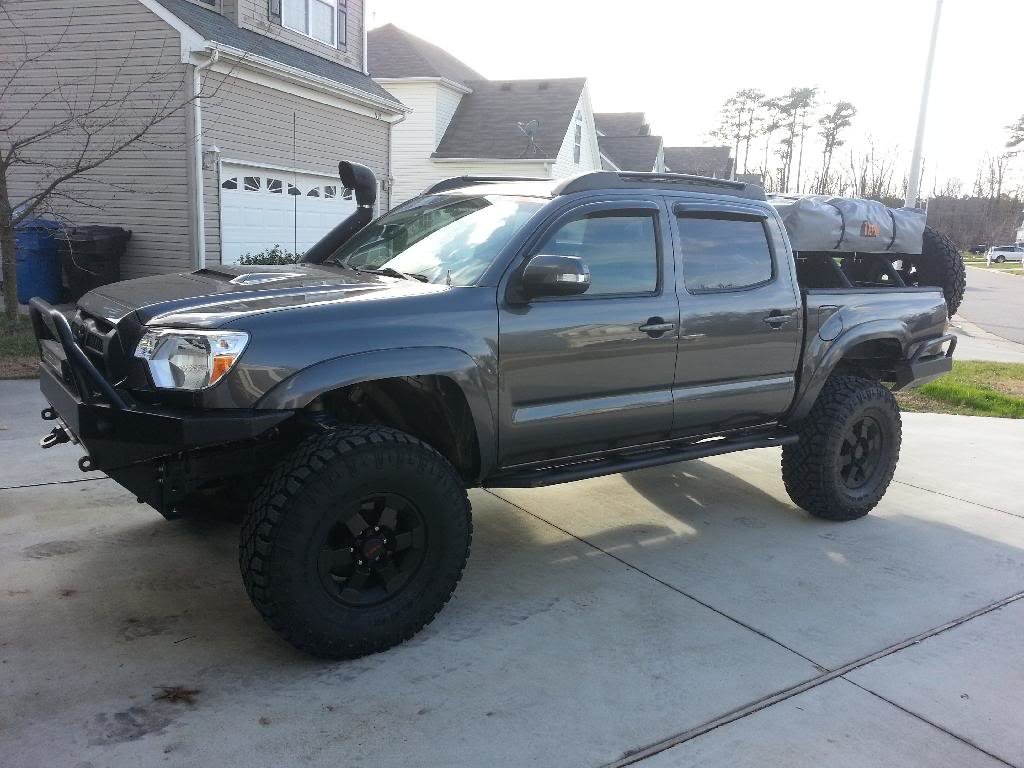

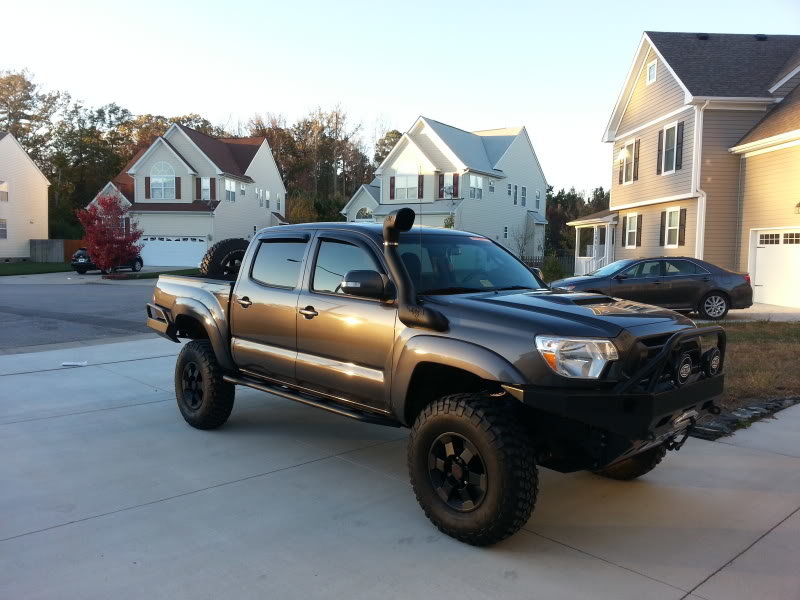

    Airflow snorkel...
    [​IMG]

    New FJ Trail Teams Rims...
    [​IMG]

    She got a new ASS today!
    [​IMG]
    [​IMG]

    Ready for install! Just need to get some sheet metal out of the way!
    [​IMG]

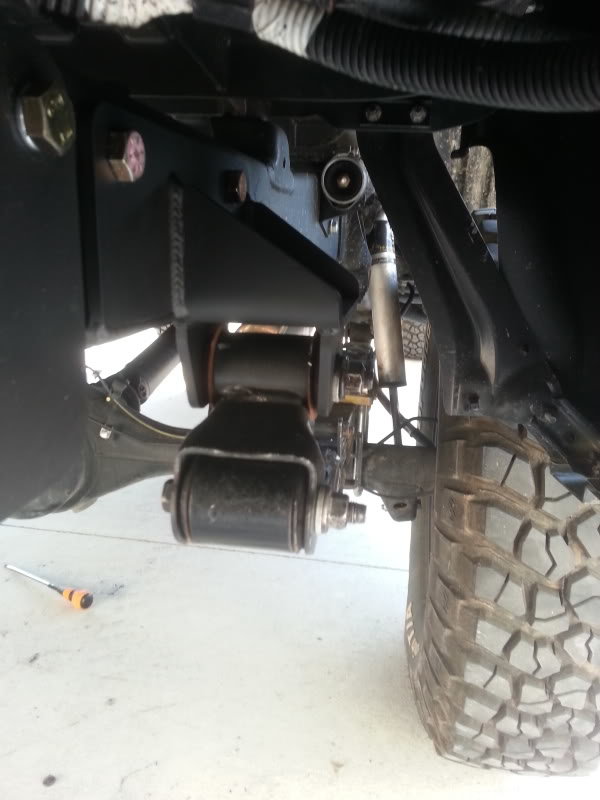

    Shackles have been flipped! Fuck doing that twice!
    [​IMG]

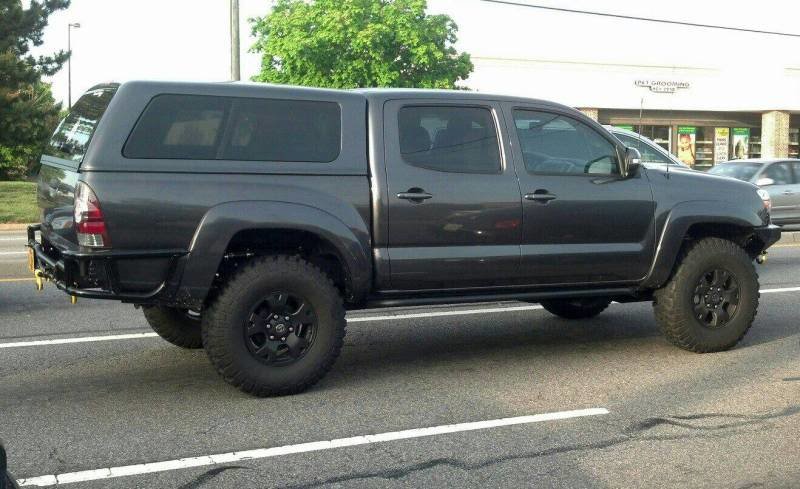

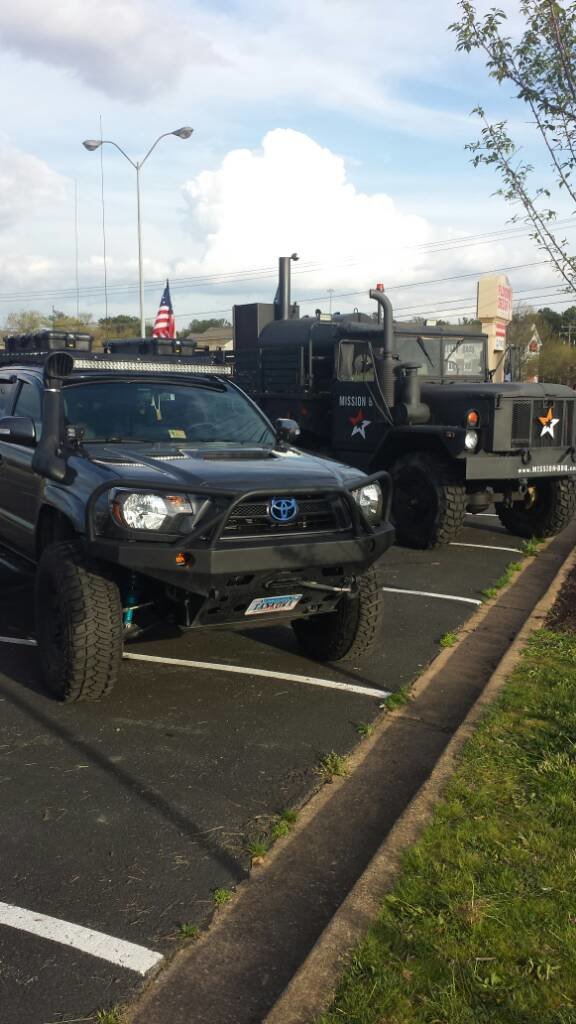

    Spotted while on my way home
    [​IMG]

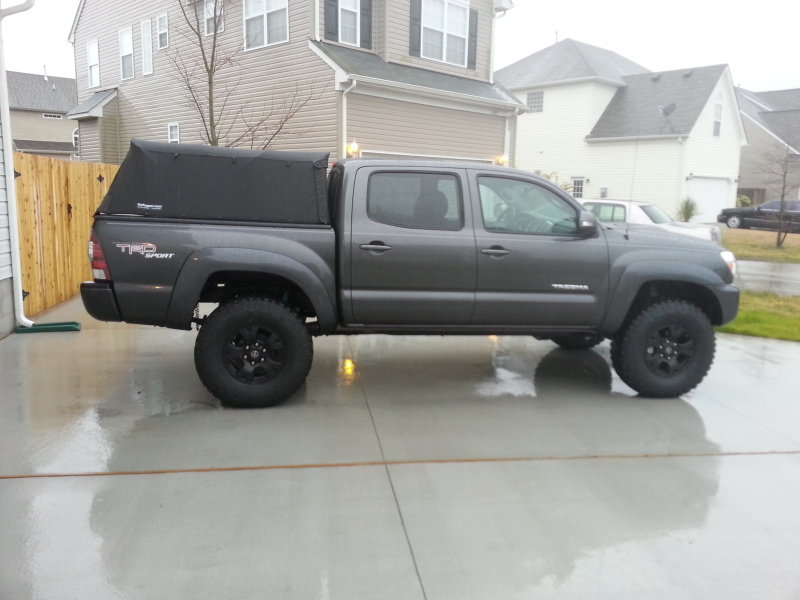

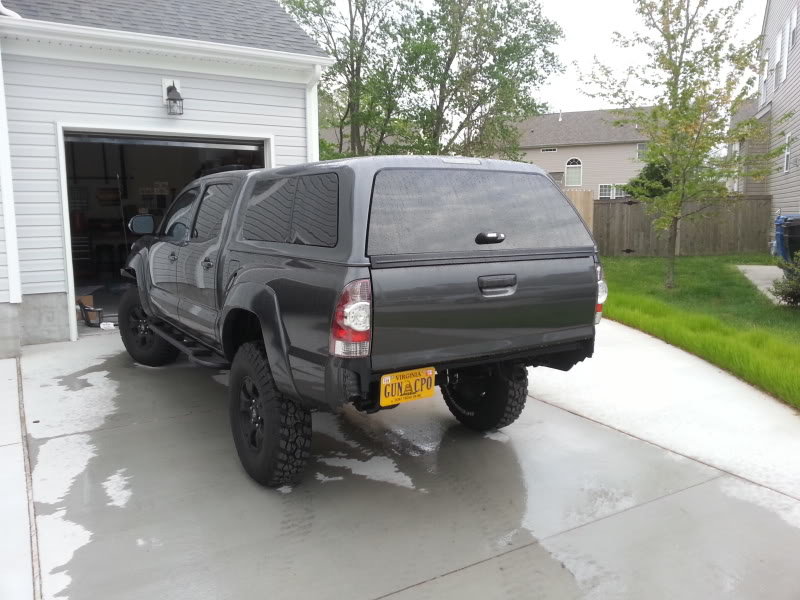

    Got the new camper shell back from painting...love it.
    [​IMG]

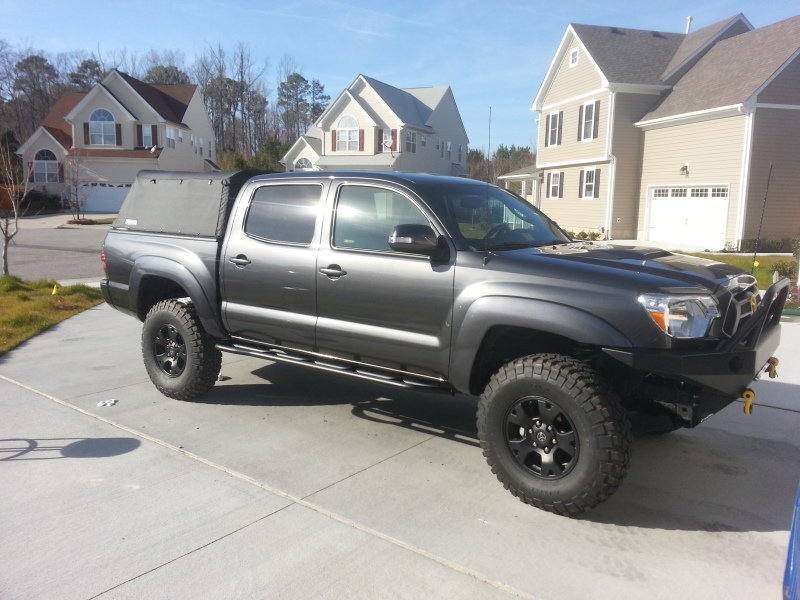

    Painted sliders, debadged, pin stripes removed, no more TRD bed sides and tossed in a set of LED fogs.
    [​IMG]

    Got the 255's installed. Look nice and my gas mileage is better than the 265s.
    [​IMG]

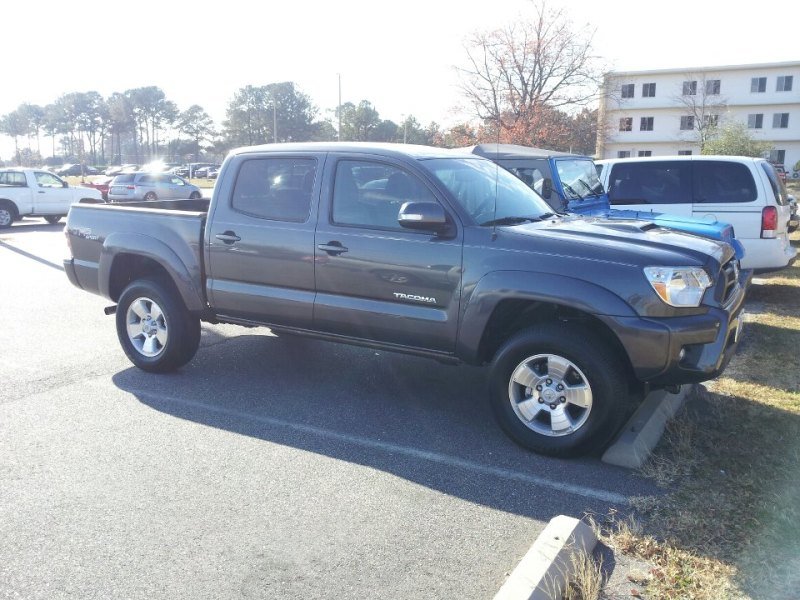

    Day after I bought her:
    [​IMG]

    2013 Double Cab Short Bed Sport 4x4 4.0 6 speed manual

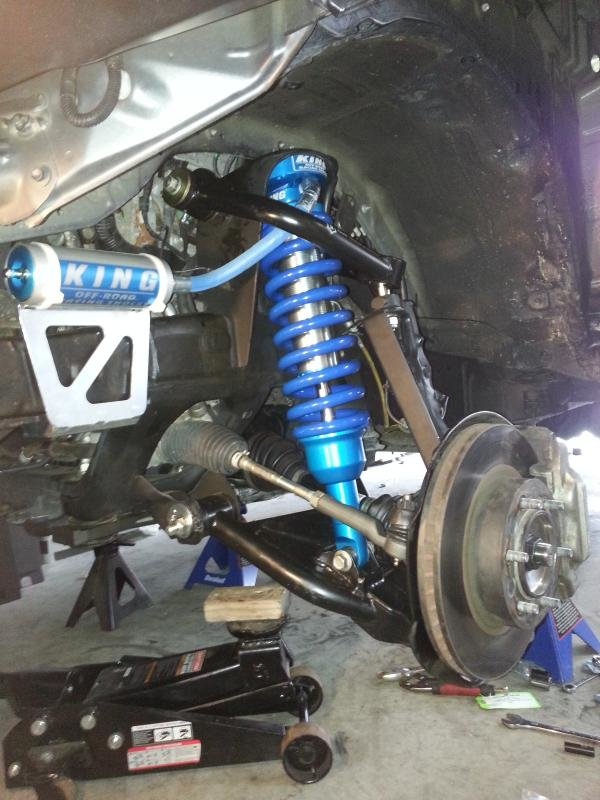

    Suspension:
    Front:
    King 2.5 Remote Res Ext. Travel Coilovers
    700# King Springs

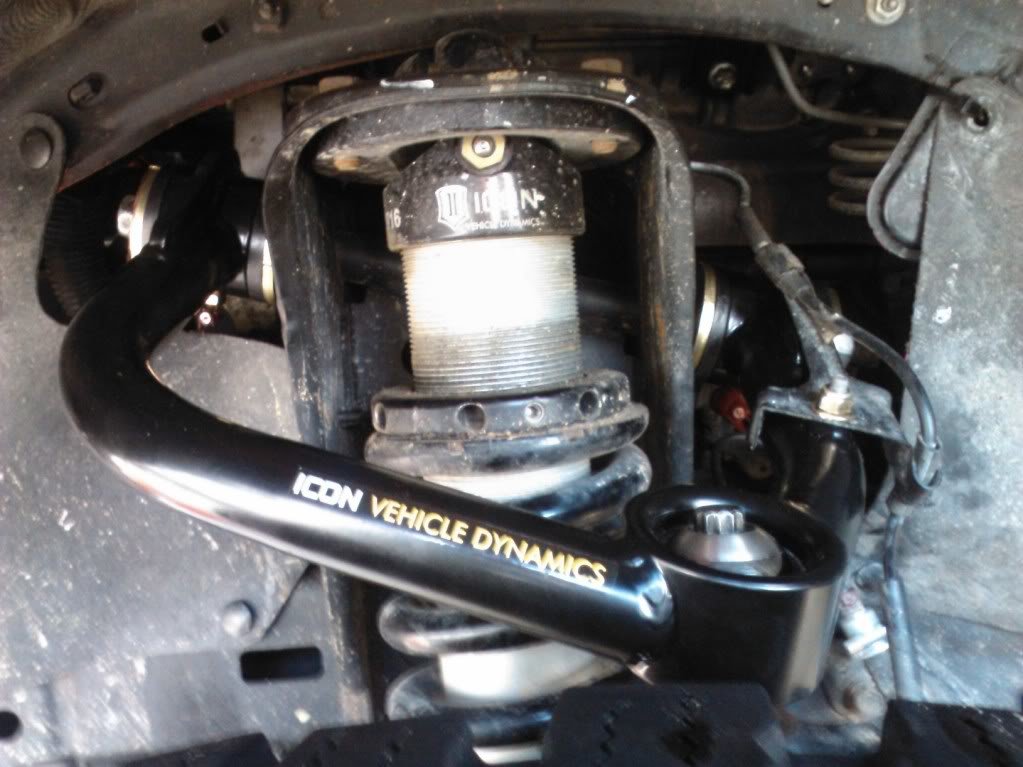

    Icon Tubular UCA
    Allpro Prototype Stock Length Uniball LCA
    Total Chaos Spindle Gussets
    Welded Alignment Tabs... do it before they get bent flat!

    Rear:
    Allpro Expo Leaf Pack
    BAMF Shock relocation
    King 2.0 12" Pro Race Smoothies
    Timbren Bumpstops
    Allpro U bolt flip
    ATO Shackle flip
    Rubicon Express XJ shackles

    Wheels/Tires:
    FJ Trail Teams Black
    SpiderTrax 1.25" Spacers all around
    315/75R16 Goodyear MTR/K

    Performance:
    4.56 Nitro Gears
    ARB Air Lockers Front and Rear
    Borla cat back chopped off at axle
    Airflow snorkel
    Crawford Performance Eco Block
    Pelfreybilt Battery Tray
    Diehard Platinum 31M

    Protection:
    4X Innovations Sliders

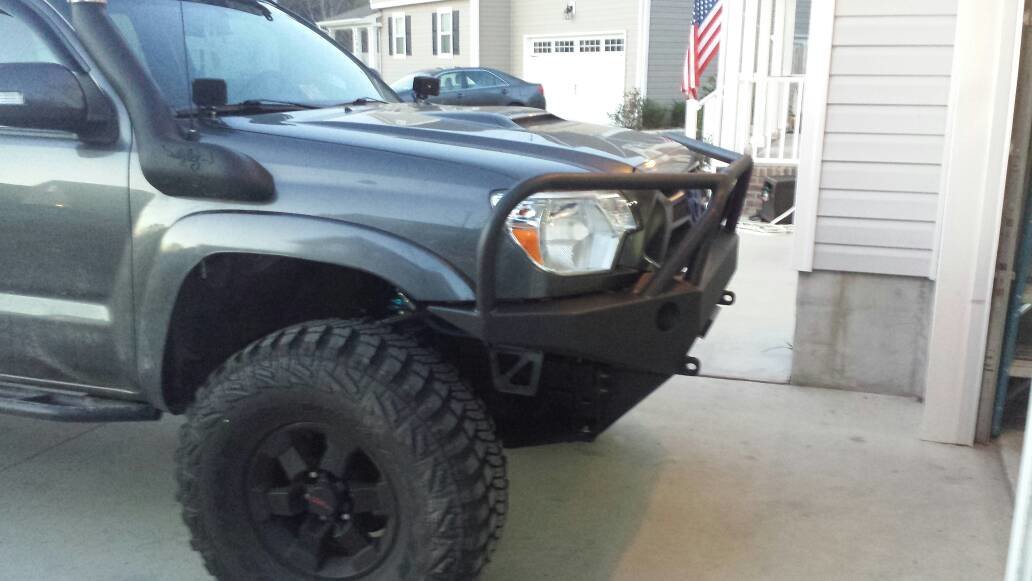

    Pelfreybilt Front Bumper
    Brute Force Fab High Clearance Rear Bumper
    IFS/TRANSMISSION/TRANSFER Custom Flat Skids
    Pelfreybilt Gas Tank Skid
    Trailgear Diff Guard

    Exterior:
    Custom Ditch Light Mounts
    D2S Retrofit
    Vent visors
    Bed Rack
    Tepui Kukenam RTT
    PRINSU Roof Rack
    Pelfreybilt Axe/shovel mounts
    Pelfreybilt HiLift mounts
    Dual Jerry Cans on Homemade Swingout
    Wilson 1000 Mounted to Rack
    Browning 2M whip antenna

    Interior:
    Clazzio Leather Seats
    Panavise Mount
    Proclip Samsung Tab Holder
    Galaxy Tab
    Cobra 75 CB
    Kenwood 281A 2M Ham
    Flyzeye Light

    Misc:
    SPOD Electical Managment
    ARB 50 Fridge and Slider
    Sidetracked Offroad 50" LED Light Bar
    LED Pods all over the place
    Smittybilt XRC10
    Winch Solenoid Relocated under hood
    Southeast Overland Black Fairlead
    ARB Large Compressor for OBA
    Fog Light Anytime Mod
    Arb Tire Deflator
    60" Hi lift Jack Extreme
    Straps and shit

    What Next?!?!?!...

    Last edited: May 14, 2015
    jlastic likes this.
  2. Feb 9, 2013 at 7:03 PM
    #2
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Reserved for wheeling pics...

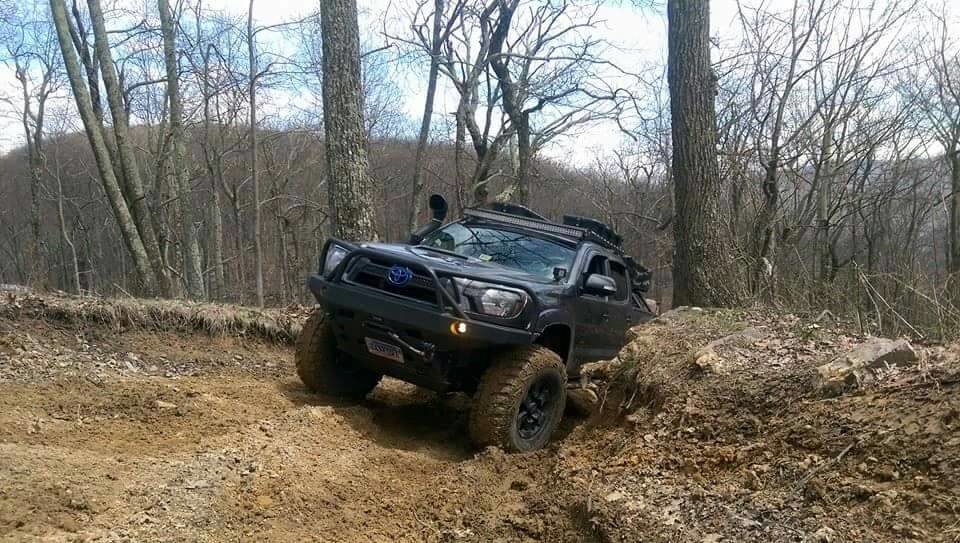

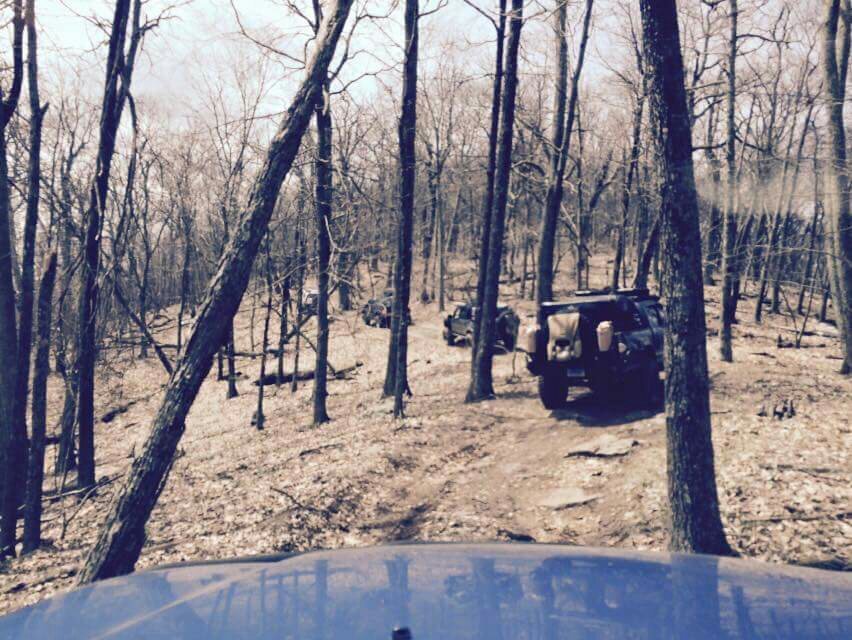

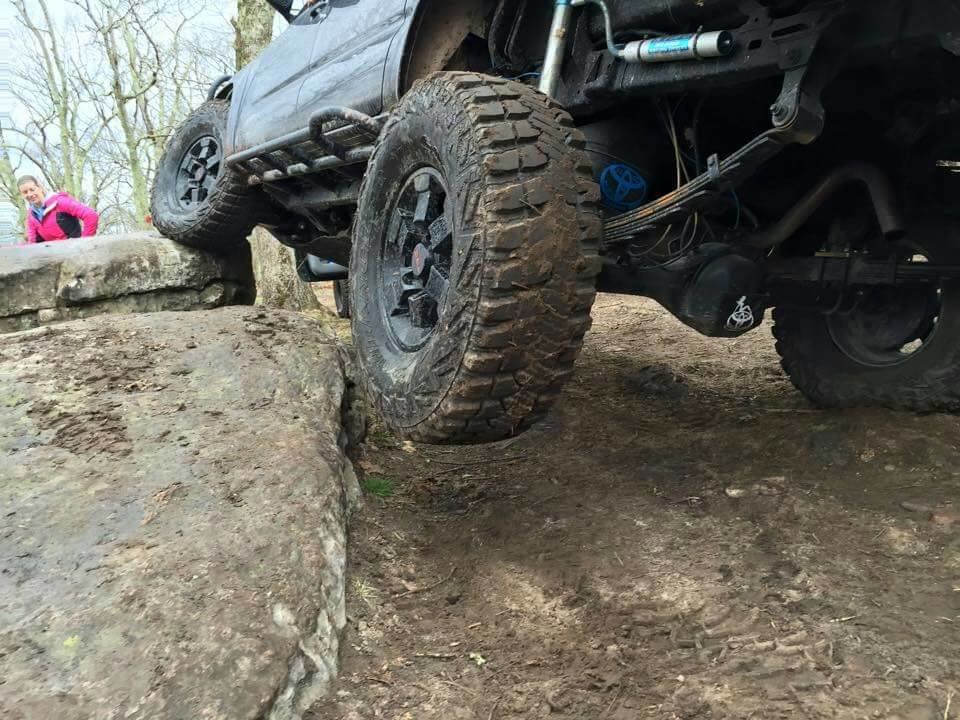

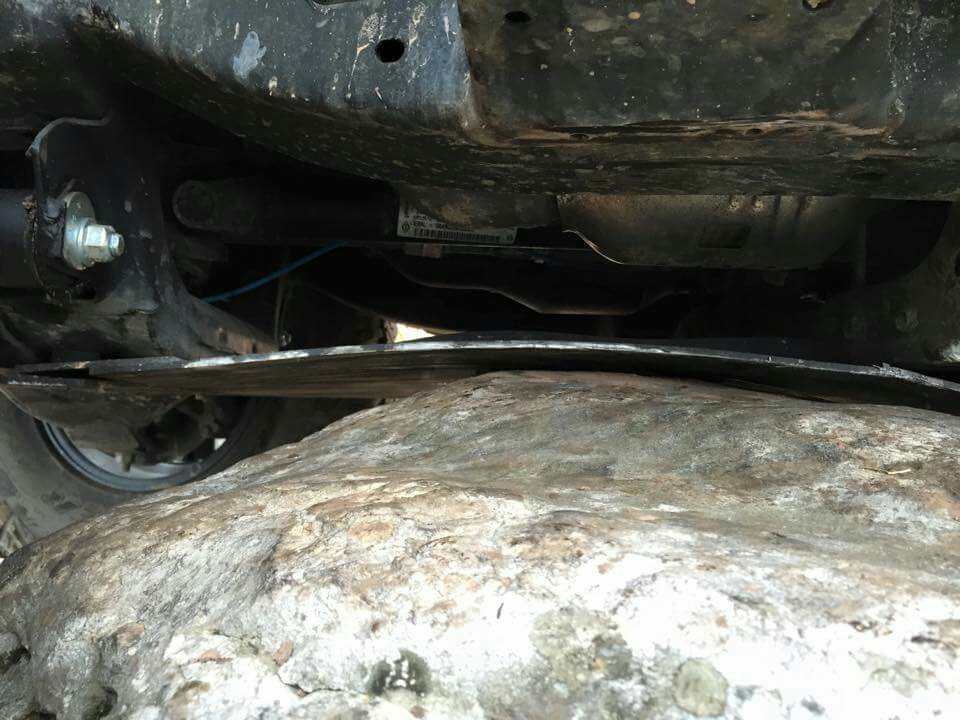

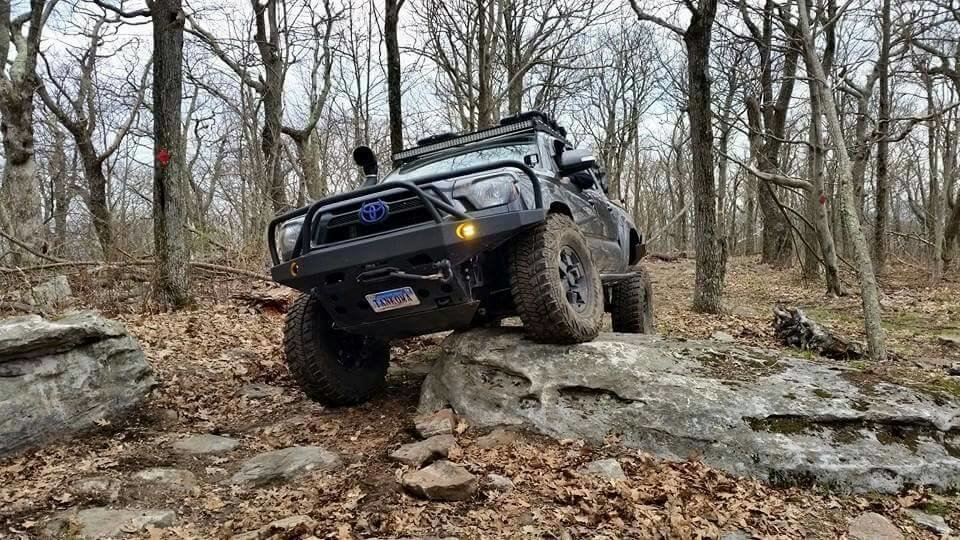

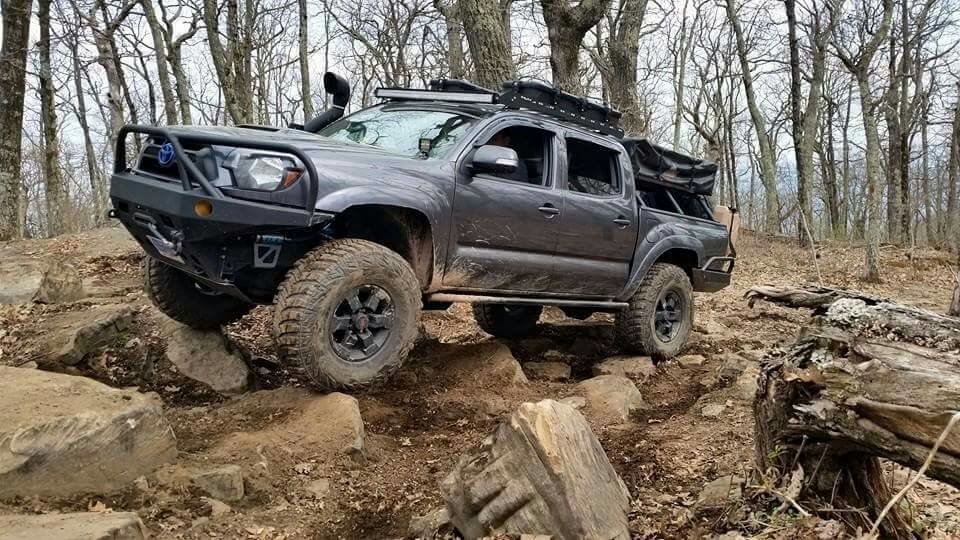

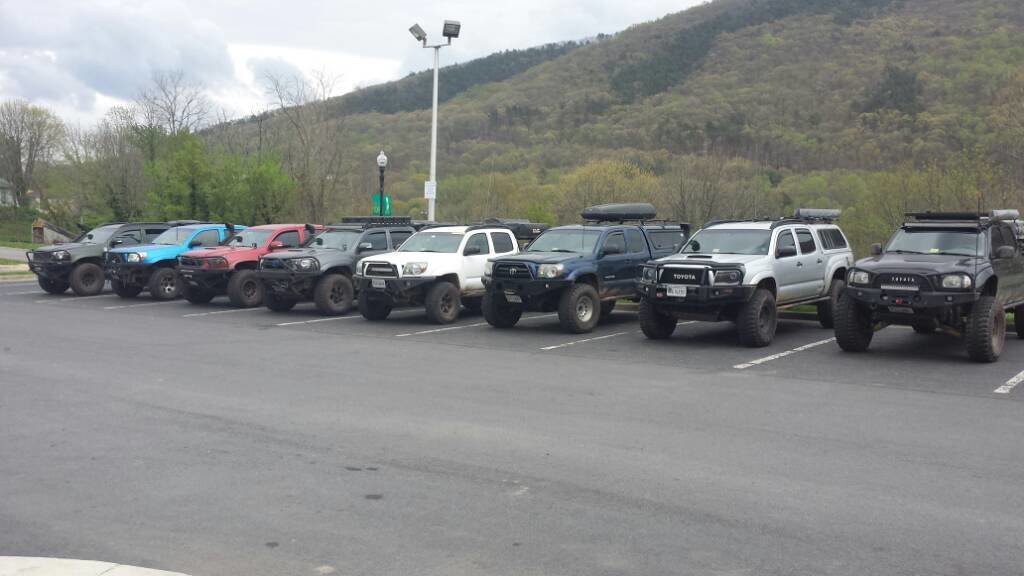

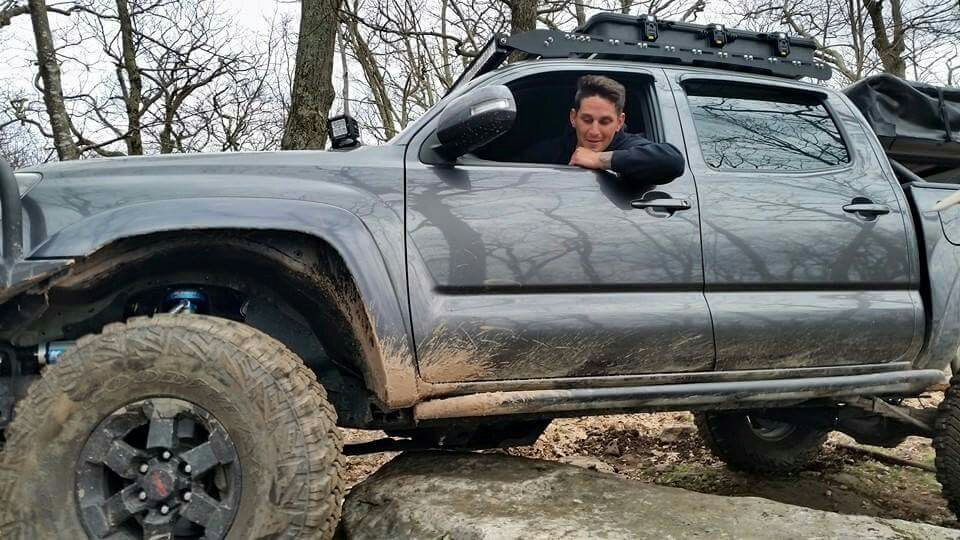

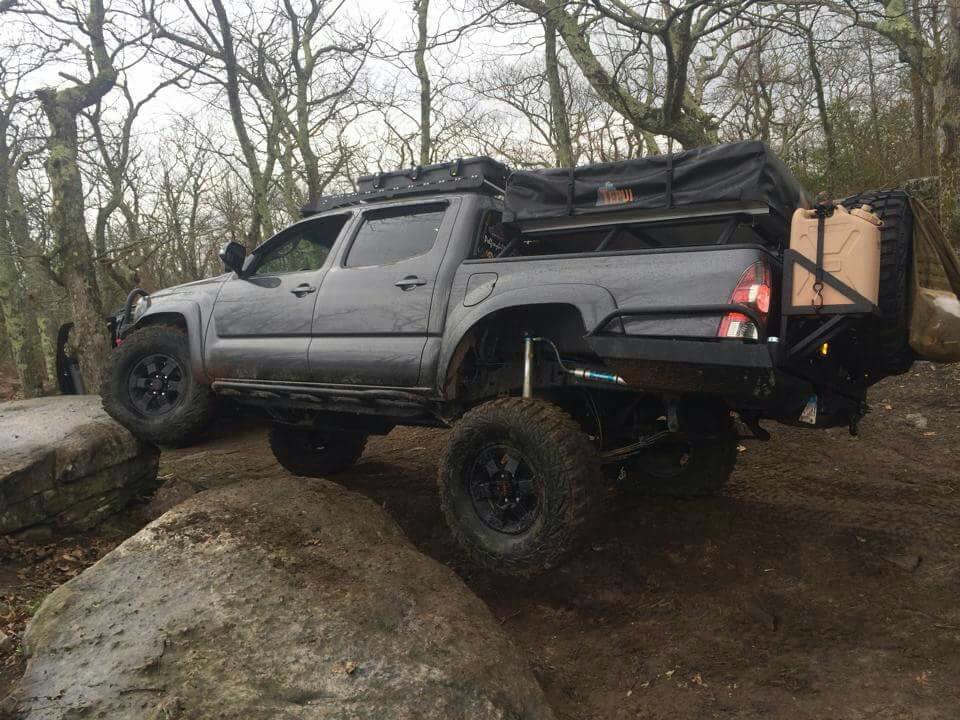

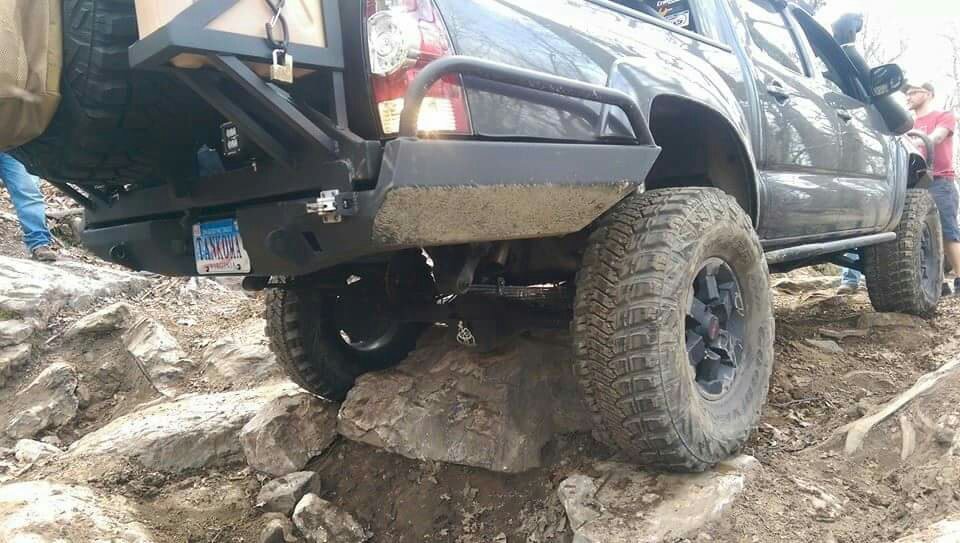

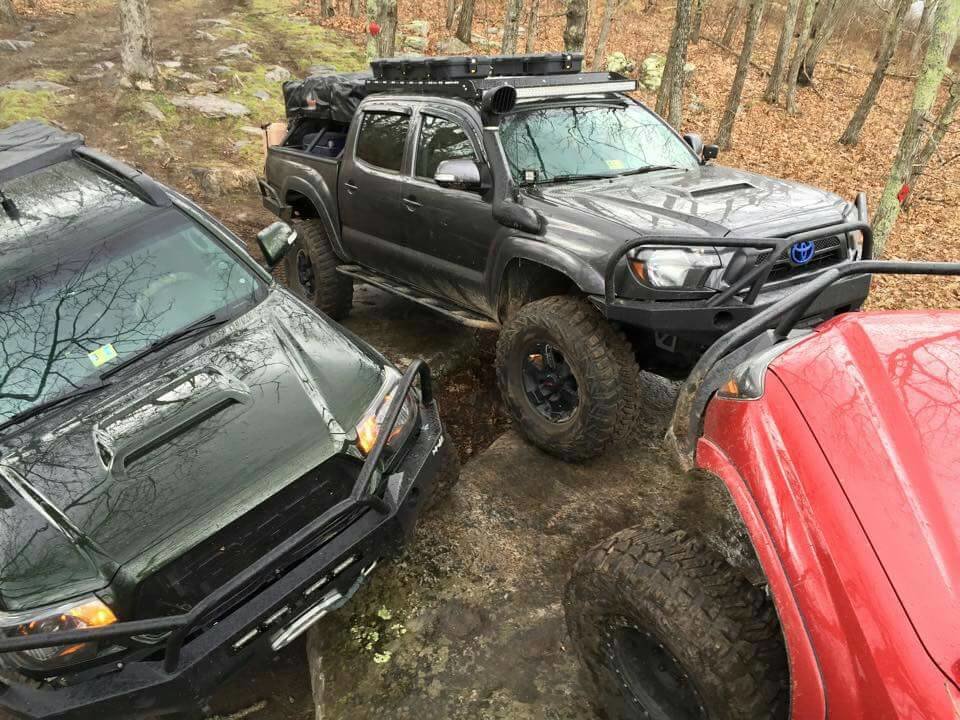

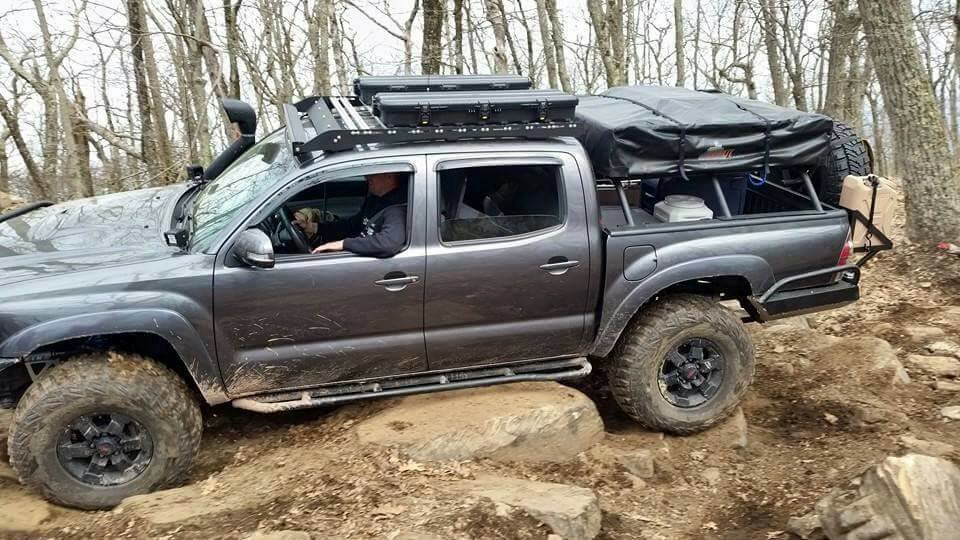

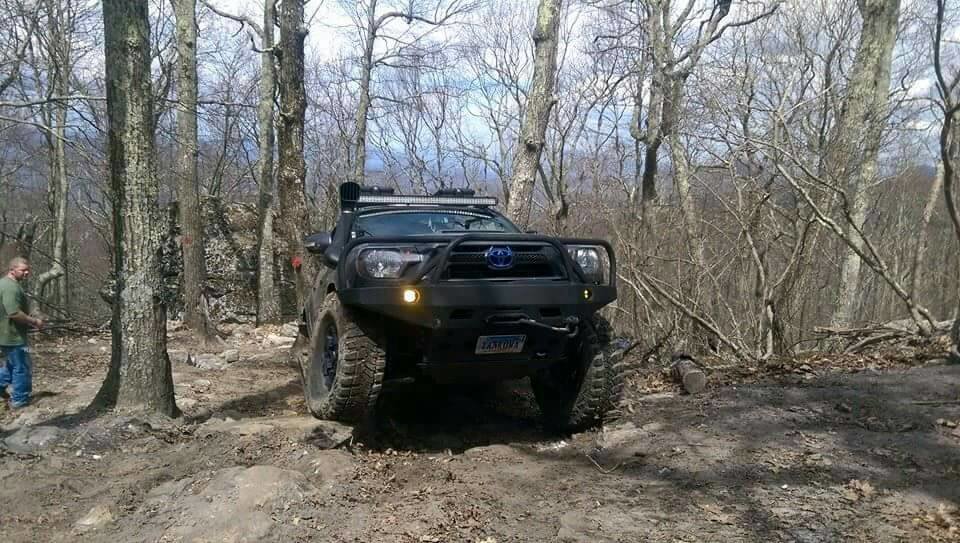

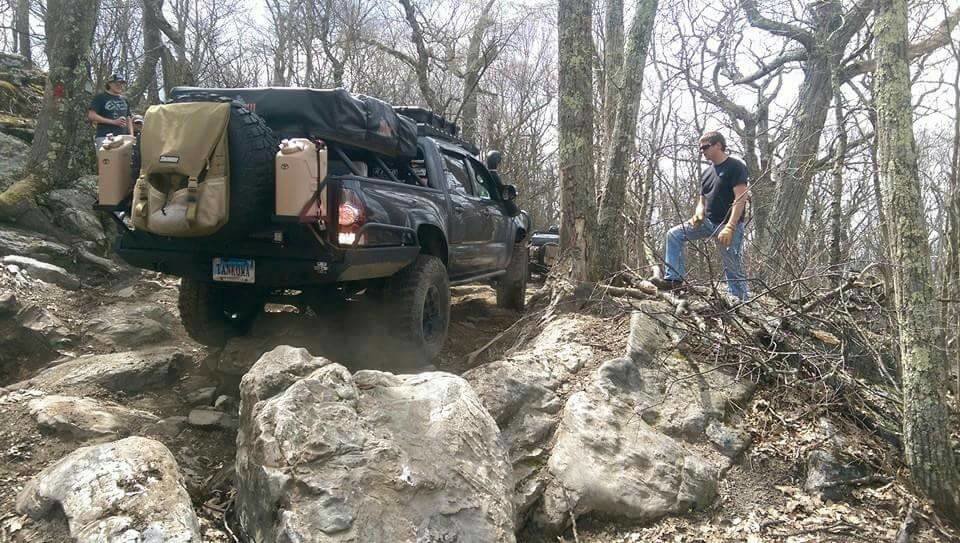

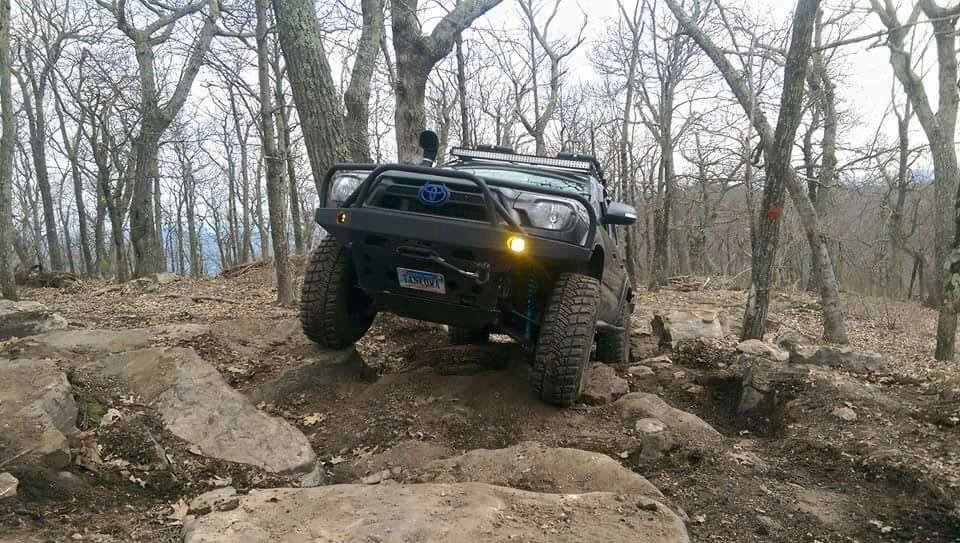

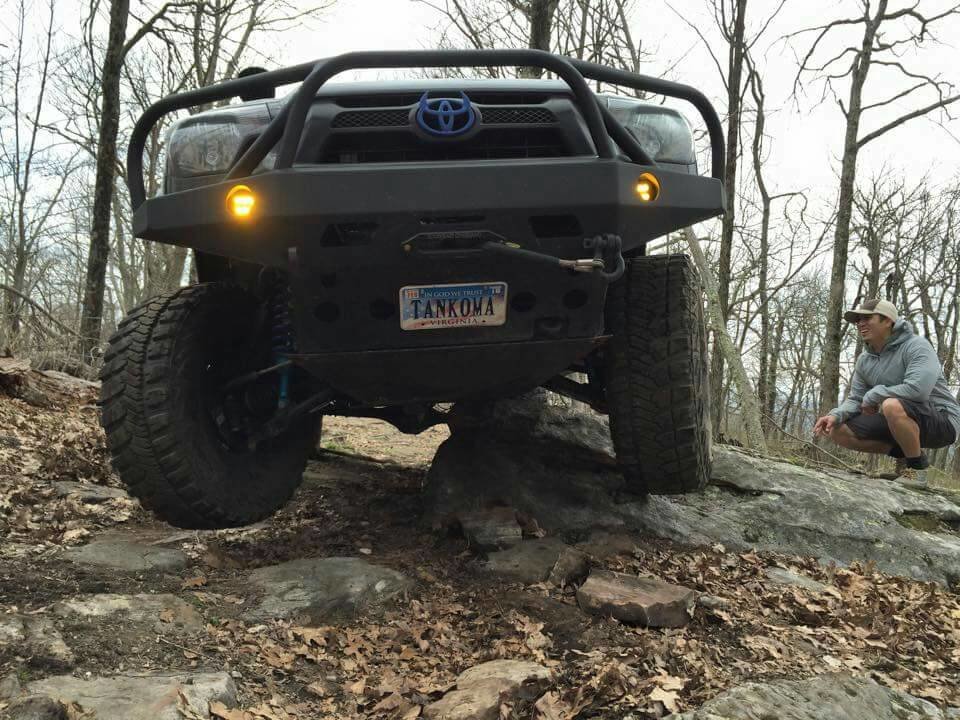

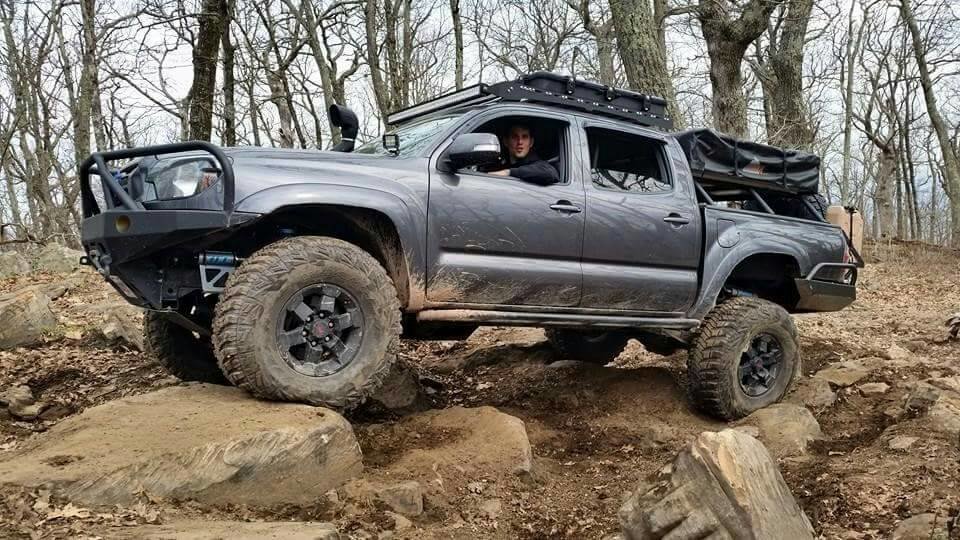

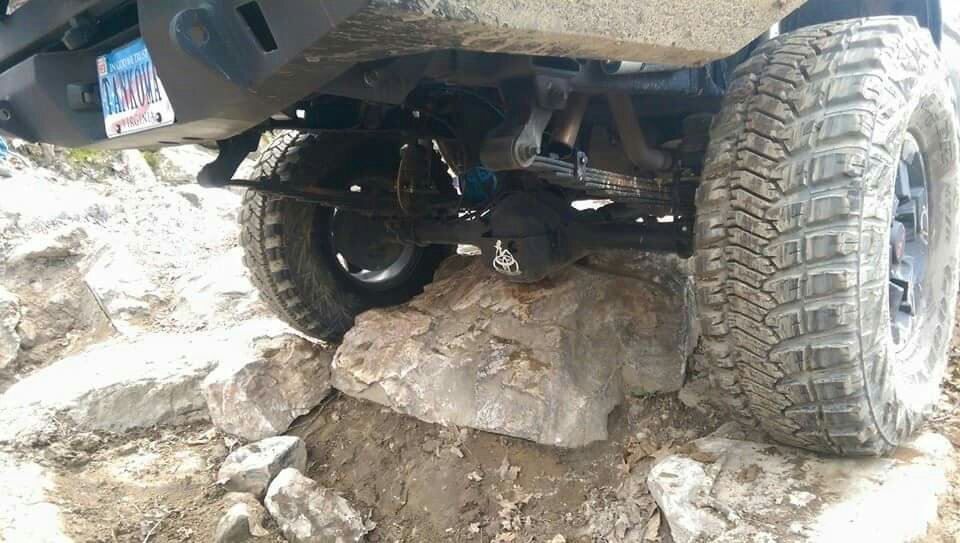

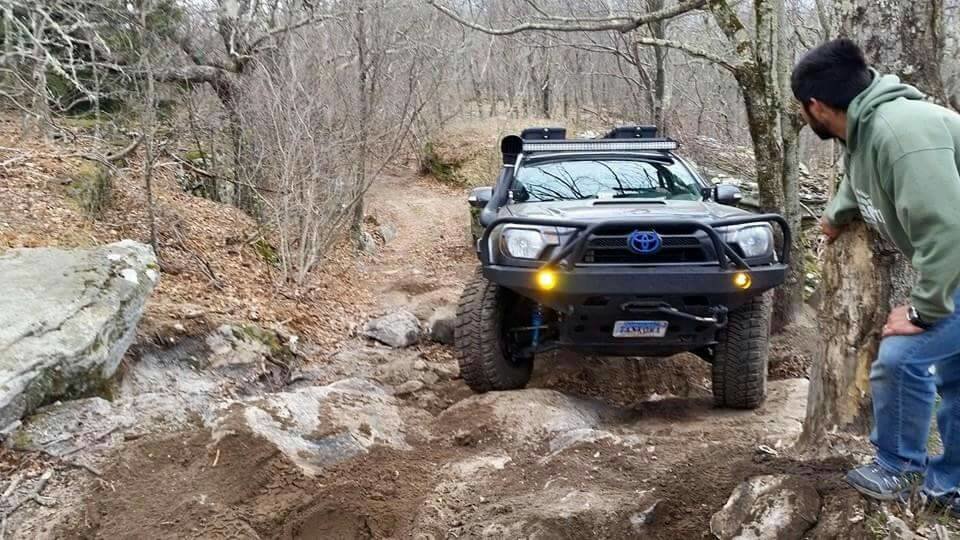

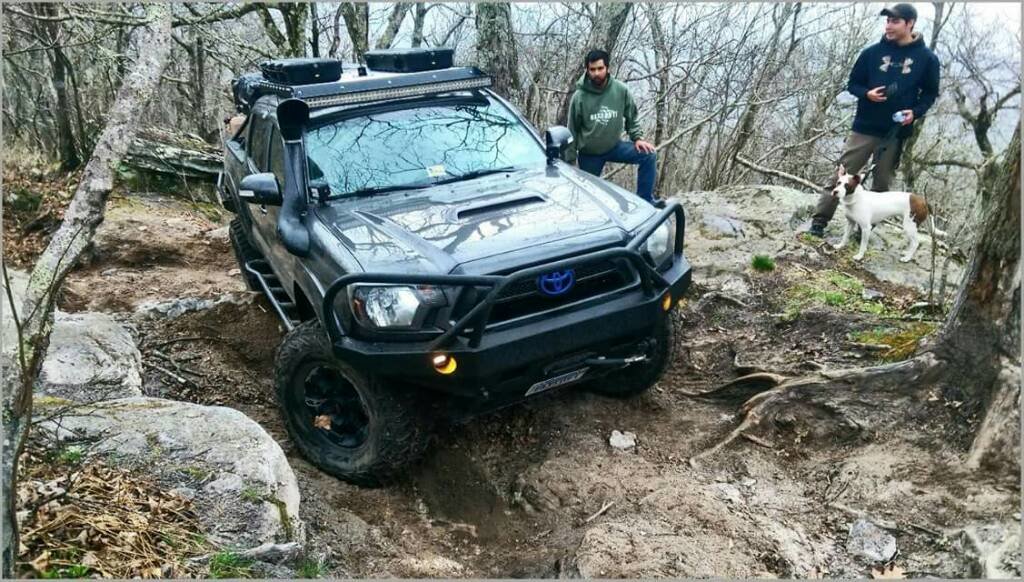

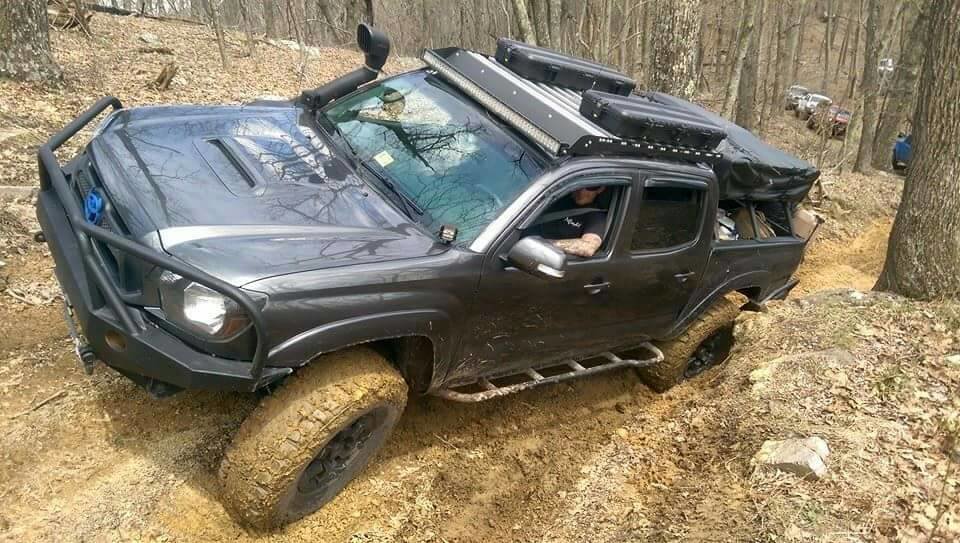

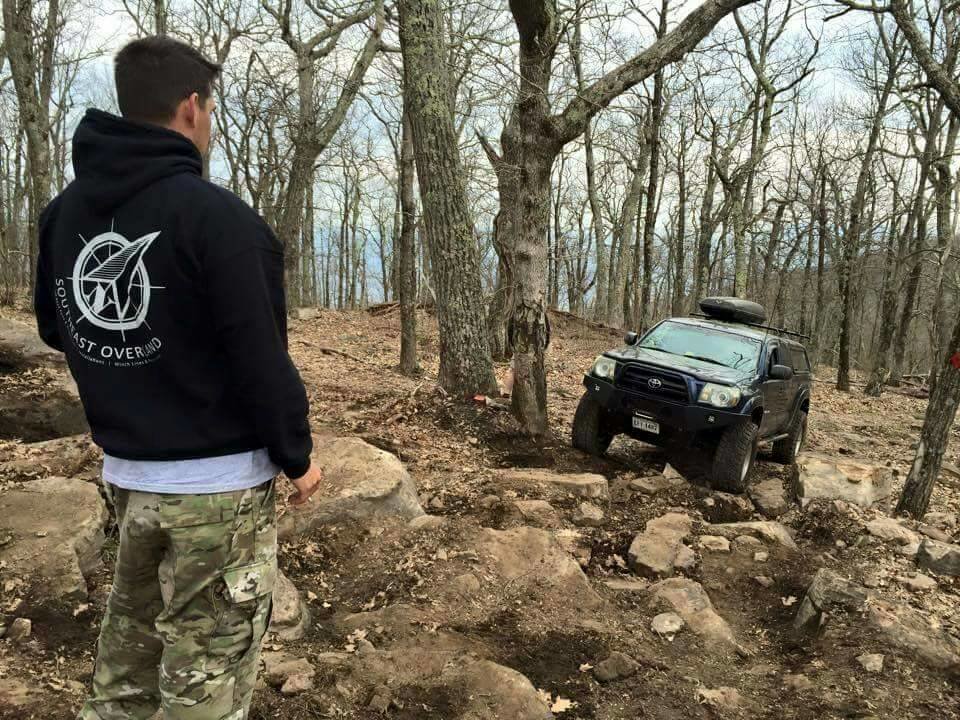

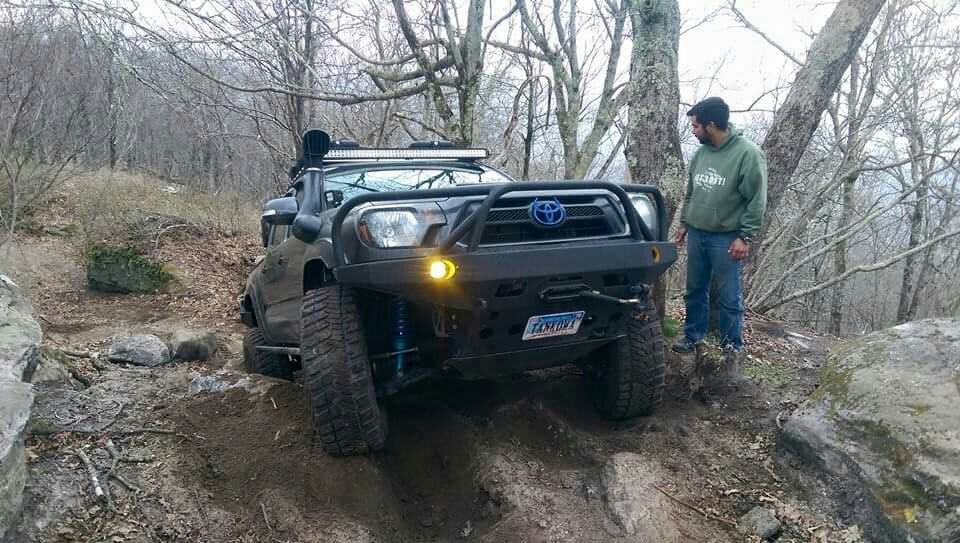

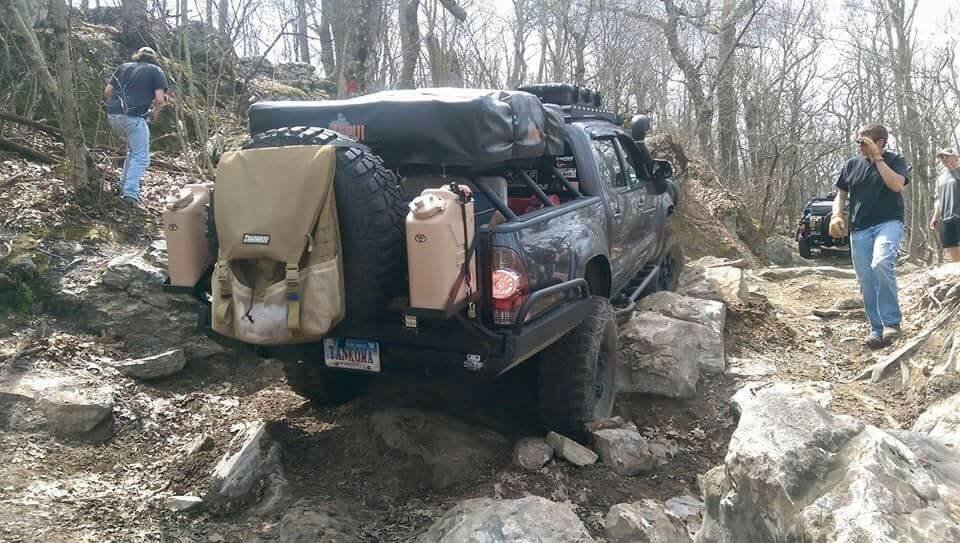

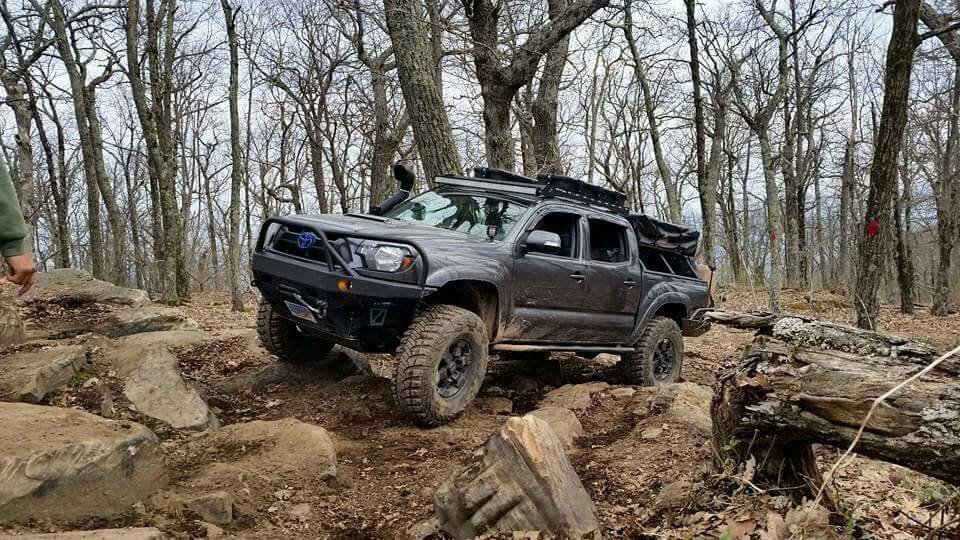

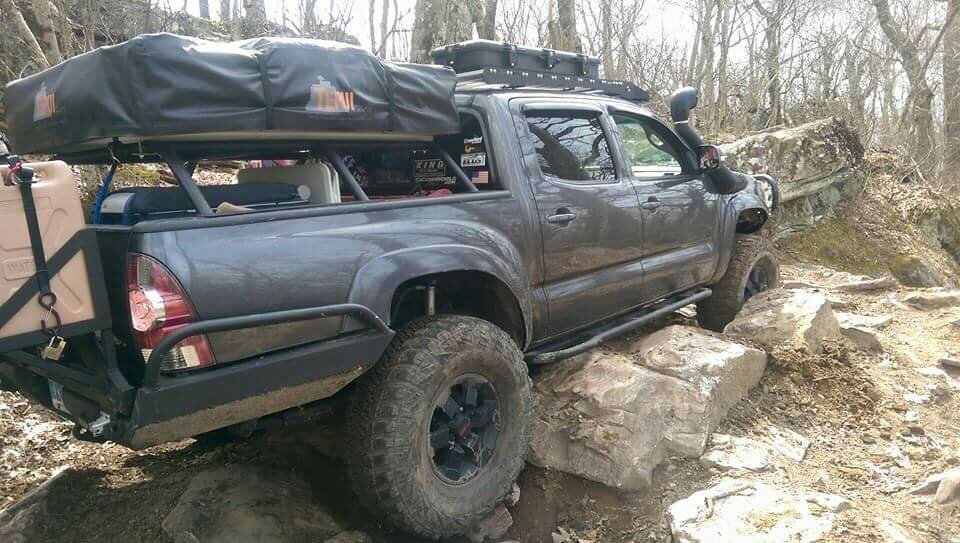

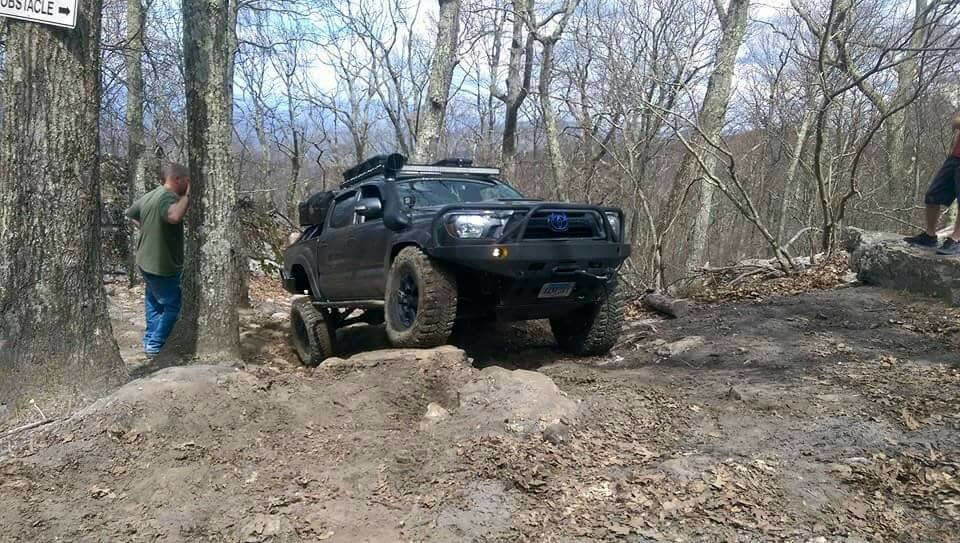

    Potts Mountain Toyota Trail April 2015
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

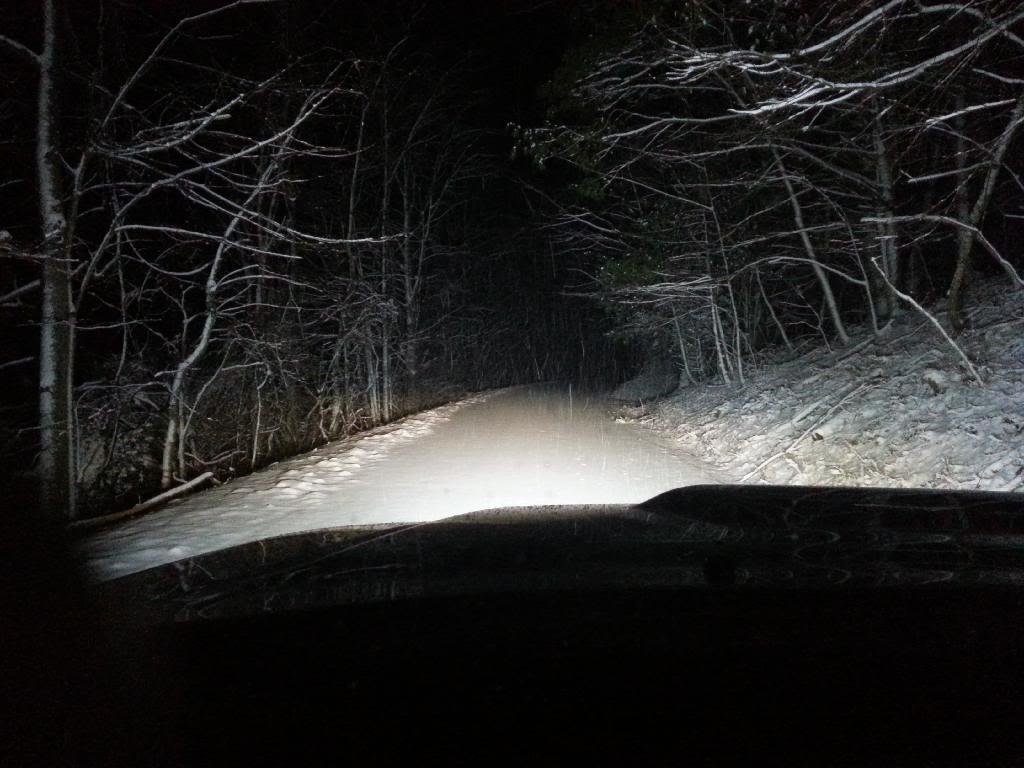

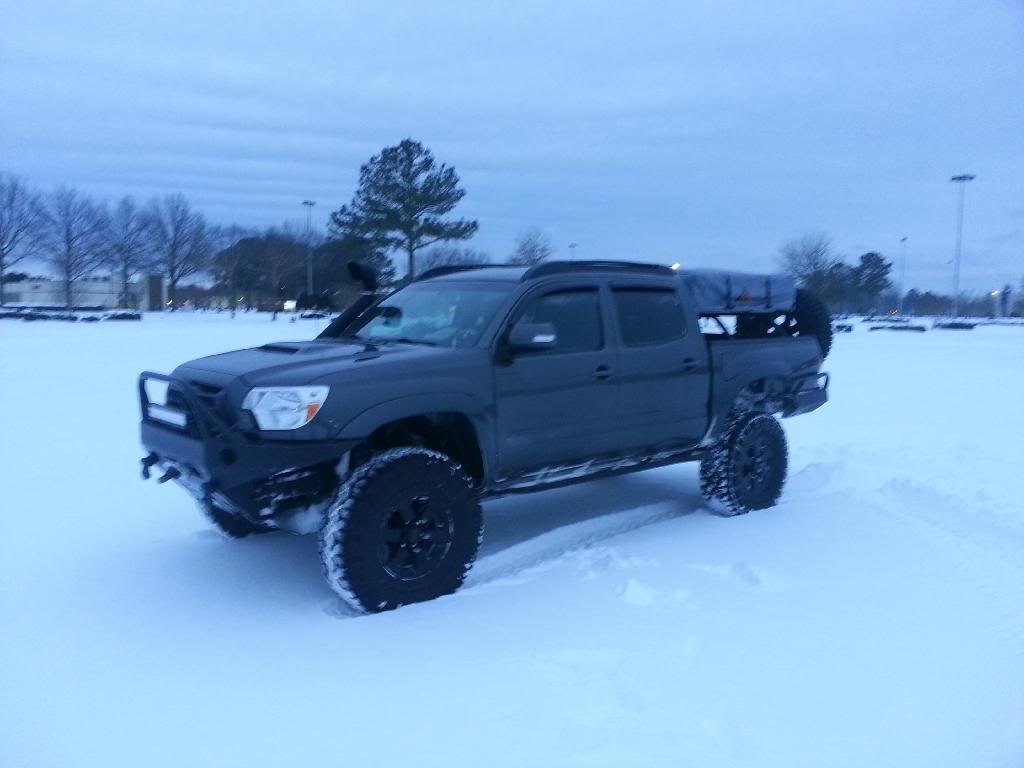

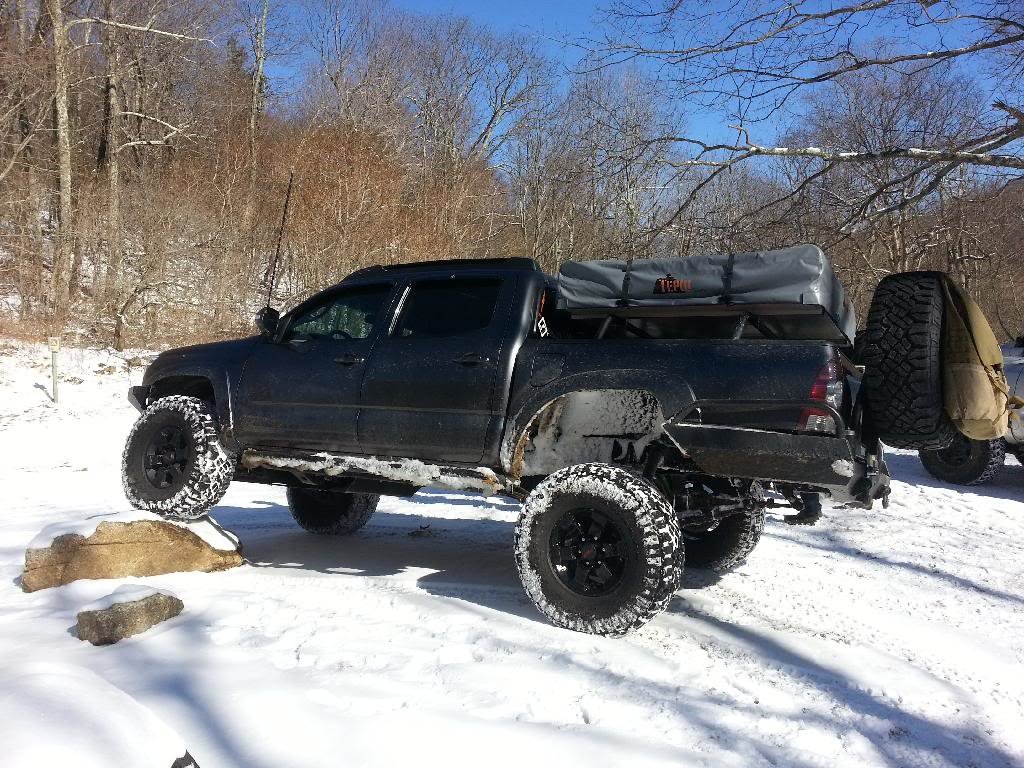

    January 2014 Snowmaggedon 2.0 out in Suffolk
    [​IMG]
    [​IMG]
    [​IMG]

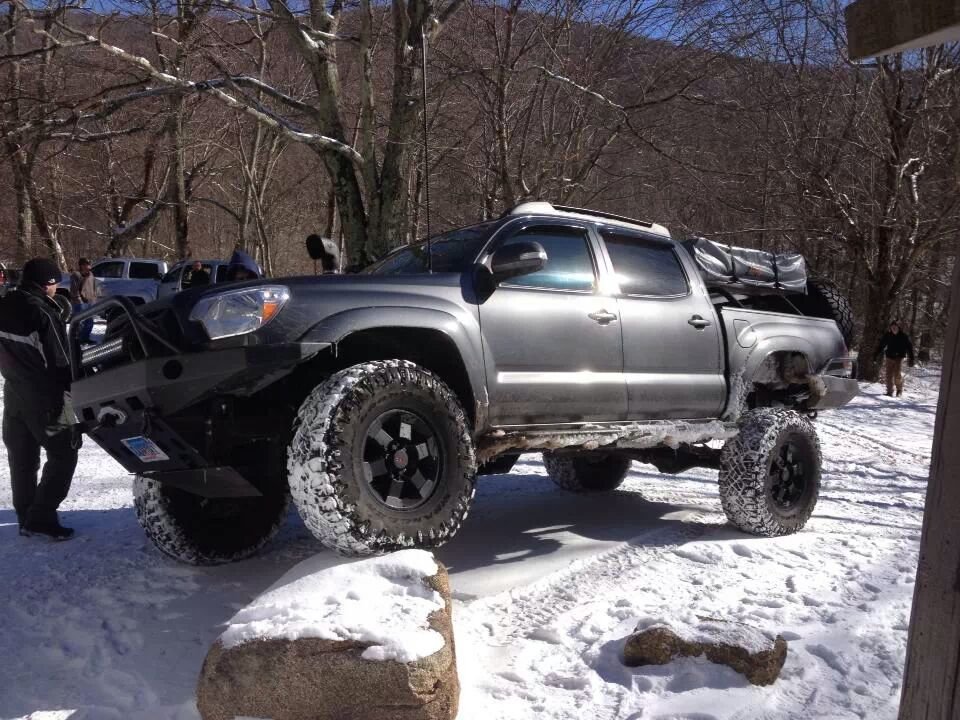

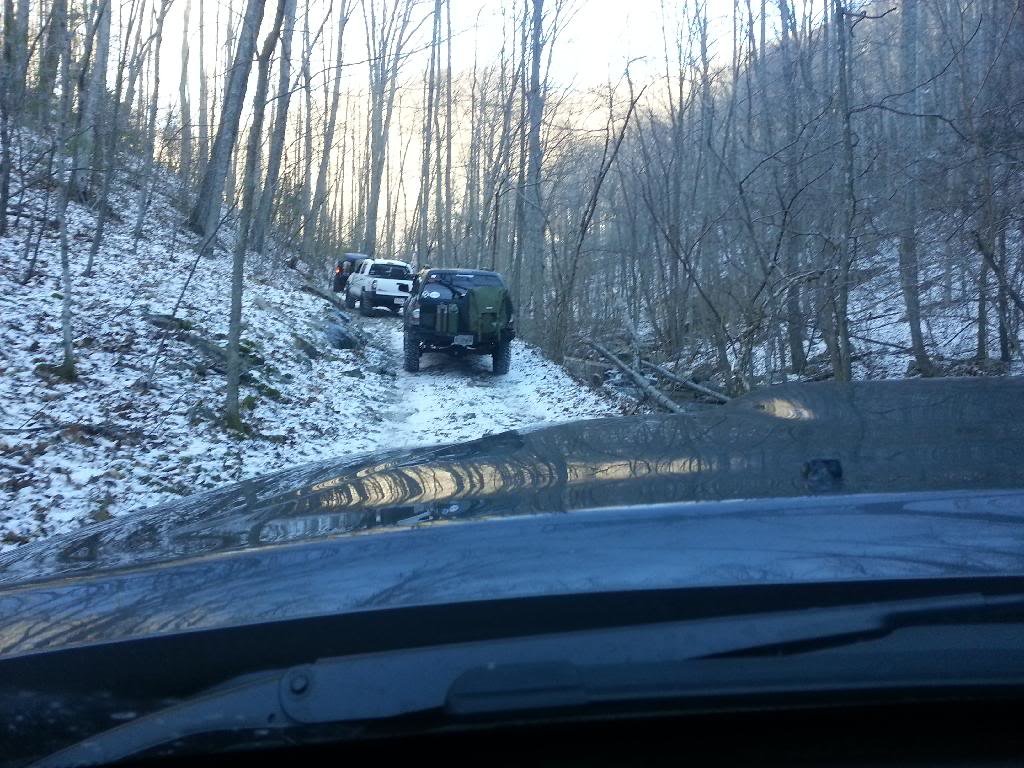

    Shoe Creek Annual Freeze your ass/drink your ass off meet January 2014
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

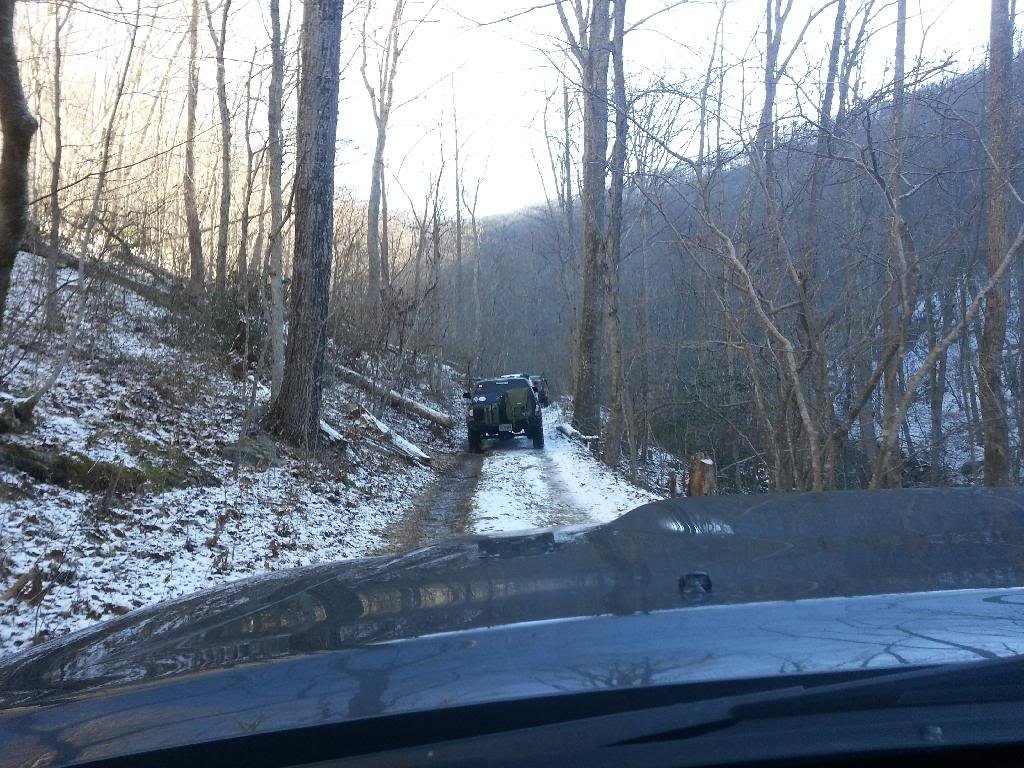

    October 2013 Uwharrie State Park OHV

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 19, 2015
  3. Feb 10, 2013 at 3:36 PM
    #3
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,943
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Thats def a good start bub

  4. Feb 12, 2013 at 6:03 PM
    #4
    ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,041
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    Did you get a tracking number on the sliders? When are they coming in?

  5. Feb 13, 2013 at 4:28 AM
    #5
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Still being built. My guess is they will ship by the end of the month.

  6. Feb 13, 2013 at 4:49 AM
    #6
    krob32

    krob32 Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73075
    Messages:
    1,365
    Gender:
    Male
    First Name:
    Kelly
    Ft. Belvoir, VA / Asheville, NC
    Vehicle:
    2012 MGM TRD Sport DCLB
    WeatherTec Digi Liners, AVS Bugflector II, TRD FJ SE Anthracite Rims, Goodyear DuraTrac 265/75/16, AVS In-Channel Wind Deflectors, Extang Solid Fold, Pop & Lock, Color Match Grill Emblem (Anthracite), Plasti Dip Emblems, Tacoma Bed Mat, Tacoma Door Sill Protectors, ToyTec Ultimate Lift Kit, ICON UCAs, Wet Okoles, Sockmonkey 3rd Brake Light Cover, LED Hood/Bed Lighting w/ OTRATTW Switches, Famous Fabrication Sliders, Sockmonkey TRD Bed Decal, Proven Design 4x4 Mudflaps, BenWA's Rear Power Sliding Window, Jasper Off Road 6" Reverse LED Pod, ImMrYo Rear View Mirror Bracket, GrillCraft w/ Black Mesh and color matched Land Cruiser Emblem, LED Tail Lights, Badge Removal and Vinyl TRD/Tacoma Stickers, Bullaculla Trailer Harness Relocation.
    Looking good.

  7. Feb 19, 2013 at 6:00 PM
    #7
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
  8. Feb 20, 2013 at 4:21 PM
    #8
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Woot woot just scored a very slightly used pelfrey front plate bumper!!! Epic. I had been eyeballing that bumper since I got the truck but thought the lead time, cost and shipping would make it a pipe dream...guess not! Should have it in the next few weeks installed with my winch. Woot woot!

  9. Feb 20, 2013 at 4:24 PM
    #9
    Greenbergler

    Greenbergler Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70331
    Messages:
    2,227
    Gender:
    Male
    First Name:
    Corey
    Orange County, CA
    Vehicle:
    08 4x4 SR5
    how much lift is in the back? and ou have 2.5" lift up front right?

  10. Feb 20, 2013 at 4:41 PM
    #10
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    The wheelers 3 pack with my overload netted me about 2" of lift and a softer ride.

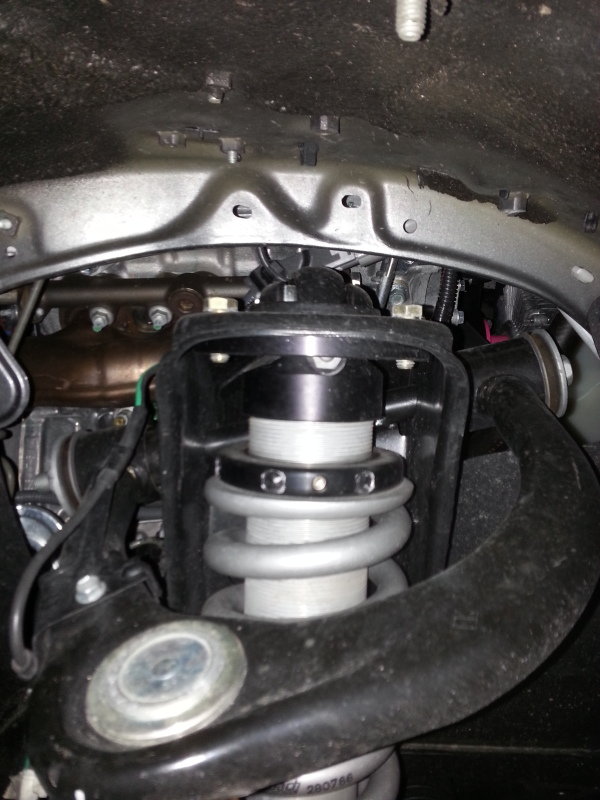

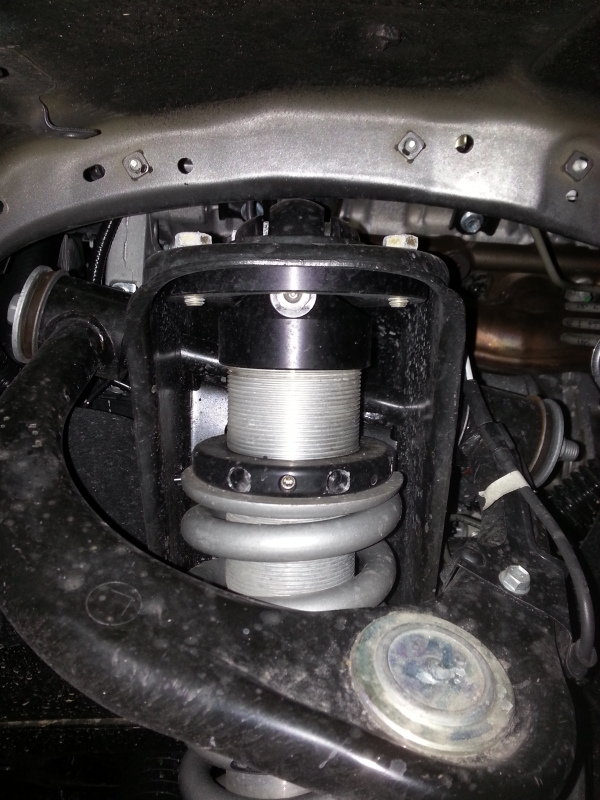

    In the front I am running a 2.5 coilover set at 2 1/2"s of lift until I decide which UCAs to buy then I will set them at 3"

  11. Feb 20, 2013 at 4:46 PM
    #11
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout

    You might want to order the 700# springs now and install them when you do your bumper and winch...or the ride is going to be a bit rough because you will be cranked down quite a bit...Need 2 of THESE at 700 lbs....or you can get the Eibach if you want the "COLORED" ones...

  12. Feb 20, 2013 at 4:59 PM
    #12
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Currently I am running the 600# eibach springs. Just picked up Ryans old 650# to toss in there if I need to crank a bunch. Think the 700# springs are necessary? I have seen some folks running with 600# springs and plates but I have no idea how much preload they had dialed in.

  13. Feb 20, 2013 at 5:12 PM
    #13
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
    :eek: funny, because he replaced them with 700# because he was sagging with them from JUST his allpoo bumper front skid plate :facepalm: I would absolutely sell them and get the 700# springs. This picture is from HIS build thread. can't believe he sold you those....smh

    [​IMG]

  14. Feb 20, 2013 at 5:22 PM
    #14
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Hmmmmmm interesting...guess I need some new springs... Man once you fall into the rabbits hole.

  15. Feb 20, 2013 at 5:41 PM
    #15
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
  16. Feb 20, 2013 at 5:44 PM
    #16
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Also don't mention the stock arms. They will be replaced with something better soon. But when the pelfrey popped up I had to scoop it up and spend my uca money!!!

  17. Feb 22, 2013 at 4:25 PM
    #17
    loco

    loco [OP] Who wants to ride my Brack Burrito

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    5,733
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    1996 Diesel Land Cruiser AKA Brack Burrito
    Well its a land Cruiser with a diesel so I've got that going for me.
    Picked up a very lightly used black softopper last night. Will snap some daylight photos tomorrow if the weather complies. Very cool little top thats for sure.

  18. Feb 22, 2013 at 11:35 PM
    #18
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,943
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Mhmmm I'm torn between get the eibachs or the kings. I don't know whether or not I want to do a hybrid bumper or just tube. So i don't know whether I want to go with the 600 lbs or go with the kings and get 650lbs. You got any pics with the new coils on?

  19. Feb 23, 2013 at 5:14 AM
    #19
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
    Look at my build page...

  20. Feb 23, 2013 at 7:42 AM
    #20
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
To Top
