Long Travel Taco Build MRK 2

Discussion in 'Long Travel Suspension' started by IFS4LIFE, Jan 4, 2015.

  1. Jan 14, 2015 at 5:40 AM
    #21
    Mad T

    Mad T Well-Known Member

    Joined:
    Jan 12, 2010
    Member:
    #29217
    Messages:
    537
    Gender:
    Male
    First Name:
    Thomas
    Georgia
    :popcorn: This is worse then seeing a trailer to a movie and having to wait for it to come out! I can't wait to see this all done.

  2. Jan 14, 2015 at 9:47 PM
    #22
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

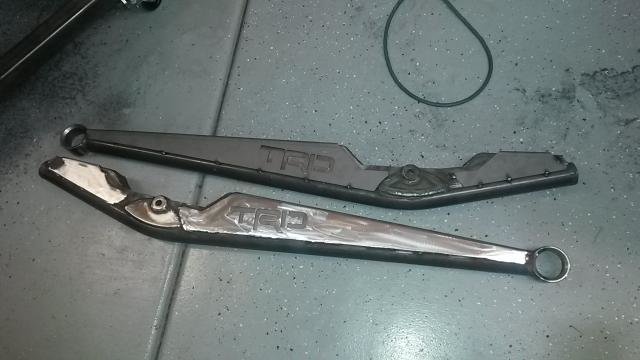

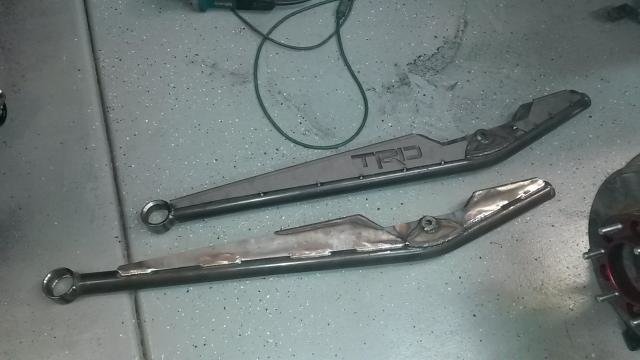

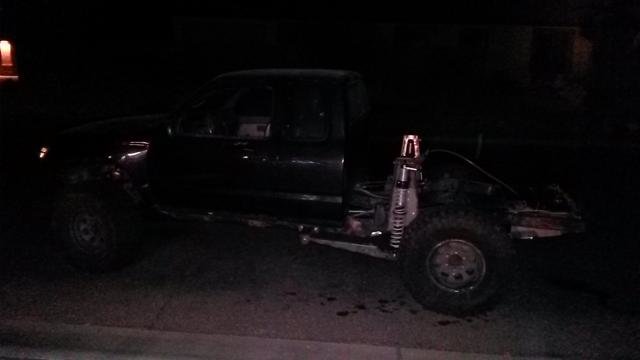

    More welding on the trailing arms


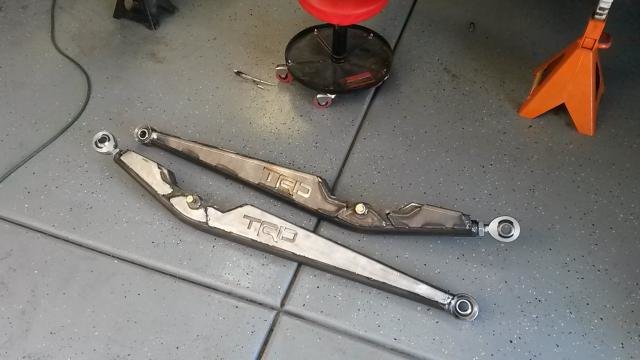

    After the cover plates

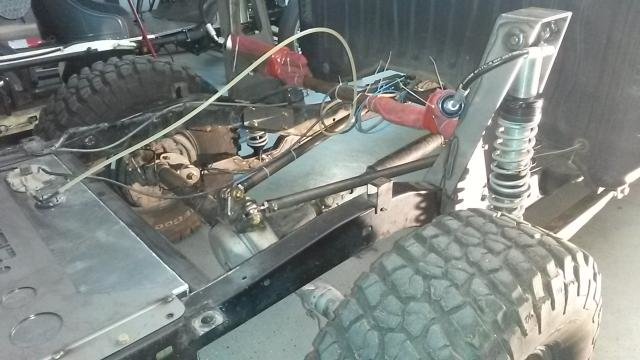

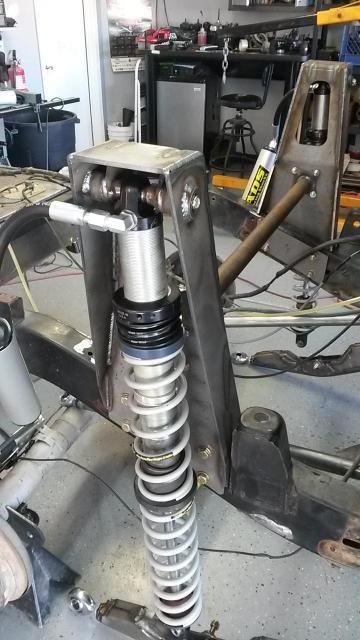

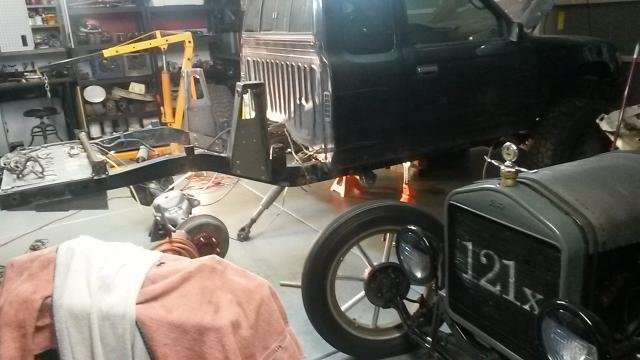

    Shock towers completely welded and bolted on to the frame


    Not a bad night for a fire either


  3. Jan 17, 2015 at 9:54 PM
    #23
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

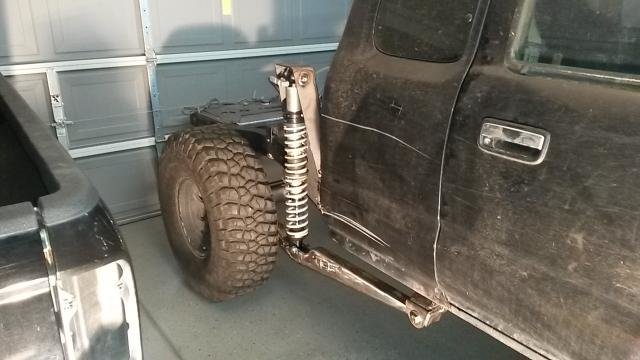

    There's definately some bailing wire and duck tape action going on, but it is mobile and it drives straight and nothing fell off or broke on it's maiden voyage.







    There is still a lot of work to be done, but from here on out it's all small stuff and as soon as I clean up the fuel lines, the brake lines, and some wiring under the hood I can start wheeling again.

  4. Jan 19, 2015 at 8:06 PM
    #24
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

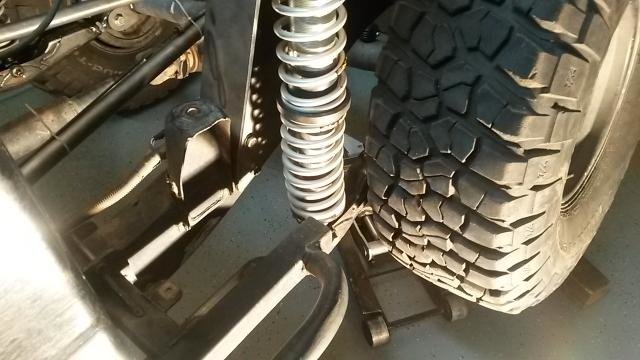

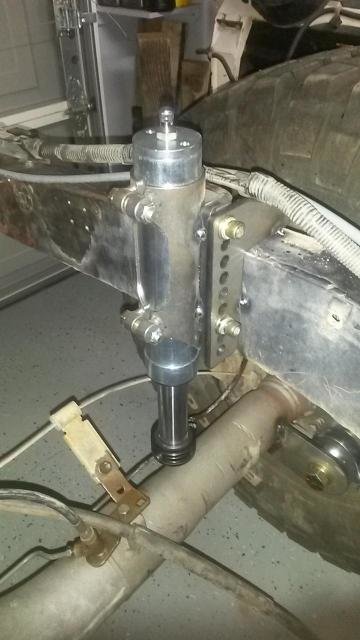

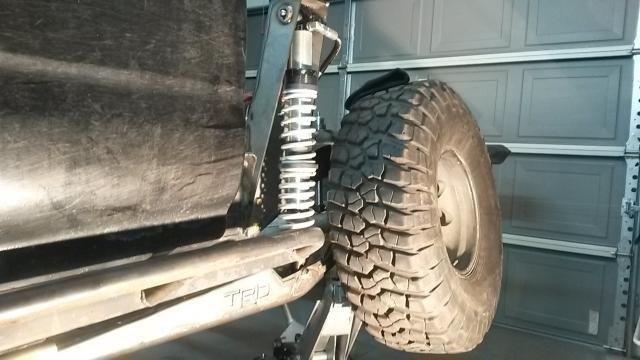

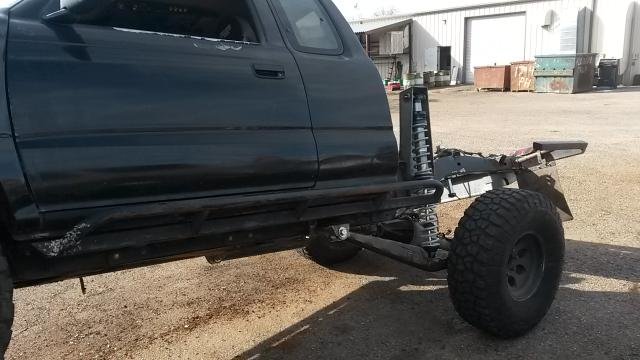

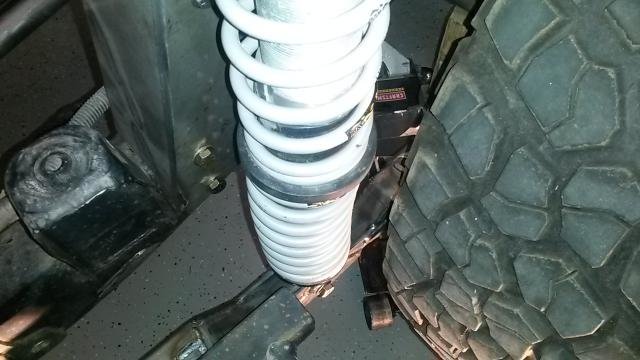

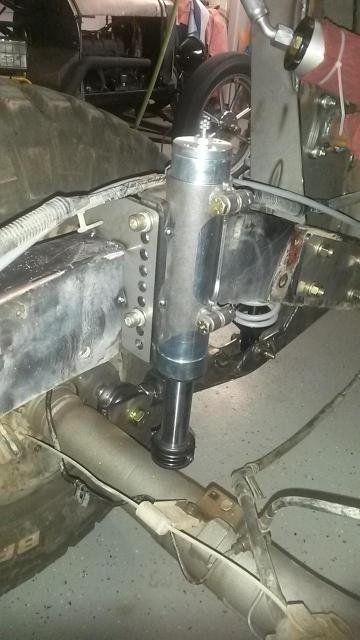

    Adjustable bump can mounts mocked up tonight. The truck is sitting about 3" below right height so the pads will be further from the axle tube when it's sitting level.



    Pirhett likes this.
  5. Jan 20, 2015 at 6:01 PM
    #25
    FD15COLLI

    FD15COLLI Active Member

    Joined:
    Jan 17, 2015
    Member:
    #146567
    Messages:
    39
    Gender:
    Male
    First Name:
    John
    Andover, CT
    Subbed, when i get my '16 I'll have to hit you up for some advice, hopefully be similar dimensions...

  6. Jan 20, 2015 at 7:02 PM
    #26
    Mxpatriot

    Mxpatriot Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    3,620
    Gender:
    Male
    Vehicle:
    '06 4x4 AP LT and Locked
    I'm digging that adjustable bumpstop mount.

  7. Jan 20, 2015 at 10:24 PM
    #27
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

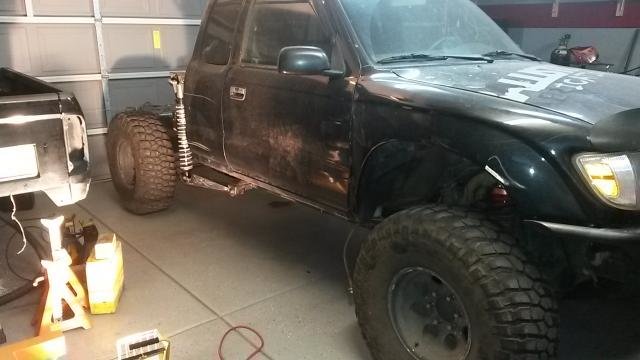

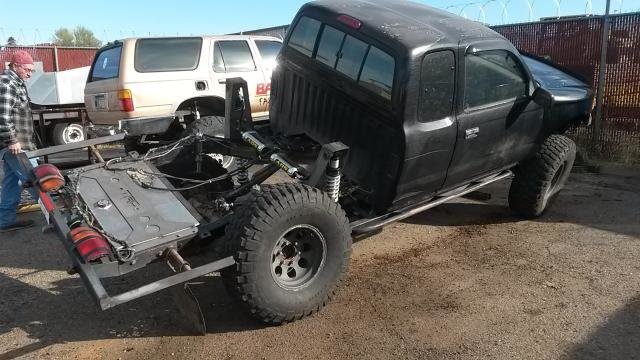

    Got the sliders and bumper bolted back on tonight. None too much room to spare, but enough.

    It's headed to ADS tomorrow to have some spring and shock work done and I'll get the reservoir cans mounted. First wheeling trip is planned for Saturday morning. Won't have the bed on by then most likely but I don't need it to wheel.






  8. Jan 21, 2015 at 9:30 PM
    #28
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish
    So I took the night off and sent ol' girl off to the guys at ADS to have their way with her.

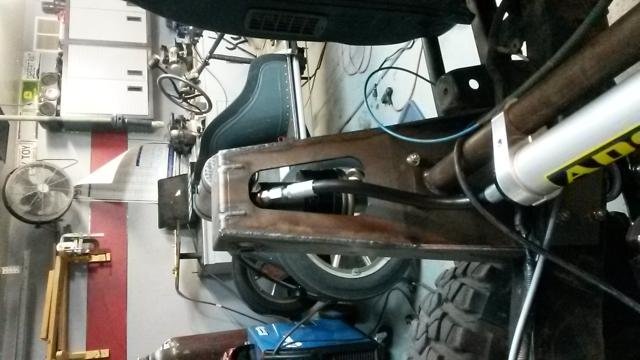

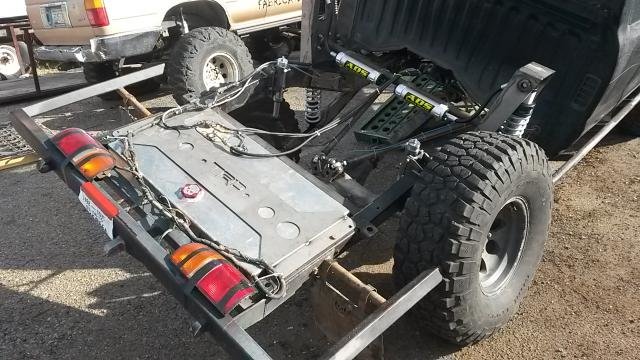

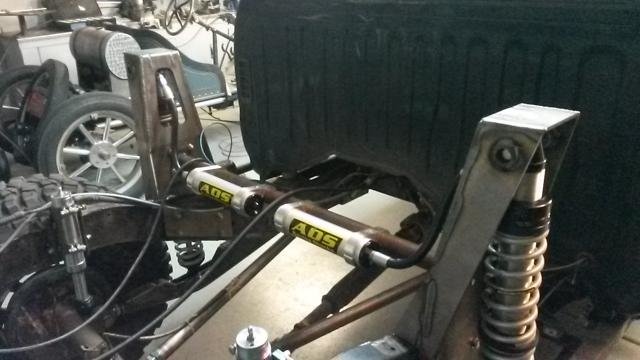

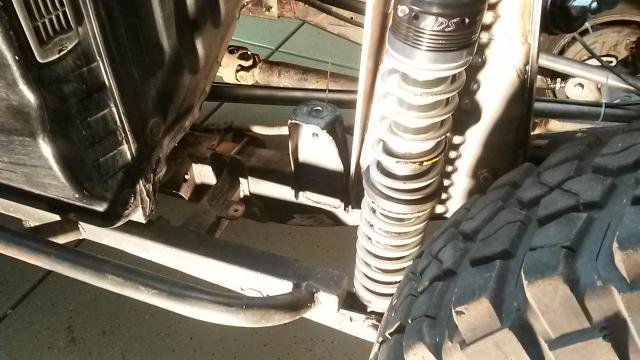

    Replaced the springs with 300/250/100 tenders, adjusted the valving, re-routed the resi hoses and added some billet clamps to put the resi bodies where they belonged in the first placed. Also fixed my ghetto rigged fuel line so now it's semi-safe to drive. So far she rides like a dream. Can't wait to hit the dirt in a few days.

    Pirhett likes this.
  9. Jan 22, 2015 at 10:37 AM
    #29
    TacoBran

    TacoBran You're Unique, Just Like Everyone Else

    Joined:
    Nov 1, 2011
    Member:
    #66278
    Messages:
    932
    Gender:
    Male
    First Name:
    Brandon
    Peoria, AZ
    Vehicle:
    2023 Double Cab Trail Edition; 03 Double Cab 4x4 TRD SOLD
    2023 Bone stock... 2003 - Icon coilovers, TC UCA, icon shocks w/resi's, deaver leafs - 4x4 swap in progress
    Wow looking great! We should duplicate this on a double cab :D

  10. Jan 22, 2015 at 11:08 AM
    #30
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish
    Do those have a carrier bearing?

  11. Jan 22, 2015 at 11:20 AM
    #31
    JerryTaco

    JerryTaco Well-Known Member

    Joined:
    Jan 28, 2013
    Member:
    #96315
    Messages:
    6,862
    Wow, nice fab work!!

  12. Jan 22, 2015 at 11:42 AM
    #32
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish
    Thanks.

    Tonight I'll mount the bump pads and lower limit strap tabs and figure out how I wan to to make the upper strap mounts adjustable. I'm probably going to re-design these trailing arms for future runs as there was way too much welding involved and they could be much more easily fabbed. I'm going to put a manual proportioning valve up front for the rear brakes and then drive and test and tune for a bit while I fab up a new rear axle housing using the Toyota 3rd member. Should be a bolt in job with this system, if I do my part correctly and design it well.

  13. Jan 23, 2015 at 3:42 PM
    #33
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

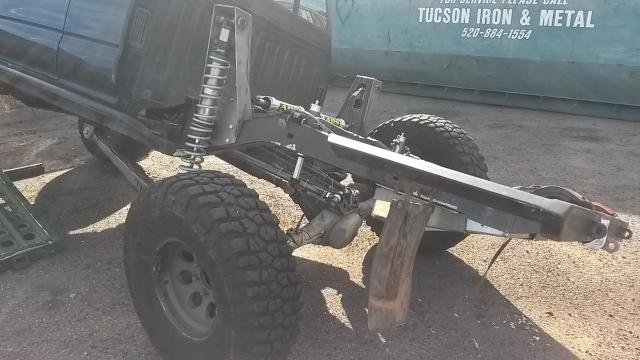

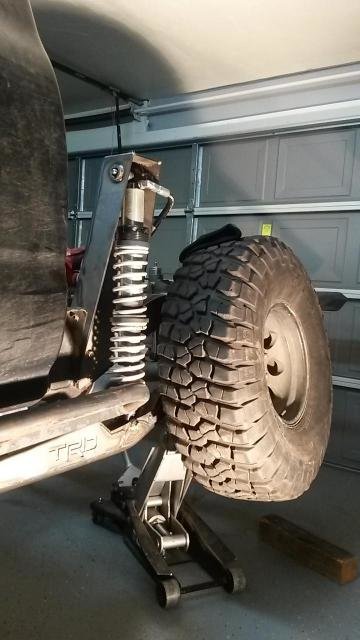

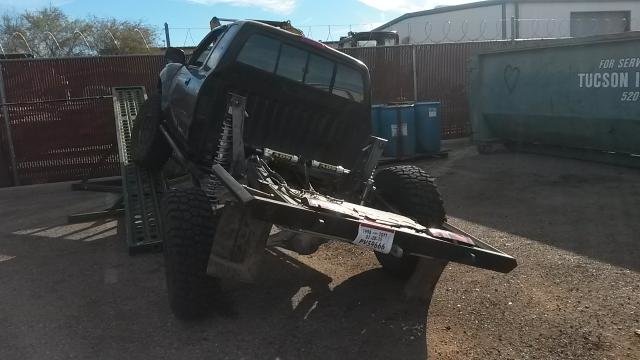

    Passed emissions this morning and put it up on the ramp. It has more travel left in it, but I have to trim the bumper side pieces before they eat the tire I learned. I'd never planned for this much travel when I built that 5 years ago.






    Pirhett likes this.
  14. Jan 24, 2015 at 10:41 AM
    #34
    edgerat

    edgerat Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109668
    Messages:
    504
    Gender:
    Male
    First Name:
    Isaac
    Olympia, WA
    Vehicle:
    Brown Tacoma
    gas and oils
    Hahahaha, that is so ridiculous! Love it! Can't wait to see some trail pics!

  15. Jan 25, 2015 at 6:52 PM
    #35
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

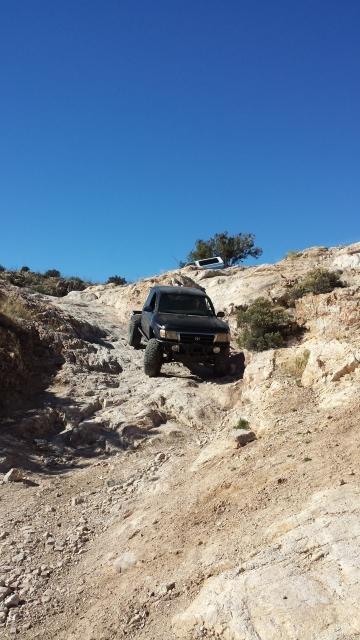

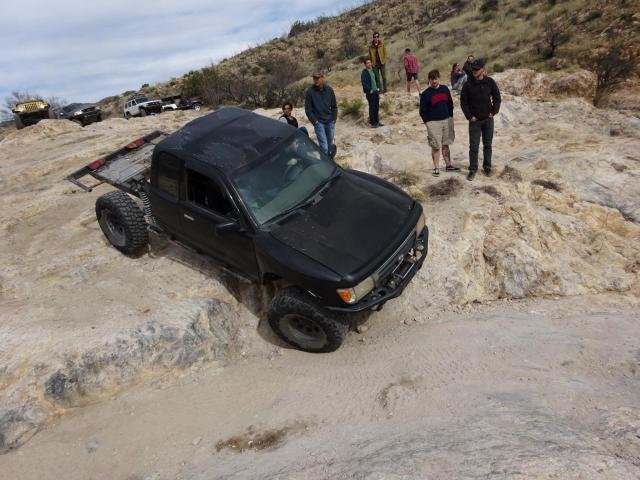

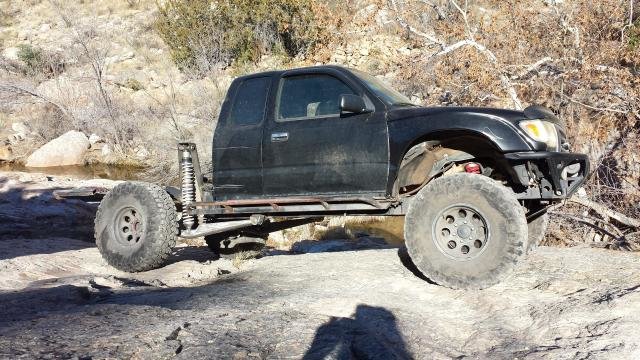

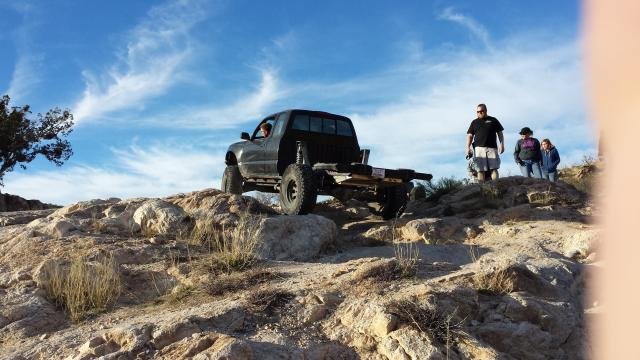

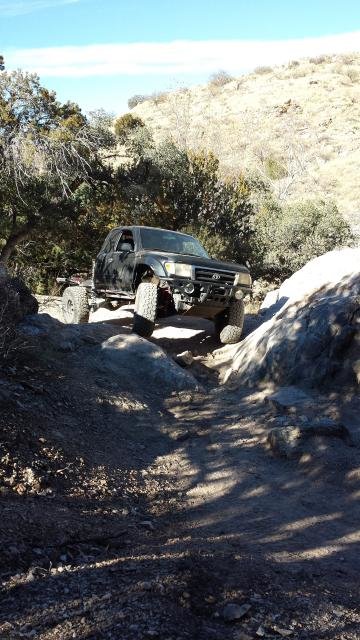

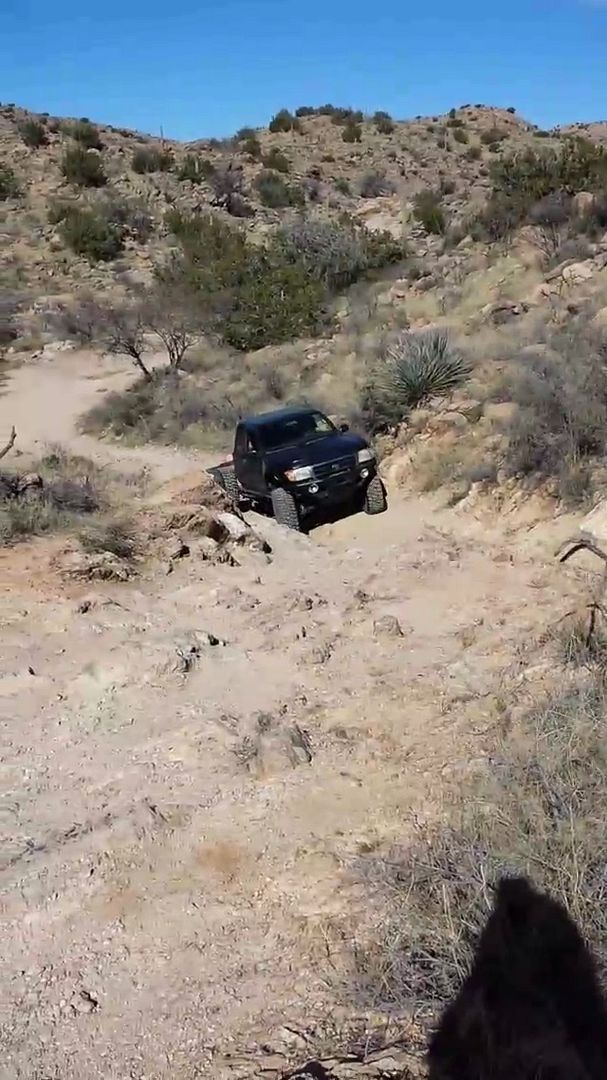

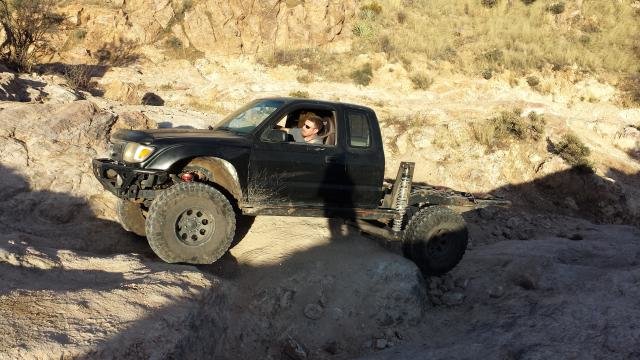

    Took it easy on day 1 this weekend just to get a feel for things. I adjusted the bump height last night and the pressure before heading out again today. A few photos from the trip.






    885542_1580859915459501_8347606734575832_200bfe9c41660f6d5062d5f840ec2bff426e7941.jpg

    [​IMG]

    I laid into it pretty good today to really test the strength and durability of the arms. No dents, but a few good scratches and I bumped them pretty good on a couple climbs. Broke both front CV's but no other failures.

    I've achieved my goals. Drove 90 to and from the trail with 1 hand on the wheel and it drives really nice in the dirt. I might change of the crossmember design just a bit for revision 2 but nothing major.

    Last edited: Jan 25, 2015
  16. Jan 25, 2015 at 7:06 PM
    #36
    302

    302 I love Taylor Swift :D

    Joined:
    Sep 25, 2013
    Member:
    #113250
    Messages:
    593
    Gender:
    Male
    First Name:
    Lawrence
    302
    Vehicle:
    07' DCSB TRD Sport SSM
    Bedside decal
  17. Jan 25, 2015 at 7:46 PM
    #37
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish

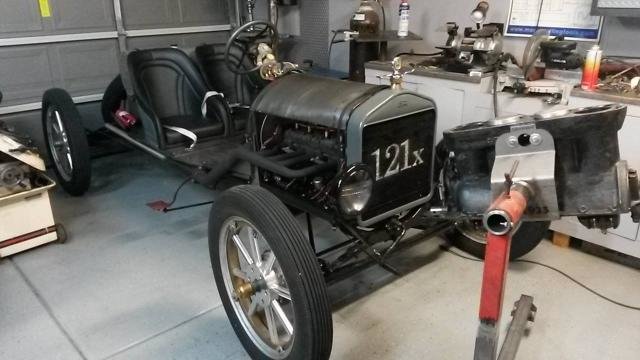

    My other baby. Built that one from the ground up.

    1932751_10103289541629102_16738878453497_8664a2a9f1a9cd82996217d98f2a86ae2ef6d872.jpg

    Powertrain is era made performance upgrades only so it makes between 23-25hp for now. I have a few other things planned but they'll be era made parts as well. The sheetmetal is all me because I didn't have anything to start with. 1923 Model T Speedster. Run a couple races a year in it and tour in it about once a month. The rest of the time it's my grocery getter and yes I have to start it with the hand crank up front. lol. It'll run about 62 mph on flat ground, but that's cooking on a tire that's only about 4" wide and a spindle that about 1" in diameter.

    not_nick and Guerrilla like this.
  18. Jan 27, 2015 at 6:23 PM
    #38
    JuansTaco

    JuansTaco JuanInAMillion

    Joined:
    Nov 18, 2012
    Member:
    #91397
    Messages:
    8,904
    Gender:
    Male
    First Name:
    Juan
    gilbert az
    Vehicle:
    2004 PreRunner SR5 stormtrooper
    ESB long travel kit, Deaver f67s with DTF 12 inch shackles.
    SUBD!

    why are you trying to make everything bolt on?

  19. Jan 27, 2015 at 6:33 PM
    #39
    kirkofwimbo

    kirkofwimbo Well-Known Member

    Joined:
    Jul 17, 2010
    Member:
    #40338
    Messages:
    2,054
    Gender:
    Male
    First Name:
    Clayton
    Wimberley, TX
    Vehicle:
    ‘21 Tundra SR 4x4
    Sub'd. Awesome build!

  20. Jan 27, 2015 at 9:24 PM
    #40
    IFS4LIFE

    IFS4LIFE [OP] Well-Known Member

    Joined:
    Jan 4, 2015
    Member:
    #145593
    Messages:
    120
    Gender:
    Male
    Tucson
    Vehicle:
    98 Tacoma 4X4
    Stock.....ish
    Because 90 percent of the average builders don't know how to weld, or own a welder, or shouldn't be welding when it comes to life, limb, and property and because nobody else has done it. If it can be bolted on, it can be welded on should you choose, but not the other way around.

    not_nick likes this.
