Looking for pictures of an original 2001 TRD (diff lock) under seat wiring connections

Discussion in '1st Gen. Tacomas (1995-2004)' started by jeffmort, Dec 24, 2022.

  1. Dec 24, 2022 at 10:33 AM
    #1
    jeffmort

    #1
    jeffmort [OP] Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178410
    Messages:
    176
    Gender:
    Male
    First Name:
    Jeff
    So Cal
    Vehicle:
    2001 Xtracab PreRunner
    I am hoping that someone who has a 2001 TRD (with factory e-locker) is willing to take a few pictures of their under driver's seat wiring harness connections so that I can properly wire my e-locker rear end that I am swapping into my 2001 Prerunner (not TRD).

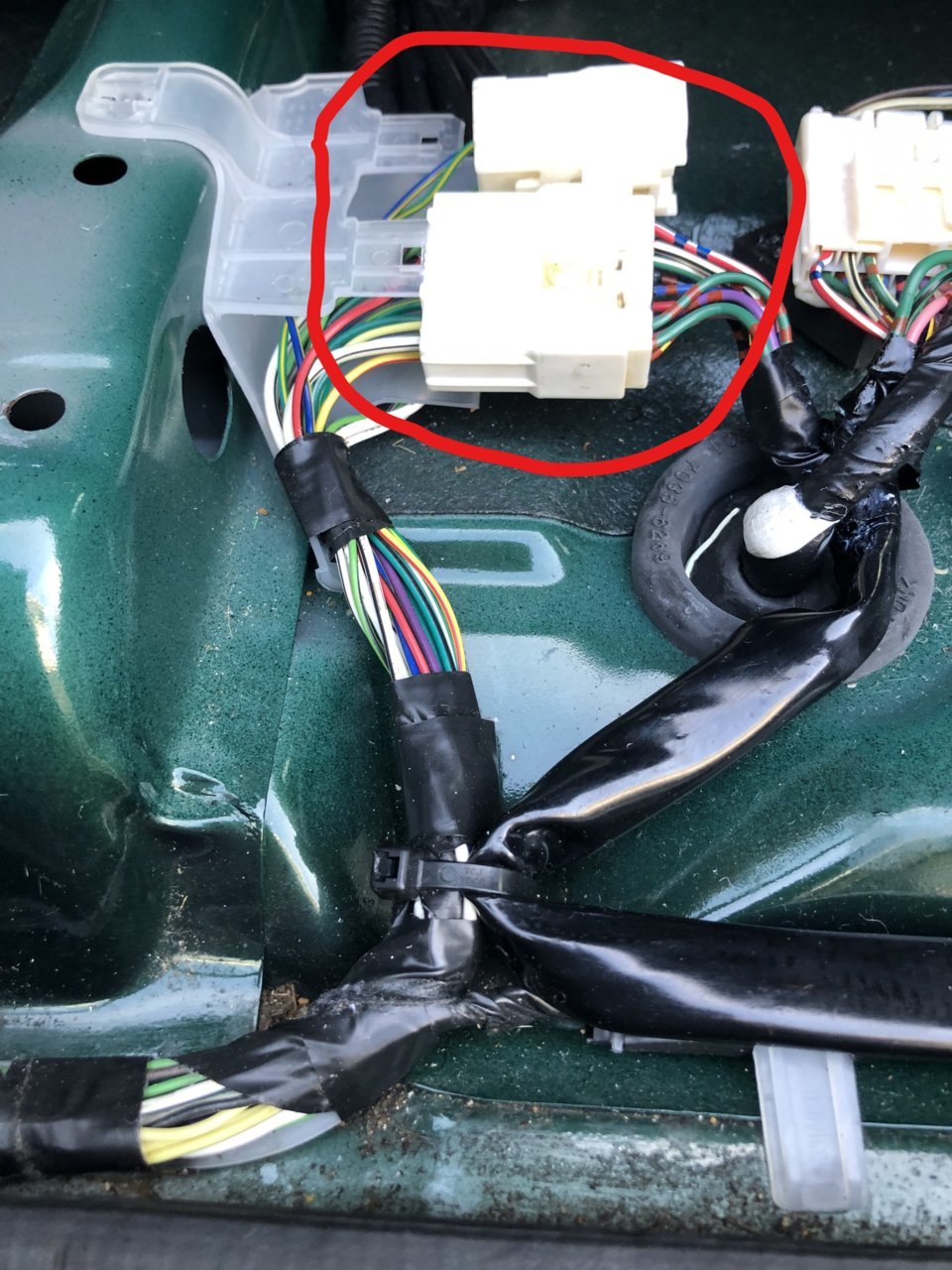

    I am looking for factory original wiring pictures specifically on the two connectors shown in the pictures below.
    What I am hoping to be able to see is:

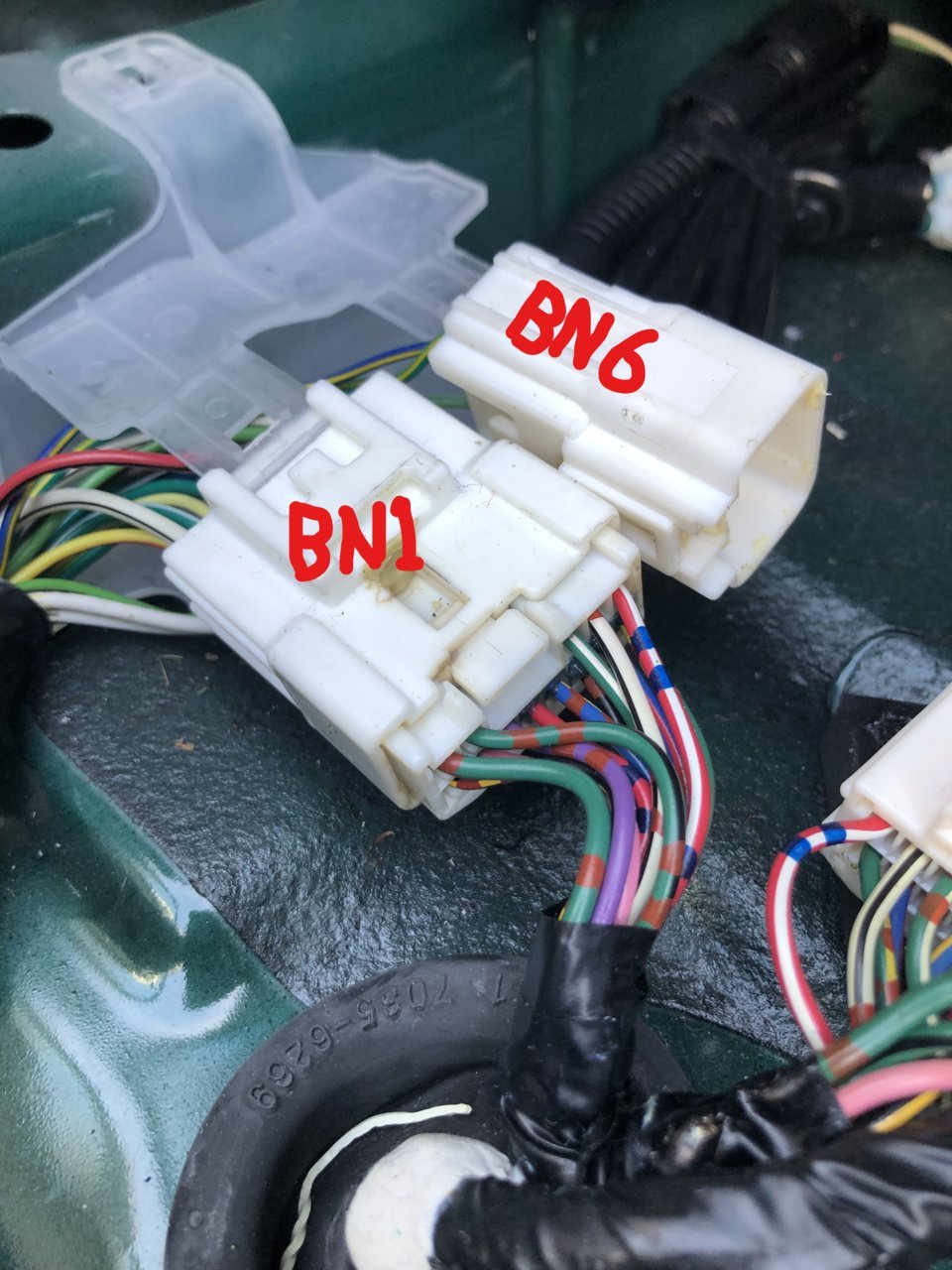

    1) Pictures of both (top and bottom) sides on the BN1 connector so I can see both rows of wires to determine wire colors.
    2) Pictures of both side of the BN6 connector to determine wire colors.

    Any help would be much appreciated.





    jeffmort, Dec 24, 2022
