Loose Mirror Housing to Arm

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ibJAE, Sep 18, 2010.

Post Reply

Sep 18, 2010 at 8:37 AM

#1

#1
ibJAE [OP] Member

Joined:

Jul 4, 2009

Member:

#19261

Messages:

8

Gender:

Male

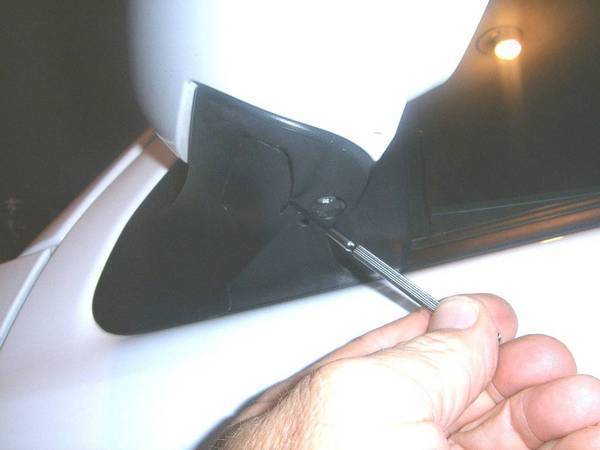

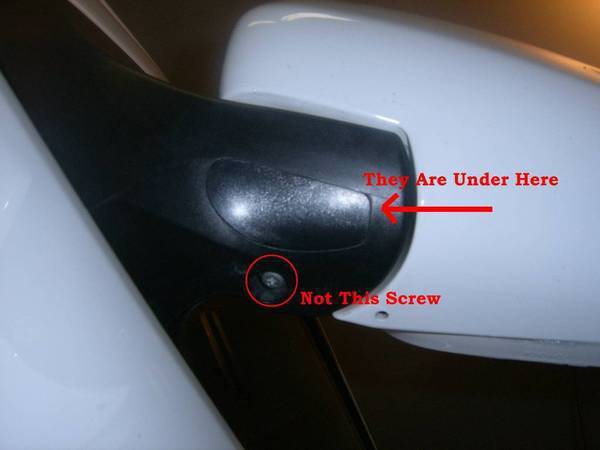

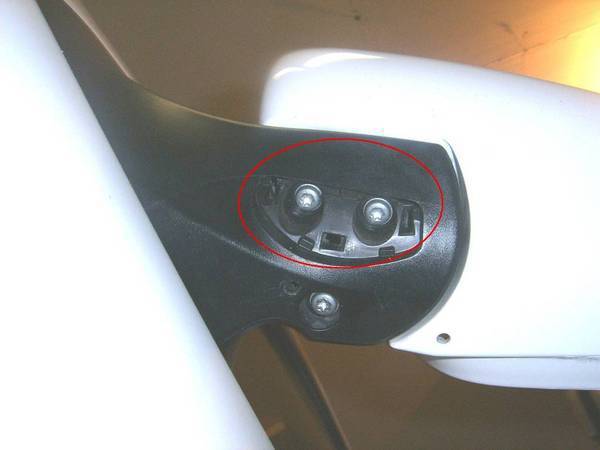

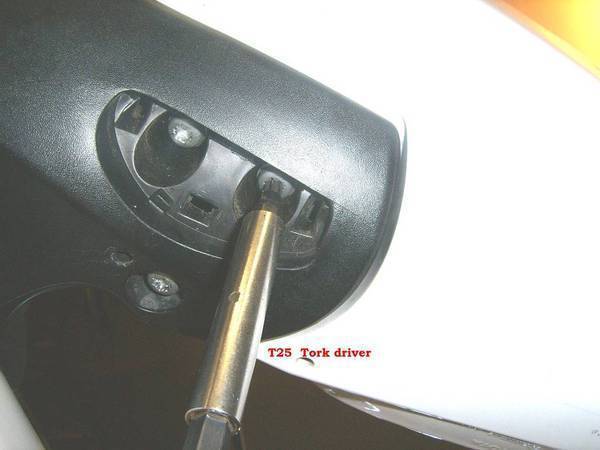

I searched but did not find this fix. This may not be everyone's problem, but it sure was mine. If the mirror is only loose at the housing to the black arm there are two screws under a removable cover; it is not the one exposed tork screw. See the following photos. Self explanatory.

ibJAE, Sep 18, 2010

#1

robm7 likes this.

Sep 19, 2010 at 6:11 AM

#2

#2
Rocketball If The World Didn't Suck, We'd All Fall Off

Joined:

Mar 18, 2009

Member:

#14869

Messages:

2,118

Gender:

Male

First Name:

Scott

Westminster, MD

Vehicle:

08 Speedway Blue DC Sport 4x4

Pioneer head unit, PAC steering wheel control modual, Hard wired Sirius radio, Hard wired radar detector, Hella Supertone horns, Blacked out badges, Smoked Tails, BHLM (color matched Speedway Blue), T-Rex Eyelids, Black Powder Coated Billet Grill, Color Matched Engine Cover, Lund in channel vent visors, FJ Cruiser wheels, Leer 100XQ shell, OEM bed mat, Piezo beeper for locking doors, Tinted front side windows, Black Westin bull bar, Aires tube steps, Mini Maglite Mod, D-Cell Maglite Mod, Weathertech Digifit Floor Mats

Hmmmmm....

I'll have to give this a shot.

Rocketball, Sep 19, 2010

#2

Sep 19, 2010 at 7:14 AM

#3

#3
brutalguyracing BIG DADDY

Joined:

Jun 28, 2009

Member:

#19000

Messages:

24,052

Gender:

Male

F.U> GUYZ

broken mods

nice job

brutalguyracing, Sep 19, 2010

#3

Nov 8, 2010 at 6:52 PM

#4

#4
dirtfondler Well-Known Member

Joined:

Nov 5, 2010

Member:

#45762

Messages:

241

Gender:

Male

San Jose, CA

Vehicle:

00 F250 7.3L Diesel

Spot on, thanks for posting this fix and the good photos.

Only thing I would change is to remove the screws, one at a time, and add some loctite 242 (blue) to the screws. This will save the effort of doing again in a few months.

dirtfondler, Nov 8, 2010

#4

Nov 8, 2010 at 8:53 PM

#5

#5
skistoy Make mine a Double!

Joined:

Jul 6, 2009

Member:

#19356

Messages:

2,004

Gender:

Male

First Name:

Mike

Western New York

Vehicle:

09 4X4 SR5 BSP Double Taco

Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide

Hmmmmmm ??
Have to check this out

skistoy, Nov 8, 2010

#5

Nov 14, 2010 at 6:39 AM

#6

#6
Rocketball If The World Didn't Suck, We'd All Fall Off

Joined:

Mar 18, 2009

Member:

#14869

Messages:

2,118

Gender:

Male

First Name:

Scott

Westminster, MD

Vehicle:

08 Speedway Blue DC Sport 4x4

Pioneer head unit, PAC steering wheel control modual, Hard wired Sirius radio, Hard wired radar detector, Hella Supertone horns, Blacked out badges, Smoked Tails, BHLM (color matched Speedway Blue), T-Rex Eyelids, Black Powder Coated Billet Grill, Color Matched Engine Cover, Lund in channel vent visors, FJ Cruiser wheels, Leer 100XQ shell, OEM bed mat, Piezo beeper for locking doors, Tinted front side windows, Black Westin bull bar, Aires tube steps, Mini Maglite Mod, D-Cell Maglite Mod, Weathertech Digifit Floor Mats

Finally got around to this today.

OMG.... Worked like a charm, and it only took me about 30 seconds.....

Rocketball, Nov 14, 2010

#6

Jan 23, 2020 at 8:39 AM

#7

#7
jtaco11 Well-Known Member

Joined:

Jun 15, 2019

Member:

#296379

Messages:

590

Gender:

Male

what I was looking for thx

jtaco11, Jan 23, 2020

#7
