Lower Control Arm camber / caster eccentric adjustment frame tab broken

Discussion in 'Suspension' started by xodeuce, Mar 21, 2011.

  1. Mar 21, 2011 at 12:47 PM
    #1
    xodeuce

    xodeuce [OP] mmmmmmbourbon.

    Joined:
    Oct 16, 2009
    Member:
    #24427
    Messages:
    1,395
    Gender:
    Male
    Alabama
    Vehicle:
    2004 UZJ100
    I took my truck to the dealership to get it aligned after installing an OME kit. 885's, shocks, and LR UCA's up front. The dealer took 2 hours aligning it, and then came to inform me that "they couldn't get it in spec," and that I needed to take it to a specialty shop. I told them I did not feel like I should pay for the alignment if they couldn't get it done correctly. They also seem to have installed the eccentric washers upside down. I got out for $49.

    This morning, I took it to an off road shop that does alignments on lifted vehicles all the time. They explained their alignment procedure, it sounded solid, so I left it there. They called me a couple of hours later to say that they pulled the skid plate off to do the LCA adjustment, and that the tabs were bent preventing them from being able to adjust the eccentric fittings to complete the alignment. I told them to take pics and send them to me, take the truck off the rack, and I would take it to the last person that touched the LCA (Toyota dealership,) and see what they said.

    Basically Toyota says that the other shop did it, that "This is a common problem, and our guys know not to do it. You have to loosen the adjustments from the front, if you do it from the back it will do this."

    Anyway, according to Toyota, they'll just try to bend the tab back in place, and if it breaks, they'll "send it over to the body shop and get it welded right up."

    The off road shop said the same thing, but they said regardless of if it breaks or not, they want to pull the LCA so that they don't melt the bushings when they weld right next to where they mount, then put a bead on either side of the tab, and grind the interior surface flat so that the eccentric washer sits flat. I'm no expert, but that sounds like the correct way to do things.

    Any pointers or tips?

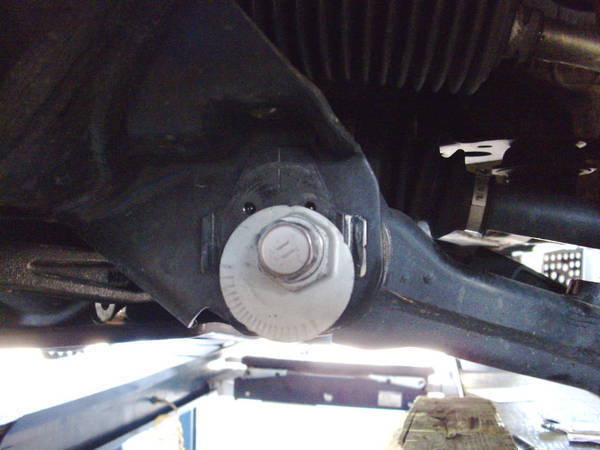

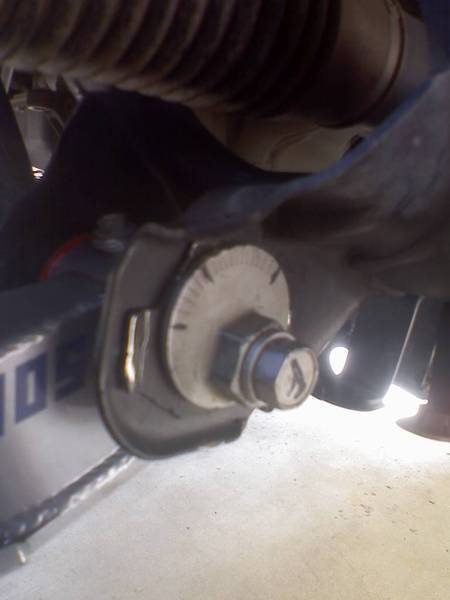

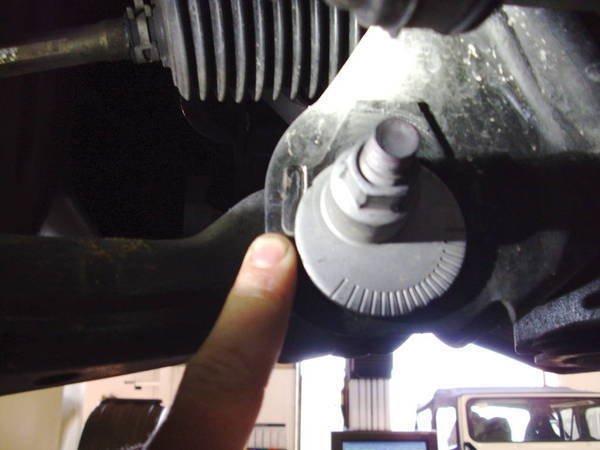

    Pics below:


    [​IMG]

    [​IMG]

    [​IMG]

  2. Mar 21, 2011 at 12:50 PM
    #2
    plee33

    plee33 Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33105
    Messages:
    280
    Gender:
    Male
    First Name:
    Peter
    Sacramento, CA.
    Vehicle:
    SWB TRD Sport Long Bed 4x4
    SnugTop SuperSport Shell, BedRug, OME Heavy Duty Lift Kit, Weathertech Liners, more to come....
    The bead is the best solution for this fix. Check out BJmoose's full install on the OME lift kit. He had the same issue.

  3. Mar 21, 2011 at 12:56 PM
    #3
    mjp2

    mjp2 Living vicariously though myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    17,781
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Extremely common issue. The bead solution will hold up better than simply bending the metal back in place.

    Since you'll have stuff pulled apart anyway, make sure they lubricate the parts before reassembling everything. The alignment cams are not lubed from the factory and tend to seize in the LCAs.

  4. Mar 22, 2011 at 11:16 AM
    #4
    straycat241

    straycat241 maXXXed out mid travel

    Joined:
    Jun 24, 2008
    Member:
    #7545
    Messages:
    990
    Gender:
    Male
    First Name:
    paul
    montclair, ca
    Vehicle:
    PreRunner TRD off road 4x2
    airaid intake, jba headers, jba exhaust, DMZ enginecage, King 2.5 coilovers , 1.25camburg uca's, total chaos lca's, shock hoops with Icon 2.5 piggybacks, camburg 4.0 Spindles, Defined engineering SUA, King 2.5" Shocks w/Reservoir, King 2.5 Bumpstops,shocktacobumper,moto metal 951's, compartment locks, blackgrill,Glassworks fenders front and rear,ViS racing glass hood,PIAA 510s,hella 500's,black rebadge,fabtech spare tire holder,tailgate delete,mudflaps delete,cobra 19 ultra iii
    fairly simple fix shouldnt be too much :) a shop bent mine over, went to DMZ and tim hooked me up!!

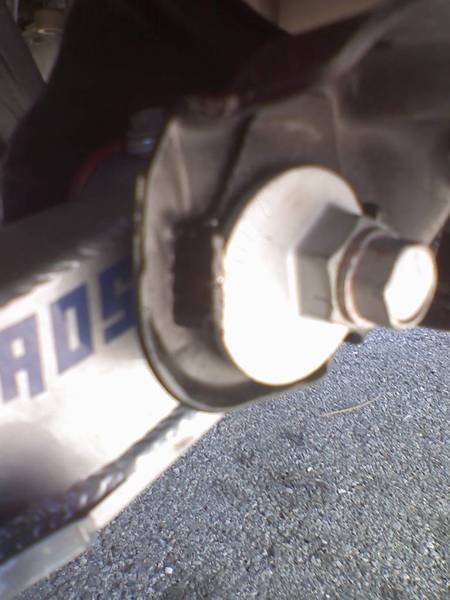

    [​IMG]
    [​IMG]

  5. Mar 22, 2011 at 11:30 AM
    #5
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    I think they welded mine "in place."

    You'll blink when you see the shop rate labor estimate to remove-repair-reinstall both LCAs.

  6. Mar 22, 2011 at 11:37 AM
    #6
    Sublime

    Sublime Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,456
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    Same thing happened to mine. Bent back and shop said if it happens again he'll just put a bead on it.

  7. Mar 22, 2011 at 1:20 PM
    #7
    xodeuce

    xodeuce [OP] mmmmmmbourbon.

    Joined:
    Oct 16, 2009
    Member:
    #24427
    Messages:
    1,395
    Gender:
    Male
    Alabama
    Vehicle:
    2004 UZJ100
    Any worry about melting the bushing? Or did they just do a series of tacks to keep it from heating up?

  8. Mar 22, 2011 at 1:28 PM
    #8
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    Shop didn't mention anything about the bushing, and I wasn't there to observe their technique, sorry.

    I got hit for three hours labor total, IIRC. So it's possible they pulled each bolt and bushing separately before welding down the bead.

  9. Mar 23, 2011 at 12:37 AM
    #9
    plee33

    plee33 Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33105
    Messages:
    280
    Gender:
    Male
    First Name:
    Peter
    Sacramento, CA.
    Vehicle:
    SWB TRD Sport Long Bed 4x4
    SnugTop SuperSport Shell, BedRug, OME Heavy Duty Lift Kit, Weathertech Liners, more to come....
    There any way you can go under and take a picture of how they bead yours.

  10. Apr 6, 2011 at 6:05 PM
    #10
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
  11. Dec 6, 2016 at 2:21 PM
    #11
    jdavis92

    jdavis92 Well-Known Member

    Joined:
    Dec 10, 2009
    Member:
    #27329
    Messages:
    244
    Gender:
    Male
    Flagstaff, AZ
    Vehicle:
    05 Tacoma V6 SR5 Package #8 Debadged
    URD TCAI, aFe 2.5" exhaust, UltraGauge, Weathertechs, Wet Okoles
    Thread revival!

    For those of you who have had this fixed with a bead, was the bead run on the outside of the tab after bending it back into place?

    I am taking mine to a welder here in town and I want to make sure we are both on the same page when I tell him what needs to be done.

    Thanks.

  12. Dec 8, 2016 at 7:48 PM
    #12
    Jon4x4

    Jon4x4 Well-Known Member

    Joined:
    Nov 2, 2009
    Member:
    #25293
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Uhh duh
    Deltona, Fl

    Yes on the outside of the tab.
