M101a2 Overland Trailer Build

Discussion in 'Towing' started by TTSMN, Apr 10, 2017.

  1. Apr 10, 2017 at 7:52 AM
    #1
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    Over the summer (and likely next summer) I am going to be working on turning the M101a2 surplus trailer I purchased into an Overlanding/camping/utility trailer.

    I'd like to end up with a trailer that has a RTT, water storage, and a pull-out kitchen.

    I am hoping this can be a family project to teach my kids some basic skills and for me to get back into welding.

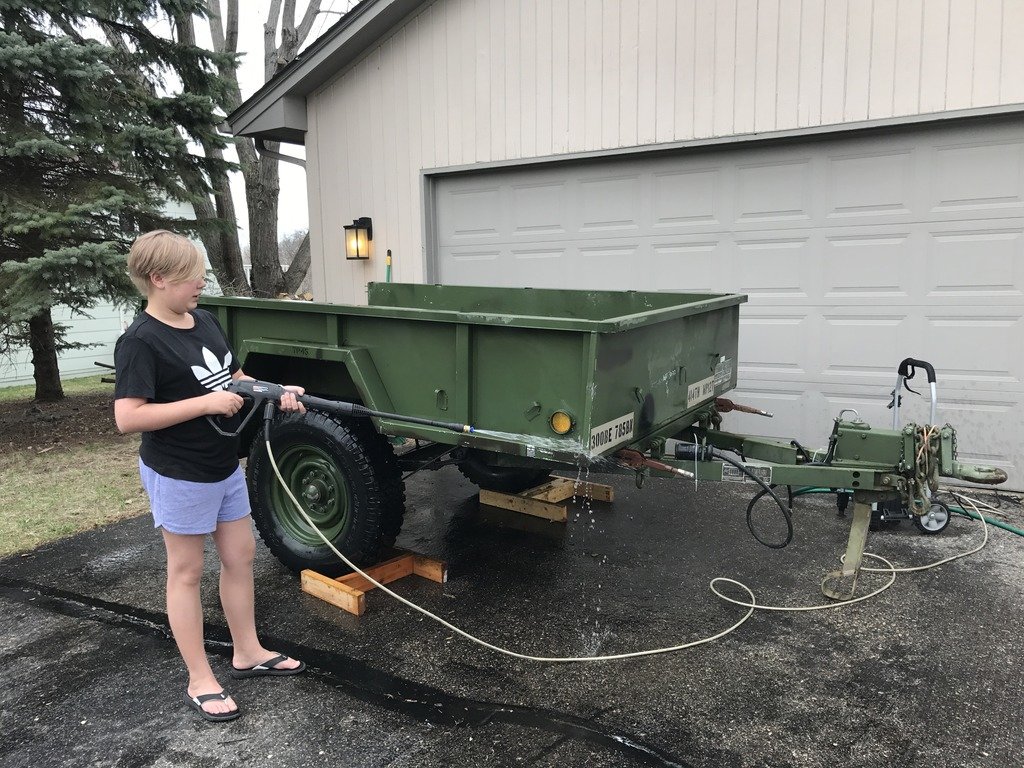

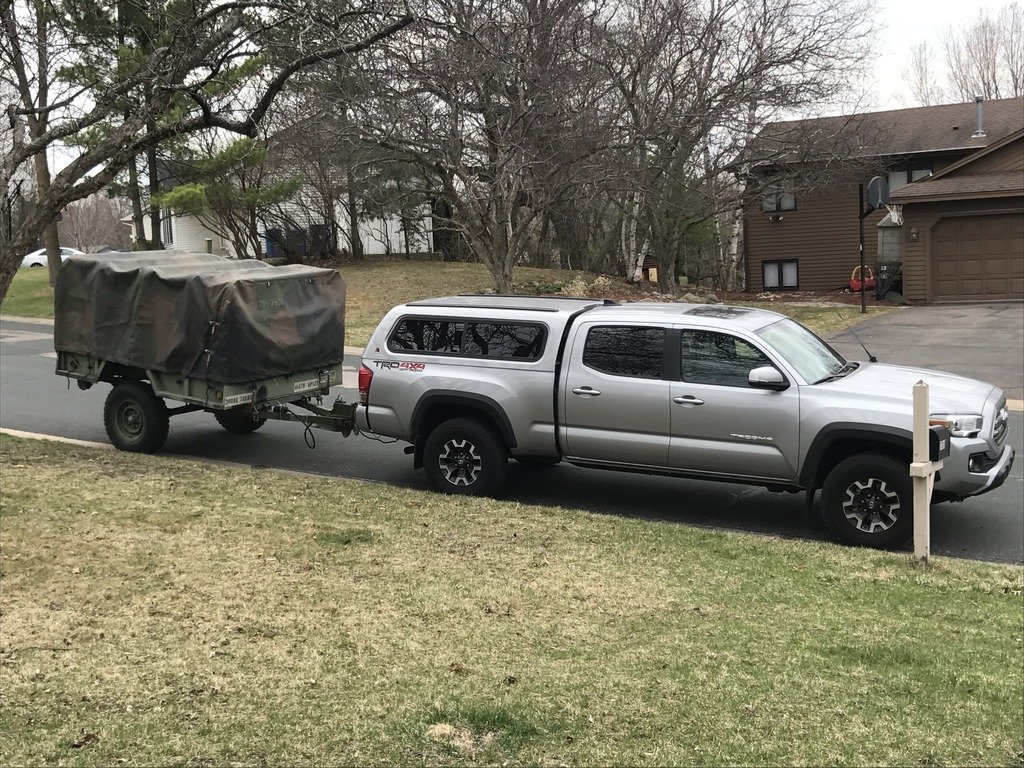

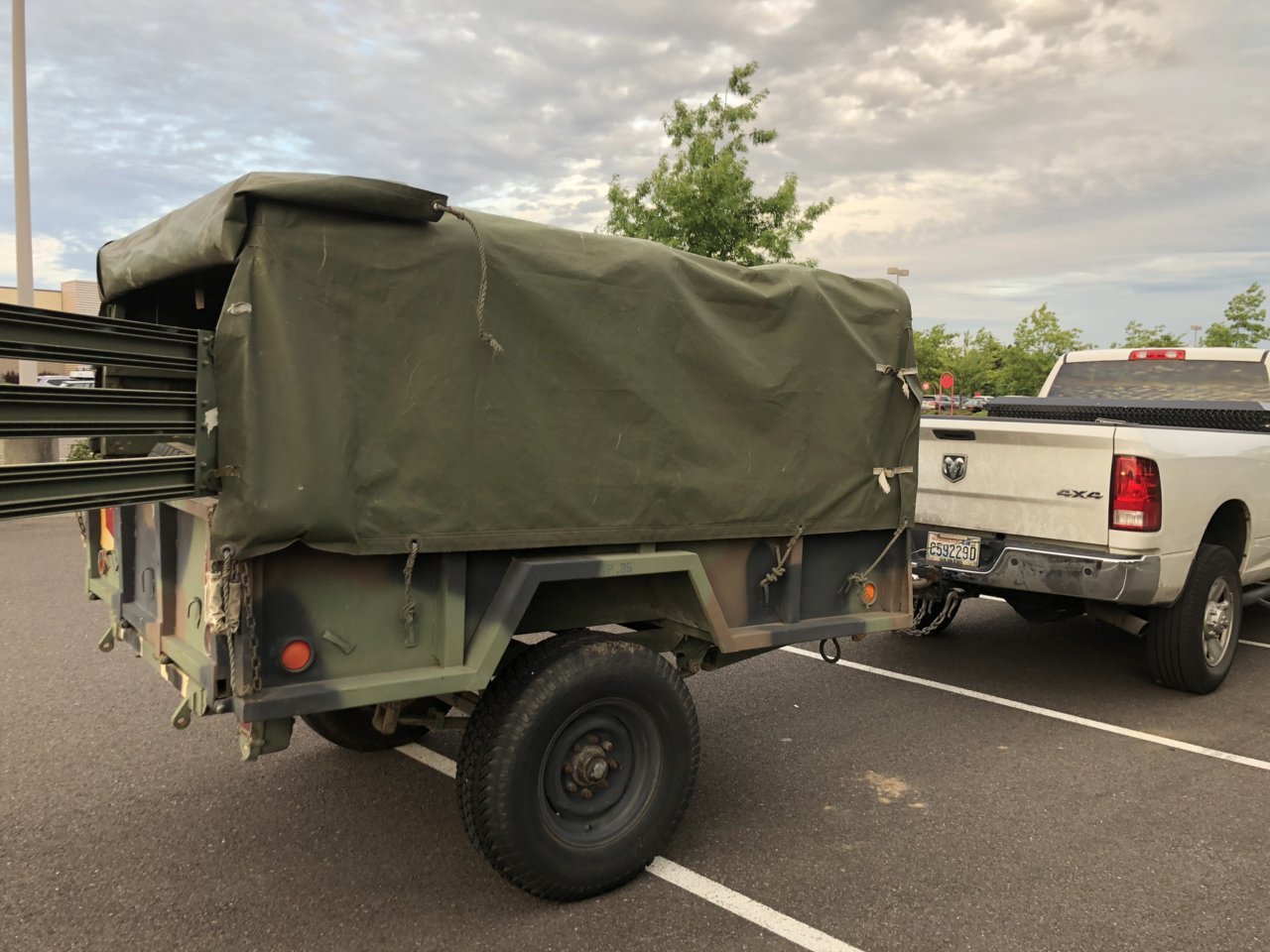

    All journeys start with a single step and all good threads start with some pics.

    C21FC2DE-FF71-4F27-A7C4-D3E210865053_zps_e7ab48ad70c7aebd3c29deddc4f4384813f6efb9.jpg

    1D1D98DA-3861-4AB8-B9FB-D6D29F7BDDA3_zps_75a1e94f79f854a39db471efad12733a5434ccac.jpg

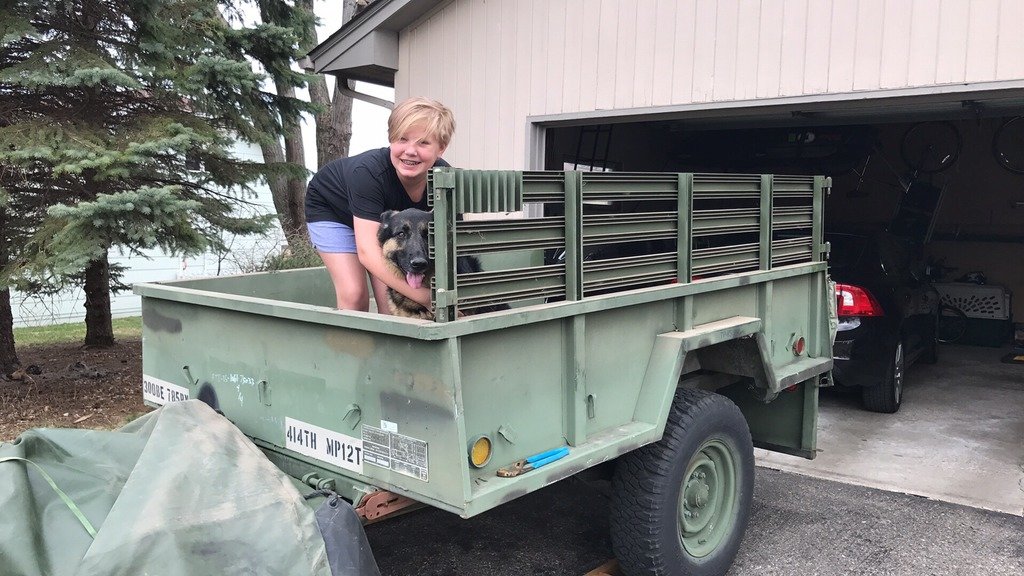

    EB44FCF7-85CA-4CCB-9289-80C043793091_zps_3e4de2d251338a6b64c0e9d1bedba9cef1fba67d.jpg

    April 15th Update:

    I started working on coating the bed of the trailer. As this is a budget build, I went with a DIY solution rather than LineX.

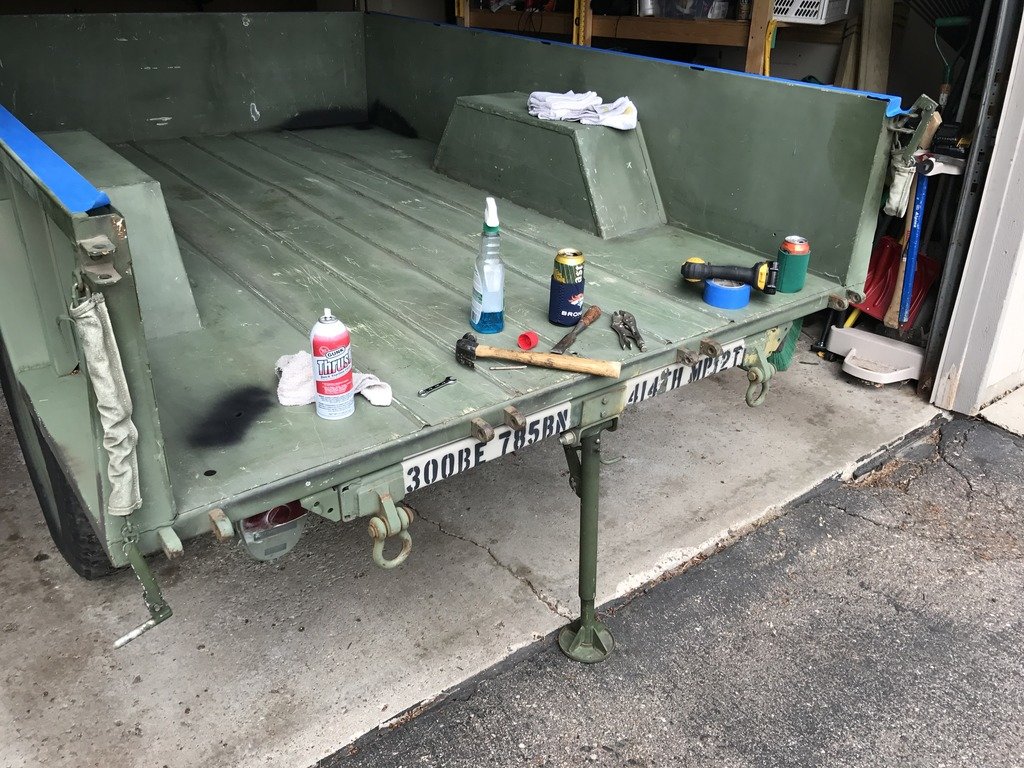

    Started the prep by removing the old tie down hooks, reflectors, and tailgate. The tailgate was a pain in the a** because the cotter pins were not coming out. Since this is a military trailer, I used a military solution and got a bigger hammer. A couple of whacks on the hinge pins sheared off the cotter pins and the hinge pins came right out.

    C6B60A50-709B-4EDE-A461-50D9EA819949_zps_e5366ae8f030b3883995b7494fc88a9c596710ec.jpg

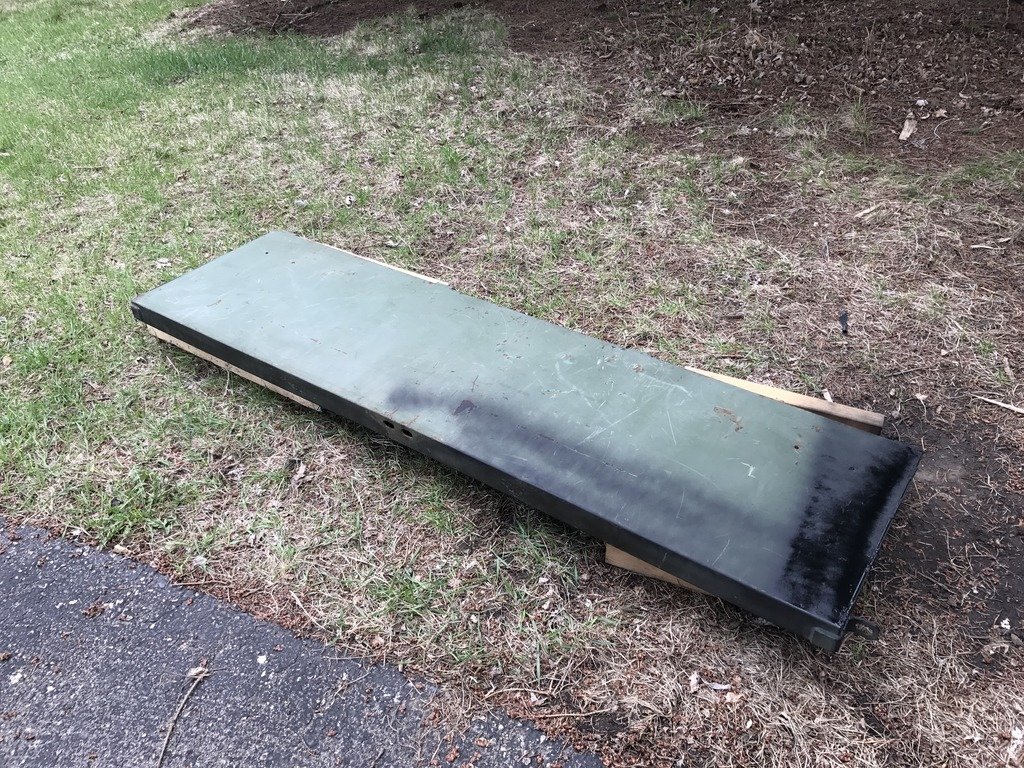

    I started to spray the tailgate with Rust-Oleum rust reformer but the rain quickly ended that.

    FFFD11BA-57CB-422E-A086-6850C5E3FDD1_zps_3341be82761d3776c83f4af691dca507af8b88c2.jpg

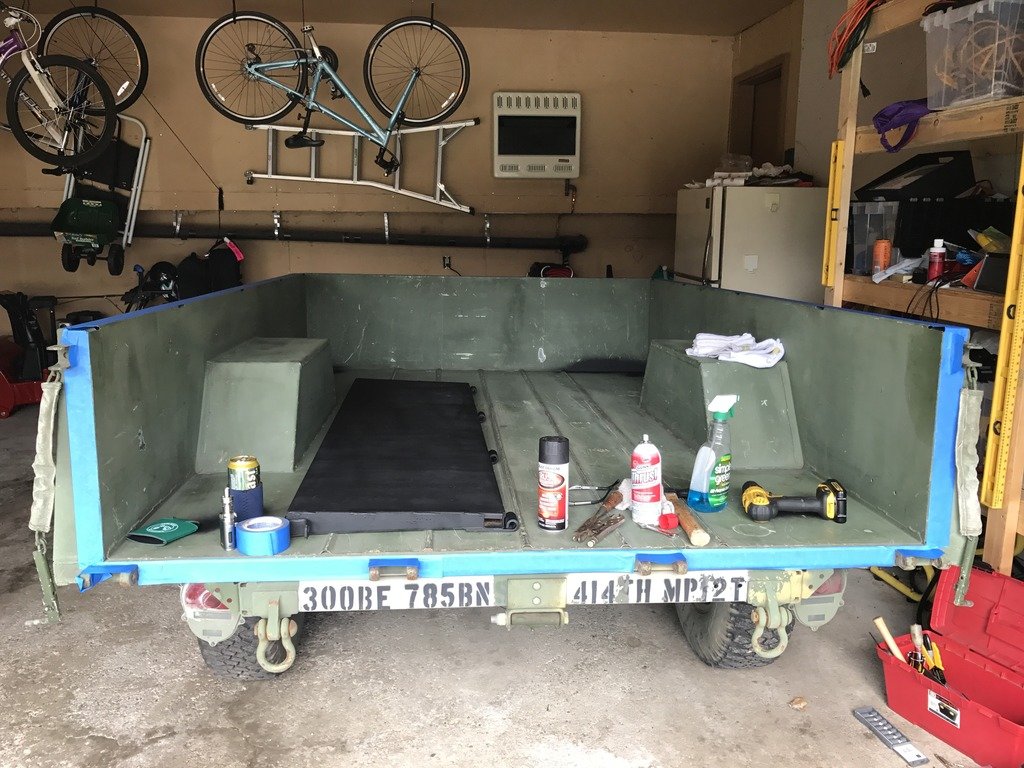

    With prep complete and the sun going down I packed it in for the night.

    31A45530-209A-4CE3-A7D9-EEE17E0E5FC9_zps_6cb77094dde4d59e81089c8a5e1f8ec532dac485.jpg

    I woke up early this morning to get started as we have one of our family easter celebrations today.

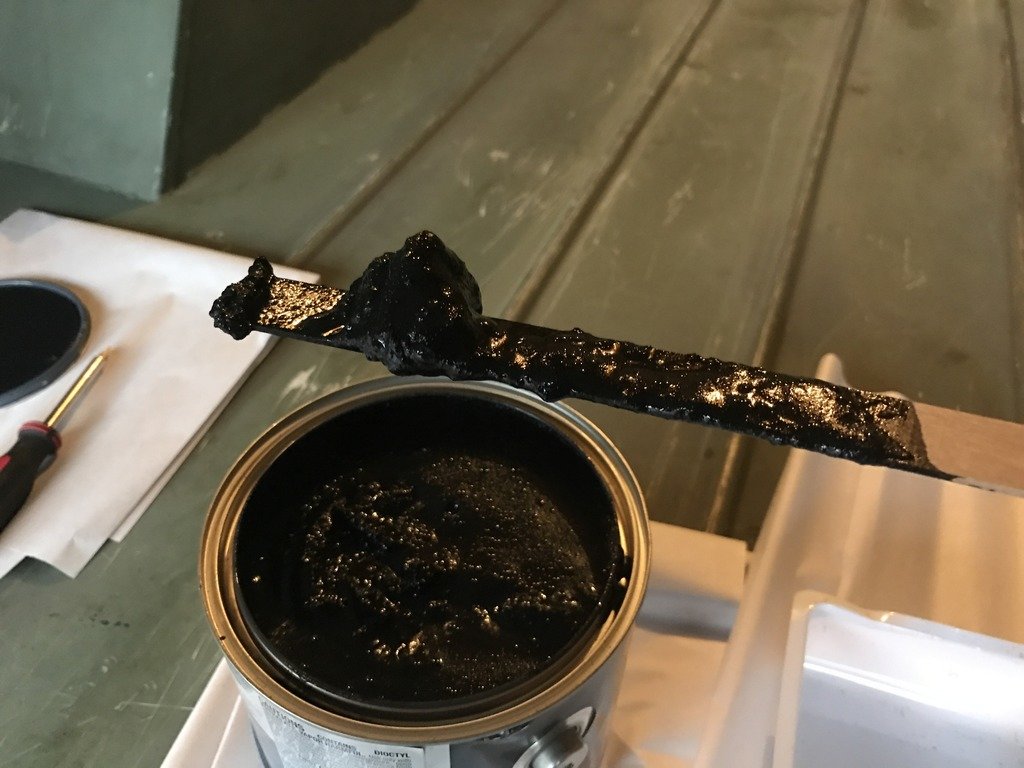

    I opened the gallon can of Duplicolor Bed Armor, the kevlar particulate was heavily clumped and I resorted to using a power mixer on my drill. After about 5 min of mixing, it was well distributed.

    9BD32A0D-E50C-4111-B4F5-0797F6A2F509_zps_5fe5030eda614242c182f1d04f569c32611afe30.jpg

    I don't have any pictures of the process, as my gloved hands were covered in bed liner, but I can tell you that the roller that comes with the kit sucks! The small screw that keeps the handle and roller attached quickly broke and made using the roller vert difficult. I resorted to brushing on the bed liner and using the roller to evenly distribute the kevlar media.

    I don't yet know if I regret not going with the Rust-Oleum brand bed liner but time will tell.

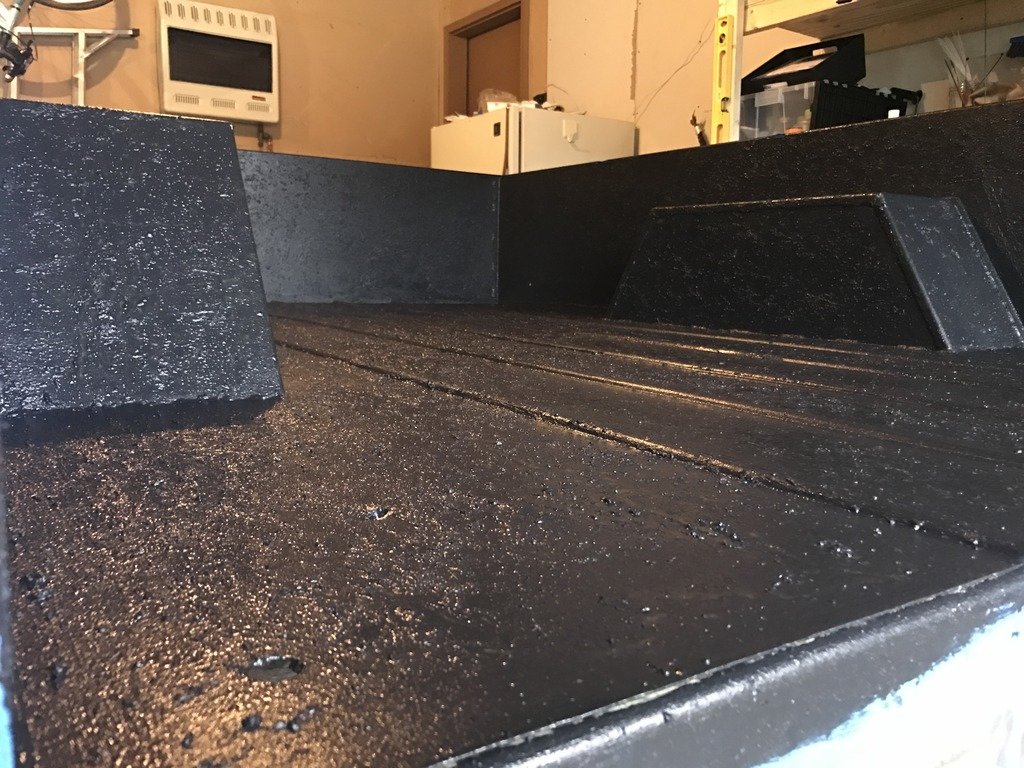

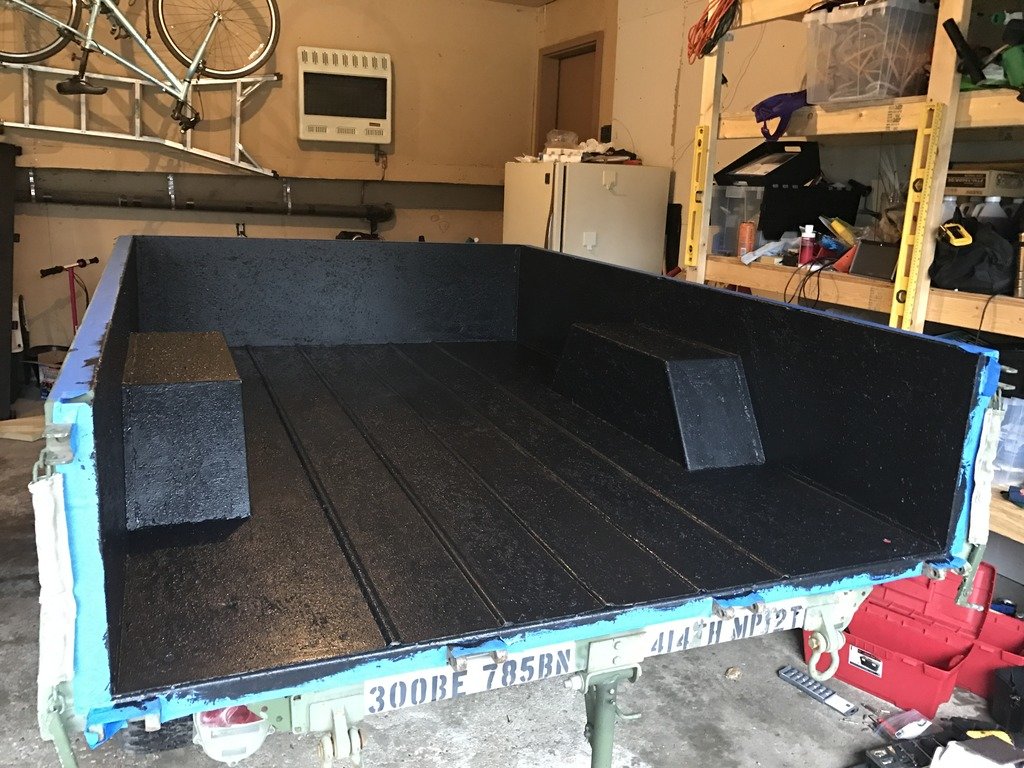

    Here is the first coat, I will likely try using some of the same brand bed liner in aerosol form to reduce the texture.

    C8137008-C097-461C-A8DF-5AFF1E790569_zps_0d34f92f36b97cae4150c8c13f04eca2617704e6.jpg

    308809F9-F71D-46CE-9BA3-01B112709608_zps_9cd8d8f56dbc17da7ef66099efdbff6f32613f82.jpg

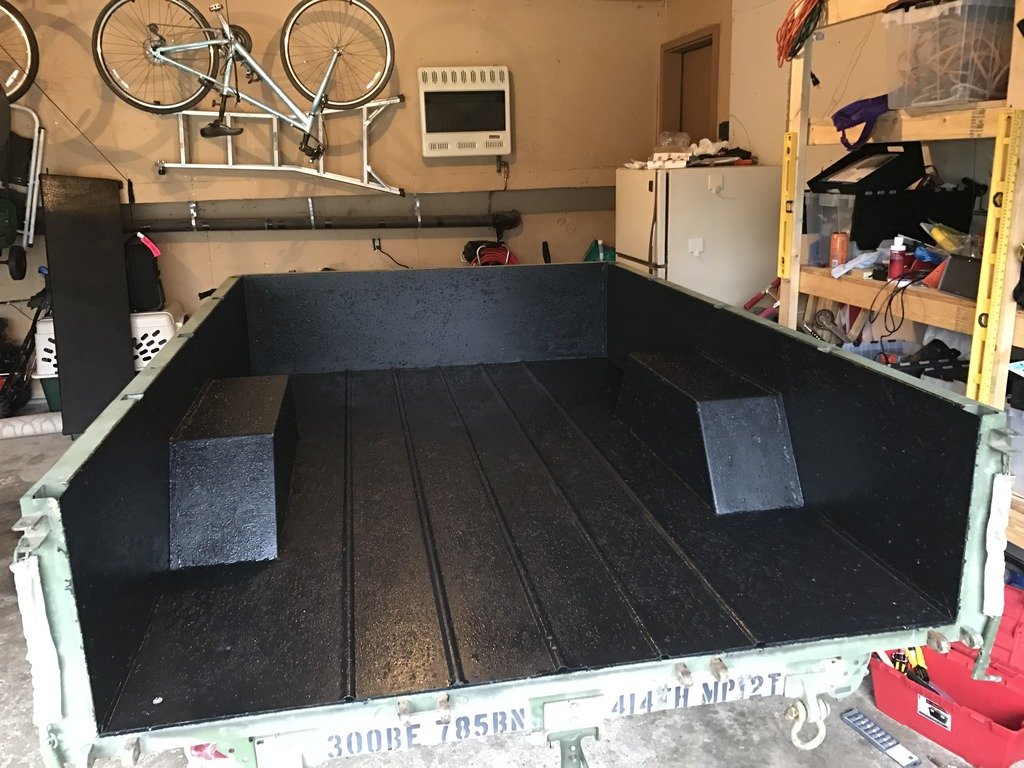

    72F1345C-73D0-4E26-AF37-84C600517F9D_zps_086d4cdb668c5d7885e30a6b5df9da49abd555fd.jpg

    The obligitory Taco pic:
    A3E2CDD2-A013-475A-A34F-B436EFC13970_zps_15d3c99691b46b0445c0ecd854d13292eaf473c3.jpg

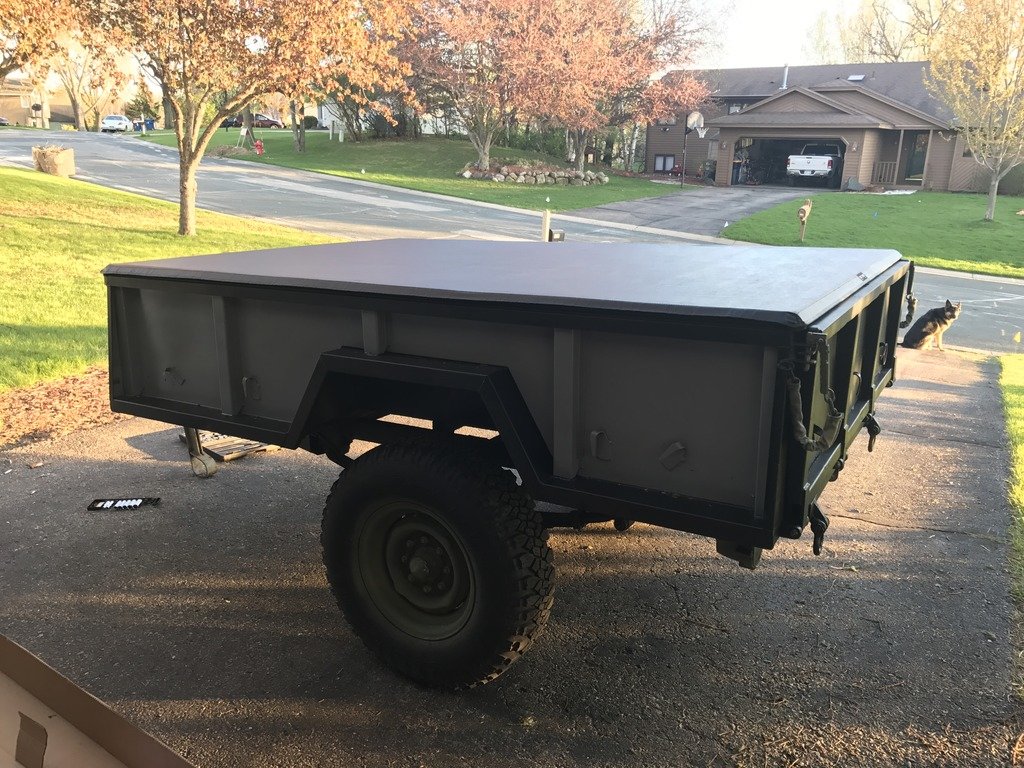

    Did a little more painting this weekend.

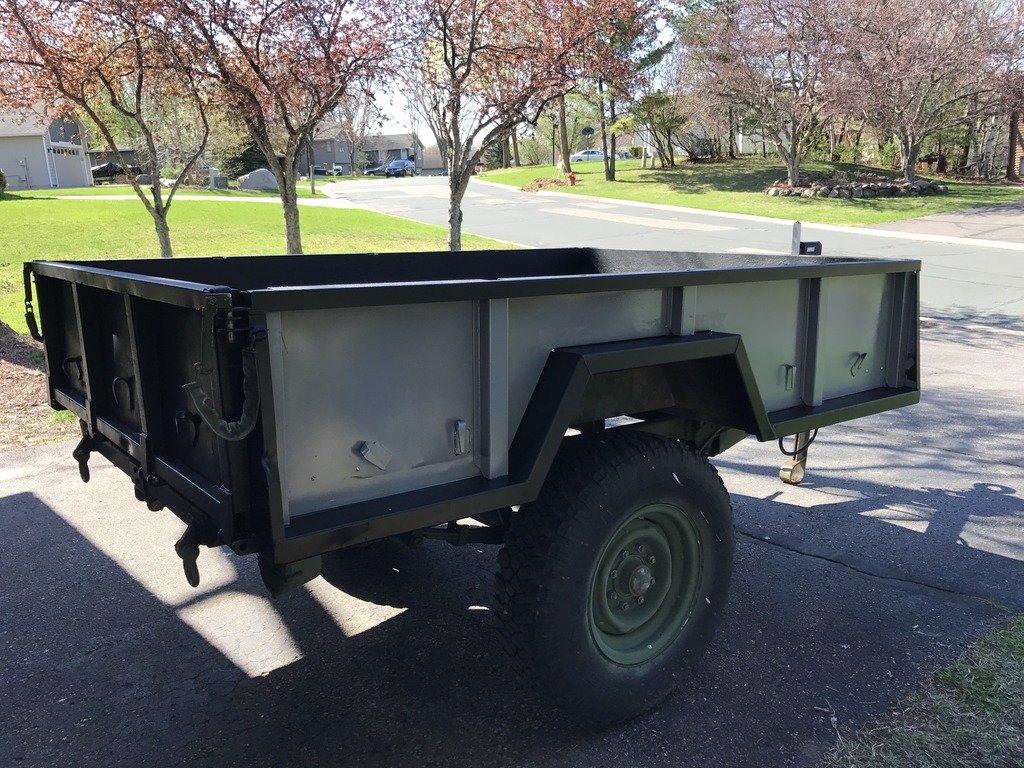

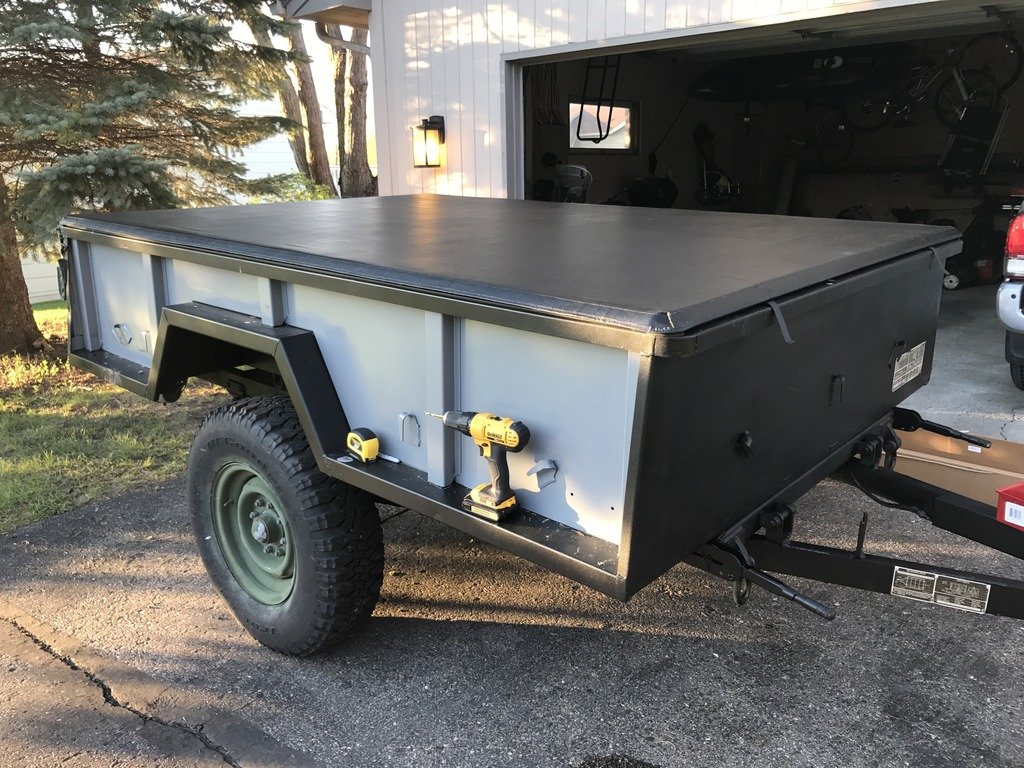

    I painted the center panels a gray and used Rustoleum bed liner for the front, top and fenders. Now I just have a little overspray to clean up. I wanted to get this done in preparation for a tonneau cover I ordered last week.

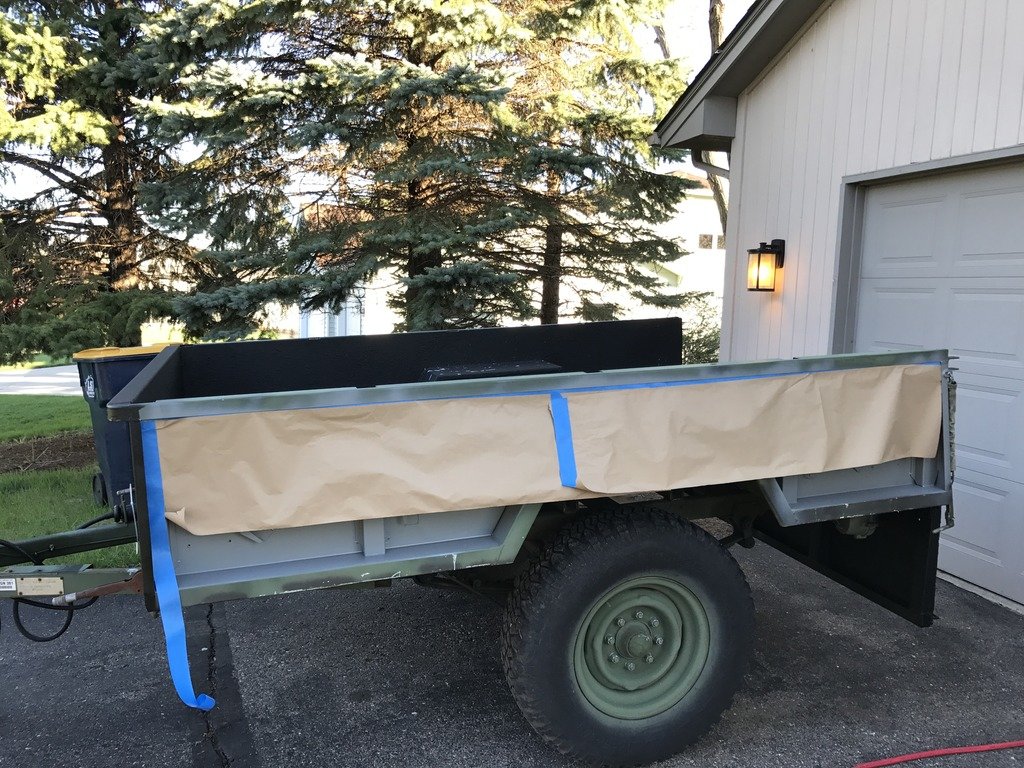

    896E4624-49D3-4395-805B-D19DF2F344A9_zps_9a6c9450787c7305bd2e1a2a69248aecc4b81918.jpg

    F6A713C4-7FAA-4A89-980C-52A42C5F0E3F_zps_17db40a46358256357a4d44f4e3f860fbe493041.jpg

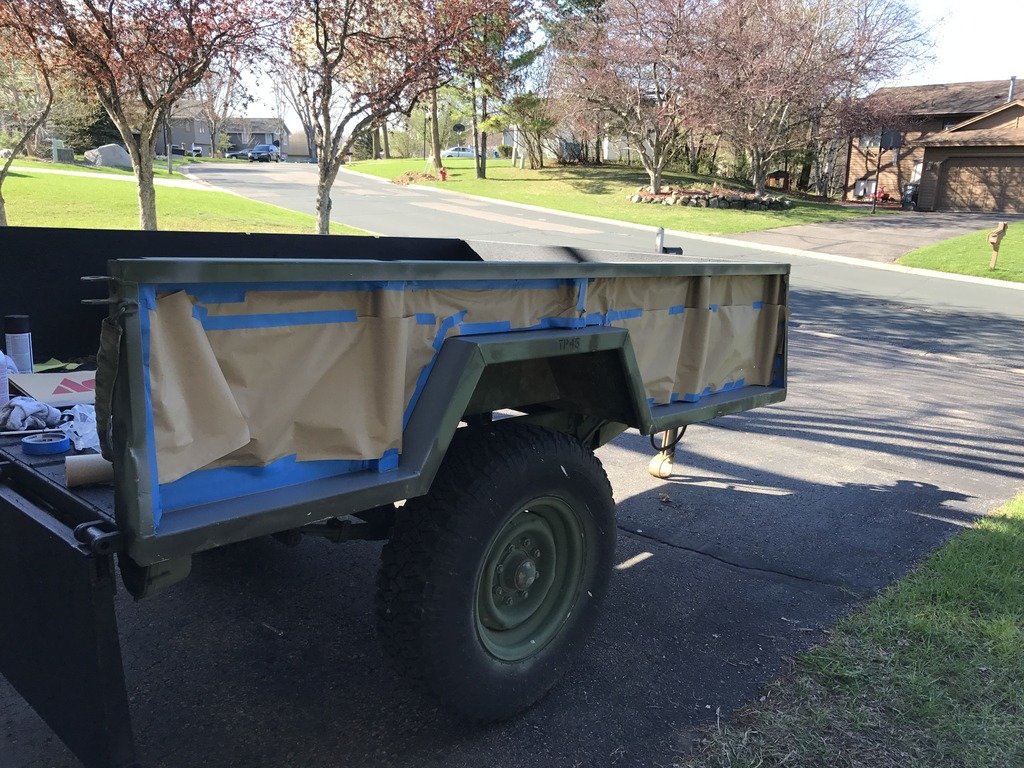

    BF067AA7-C996-40BF-89BE-206BD10136FF_zps_3bdc24de5729c773030dc76523169d1a30a81766.jpg

    C7BD6951-9662-443C-BABE-E6377E0A6B89_zps_6ab65299a324f6bfdeeb9c72b6b8ab97fcc025ad.jpg

    Updates have been sparse lately as I have been busy working and not posting. We had a Memorial Day camping trip coming up and I really wanted to have the trailer ready to take and have it be useful as something more than a cargo hauler.

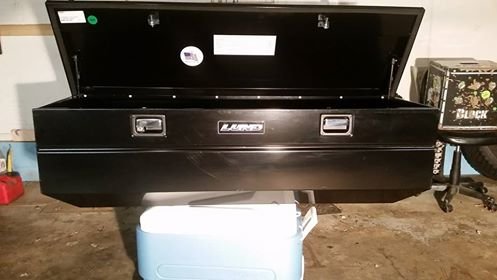

    The first thing I knew I needed was power because I wanted to add a water tank and pump. I needed somewhere to put it so I began looking for a large tongue box that could hold a 10 gallon water tank batteries and power controls. I came up with this for $100 off a Facebook Marketplace ad:

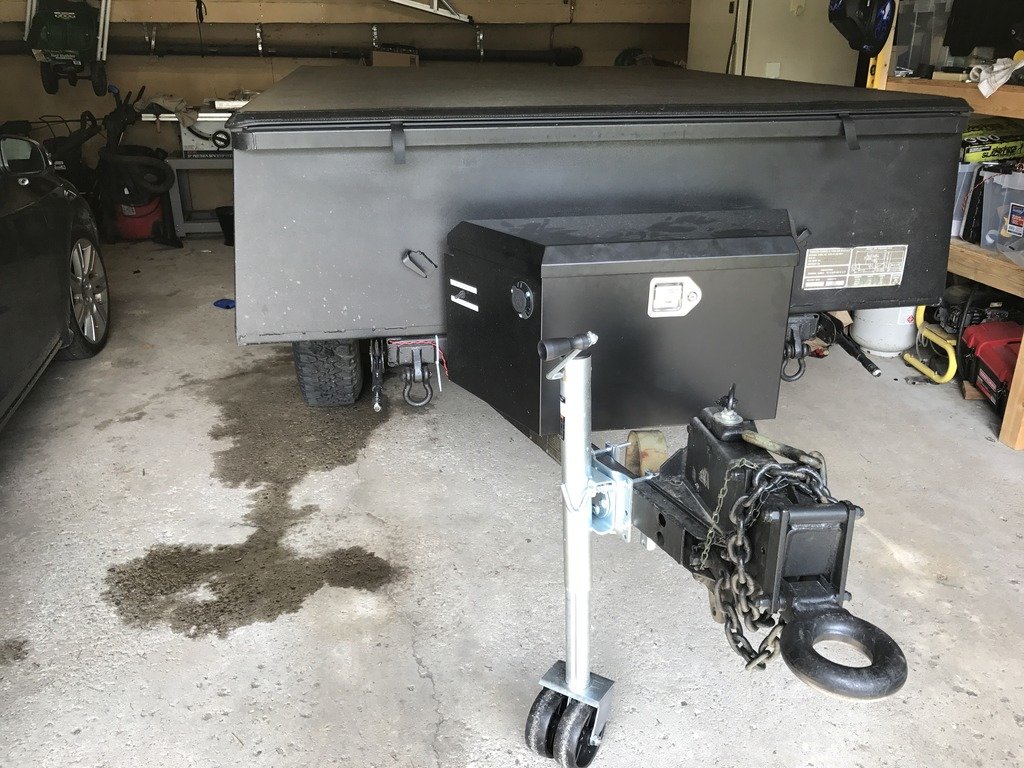

    After trying to install it I realized the I would have to relocate the hand brakes and that the tongue weight would quickly get out of hand. So I scrapped that idea and added a Harbor Freight 3 cu ft tongue box. I bolted it directly to the frame but went through 2 taps trying to thread the holes. :-( At the same time I added an adjustable wheeled jack.

    9958425D-A8E5-4AE3-A788-8DDAFE01A230_zps_1e04d58059d480379cc67fdbeadc630f7ba598f6.jpg

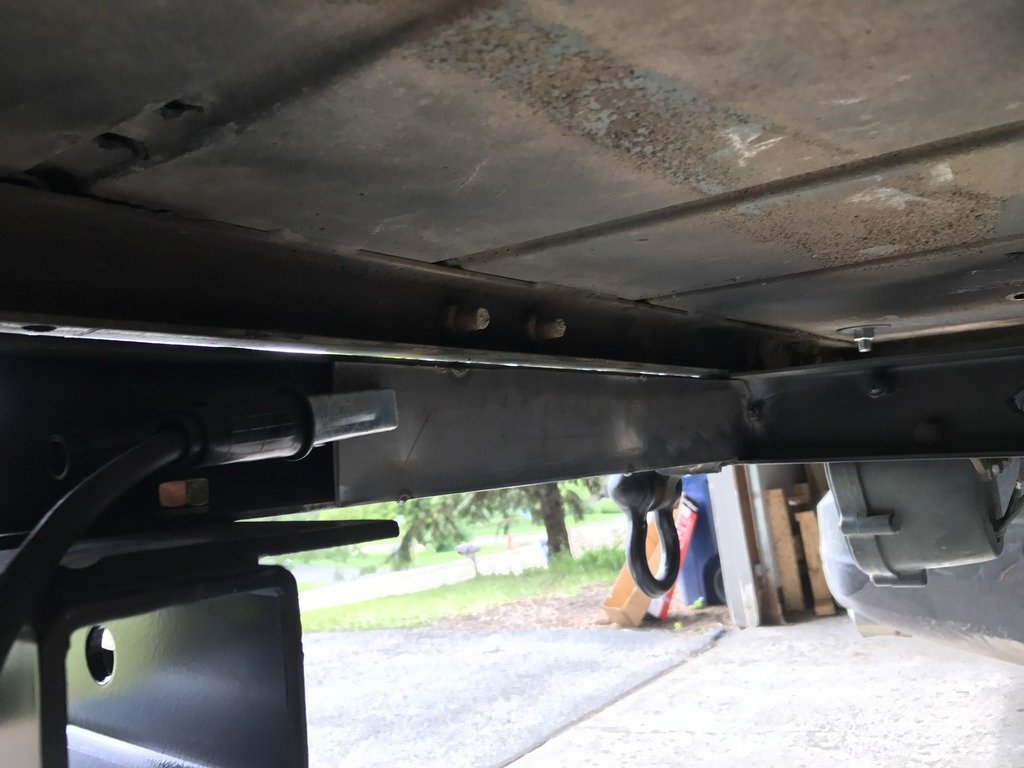

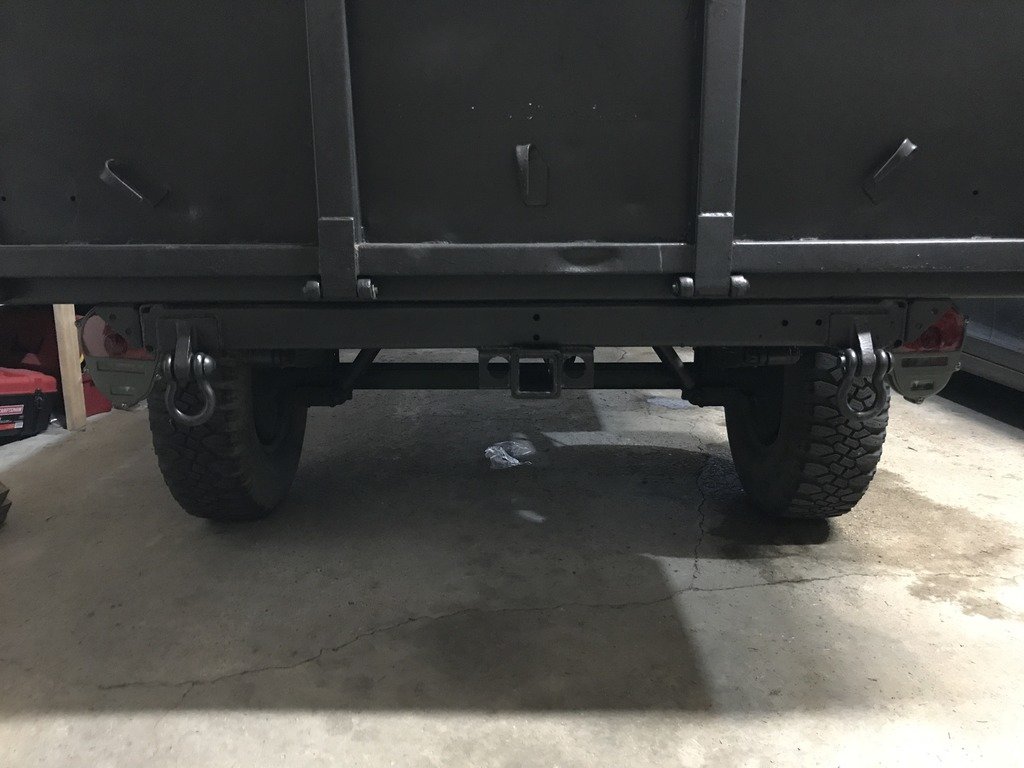

    Next was adding a trailer hitch to carry bikes. After bolting it to the rear cross frame member, I quickly realized that it was not stiff enough to hold the bike carrier without developing stress cracks. I re-enforced the back "bumper" by partially boxing it and welding the hitch to it.

    FE359E0B-F885-4D9B-9705-2C9327B0AB01_zps_44ae22a42122407bda266b8f9dbc0828a2a537d0.jpg

    2B1BFD98-FCBE-47AE-886E-F8FB9F49B5E8_zps_57da527023f3b8ad31a5e3134a7c00d6cdaa5c32.jpg

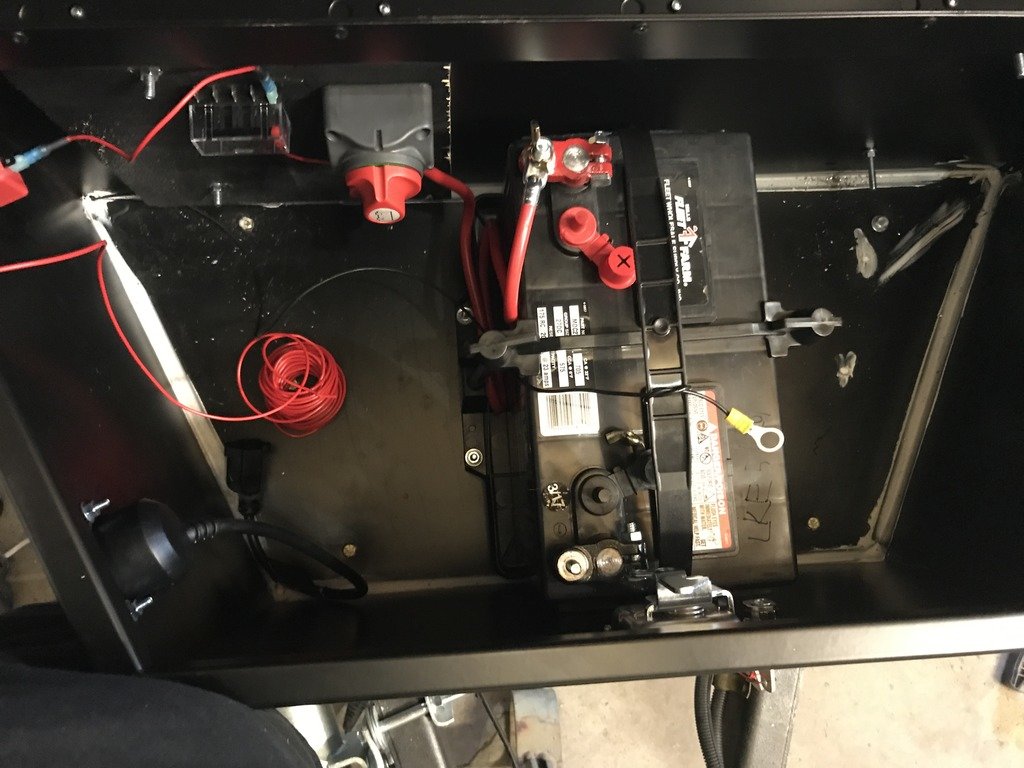

    Next, I was on to wiring the tongue box for power. I used a cheap deep cycle battery from the local Fleet Farm with a 175 minute RC, I don't know what that equates to in AH.

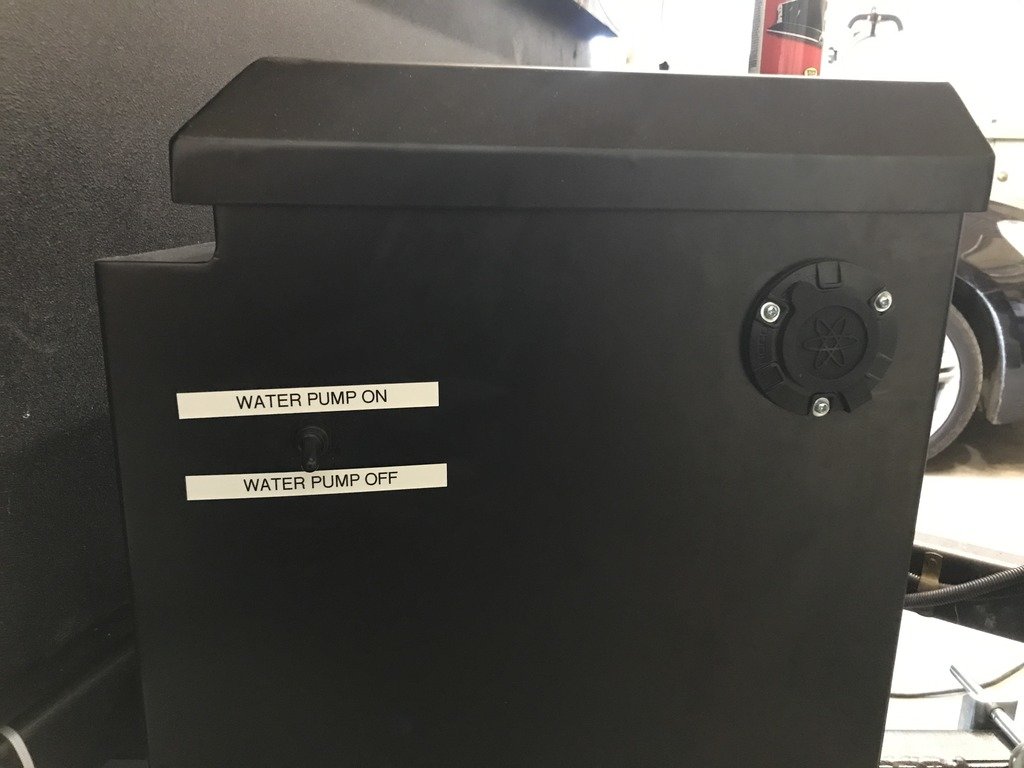

    I also added a fuse block, main battery shut-off and waterproof switch for the water pump.

    5632B7E4-3D28-4A8D-BEDA-E7763E08700B_zps_b3c43d6477c9e1d8c6d9841a8aa419d48032d0d6.jpg

    25390960-F6A5-46A1-AD52-153DC5C7B2C1_zps_6102621d85579633823134ab2b03e6663d0293cf.jpg

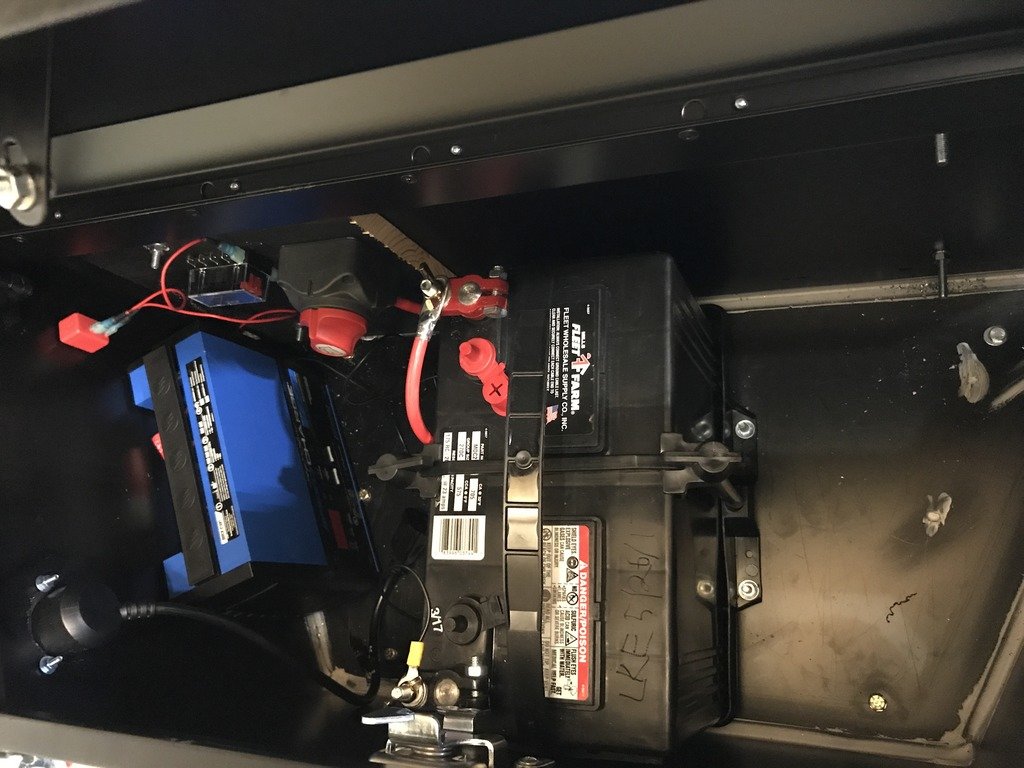

    39784CED-2955-42FE-9C80-FCEEF438A02E_zps_35868371291c2abacef0b2e6eaa607c28cd9608a.jpg

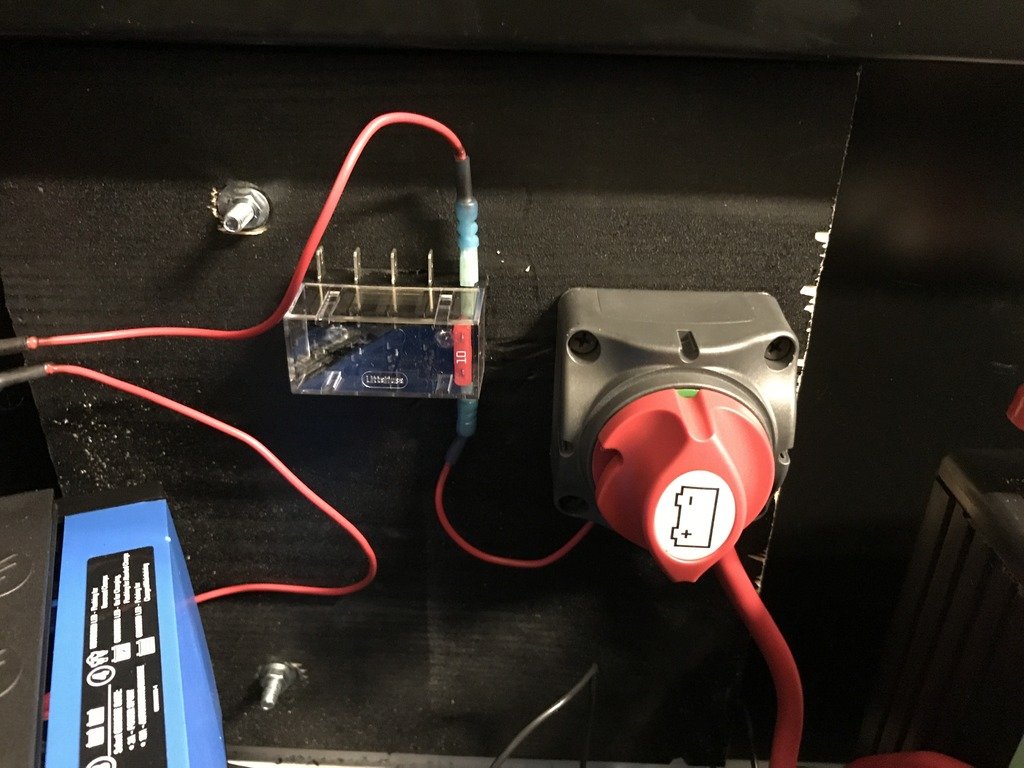

    6EC3EE56-3DA6-4CCD-B9A0-CE47AE762DD2_zps_1d460b73f0fa07a2590cc4045582b58955dff185.jpg

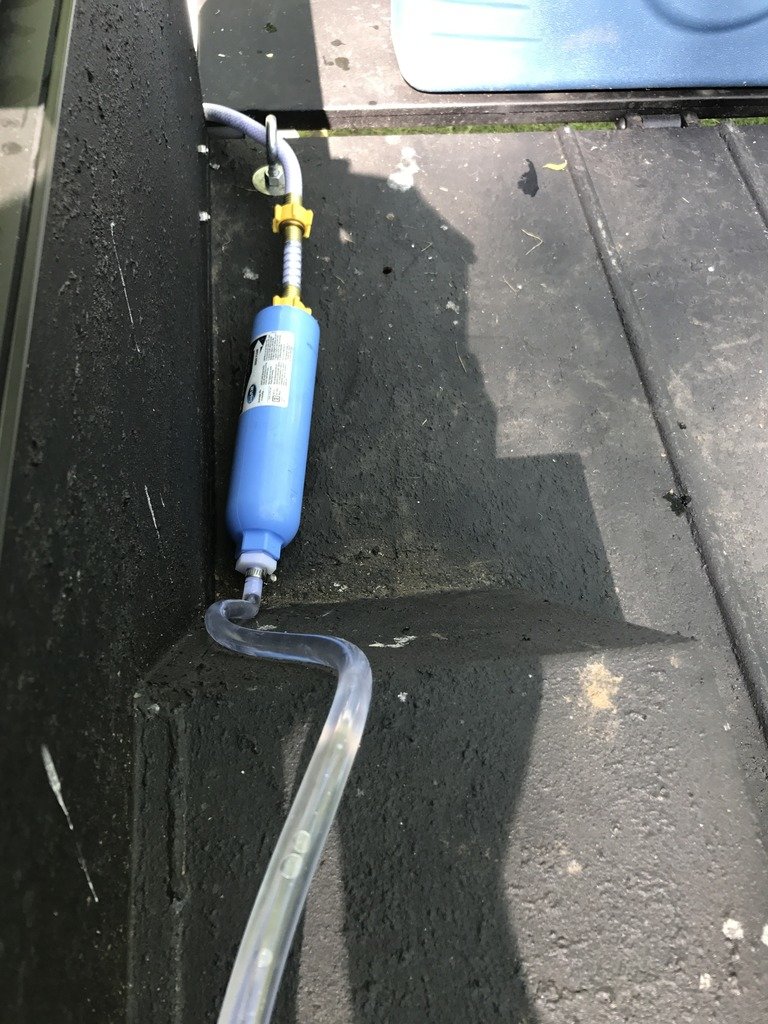

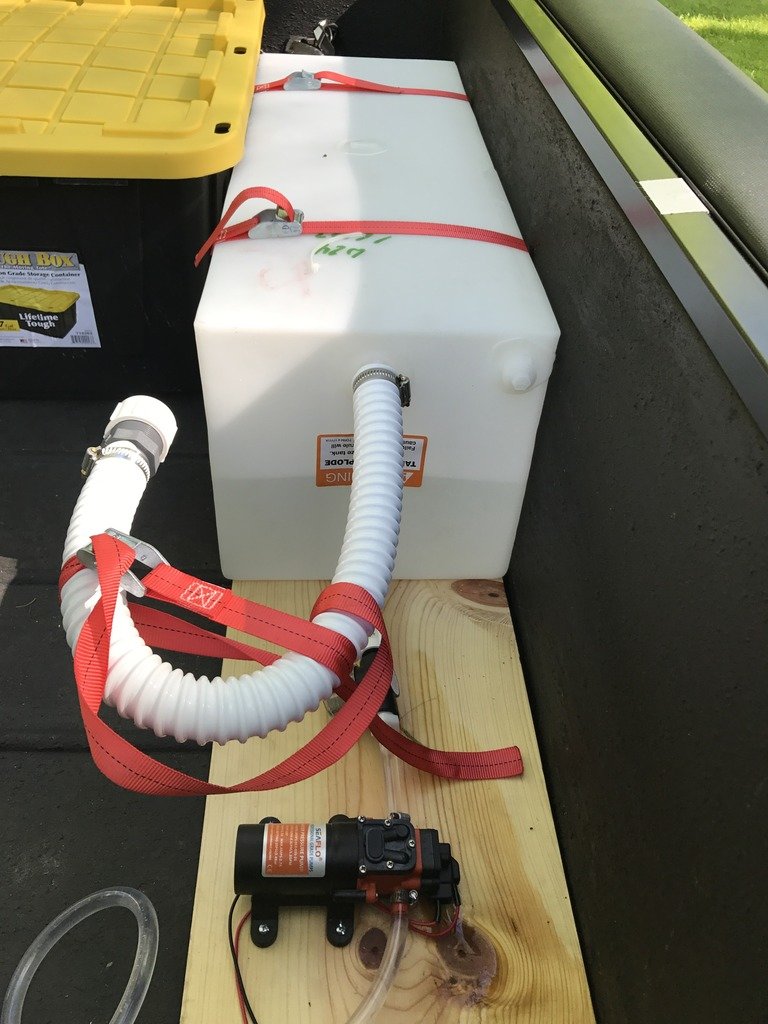

    For water, I added a 20-gallon water tank from Amazon with a Seaflo 1.2GPM pump and Camco water filter.

    I temporarily mounted this all to a board in the trailer until I can weld up a mounting system for under the trailer.

    34FDE1BA-6BDF-4666-A109-EEE24D6D8A39_zps_a24e0d77248d4f337d3d57f14ce50328c0e6cf66.jpg

    A10F3A48-D2B9-4C3A-98A3-69BF38745779_zps_fb0cf70434b87dc4c305d01c9e1b4971aeb7ac4d.jpg

    33906B94-DA70-48EB-95B3-353B58E71CE3_zps_f2779d09d1ee6e54550fab4f07e4e28bd8725618.jpg

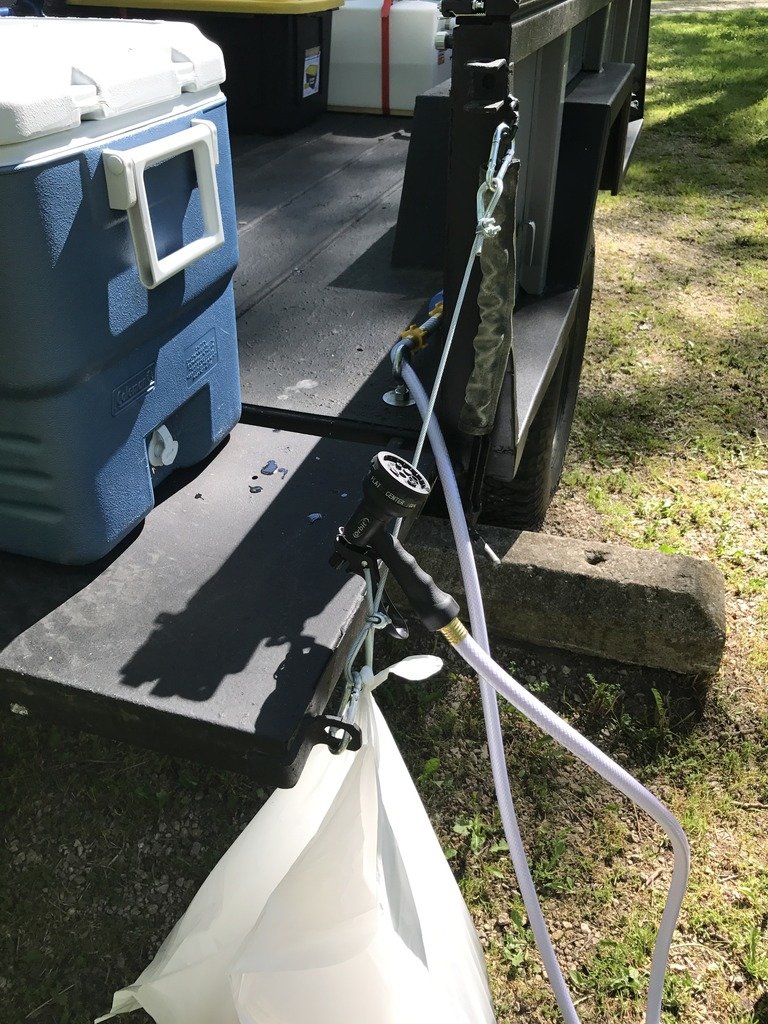

    Lastly, I added some steel cable and clips to hold the tailgate level for use as a workspace. A 20lb propane tank is held in place with a ratchet strap until I get a proper mount.

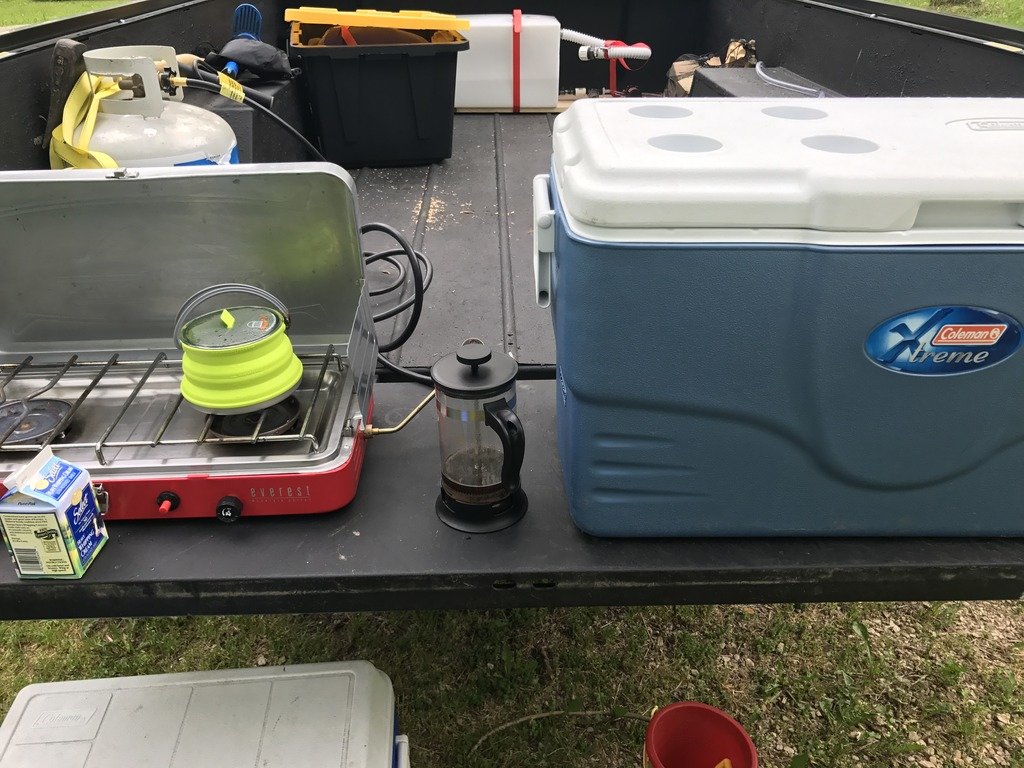

    75ECEF74-3A61-4E36-8312-62618CDBF0A6_zps_bcbd2296514769005bdd55f3c2ba816c7a55a356.jpg
    [​IMG]

    Last edited: May 29, 2017
    05chaos and justinalldredge19 like this.
  2. Apr 10, 2017 at 7:07 PM
    #2
    dlo13

    dlo13 TinyRigCo.

    Joined:
    Mar 8, 2017
    Member:
    #212675
    Messages:
    528
    Gender:
    Male
    First Name:
    Daniel
    Westminster, CA
    Vehicle:
    2017 Barcelona Red Tacoma TRD Pro
    sub'd

  3. Apr 15, 2017 at 8:50 AM
    #3
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    OP Updated.

    Next steps:

    Finish bed liner

    Find a tonneau cover for a (82-96) LWB Ford F250

    Build a pullout slider for a camping kitchen with sink, area for stove and storage.

    Decide on what welder to buy for building the rack for a RTT. I haven't welded in a decade so I'll have to practice a little before going to town on the trailer.

    Oh, and paint the exterior at some point.

  4. Apr 15, 2017 at 9:48 AM
    #4
    Red October

    Red October Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205654
    Messages:
    181
    Gender:
    Male
    Vehicle:
    95 Single Cab, Blown Head Gasket, Questionable Motives
    Trailer builds are always cool, excited to see where yours goes! I have a little scratch built trailer that I have some similar goals for. Its slow going but eventually it'll be something :thumbsup:

    TTSMN[OP] likes this.
  5. Apr 15, 2017 at 10:01 AM
    #5
    jtpasto

    jtpasto Member

    Joined:
    Oct 24, 2011
    Member:
    #65794
    Messages:
    16
    Gender:
    Male
    First Name:
    Jerome
    Salmon, Idaho
    Vehicle:
    2017 TacomaTRD Off Road 4X4 Double Cab

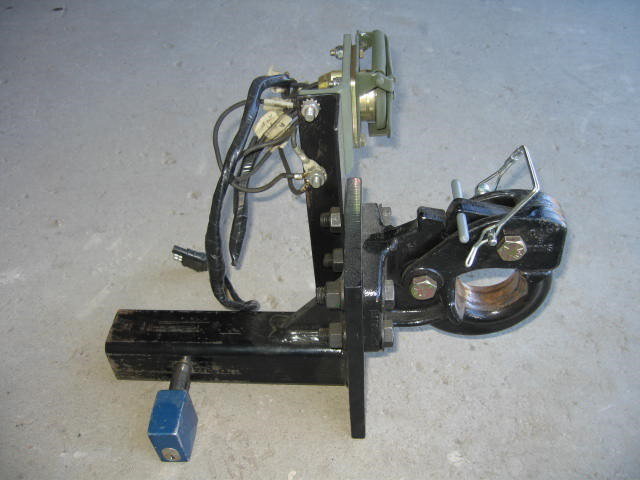

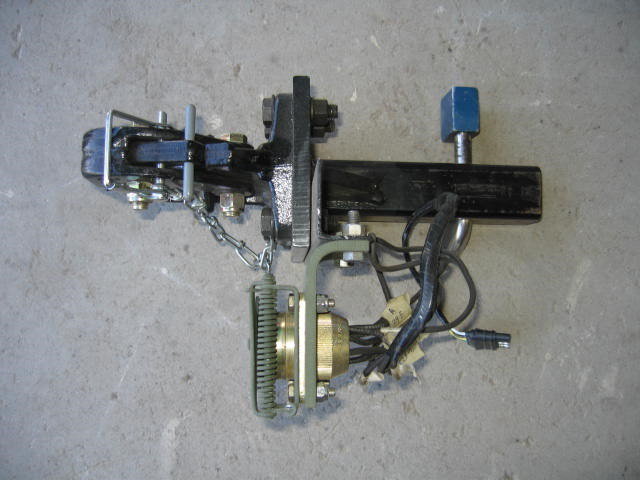

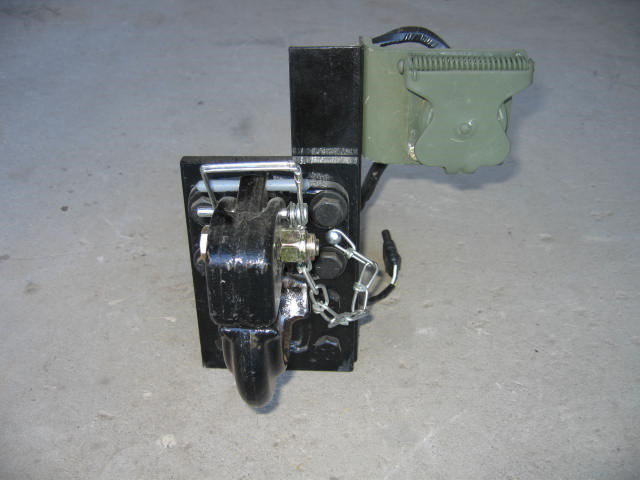

    If you are interested in keeping the original military trailer plug connector mount the plug receptacle on the pintle hitch mount. That way you can easily use the trailer on any vehicle.Back Hitch.jpg Left Side Hitch.jpg Top Hitch.jpg hitch ball mount.

  6. Apr 15, 2017 at 3:04 PM
    #6
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    Ohhhh, I like that! The previous owner spliced in a 4pin to the original wiring, I was considering pulling it all out and running new wire and LED lights.

    Where did you get the harness? I have seen a few on ebay for $75 but nothing like what you have.

    This site contains affiliate links for which the site may be compensated.
    #6
  7. Apr 15, 2017 at 8:03 PM
    #7
    jtpasto

    jtpasto Member

    Joined:
    Oct 24, 2011
    Member:
    #65794
    Messages:
    16
    Gender:
    Male
    First Name:
    Jerome
    Salmon, Idaho
    Vehicle:
    2017 TacomaTRD Off Road 4X4 Double Cab

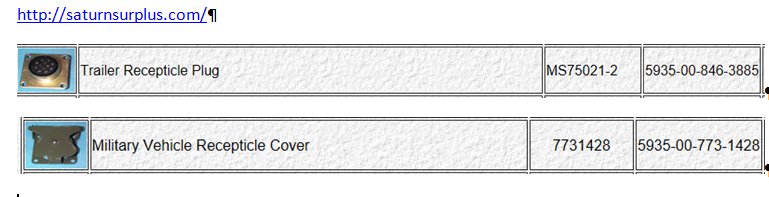

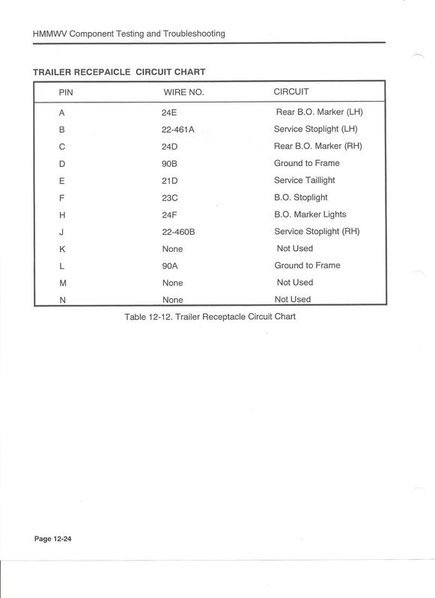

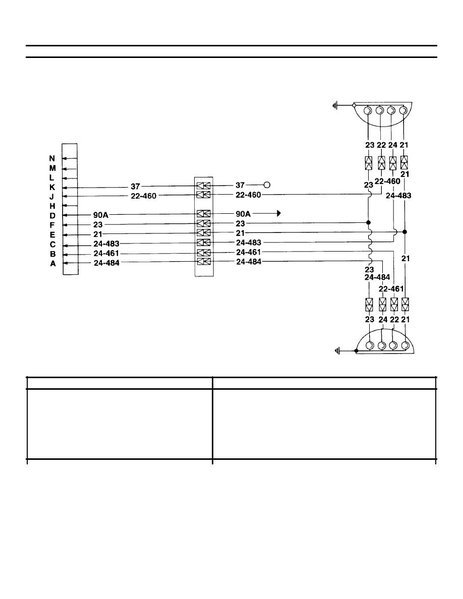

    I got my receptacle parts from Saturn Surplus. Also I attached a couple of wiring diagrams.
    TM-9-2330-202-14-P0138im Wiring Diagram.jpg Trailer Recepaicle Chart.jpg

    LaPewPew and TTSMN[OP] like this.
  8. Apr 16, 2017 at 5:06 PM
    #8
    LaPewPew

    LaPewPew Well-Known Member

    Joined:
    Mar 16, 2017
    Member:
    #213454
    Messages:
    104
    Gender:
    Male
    First Name:
    MikeL
    Vehicle:
    2017 White SR5 Access Cab
    Debadged
    Looking great bud, having the hardest time finding one for a good price around me. Put me down for jealous

    TTSMN[OP] likes this.
  9. Apr 16, 2017 at 5:52 PM
    #9
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    Thanks, I was on Craigslist 3 times a week for 6 months before I found a decent one. I would have preferred an M416 but they were either overpriced or in terrible shape.

    LaPewPew[QUOTED] likes this.
  10. Apr 23, 2017 at 8:02 PM
    #10
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    Op Updated

  11. May 2, 2017 at 7:57 PM
    #11
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
  12. May 29, 2017 at 1:14 PM
    #12
    TTSMN

    TTSMN [OP] Active Member

    Joined:
    Nov 13, 2016
    Member:
    #202242
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    Silver 2017 Tacoma DCLB OR
    OP Updated.

  13. Jun 15, 2018 at 10:18 AM
    #13
    PDX_Cray

    PDX_Cray Well-Known Member

    Joined:
    May 11, 2016
    Member:
    #186723
    Messages:
    201
    Gender:
    Male
    Vehicle:
    2016 Tacoma Blue
    Subbed....my adventure starts.

  14. Jun 15, 2018 at 10:51 AM
    #14
    PennSilverTaco

    PennSilverTaco Encyclopedia of useless information...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    67,410
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, Pennsylvania
    Vehicle:
    2010 Zombie Truck
    How much does one of these weigh?

    Robbykohler likes this.
  15. Jun 15, 2018 at 11:47 AM
    #15
    PDX_Cray

    PDX_Cray Well-Known Member

    Joined:
    May 11, 2016
    Member:
    #186723
    Messages:
    201
    Gender:
    Male
    Vehicle:
    2016 Tacoma Blue
    Around 1300. I think with some work you can get them down to a little over 1000. Max Payload is 2500 highway and 1500 Offroad. So it works as a motocross hauler aswell.
