Madjik Man's laugh-at/with-him "build"

Discussion in '1st Gen. Builds' started by Madjik_Man, Jun 17, 2010.

  1. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Thank you.

    This is the first time I used Bed Armor, or any kind of bed liner product in a can.

    There's a poster, I think his name is Gearhead (or something like that), that posted a pic of his tool box that he used Bed Armor on, and I really liked the look/texture.

    Then 45acp showed up with his front bumper Bed Armor'd and I really liked it. So I picked up two cans. $11 ea, so it's kind of spendy.

    The back of the can doesn't mention the used of primer but I didn't want to chance it with my frame that was just stripped down to the bare metal. So I went with a few light coats of self-etching primer. I can't imagine it being detrimental since it just promotes mechanical adhesion.

  2. ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,027
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    This is sick! Diggin the mesh on top. Mine should be done soon!

  3. Box Rocket

    Box Rocket Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,743
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    I swear I've seen that rack before but I can't place my finger on it. ;)

  4. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    It's like I bought it from one of those vendors on the NYC street corner selling knock offs... you know, the guys who have all their merchandise in bags that are ready to be slammed shut and hauled off when a cop shows up.

  5. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye

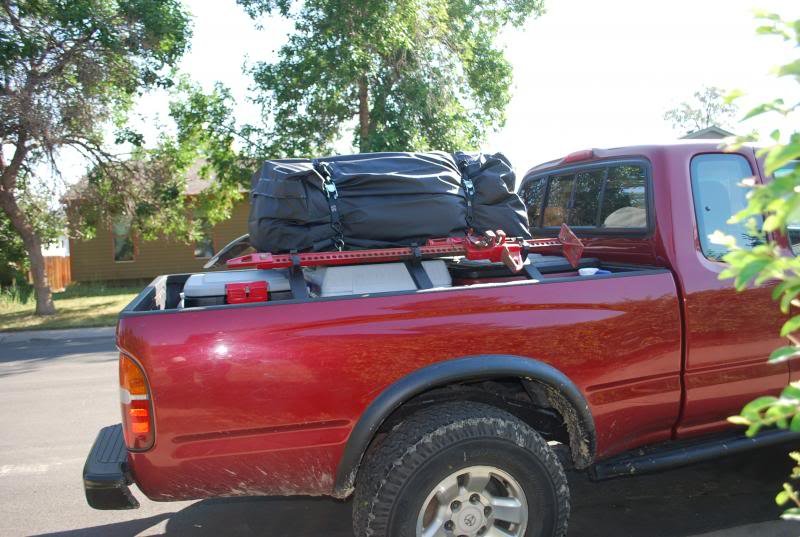

    Just have to get three more bolts/washers/nuts to mount the other three Quick Fists

    [​IMG]

    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]

    [​IMG]

  6. Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,275
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma
    Lol I thought it was a Box Rocket rack.

    It looks good. I like how you can still use your topper with the rack. I may want to do something similar for my softopper. :spy:

    Great build so far! :thumbsup:

  7. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye

    Just be sure to use a backing plate behind the bed rail sheet metal.

    It is a classic case of plagiarism. If I was having to explain this to the principal my only slant would be, "But look... mine has mesh!"

  8. Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,275
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma
    Good to know. Do you have any close up pics of the bed rails and the back plates?

    I want to plagiarize his whole truck lol I got the front bumper so far.

  9. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    I don't. But I can get some probably after the weekend.

    I had to get the rack and topper back on in a hurry with limited time.

  10. m3bassman

    m3bassman Professional Web Wheeler

    Joined:
    Jan 16, 2011
    Member:
    #49376
    Messages:
    20,589
    Gender:
    Male
    First Name:
    Captain Jack Sparrow
    On the seven seas!
    that rack is awesome.

  11. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Thanks dude.

    Jon made it, I finished it.

    WWF analogy: Jon wailed on some poor schmuck wearing a black single shoulder strap singlet. After unloading on the guy who now lays unconscious in the middle of the mat, Jon tags me in. So I climb up on the third rope and Snuka an elbow into his sternum. Then loosely hook one of his legs and tap him out.

  12. 45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,707
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock/unmolested 04 2.7L
    WTF!? What happened to the 35's we just installed??:eek::confused:

  13. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    They're going back on once I install the Bud Built skid and belly pan.

    Gonna need the extra height in order to keep Ol' Red from sagging to the ground

    :p

  14. TACOMABOSS

    TACOMABOSS Well-Known Member

    Joined:
    Jul 7, 2011
    Member:
    #59499
    Messages:
    4,312
    Gender:
    Male
    Vehicle:
    96 SR5 4x4
    Bilstein 5100s, Toytec AAL, Deck plate mod, Hella 500ff's, Sportsman Camo seat covers, Total Chaos 1" diff drop, JVC stereo, Painted bumpers and grille, Custom grille insert, HID projectors, Black spray paint
    I think this is the first time ive seen your truck without the shell on it. Looks good keep up the good work :thumbsup:

  15. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,296
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Be riding on your bump stops with those haha

    And no!! My tars!!

  16. Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,275
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma
    Cool man, that'd be awesome.

  17. TacoSkeet

    TacoSkeet 'MERICA

    Joined:
    Oct 16, 2012
    Member:
    #89164
    Messages:
    669
    Gender:
    Male
    First Name:
    Steven
    Memphis, TN
    Vehicle:
    03 DC Tacoma
    First time without the shell in 12 years? Wow thats awesome! sweet bedrack man!

  18. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye

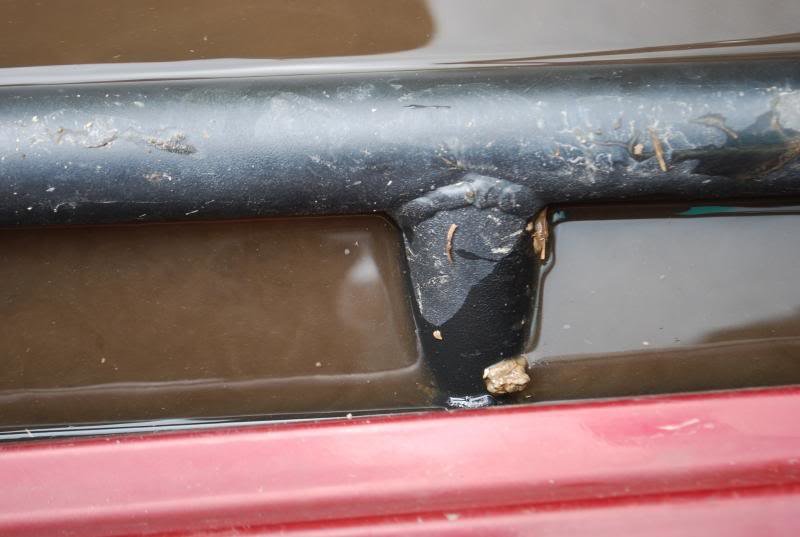

    Without disassembling it, this is the best I can do for you. You should get the idea.

    We drilled holes all along the bed rail. Two reasons: 1. to mount the backing plate and 2. to be able to mount the bed rack in three positions (forward, center, back).

    You can see the holes in my bed rail. And this is a piece of the scrap we used for the backing plate. Simply bolt the plate up behind the bed rail (I cleaned, primed and bed armor'd my backing plate so it wouldn't rust against the sheet metal).

    We used 1/8th in plate that is 1.5" in width.

    The only thing you may have to contend with is the fact that the top of the bed rail began to taper (hard to explain) fore of the wheel wells. So we had to actually taper the backing plate to match so the holes would line up. At least that's how it was on my truck

    [​IMG]

    [​IMG]

    Last edited: Jul 30, 2013
  19. ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,027
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    I got a bunch of quick fist sitting around my garage. Going to steal your idea and mount them to the legs of my bed rack! Thanks for the idea. Mine is going to be a little bit of Adam's and a little bit of yours. Plus a few ideas from my buddy that's making it.

  20. Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,192
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Well, mine is mostly all Adam's except the Quick Fists and the mesh... and the fact it's strictly mounted on the vertical of the bed rails.

    For shovels, axes and hi lifts, the original (model 10010) Quick Fists are the way to go.

    For the hi lift, I mounted the Quick Fists so that the barbed part of the fastener is on top. Seemed to make it easier to mount and unmount the jack.
