Madjik Man's laugh-at/with-him "build"

Discussion in '1st Gen. Builds' started by Madjik_Man, Jun 17, 2010.

  1. Jun 16, 2014 at 6:22 PM
    #601
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye

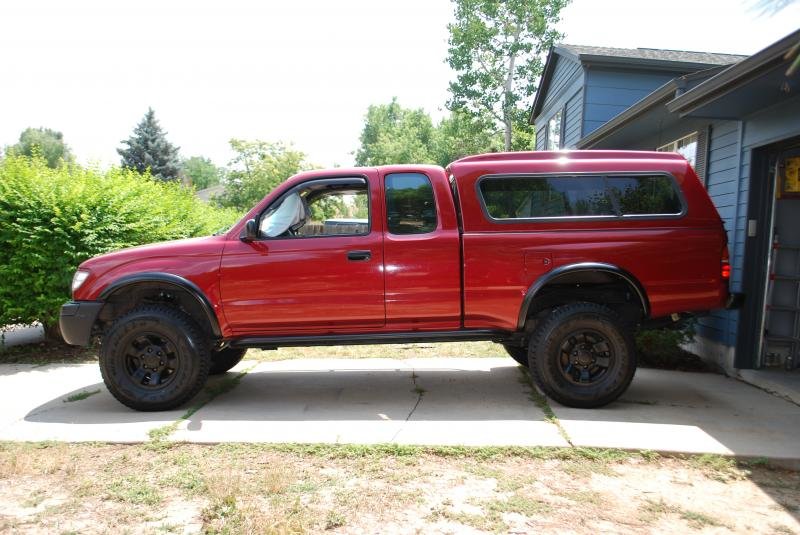

    Took the flares and mud flaps off.

    [​IMG]

    [​IMG]

    Don't know if I'll keep it that way. Either way I'm going to refinish the flares and see how they look back on.

  2. Jun 16, 2014 at 9:58 PM
    #602
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,834
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Flagged for nudity

  3. Jun 16, 2014 at 10:02 PM
    #603
    m3bassman

    m3bassman Professional Web Wheeler

    Joined:
    Jan 16, 2011
    Member:
    #49376
    Messages:
    21,425
    Gender:
    Male
    First Name:
    Captain Jack Sparrow
    On the seven seas!
    flares>no flares. my $0.01

  4. Jun 17, 2014 at 6:28 AM
    #604
    DirtyDTaco

    DirtyDTaco Talk slow, shoot fast.

    Joined:
    Aug 8, 2012
    Member:
    #84359
    Messages:
    1,050
    Gender:
    Male
    First Name:
    Matthew
    Mississippi
    Vehicle:
    '00 XtraCab 4x4 3.4L V6 5-Speed, 240K miles
    Polk 6.5" Coaxial Door Speakers, Pioneer DEH-X6500BT Head Unit, Black Bed-Lined Badges, 15% Tint, JL Audio 10" BassWedge, Alpine 500w Mono Amp

    :rofl:

  5. Jun 17, 2014 at 6:56 AM
    #605
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    I sent this to the mods, reported for lewdness

    [​IMG]

  6. Jun 17, 2014 at 1:03 PM
    #606
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,834
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    You posted it, not I. :p

  7. Jun 18, 2014 at 8:44 AM
    #607
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    [​IMG]

  8. Jun 26, 2014 at 9:43 PM
    #608
    Trailbuilder

    Trailbuilder Member

    Joined:
    Jun 26, 2014
    Member:
    #132770
    Messages:
    5
    Gender:
    Male
    First Name:
    Scott
    CO
    Vehicle:
    '03 SR5, camping style
    ARB bumper ToyTec Ultimate Lift Camper Shell, bed kit Racks, Awning shower
    Fun Stuff. I enjoyed the read ... especially since it's so counter to the pervasive Boulder 'tude. I can say that, I live here too.

  9. Jul 12, 2014 at 5:54 PM
    #609
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Posted on June 17th, 2010 as part of my future efforts/wishes:

    Sorry cmack :laughing:

    Will post more of the details later

    [​IMG]

  10. Jul 12, 2014 at 6:29 PM
    #610
    DirtyDTaco

    DirtyDTaco Talk slow, shoot fast.

    Joined:
    Aug 8, 2012
    Member:
    #84359
    Messages:
    1,050
    Gender:
    Male
    First Name:
    Matthew
    Mississippi
    Vehicle:
    '00 XtraCab 4x4 3.4L V6 5-Speed, 240K miles
    Polk 6.5" Coaxial Door Speakers, Pioneer DEH-X6500BT Head Unit, Black Bed-Lined Badges, 15% Tint, JL Audio 10" BassWedge, Alpine 500w Mono Amp
  11. Jul 13, 2014 at 8:27 AM
    #611
    lotsoftoys

    lotsoftoys pavement is boring....

    Joined:
    Apr 22, 2010
    Member:
    #35790
    Messages:
    6,706
    Gender:
    Male
    First Name:
    Jace
    Denver
    Vehicle:
    98 lifted panda taco
    bunch of crap
    noooooiiiiiiiiiiiccccccccccceeeeeeeeeeeee!

  12. Jul 13, 2014 at 8:32 AM
    #612
    Box Rocket

    Box Rocket Tepui Forum Rep

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,918
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    wait! What?!!? I thought this was a low-rider build? What the hell happened?!?

  13. Jul 13, 2014 at 9:00 AM
    #613
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Ol' Red got a serious dose of Viagra... no longer a "low rider" any more. :eek:


    I initially installed the AAL but had to take it out. I know, I know... "it would have settled" but seriously it was insanely lifted with rake. Absurdly so. Even if it had settled 1.5 - 2" it would have have still been ridiculous.

    If I need to install them later I will. It'll give me an opportunity to drive up to FoCo and visit BDN - great guy. Had lots of fun wrenching with him.

    I also didn't need to install the diff drop or CB drop. Brett brought 4* shims down and those were perfect.

    The CV angles, all the driveline angles, etc are great. No vibrations at high, med or low speeds whatsoever.

    Drove it for about 25 miles so far on road. Vast improvement over 182,000 mile old stock suspension.

    Plus I couldn't be happier with the stance and the looks. Not too much wheel gap with the 31s at all.

    Thanks to both of you for answering so many of my questions in threads and PMs over the course of the past few years.

  14. Jul 13, 2014 at 9:26 AM
    #614
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,111
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    :woot:

    Finally! looks great man.

  15. Jul 13, 2014 at 9:32 AM
    #615
    DirtyDTaco

    DirtyDTaco Talk slow, shoot fast.

    Joined:
    Aug 8, 2012
    Member:
    #84359
    Messages:
    1,050
    Gender:
    Male
    First Name:
    Matthew
    Mississippi
    Vehicle:
    '00 XtraCab 4x4 3.4L V6 5-Speed, 240K miles
    Polk 6.5" Coaxial Door Speakers, Pioneer DEH-X6500BT Head Unit, Black Bed-Lined Badges, 15% Tint, JL Audio 10" BassWedge, Alpine 500w Mono Amp
    Looks awesome bud, I'm super jealous. Can't wait to see the new shoes!

  16. Jul 13, 2014 at 11:09 AM
    #616
    m3bassman

    m3bassman Professional Web Wheeler

    Joined:
    Jan 16, 2011
    Member:
    #49376
    Messages:
    21,425
    Gender:
    Male
    First Name:
    Captain Jack Sparrow
    On the seven seas!
    Looks good. Bet it rides much better now!

  17. Jul 13, 2014 at 1:13 PM
    #617
    Scenekyd

    Scenekyd Well-Known Member

    Joined:
    Nov 15, 2013
    Member:
    #116629
    Messages:
    2,523
    Gender:
    Male
    First Name:
    Jay
    Hendersonville, NC
    Vehicle:
    04 Xtra Cab SR5 4X4
    Stock
    Looks good man!

  18. Jul 13, 2014 at 8:43 PM
    #618
    Madjik_Man

    Madjik_Man [OP] The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,386
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Thanks everyone... and because this is TW, here is an excessive amount of pics and ramblings.

    Stock suspension had 182,400 miles on it. Shocks and all. Old ride vs new ride? It's like getting off of Bea Arthur and rolling over onto Adriana Lima. No comparison.

    I hit up all the nuts and bolts with PB Blaster for two weeks prior to the removal/installation. Probably 10-12 applications. I think it helps out a lot. The rear leaf front hanger bolts everyone talks about... came out like butter. The only stubborn ones we ran into we the shackles.

    BDN and his buddy drove down from FoCo and met at my house at 6am. That means they left their place at 5am, at the latest. He had the back of his 95-97 loaded up with at least 400 pounds of tools and gear (everything needed for the job), including an engine hoist (see below). After seeing how the Dakars looked handling all that weight I was more sure of the suspension without the AAL, but I decided to put them in the leaf packs prior to installing on the truck. First thing's first:

    All the parts. 881s, Dakar leaf packs, AALs, OME stock height greaseable shackles, new shackle bushings, nitrosports all around, new U-bolts, Revtek diff drop (didn't use), OME CB drop (didn't use), extended rear brake line, front brake lines (couldn't install them because we couldn't get the retaining clip off the line), and BAMF BPV bracket.

    [​IMG]

    BDN's genius idea of using the engine hoist (attached to my recovery shackle in the hitch) to take the weight off the rear leaf springs.

    [​IMG]

    Compressing the pack to take it apart so we could swap out damaged liner clips and add the AAL

    [​IMG]

    Drilling out the center hole on the AALs because why should an OME AAL fit over the OME center pin? Crazy thought, I know.

    [​IMG]

    Added the 4* shim to the bottom of the pack to sit atop the perch. This was more valuable in keeping good driveline angles than the CB drop kit. Hence not using the latter.

    [​IMG]

    Apply a bunch of the moly grease to the bushings inside and out, then insert into leafs

    [​IMG]

    [​IMG]

    [​IMG]

    Somewhere along the line my passenger side bump stop decided to leave home.

    [​IMG]

    Like I said, everything came off pretty easily except the shackle bolts... apply heat and give'er hell.

    [​IMG]

    After we got the stock shackles and bushings all off, we cleaned the hell out of the inside of the hanger. Lots of corroded stock bushing and crud in there. Makes life easier inserting the new OME bushings

    [​IMG]

    Work the floor jack and jack stands to lower the axle so that you can remove the rear leafs entirely. Be very careful with your rear brake line and e-locker wire loom. We unclipped the wire loom off the bracket and disconnected the rear brake line entirely - nary a single drop of brake fluid dripped out or was in the line. This is where I found out I probably haven't been using the rear brakes for years. Best conclusion is that I was sagging so much that the BPV was closed entirely.

    [​IMG]

    Assembly the new shackles. Keep everything hand tight on the torquing. Makes putting all the pieces back together a lot easier. Torque to specs once the truck is sitting on all fours again.

    [​IMG]

    I broke the last fucking zerk off in the threads :frusty:

    [​IMG]

    This is how not to seat the bushings into the new shocks. Went over to my neighbor's wood shop and used his vice. Took all but 10 seconds.

    [​IMG]

    New leaf pack, with the AAL, and U-bolts installed.

    [​IMG]

    Here you can see everyone's complaint about the OME set up. Full droop with the leafs but the shock fully extended is about two inches or so short.

    [​IMG]

    BPV bracket installed. Originally with the AALs installed we had it at the highest setting. After removing the AALs and test driving it, I lowered the upper bolts down one setting. Brakes much better now. And yes, those are salvaged bolts/nuts from my collection because the BAMF bracket didn't come with hardware.

    [​IMG]

    And here's what the rear looked like once back on the ground. After deliberation, I decided to remove the AAL. Even knowing it would settle a bunch, it would have still been too ridiculous for my liking. Worst case scenario I install them later if I feel the need.

    [​IMG]

    [​IMG]

    Here's a helpful hint. Take a grinder with a flap disc or whatever and clean up the rear shock mount. Makes for a nice smooth install of the bushing.

    [​IMG]

    Here are shots of the truck after removing the AAL. The stance is so perfect for me right now (after 40 miles or so of driving and settling in the front and rear).

    [​IMG]

    [​IMG]

    New 881s and shocks up front. Simple to get the old ones off and new ones on. Cruiser Outfitters doesn't assemble their driver's side shock/coil with the trim packer to account for Taco lean. I'll see how that goes. Never had the Taco lean before on stock, so I dunno.

    [​IMG]

    All done (note the spare tire is not on the truck yet, so the rear is really light):

    [​IMG]

    [​IMG]

    [​IMG]

    After driving it around for a bit:

    [​IMG]

    CV angles:

    Before:

    [​IMG]

    After:

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]

    Shackle angles:

    Before:

    [​IMG]

    After:

    [​IMG]

    Pictures of the rear driveline after:

    [​IMG]

    [​IMG]

    And because this is TW:

    [​IMG]

    [​IMG]

    After driving it around today the front has settled a little bit as well as the rear. I also hauled a bunch of pressure treated lumber in the back of the truck so that should have helped.

    My impressions:

    1. On road feel is unbelievable. I can't even begin to describe how much more awesome it is than a 182,000 mile suspension. It's a little stiff which I like but the shocks eat up the potholes, manholes, bumps, etc beautifully.

    2. The stance is perfect for me. Love the way it looks. The worn out 31s look great under the truck, something I was worried about when reading threads and looking at pictures for years - the wheel gap is totally fine for me. With the new tires going on Tues it will look even better.

    3. The size of the lift is perfect for me. It definitely feels bolstered but not absurd for my style or needs. It sounds stupid but those with a daily driver as well will understand. My 7 year old daughter can still easily get in and out of the truck, open the topper and lower the tailgate etc. Not to mention my 5'4" GF has no issues.

    4. Driving down the road it doesn't feel ridiculously lifted. It's the perfect amount for me. When I was driving my full sized Bronco on a 4" suspension lift and 33" tires, I felt kind of like an idiot. This lift on this wheel base Tacoma is great.

    Once I put the fender flares back on I'll check back in and post up the pre and post hub to fender measurements as best I can.

    Last edited: Jul 14, 2014
  19. Jul 13, 2014 at 11:59 PM
    #619
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,834
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Good to see this lift finally come to fruition. :cool: Looking forward to seeing the new wheels and tires on it. IMO, I'd ditch the original spare and keep the best BFG you have.

    A shop crane/engine hoist is invaluable!

  20. Jul 14, 2014 at 5:43 AM
    #620
    Trim taco

    Trim taco Just one more stupid question

    Joined:
    Oct 8, 2013
    Member:
    #114070
    Messages:
    69
    Gender:
    Male
    Bourbon capital of the world
    Vehicle:
    96 work-beater
    Bunch 'o random stuff
    I like your moves. I like your style.
