Manwithoutaplan Build

Discussion in '2nd Gen. Builds (2005-2015)' started by Manwithoutaplan, Jun 11, 2010.

  1. Jun 11, 2010 at 9:59 AM
    #1
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    Here is the a a list what i have done to my truck.

    Toyota Tacoma 2007 4x4 Trd Sport
    -Speed Way Blue
    -6 speed Manual

    Mods
    -6" inch Pro Comp lift :puke: Don't buy this kit
    - 2.5 inch Icon Coilover/ Icon 700lb coils 158508 and Bilstein's 7100 Resi
    -17x8" Inch Pro Comp Series 7105 4.5 BackSpacing 6 x 5.5" Bolt PatternNumber7105-7883
    -Gorilla lugs Acorn Chrome 21134HT 12x1.50mm
    - ( Gorilla Key1921SD) 3/4, 13/16 Dual HEX Width .80" / Length 1.36"
    -315/17/70 Kelly Safari TSR
    -East Coast Supply Sliders ( which i had a Buddy Weld on for Me)
    -Wet Okle Front Seat Covers
    -Debadged the Tail gate and made Tacoma Black
    -Tinted limo in the back and light on the front windows
    -Kragen Horn
    - Devil horns
    -CLuster swap :D. thx to jerez

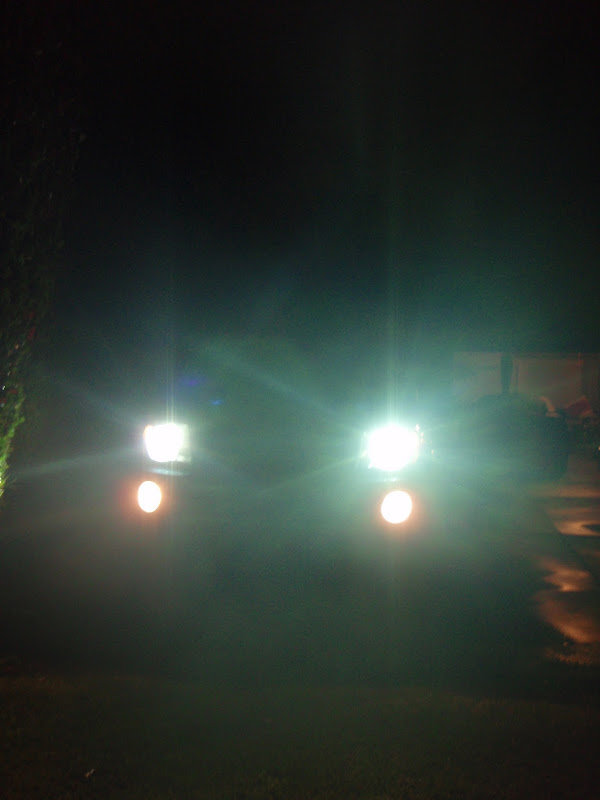

    -HID 6k
    - All Pro Exp Leaf Pack , no more blocks :D
    - Wet Okole arm rest mod looks nice :D
    - Camburg UCA's w/MOOG ball joints
    - Rear Bumper swing out tire gate ( Dept 94)
    - Re geared to Nitro 4.65 with ARB locker front and Back
    Front ARB 121 and Rear ARB129

    - Arb High air compressor
    - Front Bumper Perkin
    - Warn zeon 10K -3/8 100' Spydura synthetic line
    - Wheeler bumps
    - Trail Toys UHMW Gas tank Protection

    Mods to Come



    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

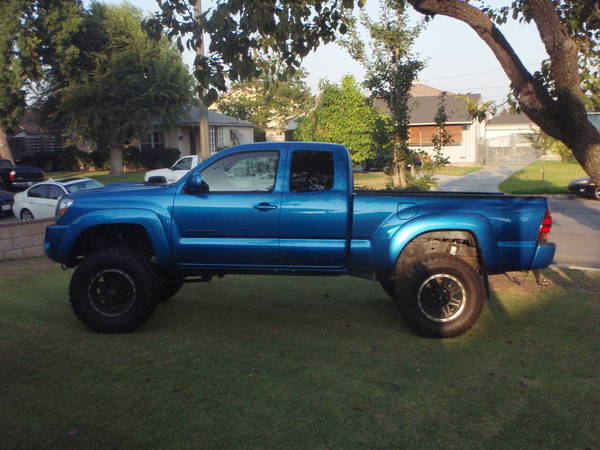

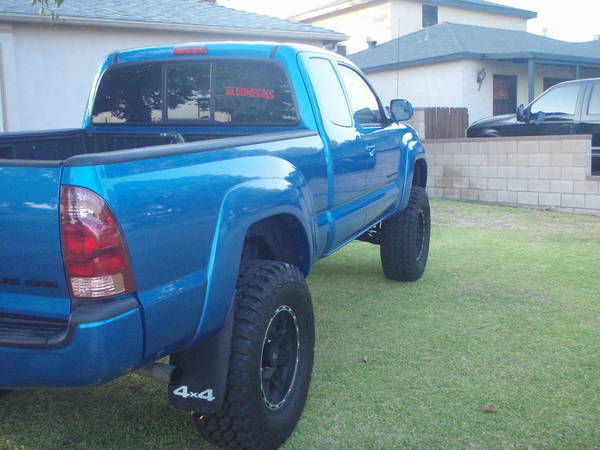

    Bought my Truck in 5-31-2007

    I lifted my Truck 4-16-2009. Been Happy SInce :D


    Black out Badge
    [​IMG]
    [​IMG]
    [​IMG]

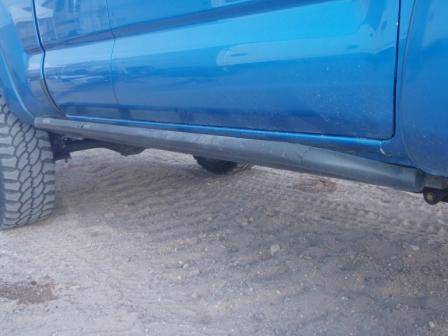

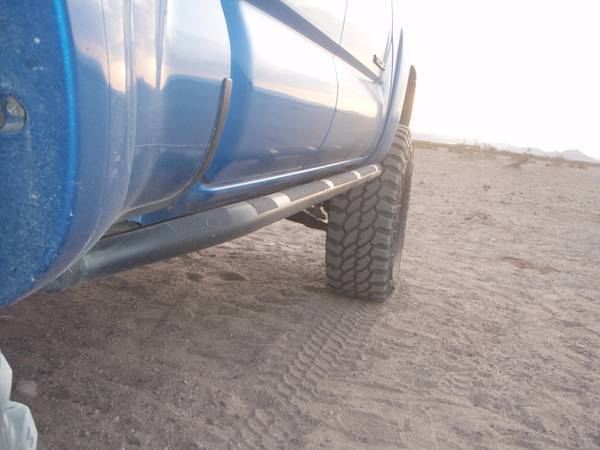

    Sliders From East Coast Gear Supply
    [​IMG]
    [​IMG]

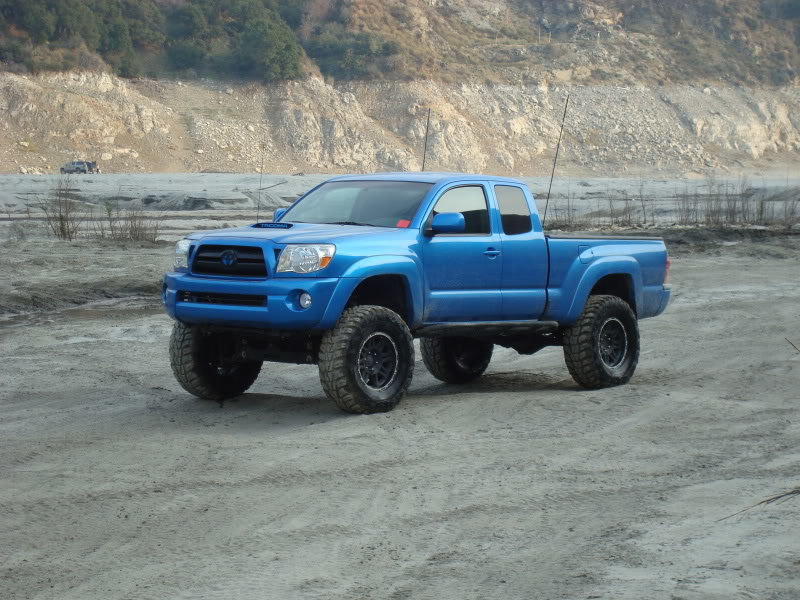

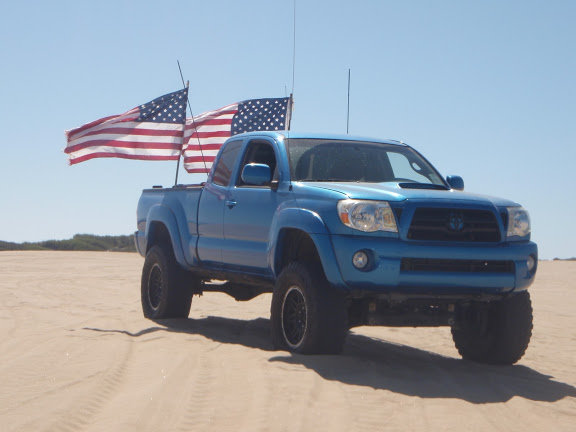

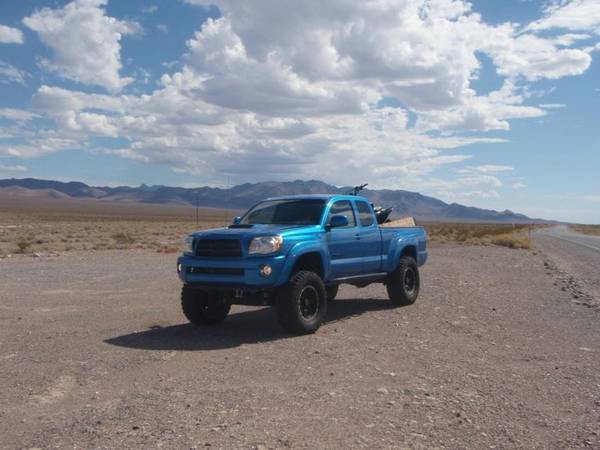

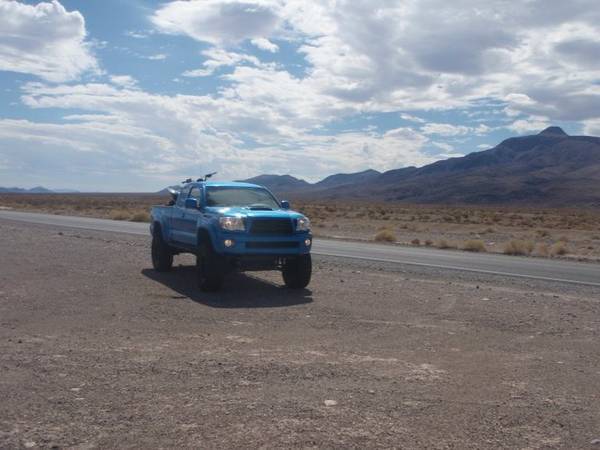

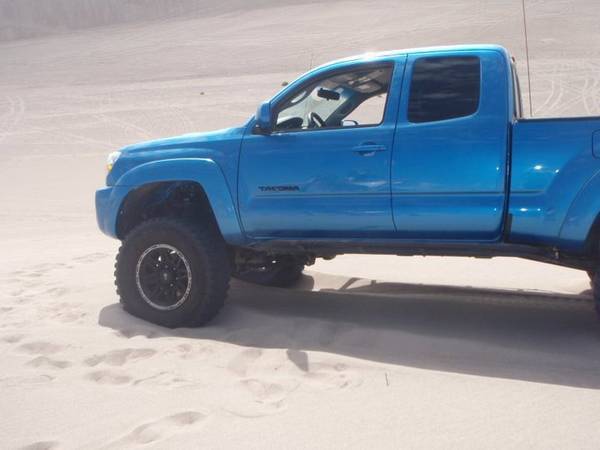

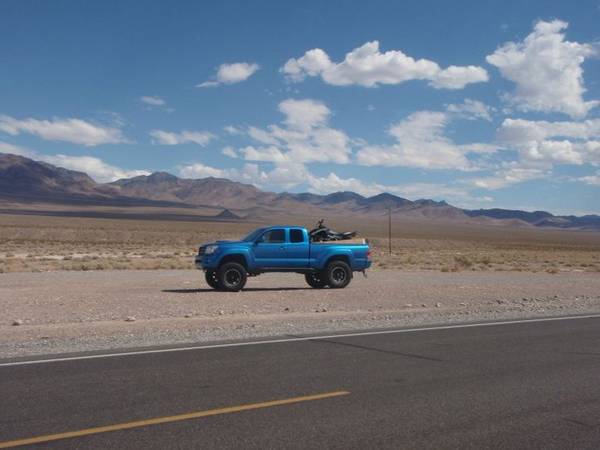

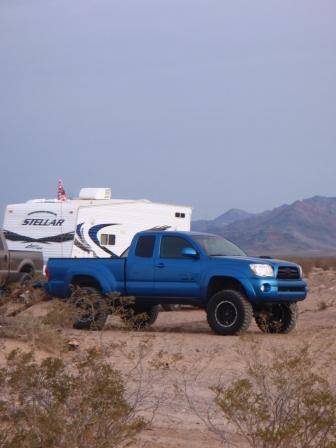

    Here is my Favorite Picture of my Truck :)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Well that is my Build hope you like :)

    Future Reference

    DieHard Platinum Marine Battery Group Size 31M (Price with Exchange)
    http://www.sears.com/diehard-platin...0P?prdNo=1&blockNo=1&blockType=G1#reviewsWrap
    http://www.ncttora.com/fsm/index.html

    Trq specs for Tacoma lift
    Front:
    UCA 83 ftlbs frame
    Steering knuckle 81 ftlbs
    Coilover 47 ftlbs top bolts 3
    Coilover 61 ftlbs bottom
    Wheels 85 ftlbs
    Rear:
    Ubolts 39 ftlbs
    Shackle 89 ftlbs
    Shock 15 ftlbs top
    Shock 74 ftlbs bottom
    Wheels 83 ftlbs

    http://forum.ih8mud.com/80-series-tech/214661-transmission-temp-gauge-install-w-pics.html

    Parts:

    (1) ARB front locker $949
    (1) ARB rear locker $949
    (1) Nitro 4.56 front ring and pinion $299
    (1) Nitro 4.56 rear ring and pinion $225
    (1) Nitro master setup kit front $349
    (1) Nitro master setup kit rear $231
    (1) Nitro rear solid pinion spacer $55
    (1) 80w90 GL5 Gear oil $40

    Total parts: $3097 + tax.

    Labor:

    Remove and reinstall (R&R) front diff $250
    Setup front diff with ARB, 4.56, all new bearings $375
    R&R rear diff $175
    Setup rear diff with ARB, 4.56, all new bearings $275

    Total Labor $1075

    Market
    N. America
    Year
    03/2007
    Make
    TOYOTA
    Model
    TACOMA
    Frame
    GRN245
    Vehicle characteristics
    DESTINATION: USA: UNITED STATES OF AMERICA CABIN: LCB: LARGE CAB ENGINE: 1GRFE: 4000CC 24-VALVE DOHC EFI GEAR SHIFT TYPE: 6F: MTM, 6-SPEED FLOOR SHIFT COLOR CODE: 8P1 TRIM CODE: FD13
    Search Results
    VIN* Model code From To Frame Characteristics
    ******.. GRN245L-CRFDKA 09/2004 - 04/2008 GRN245 USA LCB 1GRFE 6F
    Click here to continue

    http://www.toyodiy.com/parts/p_U_200703_TOYOTA_TACOMA_GRN245L-CRFDKA_3302.html
    MT tranny plug and gasket
    33104 PLUG SUB-ASSY, DRAIN(MTM)
    90341‑18057 GRN225, 245, 265..6F 1 $11.15
    33104A GASKET, DRAIN PLUG(MTM)
    90430‑18008 GRN225, 245, 265, TRN22*, 24*, 26*..5F, 6F 1 $1.15

    [​IMG]

    Winch Dimensions:
    Integrated configuration: 24.25" L x 7.15" D x 10.52" H
    (615.9mm L x 181.6mm D x 267.1mm H)
    Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
    (615.9mm L x 181.6mm D x 199.02mm H)

    Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

    Light switch

    warn switch
    warn winch


    New Tires Safari tsr
    Aux fuse box
    Perkins Front bumper





    http://www.motiveproducts.com/
    Power filler

    http://www.tacomaworld.com/forum/ma...-electrical-system-upgrade-now-available.html

    http://www.salexorganizers.com/Home_Page.php


    [​IMG]

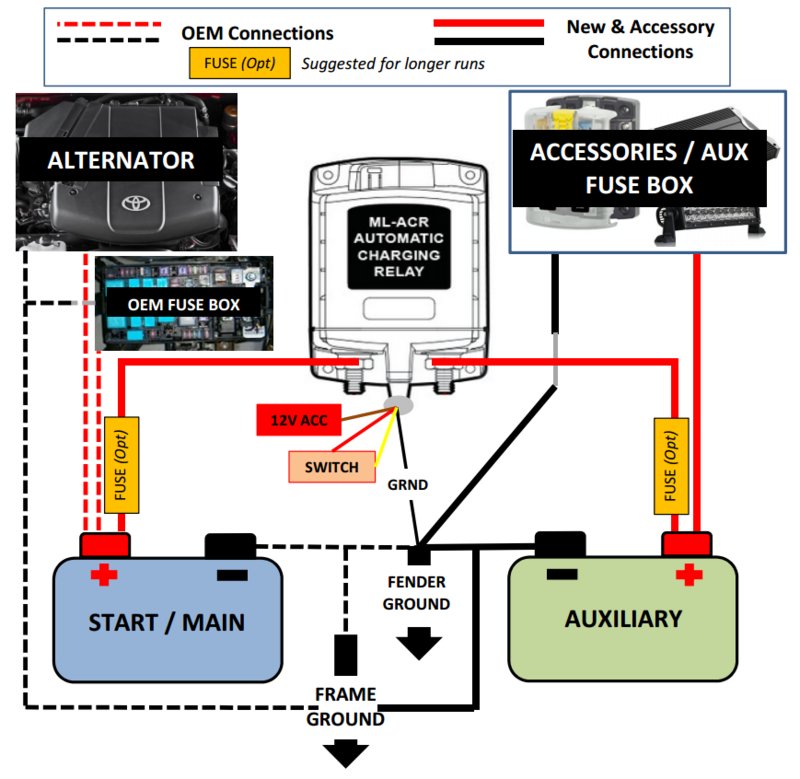

    http://forum.ih8mud.com/threads/t-max-dual-battery-install.607791/

    http://www.carid.com/images/miscellaneous/wst-75-0926-dual-battery-system.pdf

    http://bds-suspension.com/product-display?sr=883 shock&utm_source=pr&utm_medium=email&utm_campaign=bdsPR
    http://bds-suspension.com/product-display?sr=883 shock&utm_source=pr&utm_medium=email&utm_campaign=bdsPR


    Raw
    Cylinder Extended
    Length Collapsed
    Length Body
    Diameter Top
    Mount Bottom
    Mount Available
    in 5500 series
    24.15 18.38 2-1⁄2" No

    http://www.tacomaworld.com/forum/suspension/43093-fabtech-procomp-6-lift-more-pictures-443.html

    http://www.boltlock.com/

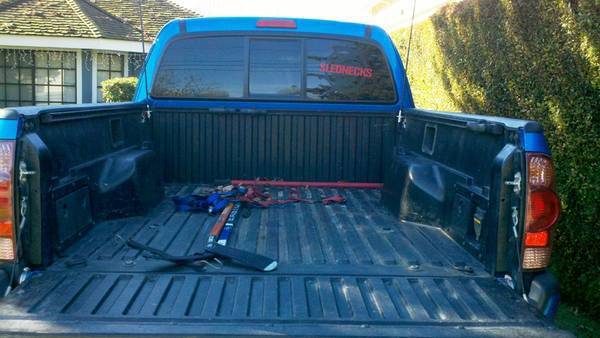

    Tailgate
    [​IMG]



    [​IMG]

    http://www.amsoil.com/mygarage/vehiclelookup.aspx?url2=2013+TOYOTA+TACOMA+Z

    Engine 5.5 qrtz /5-30w
    Front Diff 1.6 qrt /80-90w GL-5
    MT Transmission 1.9 qrt /75W90 GL-4 /GL-5 Gear Oil
    Transfer Case 1.05 qrt 75W-90 GL-4/ GL-5
    Rear Diff 3.0 qrtz 80-90w GL-5

    Front/Rear Diff 4.6 Quartz total = 1 gallon + 1 quart
    MT Tranny/ Transfer Case = 3 quartz
    1 Galloon bottle + 4 quart bottles.

    Oil Drain Plug.....30 ft/lbs
    Manual Transmission
    Fill Plug 27 ft/lbs
    Drain Plug 27 ft/lbs
    Transfer Case
    Fill Plug 27 ft/lbs
    Drain Plug 27 ft/lbs


    Trq specs

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/318116-torque-spec-guide.html

    http://www.instantairsupply.com/

    Truck Manual.

    http://www.customtacos.com/tech.old/files/05FSM/repair.html

    Future reference

    [​IMG]

    http://tapatalk.imageshack.com/v2/15/01/19/9d9e0109601625c89d7c4acdcdea8091.jpg[/IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

    [​IMG]

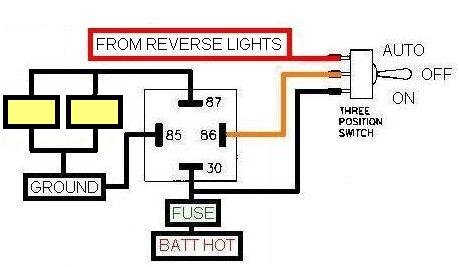

    AUx light for wurton pods

    [​IMG]

    http://www.jeepforum.com/forum/f20/aux-reverse-light-wiring-question-346781/

    http://www.jeepforum.com/forum/atta...uestion-rear-fog-light-diagram-compressed.jpg

    [​IMG]

    [​IMG]

    Last edited: May 15, 2015
  2. Jun 11, 2010 at 10:01 AM
    #2
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,238
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    Very nice rig!

  3. Jun 11, 2010 at 10:01 AM
    #3
    derekabraham

    derekabraham Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    29,134
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.
  4. Jun 11, 2010 at 10:13 AM
    #4
    lembowski

    lembowski Rompin Around

    Joined:
    Jul 29, 2009
    Member:
    #20347
    Messages:
    7,109
    Gender:
    Male
    First Name:
    Matt
    Rolando, CA
    Vehicle:
    09 LT, Caged, 4WD
    Nice!!!

  5. Jun 11, 2010 at 10:15 AM
    #5
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  6. Jul 21, 2010 at 11:54 AM
    #6
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    I have more pictures coming soon!!! weeeeeee

  7. Jul 21, 2010 at 12:07 PM
    #7
    jacob_wood

    jacob_wood Screw your MPG's

    Joined:
    Jun 8, 2009
    Member:
    #18191
    Messages:
    3,804
    Gender:
    Male
    First Name:
    Jacob
    Campbell, CA (Nor-Cal)
    Vehicle:
    4Runner
    BHLM, SAW coilovers, Overland Warehouse springs and rear shocks, and Demello front bumper.
  8. Aug 14, 2010 at 2:20 PM
    #8
    jerretxx

    jerretxx Some do, others talk

    Joined:
    May 23, 2010
    Member:
    #37692
    Messages:
    2,137
    Gender:
    Male
    First Name:
    Jerret
    North Carolina
    what kind of gas mileage are you averaging?

  9. Aug 14, 2010 at 5:31 PM
    #9
    trd7

    trd7 4wd tacoma

    Joined:
    Jun 14, 2010
    Member:
    #38931
    Messages:
    905
    Gender:
    Male
    First Name:
    Tyler
    Columbia, SC
    Vehicle:
    95.5 Tacoma 4x4 4cyl auto
    AEM air intake
    very nice tacoma i love it :bowdown:

  10. Aug 14, 2010 at 5:34 PM
    #10
    TacoGK

    TacoGK Making changes is always fun

    Joined:
    Aug 1, 2010
    Member:
    #41079
    Messages:
    217
    Gender:
    Male
    First Name:
    Jack
    Florida
    Vehicle:
    2010 DC trd offroad sr5 debadged
    20% tint JLAudio amp and 12" sub, custom fiberglass tool box, Color matched Satoshi Grille, Anytime Fog light mod, Anytime rearview camera, Leveling kit, Rear spring TSB, Moto Metal MO957 Black, 285/70/17 BFG AT KO, DTRL Stealth mod, Anytime locker mod, Constant power mod.
    Love the look. truck looks awesome.

  11. Aug 14, 2010 at 6:45 PM
    #11
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    with the 35 inch tires on stock gears i am getting 280 to 300 miles a tank.








    FU for neg rep on my thread wtf

  12. Aug 14, 2010 at 7:07 PM
    #12
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,774
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
    very nice,how bad does she vibrate?

  13. Aug 14, 2010 at 7:12 PM
    #13
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    It did not virbate that bad at when i first lifted it. But i went to gorman and got stuck in the mud. Now it virbate alot. WHat i need to get it is the once piece drive shaft, to hopefully fix the problem.

  14. Oct 4, 2010 at 9:25 PM
    #14
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    More PICSSSS WEEEEEEEEE

    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]

    Last edited: Dec 23, 2014
  15. Oct 5, 2010 at 12:10 PM
    #15
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP

    I know it is expensive to regear. But i think with being stuck in the sand and thick mud like you have seen on the picture. I think i really to regear to get out of the situtions better. What kinda of Armor do you have? I am hoping to get the front bumper through all pro off road. I have a buddy that know the ALL pro off road owner, might be able to score the front bumpper that is 900 bucks for 600. But will see if that is true or not. Nice truck by the way :). Have you ever wish you bought the off road verison instead of the sport?

  16. Dec 20, 2010 at 3:37 AM
    #16
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP

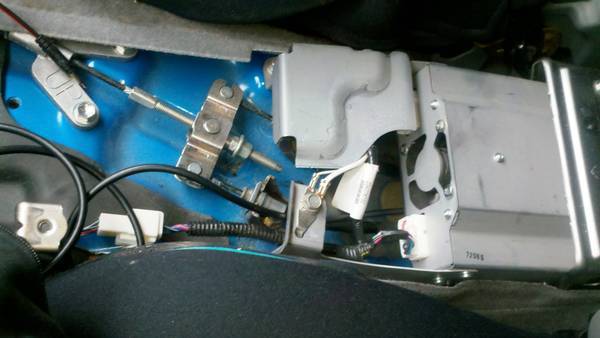

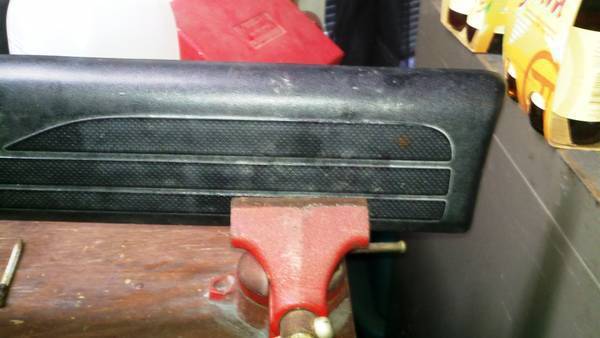

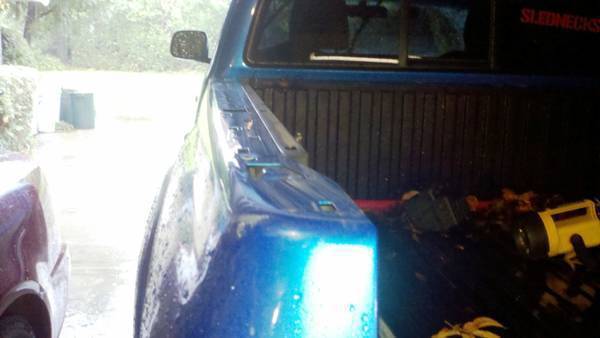

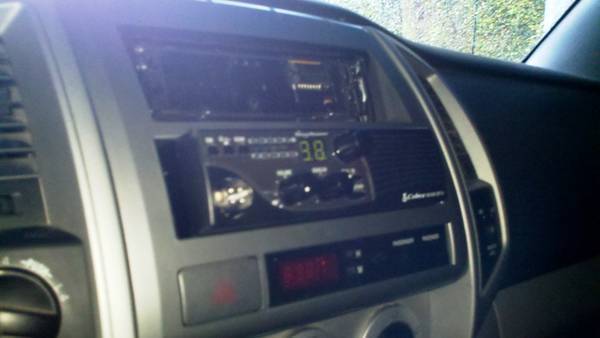

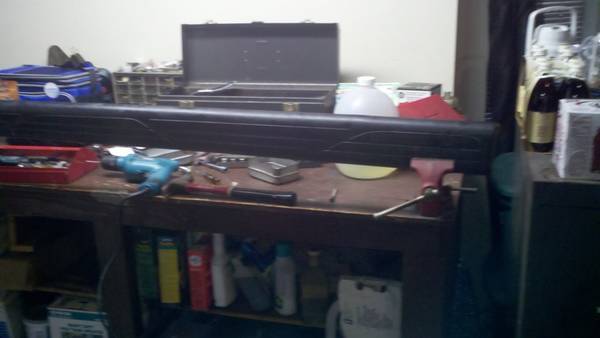

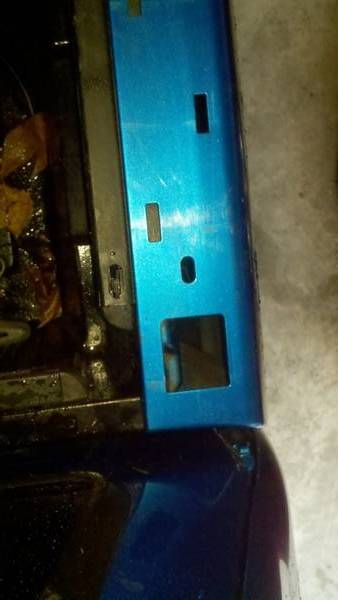

    So I am currently Install A new Cb Radio That i bought for my CHristmas/b-day Presnt to myself.
    [​IMG]

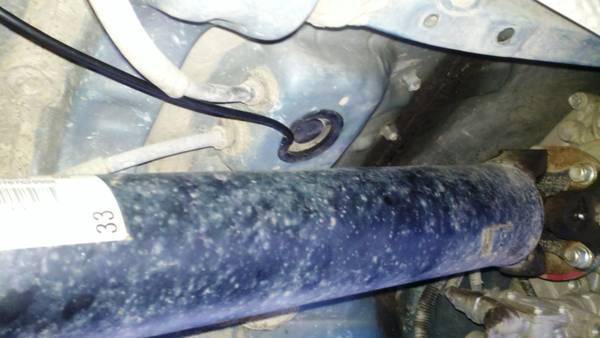

    I was wondering has anybody run their CB wire like this
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

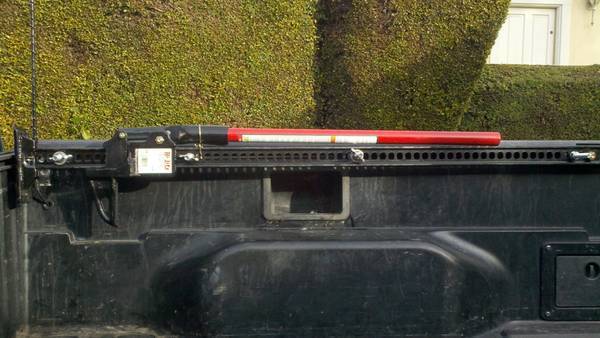

    THis where i am going to run my wire in the bed.
    [​IMG]
    [​IMG]

  17. Dec 23, 2010 at 2:50 AM
    #17
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    I really need to get some sliders! Really nice build though! SWB FTW!

  18. Dec 23, 2010 at 3:02 AM
    #18
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    Yea sliders were a must for me. They are from east coast gear supply for 200 bucks. plus shipping

  19. Jan 7, 2011 at 9:29 AM
    #19
    Manwithoutaplan

    Manwithoutaplan [OP] the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  20. Jan 17, 2011 at 2:00 AM
    #20
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    ive been thinking about adding the same lift... Hows your steering feel now? I don't like how choppy mine has become! My 4runner is sold and i'm worried if i add a 6inch and 35's its only gonnna get worst!

To Top
