Map Light LED installation

Discussion in 'Lighting' started by doubletap, Mar 28, 2011.

  1. Mar 28, 2011 at 10:30 PM
    #1
    doubletap

    doubletap [OP] Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53059
    Messages:
    60
    Gender:
    Male
    Los Angeles
    Vehicle:
    2011 4x4 TRD Sport Tacoma
    None yet
    Just finished installing my LED map and dome lights for my Taco. I searched around here before doing the install and couldn't find much on how to remove the map light bulb. Indeed they are a PITA to remove because you can't get enough grip on the tip of the bulb to remove it, however with the right method and tool you can get it out pretty darn easy.

    Here is how.

    1) Get a flat screw driver with a nice sharp edge.

    2) Next get painters tape (what I used) or electrical tape and wrap the end of the screw driver but be sure not to wrap too much or you won't have enough sharpness to pry into the edges to take the cover off.

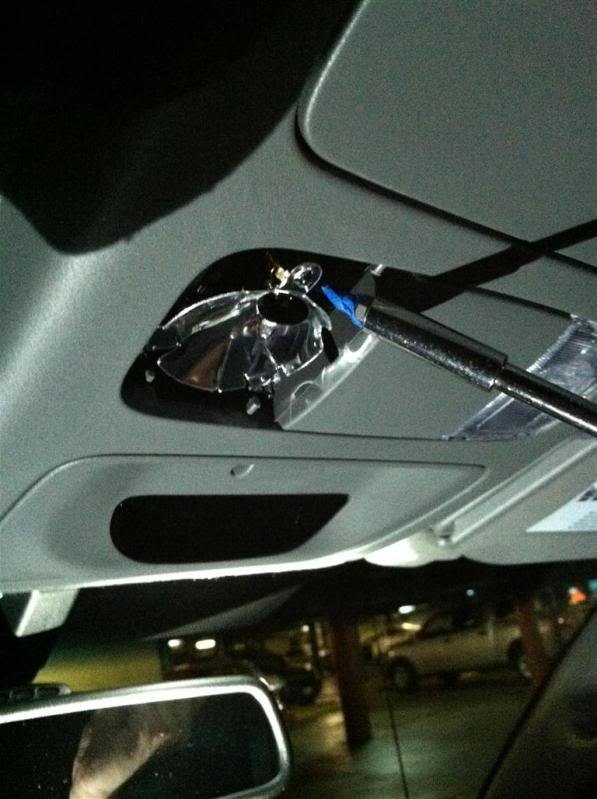

    3) To pop the cover off, just find one of the edges that hold up the panel and pry under it and apply a little pressure and it will pop out. Do not worry about scratches because that is what the painters tape for. Once you pop the cover off it will look like this inside. Sorry for the bad picture....

    [​IMG]

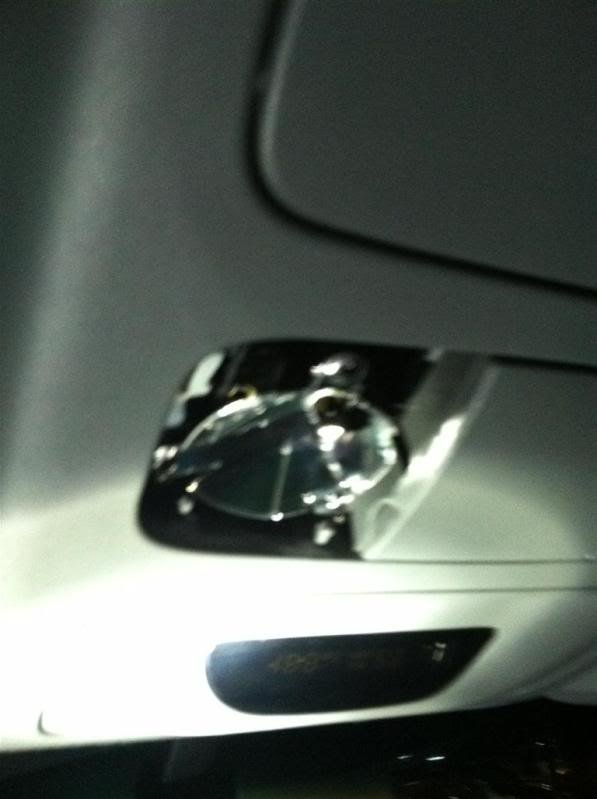

    4) Now is the sort of the tricky part. What you will need to do is change to a smaller type of screw driver head. I changed to a 1/8 , and wrapped it around about 1 1/2 times with painters tape. You want to take the screw driver head above the chrome reflectors and apply pressure downwards against the bulb while tugging on it with the grip you can get with the other hand and it should pop right out. I used a flashlight to do it at night but i'm pretty sure you should be able to see it in the day better.

    [​IMG]

    5) Put the bulb in (Sorry no pictures of that, its really straight forward. They go in the same way they come out.

    6) Put the cap on and your done.

    Dome Light-
    This is so easy it doesn't even need a DIY. All you need to do it take the painters taped screw driver head and find the prying clip mark. Get under with the screw driver and pry. Use force and it will come off, be sure not to pull so hard cause the other end has wiring attached along with a clip. Just be nice and easy.

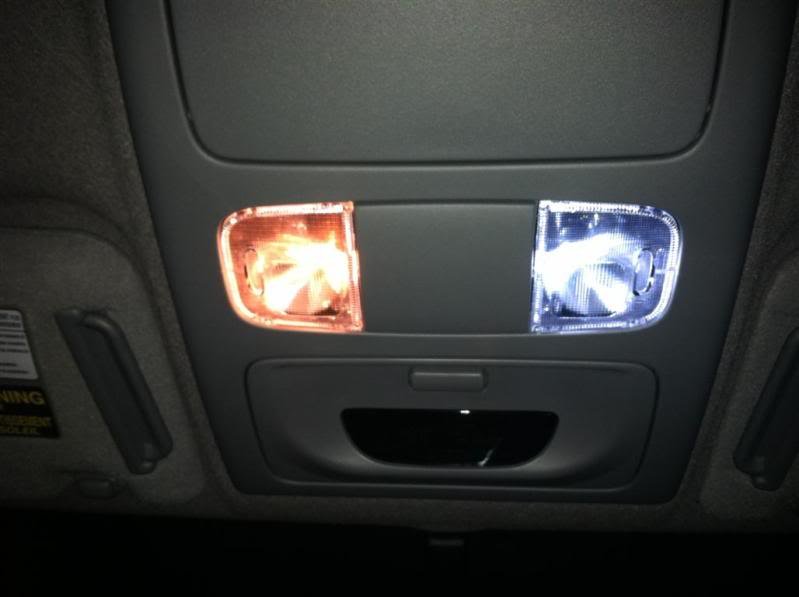

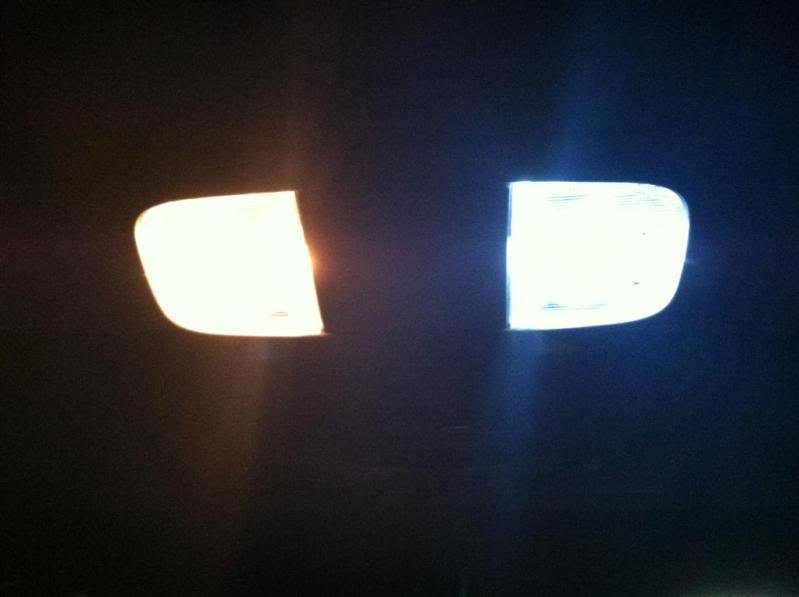

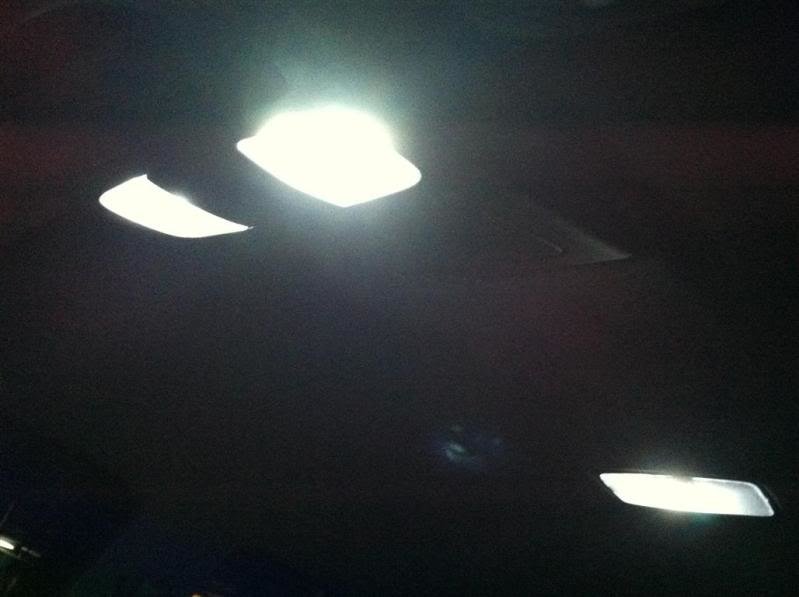

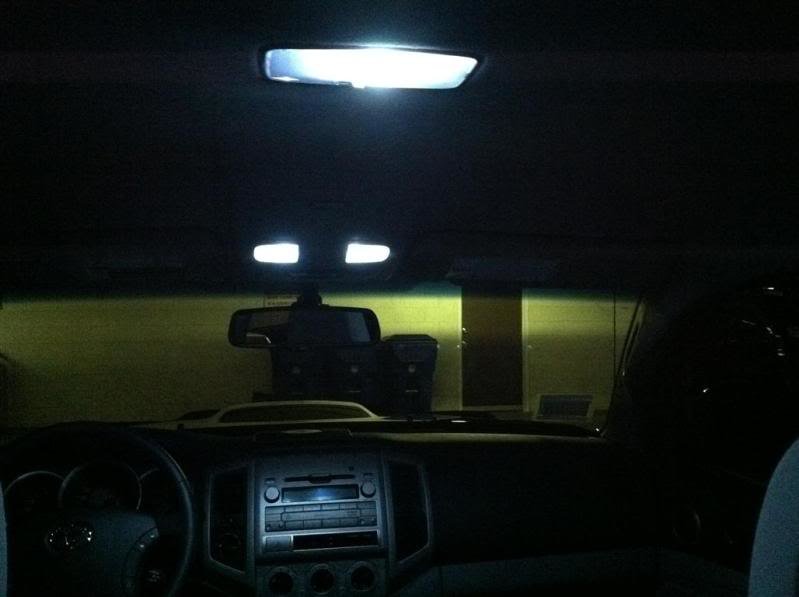

    Here is the finished product
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Lights Purchased from: http://www.superbrightleds.com/

    Map Lights - 2x WLED-x5 LED Wide Angle LED bulb (White) 194/168 Wedge Bulb

    Dome Light - 1x 4410-x9 LED Festoon bulb (White) 194/168 Wedge Bulb

    The lights match well in color and are bright enough. I like them because you won't blind your passengers and they look cool too.



    Good Luck all

  2. Apr 1, 2011 at 8:26 AM
    #2
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,668
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Did you do the map lights on with dome light mod too or are you still using the stock configuration? I want to swap to LEDs but I remember reading somewhere that if you have done the map lights with dome light mod, it makes it more complicated for led swap.

    Thanks for this thread, definitely helpful

  3. Apr 1, 2011 at 9:03 AM
    #3
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,668
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Just ordered mine! Didn't realize they were plug and play.. Can't be any easier!

  4. Apr 1, 2011 at 12:52 PM
    #4
    doubletap

    doubletap [OP] Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53059
    Messages:
    60
    Gender:
    Male
    Los Angeles
    Vehicle:
    2011 4x4 TRD Sport Tacoma
    None yet
    I did both. I started with the dome light first because its just 1 bulb, and then did the map lights.

  5. Apr 4, 2011 at 5:42 PM
    #5
    jtav2002

    jtav2002 Kenny Fuckin Powers

    Joined:
    Jun 29, 2009
    Member:
    #19074
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Josh
    Reading, PA
    Vehicle:
    2013 Tundra DBL Cab TRD OR
    Nice write up. I chose to go the blinding method myself haha. Used the ultra thin flat LED light from Oznium. They are insanely bright and look awesome.

  6. Apr 4, 2011 at 8:44 PM
    #6
    MightyP

    MightyP Member

    Joined:
    Apr 4, 2011
    Member:
    #54331
    Messages:
    6
    Gender:
    Male
    First Name:
    Paul
    Northwest Florida
    Vehicle:
    '11 Scion tC
    Not even a Tacoma...
    LED light swaps are great, keep you from having to replace bulbs as often and give your ride a classier look (IMO)

  7. Apr 5, 2011 at 9:11 AM
    #7
    NLF

    NLF Well-Known Member

    Joined:
    Dec 9, 2010
    Member:
    #47398
    Messages:
    113
    Gender:
    Male
    First Name:
    Levi
    Minneapolis, MN
    Vehicle:
    '11 TRD Sport DC LB 4x4
    OME 884 & Bilstein 5100s @ 0, TSB Rear w/5100s, 20x8 Mamba M2 275/55/20 Geolander, Access Cover
    I installed the leds last night in my map lights and dome light. They are awesome, and look much classier than the old school bulbs.

  8. Jul 8, 2011 at 4:38 PM
    #8
    gatlin69

    gatlin69 Retired?

    Joined:
    Feb 5, 2011
    Member:
    #50578
    Messages:
    435
    Gender:
    Male
    First Name:
    Scott
    Tampa
    Vehicle:
    4x4
    Nerf bars, bug shield,skid plate, coming soon (hopefully) DVD NAV
    I just got mine in...so much better thanks happyb!!!

    Getting those map lights out were a huge pain in the ass.

  9. Jul 8, 2011 at 4:47 PM
    #9
    flyzeye designs

    flyzeye designs Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    I LIKE it!!! Nice information. Thanks!

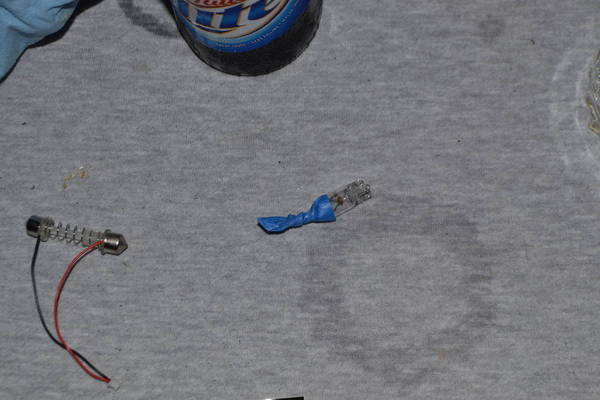

    ...and all we came up with was:

    [​IMG]

  10. Jul 14, 2011 at 12:59 AM
    #10
    patwrik

    patwrik Well-Known Member

    Joined:
    Jun 26, 2011
    Member:
    #58900
    Messages:
    84
    Gender:
    Male
    San Diego, CA
    Vehicle:
    05 DBL CAB
    I just swapped my map lights and dome light as well. I also did the compass/temp fix.

    I found it easier to remove the overhead console and poke through the holes to pop the lense and bulb.

  11. Jul 14, 2011 at 1:27 AM
    #11
    motorsport36

    motorsport36 Morto un papa, se ne fa un'altro

    Joined:
    Mar 25, 2011
    Member:
    #53674
    Messages:
    1,412
    Gender:
    Male
    First Name:
    Jason
    Furnace, AZ
    Vehicle:
    2013 Tacoma TRD Sport 4x4 DCLB
    Booooo brand new and working on it
    nice subd for reference

  12. Aug 19, 2011 at 2:18 PM
    #12
    SalmonTaco

    SalmonTaco Tasty fish in a tortilla

    Joined:
    Mar 22, 2011
    Member:
    #53488
    Messages:
    1,958
    Gender:
    Male
    First Name:
    Andrew
    Seattle
    Vehicle:
    '08 quatre roues motrices
    Brute Force bumpers, 5100s/885s, SnugTop MVP Shell, USA Spec iPod adapter, WeatherTechs, Tinted Fronts, Mud Flap chop, Tuffy Bed Box, Console Vault, Fogs anytime, ImMrYo mirror bracket, Wet Okoles, aFe Pro Dry S, PowerStop Z36 pads & drilled/slotted rotors, more shit I can't remember
    I changed mine this morning to the same ones from superbrightleds.com. The dome light was easy and the 44mm bulb fit ok, maybe a little too long. I then moved on to my map lights...

    After removing the lenses (I used a painter's tape wrapped small flat blade screwdriver - pry carefully from the side nearest the door) there sat the stock bulbs. After a bit of struggle I had an idea how to remove those bastards super easily and I guarantee it won't scratch up your plastic console...

    I peeled off about an inch of 2" wide painters tape, made a tiny tube that was about the diameter of the stock bulb, slid it over and yanked it right out. I had plenty of tape "tail" for me to pull the bulb out with ease.

    And I was very happy.

  13. Aug 28, 2011 at 6:02 PM
    #13
    vanzigler

    vanzigler Active Member

    Joined:
    Jun 25, 2011
    Member:
    #58847
    Messages:
    43
    Gender:
    Male
    First Name:
    Van
    alberta
    Vehicle:
    05 tacoma v6 sr5 TRD sport
    aFe Cold Air Intake si with 5R filter, Flowmaster Dual Exhaust, OME 885 Dakar suspension kit, Hella Driving lights, VVME 35W HID headlights, VVME 55W HID Fog lights, 2" BORA Wheel Spacers, Throttle Body Spacer
    Hi how's it going? Which side did you put the flat head screwdriver on? The bulbs don't even look like bulbs. Are the plastic covers and bulbs easy to break?

  14. Aug 28, 2011 at 8:24 PM
    #14
    808TUNDA

    808TUNDA Well-Known Member

    Joined:
    May 27, 2011
    Member:
    #57332
    Messages:
    48
    Gender:
    Male
    First Name:
    D
    Oahu, Hawaii

    Insert the screwdriver from the sides facing the doors. So if you're sitting in your driver seat, insert the screwdriver on the left side of your left dome map, and right side on your right side dome map. There's a hinge on the inside of these lens so it's best to remove them this way. Putting them back on is just the reverse, insert hinge end first and just 'push' the other end back in till it clicks "on".

  15. Sep 26, 2011 at 5:21 PM
    #15
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    77
    Gender:
    Male
    First Name:
    Pete
    SoCal
    Vehicle:
    09 Tacoma Off Road
    I swapped out my dome light for an LED unit, but I noticed that the LED does not turn completely off when it should. Anyone know what's going on???

  16. Sep 27, 2011 at 1:21 PM
    #16
    flyzeye designs

    flyzeye designs Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    Sounds like Chris Angel is messing with you. :)

  17. Sep 27, 2011 at 1:26 PM
    #17
    tacoman15

    tacoman15 Stop staring at me swan!

    Joined:
    Aug 19, 2011
    Member:
    #62001
    Messages:
    3,589
    Gender:
    Male
    First Name:
    Chris
    Western NC
    It might be a faulty connection or bad bulb. not 100% sure but that is what it sounds like

  18. Oct 22, 2011 at 1:24 AM
    #18
    Opihiman10

    Opihiman10 Active Member

    Joined:
    Oct 17, 2011
    Member:
    #65329
    Messages:
    36
    Gender:
    Male
    Honolulu, Hawaii
    Vehicle:
    2011 double cab 4x4 TRD SR5
    Nerf bars
  19. Jul 29, 2012 at 3:19 PM
    #19
    Av8er

    Av8er Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77844
    Messages:
    499
    Gender:
    Male
    First Name:
    Taylor
    Formaly Houston, now Tampa, FL.
    Vehicle:
    09 Prerunner SR5/TRD DC, LB, w/ Tow
    Installed my new ones from LEDSolutions. Thanks to SalmonTaco's idea of using the painter's tape. Worked like a charm literally in seconds. I did the red dome and two white maps. Pic's under my profile and soon on my "build" link.

    [​IMG]

    [​IMG]

  20. Sep 26, 2012 at 3:33 PM
    #20
    WebRat

    WebRat Member

    Joined:
    Oct 5, 2011
    Member:
    #64680
    Messages:
    20
    Gender:
    Male
    Oregon
    Vehicle:
    2012 Taco Sport
    Removed badges, Tinted windows, 3" Tube steps, 3" lift.
    Just did the license plate lights, dome light and map lights with cool white from superbrightleds, fast 2 day shipping.

    2012 Tacoma Sport.

    Dome Light 578 replaced with 4410-CW9 (9-LED) Festoon Bulb. Looks maybe a little brighter and it's a little big but fits and works just fine.

    Map Lights 168 replaced with WLED-CW5 (5-LED) 194 Wedge Base. Again looks a little brighter. Thanks for the video and the idea about the painters tape, came right out and didn't need to pry on the back of it.

    License Plate Lights 168 replaced with WLED-W-120 194 (Single LED) Wedge Base. With only one LED I don't think there is going to be any difference in brightness other than a more white light than yellowish.

    Good post, thanks.
