Marlin Crawler "Taco Box" Sale!

Discussion in 'RockSolidToys' started by awsumdc, Apr 17, 2010.

  1. Apr 17, 2010 at 11:51 AM
    #1
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff
    RockSolidToys
    Marlin Crawler "Taco Box" Sale!


    Ok guys and gals. All f you with 4WD Tacoma's knows how much better your truck handles the hard stuff when you switch your transfer case into low. Now imagine being able to have another lower gear or even two lower gears. The amount of control that you would have changes your entire wheeling experience. No more banging over rocks, using speed to get you over opsticles and breaking stuff, and no more sliding down hills while standing on the brakes.

    A Marlin Crawler "Taco Box" will allow you to overcome those issue with complete control.

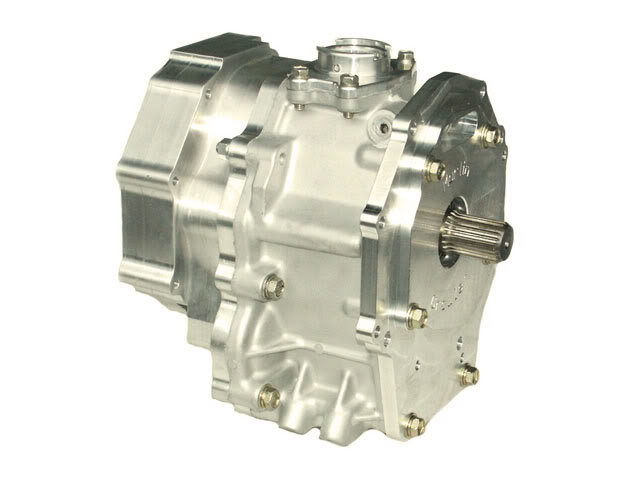

    [​IMG]

    The Marlin Crawler "Taco Box" starts it's life as the reduction portion of a Toyota Hilux gear driven case. Marlin Crawler then adds their magic with super improved parts through out. Instead of using the stock input shaft and bearings, they upgrade it with stronger and better designed parts.
    There are two low range gear choices to choose from.

    • The 2.28:1 low range gear which will give you your stock low range with your transfer case in low and a compound low with both the crawler and the transfer case in low.
    • The 4.70:1 low range in the "Taco Supreme" which will give you your stock low range of 2.57:1 with your transfer case in low, a "Taco Supreme" low o 4.70:1 with just the crawler in low, and compound low of 12.08:1 with both your transfer case and crawler in low.


    In the picture below you can see the difference between a stock styled input shaft and the Total Spline input shaft from Marlin Crawler.
    [​IMG]

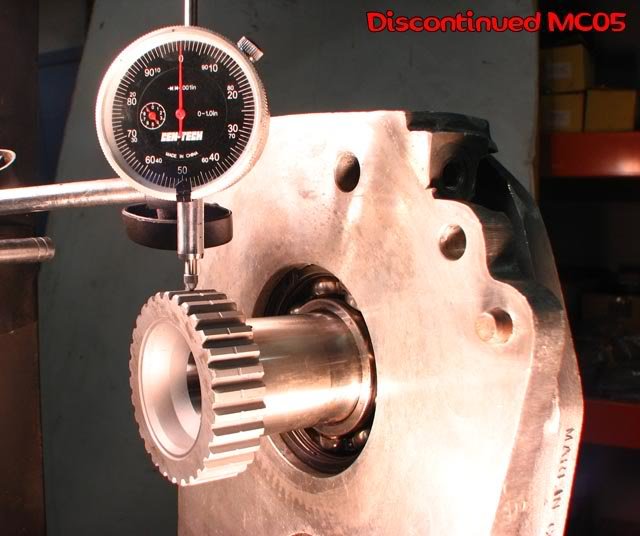

    Here is the difference between the stock style single row bearing found in the stock case and others crawler box's and Marlin's double row bearing.

    Stock style single row bearing.
    [​IMG]

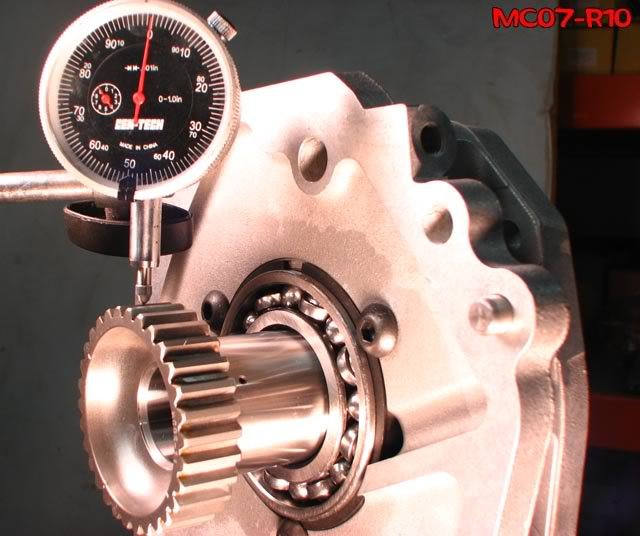

    Marlin Crawler's double row bearing.
    [​IMG]



    For those of you wanting to go with the "Taco Supreme" here are the benefits of going with the Marlin 4.70 XD gears instead of the others.

    Taken from Marlin Crawler website.

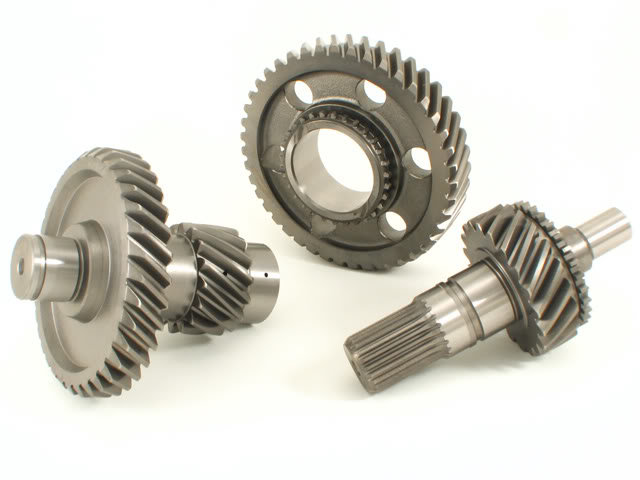

    [​IMG]

    Our new 4.70:1 XD gear set is clearly in a league all by it's self. The Marlin Crawler design and technology will take your truck to an entirely new level of confidence, performance, and dominance.

    The Marlin Crawler 4.70:1 XD gear kit will replace your truck's stock 2.28:1 low range ratio with a 4.70:1 ratio, giving you a 51% lower final drive ratio. Your truck will become easier to control, harder to break traction, and will save critical components such as your clutch (if manual transmission) and your brakes. Additionally, your torque output will increase by more than 50%, which means you won't have to rev your engine to get power. You'll be able to go slower, control your vehicle, prevent bouncing and jerking, which will result in a safer trail ride with less risk of breaking parts.

    Exploring the New 4.70:1 XD Technology

    Marlin Crawler, the inventor of the 4.70:1 ratio in 1997, unveils their new Xtreme Duty 4.70:1 Low Range Gear Set, further establishing their stronghold on the Toyota transfer case market as the world-leader in strength, reliability, performance, and design.
    Twelve years since it's creation, the most successful and longest lasting Toyota low range gear set of all time has been reinvented. Please take a moment to explore the technology of the most feature-rich gear set in the world...

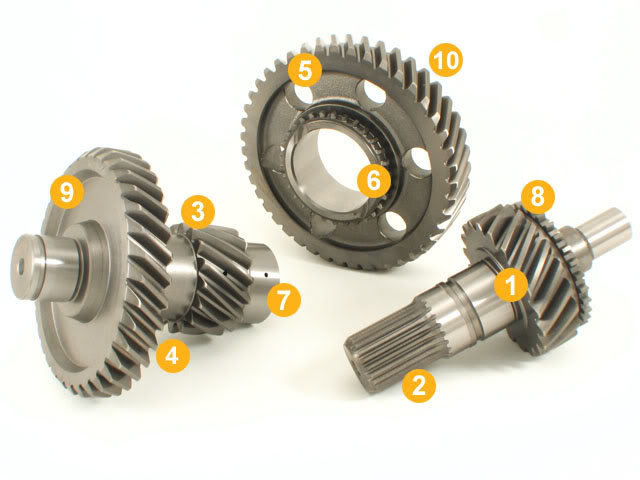

    [​IMG]

    Features
    AISI/SAE 8620 Steel Alloy Material
    Total-Spline Input Technology
    Wider Countershaft Teeth
    Oversized Countershaft Shank
    Slow Speed Oil Transfer System
    Mainshaft Cage Bearing Oil Pump System
    Countershaft Cage Bearing Oil Pump System
    Tapered Shift Hub Lock System
    Increased 63/32N Bearing Oiling
    New Lighter-than-stock Design

    1. AISI/SAE 8620 Steel Alloy Material
    Our previous gear set was cut from 8620 steel alloy, and our new Xtreme Duty gears settle for nothing less. We only use material that is recognized by the American Iron and Steel Institute (AISI) and the Society of Automotive Engineers (ASE). Marlin Crawler means Quality.

    • Excellent toughness, hardness, and wear properties far superior to OEM material.

    2. Total-Spline Input Technology

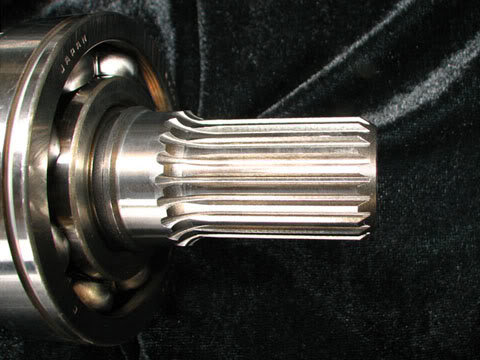

    [​IMG]

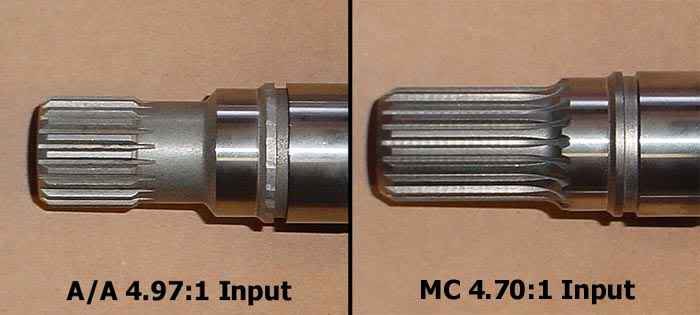

    Marlin Crawler invented the Total-Spline input back in 2000. Since then, the number of broken inputs and stripped out couplers have been drastically reduced. This same technology is featured in our new Xtreme Duty 4.70:1 Gears.

    • The only gear set in the world with Total Splines.
    • 65% Longer Splines - By far the longest lasting and the most difficult to strip.
    • 15% Larger Diameter - Can handle much higher torque loads without failure.

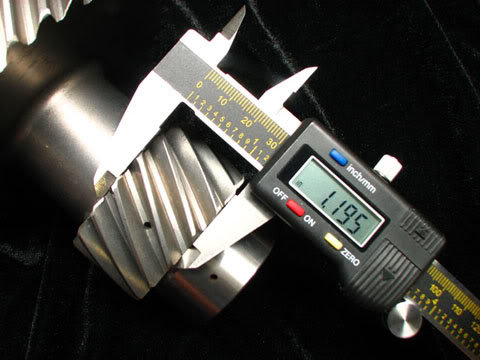

    3. Wider Countershaft Teeth

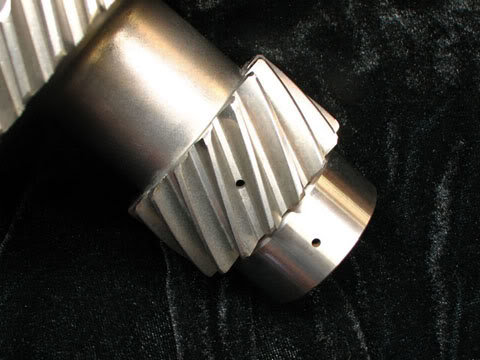

    [​IMG]
    The weakest spot of the countershaft just became a whole lot stronger. The new Xtreme Duty Gear Set features extra wide teeth to spread the torque load where it matters the most.

    • This is the weakest spot of the countershaft.
    • 42% Wider Gear - Soaks up torque like a dry sponge.

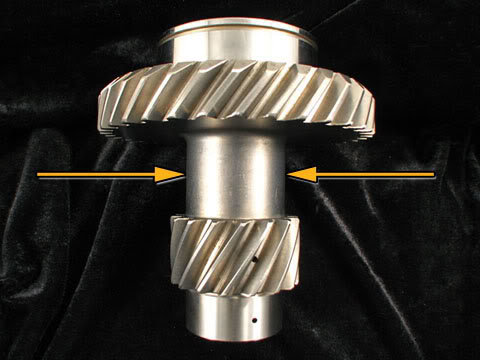

    4. Oversized Countershaft Shank
    [​IMG]
    Just to make sure these Xtreme Duty gears can live up to their Marlin Crawler name, we increased the diameter of the countershaft shank. Marlin Crawler Gears are truly remarkable.

    • Improved torque and shock loading.

    5. Slow Speed Oil Transfer System
    [​IMG]
    Our new Xtreme Duty gears are the first gears in the world to feature a specifically designed low speed oil transfer system. Think Crawling. Crawling slowly limits the amount of oil available to the mainshaft cage bearing. As the new Xtreme Duty low speed gear slowly rotates, oil is caught and lifted up where it is deposited right into our cage bearing oil pump system (described below).

    • World's first low speed gear oil transfer system.
    • Prevents oil starvation of mainshaft cage bearing and input pocket bearing while Crawling.

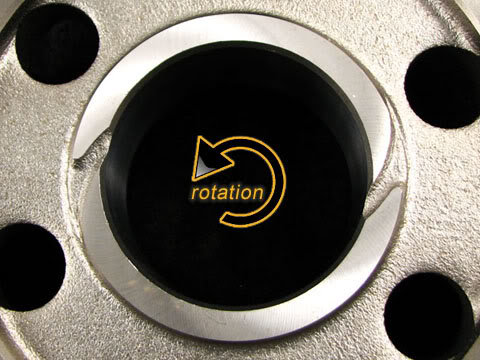

    6. Mainshaft Cage Bearing Oil Pump System
    [​IMG]
    This exclusive Marlin Crawler Oil Pump system is a revolutionary way of ensuring the mainshaft cage bearing keeps a maximum amount of gear oil under all driving conditions. Wether freeway driving or 1,372:1 Rock Crawling, it is important to keep all bearings lubricated.

    • The only gear set in the world featuring an integrated Low Speed Gear Oil Pump.
    • Increases oil to all mainshaft bearings including the 4WD idle gear cage bearing, low speed gear cage bearing, and the input pocket bearing.
    • The most efficient gear set on the planet - ideal for mixed trail/highway use.


    7. Countershaft Cage Bearing Oil Pump System
    [​IMG]
    This all-new integrated countershaft cage bearing oil pump is truly amazing. When the countershaft gear meshes with the low speed gear, tremendous pressure is created between each tooth, and the surrounding gear oil is squished out of each bottom landing. What we have done is created two tunnels (180° apart) for this gear oil to be transferred straight to the cage bearing where it is needed.

    • The only gear set in the world featuring an integrated Countershaft Oil Pump
    • Extreme climates demand the Xtreme Duty Gear Set.
    • Snow and Mud often prevent airflow around the transfer case - keep oil circulating when the air is not.
    • The Xtreme Duty Gear Set is by far the coolest running low range gear set on the planet.

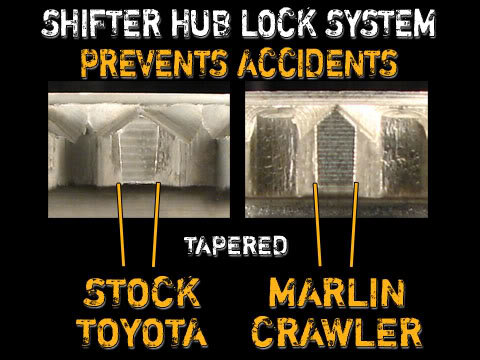

    8. Tapered Shift Hub Lock System
    [​IMG]
    Toyota wasn't playing around when they built a tapered shift hub lock on each and every low range gear set ever made: It prevents accidents and can even save lives. Imagine Crawling up a very steep incline. You get higher, and higher up, 30-, 40-, 50-feet and higher. Now imagine your transfer case suddenly pops into neutral! Don't let this happen to you! Other gear manufactures overlook this absolutely critical shifter locking feature and Marlin Crawler refuses to sell dangerous gear sets!

    • It's a very serious issue that too many people take for granted. Protect your investment as well as your life.

    9. Increased 63/32N Bearing Oiling
    [​IMG]
    The countershaft is supported by two bearings, and we did not forget about the 63/32N ball bearing. The new Xtreme Duty Gear Set features a dished countershaft near the 63/32N bearing yielding a whopping 50-times more open space beneath the bearing. This allows for massive oil circulation around the bearing, which is important when the gears are used behind a restrictive dual case adapter in an Ultimate setup or when the oil is shifted away from the bearing on steep inclines or declines.

    • Much faster heat transfer from the bearing to the oil.
    • Much faster lubricating recovery when oil is shifted back to the front of the case.
    • The first aftermarket gear set that allows for complete through oil cycling from one side of the bearing to the other.

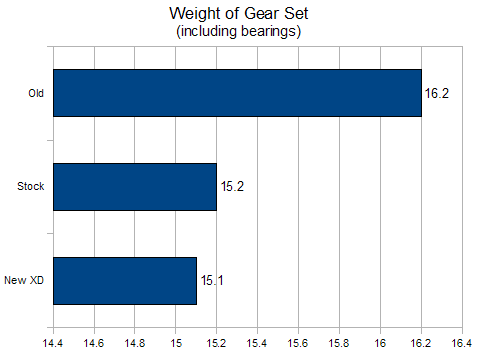

    10. New Lighter-than-stock Design
    [​IMG]
    You read that right, the new XD gear set is lighter than the stock low range gear set! Amazingly isn't it? At just 15.1 pounds, we've added technology and removed fat. Less rotational mass improves acceleration while reducing the load on the bearings. The result is a more responsive gear set with longer lasting bearings.

    • 8% weight reduction puts XD gear set lighter than stock gears - the lightest gear set on the planet!
    • More responsive to RPM change - Less resistance, improved acceleration.

    Conclusion
    After examining the most feature rich and technologically advanced Toyota RF1A low range gear set in the world, we are certain you will agree that the new Marlin Crawler Xtreme Duty 4.70:1 Gear Set is on a completely different level far, far above all the rest. There simply is no comparing a Marlin Crawler with any other.

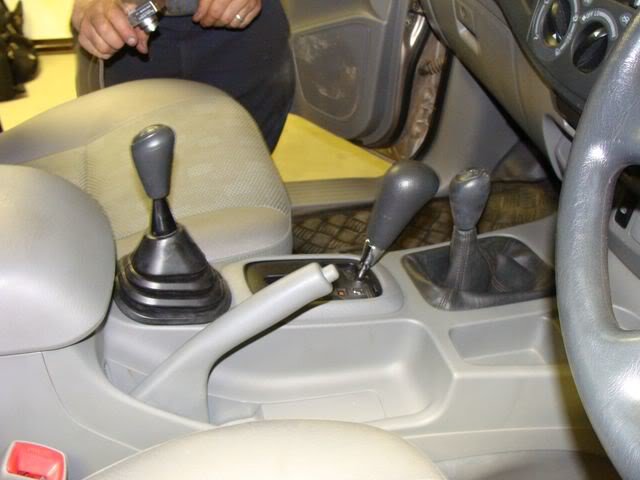

    Here is the Marlin Crawler "Taco Supreme" in a 2007 Toyota Hilux diesel with automatic transmission using no brakes.

    [​IMG]

    My 2005 Toyota Tacoma with the "Taco Supreme" setup going up the Gate keeper at Doran Falls. Before installing the crawler, I could not make it up this fall. I broke a front u-joint before while trying to scale this section without the aid of a crawler.
    http://www.youtube.com/watch?v=LiGNkBG6eAg&feature=related

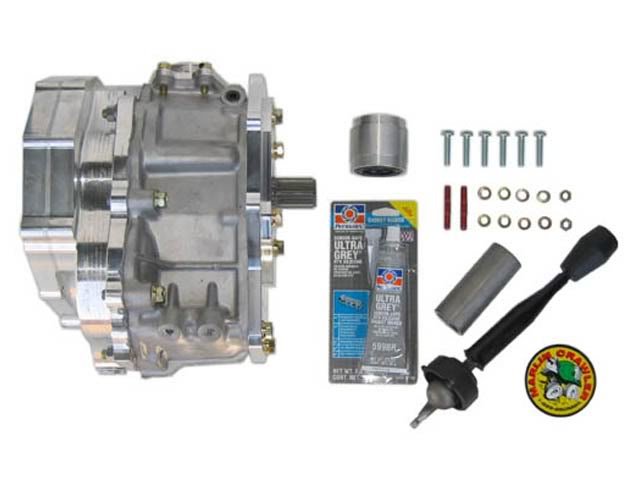

    The kit comes with everything you see below. You will need to shorten your rear drive shaft and lengthen your front drive shaft. Installation is available at an extra cost in Southern California.
    [​IMG]

    Normal retail for the Marlin Crawler with 2.28 gears is $1,695.00 plus tax in California and shipping. Sale price is $1,556.00 plus tax in California and shipping.

    For those of you that want the ultimate in control and crawling ability you want the Marlin Crawler "Taco Supreme". It has the 4.70XD gears and all the benefits that come with those gears.
    Normal retail for the "Taco Supreme" is $1,995.00 plus tax in California and shipping. Sale price is $1,814.00 plus tax in California and shipping.

    For the first three people with confirmed orders, shipping will be free within the contiguous United States.

    This Sale is for all Toyota Tacomas except the 4.0 with the 6 speed manual transmission. For those of you with the 4.0 with 6 speed transmission, please contact me via pm for a special on that application.

    This sale will continue until May 15th, 2010.

    PM me for your order. For any questions please post those here.

    For install info go to these threads.
    http://www.rocksolidtoys.com/forum/showthread.php?t=28
    http://www.rocksolidtoys.com/forum/showthread.php?t=26
    http://www.rocksolidtoys.com/forum/showthread.php?t=264
    http://www.rocksolidtoys.com/forum/showthread.php?t=148

    Thanks Guys.

    Wyatt RockSolidToys

  2. Apr 20, 2010 at 12:06 AM
    #2
    Battlewagon

    Battlewagon New Member

    Joined:
    Apr 20, 2010
    Member:
    #35633
    Messages:
    3
    Gender:
    Male
    San diego, Ca
    Vehicle:
    01 Dcab
    What else is needed besides driveshaft mod? And do you know what it cost to have both driveshaft’s modified?
    Thanks!

  3. Apr 20, 2010 at 12:12 AM
    #3
    blackwatertaco

    blackwatertaco If you ain't stuck, You ain't tryin hard enough.

    Joined:
    Jan 11, 2010
    Member:
    #29134
    Messages:
    1,995
    Gender:
    Male
    First Name:
    Jay
    Alvin/Pasadena, Tx
    Vehicle:
    08 taco, 4x4 2.7 5spd.
    One fucked up diff. breather mod, 265/75/16 Destiny Dakota M/T Black gulf states rims BHLM Magnaflow 14" muffler with cut off tail pipe. 10" pioneer slim truck sub with JBL 600W amp. PROJECT BLACK OUT
    Damn, I'd love to have that...Tooo much $$$$$$$$$ for me right now.

  4. Apr 20, 2010 at 6:22 AM
    #4
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff
    The only other thing that needs to be modified would be the wires for your sensors and acuator. They need to be lengthened and you need to get a shift handle into your cabin. Here is a picture of where I put mine. Looks like it came from the factory that way.

    The drive shafts cost between $200 to $300 to get modified. We have a couple of places that can do them here for a good price and quickly here in So Cal.

    2005+ Tacoma crawler lever location.

    [​IMG]

    2002 Tacoma Double cab crawler lever location and t case lever location.
    The crawler lever comes up in the stock location and the t case lever comes up through one of the rear cup holders.
    [​IMG]
    [​IMG]

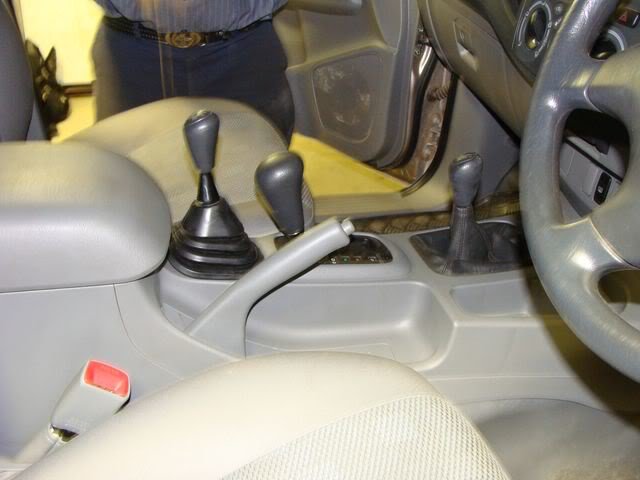

    2007 Toyota Hilux Double Cab crawler lever location. The crawler lever comes up in the stock location while the t case lever is mounted behind the auto shifter.
    [​IMG]
    [​IMG]

  5. Apr 20, 2010 at 6:23 AM
    #5
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    save up your pennies;)

  6. Apr 20, 2010 at 6:39 AM
    #6
    Fire931

    Fire931 Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    great deal wyatt!

    and guys i'm here to tell you having those low gears is great!!!!!

  7. Apr 20, 2010 at 9:00 AM
    #7
    Battlewagon

    Battlewagon New Member

    Joined:
    Apr 20, 2010
    Member:
    #35633
    Messages:
    3
    Gender:
    Male
    San diego, Ca
    Vehicle:
    01 Dcab

    Cool, thanks for your response.. So there are no cross member modifications?

    I'm really interested, Just need to figure all the extra expense involved.

  8. Apr 20, 2010 at 10:37 AM
    #8
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff
    It's not required that you add another mount but I highly reccomwnd it. The fj I sid has only one mount but will get anther soon as well as the Hilux we did.

  9. Apr 20, 2010 at 12:16 PM
    #9
    Battlewagon

    Battlewagon New Member

    Joined:
    Apr 20, 2010
    Member:
    #35633
    Messages:
    3
    Gender:
    Male
    San diego, Ca
    Vehicle:
    01 Dcab
    ok, yea i have seen a few people modify/ add an additional crossmember..
    Seems like the best option.

  10. Apr 20, 2010 at 2:27 PM
    #10
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    It really is and it's not really that hard to do either. The Hilux we did does not have one yet nor does the FJ, however, both are getting one.

  11. Apr 20, 2010 at 2:33 PM
    #11
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    Thanks Man. How is your truck doing? Did you sell it yet.

  12. Apr 24, 2010 at 10:09 AM
    #12
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff
    TWO Free shipping spots left now!:D

  13. Apr 26, 2010 at 5:04 PM
    #13
    gtrotter

    gtrotter Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32351
    Messages:
    360
    Gender:
    Male
    Interlake, Indiana
    Vehicle:
    2009 Regular cab 4x4, ARB's, 4.88's, bumpers
    locker,mud tires, lifted, toolbox
    I have to get my 4wheeler sold first, then I can look at getting one. Also, do have an idea of where they might come up into the cab for a regular cab? I know the inchworm setup comes up right behind the cupholders, through that little rubber mat.

  14. Apr 26, 2010 at 6:58 PM
    #14
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    They will probably come up in about the same location. Send me a picture of the inside of your truck. That way I can get a better idea. Oh yeah, What year is your truck? I just saw what year you have. Send me a picture anyway. Haven't done too many regular cabs but for the most part they are pretty much the same.

  15. May 9, 2010 at 2:48 PM
    #15
    Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    Damn...This is awesome. I don't wheel nearly enuf to buy one- but that would be an awesome addition.
    Any additional performance effects from the drag on the drive line??

  16. May 11, 2010 at 5:44 AM
    #16
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    Non really. When your driving it on the street your 1 to 1 and you don't even notice it's there. But when you engage it you know yo have some serious gearing going on.

  17. Aug 25, 2010 at 6:04 AM
    #17
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    The coupler is different for the six speed than it is for the automatics.

    There are a ton of diffenece's between the two.

    Gears, bearings, oiling systems in side, input shafts are all upgraded in the Marlin Crawler and the Marlin Crawler is one unit going in the truck by itself while the last time I saw you have to "build" the inchworm onto your transfer case and then install the two as one unit.

  18. Aug 26, 2010 at 5:51 AM
    #18
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    I'm not sure a this time. I need to check and see where Marlin is with his coupler for the six speed. If he doesn't have it yet we can use the coupler from inchworm with the crawl box from Marlin. Not sure if there would be a price difference going that route though. I'll check today for you.

  19. Aug 30, 2010 at 5:44 AM
    #19
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    You can get a set from Rocksolidtoys but we don't use the newer Tacoma's drive shafts at all so they would be worthless as cores.
    Marlin and the gang are back today from their trip so I'll find out about the coupler.

  20. Aug 30, 2010 at 7:54 PM
    #20
    awsumdc

    awsumdc [OP] Well-Known Member Vendor

    Joined:
    Jan 3, 2009
    Member:
    #12156
    Messages:
    1,594
    Gender:
    Male
    O.C. Cali
    Vehicle:
    SASED '05 Taco
    SAS, crawler box, 14" coilover shocks, 39.5 tires,dual batteries, and a bunch of other stuff

    http://rocksolidtoys.com/store/product_info.php?cPath=50&products_id=105
    The drive shaft pictured is for the front with a leaf sprung system.

    A rear shaft would not use the long splines. Let me know where you are and I can help you set up a possible cheaper way to go.

To Top
