MESO Puddle Light build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Jan 12, 2019.

  1. Feb 16, 2020 at 12:45 PM
    #5121
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4


    Yes . I will pm you

    oneup714 likes this.
  2. Feb 16, 2020 at 12:47 PM
    #5122
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4
    Nah it’s not like that. I found out the hard way , Meso bailed me out . :rofl:

  3. Feb 16, 2020 at 12:55 PM
    #5123
    Justin_Exploring

    Justin_Exploring Well-Known Member

    Joined:
    Apr 18, 2019
    Member:
    #290532
    Messages:
    528
    Gender:
    Male
    Vehicle:
    2019 BRM Tacoma TRD OR DCSB 4x4
    @MESO

    Emailed you about the switch illumination

  4. Feb 16, 2020 at 1:21 PM
    #5124
    oneup714

    oneup714 Well-Known Member

    Joined:
    Sep 26, 2018
    Member:
    #267484
    Messages:
    816
    Gender:
    Male
    Vehicle:
    All show no go Super White Tacoma TRD Mall Crawler
    20200216_131729.jpg Thanks to @Frsh2df for showing me how to get it illuminated with popping anymore fuse

  5. Feb 16, 2020 at 1:25 PM
    #5125
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4
    Looks good.

    Glad I could help out :hattip:

  6. Feb 16, 2020 at 2:12 PM
    #5126
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4
    For those with the First Original Puddle light T-Harness with the 4 ALL BLACK WIRES.

    Here is the walk through I got from Stew @MESO to fix the illumination issue.

    Per Meso:

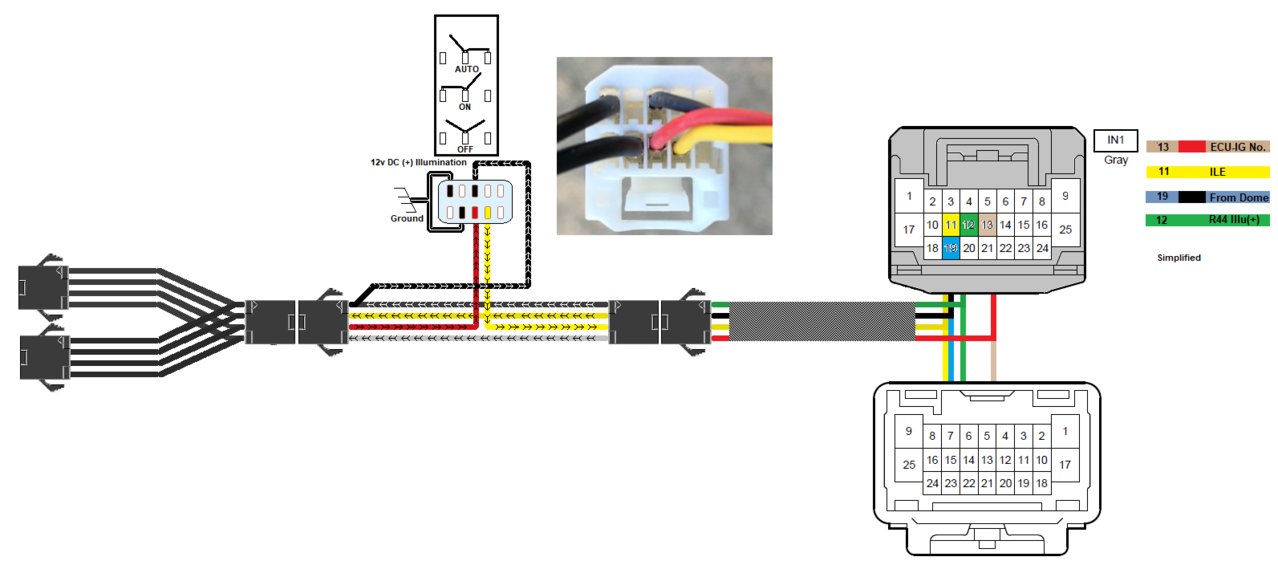

    I made a quick diagram on TWO different ways to quickly fix this. METHOD 1 is just Switching 1 wire up at the main T harness(we are taking it from pin 1-->pin12) MY PICTURE SHOWS A GREEN WIRE, but IN V1, all wires are BLACK
    You can remove this from the truck and work on it on the bench to make it easier.
    [​IMG]

    COVER WITH TAPE OR INSULATIONAFTER

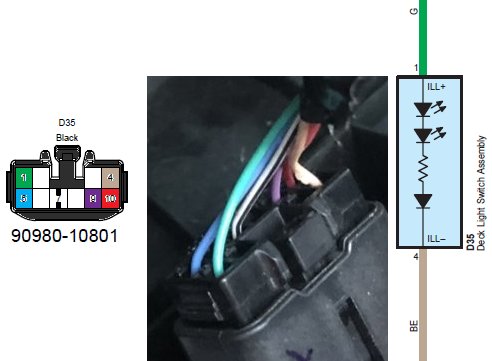

    METHOD 2 Just involves sniping the wire behind the switch and tapping it to anyILLUMINATION wire
    [​IMG]

    Again this only applies to the first original batch of puddle light kits.

    Please double check which main T-Harness you have and if you have the 4 ALL BLACK WIRES the diagram above will solve your illumination issue.

    If you have the new revised T-Harness your good to go and no modification is necessary for illumination, since it’s built in to the new harnesses.



    -Chris

  7. Feb 16, 2020 at 2:30 PM
    #5127
    brentano

    brentano Well-Known Member

    Joined:
    Oct 4, 2016
    Member:
    #198952
    Messages:
    108
    Vehicle:
    2017 TRD OR AC SSM
    Just to clear up any confusion: Meso illuminates the puddle switch; he does NOT dim the puddle switch with the operation of the dash odometer knob.

    In the future, dimming may enter the Meso vocabulary. :rofl:

    Frsh2df likes this.
  8. Feb 16, 2020 at 2:56 PM
    #5128
    ICU1

    ICU1 Well-Known Member

    Joined:
    Sep 3, 2016
    Member:
    #196340
    Messages:
    4,390
    Gender:
    Male
    Thank you for helping out the TW community.
    This is exactly how MacGyver would handle this.

    corgimas and kecknj like this.
  9. Feb 16, 2020 at 3:00 PM
    #5129
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4
    Thanks but @MESO gets all the credit. He’s the mastermind behind all of this.

    Im just spreading the information.

    CttAznRanger likes this.
  10. Feb 16, 2020 at 3:54 PM
    #5130
    TWTaco

    TWTaco Well-Known Member

    Joined:
    Dec 19, 2015
    Member:
    #172601
    Messages:
    3,488
    Gender:
    Male
    First Name:
    Dave
    STUFF!

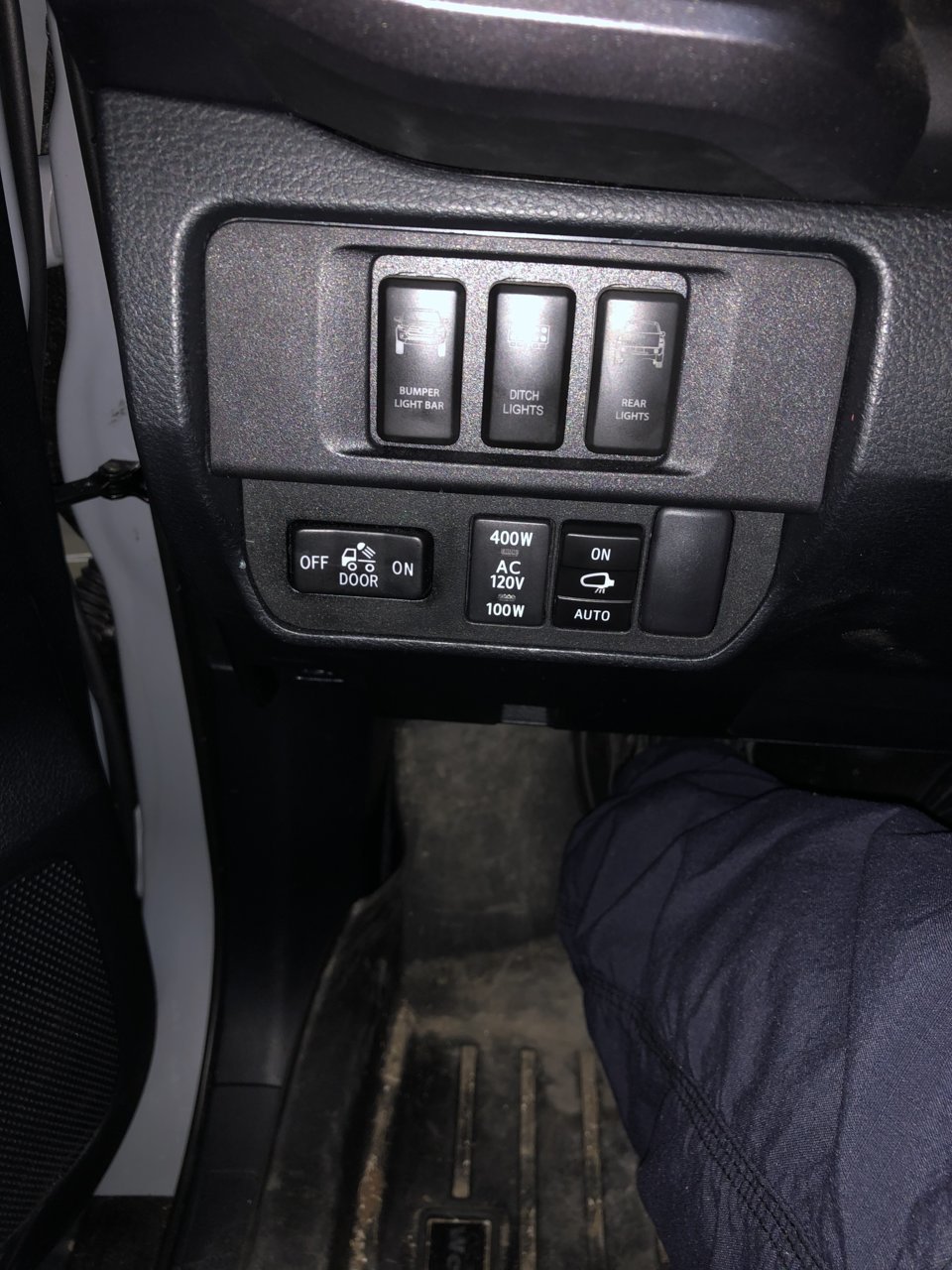

    Meso is there any time table for switch mounts particularly this panel. Thanks!
    [​IMG]

  11. Feb 16, 2020 at 4:13 PM
    #5131
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,209
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Skydvrr and Frsh2df like this.
  12. Feb 16, 2020 at 4:42 PM
    #5132
    kecknj

    kecknj Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269900
    Messages:
    179
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '06 Tacoma
    @BOMBS here's the answer to the question you asked me.

    BOMBS likes this.
  13. Feb 16, 2020 at 6:37 PM
    #5133
    Justin_Exploring

    Justin_Exploring Well-Known Member

    Joined:
    Apr 18, 2019
    Member:
    #290532
    Messages:
    528
    Gender:
    Male
    Vehicle:
    2019 BRM Tacoma TRD OR DCSB 4x4

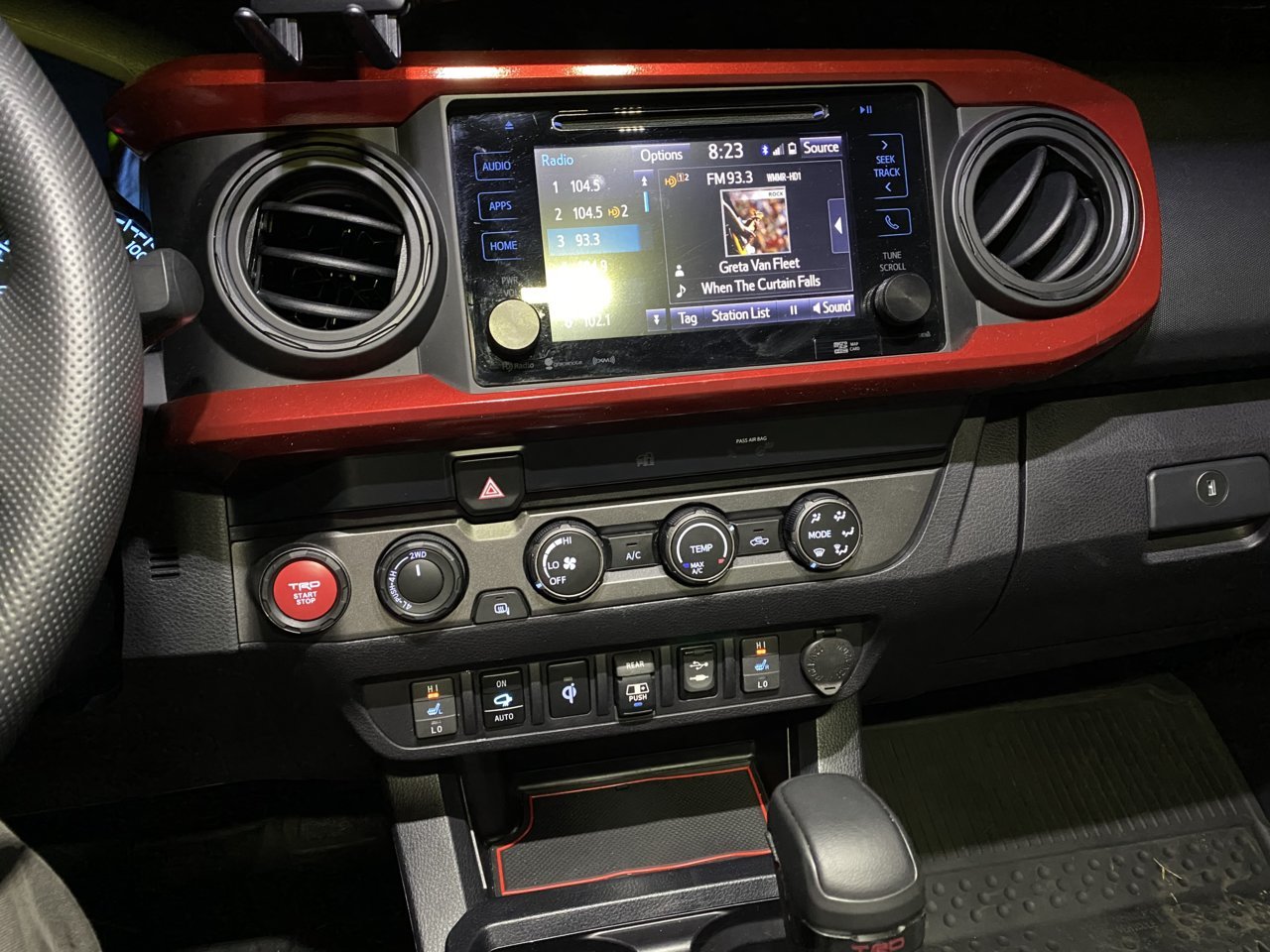

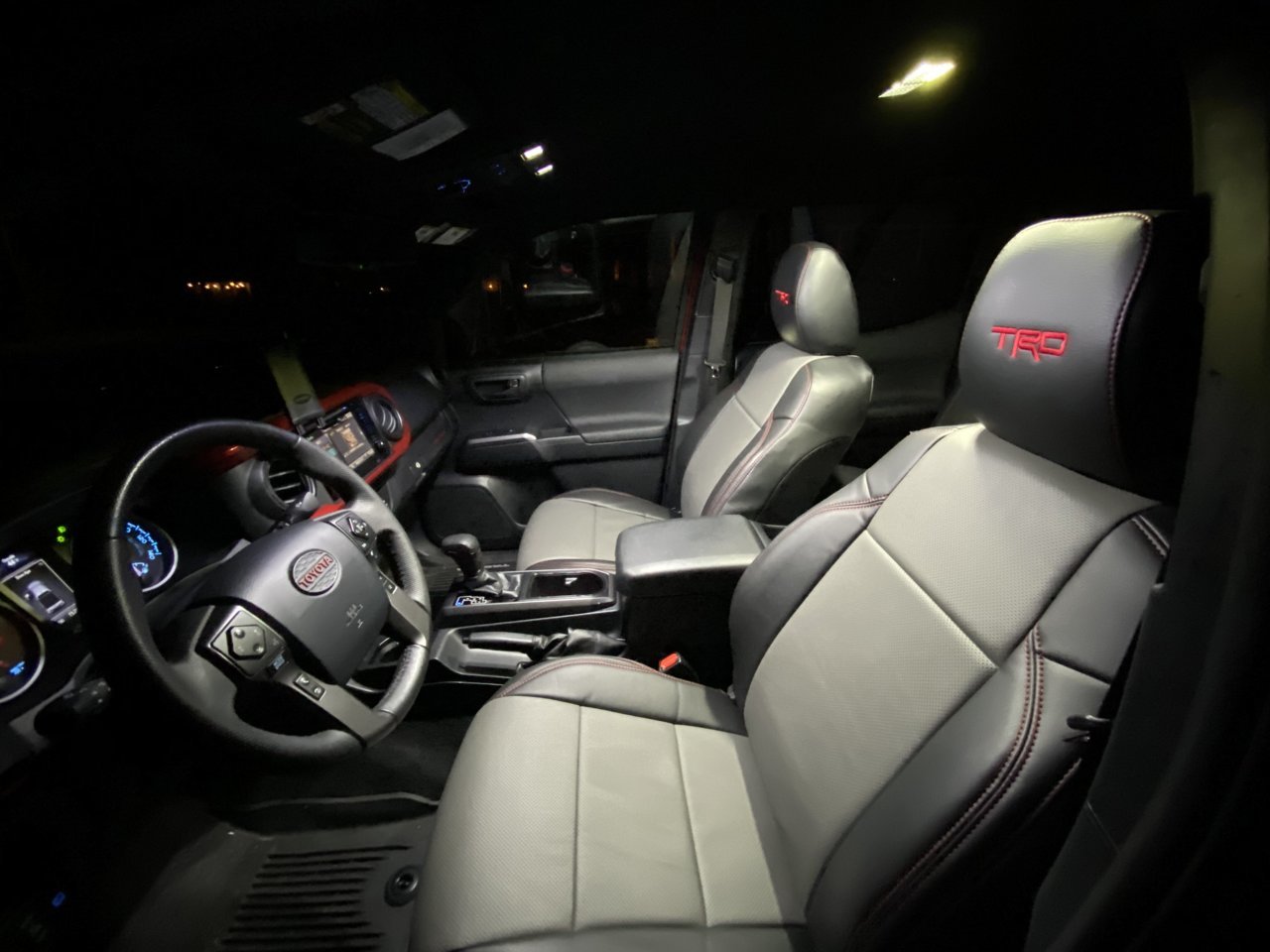

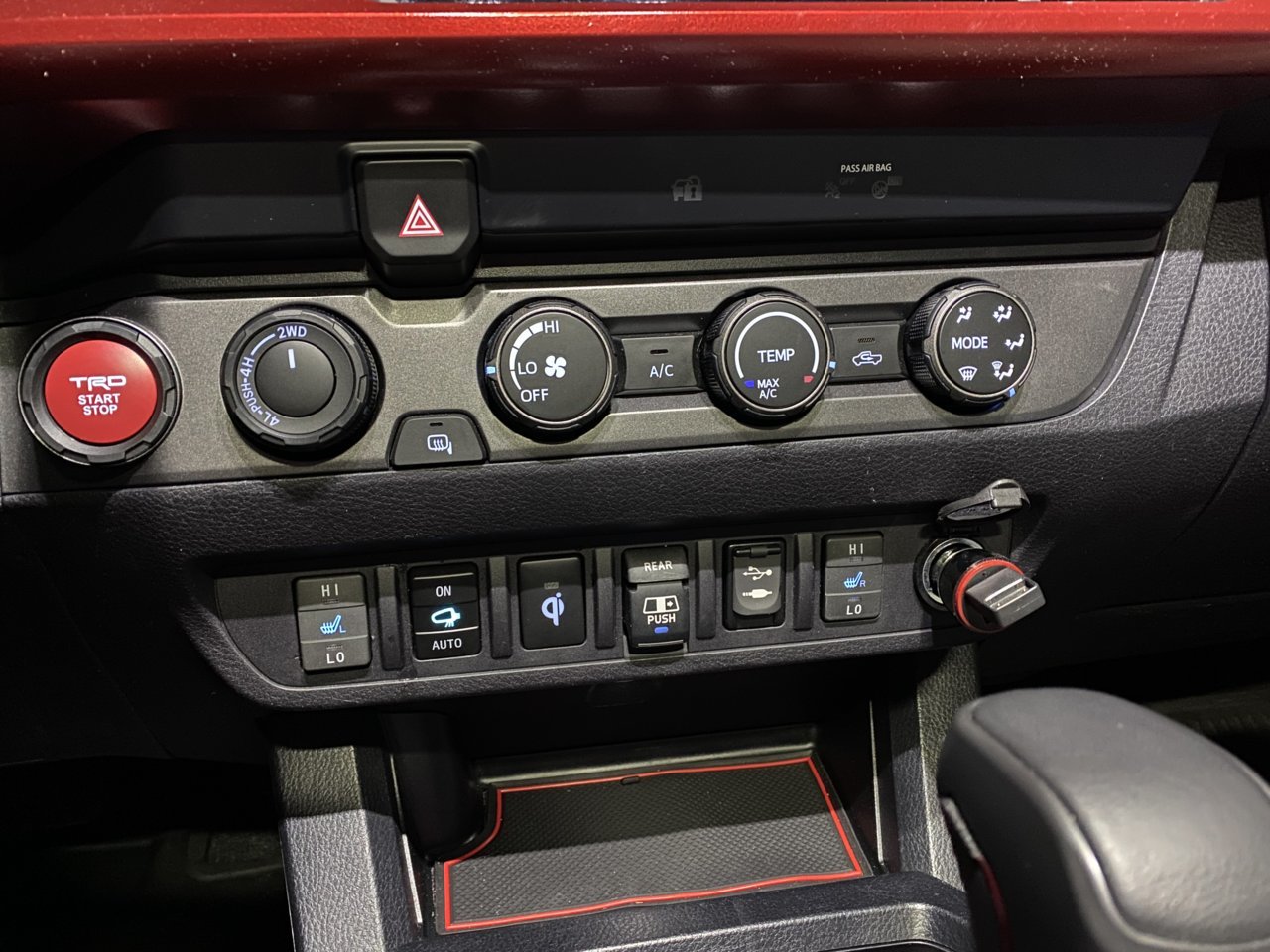

    Switch is in! Along with heated seats and clazzios! The fronts at least, ran out of daylight before I could do the back seats.

    @MESO is awesome as usual and got back to me immediately when I emailed him for wiring support since my puddles are of the very first batch. Got everything wired up and powered. Going to make some new harnesses for the heated seats when I have more time, just not enough length on them to hide them well, to my liking at least.

    Loving the OEM look of this switch!


  14. Feb 16, 2020 at 6:42 PM
    #5134
    kecknj

    kecknj Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269900
    Messages:
    179
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '06 Tacoma
    What heated seat kit did you buy? I'm very interested in those switches. Install looks great man!

    corgimas likes this.
  15. Feb 16, 2020 at 7:25 PM
    #5135
    Justin_Exploring

    Justin_Exploring Well-Known Member

    Joined:
    Apr 18, 2019
    Member:
    #290532
    Messages:
    528
    Gender:
    Male
    Vehicle:
    2019 BRM Tacoma TRD OR DCSB 4x4
    corgimas, DSRamsey13 and BOMBS like this.
  16. Feb 16, 2020 at 8:09 PM
    #5136
    KnckleChldrn

    KnckleChldrn Well-Known Member

    Joined:
    Dec 31, 2017
    Member:
    #239864
    Messages:
    631
    Gender:
    Male
    First Name:
    Jamie
    Mass
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    Suspension OME 886 Coils OME Nitro Charger Sport shocks OME Nitro Charger Sport struts Deaver Expedition leaf pack Mickey Thompson wheels 265/70/17 KO2 Total Chaos upper control arms Performance K&N air intake Exterior Southern Style Offroad slim line bumper Smittybilt x20 winch Interior Kicker tweeters, front and rear speakers Anytime front and rear camera Hondo Garage stereo knobs Hondo Garage un-Holley mount MESO black out door handles MESO steering wheel MGM overlay MESO puddle pods MESO ultimate red map lights MESO ultimate red dome MESO gasshole MESO ultimate turn signals MESO BD5 3rd brake light MESO stage 3 side markers Retrofit Morimoto 2.0 headlights RGB halo RGB demons RGB DRL Cali Raised raptor LED tail lights SpartanXCustoms scoop light Baja Designs Squadron Sports fogs (amber) Baja Designs Squadron Pro ditch (amber) Baja Designs S8 20" Matt Gecko bed lights Matt Gecko hood lights Switchpro 9100 OEM bed mat 300 Industries grill Bakflip Fibermax cover
    I like the rear slider being over there. Was that difficult?

    corgimas and BOMBS like this.
  17. Feb 16, 2020 at 8:13 PM
    #5137
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    873
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4
    Toyota moved it there for model years 2018+

  18. Feb 16, 2020 at 8:41 PM
    #5138
    savin yours

    savin yours Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266644
    Messages:
    686
    Gender:
    Male
    First Name:
    Bryan
    SE Tx
    Vehicle:
    2018 TRD Off Road
  19. Feb 16, 2020 at 9:57 PM
    #5139
    rberumen2

    rberumen2 Well-Known Member

    Joined:
    Oct 28, 2009
    Member:
    #25084
    Messages:
    447
    Gender:
    Male
    First Name:
    Ralph
    California
    Vehicle:
    2017 White Tacoma TRD Sport 4x4 DCSB
    Can anyone take a pic with the puddle lights on from inside of the cab. Just want to see what the light output is. Debating if the switch is needed for me. also, is there a way to tie them in with the reverse lights?

  20. Feb 16, 2020 at 10:44 PM
    #5140
    tenzaba

    tenzaba Member

    Joined:
    Jul 9, 2017
    Member:
    #223590
    Messages:
    91
    First Name:
    Eric
    Lenoir NC
    Vehicle:
    2017 Tacoma TRD Sport 4X4 Access Cab

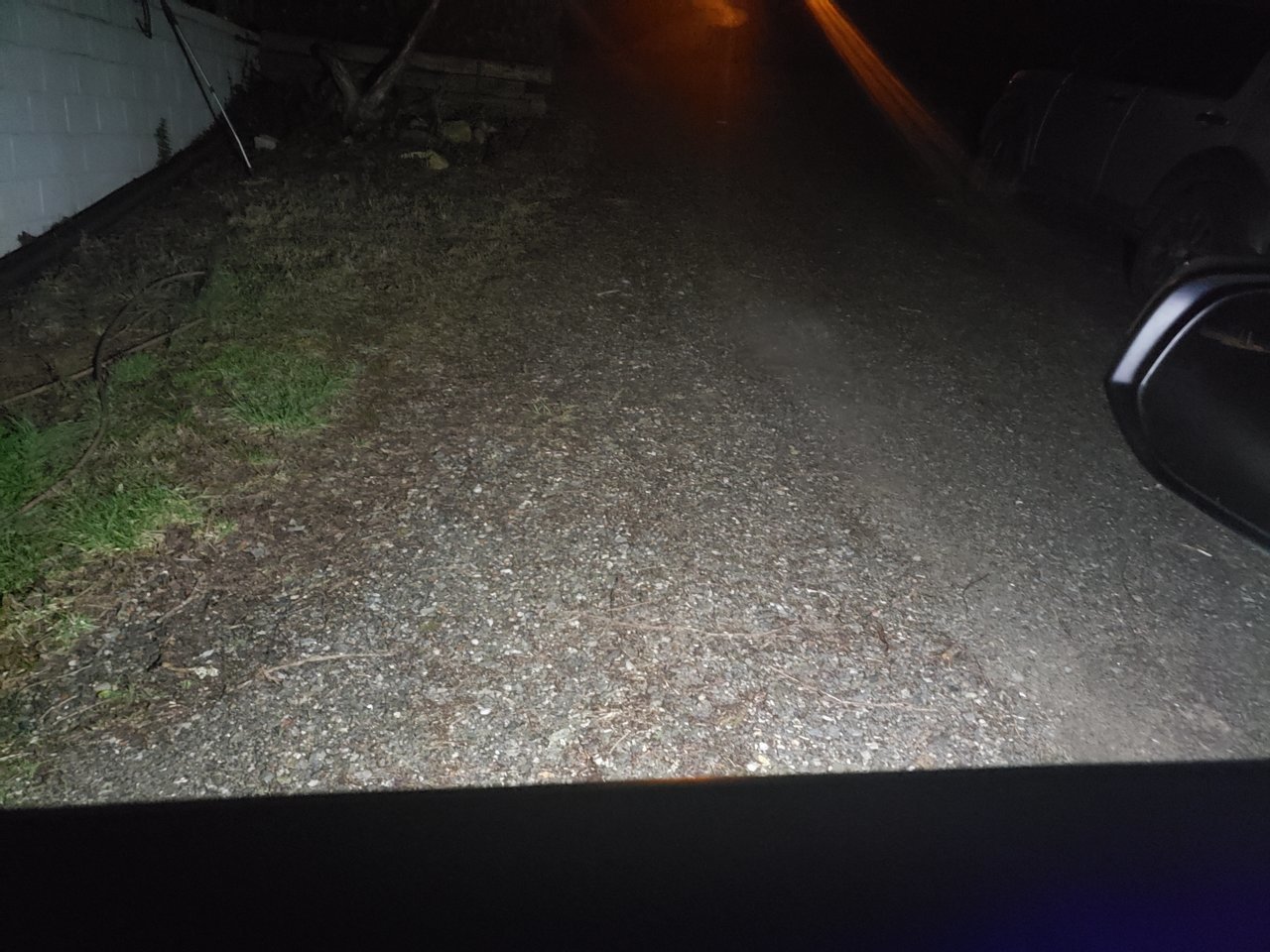

    20200217_013645.jpg Let there be light!

    BOMBS and birdieking33 like this.
