MESO Puddle Light build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Jan 12, 2019.

  1. Mar 12, 2020 at 9:27 AM
    #5361
    Qauthority

    Qauthority Well-Known Member

    Joined:
    Oct 14, 2019
    Member:
    #307948
    Messages:
    77
    Gender:
    Male
    So Cal
    Vehicle:
    2020 Tacoma
    Lifted Custom Rims Blackout Package

    Great tips. :thumbsup:

  2. Mar 12, 2020 at 9:39 AM
    #5362
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    1,297
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I found the same set for $5.38 shipped here :thumbsup: (see "compare (2) new price" at the bottom)

  3. Mar 12, 2020 at 11:39 AM
    #5363
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,410
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    @robb1887 Take a pic of IN1 wires. See if they match...

    You stated everything goes back to "normal" when the T harness is removed.
    And that the Puddles work, they just don't turn off.
    The Dimming OFF is wire 11 (ILE)
    Do you have the colored wires harness or the ALL BLACK?
    There might be a wiring issue with the IN1 T harness, as in other wires loose, not just the wires to the Puddles.

  4. Mar 12, 2020 at 2:52 PM
    #5364
    robb1887

    robb1887 Well-Known Member

    Joined:
    May 14, 2013
    Member:
    #104139
    Messages:
    190
    Gender:
    Male
    Norfolk, VA
    Vehicle:
    2020 Limited
    On mobile so can't look at photos and diagram easily. These are the photos I had from previously messing with it.
    IMG_20200215_110426.jpg IMG_20200215_110421.jpg IMG_20200215_110404.jpg IMG_20200215_110356.jpg

    I'll compare when I get home and it back apart this weekend.

    I've had the same issue with both the ALL black and Color taps T-harness.

    Puddles come on and as far as I can tell do not turn off. My assumption is they should act the same as the interior dome lights.

    Haven't had a chance with the splitter wiring disconnected T-harness in checks

  5. Mar 12, 2020 at 4:17 PM
    #5365
    TacoWdrd

    TacoWdrd Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    370
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
    Have you bypassed the Y splitter and plugged each side directly into the T harness to see how it behaves? You may have said it but I've gotten lost in the post. If each side stays on which I'm assuming it would then it has to be in the T harness... maybe? Unless there is just something off with the factory wiring but you figure you would have a lighting issue somewhere else also. I guess compare every color to every pin location. This is a bitch of a job... sorry man.

  6. Mar 12, 2020 at 4:22 PM
    #5366
    Guccitaco

    Guccitaco TRDPro 2020 Army Green

    Joined:
    Dec 17, 2019
    Member:
    #313585
    Messages:
    134
    Gender:
    Male
    Vehicle:
    2020 AG trd pro
    little bit of here and a little bit of that...

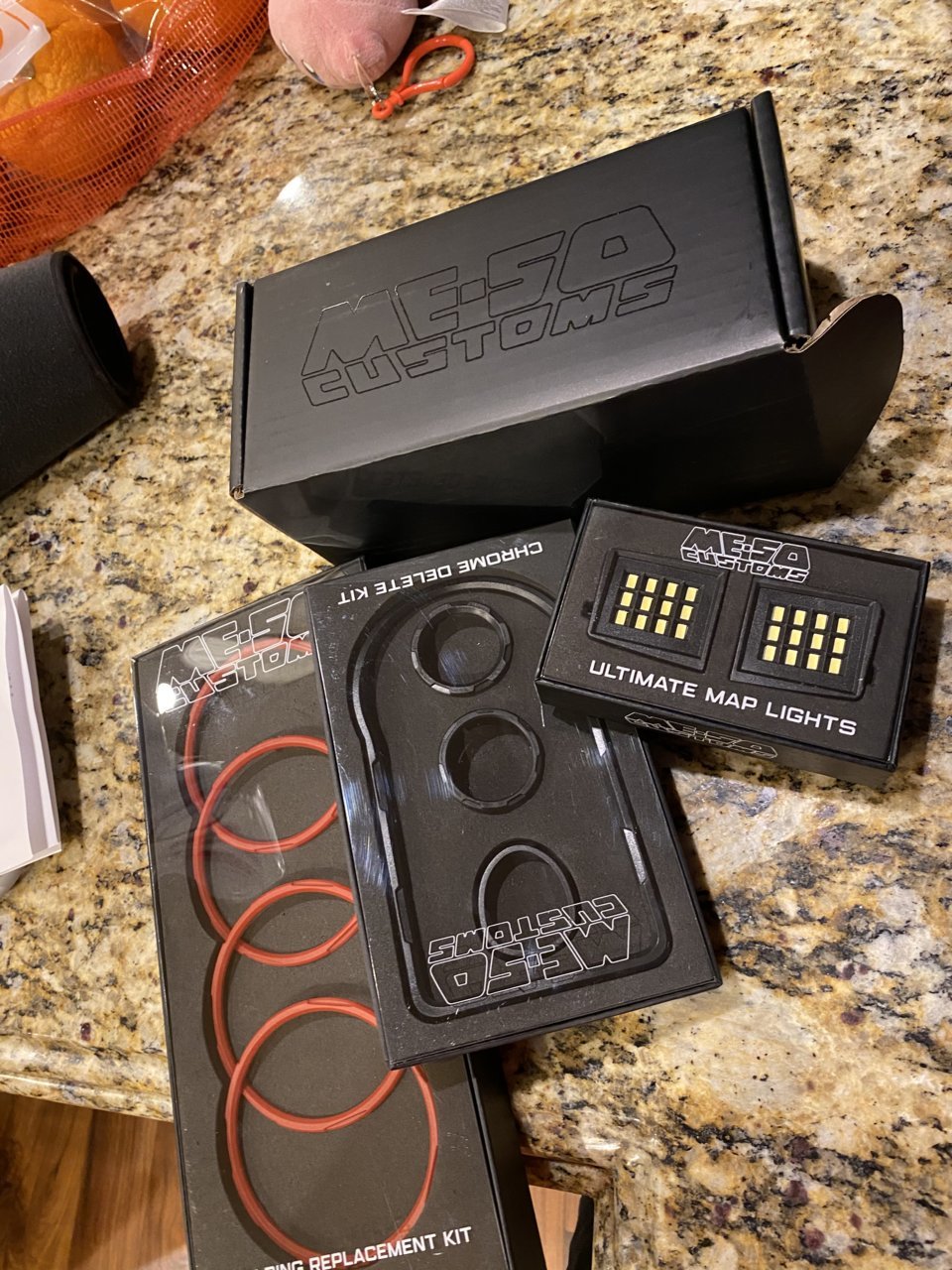

    A9590C4D-5A1A-497A-B029-65FBAE683E69.jpg Meso came thru! But reading the post about 2020s. Hope my install is a breeze. Puddle lights.

    birdieking33 and Qauthority like this.
  7. Mar 12, 2020 at 5:07 PM
    #5367
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,410
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Does the provided T-Harness you have include a wire in ALL cavities? I see in your pictures that there is an additional wire in cavity #10, next to the Yellow (ILE_DIMMING #11) that later models (at least the references I have) do not have.

  8. Mar 13, 2020 at 3:17 AM
    #5368
    robb1887

    robb1887 Well-Known Member

    Joined:
    May 14, 2013
    Member:
    #104139
    Messages:
    190
    Gender:
    Male
    Norfolk, VA
    Vehicle:
    2020 Limited
    Not yet. Its on the to-do list for this weekends troubleshooting

    95% sure all pins have passthrough wiring. I didnt have any luck trying to locate a 2020 wiring schematic. I wonder if @Jeff Lange could help with the wiring for this plug on a 2020 Limited?

  9. Mar 13, 2020 at 10:47 AM
    #5369
    drewmo

    drewmo Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283965
    Messages:
    133
    Gender:
    Male
    Vehicle:
    1995.5 4x4 Taco
    @robb1887 We're keeping on eye on this too and will replace anything that is wrong on the kit. Let us know as soon as you confirm what the issue is.

    corgimas and birdieking33 like this.
  10. Mar 13, 2020 at 10:52 AM
    #5370
    DSRamsey13

    DSRamsey13 Well-Known Member

    Joined:
    Aug 26, 2019
    Member:
    #303324
    Messages:
    541
    Gender:
    Male
    Vehicle:
    2018 TRD Sport Inferno (DCSB)
    In case y'all didn't notice... click on his logo to get 5% off MESO. Bookmark it like I did... so every time you order, you're saving 5%. It's not a lot, but every little bit helps. (might offset some shipping costs)

    corgimas and drewmo like this.
  11. Mar 13, 2020 at 11:04 AM
    #5371
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,410
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

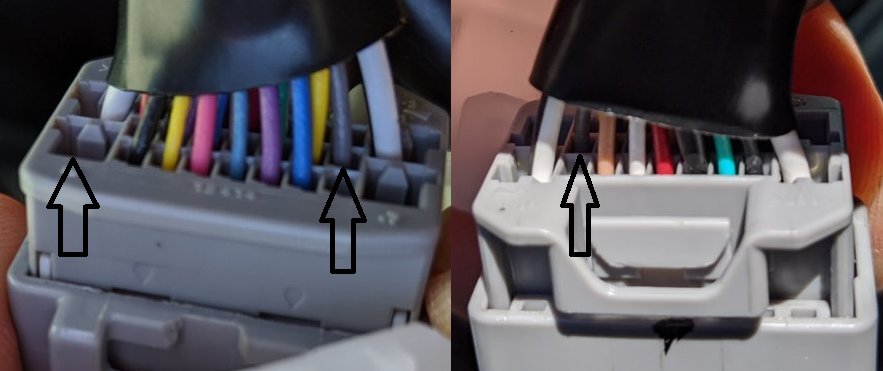

    Would you confirm that the T-harness has wires on all slots?

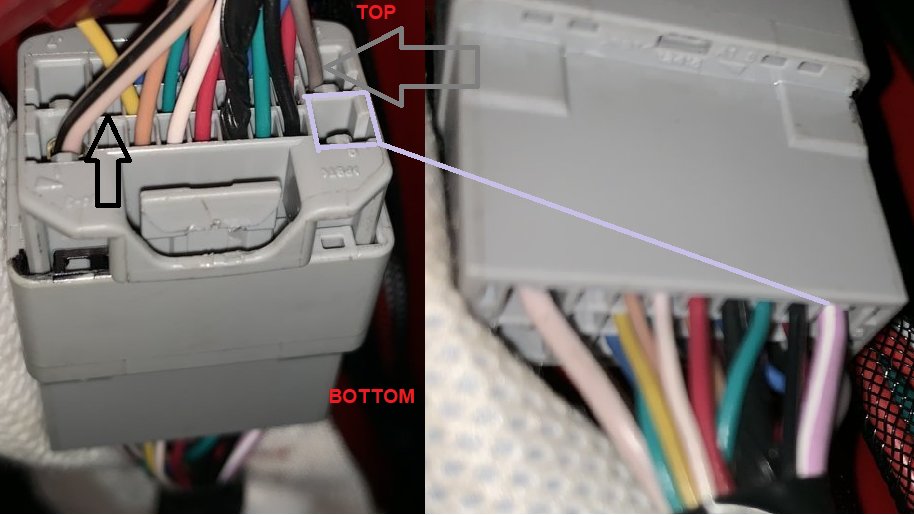

    Vehicle without Sliding Roof:


    2020 Limited from @robb1887 :


    Last edited: Mar 13, 2020
  12. Mar 13, 2020 at 11:21 AM
    #5372
    drewmo

    drewmo Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283965
    Messages:
    133
    Gender:
    Male
    Vehicle:
    1995.5 4x4 Taco

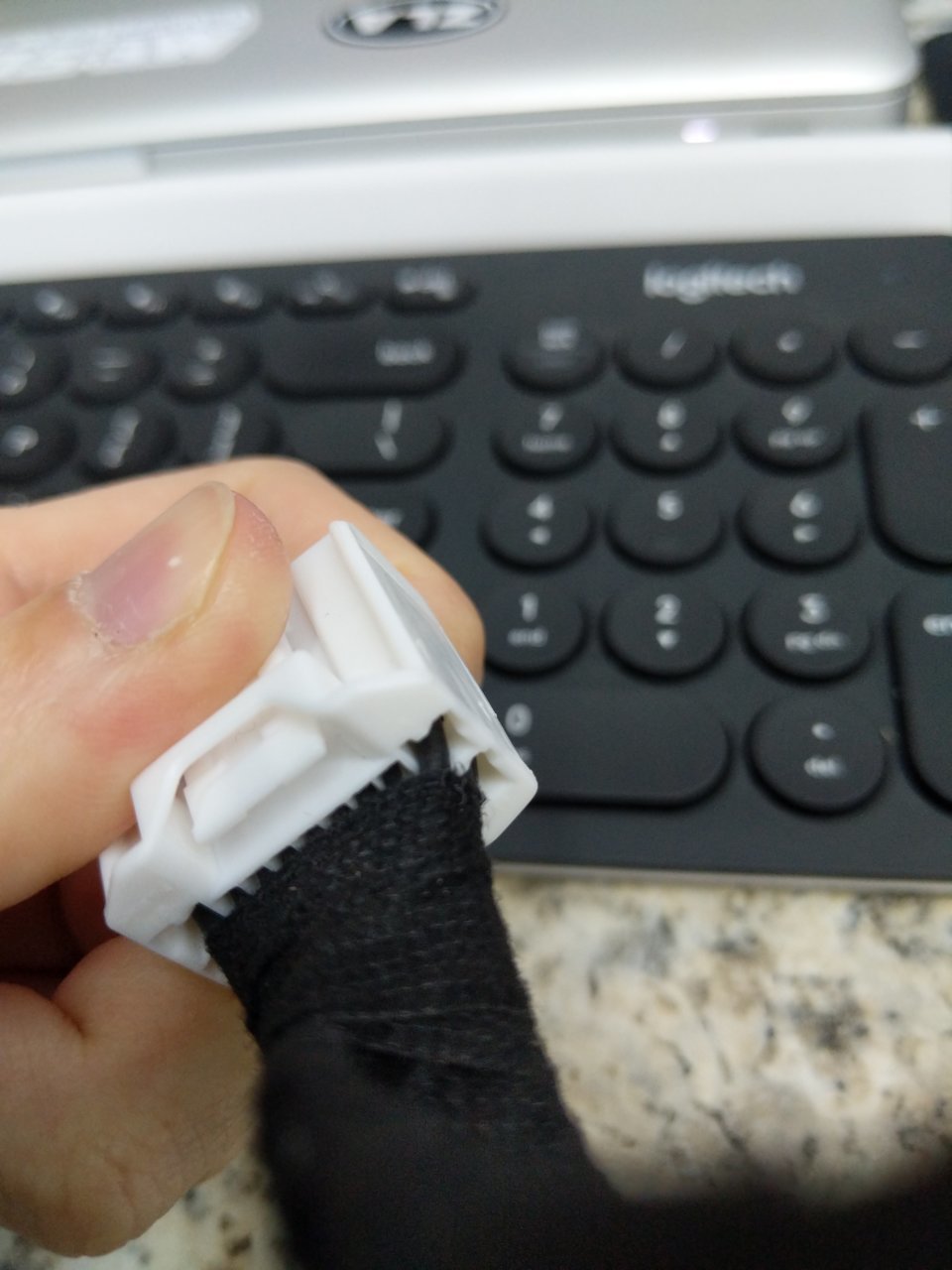

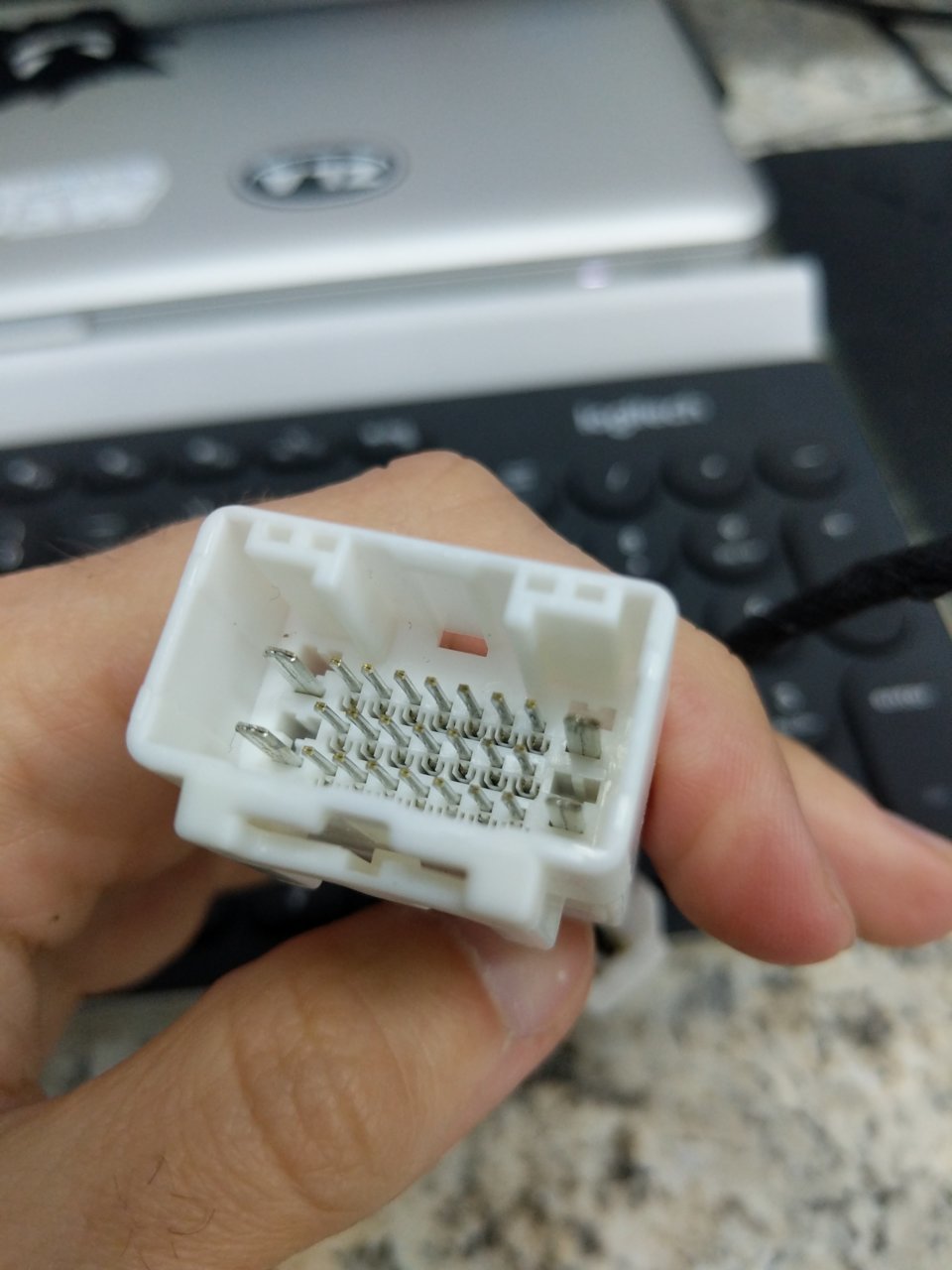

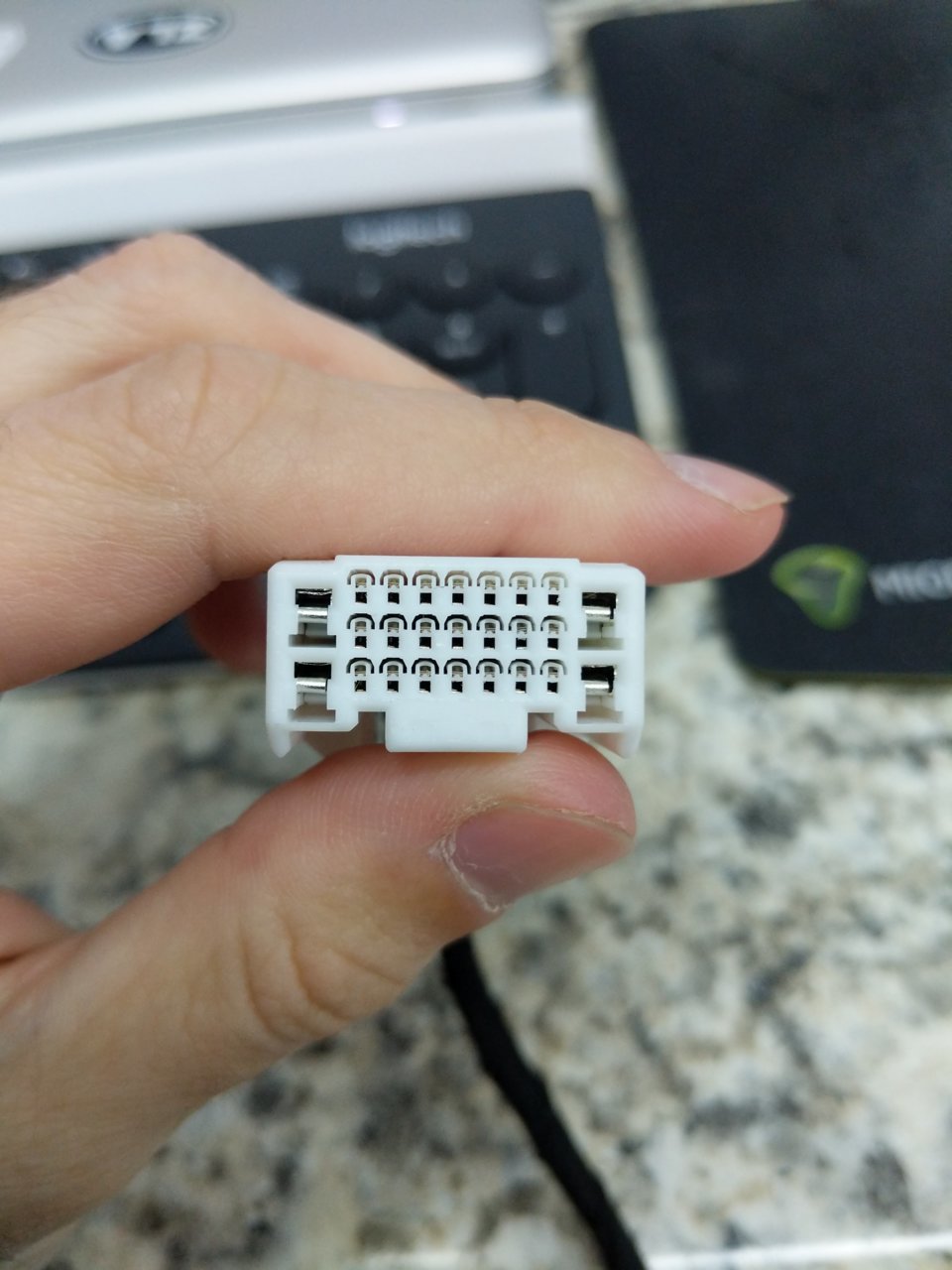

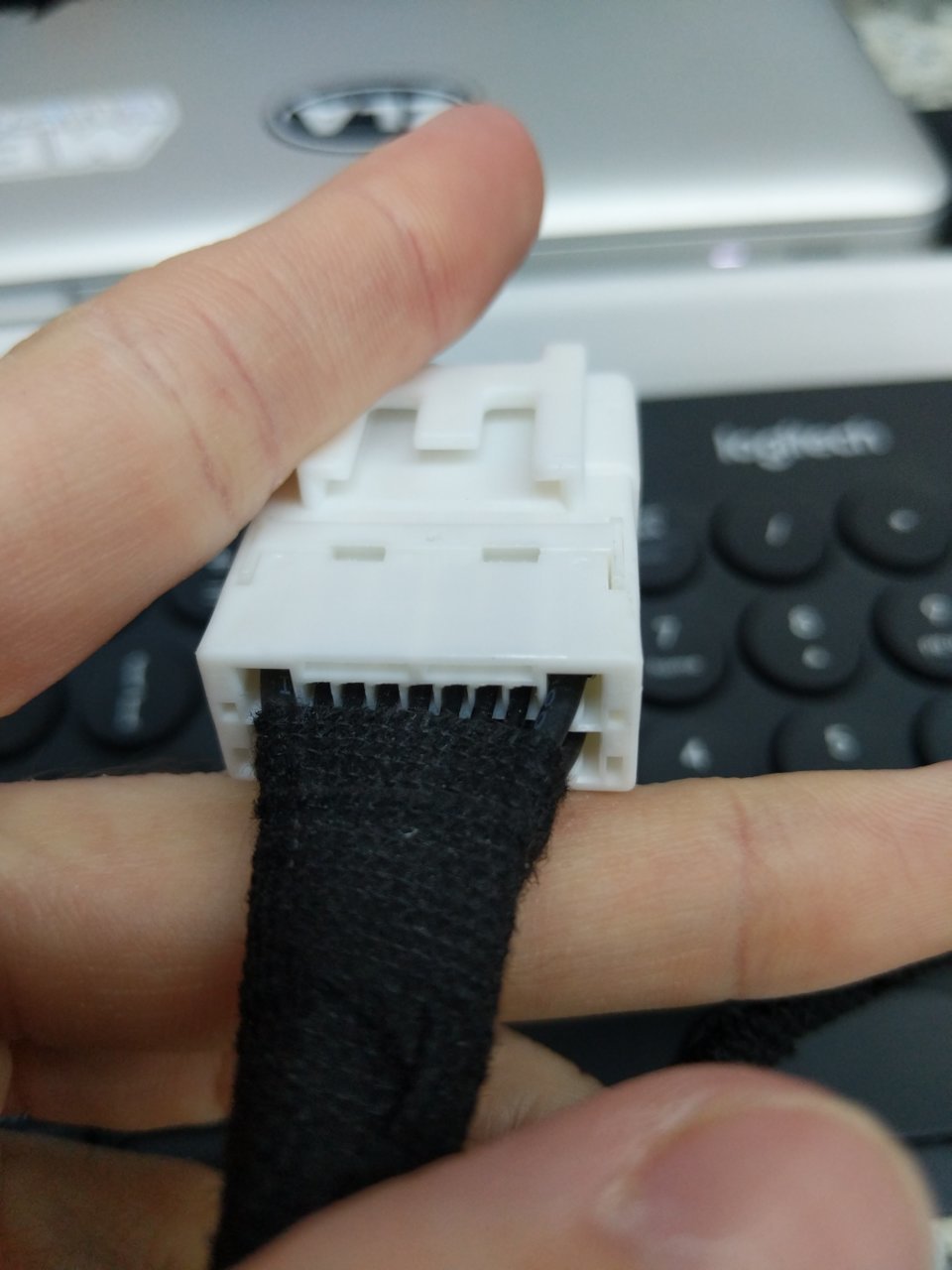

    They do:


  13. Mar 13, 2020 at 11:48 AM
    #5373
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,410
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    So the Y (JST) is a dual wire crimp coming from both sides of the IN1?

  14. Mar 13, 2020 at 11:56 AM
    #5374
    drewmo

    drewmo Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283965
    Messages:
    133
    Gender:
    Male
    Vehicle:
    1995.5 4x4 Taco
    The split is coming from the female side of the plug only, which looks like the IN1 side like you have labeled. They are crimped into the pins together with the matching pass through wires.

  15. Mar 13, 2020 at 12:05 PM
    #5375
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,410
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup:
    I've only read about the JST's wires coming loose or the wires miss located...

  16. Mar 13, 2020 at 1:56 PM
    #5376
    rberumen2

    rberumen2 Well-Known Member

    Joined:
    Oct 28, 2009
    Member:
    #25084
    Messages:
    449
    Gender:
    Male
    First Name:
    Ralph
    California
    Vehicle:
    2017 White Tacoma TRD Sport 4x4 DCSB
    Absolutely LOVEEEE the puddle lights. Just installed Them This morning. Pretty straight forward. Hardest part was pulling the wire through the grommet. Since I was doing that I did the chrome delete and installed the ect pro shift knob so I can use that button for the puddle lights.

    MESO [OP] and Blakeng0118 like this.
  17. Mar 13, 2020 at 2:19 PM
    #5377
    Blakeng0118

    Blakeng0118 Well-Known Member

    Joined:
    Jan 14, 2020
    Member:
    #316124
    Messages:
    88
    Gender:
    Male
    First Name:
    Blake
    Tacoma, WA
    Vehicle:
    2019 Limited
    Does anyone know how to make the puddles work with DSIM harness? I have the DSIM splitter. I wired the DSIM harness to a relay, a switch to turn on set of rock lights. I would like the switch to work with the puddles as well.

  18. Mar 13, 2020 at 2:24 PM
    #5378
    soapbox

    soapbox Active Member

    Joined:
    Feb 5, 2020
    Member:
    #318345
    Messages:
    35
    Gender:
    Male
    First Name:
    Jay
    MPLS
    Vehicle:
    2019 QS Tacoma TRD SP
    Weather tech floor mats, Factory door sill. 2 days in.lol
    I received mine yesterday. After fast S&H. I had them installed. With the assistance of a friend that has the patience. The rubber boots do nothing for my self a steam.

    look really good and practical at night. Not so much in the day though...;)

  19. Mar 13, 2020 at 3:00 PM
    #5379
    Tacospike

    Tacospike Go Away

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    5,294
    Gender:
    Male
    Quarantine A-TX
    Vehicle:
    1 Owner Title Holding 16 Attitude BLK TRD Spike
    Murderface Spike Edition
    you mean you have this?

    https://dsimsolutions.com/collections/all

    Blakeng0118 likes this.
  20. Mar 13, 2020 at 3:59 PM
    #5380
    Blakeng0118

    Blakeng0118 Well-Known Member

    Joined:
    Jan 14, 2020
    Member:
    #316124
    Messages:
    88
    Gender:
    Male
    First Name:
    Blake
    Tacoma, WA
    Vehicle:
    2019 Limited
    Yes i have that. Connect to a set of rock lights, a relay and a CH4x4 switch. I installed the puddles. It works as intended but not coming on with the switch.
