MESO Puddle Light build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Jan 12, 2019.

  1. May 31, 2020 at 8:12 PM
    #5701
    db6598

    db6598 Well-Known Member

    Joined:
    Mar 19, 2019
    Member:
    #287135
    Messages:
    92
    NC
    Anyone have their lights continuously turn on and off? I've seen this happen occasionally even when I'm pretty sure my key is out of range (>20 feet). Doesn't matter if the door is locked or unlocked.

  2. May 31, 2020 at 8:42 PM
    #5702
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    514
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    You won’t need the DSIM kit if you don’t exceed the amp draw of the dome circuit. I think that’s 7.5 amps (sorry, don’t know off the top of my head). You should also have 20% cushion for safety, so I wouldn’t go over 6 amps. If you do use the DSIM module, you’ll want to just have it activate an additional relay that can handle the rock light load. Also be aware that the lights controlled by the DSIM module will not have the fade on and off effect of puddle pods. So it’s going to come down to how many amps your rock lights draw. I am in the planning phase on mine still, but plan on using the DSIM module and am just adding lights underneath to come on and off with the puddle pods. I love the Meso puddle lights, but want more light that illuminates the ground outside the door when the door is open. I also plan on using a separate dimmer controller to have the lights dim on and off. Hope this helps

    DSRamsey13 and blitzkrieg3002 like this.
  3. Jun 1, 2020 at 7:32 AM
    #5703
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    889
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4 5.29’s
    BP51 Complete Kit, Medium Duty Dakar Pack, 5.29 Gears, OVtune 2.0F 5.29 THX, Harrop E Lockers Front & Rear, SCS F5 Wheels 16x8 3.5bs, Cooper Discoverer ST Maxx 285/75/16, Cali Raised 0 Deg Sliders, BHLM, DD SS3 Yellow Pro Fogs, Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, N2 Designs Smart Phone module, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller, Rockblokz XL Mud Flaps.
    Awesome info. Trying to figure out where i'm gonna fit another small switch. might have to go overhead. Is the small meso switch a rocker style switch? if i use the Meso switch and the dsim will the single switch still be able to control both the puddle lights and the rock lights? which style dimmer are you gonna go with. also, about what color temp are these puddle lights to try and match them up to a set of rock lights?

    This is basically what I want to achieve. Meso switch controlling puddle and rock lights with dsim. so by moving the switch up in front of the dsim i can still have rock lights comming off the dsim on a relay but controlled with the meso switch?

    Last edited: Jun 1, 2020
  4. Jun 1, 2020 at 7:56 AM
    #5704
    El Chivo Norteño

    El Chivo Norteño Well-Known Member

    Joined:
    Dec 25, 2018
    Member:
    #276937
    Messages:
    617
    Gender:
    Male
    Central Oregon
    Vehicle:
    2020 White DCLB 4X4 Off-Road
    Wicked! I’ll give it a watch

  5. Jun 1, 2020 at 8:52 AM
    #5705
    facefirst

    facefirst Well-Known Member

    Joined:
    Nov 6, 2016
    Member:
    #201713
    Messages:
    540
    Gender:
    Male
    First Name:
    Geoff
    Cleveland, OH
    Vehicle:
    2017 MGM TRD Off Road DCSB
    Order placed

  6. Jun 1, 2020 at 9:07 AM
    #5706
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    514
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    The small Meso switch is a rocker style, and allows for the lights to be overridden on, turned totally off, or function with the dome light. And you can use the Meso switch to control the puddle lights and the rock lights with the DSIM module. You could also wire in 2 Meso switches if you really wanted. One could control the rock lights (call it switch 2), and when switch 2 is placed in auto, the rock lights would then mirror the switch that controls the puddle lights (call it switch 1). This would allow for the rock lights to be turned on without the puddle lights pretty easily. It would open up a lot of options.

    Switch 1 AUTO, Switch 2 AUTO: Puddle lights and rock lights both work with the dome light.
    Switch 1 AUTO, Switch 2 ON: Puddle lights work with the dome light, rock lights are on.
    Switch 1 AUTO, Switch 2 OFF: Puddle lights work with the dome light, rock lights are off.
    Switch 1 ON, Switch 2 AUTO: Puddle lights are on, rock lights are on.
    Switch 1 ON, Switch 2 ON: Puddle lights are on, rock lights are on.
    Switch 1 ON, Switch 2 OFF: Puddle lights are on, rock lights are off.
    Switch 1 OFF, Switch 2 AUTO: Puddle lights are off, rock lights are off.
    Switch 1 OFF, Switch 2 ON: Puddle lights are off, rock lights are on.
    Switch 1 OFF, Switch 2 OFF: Puddle lights are off, rock lights are off.

    You could also swap the above behaviors by putting switch 2 before switch 1. Not sure how you would designate between the two switches in the cab though? Label wise. Sorry, kind of thinking out loud here as I type...
    If you didn't mind getting away from the plug and play, anytimebackupcamera.com sells a couple of rocker style switches that might work? I'd have to see exactly how they wire. They just need to be able to switch grounds as opposed to 12v+. https://www.anytimebackupcamera.com/products/a-b-light-switch-toyota

    As to what I am personally planning: I am going with a push on/off switch that will turn both puddle and rock lights on (my "rock" lights aren't really rock lights, underglow would probably be more specific for what I'm doing) whenever I want them on, regardless of the key position, and when that switch is off, they will work with the dome. I don't anticipate ever needing to turn them off totally, and I am very particular about things matching. Don't get me wrong, the Meso switch is absolutely top quality and looks great, but it doesn't match what I am trying to do. So I had ch4X4 custom make a switch which I then took the face off of to put it on an AirOnBoard switch so the lighting matches (like I said, I'm very particular, probably to a fault).

    As to how I am going to dim the lights on and off: https://www.amazon.com/dp/B07X3HNR93/ref=twister_B07X3GD8PN?_encoding=UTF8&psc=1 I will take the 12v+ output of the DSIM (yellow wire) and attach it to the Hi Trigger + (blue) wire. Then the lights themselves tie to the Oznium dimmer (both + and -). You can then adjust the timing (with the 8amp controller, I don't think you van with the 2amp one). Keep in mind, I am kind of an oddity when it comes to this stuff. I tend to spend a lot of my free time making things do things they weren't designed to do, so take all of this with that disclaimer in mind.... but here is a rough idea of what I'm planning:

    Its really rough, and the color scheme wont make sense out of context, so I would ignore that part. Also, I still need to verify the puddle pods +/- (VIF=verify in field). Basically, its a mess that would greatly benefit from the skills of someone like Caribe Makaira (sorry, not sure how to @ someone) who is way better at streamlining and diagraming than I am.

  7. Jun 1, 2020 at 10:30 AM
    #5707
    MaulMalls

    MaulMalls Active Member

    Joined:
    Apr 3, 2019
    Member:
    #288917
    Messages:
    39
    Gender:
    Male
    First Name:
    Jason
    Bay Area
    Vehicle:
    2020 TRD OR- Cement Grey
    On the puddle light install, there is a cable listed as “A” (for future products). Should I route this into the mirror where the puddle light is? Should it be through the mirror hole and into door area?

  8. Jun 1, 2020 at 10:30 AM
    #5708
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,634
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    leave it in the cavity of the puddle light. SO when sequential turn signals come out, you just have to run the wire up into the main mirror body.

    BOMBS, DSRamsey13 and MaulMalls like this.
  9. Jun 1, 2020 at 10:33 AM
    #5709
    MaulMalls

    MaulMalls Active Member

    Joined:
    Apr 3, 2019
    Member:
    #288917
    Messages:
    39
    Gender:
    Male
    First Name:
    Jason
    Bay Area
    Vehicle:
    2020 TRD OR- Cement Grey
    Thank you for the quick reply! I thought that was what it was for but just making sure!

  10. Jun 1, 2020 at 1:56 PM
    #5710
    mainjet

    mainjet Well-Known Member

    Joined:
    May 24, 2019
    Member:
    #294275
    Messages:
    141
    Gender:
    Male
    Alberta
    Vehicle:
    2019 Tacoma off road
    Ray 10s Diode dynamics Hidden Light bar Toyo AT2s
    How often do you release these ?
    I always seem to have bad timing (first world problems)

  11. Jun 1, 2020 at 4:49 PM
    #5711
    DSRamsey13

    DSRamsey13 Well-Known Member

    Joined:
    Aug 26, 2019
    Member:
    #303324
    Messages:
    536
    Gender:
    Male
    Vehicle:
    2018 TRD Sport Inferno (DCSB)
    Any advantage/disadvantage to go ahead and leave it in the main mirror body if we plan on getting the sequential turn signals? Not sure if it will save a step (or three) when we go to install the sequential turn signals.

  12. Jun 1, 2020 at 4:50 PM
    #5712
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,634
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Leaving it in the mirror you will not have to I’ll the door panel or unbolt mirror again

    BOMBS likes this.
  13. Jun 1, 2020 at 4:53 PM
    #5713
    DSRamsey13

    DSRamsey13 Well-Known Member

    Joined:
    Aug 26, 2019
    Member:
    #303324
    Messages:
    536
    Gender:
    Male
    Vehicle:
    2018 TRD Sport Inferno (DCSB)
    Awesome... then I'll be putting it in the main mirror body then! :thumbsup:

  14. Jun 1, 2020 at 6:13 PM
    #5714
    mOjO_Taco

    mOjO_Taco Well-Known Member

    Joined:
    Jun 19, 2018
    Member:
    #256903
    Messages:
    202
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    2020 TRD 4X4 OR Cement
    None yet
    Just got my puddle kit today! Install coming up soon.

  15. Jun 2, 2020 at 9:01 AM
    #5715
    1TACOTONY

    1TACOTONY Well-Known Member

    Joined:
    Mar 16, 2020
    Member:
    #322289
    Messages:
    76
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2017 Inferno TRD Sport 4x4 M/T
    Blacked out badges Black bedside decal Tacoma tailgate letter inserts Trd Pro grill TRD color match grill badge Color matched Trd Pro shifter Tinted windows Front and Rear MBRP 3" side exit exhaust w tip OCD center console organizer Meso Customs blacked out climate control rings Meso Customs blacked out vent rings Meso Customs blacked out 4x4 ring Meso Customs coin organizer M/T Meso Customs blacked out steering wheel emblem overlay Meso Customs blacked out handle covers Tufskinz glovebox insert Custom ch4x4 switches w cubby panel Lil B's bed stiffeners with bottle opener Inferno Door sill guard inserts Rear passenger dual USB charge port Rear window switch relocation mod Taco Time plate frame AVS low profile in channel vent shades SUSPENSION FRONT Fox 2.5 extended travel coilover remote resi with adjuster and added protection for the reservoir Sway bar relocation kit Spc adjustable uca Durobump bumpstops REAR Fox 2.0 extended travel remote resi with adjuster and Fox roost guards Toytec (Deaver)3 leaf progressive aal Durobump 4.25 bumpstops with Ubolt flip kit WHEELS AND TIRES FN FX Pro matte black w import equipment center decal BFG KO2 285/70/17 AUDIO OEM Audio Reference 450Q w/ subwoofer Soundskin Pro sound deadening doors,panels and rear wall LIGHTING Rigid Radiance+ Amber backlighting 30" HBLB Rigid Radiance Scene pods with amber backlighting Meso Customs blacked out ultimate turn signals Meso customs puddle lights w switch TRD pro tail lights Mic tuning 2 bar triple row tailgate bar with brake,reverse and sequential turn VLed upgrade vanity lights Meso Customs ultimate map light Meso Customs dual brightness cab light Led upgrade turn,brake,side markers and plate lights Hid headlights Hi/Low and fogs Import equipment 3rd brake light cover Raptor grill lights KTJO4X4 door handle lighting Yota mafia KC hilites rock light 6 light kit with auto on feature UPTOP Overland Underhood lighting with Baja designs pods
    From reading your post I'm thinking you want the rock lights to be controlled and operate the same as the puddle pods. The kit I installed was all plug and play and I still have the option to control puddle pods and rock lights fully. So I can turn them all on at anytime,have them all on auto,all off,or one or the other. It was a very straightforward install and I'm very happy with the outcome. Is this similar to what your trying to achieve?

  16. Jun 2, 2020 at 9:07 AM
    #5716
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    889
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4 5.29’s
    BP51 Complete Kit, Medium Duty Dakar Pack, 5.29 Gears, OVtune 2.0F 5.29 THX, Harrop E Lockers Front & Rear, SCS F5 Wheels 16x8 3.5bs, Cooper Discoverer ST Maxx 285/75/16, Cali Raised 0 Deg Sliders, BHLM, DD SS3 Yellow Pro Fogs, Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, N2 Designs Smart Phone module, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller, Rockblokz XL Mud Flaps.

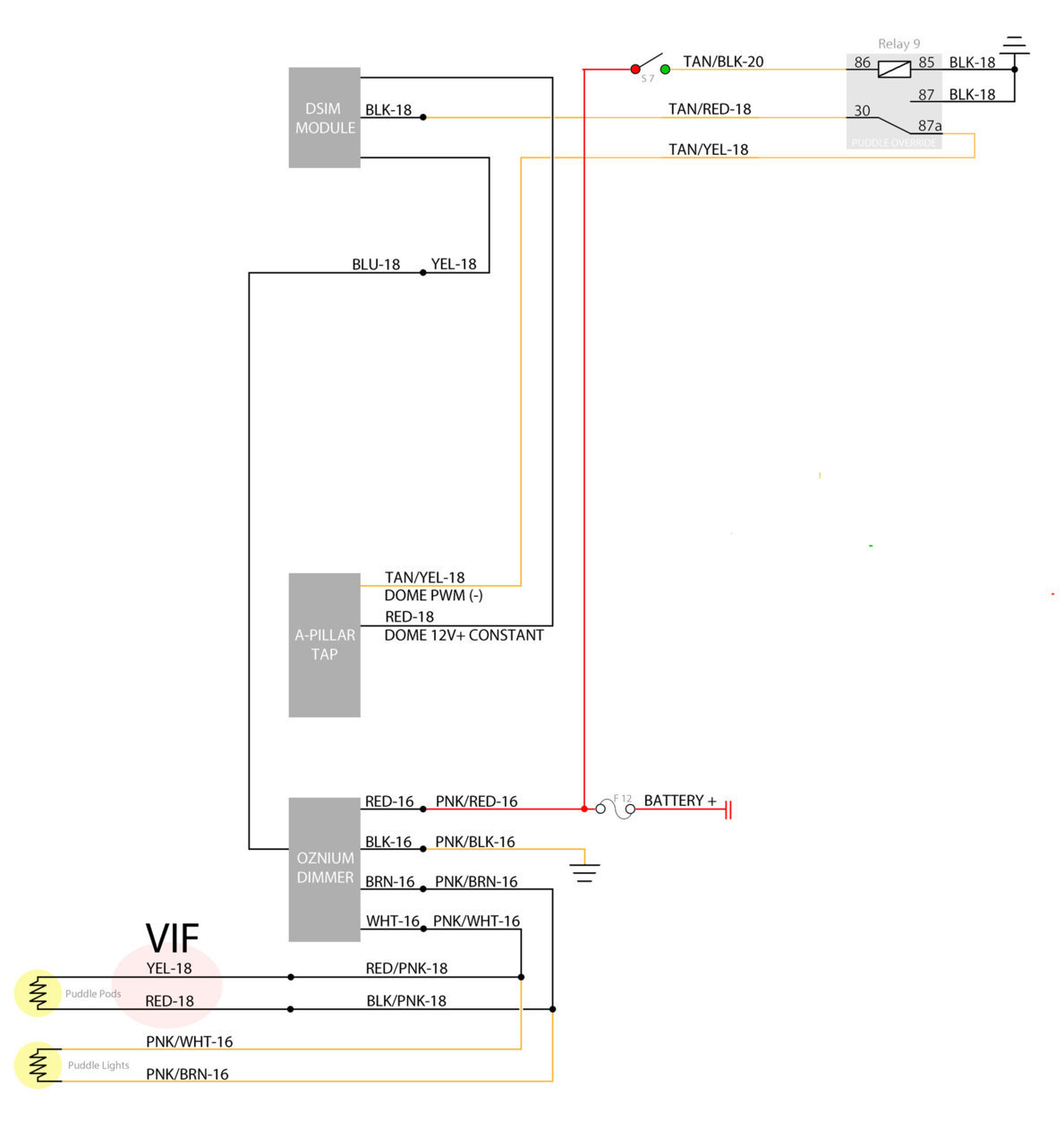

    pretty much. but I want the rock lights to fade on/off as well. i'm going to try @Puppypunter 's diagram with a aironboard switch.

  17. Jun 2, 2020 at 9:10 AM
    #5717
    1TACOTONY

    1TACOTONY Well-Known Member

    Joined:
    Mar 16, 2020
    Member:
    #322289
    Messages:
    76
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2017 Inferno TRD Sport 4x4 M/T
    Blacked out badges Black bedside decal Tacoma tailgate letter inserts Trd Pro grill TRD color match grill badge Color matched Trd Pro shifter Tinted windows Front and Rear MBRP 3" side exit exhaust w tip OCD center console organizer Meso Customs blacked out climate control rings Meso Customs blacked out vent rings Meso Customs blacked out 4x4 ring Meso Customs coin organizer M/T Meso Customs blacked out steering wheel emblem overlay Meso Customs blacked out handle covers Tufskinz glovebox insert Custom ch4x4 switches w cubby panel Lil B's bed stiffeners with bottle opener Inferno Door sill guard inserts Rear passenger dual USB charge port Rear window switch relocation mod Taco Time plate frame AVS low profile in channel vent shades SUSPENSION FRONT Fox 2.5 extended travel coilover remote resi with adjuster and added protection for the reservoir Sway bar relocation kit Spc adjustable uca Durobump bumpstops REAR Fox 2.0 extended travel remote resi with adjuster and Fox roost guards Toytec (Deaver)3 leaf progressive aal Durobump 4.25 bumpstops with Ubolt flip kit WHEELS AND TIRES FN FX Pro matte black w import equipment center decal BFG KO2 285/70/17 AUDIO OEM Audio Reference 450Q w/ subwoofer Soundskin Pro sound deadening doors,panels and rear wall LIGHTING Rigid Radiance+ Amber backlighting 30" HBLB Rigid Radiance Scene pods with amber backlighting Meso Customs blacked out ultimate turn signals Meso customs puddle lights w switch TRD pro tail lights Mic tuning 2 bar triple row tailgate bar with brake,reverse and sequential turn VLed upgrade vanity lights Meso Customs ultimate map light Meso Customs dual brightness cab light Led upgrade turn,brake,side markers and plate lights Hid headlights Hi/Low and fogs Import equipment 3rd brake light cover Raptor grill lights KTJO4X4 door handle lighting Yota mafia KC hilites rock light 6 light kit with auto on feature UPTOP Overland Underhood lighting with Baja designs pods
    That sounds like it will look really clean and high class. Looking forward to seeing the full setup so please share the finished product pics :thumbsup:

  18. Jun 2, 2020 at 12:44 PM
    #5718
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,228
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

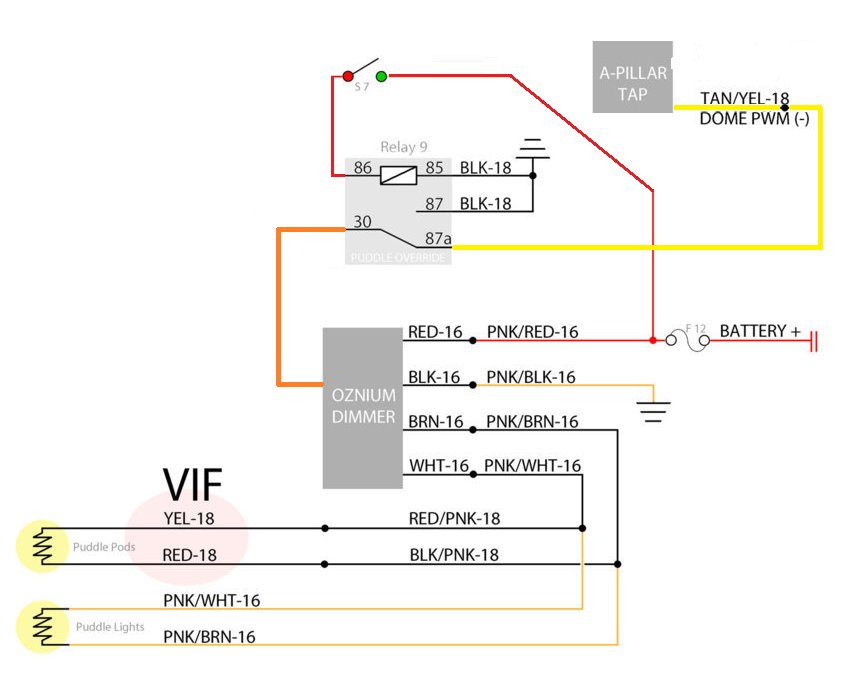

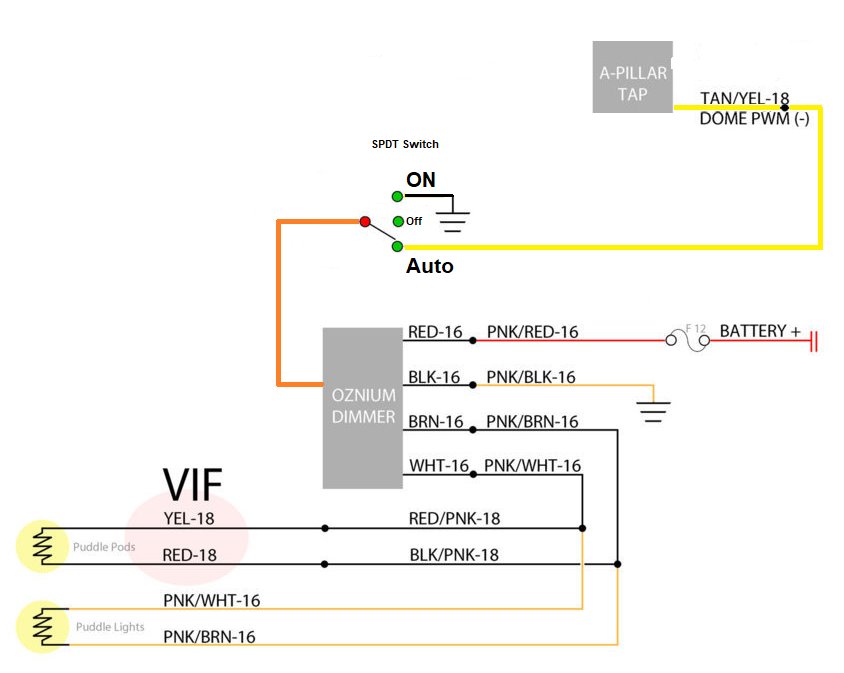

    or better this:



    blitzkrieg3002 likes this.
  19. Jun 2, 2020 at 1:09 PM
    #5719
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    889
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4 5.29’s
    BP51 Complete Kit, Medium Duty Dakar Pack, 5.29 Gears, OVtune 2.0F 5.29 THX, Harrop E Lockers Front & Rear, SCS F5 Wheels 16x8 3.5bs, Cooper Discoverer ST Maxx 285/75/16, Cali Raised 0 Deg Sliders, BHLM, DD SS3 Yellow Pro Fogs, Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, N2 Designs Smart Phone module, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller, Rockblokz XL Mud Flaps.

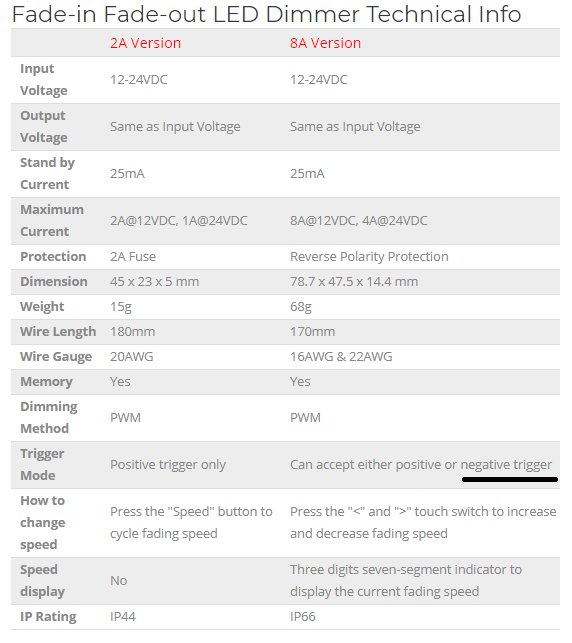

    so if going this route no need for a dsim? You just use the negative trigger and connect that to the low Trigger on the dimmer?

    Last edited: Jun 2, 2020
  20. Jun 2, 2020 at 6:17 PM
    #5720
    SubaruTheTacoma

    SubaruTheTacoma Subaru Tacoma STI

    Joined:
    Mar 1, 2019
    Member:
    #284929
    Messages:
    177
    Gender:
    Male
    First Name:
    Rhys
    Los Angeles
    Vehicle:
    2017 STI Off Road
    HELLA Horns BP-51 ARB Summit SCS Ray 10

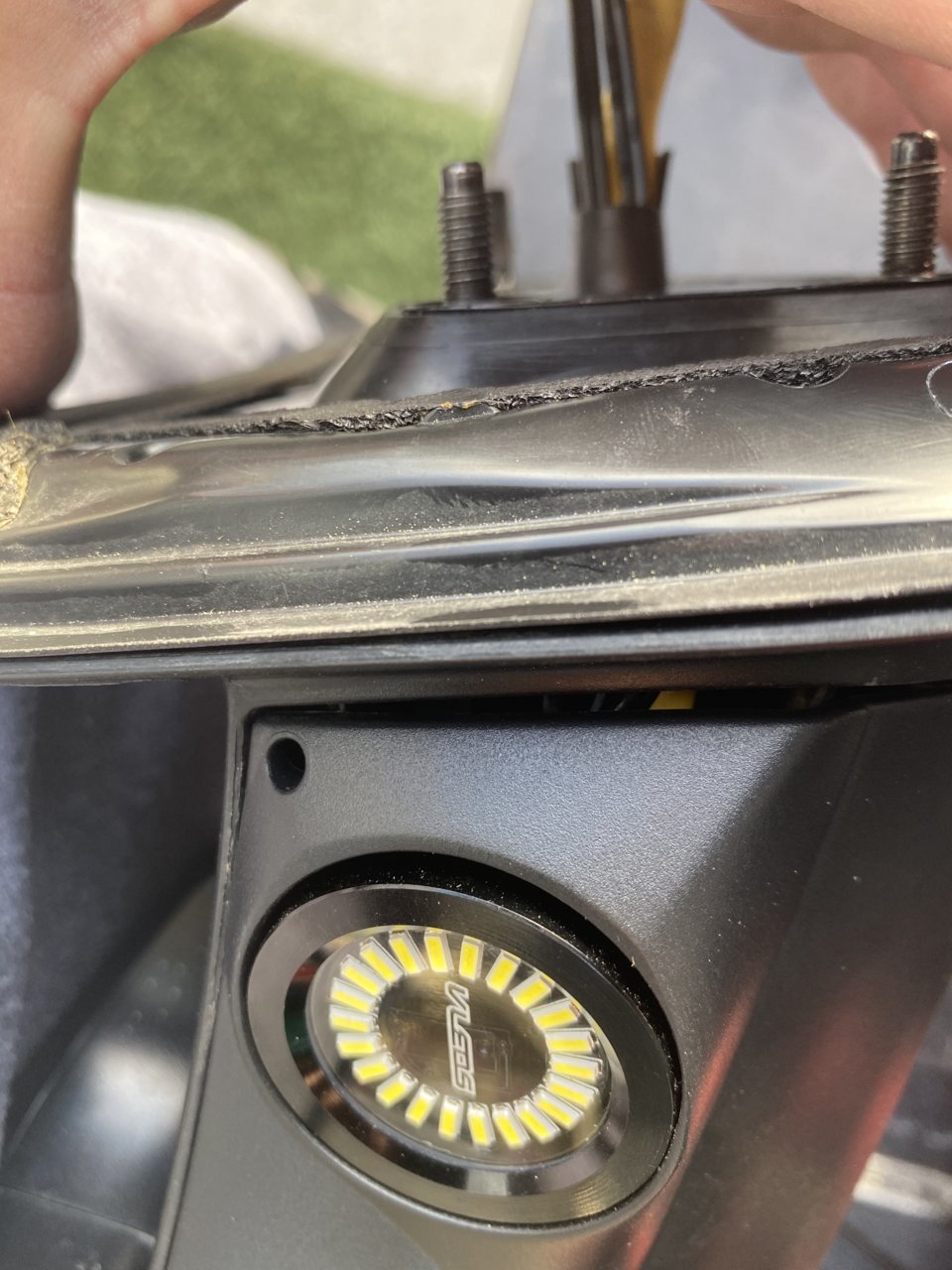

    Finally got my puddle lights done!
    Everything works greAt!

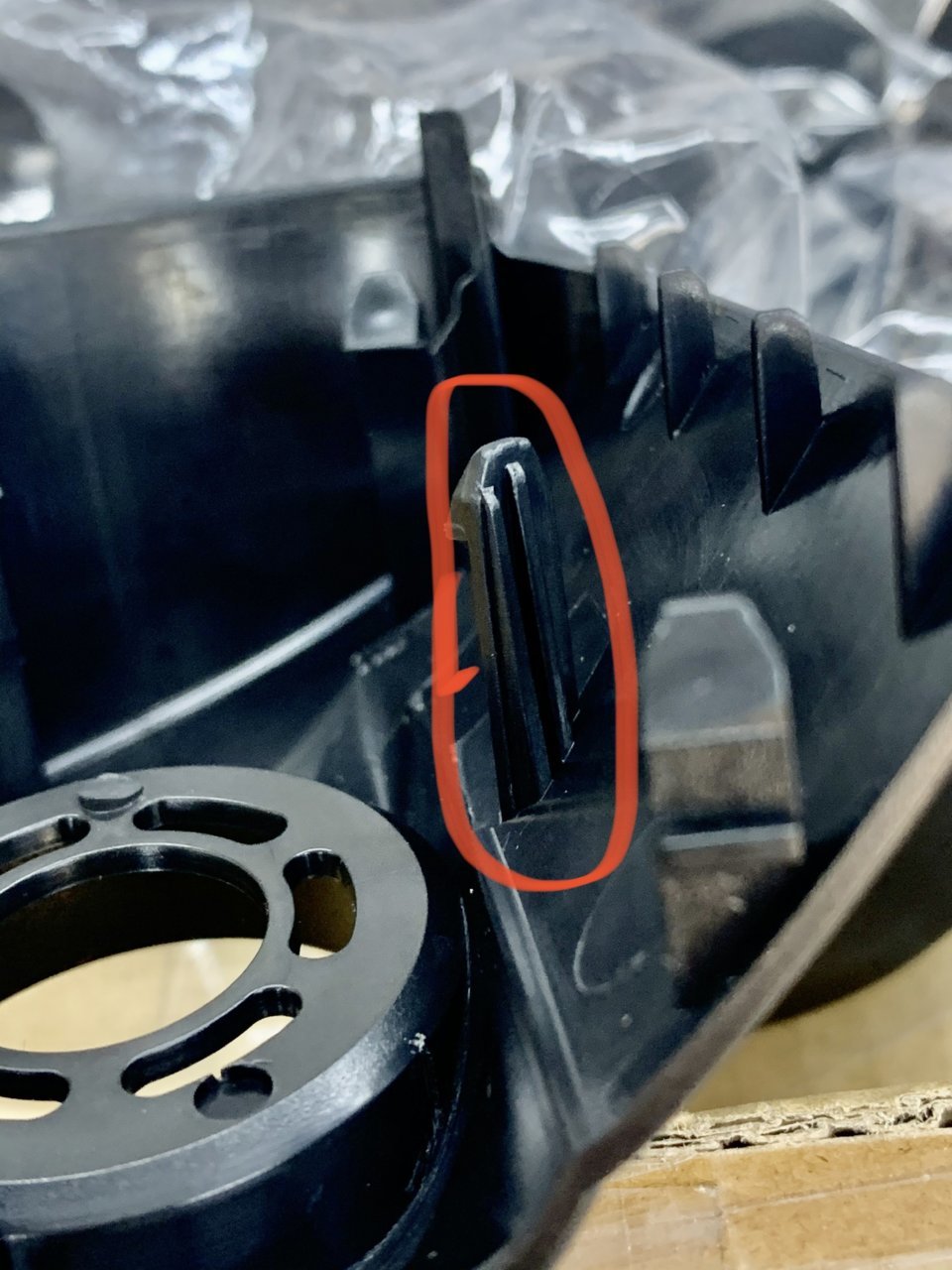

    @MESO is the gap on the driver side supposed to be that big or did I do something wrong? I only saw cutting instructions for the passenger side.

    thabks!
