Midnight Installs

Discussion in 'Audio & Video' started by TurboGT, Oct 5, 2010.

  1. Oct 5, 2010 at 10:33 AM
    #1
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    Well, not quite midnight, but still.... Walked into Home Depot for a 1/4 sheet of MDF at 8:58 (the checkout guy made sure I was aware they were closing in a minute), then over to the autoparts store for rubberized undercoating.

    Started with the rears, pulled the panel & speaker, set up a cardboard template, cut out, and started spraying the baffles with undercoating. Got two coats on last night, and put a third on this morning.

    I'm totally wishing I had a router right now, would have made a much nicer baffle, and much faster too... but after all, it is going behind the factory panel, so it's not like anyone will ever see it.

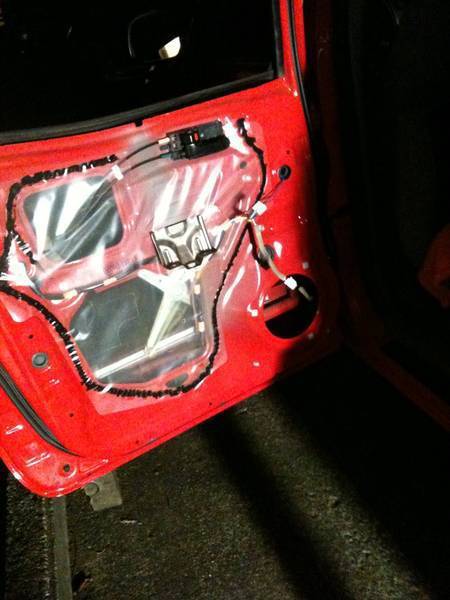

    Panel removed
    [​IMG]

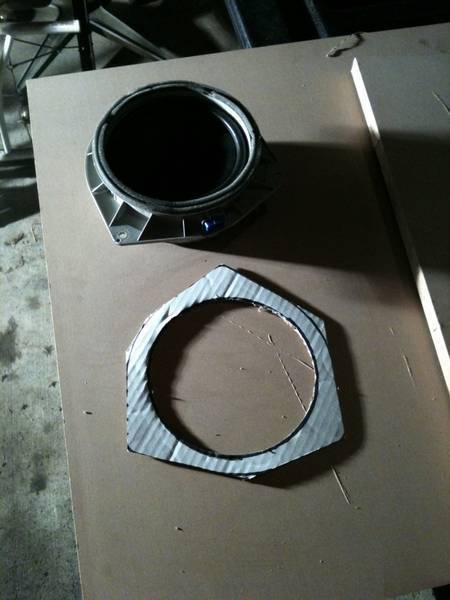

    Factory speaker & cardboard template
    [​IMG]

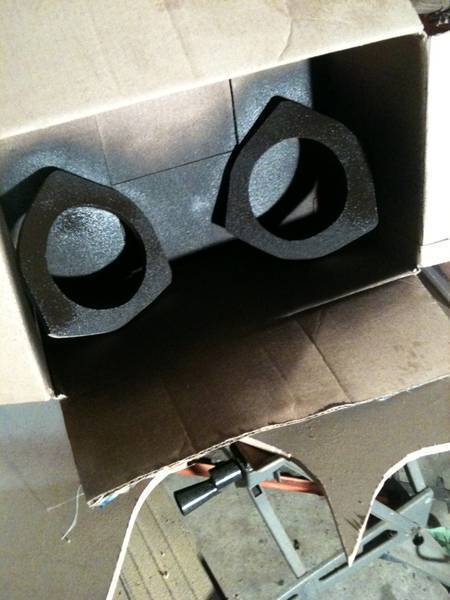

    Baffles being painted
    [​IMG]

    No crap about the image quality... 11pm at night, shot with a 500w halogen work light and an iPhone. Will probably get these finished up after work.

  2. Oct 5, 2010 at 10:38 AM
    #2
    JM76

    JM76 Ride On

    Joined:
    Dec 3, 2007
    Member:
    #3695
    Messages:
    2,032
    Gender:
    Male
    First Name:
    Jon
    SC
    Vehicle:
    06 silver double cab 4x4
    seconday air filter removal, tw sticker afe pro dry s filter , black rims , cb radio with four foot firestik antenna,black nasta nerf bars,5100's in the rear,mp3 player hookup,led overhead light,5100's up front @ 1.75, rear AAL,custom dent package,blacked out rear bumper, blacking out front grille,camo gt seat covers , 6k HIDs, 6k fogs coming, devil horns grille mod,elite offroad aluminum bumper,Canadoshi grille mod.light bar behind the grille with bright lights coming sooner or later
    what did you use to cut these out? a dremel tool/ rotozip? if it works who cares? what kind of rubberized undercoating?

  3. Oct 5, 2010 at 10:52 AM
    #3
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    bought a cheap $40 jigsaw from Home Depot (it'll be going back). If I were more patient, I would have waited until tomorrow night when I can get into the woodshop and do it right - make a hardboard template on the router table with a flush cutting bit, then make the baffle from MDF.

    Doing it right to me would have been making a 2-part baffle - a 3/4" MDF backplate that the speaker actually mounts to, and a 1/2" MDF trim ring mounted to the backplate that would serve as a block plate for any surrounding obstacles. The trim ring would have an internal diameter the same size as the speaker's outer flange diameter, and would be 1/2-3/4" in width. This is how I used to make them several years ago when I was installing stereos "professionally" (i.e. on-the-job training from some very gifted installers)

    Undercoating I picked up from a local auto parts store. I ended up getting the store's brand (I think it was CarQuest Auto Parts). I normally would have used a 3M brand, but forgot to do my homework on which 3M part to get. None of the 3M can's said anything about "sealing" or "waterproof" - at least the store brand spoke of sealing.

  4. Oct 6, 2010 at 8:51 AM
    #4
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    Midnight #2 - Alarm preparation

    Took a break from the speaker baffles - the weather is getting kinda cold here so the undercoating isn't drying very well... maybe I should just take them inside and let them dry up down in the basement :).

    Stopped by the stereo shop on the way home from work, picked up a Clifford 3.3x alarm/remote start system. Thankfully the manager there is an old co-worker there and gave me the system pretty cheap.

    Alarm module
    [​IMG]

    Window automation control modules (crappy pic, will try to update it later)
    [​IMG]

    Factory transponder key interface module
    [​IMG]

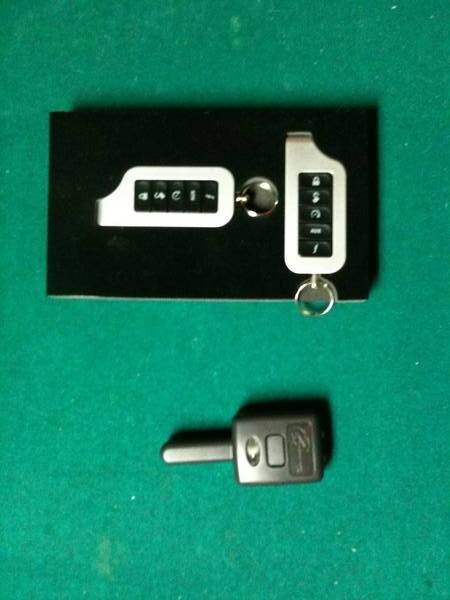

    Remotes & alarm antenna/transmitter
    [​IMG]

    By the time it's all done, I'll be able to lock and unlock, remotely start the car, turn the radio on and off (no more need for the key in the ignition), and roll down the windows - either collectively or separately front and rear. In addition, the windows will roll up when the alarm is armed, and I'll have full one-touch operation from the driver's door.

  5. Oct 6, 2010 at 9:04 AM
    #5
    ToucanV13

    ToucanV13 You think I was rollin out here naked?

    Joined:
    Feb 21, 2008
    Member:
    #4866
    Messages:
    2,339
    Gender:
    Male
    San Diego and Colorado
    Vehicle:
    Infideled out TRD Sport 4X4
    285/70 Hankook AT-M, Window vents, TRD CAI, TRD Cat-back exhaust with WickedFlow can, AFE Throttle Body Spacer, Billy 5100 @ 2.5 and 1" block rear, RBP nerf bars, Halo HIDs, 20% tint up front
    WTF?! Awesome! Can't wait to see it all finished

  6. Oct 6, 2010 at 9:49 AM
    #6
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    You should double or tripple up your rings if your using 1/4". 1.) to make sure your speaker will clear the window, and 2.) 1/4" mdf is kind of fragile because it is so thin and i wouldn't trust it to hold your speaker there securely.

  7. Oct 6, 2010 at 11:48 AM
    #7
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control

    I used 1/2" for the rear rings... depth isn't a problem. I'll use 3/4" for the fronts, but will add a 1/2" ring surround to the front. Depending on what I end up doing later on down the road, I may try to glass in an enclosure in the door (always wanted to do that) for either a pair of 6's or an 8" midbass. We'll see.

    I'm in my woodshop class tonight, so I'll be making the front baffles and rings tonight... try to get some pics up of that process. I'm also hoping that I get the wiring info for the alarm that I need to finish the process here soon (my Car Toys buddy had better come through soon)

  8. Oct 6, 2010 at 11:49 AM
    #8
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    Just for you, when it does get done (which should be by Oct 16th at the LATEST), I'll do a video demo for ya

  9. Oct 6, 2010 at 12:48 PM
    #9
    ToucanV13

    ToucanV13 You think I was rollin out here naked?

    Joined:
    Feb 21, 2008
    Member:
    #4866
    Messages:
    2,339
    Gender:
    Male
    San Diego and Colorado
    Vehicle:
    Infideled out TRD Sport 4X4
    285/70 Hankook AT-M, Window vents, TRD CAI, TRD Cat-back exhaust with WickedFlow can, AFE Throttle Body Spacer, Billy 5100 @ 2.5 and 1" block rear, RBP nerf bars, Halo HIDs, 20% tint up front
    Read my mind! ^

  10. Oct 6, 2010 at 2:05 PM
    #10
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    for the car wiring check out the12volt.com

  11. Oct 6, 2010 at 9:39 PM
    #11
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    I've looked there... they don't have good info (i.e. wire list from DEI's directechs.com - Anyone have an account they're willing to share???) for an '06, but I'm going to assume that the '05 is the same, and someone posted the schematic for that.

    I need a current install guide for the Clifford 3.3x alarm system that I bought though (hence the need for the account sharing). It came with a "quick reference guide" but it doesn't give any detailed info on what the wires do or are supposed to go. There is a guide on the12volt.com for the DEI 5202 alarm platform, but it's got an older wiring schematic.

  12. Oct 11, 2010 at 11:11 AM
    #12
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    Not quite midnight for these, but still some progress... All in all, I spent almost all day Friday working on the window wiring & rear speakers (tending to my 9 yr old all the while), a couple hours Saturday (sans the 9 yr old), and most of Sunday evening finishing the alarm components (while tending to the 9 yr old again, and visiting with a german "exchange" soccer guy - long story, don't ask :)), so there's some "midnight" hours in there.

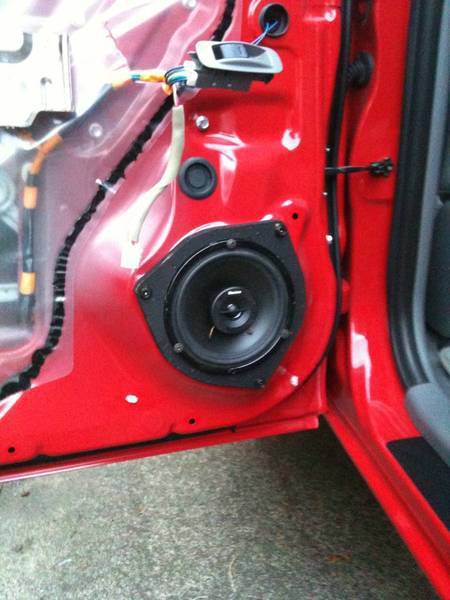

    Rear speakers completed. I've got some 50 sq ft of Dynamat Extreme lying around, but I'm gonna save it until I've got enought to completely install it (and for when I've got the rest of the projects on the truck completed)

    [​IMG]

    Cig Lighter/Aux Power outlet - rewired the cig lighter and aux power outlets to constant power. I hate not having a working power outlet when the car's off (like when I need to charge my cell during a soccer game)

    [​IMG]

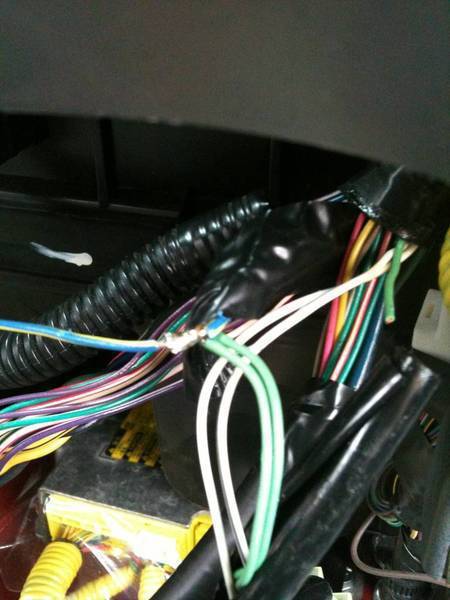

    Enlarged image of the connection - I've opted to solder all my connections in this truck. I've used crimp connections before, but never considered any of those cars to be long term, and I can't recall how many times I had to fix a crimp while I was installing due to either a poor crimp or wires breaking.

    [​IMG]

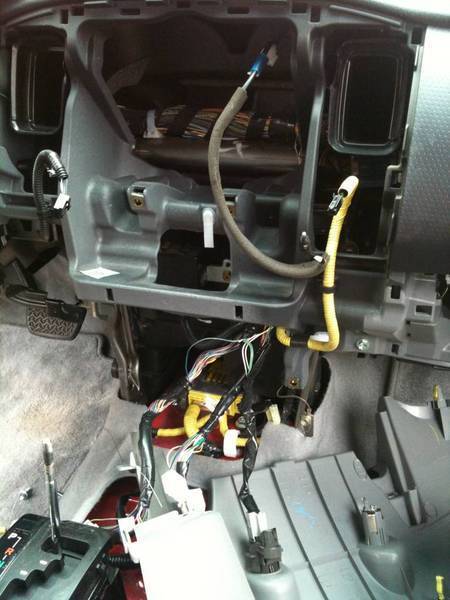

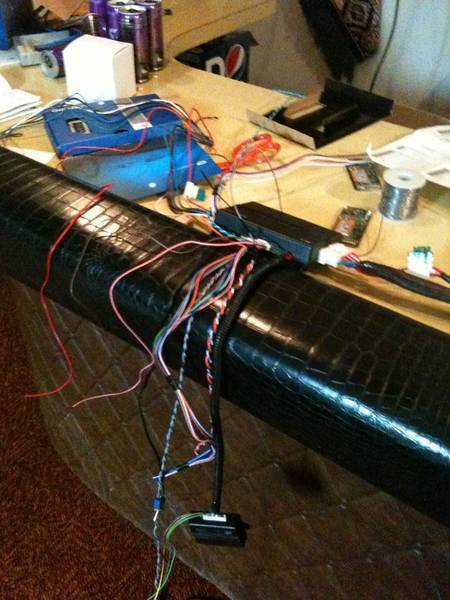

    Alarm update - Alarm install is complete (no, I'm not going to post pics of my install, but as promised to Toucan, I will set up a video on with a demo) but there were a few snags. One, the factory key transponder interface isn't working properly... It programs like its supposed to, but I don't think the firmware is up-to-date. The car just cranks unless I hold a key head up to the key cylinder (I don't have to put the key in, just near the slot). It's either the firmware or there's something wrong with the transponder itself. Either way, I'll know this afternoon after stopping by the stereo shop for a firmware update (I wish the current version was printed on the damn module).

    Two, the front door window module isn't wired into the doors yet. I'm opting to running the wires into the front doors, so that both front door switches have the one-touch operation. I could just hook the passenger's door up in the driver's door, but I'd rather "do it right" than do it quick. As soon as I can get my hands on some 12 gauge wire, I'll run the wires and make the hookups. Another reason it wasn't a priority is b/c the front speaker baffles are still getting the undercoating and primer coats - I'm saving it all for a single door removal.

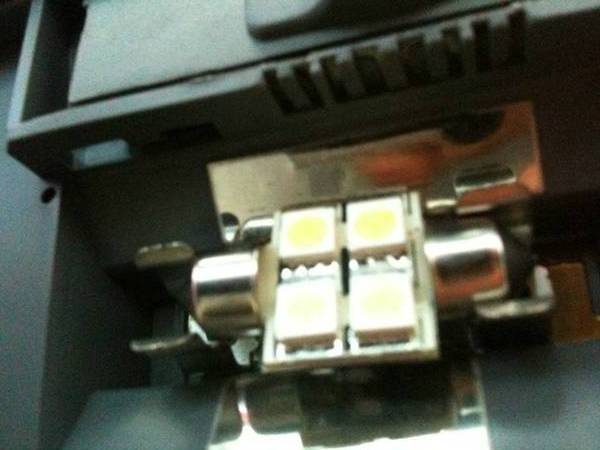

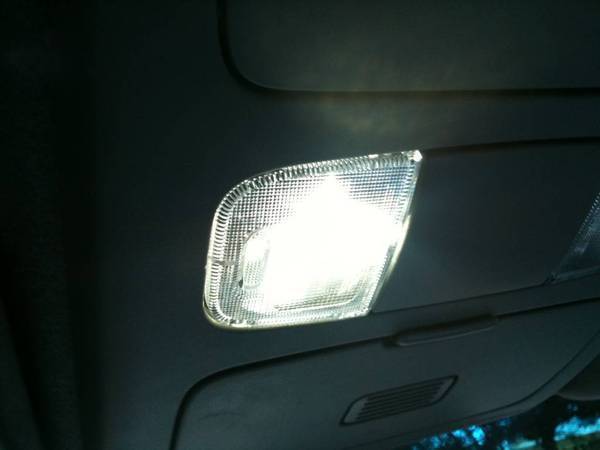

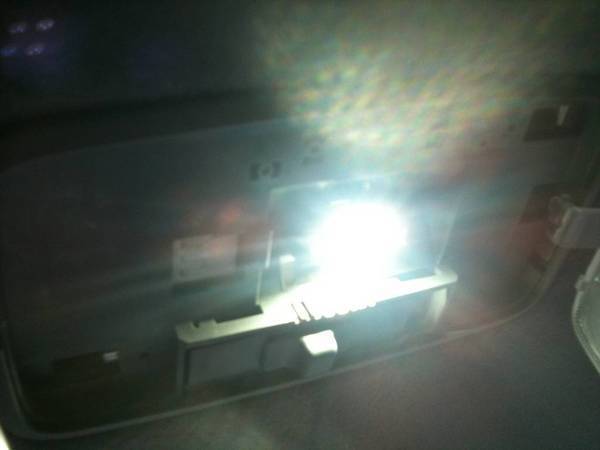

    Much to the suggestions from others in the Lighting forums, I ordered (& received) some LED lights for the cabin. I got a pair of WLED-xHP in a Cool White color for the map lights and a 4-LED 3022-xx for the dome light. In retrospec, I should have pulled the dome light out and measured it's length rather than go by what Sylvania's website said. Turns out I should have ordered a 3610, 3710, or 3910 version. The 3022 fits, but just barely. Here's a pic of the dome & map lights - you can see how close of a fit it is on the dome light.

    [​IMG]
    [​IMG]
    [​IMG]

    Map Lights
    http://www.superbrightleds.com/cgi-bin/store/index.cgi?action=DispPage&Page2Disp=/mini-wedge.html

    Dome Light
    http://www.superbrightleds.com/cgi-bin/store/index.cgi?action=DispPage&Page2Disp=/festoon.html

    Last of the weekend mods was replacing the rear view mirror. This mirror came out of a 2000 Pontiac Grand Am GT1, and when that car got totalled, I had no problem ripping the mirror out.

    Two reasons for doing this - I can't quite see how the stock mirror with the auto-dimmer works, least with a canopy shell on the bed. I turn it on and off at night with headlights shining in both directions, and nothing changes, and two, the GM mirror has some "domelight" like lamps built in. I don't care that the only light that comes on is the center light - I've always liked having lights in the footwell area. Plus, there's some additional switches on the front of the mirror to turn them on manually.

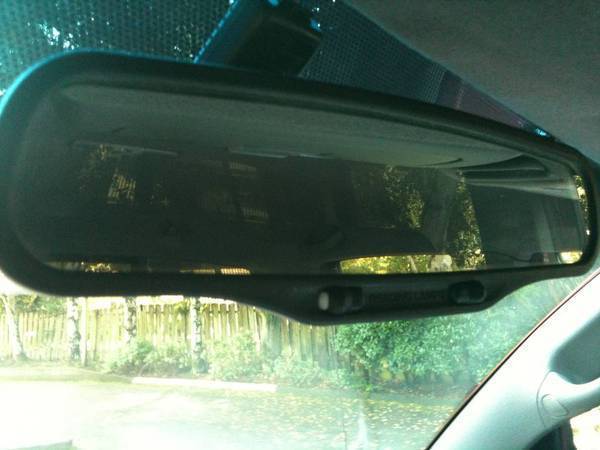

    Front shot of the mirror
    [​IMG]

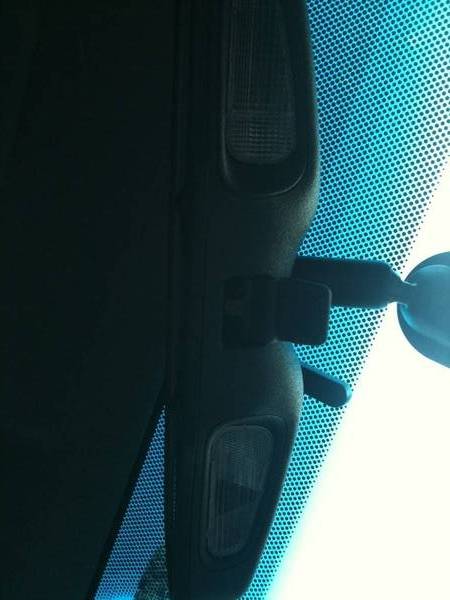

    Bottom shot of the mirror showing the lights
    [​IMG]

  13. Oct 11, 2010 at 1:07 PM
    #13
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,865
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Nice with the LED lights. I've thought about replacing mine with something brighter as well. It hasn't really been a priority though so I keep putting it off. Is it a significant difference?

  14. Oct 11, 2010 at 1:27 PM
    #14
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    it's ridiculous how much of a difference there is...

    I'll throw the stock ones back in tonight and take some before/after photos when it's dark out.

  15. Oct 12, 2010 at 9:10 AM
    #15
    TurboGT

    TurboGT [OP] Stirring the pot since...

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    1,080
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    OME lift w/ Dakars & 885's Remote Start w/ window control
    I know these really should go in the Lighting forums, but since Italyn asked, here he gets....

    These aren't the greatest of shots - I left my digcam at home, and had to take these with my iPhone. Trust me, it's a HUGE difference.

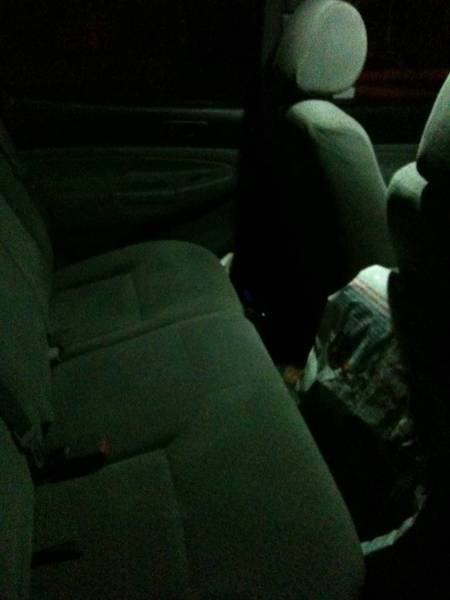

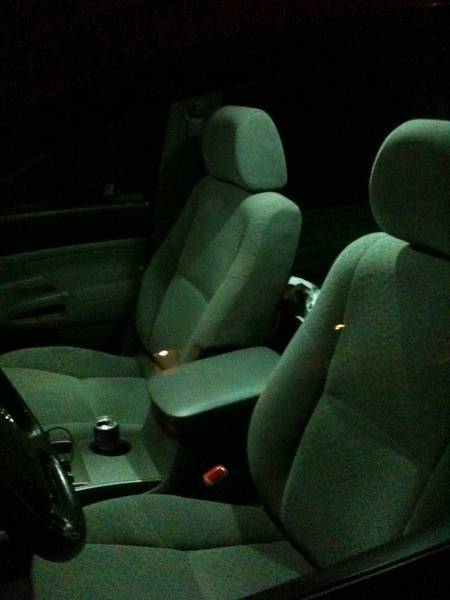

    Before
    [​IMG]

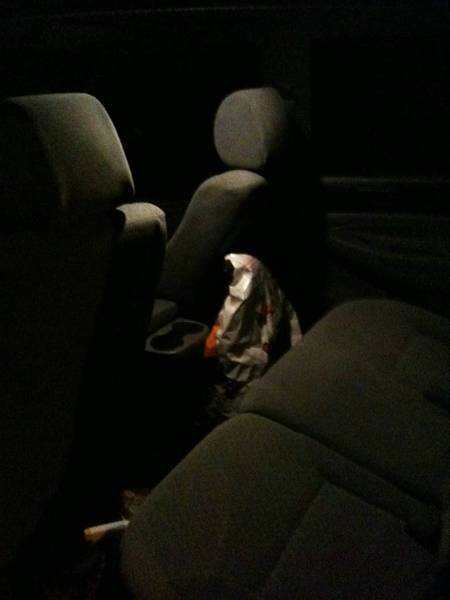

    After
    [​IMG]

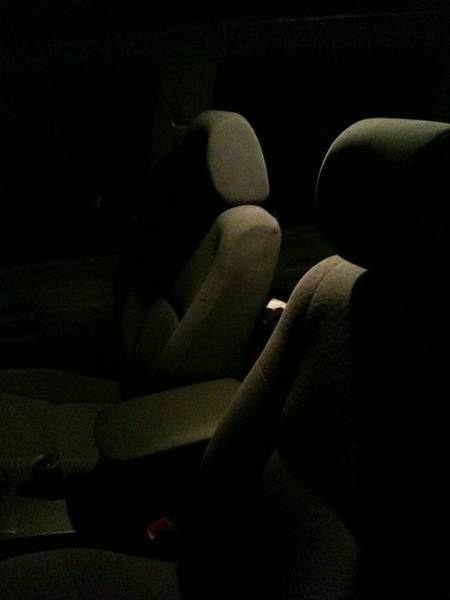

    Before
    [​IMG]

    After
    [​IMG]

  16. Oct 12, 2010 at 12:51 PM
    #16
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,865
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Very cool man. I appreciate the extra pics! I should really get on top of it and do mine.
