Mike's 50 shades of mud, and shenanigans every once in a while

Discussion in '2nd Gen. Builds (2005-2015)' started by 11TRDTX, Jun 1, 2016.

  1. Jun 1, 2016 at 6:58 PM
    #1
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

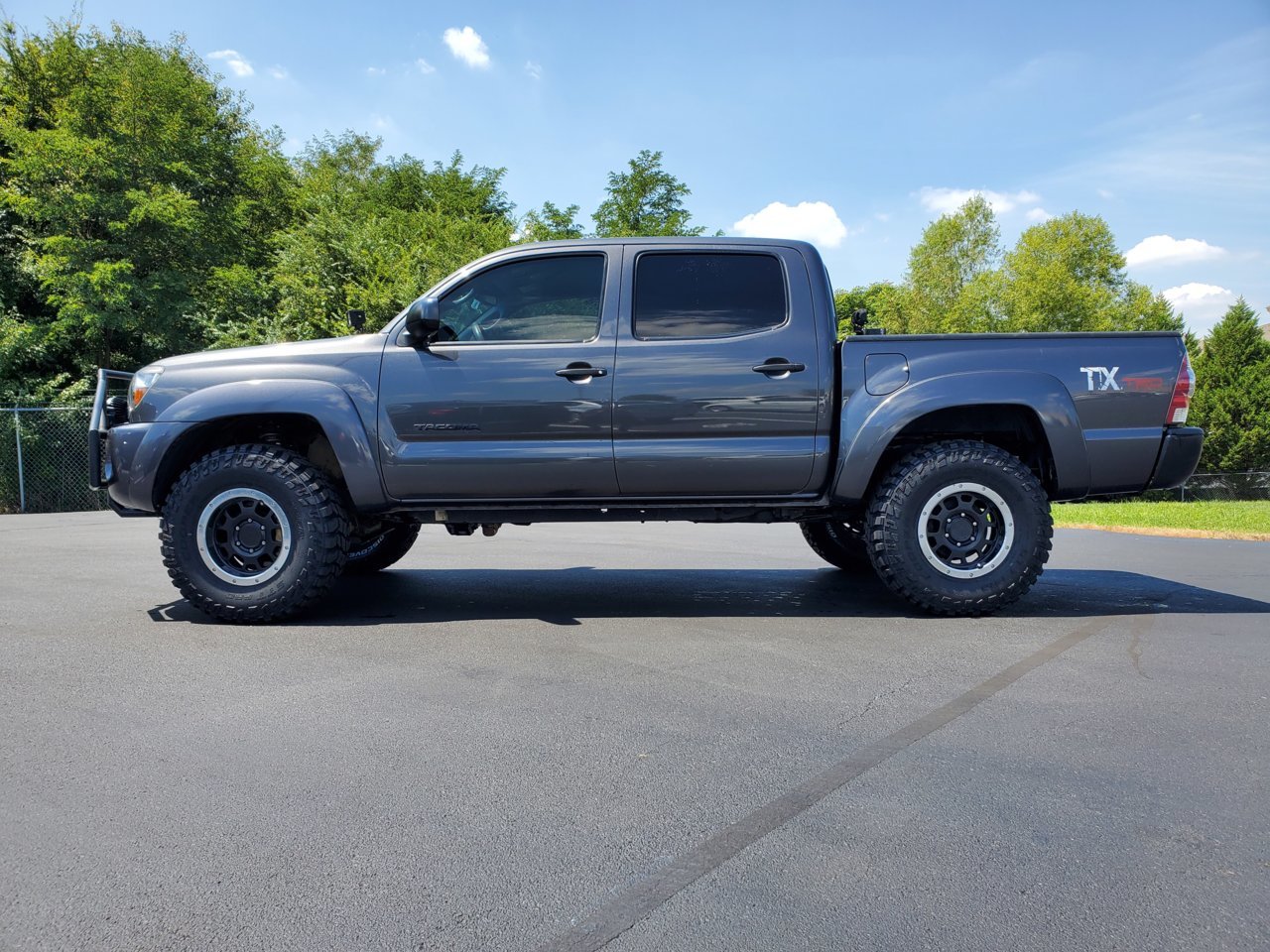

    Welcome to my slow build thread :turtleride:


    Mod list:

    Truck:
    2011 TRD TX DCSB MGM 4.0 v6 Auto
    bought new in late June 2011

    Suspension:
    Front:
    Bilstein 5100's @ 0
    OME 887X
    SPC LR uca's
    1/2" aluminum top plate spacer on left side

    Rear:
    Fox 2.0 rear shocks
    Wheeler's hd progressive aal with overload leaf left in, smallest leaf taken out (too much rake)
    1/2" steel shim in left side for taco lean.
    3° axle shims
    Toytec u-bolt flip kit

    Wheels & Tires:
    TX black "bead locks"
    Cooper Discoverer STT Pro 285/75R16

    Lighting:
    Rigid Industries Amber Duallys (retrofitted in stock fog location, using factory switch)
    2 7" Tuff LED 51w round spots
    2 Auxbeam 20w hyperspot pods
    2 Auxbeam 18w flood beam pods on Relentless Fabrication hood hinge brackets
    2 Avec LED pods (rear facing)
    6 OTRATTW switches in front of shifter
    self wired bed lights, hood lights and interior floor lighting (red)
    "Fog light anytime" mod

    Armor:
    Custom front bumper bar ----- "armor"

    BAMF IFS skid
    Relentless Fabrication tailgate reinforcement plate

    Recovery/air equipment:
    Rugged Ridge receiver hitch shackle block
    (4) 3/4" shackles, (2) 1/2" shackles
    Smittybilt 3"x30' recovery strap
    ARB EZ deflator
    2 Viair 88P air compressors "twins" (hardwired - tankless on board air) with exterior quick connect

    Electrical:
    Deka/East Penn 850CCA AGM battery
    Custom battery tray and hold-down (self made)
    Blue Sea 12 space aux fuse box
    100A Bussmann breaker
    Ultragauge MX 1.3
    "a/c plug in cab" mod
    "400w anytime mod"
    12v power socket & USB charge port wired in rear of center console
    Replaced cigarette lighter socket with usb socket
    Streamlight Strion w/ charger mounted to center console storage lid (inside)
    7-pin trailer plug relocated to rear bumper
    Custom self made harnesses for lights and compressor
    American Volt 7" transmission fan

    Communications:
    Cobra 19 DX IV cb
    4' firestik II on a 4" spring and quick disconnect
    Cobra external speaker
    Middle finger

    Interior:
    wooden shifter knob
    booster seat mod
    morale patches

    Exterior:
    bug guts, stickers, and scratches

    Misc:
    Rear diff breather mod
    Demello Offroad bed cleat bar (discontinued) -removed (10/26/24)
    Chopped exhaust
    Dirty truck mod
    MPG lol
    Never been wheeled :spy:
    Squeaks and creaks

    To do:
    Weld cam tabs or do TC cam tab gusset kit
    Spindle gussets
    Finally plate cab mount

    Semi-major/major maintenance:
    Trans flushed at 72,380 (3/7/20)
    new battery - 72,491 (3/25/20) - 850CCA AGM
    left front wheel bearing - 74,138 (7/9/20)
    Cooper STT Pro's mounted - 75,058 (8/8/20)
    inner and outer tie rods (Moog) - 75,346 (8/17/20)
    front 5100's and coils - 88,687 (1/22/22)
    belt tensioner, pullies, and belt - 90,866 (4/18/22)
    right CV axle rebooted - 102,968 (9/2/23)
    left CV axle rebooted - 104,290 (10/21/23)
    ECGS bushing installed - 104,290 (10/21/23)
    New battery - 111,321 (5/25/24) - same CCA/Ah
    New alternator (Pure Energy) - 113,554 (9/24/24)


    *** Disclaimer: as you venture through this thread, you'll see that I'm pretty childish :anonymous: ... so, uh, yeah, don't worry about that... just sit back, enjoy the slow ride, and listen to metal :headbang:

    Last edited: Oct 30, 2024
  2. Jun 1, 2016 at 6:58 PM
    #2
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

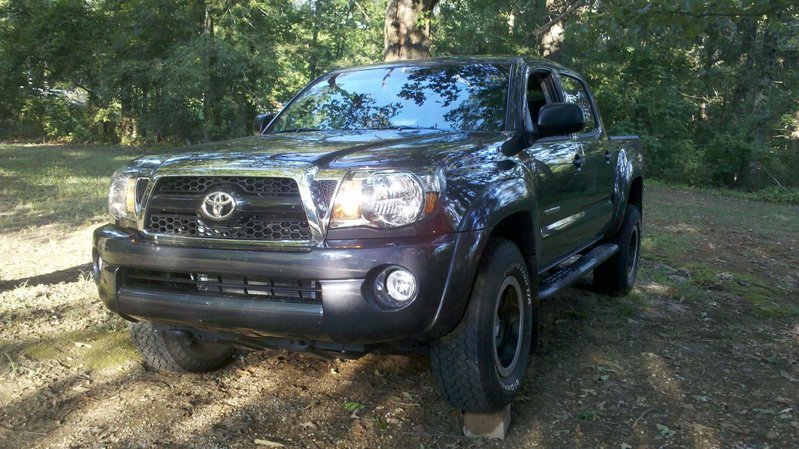

    This is it's first time "offroad" a couple weeks after I got it

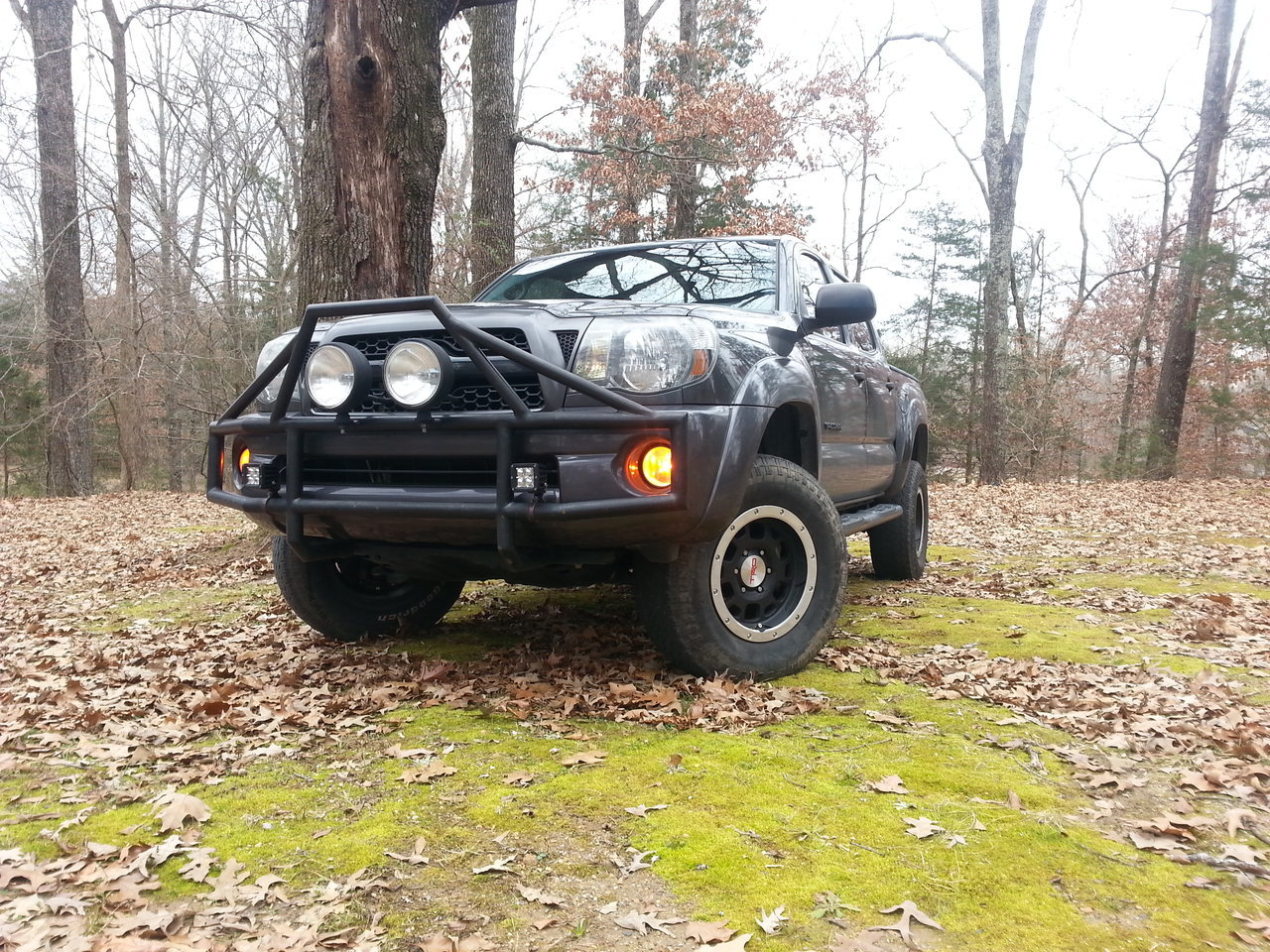

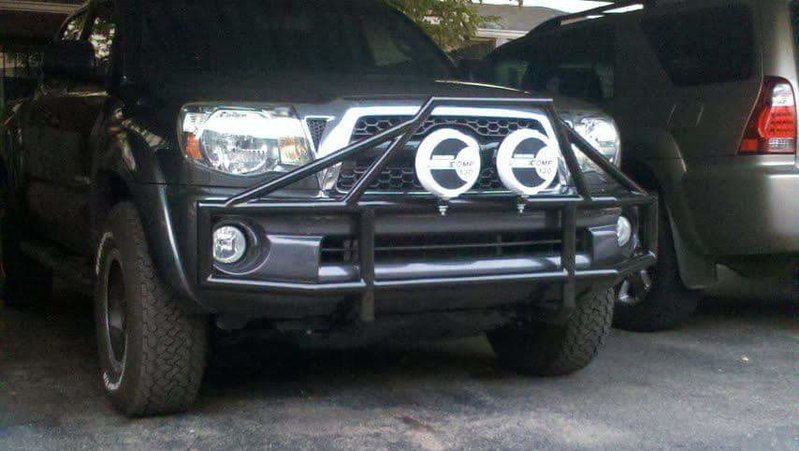

    This was the day I put the bumper bar on. I designed it on paper, and a friend of a friend welded it up for me. He didn't have a pipe bender, so he had to weld all the pieces together.

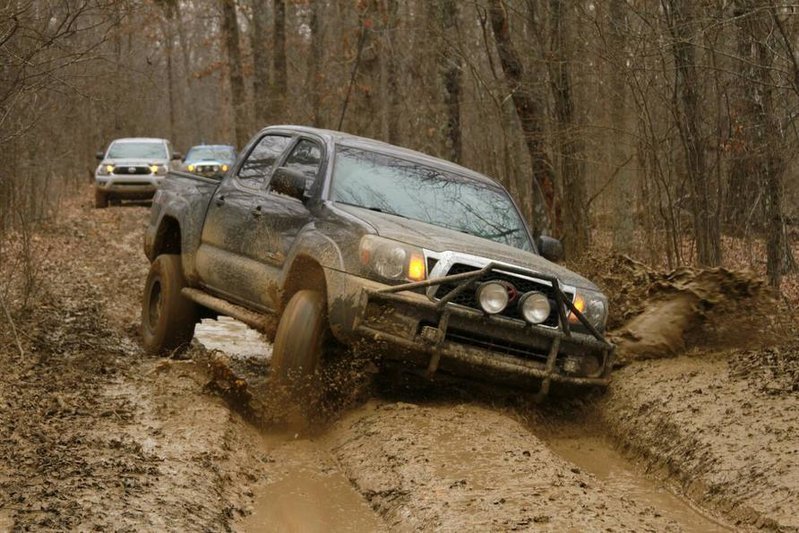

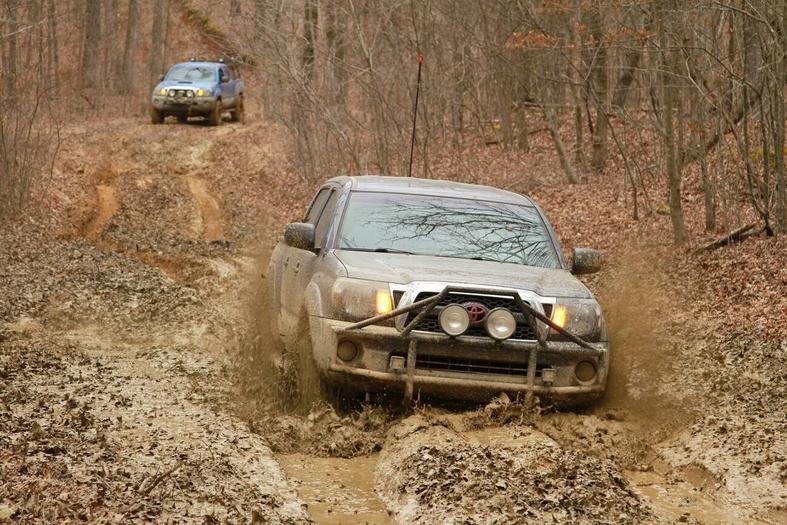

    March 2014 was my first real wheeling experience. I learned alot this trip..... including learning to just follow the ruts, being confident in my truck, and how/when to use my locker :anonymous:


    don't try to straddle, just follow the ruts because you end up there anyway.



    Then I finally pieced together a lift! I installed it in January of 2015. 5100's set at 2.5" with stock coils. No install pics, but this was taken shortly after. Still had stock 265/70/16 Rugged fails :rolleyes: ....got some half used 285/75/16 BFG KO's about a month later from a TW member in the Tn thread.

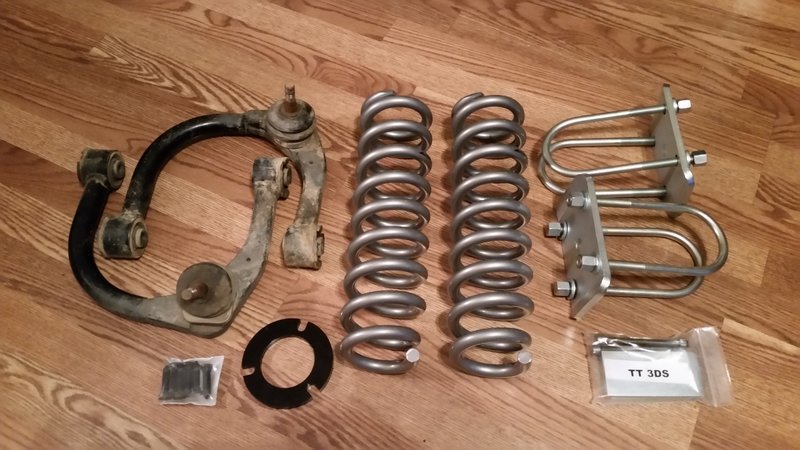

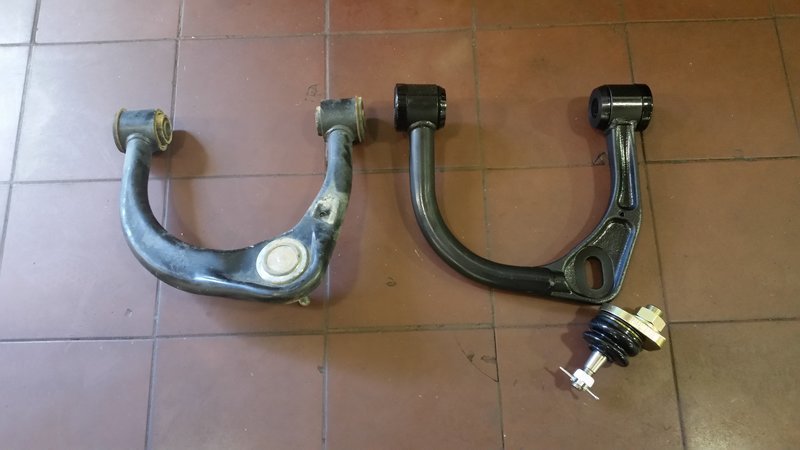

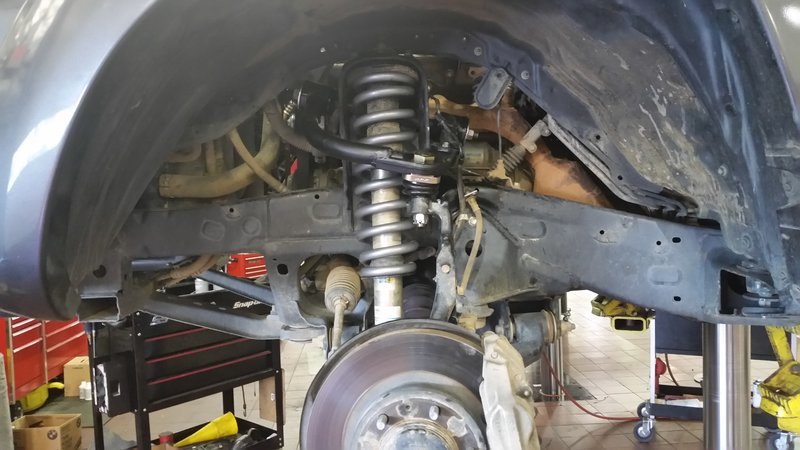

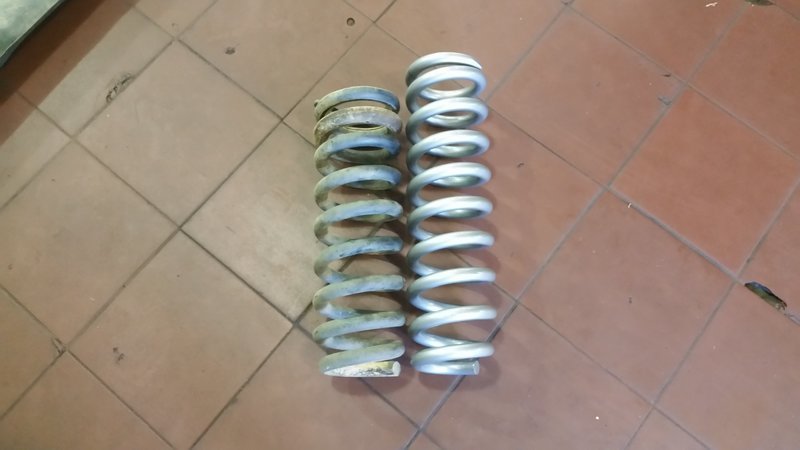

    Ran it that way until August 2015 when I got new coils, used SPC LR uca's from another TW member, 3 degree rear shims, and the u-bolt flip kit. I cut out the old uca bushings, cleaned the uca's up, repainted, and rebuilt them with new spec ride bushings and new ball joints... so essentially had brand new uca's. I actually took install pics the second time around :)

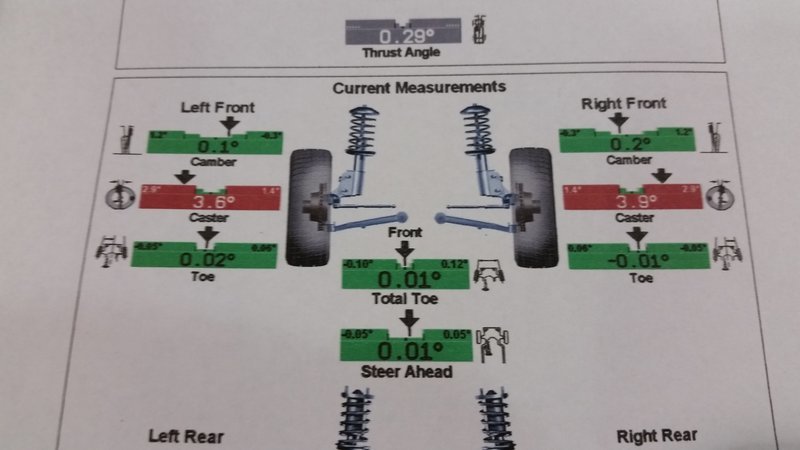

    ditched the swaybar and aligned it.

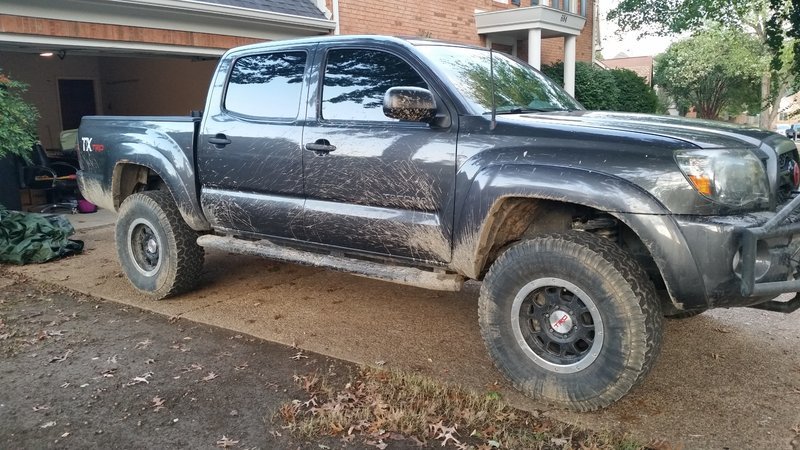

    Dirty Driveway shot at my new house (Oct '15)


    Last edited: Nov 25, 2021
  3. Jun 1, 2016 at 6:58 PM
    #3
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

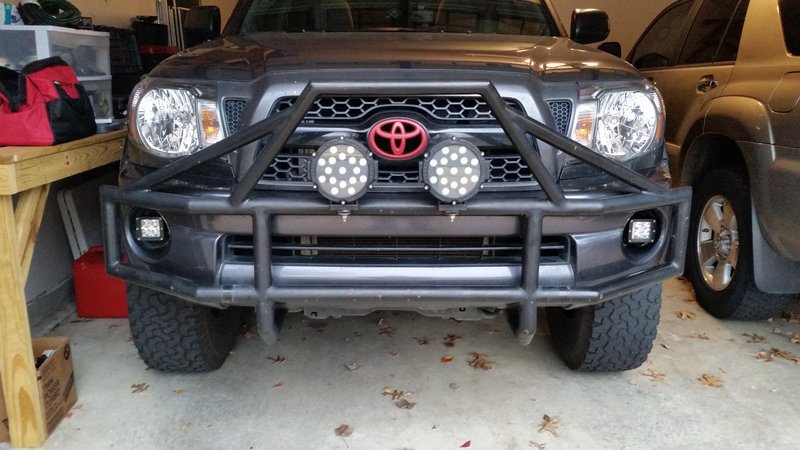

    Ditched the outdated Prochump 130's for some better, brighter 51 watt Tuff LED spots :cool: (May 2015)


    Added some Auxbeam 20W hyperspots in (late Dec 2017)

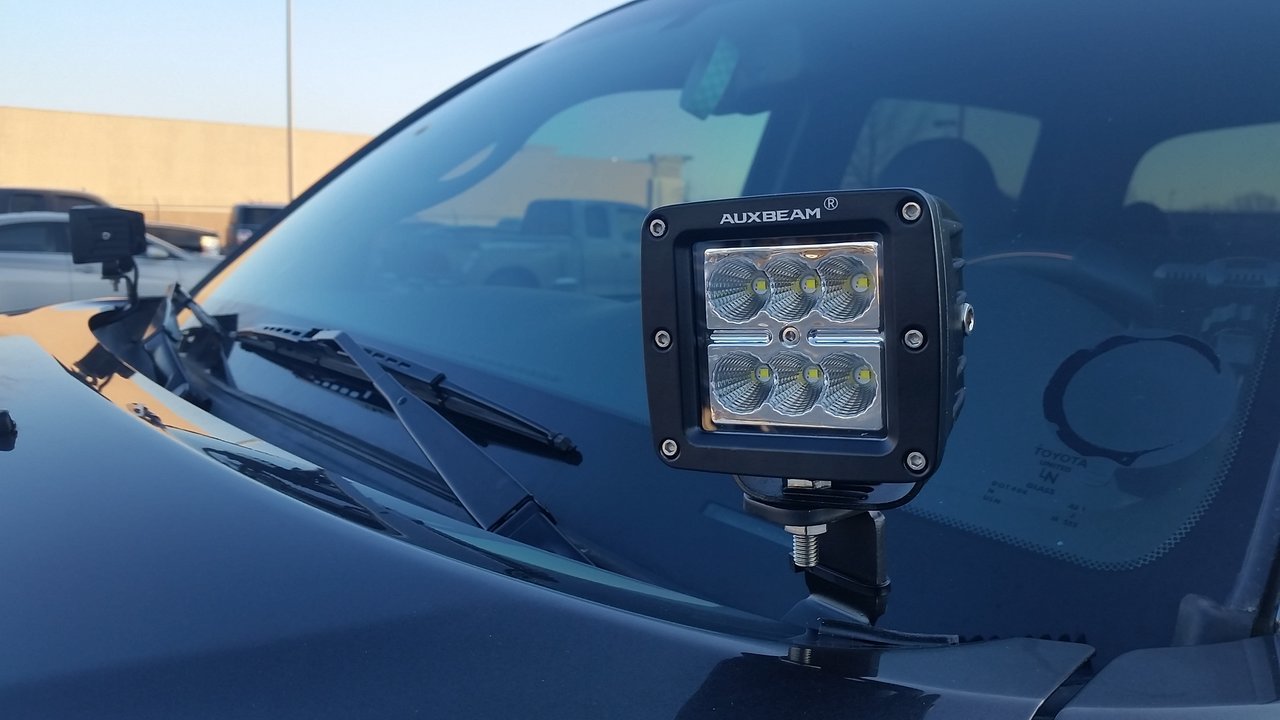

    And Auxbeam 18w flood pods on Relentless Fabrication hood hinge brackets (early Jan 2018)

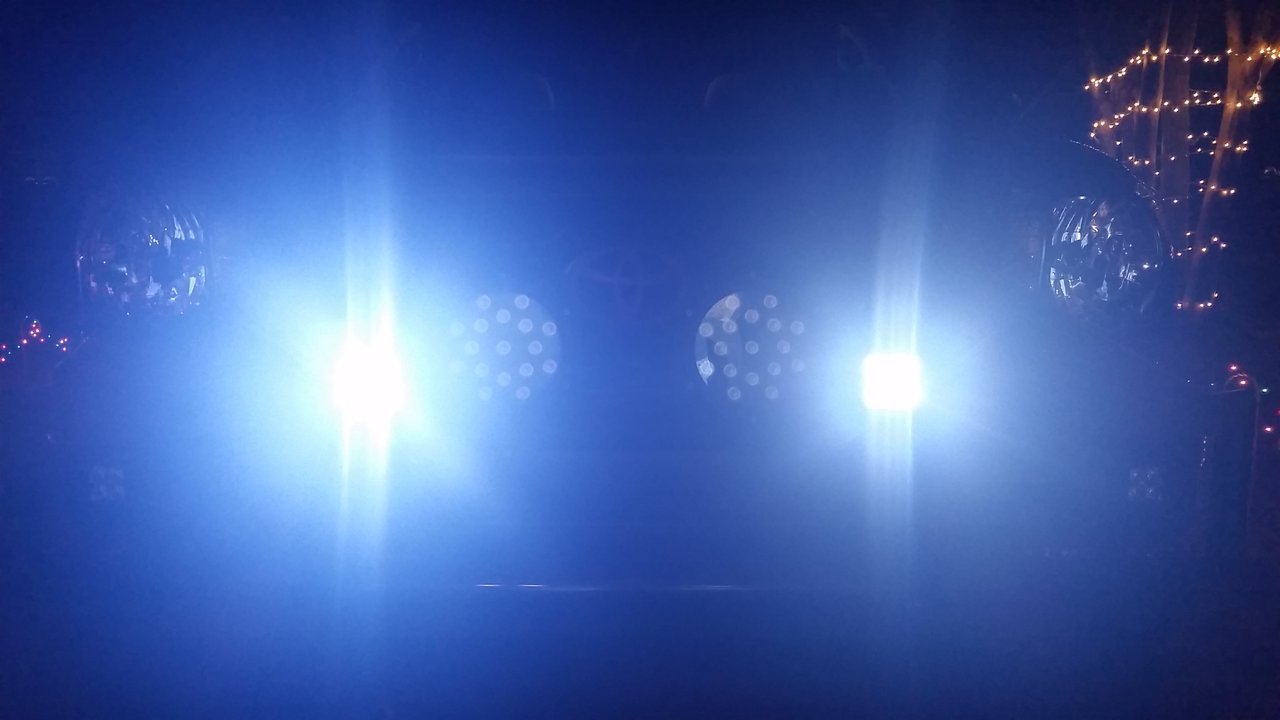

    Lighting Comparisons:

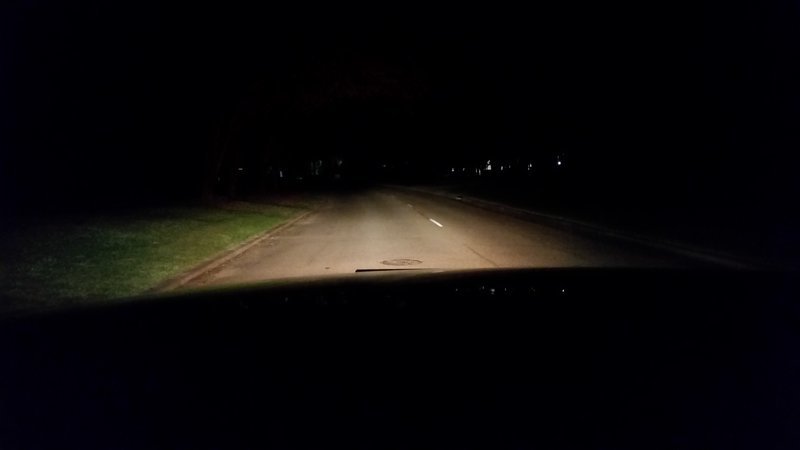

    Low beams and duallys


    High beams with duallys


    The 2 7" Tuff LED spots only

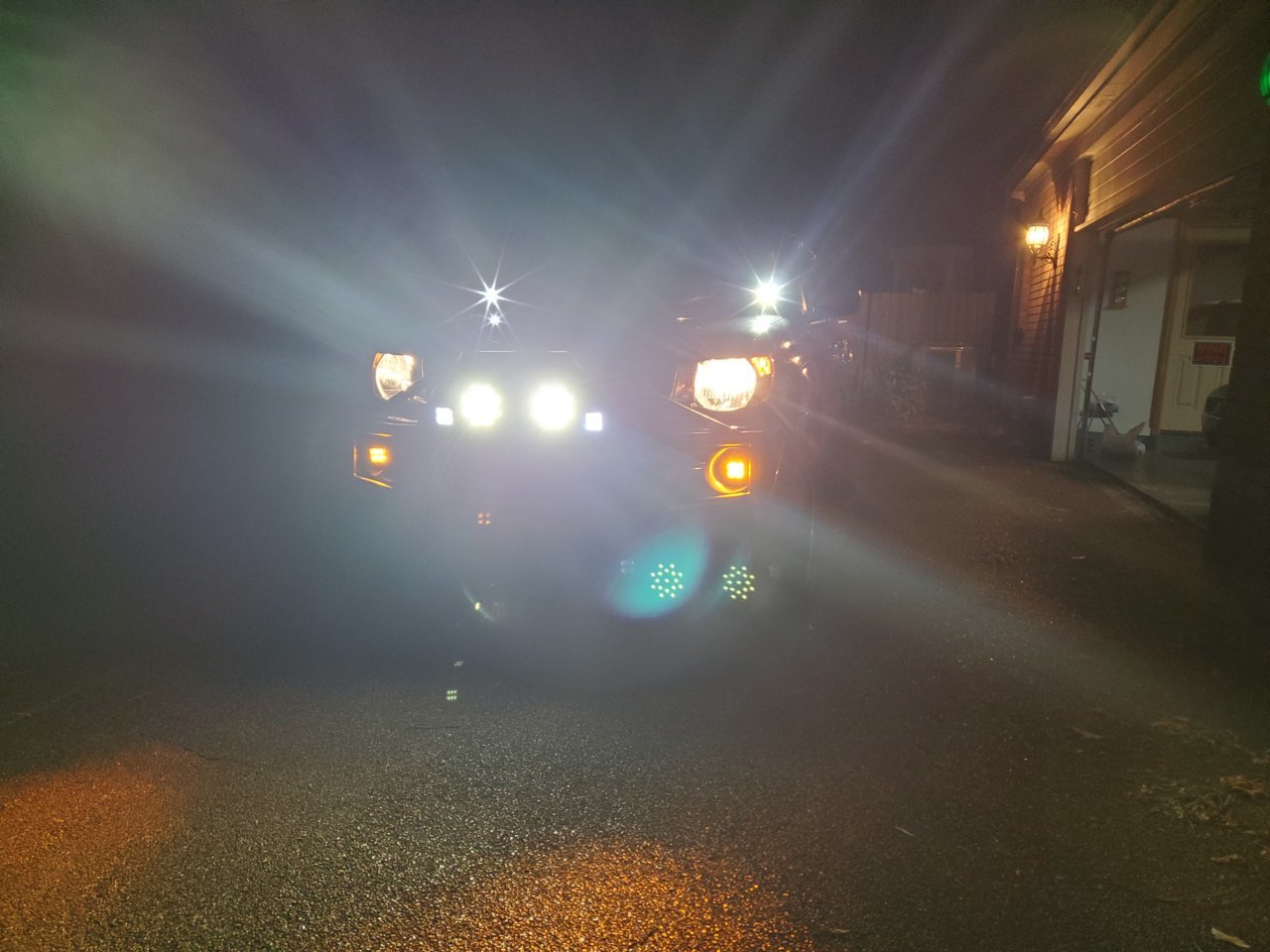

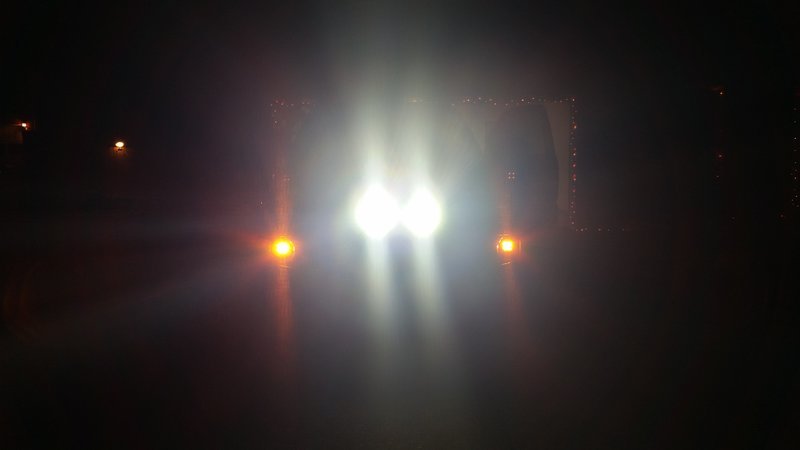

    All front lights

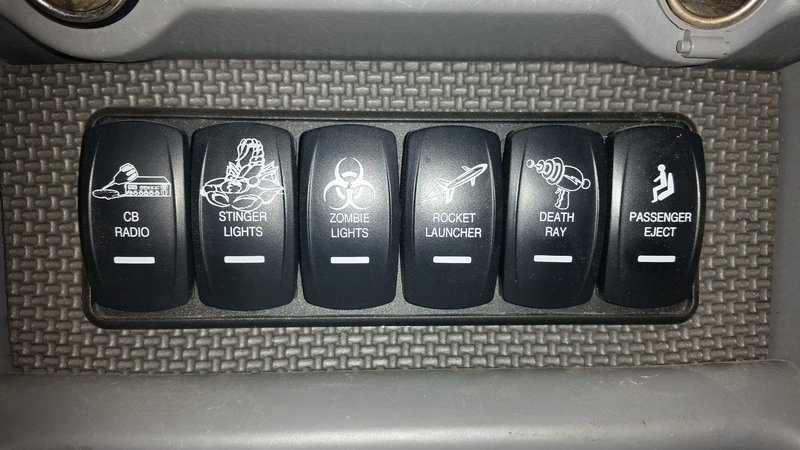

    and my switches

    left to right: Cb, rear lights, ditch lights, front hyperspots, 7" 51W spots, and air compressor

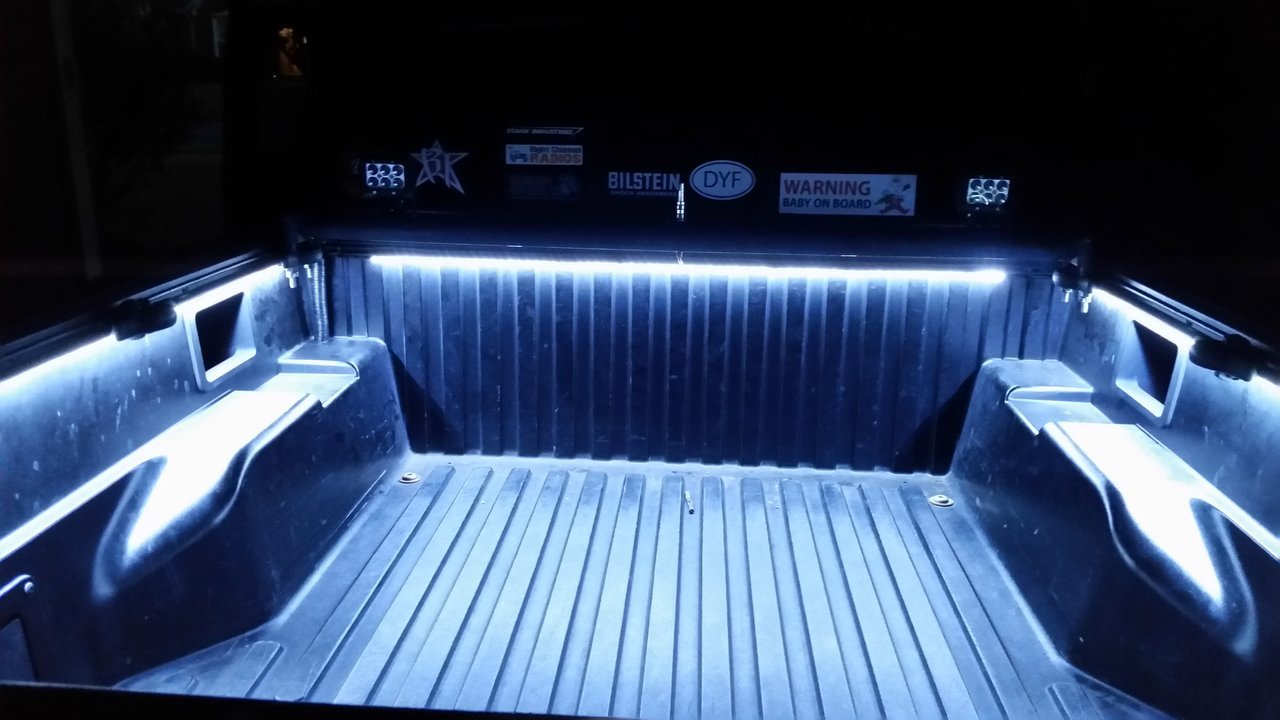

    Bed lights

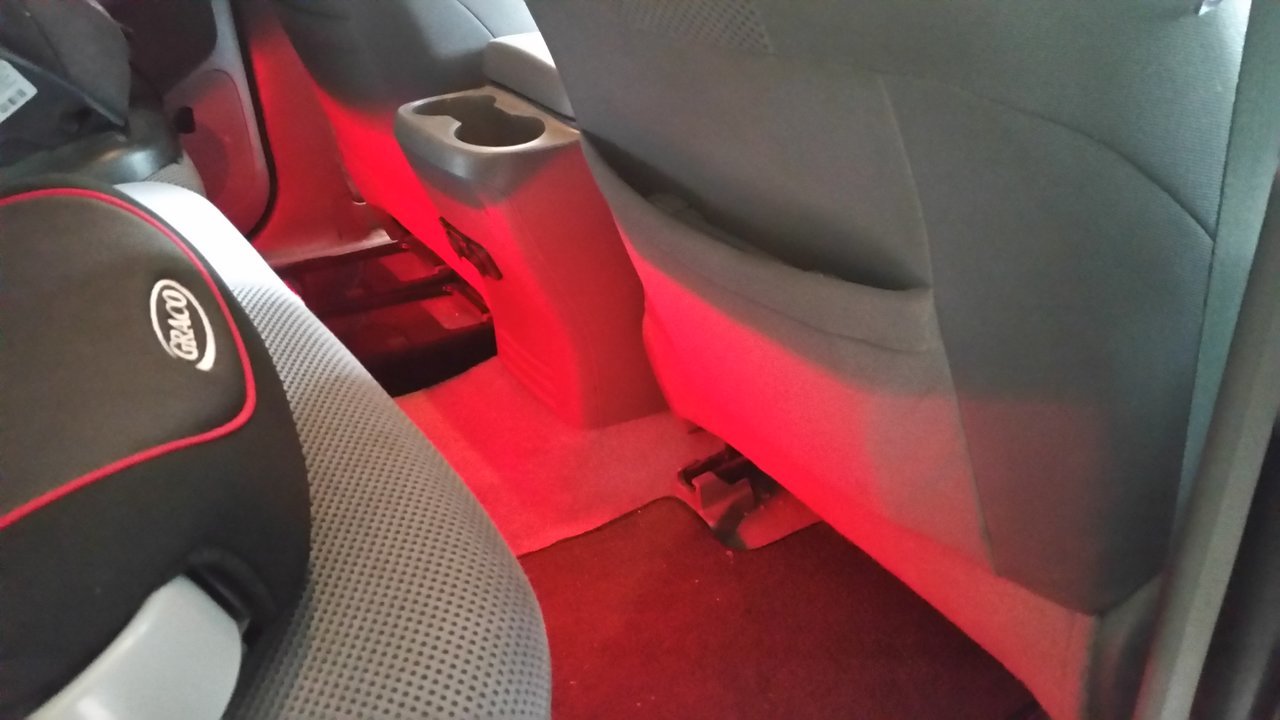

    Interior floor lights


    Last edited: Dec 19, 2020
    dirty deeds, josem3, MarX and 3 others like this.
  4. Jun 1, 2016 at 6:59 PM
    #4
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

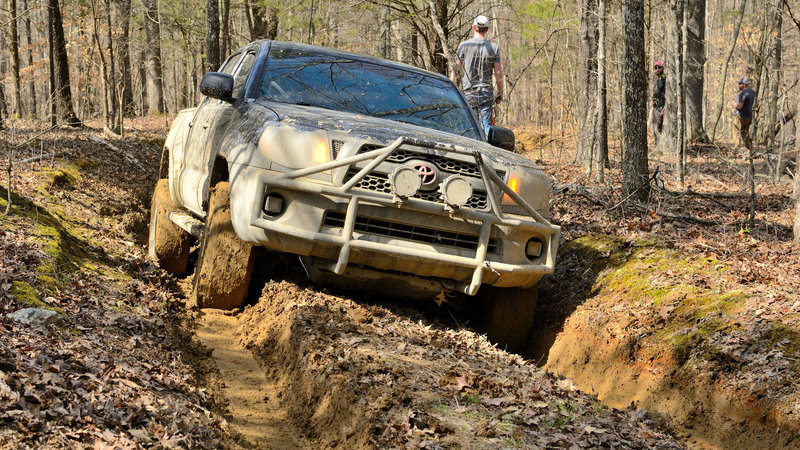

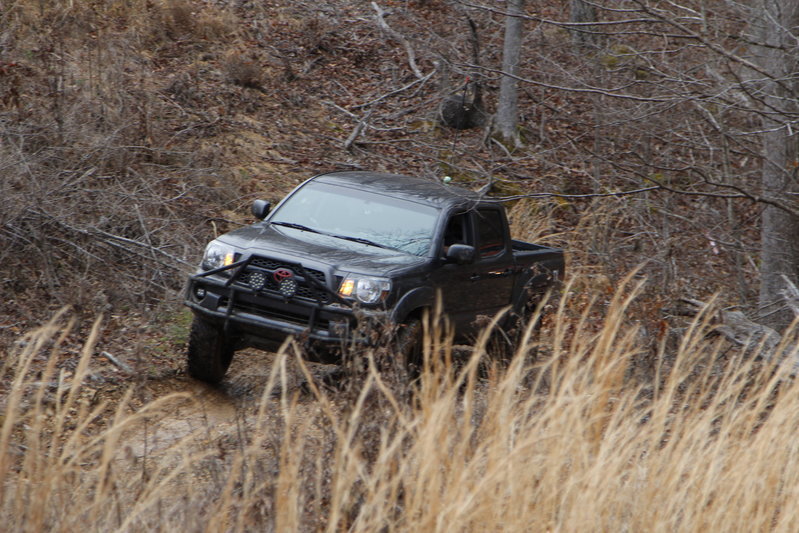

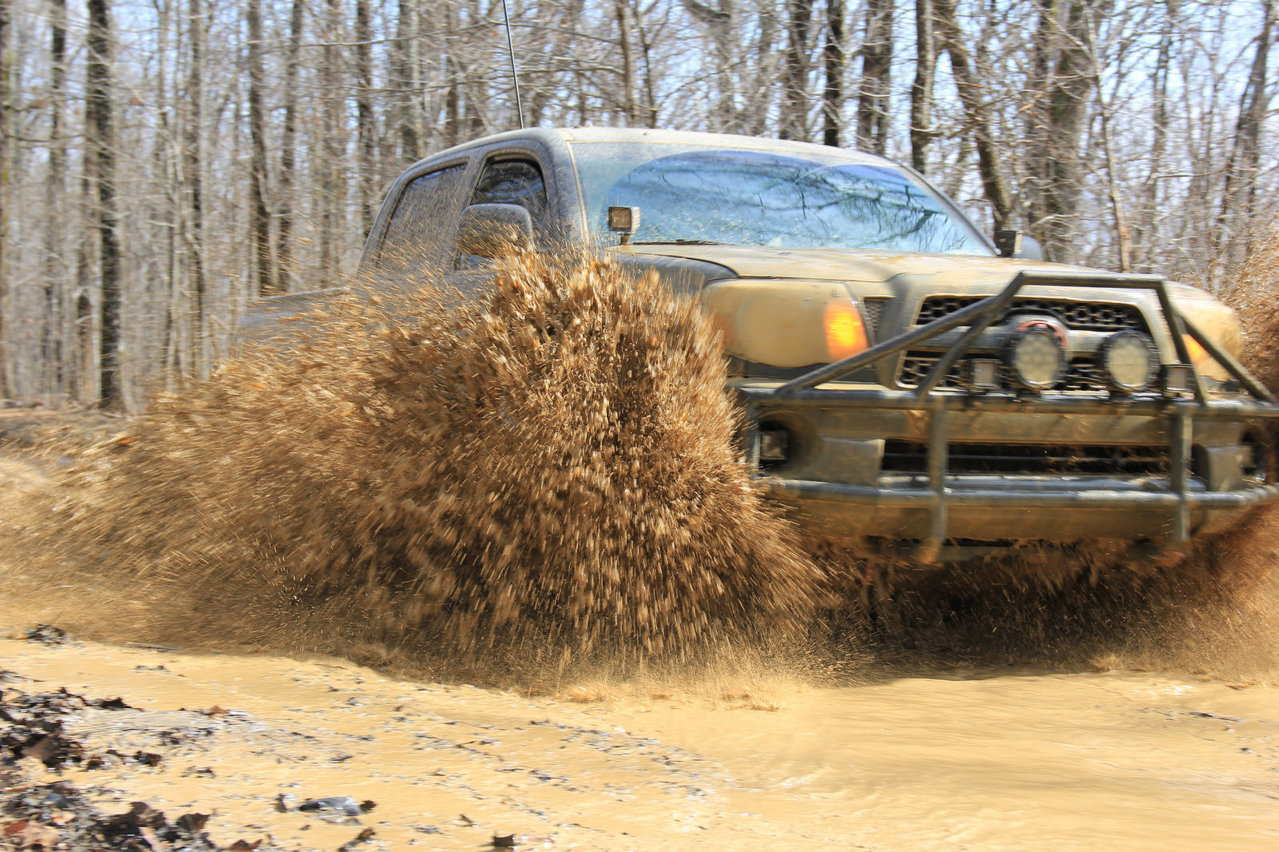

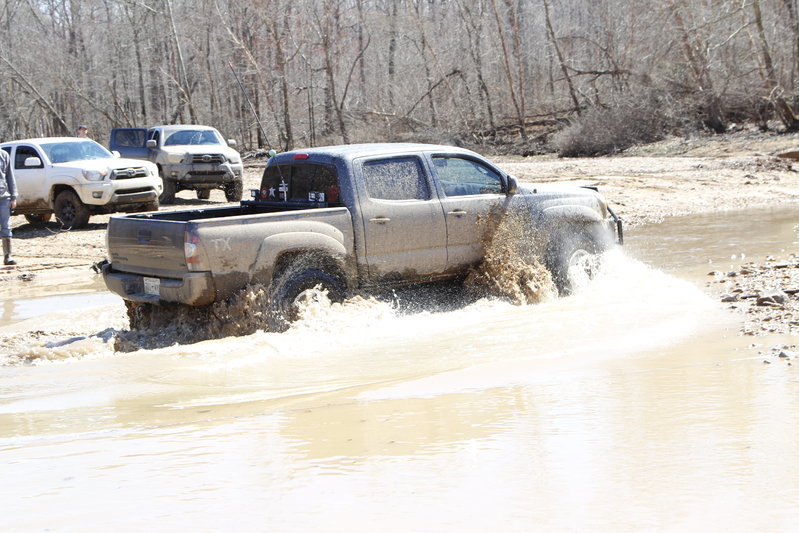

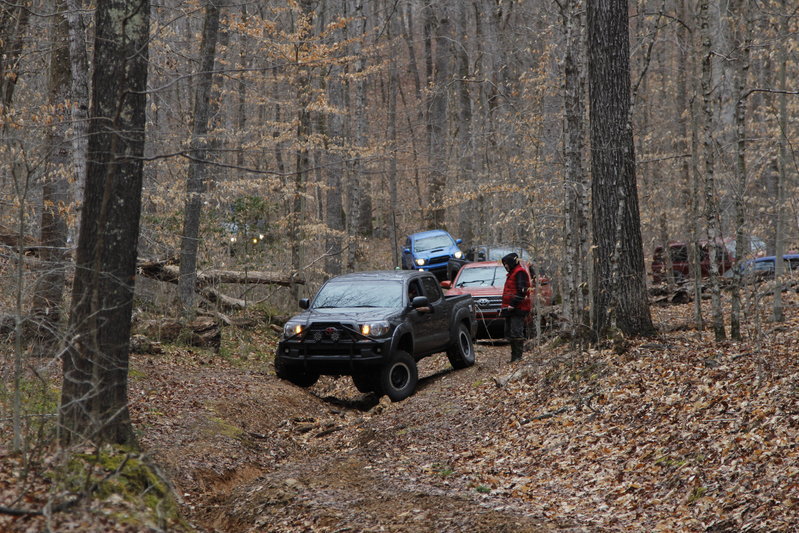

    wheeling pics :mudding:

    March 2014 - Land Between the Lakes, Ky (stock)


    March 2015 - LBL, Ky (lifted & 285's)

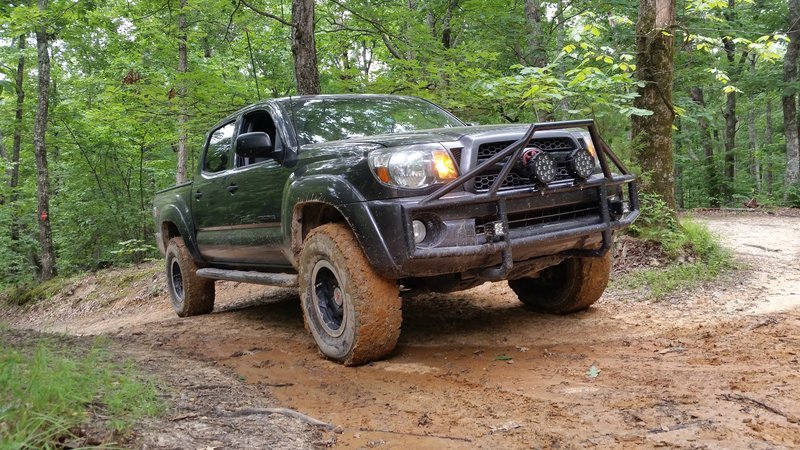

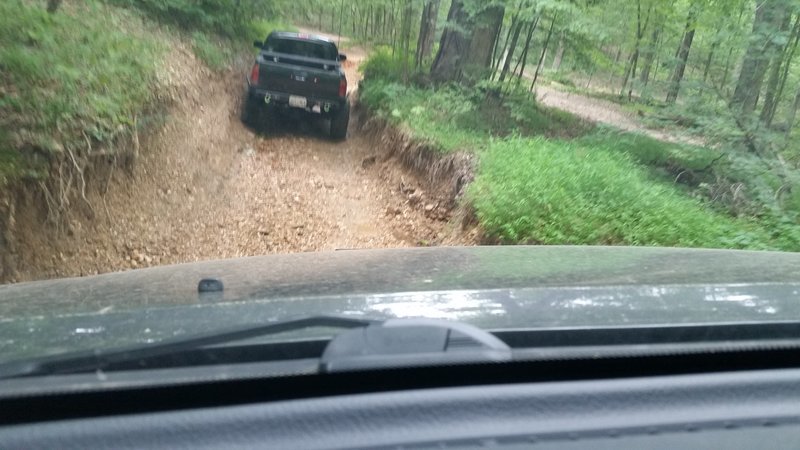

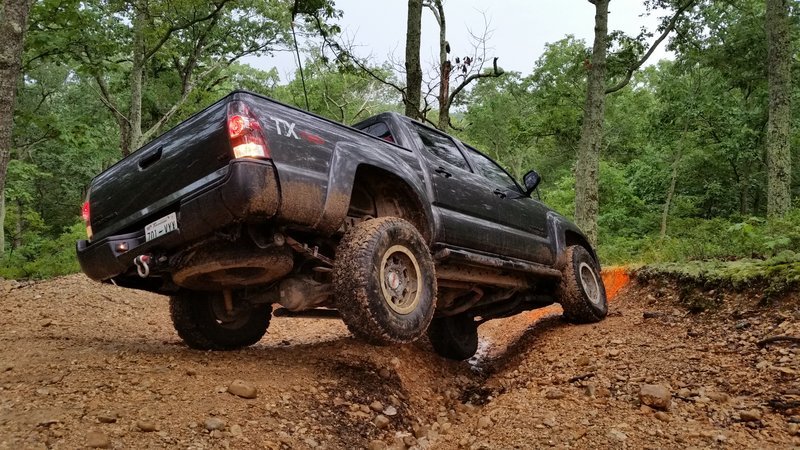

    June 2015 - Turkey Bay, Ky


    March 2016 - LBL, Ky

    2016-10-10 16.14.56.jpg

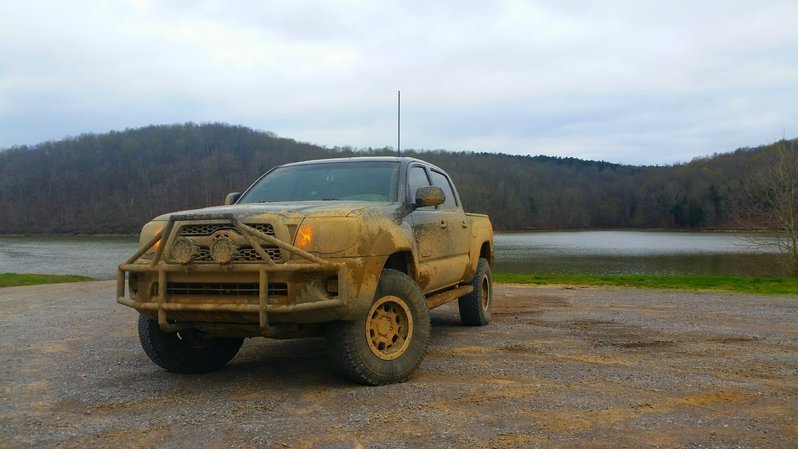

    2016-03-21 18.40.21.jpg

    March 2017 - LBL, Ky


    November 2017 - Adventure Offroad Park, Tn

    2017-12-09 21.12.21.jpg

    March 2018 - LBL, Ky


    March 2019 - LBL, Ky (I showed up late and didn't take any pictures. the following is not my picture, but proof i was there :rolleyes:)


    Last edited: Nov 25, 2021
  5. Jun 1, 2016 at 7:02 PM
    #5
    beertimecontinuum

    beertimecontinuum What's outside the simulation?

    Joined:
    Dec 29, 2013
    Member:
    #119461
    Messages:
    9,993
    Gender:
    Male
    First Name:
    Everett
    Ky,Earth,SolarSystem,MilkyWay,VirgoSupercluster
    Vehicle:
    10 Pyrite DCSB VEEEEEE 1.618
    FoxShox, Dirt King Heims, Chevy63s, 2UZ-FE V8 Flowmaster 40, Demello Front/DYF Rear w/Swigouts, BAMF sliders, DYFAF
    Suuuuubbbbed :cheers:


    MarX, Duck_Hunter, Tatts521 and 5 others like this.
  6. Jun 1, 2016 at 7:05 PM
    #6
    Breezy

    Breezy vaping in my subaru

    Joined:
    Apr 22, 2012
    Member:
    #77444
    Messages:
    3,528
    Gender:
    Male
    First Name:
    @breezy.images
    Bardstown, KY
    Ferd Fuckus
    In :popcorn:

    MarX, ChadsPride and 11TRDTX[OP] like this.
  7. Jun 1, 2016 at 7:06 PM
    #7
    Integra

    Integra Sand Storm Tacoma

    Joined:
    May 23, 2016
    Member:
    #187751
    Messages:
    45
    Gender:
    Male
    Fort Worth, Texas
    Vehicle:
    2019 TRDOR 4X4 Sand Dollar Crew Cab
    I think I might, just have to watch this thread
    and see where it goes =D :burnrubber:

  8. Jun 1, 2016 at 7:07 PM
    #8
    fpf

    fpf Well-Known Member

    Joined:
    Jan 23, 2015
    Member:
    #147025
    Messages:
    98
    Gender:
    Male
    Vehicle:
    TRD PRO
    im in

    MarX, ChadsPride and 11TRDTX[OP] like this.
  9. Jun 1, 2016 at 7:41 PM
    #9
    rngr

    rngr Aix sponsa

    Joined:
    Jan 13, 2015
    Member:
    #146258
    Messages:
    9,244
    Gender:
    Male
    Vehicle:
    01 SR5 4x4 2.7L
    Do I know you? :spy:

    MarX, ChadsPride and 11TRDTX[OP] like this.
  10. Jun 1, 2016 at 8:15 PM
    #10
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches
    you're gheeyyyy because you have no 4wd


    stealthmode, MarX, Pirhett and 5 others like this.
  11. Jun 1, 2016 at 8:48 PM
    #11
    Dave41079

    Dave41079 Words go here.

    Joined:
    May 18, 2015
    Member:
    #155554
    Messages:
    4,226
    Gender:
    Male
    First Name:
    Dave...
    Nashville, TN
    Vehicle:
    The shittiest of boxes
    Things, stuff, and whatnot.
    I'll get down on this. Didn't even have to stumble across it either.

    MarX and ChadsPride like this.
  12. Jun 2, 2016 at 4:18 AM
    #12
    allmotorrex

    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    I'm only here cause I followed the 2wd guy .....

    MarX, ChadsPride, Dave41079 and 2 others like this.
  13. Jun 2, 2016 at 4:19 AM
    #13
    allmotorrex

    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    So who in the tn thread that offroads withs us doesn't have a build thread now?

    MarX and ChadsPride like this.
  14. Jun 2, 2016 at 4:24 AM
    #14
    Robertocritser

    Robertocritser Well-Known Member

    Joined:
    Jul 21, 2010
    Member:
    #40524
    Messages:
    7,216
    Gender:
    Male
    First Name:
    Levi
    KY
    Vehicle:
    08 sport
    ATM6969420 series
    You

    MarX and ChadsPride like this.
  15. Jun 2, 2016 at 6:15 AM
    #15
    allmotorrex

    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    Oh

    MarX, ChadsPride and Dave41079 like this.
  16. Jun 2, 2016 at 6:55 AM
    #16
    T-Rex266

    T-Rex266 SpaceX Director Moderator

    Joined:
    Mar 21, 2011
    Member:
    #53447
    Messages:
    28,124
    Gender:
    Male
    First Name:
    Elon

    11Bguy, MarX, ChadsPride and 3 others like this.
  17. Jun 2, 2016 at 11:04 AM
    #17
    KnoxTac0713

    KnoxTac0713 Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104708
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Justin
    Knoxville, TN
    Vehicle:
    13 DCSB SR5 4x4 Barcelona Red
    Bilstein 6112, rear 2.0 Icon VS shocks, TRD Black SEMA wheels, 255/80/17 Cooper ST Maxx, SOS Rear bumper, SOS bolt on sliders,TRD skid plate, derped badges, 15% tint, color matched oem grille, lamin-x amber fog covers, TRD cat-back exhaust, Tacoma bed mat, Tonno-pro trifold, Depo black tail lights, front tow hook w/ D shackle, Wheeler's Superbumps rear, Wheeler's 1 inch block rear, Custom Car Grills mesh grill insert, light bar in lower valence
  18. Jun 5, 2016 at 6:10 PM
    #18
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches

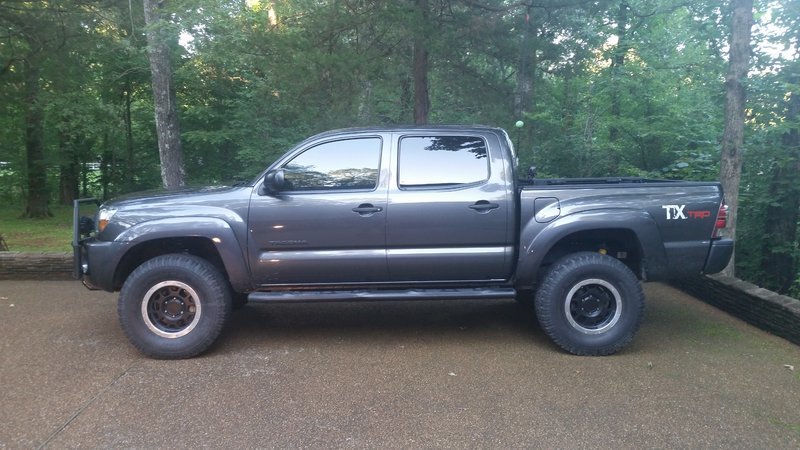

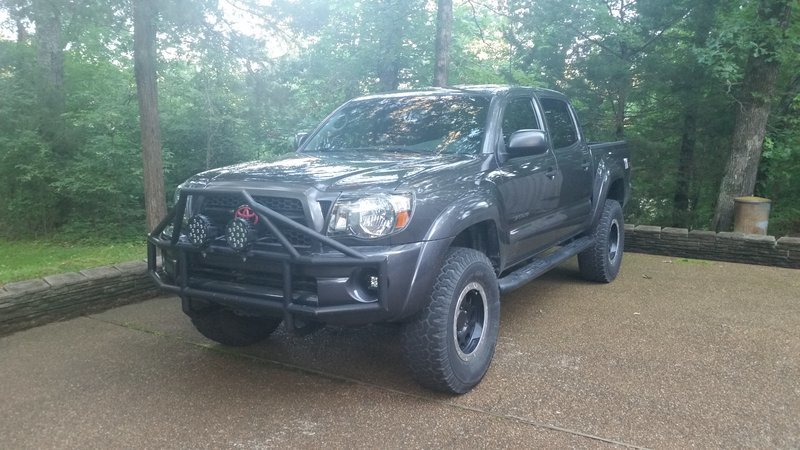

    Scenic driveway picture while visiting my parents. I realized that i don't really have a full shot of my truck while it's actually clean....ish.20160605_192426.jpg 20160605_192457.jpg

  19. Jun 5, 2016 at 6:13 PM
    #19
    Dave41079

    Dave41079 Words go here.

    Joined:
    May 18, 2015
    Member:
    #155554
    Messages:
    4,226
    Gender:
    Male
    First Name:
    Dave...
    Nashville, TN
    Vehicle:
    The shittiest of boxes
    Things, stuff, and whatnot.
    Did you take the wheel spacers off?

    MarX and ChadsPride like this.
  20. Jun 5, 2016 at 6:15 PM
    #20
    11TRDTX

    11TRDTX [OP] bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches
    Yes. I had them on for all of a week :anonymous:

    MarX and ChadsPride like this.

Products Discussed in

To Top
