Mirror wire/rear view mirror diagram

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Magnegrau, Apr 26, 2022.

Post Reply

Apr 26, 2022 at 5:34 PM

#1

#1
Magnegrau [OP] Member

Joined:

Jun 7, 2020

Member:

#330661

Messages:

15

Gender:

Male

First Name:

John

Vehicle:

Magnetic Grey 2009 Dbl cab Trd off-road 6-spd

Hey guys
Does anyone know the positive and negative ground on a 2009 auto dimming and backup cam mirror or can provide a diagram? Trying to hardwire a detector with a Radarmount RJ11 Mirrorwire. Thank you.

Magnegrau, Apr 26, 2022

#1

Apr 26, 2022 at 5:36 PM

#2

#2
Magnegrau [OP] Member

Joined:

Jun 7, 2020

Member:

#330661

Messages:

15

Gender:

Male

First Name:

John

Vehicle:

Magnetic Grey 2009 Dbl cab Trd off-road 6-spd

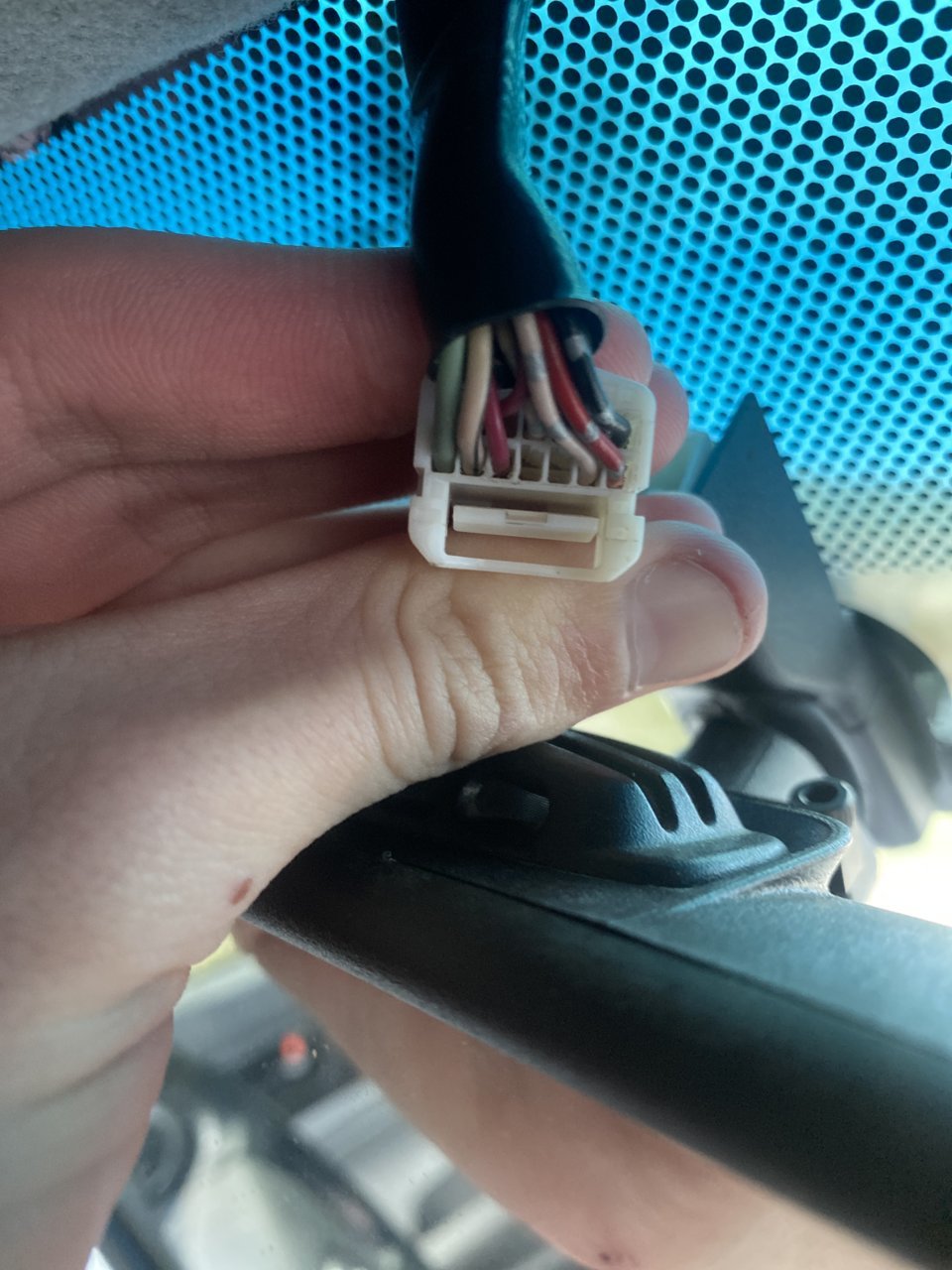

Wiring harness for reference.

Magnegrau, Apr 26, 2022

#2

Apr 26, 2022 at 7:22 PM

#3

#3
Dm93 Test Don't Guess

Joined:

Mar 3, 2015

Member:

#150066

Messages:

12,778

Gender:

Male

Texas

Vehicle:

2014 DC OR 6spd 4x4

Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.

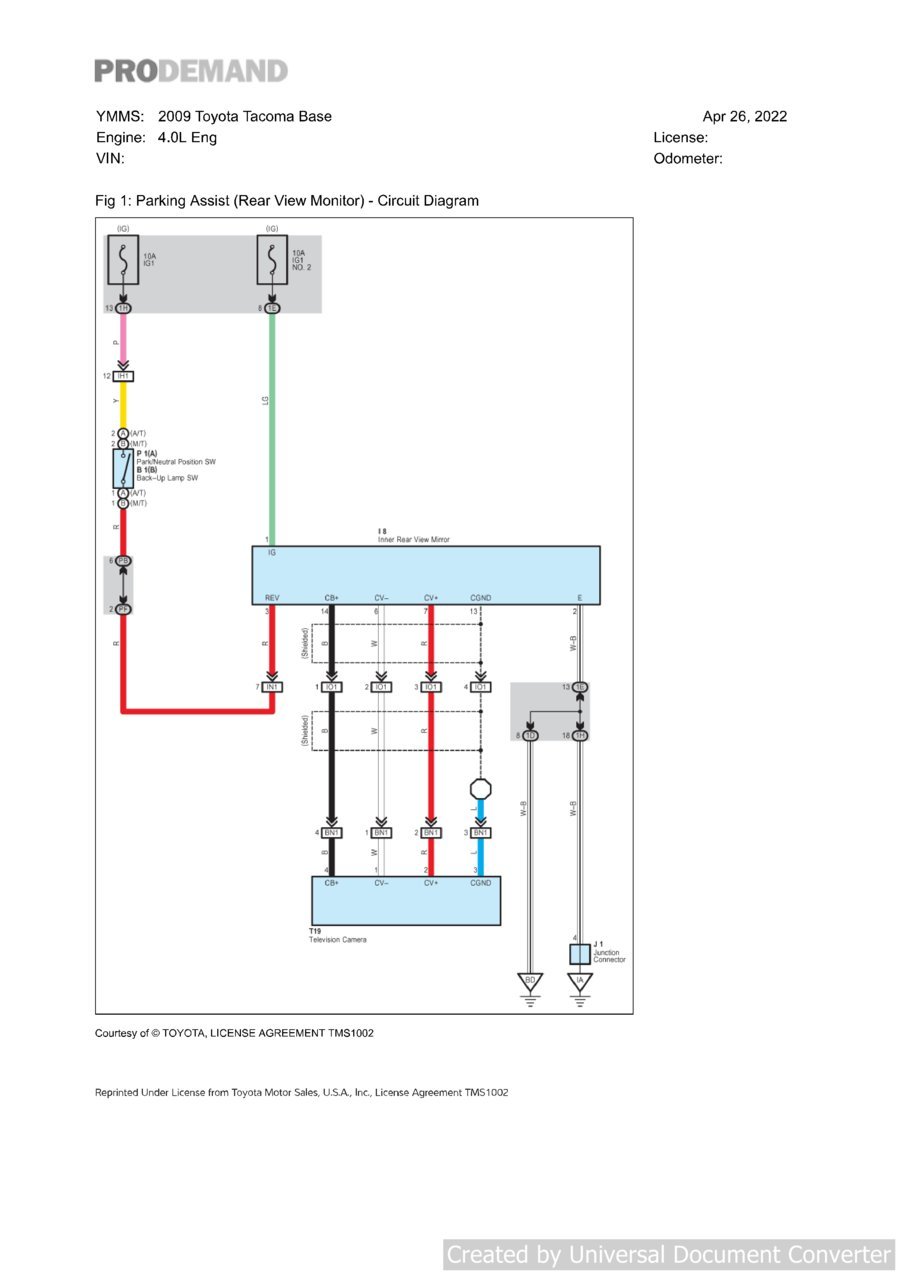

Here you go, Pin 1 Light Green is switched Ignition power from the IG1 No2 Fuse 10A Pin 2 White/Black is ground.

Dm93, Apr 26, 2022

#3

TnShooter likes this.

Apr 27, 2022 at 10:33 AM

#4

#4
Magnegrau [OP] Member

Joined:

Jun 7, 2020

Member:

#330661

Messages:

15

Gender:

Male

First Name:

John

Vehicle:

Magnetic Grey 2009 Dbl cab Trd off-road 6-spd

Thank you so much!

Magnegrau, Apr 27, 2022

#4
