missing fuse box cover : which fuse goes to what?

Discussion in 'Technical Chat' started by lvs2rock, Oct 2, 2020.

  1. Oct 2, 2020 at 2:36 PM
    #1
    lvs2rock

    lvs2rock [OP] Well-Known Member

    Joined:
    Jul 24, 2011
    Member:
    #60463
    Messages:
    195
    N. Cali
    Vehicle:
    96 Taco 2RZ-FE auto
    Last winter the loose cover (or 'door') to my fuse box evidently fell off the dash cowling onto the floor, got kicked outside and subsequently lost. Without that cover (and the diagram printed on the 'in' side) I have no way of knowing which fuse goes to what component.

    Could someone PLEASE either post a pic or schematic of the fuse box cover panel for 96 2.4l automatic 2wd? < Note that this is the small fuse panel inside the passenger compartment to the left and below the steering wheel.> I would be very much in your debt!

    I need that reference available before I can make a new post to ask how to wire in a cigarette lighter socket.....

  2. Oct 2, 2020 at 2:40 PM
    #2
    LivinOnEdge

    LivinOnEdge ¯\_(ツ)_/¯

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,446
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator

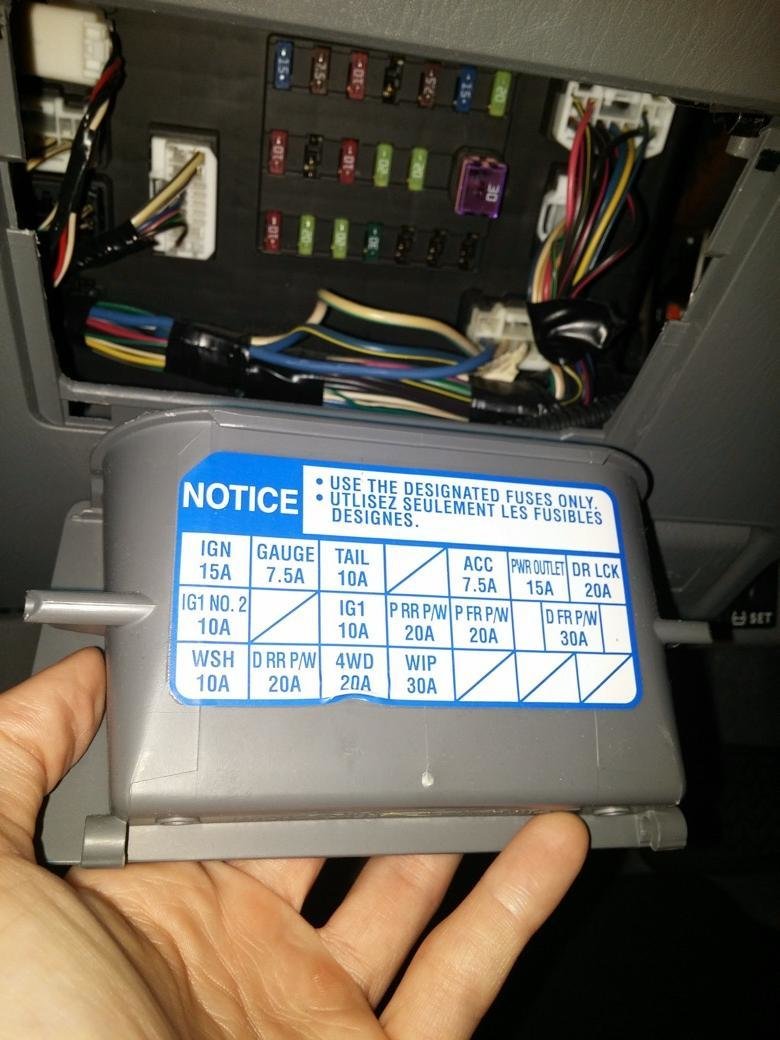

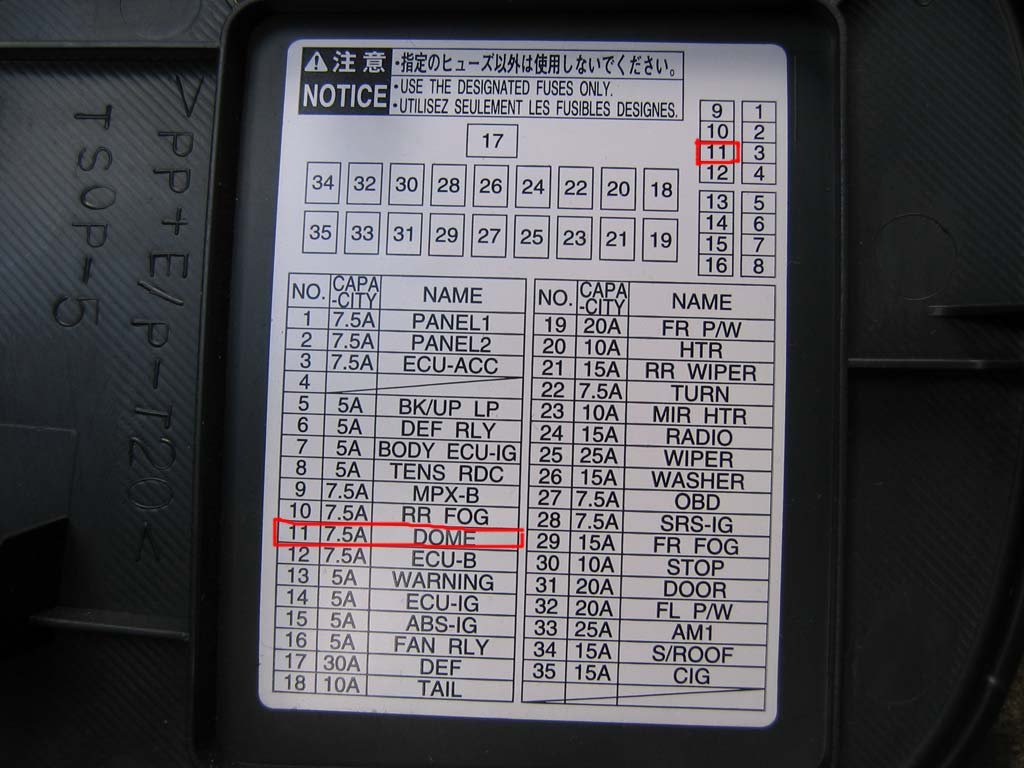

    I found this, not sure if this is the right fuse box. Hope it helps.



    lvs2rock[OP] likes this.
