MJS's SuperWhite DCSB Build Thread

Discussion in '2nd Gen. Builds (2005-2015)' started by MJS, Sep 15, 2014.

  1. Sep 15, 2014 at 11:21 AM
    #1
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    Wanted to start a build thread mainly to help me keep track of everything :anonymous:

    Traded in the Silverado (it was my third Silverado) on this Tacoma in January 2014. The truck came with a spacer lift and the Duratracs on Raceline 16s. Someone had aired up the tires to ~60psi so the truck drove very squirrely and was below true-car price by a few grand. Easy fix was to lower the pressure to 30psi...instant fix.

    Pic how it came from the used car lot with 45k miles on it:
    [​IMG]

    Current Pictures:
    [​IMG]
    Long's Ranch in Llano, TX June 2015 ^

    [​IMG]
    TW Houston BS Meetup at San Luis Pass 2014 ^

    [​IMG]
    On the bottom of Lake Travis near Lago Vista, TX in Summer 2014 ^

    As of January, 2016, this is what's on the truck:

    Suspension / Lift
    • Icon Extended Travel 2.5" with 700# Springs
    • Desert Products boxed uniball UCAs
    • OME Dakar Leafs (~+4 without a load)
    • RCD Bilstein 5100 3-4" lift shocks
    • All-Pro U-bolt flip
    • Timbren bumpstops front and rear
    • Sway Bar Delete
    • All-Pro spindle gussets (Awaiting Install)
    Drivetrain / Engine / Brakes / Wheels and Tires
    • Goodyear Duratrac 265/75R16s on Raceline Wheels (came on the truck)
    • AFE Pro-Dry S Filter
    • OME Carrier Bearing Shim
    • All-Pro Stainless Rear Brake Lines
    • EBC Stage 3 Front Brake kit (Dimpled/Slotted rotors, pads)
    • ARB CMKA12 Air Compressor and Air Locker Wiring Harness, Air-up Kit
    • ARB Breather kit mounted near fuse box, hooked up to rear diff only
    • ARB RD129 Air Locker in Rear
      (FYI my axle code A04C which allegedly would mean 4.56 with LSD turned out to be 3.91 with open diff...future gear ratio mod :goingcrazy:)
    Armor / Recovery
    • All-Pro APEX front plate bumper with full hoops (powdercoated at All-Pro)
    • All-Pro standard duty weld-on rock sliders with APEX filler plates (powdercoated locally)
    • Armor Tech Off Road IFS Skid (slight trimming to work with APEX bumper)
    • Armor Tech Off Road Transmission Skid (hardware mod - CS/zinc nuts)
    • Armor Tech Off Road Transfer Case Skid (and exhaust reroute with wrap)
    • Armor Tech Off Road Lower Control Arm Skids (hardware mod - brass nuts)
    • Smittybilt X2O 8,000lb Winch with synthetic line (custom wiring extensions, solenoid box inside bumper)
    • Trail Toys UHMW Gas Tank Skid (made by @SMKYTXN)
    • Smittybilt rear recovery clevis in receiver hitch
    • HiLift 42" (haven't mounted it to anything)
    • Warn winch accessory kit
    Lighting / Other Outside Accessories
    • Vivid Illumination 39" Spot Pattern Light Bar (60 LED)
    • OKLED flood "dually" style pods (6 LED type) in the fog pockets (not useful in fog)
    • Black headlights (aftermarket)
    • OSRAM NightBreaker Headlamps
    • LED DTRL Blinkers in Front w/ Hyperflash detune mod to relay module
    • TacomaWorld Stickar!!!
    • ToyWerx Raptor Style Grille (made by @HomerTaco)
    • Fire Extinguisher and commercial vehicle mount from Zoro.com
    • Trail Toys Aspherical Mirrors (sold by @SMKYTXN)
    Interior / Audio / Comms / Electronics
    • Wet Okole seat covers
    • Weathertech floorliners
    • Ultragauge
    • OTRATTW Switches (Compressor, LED bar, Fogs)
    • Uniden PRO 520XL CB in center console (not mounted to anything)
    • Wilson Silverload 24" CB Antenna on a medium duty SS spring
    • Genuine Toyota x043 Blower Motor Upgrade
    • LED bulbs for map and dome lights
    • AntennaX Off-Road Antenna
    • Bird Dawg Industries Tech Deck HD (with epoxied backplate)
    Wheeling Trips
    Shiloh Ridge, Alto, TX - Summer 2014
    BMRA, Gilmer, TX - November 2014
    Longs Ranch, Llano, TX - June 2015
    Trees Ranch, Kerrville, TX - September 2015
    BMRA, Gilmer, TX - January 2016
    BMRA, Gilmer, TX - Jambo! - May 2016
    BMRA, Gilmer, TX - June 2017
    BMRA, Gilmer, TX - TX4WD Houston Fall Run - October 2017
    Hidden Falls, Marble Falls, TX - February 2018
    BMRA, Gilmer, TX - TX4WD Houston Fall Run - October 2018

    Beach Runs
    San Luis Pass, TX - Summer 2014
    San Luis Pass, TX - Late Summer 2014
    Bryan Beach, Quintana, TX - March 2015
    San Luis Pass, TX - June 2015
    San Luis Pass, TX - August 2015
    Padre Island National Seashore (to mi 27) - May 2017

    Last edited: Nov 4, 2018
  2. Sep 15, 2014 at 12:38 PM
    #2
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    41,193
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.
  3. Sep 15, 2014 at 12:39 PM
    #3
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,213
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    nice rig

  4. Sep 29, 2014 at 12:36 AM
    #4
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS

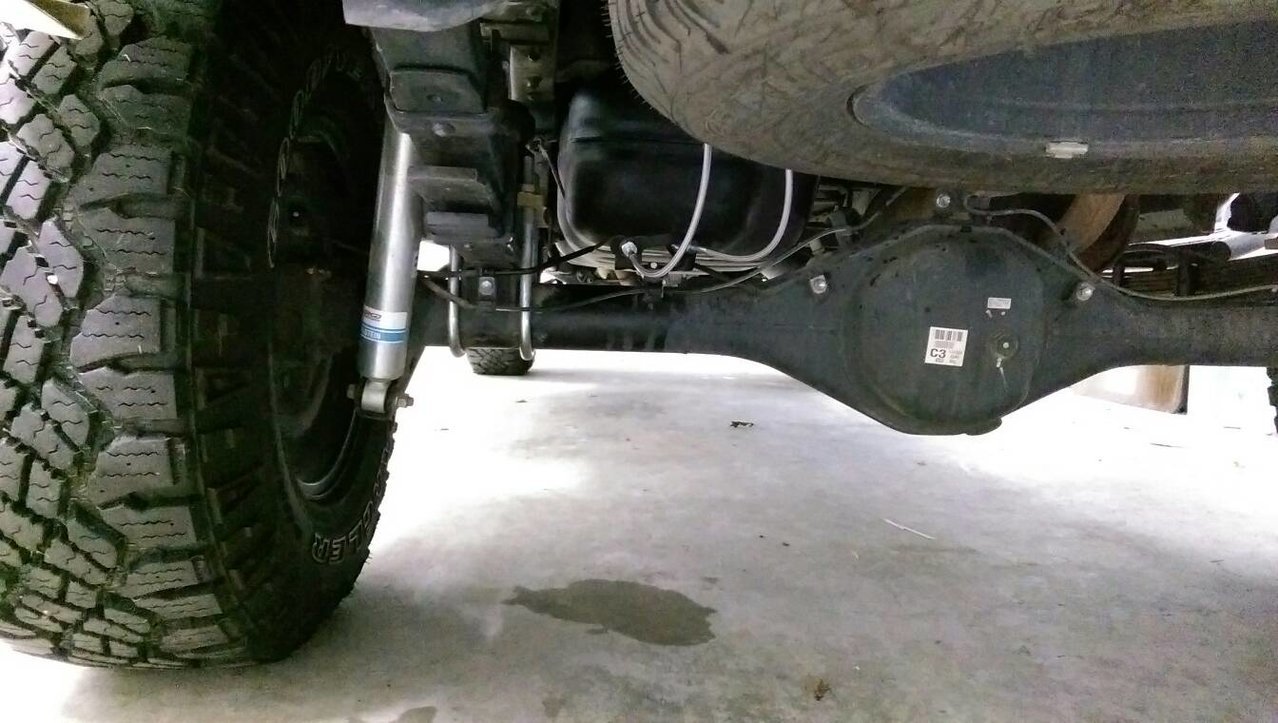

    Installed the stainless rear brake lines and ebc stage 3 rotors and pads in the front today. Run out was borderline at 3-4 thousandths on the driver side and it's making a chunking sound while stopping...Might have to shim it or try rotating the rotor to a different position.


  5. Sep 29, 2014 at 4:43 AM
    #5
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    41,193
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.
    Did you have much of an issue with the brake lines? I had some issues with mine, but nothing along the lines of rounding out the nut.

  6. Sep 29, 2014 at 1:12 PM
    #6
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    I tried to loosen one of them without a flare wrench and quickly decided that I needed a flare wrench.

    The only other issue was the fitment of the ends of the new lines into the factory shape holes in the support brackets. They were quite snug even in the correct position. Only lost about one high to low in the reservoir worth of fluid before bleeding.

  7. Sep 29, 2014 at 1:25 PM
    #7
    Mademan925

    Mademan925 Senor Taco

    Joined:
    Nov 7, 2012
    Member:
    #90668
    Messages:
    7,531
    Gender:
    Male
    First Name:
    Nick
    Discovery Bay, CA
    Vehicle:
    2014 4x4 TRD OFFROAD DCSB
    enough to go over stuff
    Looks good

  8. Sep 29, 2014 at 1:37 PM
    #8
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    Thanks :D

  9. Oct 1, 2014 at 1:57 PM
    #9
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    Stickar mod :goingcrazy: :cool:

  10. Oct 1, 2014 at 2:41 PM
    #10
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    41,193
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.
    Stichkars!

  11. Oct 13, 2014 at 6:29 PM
    #11
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    050e6de28a9786b0c50fbfaa7b92280b_dbecfb7018c566bb251b5037434c9b75a2220598.jpg402232147e8822866d046422db9bb912_f1f872f0f44b790858ef1e6846d0afb716cf29ae.jpg84aaf2bdc537f63bde407fc8e821d01c_7f7c6e42765c5c8a9b1cecccbc16b0c1a8349d83.jpg

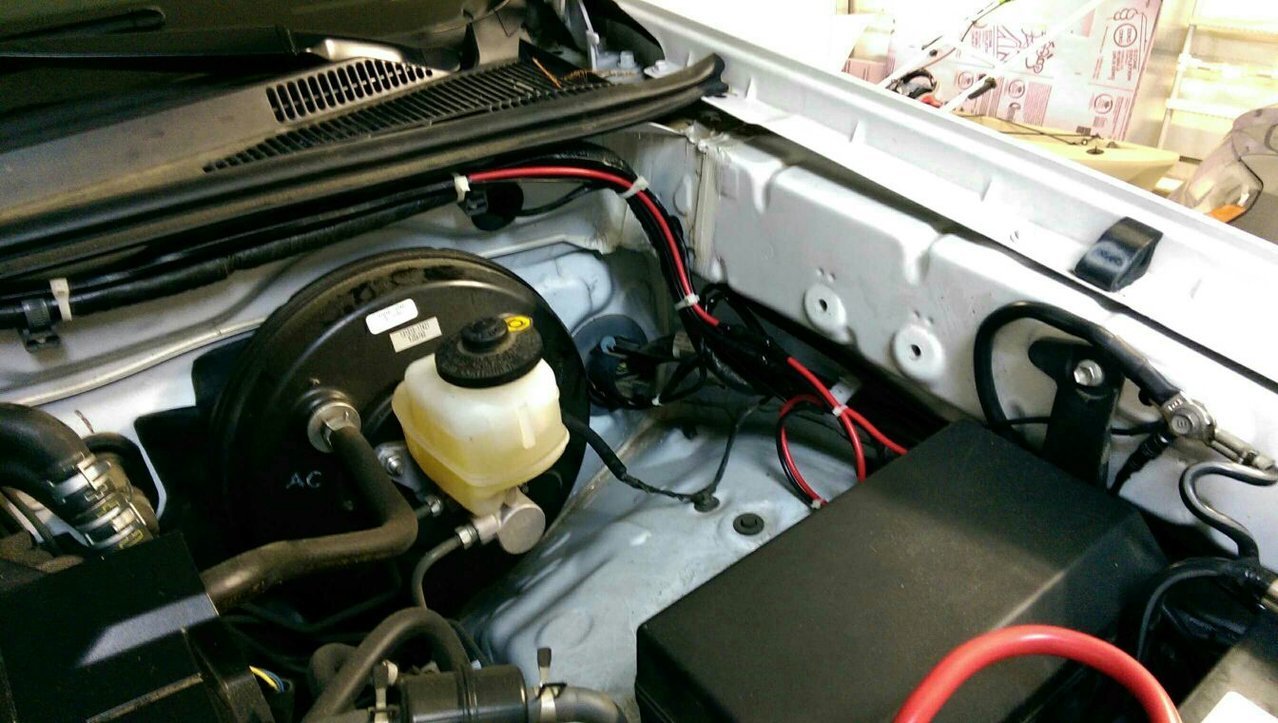

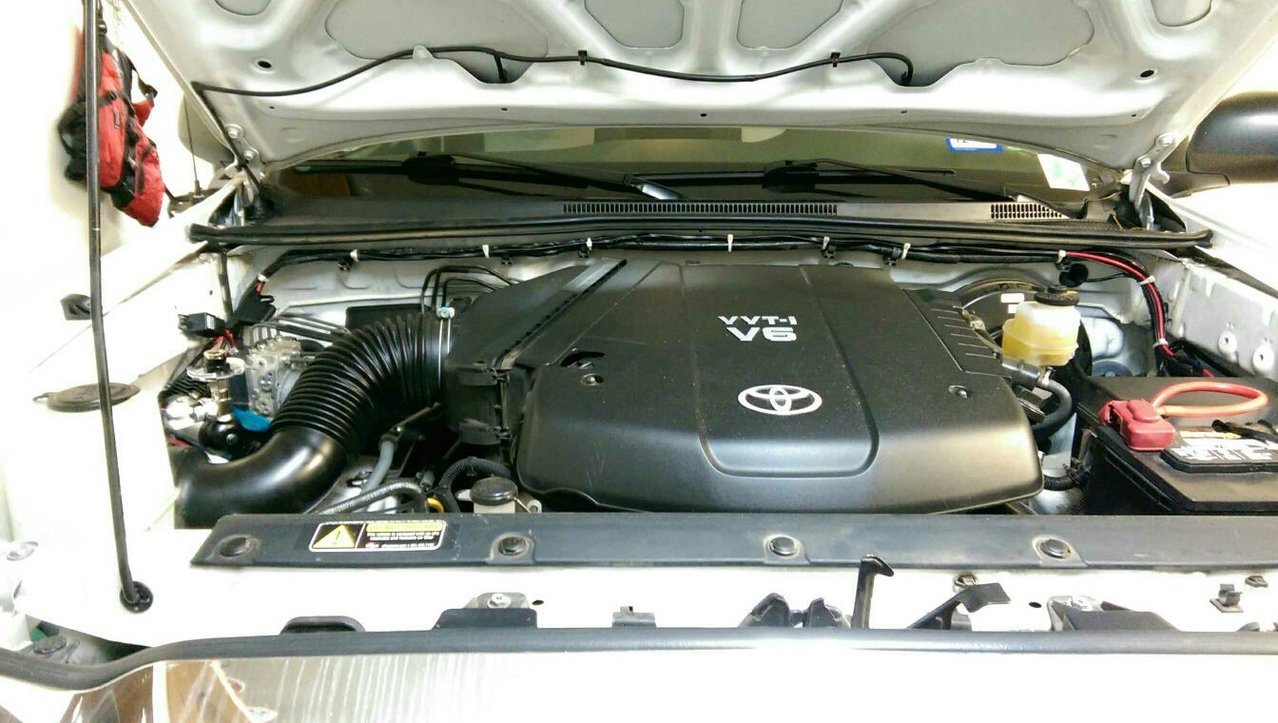

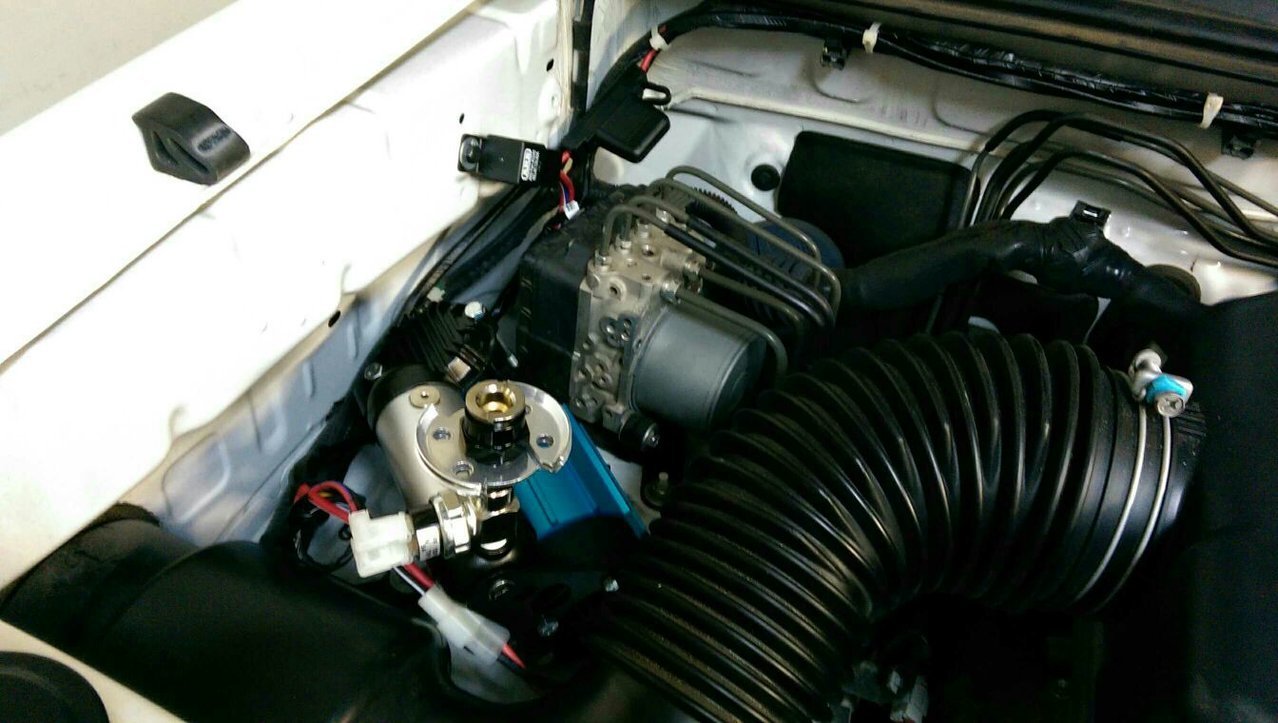

    ARB air compressor almost done...just gotta find an ignition hot wire :goingcrazy:

  12. Oct 13, 2014 at 7:29 PM
    #12
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS

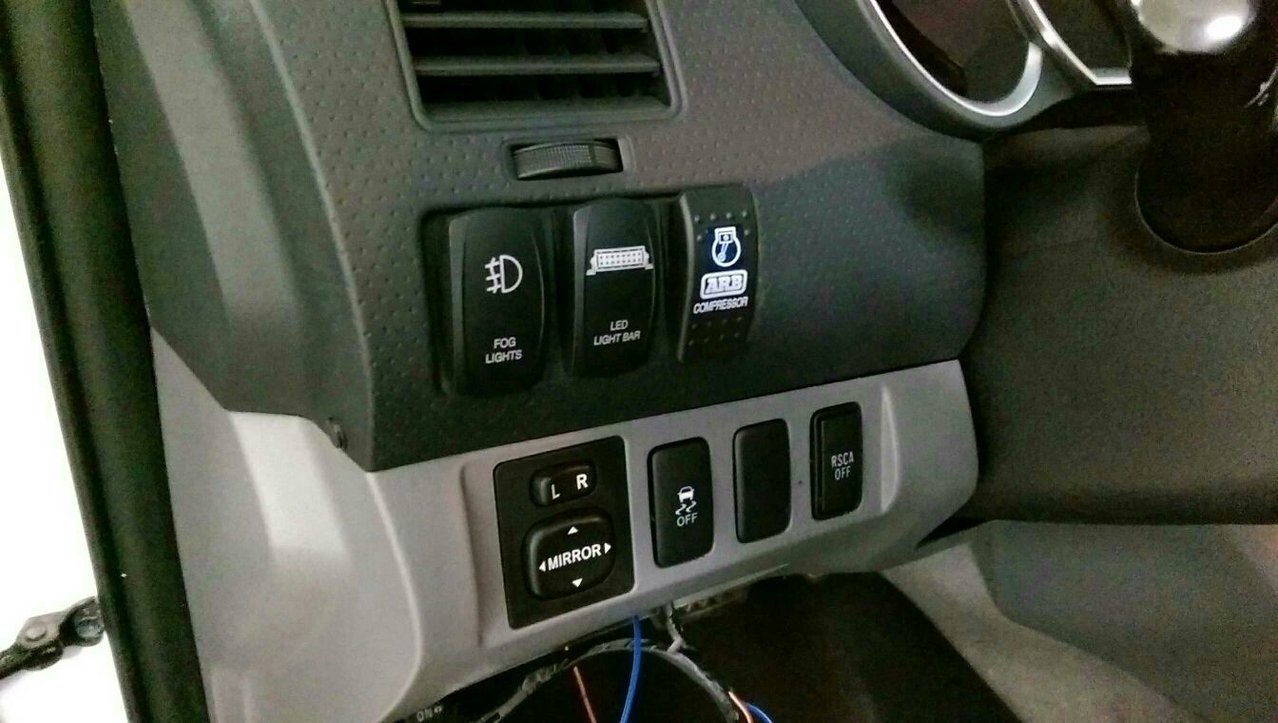

    I'll have to order an OTRATTW rocker to match the others.

    Last edited: Oct 13, 2014
  13. Oct 13, 2014 at 7:36 PM
    #13
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    9,399
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Nice truck dude! I have close to the same suspension setup. Your truck is lookin really nice.

  14. Oct 13, 2014 at 8:32 PM
    #14
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    Thanks! How you liking those Duratracs? I know my rims have a bazillion balancing weights on them...but that could be the rims too. They do seem to be in balance though and they didn't do bad on the trail although I'll test them some more next weekend.

  15. Oct 13, 2014 at 8:39 PM
    #15
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    9,399
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    I love my duratracs. Been great for me on and off road so far.

  16. Oct 13, 2014 at 9:06 PM
    #16
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS
    Ordered OTRATTW rockers for my compressor and future front and rear lockers :D

  17. Oct 27, 2014 at 8:00 PM
    #17
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS

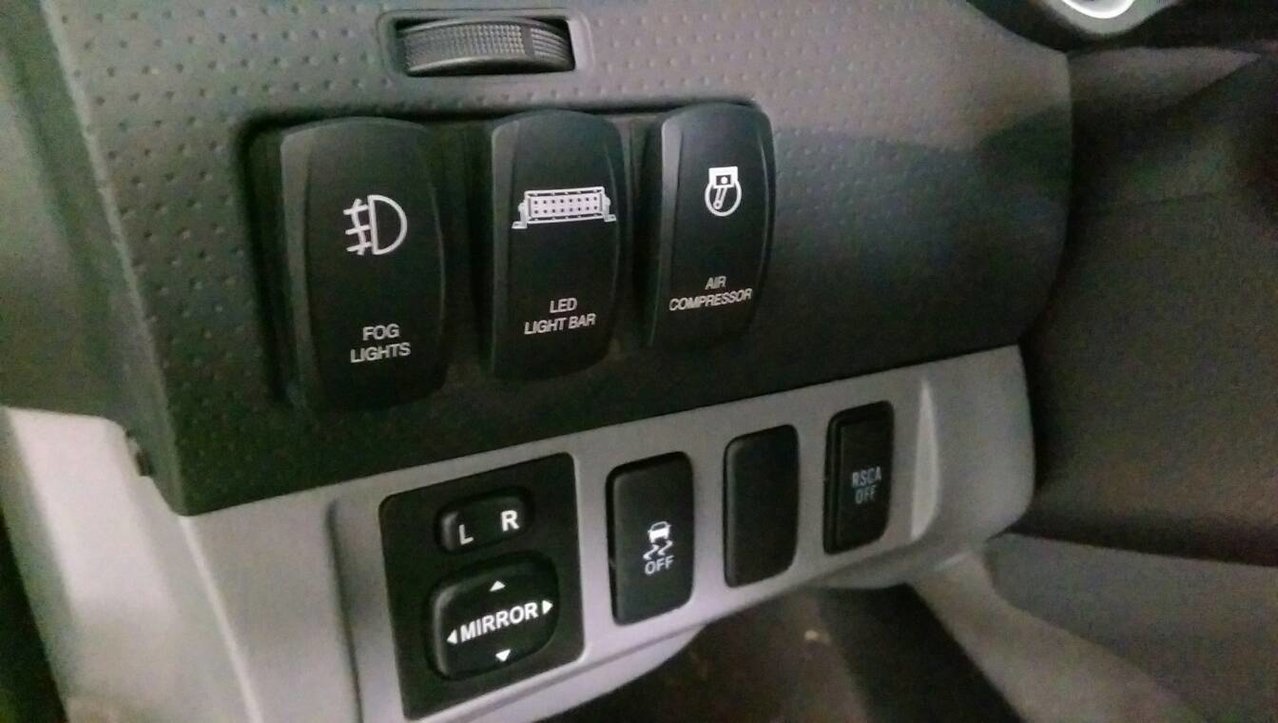

    All switches now match :D

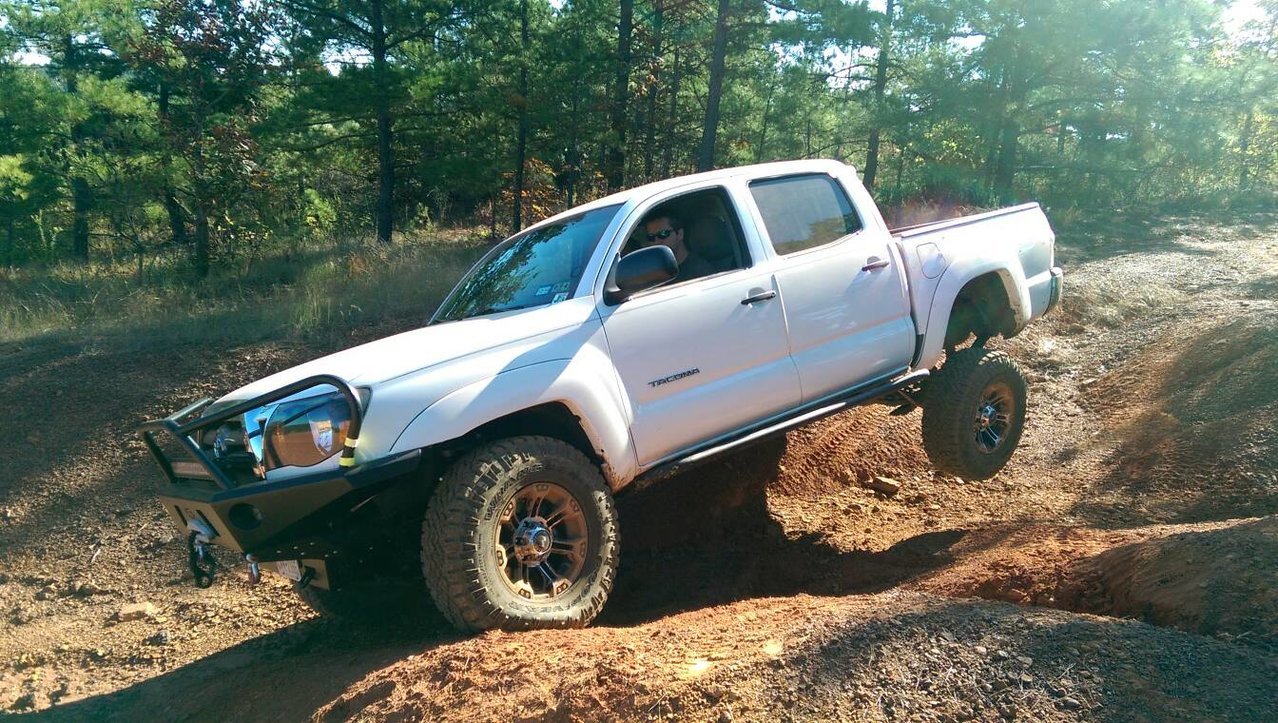

    Couple of pics from BMRA (link in OP for thread)
    1f246d942aa52fd0527e78829eec23bf_02260f0e49493a882fd7167eb3df07b40fee9c66.jpgf6d94534832289f0565e56f44c79e82a_033177a015c4897b33126f55e5a6dd5951a11e25.jpg2e5fba5a1a72c732d49c5757a5046f9c_c581ee1392886878d0b20044d285b526d35e72d0.jpg

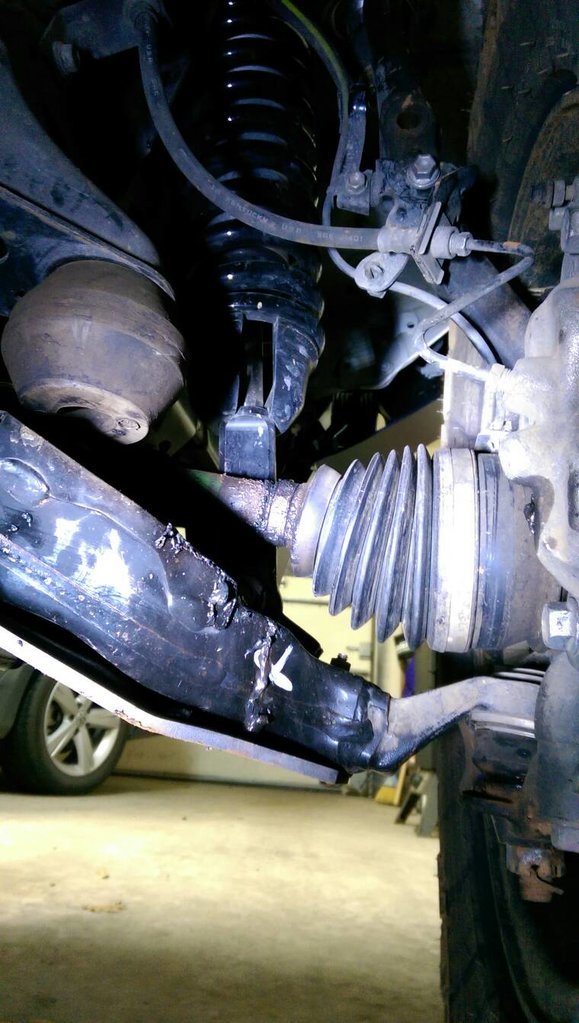

    Got a leaky boot on the outboard passenger cv

  18. Oct 27, 2014 at 8:18 PM
    #18
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    41,193
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.

    I told you mall crawling at the Galleria was 4/5 diamond difficulty.

  19. Nov 6, 2014 at 2:39 PM
    #19
    MJS

    MJS [OP] Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121333
    Messages:
    1,798
    Gender:
    Male
    First Name:
    Matt
    Houston, TX
    Vehicle:
    2003 XC 3.4 SC SASd Flatbed
    SAS

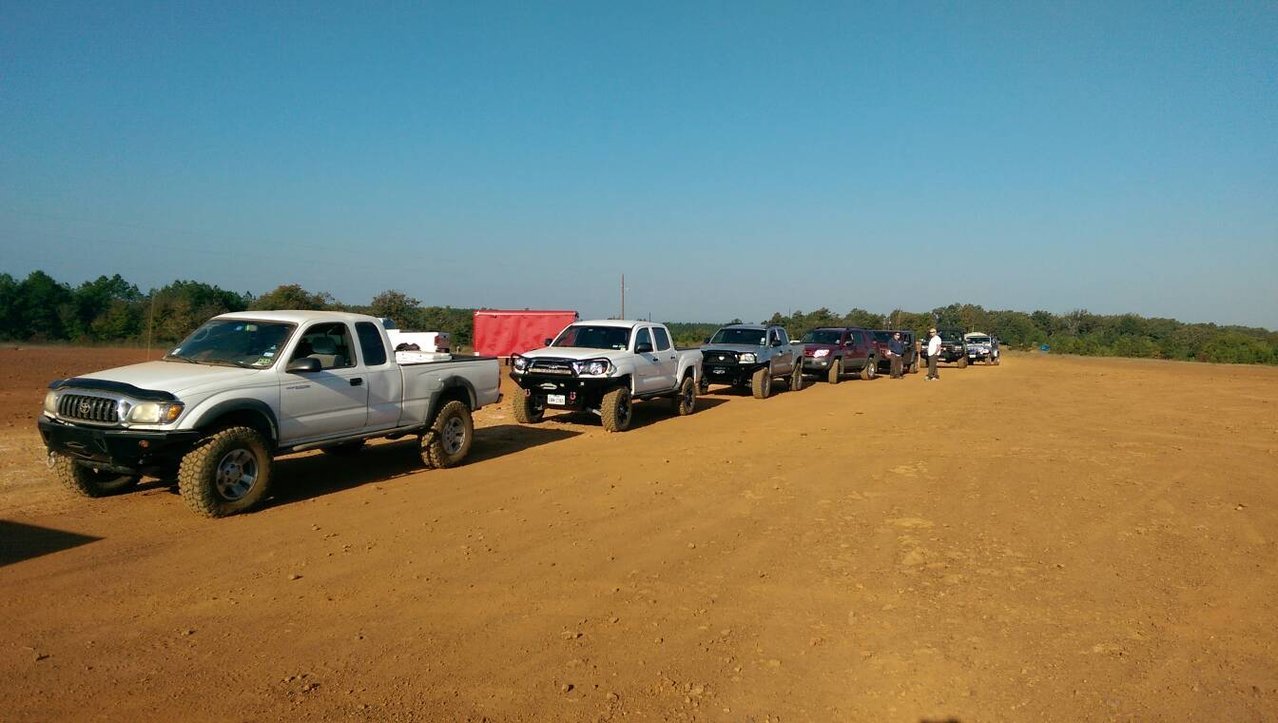

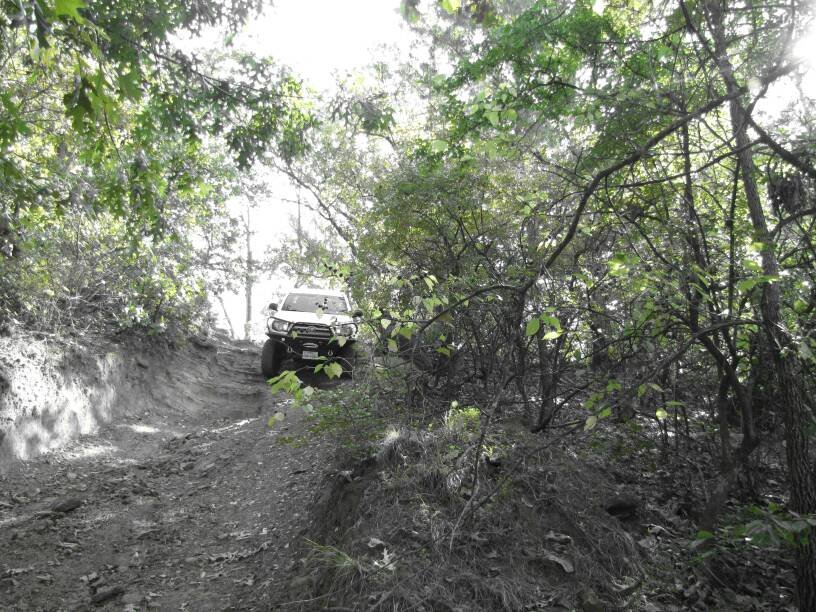

    Here's a couple more pics from Barnwell resposting from the Book of Faces.

    e7d9128342b5b0a77e0179e9813c5075_7cc6dc23409578a43df7966bf5518d7fa4131577.jpgda786fcf2efc9999e29357f26c7e4a14_106f86ee1edc1bbd4426136d503c682a98e84fab.jpgd2a285ee4c97bc7911ed2c92c3d6c76f_7fbdb776427c950abf93cf97a5e19ae6771960fc.jpg0ebc32fb4932c1ae07510dd541293691_e2de478aa2a28e95baf49a686df2302d703a25dc.jpg

  20. Jan 12, 2015 at 11:30 AM
    #20
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    41,193
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.
