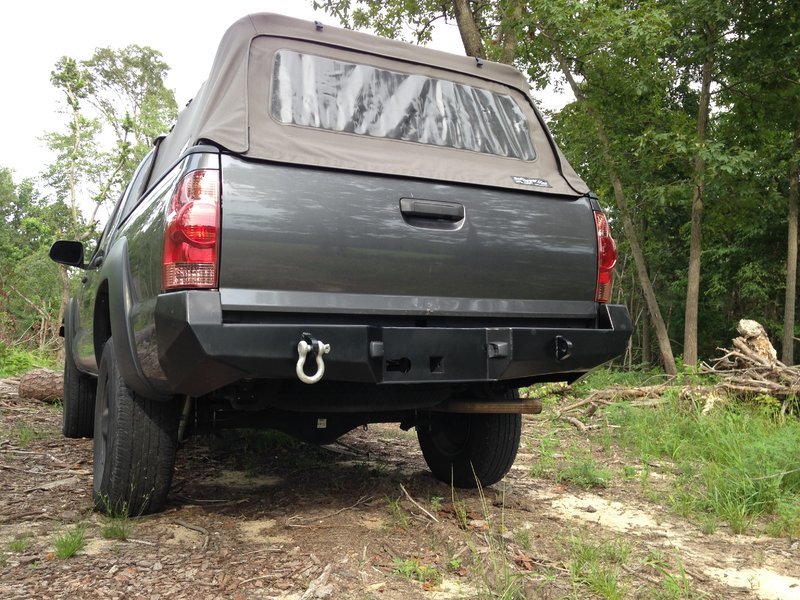

Mobtown Offroad 2005-15 Toyota Tacoma Rear Plate Bumper

Mobtown Offroad is now offering a rear plate bumper for the 2nd gen Tacoma.
The key features of the bumper are:

Outer Shell: 3/16" CNC Laser Cut and Formed Plate Steel. Corners are one a piece design made on a 12 axis CNC press brake for maximum strength and a smooth finish and no weld at all! The corners are also tied in to the hitch to eliminate corner flex.
Shackle Points: 3/4" CNC Plasma Cut, pass through the bumper and wrapped around 2-1/2" heavy wall steel tubing for the strongest design on the market to date.
Hitch: Integrated into the bumper which allows the bumper to tie in to it for maximum strength. The hitch is up in the bumper and passes through where the license plate will be so the depature angle is not effected. The hitch will be built from 2-1/2" heavy wall steel tubing. It also is reinforced in the center with a formed plate and slots for trailer chains.
Attachment: 1/4" CNC Laser Cut and Formed Plate Steel. Not just a flat, plasma cut plate like most bumpers out there which isn't the best for side pulls. We added two bends on the plate, one goes under the chassis and bolts into the existing factory weld nuts.
Accessories: Flip Up License Plate Bracket, will use factory trailer plug and factory license plate lights.
Swing Out Tire Carrier: The swing out tire carrier that can handle up to a 35" tire with 4.5" back spaced wheel. It is built from 2x3x1/8" wall steel tubing for the main beam, and the tire carrier is made from 2x2x1/8" wall steel tubing. The plate that the tire bolts to is 3/8" thick steel with three stock wheel studs. It is attached to the bumper with our 1/4" thick steel bracket and uses a 1" diameter pinion, you are not going to break it! The carrier is held securely to the bumper with a large wing nut.

Visit our website for lead times, bumper prices, shipping cost and shipping terminal locator here:

http://mobtownoffroad.com/product/2005-2015-tacoma-rear-plate-bumper/

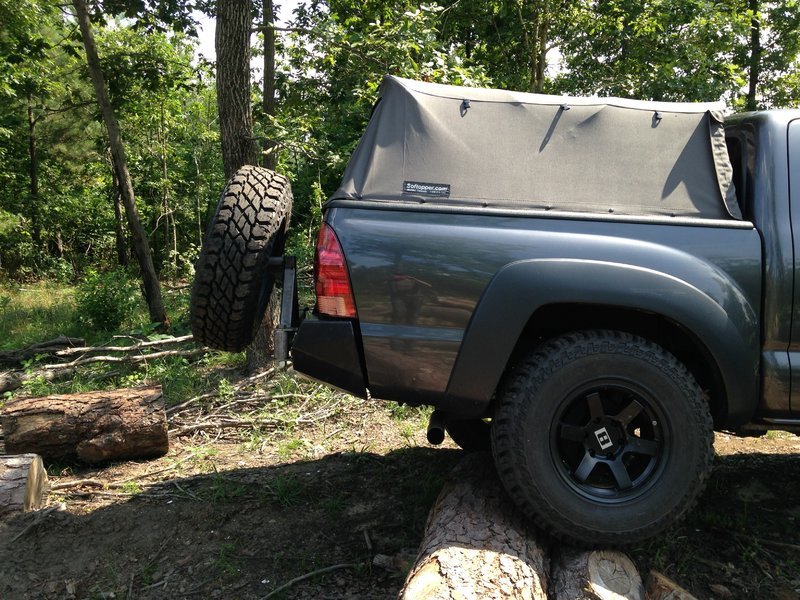

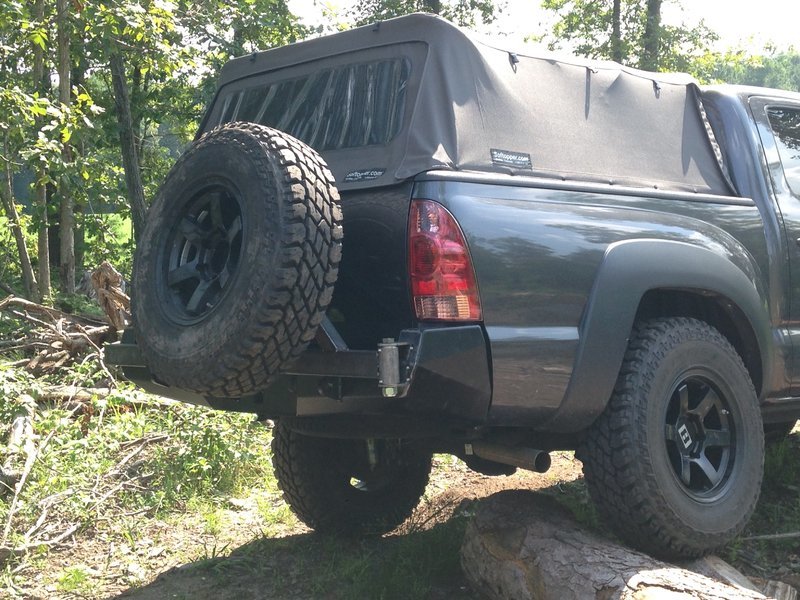

With optional Swing Out Tire Carrier:



Interesting...



Me want!



@ramonortiz55 is currently putting together a thread for a group buy so stay tuned for substantial savings.



Will do!

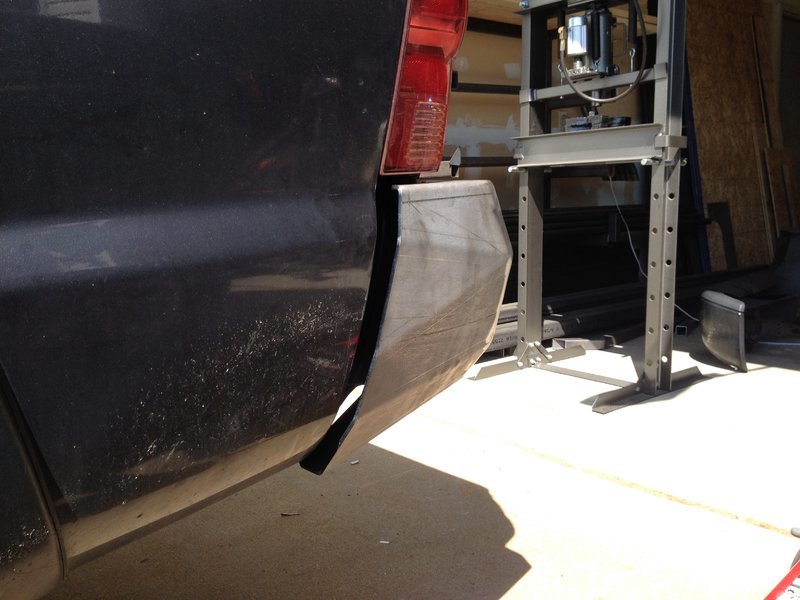

That looks great. Any chance of a picture 3/4 from the front to show how the front edge lines up with the existing fender?
Weight?



120lbs

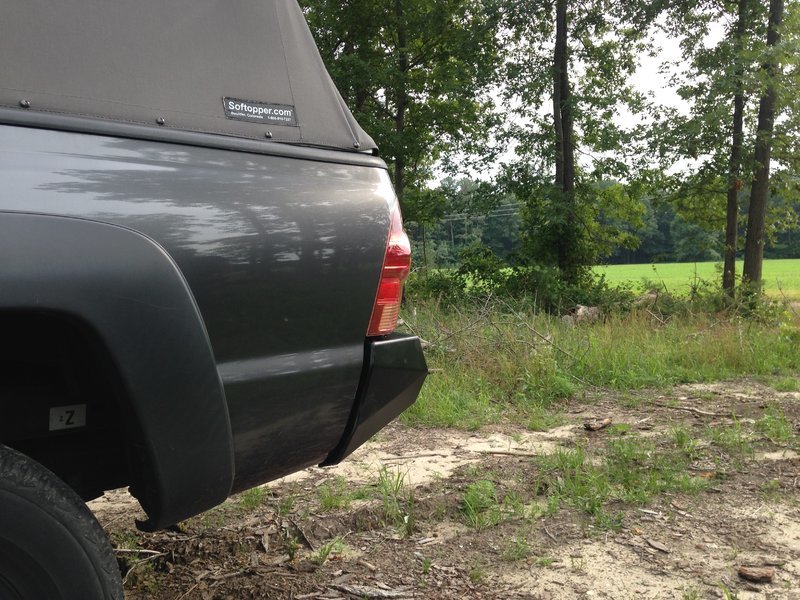

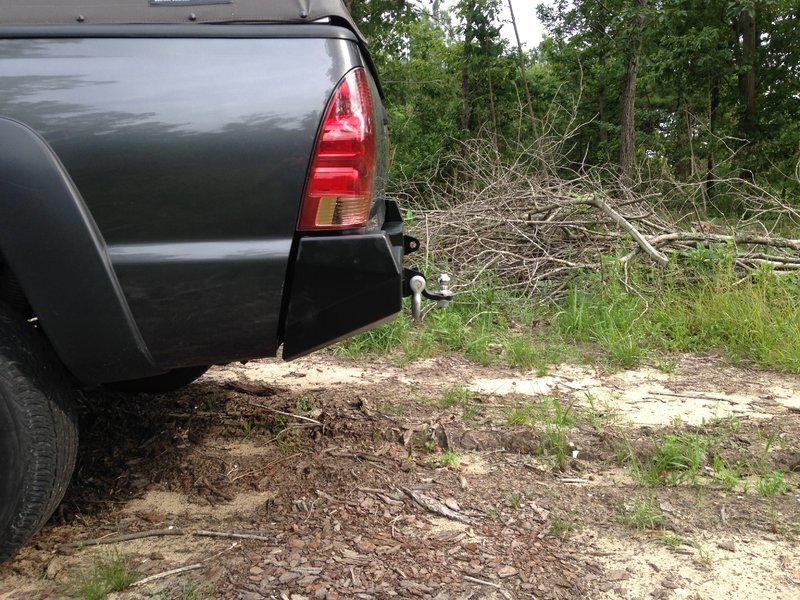

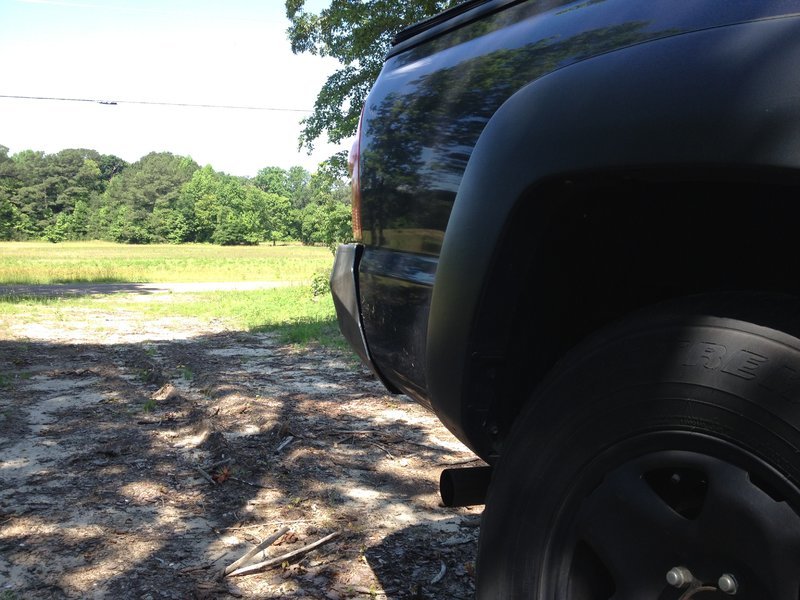

And this



That's great fit - thanks for the pictures.



Made it as tight as we could while still offering the most protection an following body lines.



Any possibility of fitting a swing-out?



It'll be a bolt on option, eventually. We were more focused on just getting the bumper released for production.



As long as it's an option to be added in the future, I'm very interested.



Id be interested in a swingout. But what about a high clearance?



You need this in your life!



But with the swing out of course



Yes I do my man



Any ability to have it mount with the factory hitch? I don't want to loose the factory hitch.



That's not like him.
