modsquad's ExpoTaco Build

Discussion in '2nd Gen. Builds' started by modsquad, Oct 12, 2012.

  1. modsquad

    modsquad [OP] TurtleGuy

    Joined:
    Dec 14, 2011
    Member:
    #68789
    Messages:
    221
    Gender:
    Male
    First Name:
    Andrew
    Davis, CA
    Vehicle:
    '10 Taco TRD OR 4x4
    Welcome to my build thread. Ultimate goal is a rig capable of expedition/overland travel. I live and play in southern Nevada/California so backcountry reliability and dependability are prioridad número uno.

    I’ll use this page to post specifics on the truck and pictures / videos.

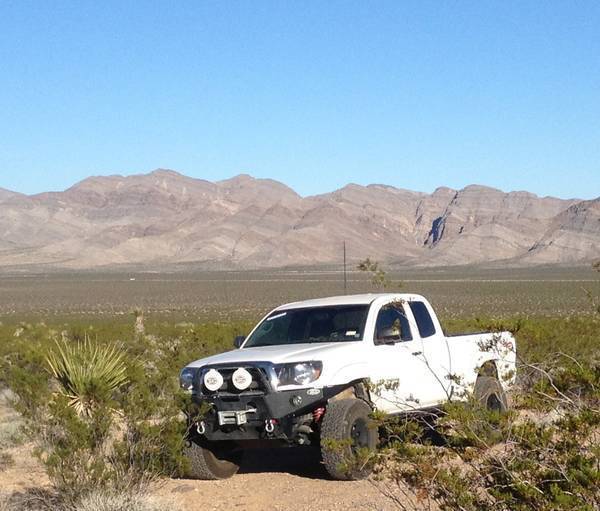

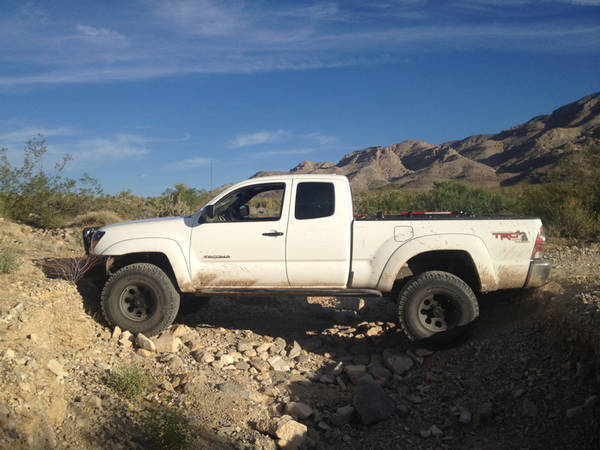

    2010 TRD OR Access Cab 4x4

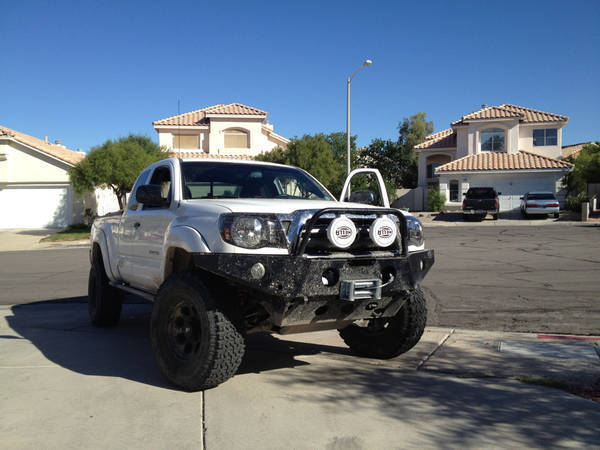

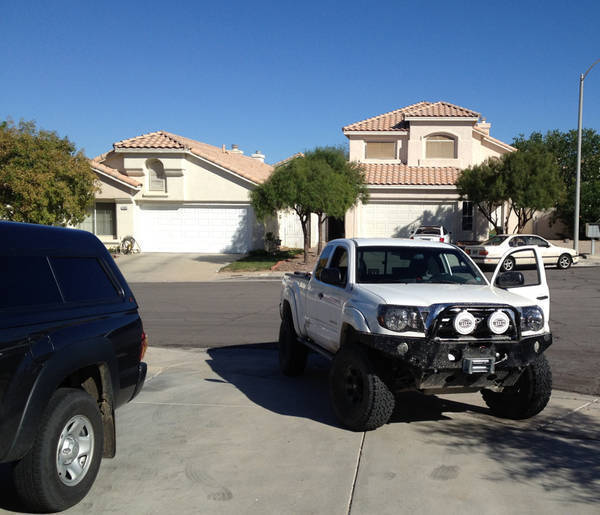

    Currently:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]

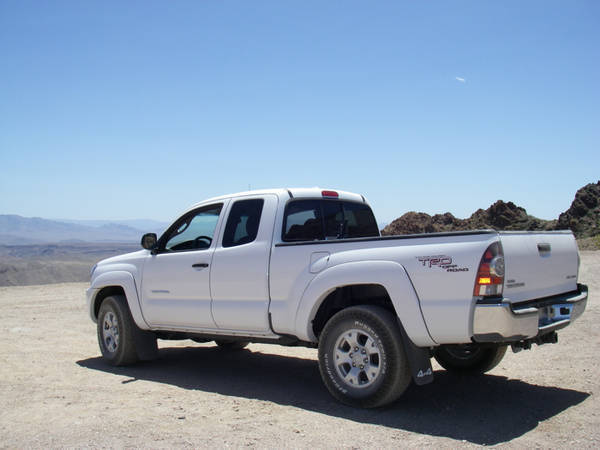

    Purchased from Findlay Toyota April 2010:

    [​IMG]


    Suspension:
    5100/Eibach/Toytec coilovers spanner adjustable
    Total Chaos UCAs
    TSB AAL/5100s rear
    OME carrier bearing drop

    Wheels/Tires:
    ProComp 7069s 4.0BS
    BFG AT KOs 285/75R16

    Engine:
    K&N washable/reusable air filter
    that’s it!

    Protection:
    Famous Fabrication high clearance rear bumper w/ custom tire swing-out
    Famous Fabrication sliders
    All Pro IFS skid
    All Pro trans skid
    All Pro bumper v.1
    All Pro e-locker guard
    All Pro u-bolt flip and extended rear brake lines

    Electrical:
    6K bi-xenon HID headlights
    Hella 700ffs (use as critter lights)
    RAM no-drill iPad mount
    iPad for Nav with Dual remote Bluetooth GPS receiver
    GoPoint BT1 Bluetooth ODB-II to iPad interface
    Dashcommand App for iPad (displays all ODB vehicle data in real time: performance, fuel consumption, CEL codes, etc.)
    Cobra CB
    X-bar for bed rail system w/ rear-facing HC amber high visibility light
    stock fogs in AP bumper w/ plumbing parts
    Blue Sea dual battery isolator system
    Blue Sea aux fuse bus
    Optima Yellow Top
    OTRATTW custom rocker switches

    Off-Road Gear:
    Rugged Ridge 10K winch
    VIAIR onboard air system
    Hi-Lift with come-along kit
    Wheeler’s tow straps
    ARB snatch block
    additional recovery/backcountry/safety gear/tools
    fire extinguisher

    Cosmetic:
    Blacked out headlight shrouds
    sockmonkey decals

    Other Modifications:

    cab mount chop (thanks to Famous Fab)
    exhaust chopped after axle
    diff breather extension
    fogs anytime (use as daytime running lights)
    bed bar that mounts to rail system

    Fun:
    GoPro HD Hero2

    Future Plans:
    camper top w/ custom sleeper shelf and storage
    auxiliary fuel tank
    roof rack storage etc.
    LCA, diff, and gas tank skids
    front locker
    re-gear
    CAI
    HAM radio
    satellite radio
    train horn
    PA system

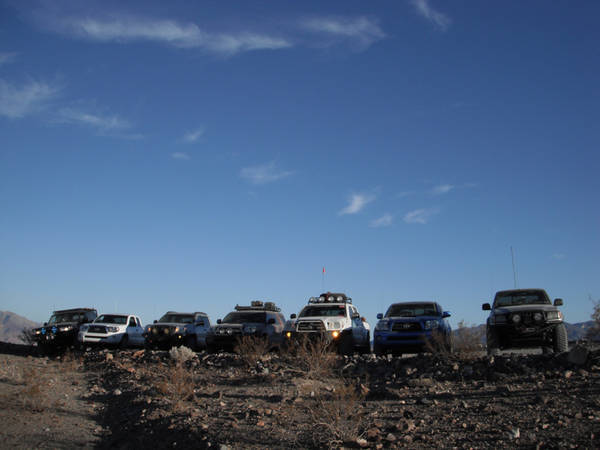

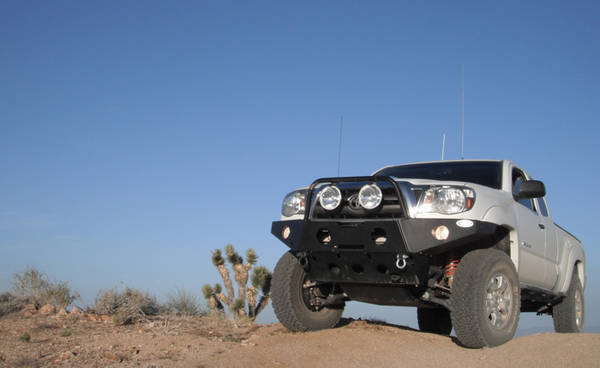

    PICTURES FROM THE FIELD


    Lake Mead NRA:
    [​IMG]


    Mojave Road:
    [​IMG]

    [​IMG]

    [​IMG]

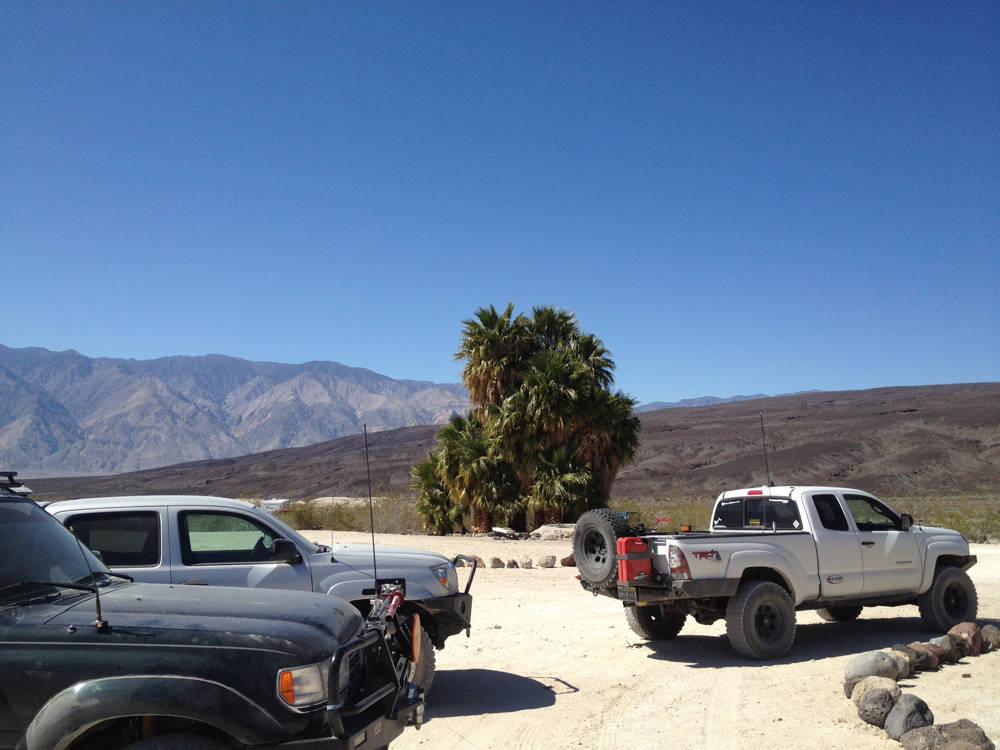

    Death Valley annual run Feb/Mar 2012 and 2013:
    2013...
    [​IMG]

    [​IMG][​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    2012...
    [​IMG]
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

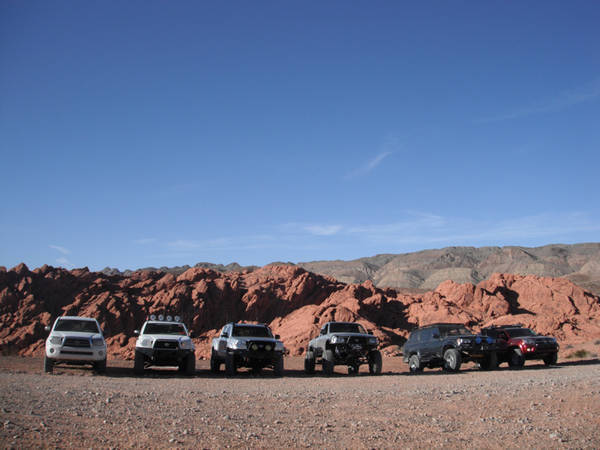

    Sin City Wicked FJs:
    [​IMG]

    [​IMG]


    Rocky Gap:
    [​IMG]


    Logandale:
    [​IMG]


    [​IMG]

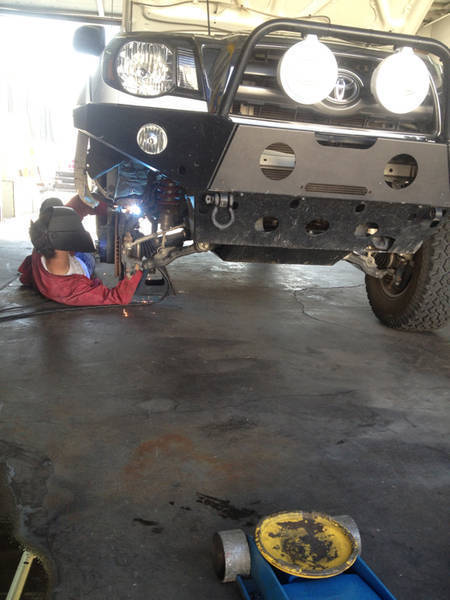

    Famous Fabrication:
    [​IMG]
    [​IMG]

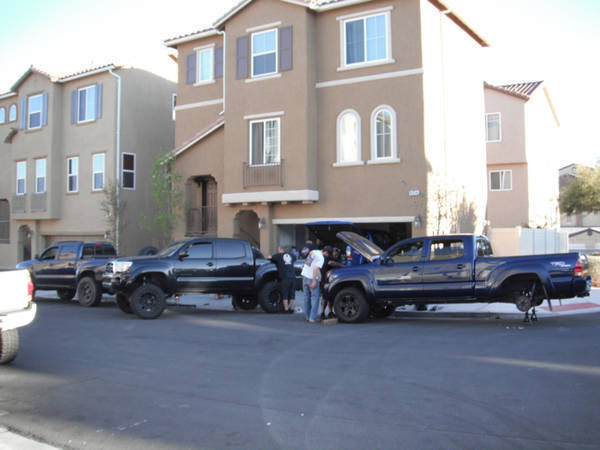

    LV TacomaWorld:
    [​IMG]

    [​IMG]
    [​IMG]

    Thank you TW!

    Last edited: Apr 14, 2013
  2. DWreck

    DWreck Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,115
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Good job. I simply just don't have the time to edit mine. It's at least 2 years out of date! Lol

  3. Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    Looking Good.

  4. MOT

    MOT Prez of @battleborntacomas and ASSHOLE!

    Joined:
    Nov 21, 2009
    Member:
    #26325
    Messages:
    8,060
    Gender:
    Male
    First Name:
    Daniel
    las vegas
    Vehicle:
    08 MOT DB DC 4X4 Sr5
    Black Housing Head,H.I.D 10k headlights, 3k Foglights, T-Rex #2 Eyelids Lights, Blacked Out Tails Lights, 5% Tint all around, Tinted Windshield, Wet Okole's, WeatherTech Mats, Magnaflow Exhaust, Pro Comp 6 Inch Lift, K&N Intake,Avidoffroad Light Bar
  5. uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,878
    Gender:
    Male
    First Name:
    coby
    KODIAK, AK! originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    THATS A GOOD START love expo rigs

  6. Justin

    Justin Well-Known Member

    Joined:
    Jan 24, 2011
    Member:
    #49854
    Messages:
    1,048
    Gender:
    Male
    First Name:
    Justin
    Beale AFB, CA
    Vehicle:
    2014 Jetta TDI Premium w/ DSG
    Anytime Fog Light Mod, Rockford Fosgate p300 Mono Channel Amp, Rockford Fosgate P3 Shallow Sub Sealed, 2x Hella 500FF 35W HID, BAMF light bar, Relentless Hood Mounts, 2x KC 130W slim lites, Relentless bed bars, 265/70/17 Trail Grapplers 10ply, Alpine deck.
    Do you have any pictures of your Ipad mount?

  7. gtokarski

    gtokarski Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16714
    Messages:
    155
    Gender:
    Male
    First Name:
    George
    Dublin, CA
    Vehicle:
    06 4x4 xtra cab silver
    OME 886, AAL, ARB Bumper, XRC8 Winch, 255 KM2, Sony MEX-N5000BT, and one angry beagle.
    And: What software are you using on the ipad for navigation?

  8. gbtoy4x4

    gbtoy4x4 Well-Known Member

    Joined:
    Apr 2, 2010
    Member:
    #34427
    Messages:
    399
    Gender:
    Male
    First Name:
    Greg
    Las Vegas
    Vehicle:
    2010 Silver TRD AC OR 4x4 6sp
    Factory Silver Sport Grill, Gray TRD Shift Knob, BFG 285/75/16 AT's, Debadged, AFE Cai, TRD Short Shifter, Redline Hood Struts, Leer Topper, Budbilt Front, Mid+Xcase Skids, ELocker Skid, Icon C/O, Built Right UCA's, Rear 2in AAL w/Bilstiens, AP U-Bolt flip, 1" 4Crawler Body Lift, Relentless Front Bumper w/Lights + Sliders, Rear Breather Mod, 5 ProComp 7089 Rims, AP SS Brake Lines, Famous Fab HC Rear Bumper W/Swing Out Tire Carrier, Synthetic Brake Fluid, Synthetic Power Steering Fluid, Front Superbumps, Hood Blackout,
    So u have 285's now? cool
    I have Dwrecks rear bumper prototype on now.
    Hopefully finished w/mine soon then on to yours!

  9. modsquad

    modsquad [OP] TurtleGuy

    Joined:
    Dec 14, 2011
    Member:
    #68789
    Messages:
    221
    Gender:
    Male
    First Name:
    Andrew
    Davis, CA
    Vehicle:
    '10 Taco TRD OR 4x4

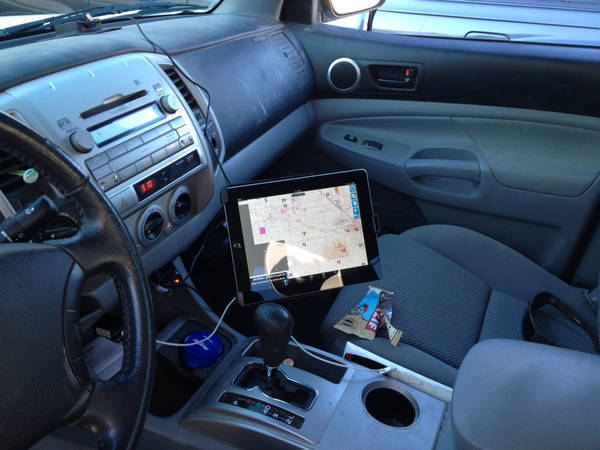

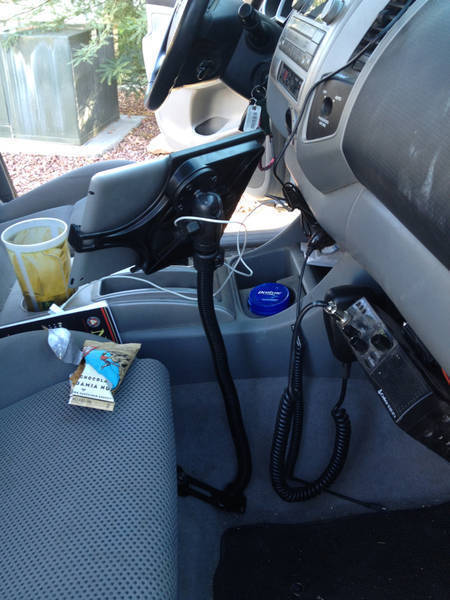

    Here you go:

    [​IMG]

    [​IMG]

    [​IMG]

    I obviously need to get a better USB charging setup going, as I now have something like 6 devices that need a USB charge. But I have a solution planned out with the overall electrical upgrade that I am not exactly looking forward to installing.

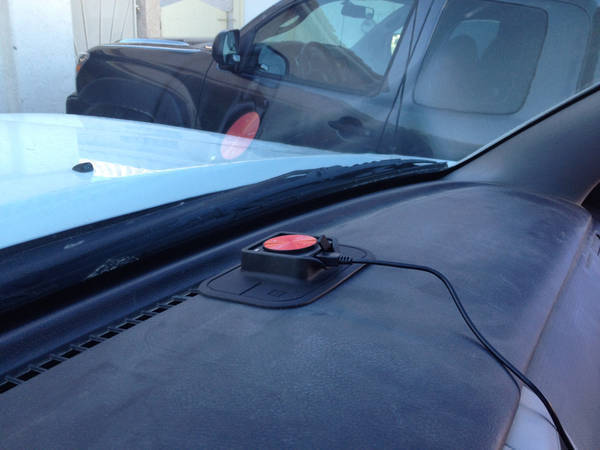

    The last image is the Dual Bluetooth GPS (100$). My ipad is a Wifi only model, but this turns it into a great tool for backcountry navigation.

    I use Gaia Offline GPS (http://www.gaiagps.com/). Gaia will download the latest USGS topo maps and then use them offline or out of 3G range, as you should be when you're in the backcountry.

    RAM mounts are awesome in general, they make cop car gear and the like. This mount is certainly a clever design. Plus it makes the interior of my truck look sexy. It uses a hand-bendable rod support that took me about 20 minutes to mock up and install using the passenger seat floor bolt. About 80-90$ for the kit I think, with ipad holder, pricey but worth it for the great design. They also offer lockable/dockable ipad/ipod holders but I didn't need those options.

  10. ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    6,277
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport
    Things and stuff and such
    Very nice! I love the Ipad setup.

  11. hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,862
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    nice looking rig man.....similar to my ideas chk my build to see some other things ive done and tried....keep up the great work buddy...

  12. modsquad

    modsquad [OP] TurtleGuy

    Joined:
    Dec 14, 2011
    Member:
    #68789
    Messages:
    221
    Gender:
    Male
    First Name:
    Andrew
    Davis, CA
    Vehicle:
    '10 Taco TRD OR 4x4

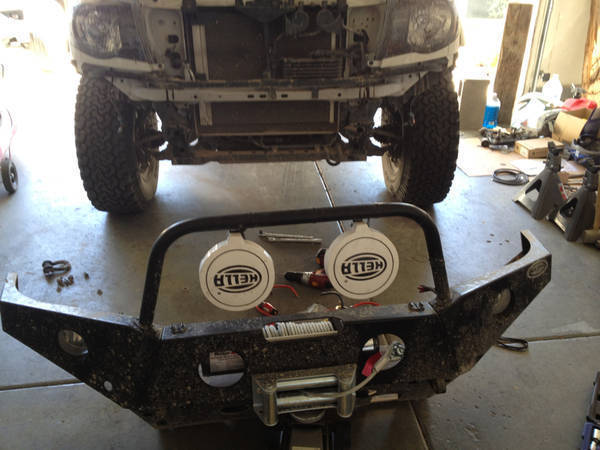

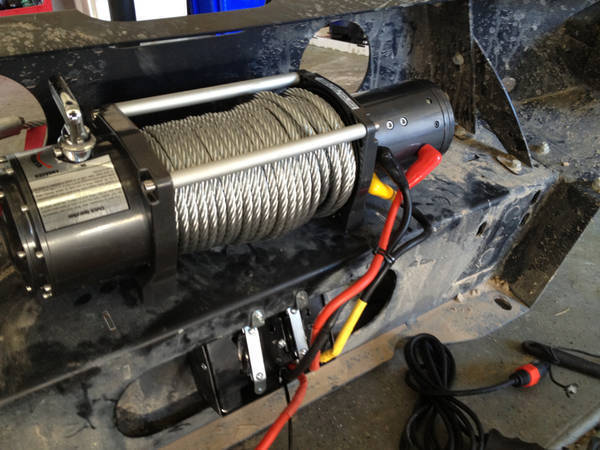

    Got my winch installed today, it's been sitting on the garage floor for too long.

    It's a Rugged Ridge 10500lb, had good reviews and I got a good deal on it. Really more capacity than I need but it was only 50$ and 10lbs more, and the exact same dimensions. So I went for it.

    [​IMG]

    I put the solenoid box facing outwards through the center hole in the AllPro. I know this is a bad spot if I ever cross deep deep water, but we don't encounter that much out here, and when I do, I stick to high ground and avoid it. Flash floods and deep water are no joke.

    I drilled a drain hole in the plastic case since the box tilts forwards. I plan on relocating the whole box later on when I get a mount plate made for it as well as the fuse bus, and I'll put them up high in the engine bay.

    [​IMG]

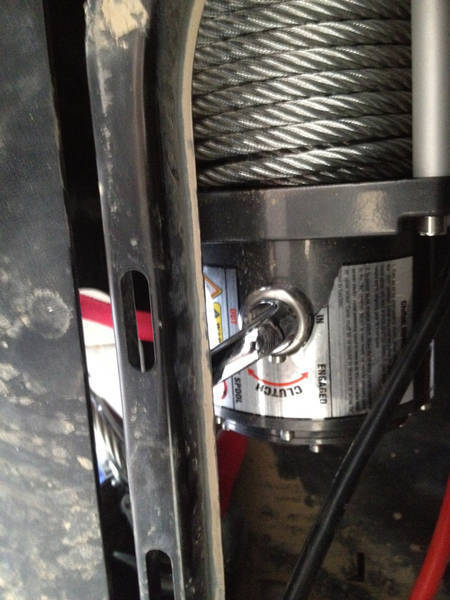

    This cross beam was just barely interfering with the clutch handle once I put the bumper back on:

    [​IMG]

    So I just removed it. Didn't seem structural and was easily removable with 10mm nuts. Someone please step in if this was a bad maneuver:

    [​IMG]

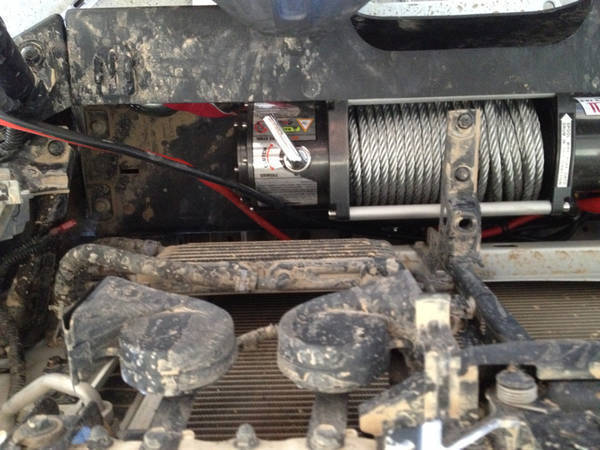

    Made the right connections, spooled out / re-spooled the cable and I'm good to go. I'll be much happier with the whole setup once the dual battery system is in place:

    [​IMG]

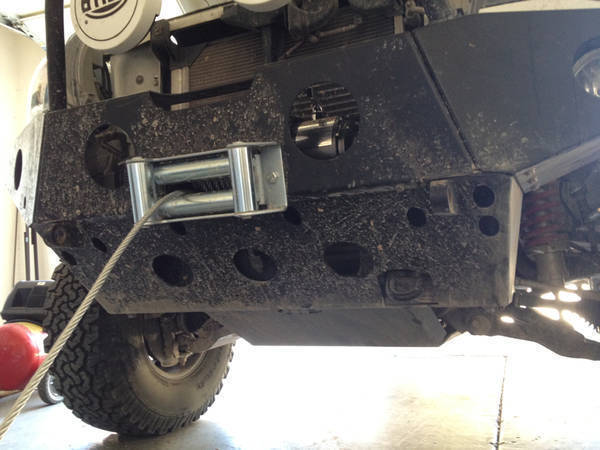

    Also have to crank up the coilovers to compensate, it dropped about 1/2 inch on each side:

    [​IMG]

  13. hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,862
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    looks good i have a trip to rausch creek planned this coming weekend ill post up some of my pics of upgrades no one knows about yet :) ...hit up colinb17 if you have ideas about bed and/or roof rack ideas he will build you anything at a very fair price and hes a great guy to deal with....

  14. modsquad

    modsquad [OP] TurtleGuy

    Joined:
    Dec 14, 2011
    Member:
    #68789
    Messages:
    221
    Gender:
    Male
    First Name:
    Andrew
    Davis, CA
    Vehicle:
    '10 Taco TRD OR 4x4
    Thanks for the compliments!

  15. Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    569
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    Thats a nice truck!! The ipad mount looks really cool!!

  16. modsquad

    modsquad [OP] TurtleGuy

    Joined:
    Dec 14, 2011
    Member:
    #68789
    Messages:
    221
    Gender:
    Male
    First Name:
    Andrew
    Davis, CA
    Vehicle:
    '10 Taco TRD OR 4x4
    I surely hope so, I've been looking forward to a rear end upgrade for a while now. I cant wait to cut into that bedside!

  17. DWreck

    DWreck Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,115
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    I will gladly let you cut it! :D Greg don't see too well so I cut his.

  18. Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,814
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Looking great!

  19. JRSYJAY

    JRSYJAY Well-Known Member

    Joined:
    Aug 31, 2011
    Member:
    #62684
    Messages:
    177
    Gender:
    Male
    First Name:
    u need to ask?
    Las Vegas
    Vehicle:
    '11 Sprt 4x4 v6
    leer 700, OME 885 w/dakar springs, full ato skids, sliders, all pro front bumper.
    u forgot the custom fog light mounts!!!! looks good man!!! just installed my bumper this past weekend..thanks again for the link.

  20. allian04

    allian04 Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29898
    Messages:
    83
    Gender:
    Male
    breckenridge, co
    Vehicle:
    03 trd tacoma 4x4
    arb bull bar, B.A.M.F. rock sliders w/kickout, factory steelies 255/85r16 km2, 3" ome 881 coils, dakars 5150s, deck plate, snugtop, viair on-board air,
    i have the viair on-board also and am wondering where you are going to mount it and how, right now i have it in my bed but i want to get my bed space back so i am thinking in my spare tire location. im just trying to get ideas
