Morimoto Mini Projector Retro. Alignment Issues

Discussion in 'Lighting' started by jeverich, Apr 30, 2011.

  1. Apr 30, 2011 at 7:08 PM
    #1
    jeverich

    jeverich [OP] Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,064
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna
    Did the Morimoto GB from TRS. Super happy with the quality of the products, and the amazing difference that it has made over the stock lighting.

    Having some alignment issues with the Driver's side cutoff pattern...

    Installation was:

    Prjector w/white soft washer
    Backside: Alignment Ring, Black rubber washer, nut, then bulb - w/split washer and black rubber washer, then bulb nut. I'm thinking that the first rubber washer may have affected the rotational alignment.

    Already re-seated the bulb, which did nothing.

    It seems as though the rotational alignment on the projector is actually off a few degrees. Pass. side seems level. Like others have said, the rotational alignment ring on the projectors does have some slop in it...perhaps causing this problem.

    It's frustrating how the headlights have to be taken off the truck for any adjustments have to be made. Will attack them again tomorrow.

    Any suggestions? Anyone else have this issue?

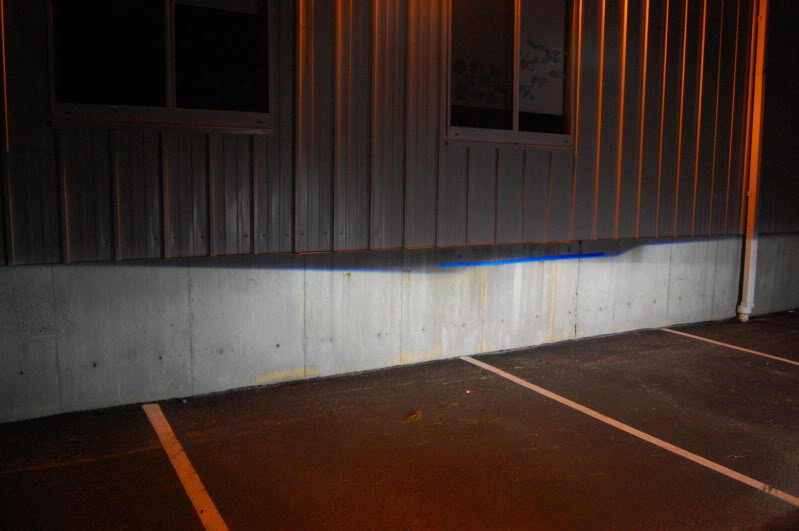

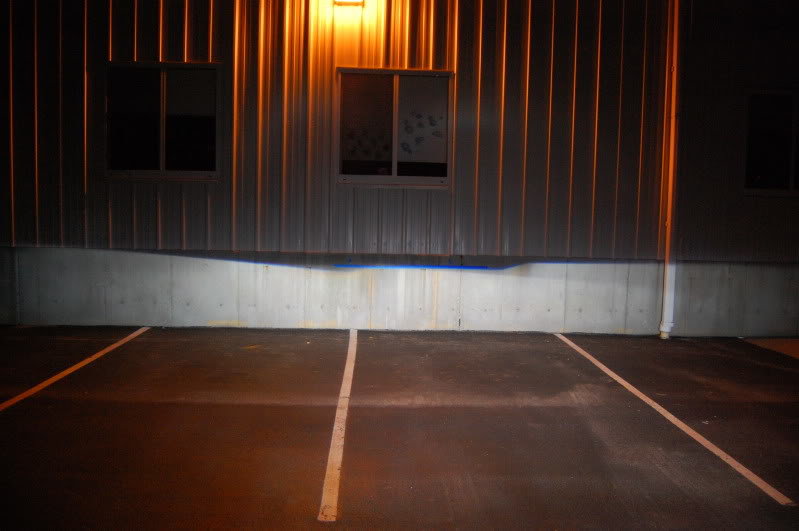

    [​IMG][​IMG]And that is a piece of painter's tape on the wall. To help with alignment.

  2. Apr 30, 2011 at 7:53 PM
    #2
    ppham444

    ppham444 Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34175
    Messages:
    1,481
    Gender:
    Male
    First Name:
    Phuong
    Portland, OR
    Vehicle:
    2010 Double cab 4X4 TRD Sport with JBL
    Redline Tuning hood struts, tinted windows, FX-R HID projector retrofit headlights, AMP power steps
    Yeah, it looks like your driver's side projector needs to be rotated counter-clockwise a few degrees.

  3. Apr 30, 2011 at 8:36 PM
    #3
    Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,174
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
    I think it's the bulb. Are those the 6000k?

  4. Apr 30, 2011 at 8:54 PM
    #4
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,422
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
    It is probably the projector. Mine does the same thing. Then I looked at some of my in progress pics and noticed it then....

  5. Apr 30, 2011 at 9:03 PM
    #5
    blawrie

    blawrie Well-Known Member

    Joined:
    Mar 14, 2010
    Member:
    #33222
    Messages:
    83
    Gender:
    Male
    Hey man yeah the drivers side projector is off rotation. I installed the morimoto projectors about 3 weeks ago and both my projectors are not level either. But I never noticed until everything was back on my truck. Its kinda frustrating when TRS says on their site that the H4 adapter gets you instant horizontal alignment which is obviously not the case for every projector that leaves their shop. The adapter is a great idea but TRS should have higher quality control to ensure every adapter that gets sent out will in fact get you proper horizontal alignment. One day Im gonna have to try to tweek mine because it bugs me that they are not level either.

  6. Apr 30, 2011 at 9:15 PM
    #6
    blawrie

    blawrie Well-Known Member

    Joined:
    Mar 14, 2010
    Member:
    #33222
    Messages:
    83
    Gender:
    Male
    No I havent. I wasnt really looking forward to having to rip the lights off the truck and opening them up again in order to change the adapter. There is a slight bit of play with the adapter from what I can remember so I may loosen the nut on the back and see if i can turn them a bit.

  7. May 1, 2011 at 1:29 AM
    #7
    outxider

    outxider Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36858
    Messages:
    215
    Gender:
    Male
    First Name:
    Sang
    Bay Area
    Vehicle:
    06 DC 4x4
    TRS Morimoto D2S Retrofit, 2010 OEM LED Tails, Satoshi Grille, Hella 500s w FJ OEM switch mounted behind grille, OEM roof rack, OEM tailgate handle w aftermarket backup camera, Pioneer Avic Z130BT NAV, Kicker componets/2-ways, custom built box + 10in Kicker CompRT & Kicker 5ch amp. Ventshades, FJ TRD center caps, Illuminated 4x4 switch, K&N air filter, Viper 2way Remote start security system, flyzeye v2 console light, KBvoodoo bed bars.
    I just did the GB morimoto retro fit and both of mine projects are pictured like your driver side. Off slightly by a couple degrees. it's not horrible but does bug the hell out of me. You don't have to open your headlamps to do said rotation adjustment. Loosen the first nut after the h4 adapter and adjust accordingly. Other then the rotational adjustment, the light output is awesome and so the cut off. Well worth the investment for better night lighting.

  8. May 1, 2011 at 6:23 AM
    #8
    jeverich

    jeverich [OP] Well-Known Member

    Joined:
    Mar 25, 2008
    Member:
    #5517
    Messages:
    2,064
    Gender:
    Male
    First Name:
    Jake
    PNW/Kodiak
    Vehicle:
    07 2.7 4x4
    OME 886/Old Man Doug Suspension Lift, ARB Bumper, Bruteforce High Clearance w/Swing Out, De-badge, Block Heater, Homemade IFS Skid, 7" Kragens, Blue Seas Fuse Block, BlitzPro Fogs, 12k BadLands Winch, BAMF Sliders, ARB Locker, 4.88s Yaesu FT-1900R, Larsen 150B NMO Mount Antenna
    Yeah, 6000k Morimoto 55W. When these go I'll be changing to 5000k,,,unless anyone wants to trade, They are almost "too blue" for me. Who knows, maybe they'll grow on me,

    Seems like the projector isn't aligned - glad I'm not alone. It'd be crazy to expect a non - factory lighting setup retro to just drop right in and be perfect right away. At least the headlights do not have to get baked to remedy the issue. It's just a pain how the lights have to come off the truck, bulbs off yadda yadda yadda.

    Not really TRS's fault, you have to consider that they are getting these things from some supplier out of China. For them to test every single unit that leaves the building would be impossible.

    Overall, super impressed - the difference is amazing. Haven't gotten flashed at all.

    Will update w/pics.

  9. May 1, 2011 at 7:40 AM
    #9
    blawrie

    blawrie Well-Known Member

    Joined:
    Mar 14, 2010
    Member:
    #33222
    Messages:
    83
    Gender:
    Male
    Yeah man post some more pics if you do get it aligned. The lights are back on my truck but im thinking if I take out the battery I should have room to loosen the nut a bit and try to rotate them. Mine are only off a couple degrees as well so when I get a chance im gonna try to straighten my drivers side projector as well. I definitely dont want to take the lights off my truck again though.

  10. May 1, 2011 at 10:26 AM
    #10
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,126
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    [​IMG]


    mines the same

  11. May 1, 2011 at 2:22 PM
    #11
    Muy Grande

    Muy Grande Well-Known Member

    Joined:
    Feb 26, 2009
    Member:
    #14111
    Messages:
    1,348
    Gender:
    Male
    First Name:
    John
    Dallas, TX; RGV, TX
    Vehicle:
    06 DC TRD
    Suspension: DHoes up front, Dakar and OME out back. Audio: Alpine w205 w/ pair of Alpine Amps, Image Dynamic 6.5 Component Speakers up front and Image Dynamic Subs in the Back. Armor: ARB Bull Bar, Rocktek rear bumper and custom rock sliders. Other: Rigid Industries LED Light Bar, Platinum DieHard Battery, BlueSea Fuse Block, rear lights, bed lights, leds inside.
    ^2.....just need some more rotation. Good job. :D

  12. May 2, 2011 at 6:39 AM
    #12
    Chris(NJ)

    Chris(NJ) Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Mine is like that too. Its not as bad, but it could still use some adjusting. I'll get around to messing with it one day. I still need to adjust them up just a little more as well, so one night when I'm bored, I'll probably do some tinkering.

  13. Aug 25, 2014 at 11:16 PM
    #13
    FawkQ

    FawkQ Well-Known Member

    Joined:
    Oct 4, 2009
    Member:
    #23797
    Messages:
    120
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2013 TRD Sport DCSB V6 4.0 6M "The Sequel"
    2013 TRD Sport DCSB V6 4.0 6M "The Sequel" = TRD Trail Team 16" Rims wrapped in Duratracs, BHLM, Durped Badges, N-Fab Wheel to Wheel Steps Sprayed w/boxliner, ProEFX Heated Tow Mirrors, BakFlip2 HD, AFE Pro Dry S, Bi-Xenon Morimoto Mini Stage III Kit D2S, Weathertech Visors, Custom Perforated Leather, Tekonsha P3, Ultragauge, Rearview Mirror Toggle Switch, Murdered Out. 2008 TRD Sport DCSB V6 4.0 6M "The Darkness" = BHLM, BTLM, Heated Seats, Highlander Style Heated Mirrors, 4Runner Style Bluetooth Steering Wheel, Viper 2-Way Remote Start + Alarm, 7" Pioneer Nav, Murdered Out.
    waking up an old thread

    glad I'm not alone here... anyone have a quick fix for the D2S style? do I have to open the lights back up?

  14. Aug 26, 2014 at 12:44 AM
    #14
    toendanger

    toendanger Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    1,220
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    01 ext cab prerunner
    Well, if you used the adapter plate, then it's gonna be pretty much non adjustable. I had aftermarket headlights and the notches for the H4 bulb were both rotated a bit making them really angled on both sides. only option was to trim down the little notch in the adapter plate that slides in over the projector shaft threads down flat. Letting the projector freely rotate. Was a lot harder to aim properly but it worked. I had to hold the projector by hand as I tightened it down as there was nothing to keep it from rotating as I tightened it. So, there isn't an easy fix. Yer gonna have to split the headlights..
