Morimoto Mini Stage III Kit (H1) step by step with pics!

Discussion in 'Lighting' started by stattonmw, Feb 28, 2012.

  1. Jul 4, 2012 at 11:26 AM
    #41
    BG KY Jets Fan

    BG KY Jets Fan Dagger Taco *****

    Joined:
    Oct 20, 2011
    Member:
    #65561
    Messages:
    161
    Gender:
    Male
    First Name:
    Joe
    Bowling Green Ky
    Vehicle:
    2011 TRD Sport 2WD DC
    Roof Rack, TRD skid plate, TRD cat back exhaust, Pioneer AVIC-930BT, subwoofers, Avid bar, Westin side steps, FLYZEYE strip, and Blacked out Badges. More to come....
    Whats the best way to align the headlights? The plug and play ones have that nut that holds the projector in. Does that basically line it up after tightening it down? I really want to do this mod and I have an extra set of lights, but I need more confidence to go with it!

  2. Jul 4, 2012 at 3:18 PM
    #42
    allmotorrex

    allmotorrex Grove St. Motorsports

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    11,474
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    4.88s w/h rear Powertrax locker, Fox 2.5 Ext. RR COs, Camburg 1.25” ucas, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, 315/75/16 BFG KM2, AP 1.5" spacers, 16x8 Pro Comp wheels, BFF front hybrid, GSM rear HC, Relentless Fab ifs skid, BAMF lca skids, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, K&N 63 CAI, LCE headers, FM Super 44 w/h turn down, URD MAF cali., LCE Dual Comp clutch, URD ss, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, ARB compressor, Grillcraft, FXR TRS, T1 eyelids, 500 hellas w/h 6k hid conv., custom ADV Monster model 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers, Weather Tech
    its a halogen bulb in the shape of a ring and u either mount it in front of the shroud or behind the shroud, depending on which shroud choose, and wire it in and there is your angel eye. Very simple to do

  3. Jul 4, 2012 at 6:23 PM
    #43
    MYT4CO

    MYT4CO Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68587
    Messages:
    1,179
    Gender:
    Male
    First Name:
    mark
    TX
    Vehicle:
    MYT4CO
    Just cut off all the ifs stuff and stock rear axle.....going big......... wet okole seat covers, red line hood struts, 4xi sliders, bruteforce rear w/ tire carrier, bruteforce front bumper with warn m8000s, bestop soft top, alpine HU and JL speakers, 2nd battery and isolator, arb air compressor, tank and tire fill, FXR projector retrofit by AMBIGUOUS, overhead console by KNINE
    not plug and play as i found out.
    yes they do plug in without cutting your lights up, but the alignment ring is not right. You will need to do some cutting on the little tabs that the alignment ring sits next to. once you get the projectors in dont seal them up, its hard to do but resist. You need to install the ballasts and all the wiring first and then put the lights in the truck without the lenses on and fire em up and check the horizontal alignment. it will most likely be off about 20 degrees cocked clockwise.

  4. Aug 14, 2012 at 11:22 PM
    #44
    ronjon04

    ronjon04 Member

    Joined:
    Dec 1, 2010
    Member:
    #47008
    Messages:
    19
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    09 silver DC SB TRD Off Road 4x4
    -Fog Lights on anytime -KN Filter -Satoshi Grill -Black out Projection headlghts (Morimoto) -HID fogs -Bilstein shocks with 2" lift and add-a-leaf
    I just finished putting my mini D2S projectors together. Was wondering if the back where the projector sits in the housing gets recovered? The original bulb had that rubber boot around it and was concerned that it being open like that in the back might get moisture inside. Anyone do anything about this? Thanks! Will probably be posting my retrofit here once I get the final pics ;)

  5. Aug 14, 2012 at 11:52 PM
    #45
    wrxRome

    wrxRome Houston's Swamp Rat

    Joined:
    Aug 25, 2011
    Member:
    #62338
    Messages:
    5,914
    Gender:
    Male
    First Name:
    Brandon
    Covington, LA/Friendswood,TX
    Vehicle:
    06 SWB 4x4 trd off road
    i just zip tied it shut

  6. Aug 15, 2012 at 12:00 AM
    #46
    CayucosTacoma

    CayucosTacoma Just think outside the Yota

    Joined:
    Mar 9, 2012
    Member:
    #74580
    Messages:
    4,708
    Gender:
    Male
    First Name:
    Chris
    San Luis Obispo/Santa Barbara CA
    Vehicle:
    1998 Tacoma, 4x4 5 Speed, V6
    Specs in the Build Thread
    So i read somewhere that people used RTV sealent to connect the shrouds to the housing. is this ok? or should i use something like jbl weld?

  7. Aug 15, 2012 at 12:02 AM
    #47
    wrxRome

    wrxRome Houston's Swamp Rat

    Joined:
    Aug 25, 2011
    Member:
    #62338
    Messages:
    5,914
    Gender:
    Male
    First Name:
    Brandon
    Covington, LA/Friendswood,TX
    Vehicle:
    06 SWB 4x4 trd off road
    they have 4 screw holes to just screw into.

  8. Aug 15, 2012 at 12:06 AM
    #48
    CayucosTacoma

    CayucosTacoma Just think outside the Yota

    Joined:
    Mar 9, 2012
    Member:
    #74580
    Messages:
    4,708
    Gender:
    Male
    First Name:
    Chris
    San Luis Obispo/Santa Barbara CA
    Vehicle:
    1998 Tacoma, 4x4 5 Speed, V6
    Specs in the Build Thread
    shrouds do?

  9. Aug 15, 2012 at 12:44 AM
    #49
    t4daddy

    t4daddy Well-Known Member

    Joined:
    Jun 16, 2010
    Member:
    #39041
    Messages:
    4,951
    Gender:
    Male
    North Alabama
    Vehicle:
    2008 PreRunner Double Cab
    I didn't reuse the rubber boots, and so far (two years) no problems. That said, I'm in a Prerunner, so light off-road and no deep water, so YMMV.

  10. Aug 15, 2012 at 7:05 AM
    #50
    Kyouto42

    Kyouto42 Iron Beard

    Joined:
    Aug 18, 2008
    Member:
    #8614
    Messages:
    9,164
    Gender:
    Male
    First Name:
    Jake
    Ahwatukee, AZ
    Vehicle:
    BSP '10 4x4 TRD Off-Road DC
    See build thread in signature
    I cut mine up so they fit and put them on just to be sure, and with high humidity I haven't had issues either... only took about 1min per light so it seemed like cheap insurance heh.


    I used the black silicon you can get from lowes (high temp stuff). I beat the hell out of my truck and do some fast desert stuff and hard hitting bump stops... they haven't moved at all. If you use the cheap RTV stuff from Autozone or what not... they fall out constantly.

  11. Aug 15, 2012 at 10:29 AM
    #51
    Rakso

    Rakso CeRaTi

    Joined:
    Feb 26, 2009
    Member:
    #14105
    Messages:
    4,088
    Gender:
    Male
    First Name:
    OsKaR
    California
    Vehicle:
    09 PreRunner SR5
    Icon Ext Travel Coils, Built right UCAs, nFab light bar, Fox 2.0 piggy backs, Demello Sliders, Weather Tech Liners, Wet Okole Seat Covers, AFE CAI, Magnaflow Mufler, 6000k HIDs Headlights, 3000K HIDs Fog Lights, Fogs Anytime Mod. Cluster LED Swap, HU LED Swap.
  12. Aug 15, 2012 at 11:22 AM
    #52
    ronjon04

    ronjon04 Member

    Joined:
    Dec 1, 2010
    Member:
    #47008
    Messages:
    19
    Gender:
    Male
    First Name:
    Ryan
    Orlando
    Vehicle:
    09 silver DC SB TRD Off Road 4x4
    -Fog Lights on anytime -KN Filter -Satoshi Grill -Black out Projection headlghts (Morimoto) -HID fogs -Bilstein shocks with 2" lift and add-a-leaf
    was thinking about doing this. Thought it was kinda weird that the boot was attached to the original light.... never seen that before.

  13. Sep 5, 2012 at 6:01 AM
    #53
    REDTRD

    REDTRD Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,236
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    subbed for reference!

  14. Sep 8, 2012 at 9:43 PM
    #54
    Socalrunner

    Socalrunner Toyota Its Like A Jeep Thing Only Better

    Joined:
    Oct 25, 2010
    Member:
    #45226
    Messages:
    1,980
    Gender:
    Male
    First Name:
    Chris
    Glendora
    Vehicle:
    2010 TRD Offroad 4x4 DCSB
    Icon Coilovers
    Hey man, Im curious to know what part of the shroud you cut down to let them sit so low.

  15. Sep 9, 2012 at 6:18 PM
    #55
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
  16. Sep 9, 2012 at 7:07 PM
    #56
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    What looks better for painting the bezel:
    Gloss black
    or a Satin black

    I have done Gloss black on my last 2 and am somewhat happy with the outcome, but was wondering if anyone has seen both in person and what they thought looked better?

  17. Sep 9, 2012 at 7:20 PM
    #57
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    The Depo black housings are satin, and that's what I used for my reflector bowls.
    After baking, the satin glossed up nicely on the bowls. I'd be worried that a gloss would be too much.

    Remember, you'll be looking at them through the clear lens, which will clean up the appearance. Gloss paint will add double reflections inside and might look odd.

  18. Sep 9, 2012 at 7:24 PM
    #58
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    Thats what i was thinking, my gloss black bezels in the light i have now seem really reflective. Does the satin have a more black look? More so than a gloss? I am thinking of doing a satin now. Thank you very much rich!

  19. Sep 9, 2012 at 7:36 PM
    #59
    allmotorrex

    allmotorrex Grove St. Motorsports

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    11,474
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    4.88s w/h rear Powertrax locker, Fox 2.5 Ext. RR COs, Camburg 1.25” ucas, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, 315/75/16 BFG KM2, AP 1.5" spacers, 16x8 Pro Comp wheels, BFF front hybrid, GSM rear HC, Relentless Fab ifs skid, BAMF lca skids, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, K&N 63 CAI, LCE headers, FM Super 44 w/h turn down, URD MAF cali., LCE Dual Comp clutch, URD ss, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, ARB compressor, Grillcraft, FXR TRS, T1 eyelids, 500 hellas w/h 6k hid conv., custom ADV Monster model 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers, Weather Tech

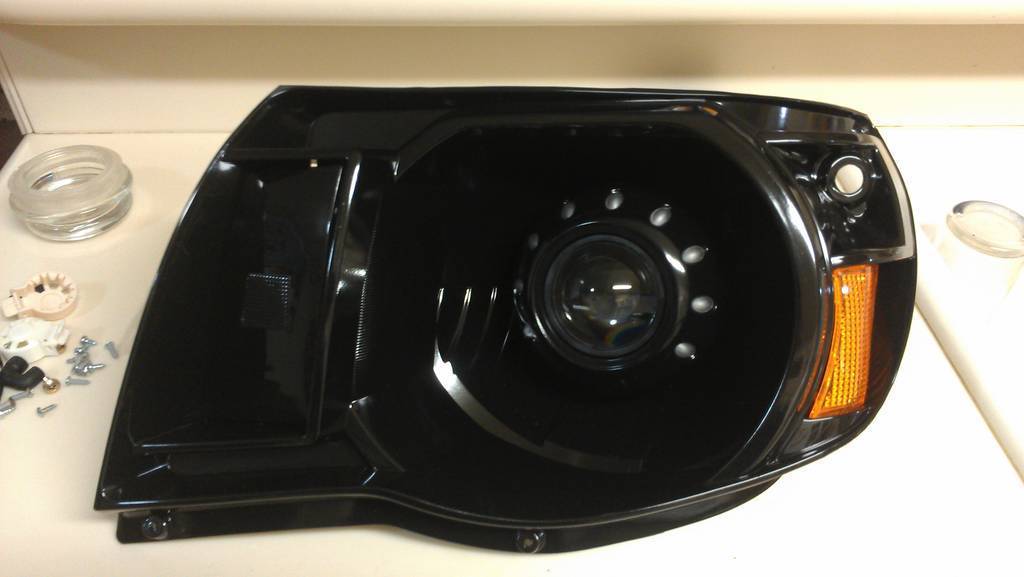

    This is satin black . . . .

    [​IMG]

    [​IMG]

  20. Sep 9, 2012 at 8:05 PM
    #60
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    Thanks! Def thinking satin!
